1. Class 2 Cryptography Refresher CIS 755: Advanced Computer Security Spring 2015 Eugene Vasserman http://www.cis.ksu.edu/~eyv/CIS755_S15/

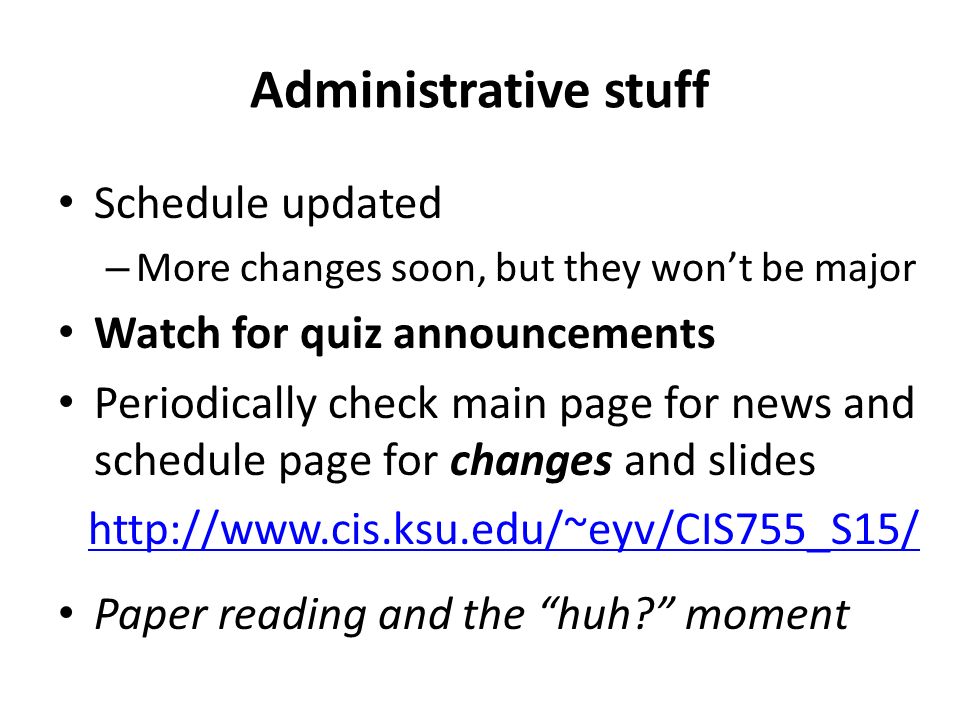

2. Administrative stuff Schedule updated – More changes soon, but they won’t be major Watch for quiz announcements Periodically check main page for news and schedule page for changes and slides http://www.cis.ksu.edu/~eyv/CIS755_S15/ Paper reading and the “huh?” moment

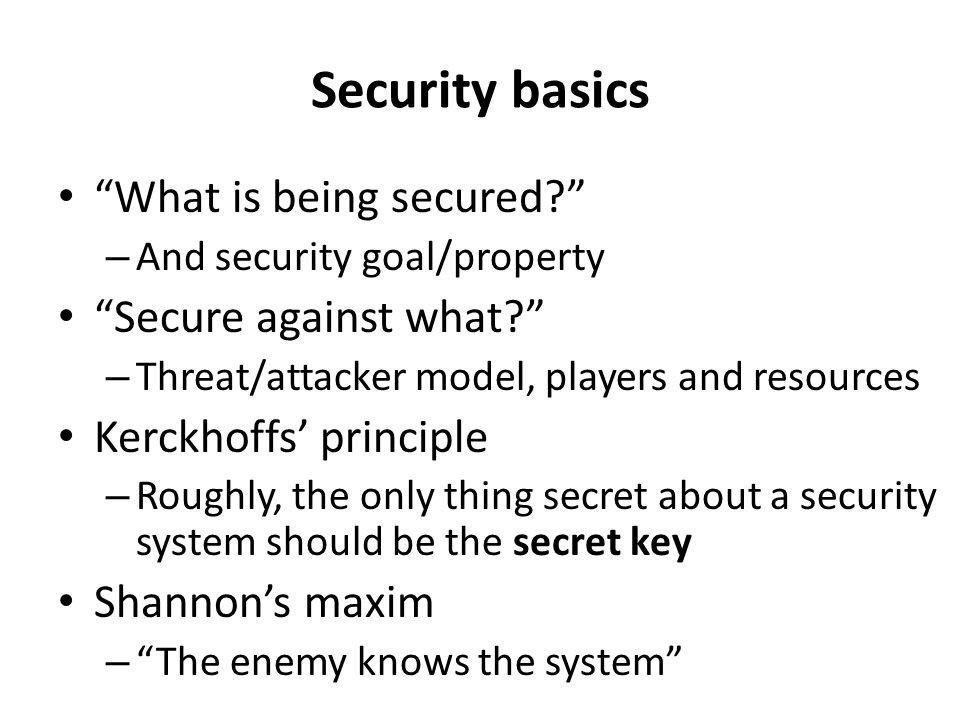

3. Security basics “What is being secured?” – And security goal/property “Secure against what?” – Threat/attacker model, players and resources Kerckhoffs’ principle – Roughly, the only thing secret about a security system should be the secret key Shannon’s maxim – “The enemy knows the system”

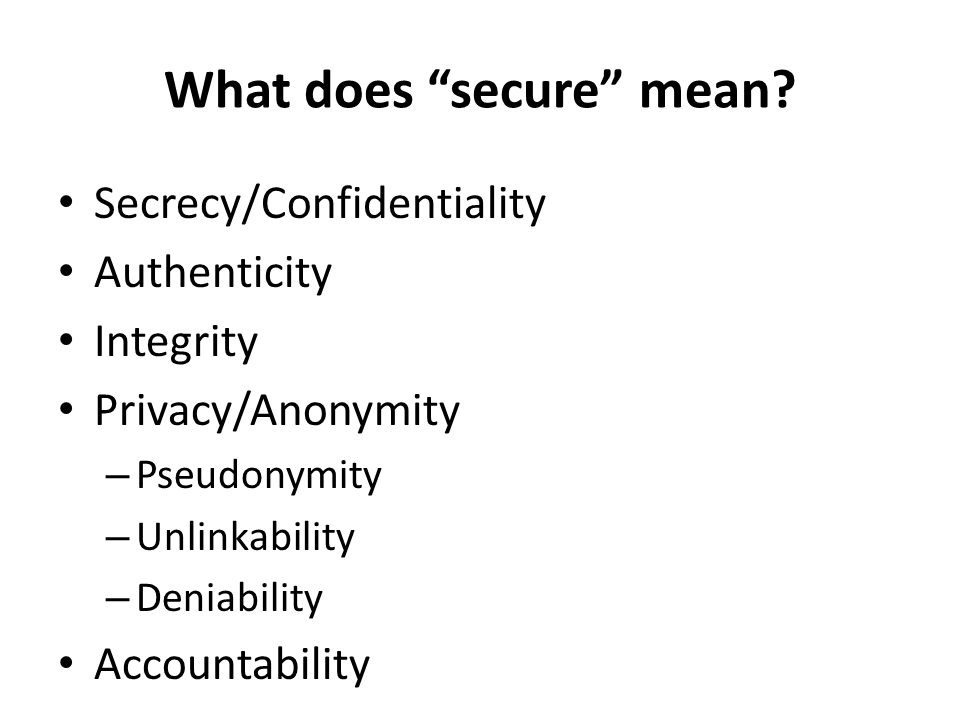

4. What does “secure” mean? Secrecy/Confidentiality Authenticity Integrity Privacy/Anonymity – Pseudonymity – Unlinkability – Deniability Accountability

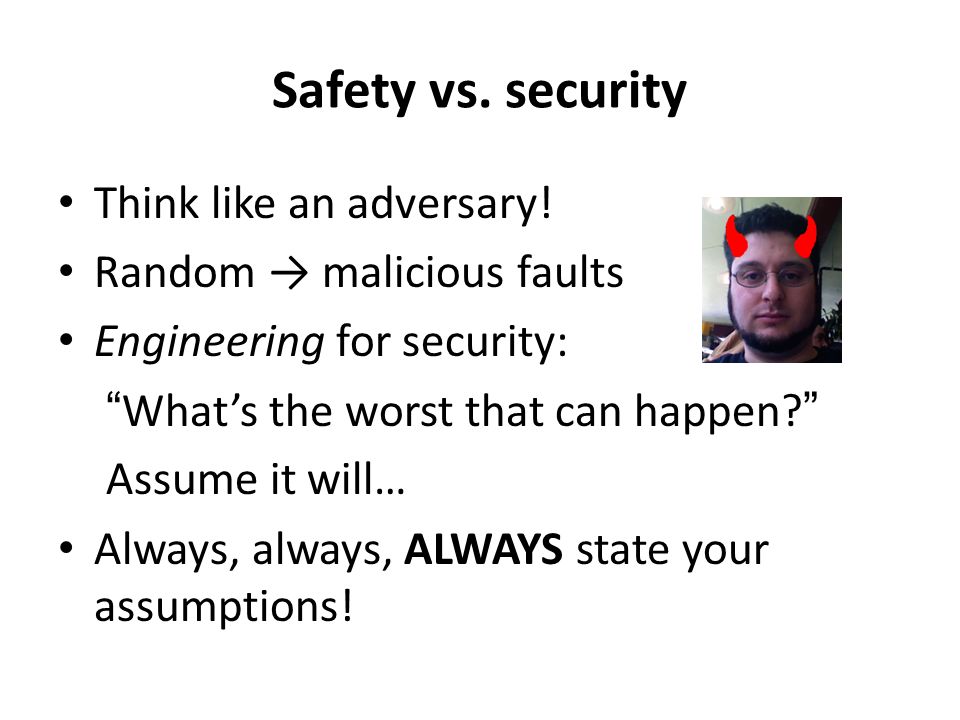

5. Safety vs. security Think like an adversary! Random → malicious faults Engineering for security: “What’s the worst that can happen?” Assume it will… Always, always, ALWAYS state your assumptions!

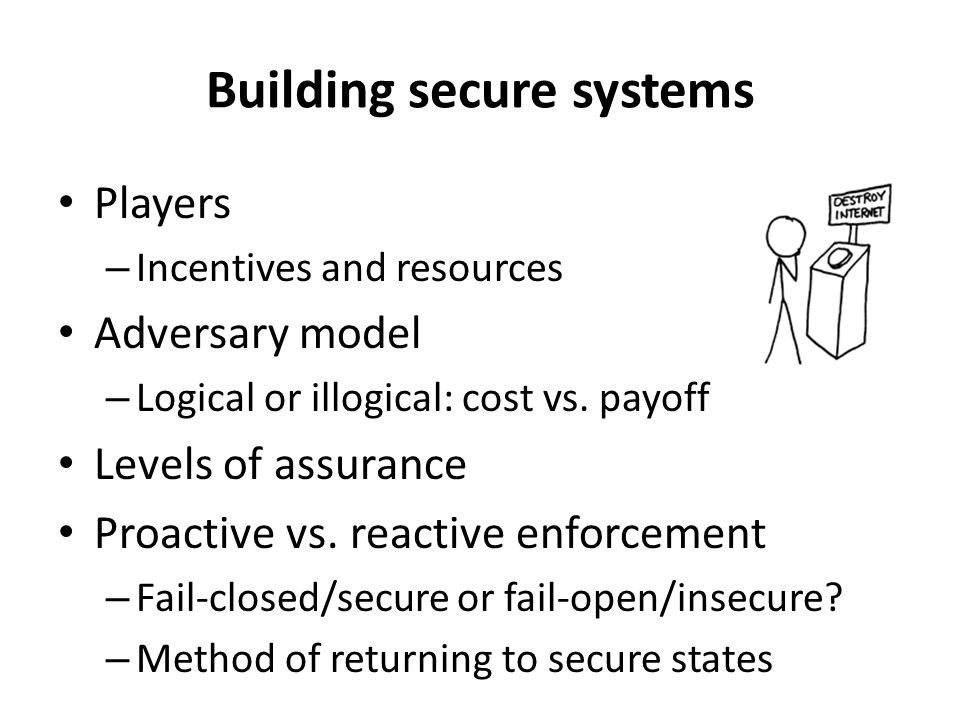

6. Building secure systems Players – Incentives and resources Adversary model – Logical or illogical: cost vs. payoff Levels of assurance Proactive vs. reactive enforcement – Fail-closed/secure or fail-open/insecure? – Method of returning to secure states

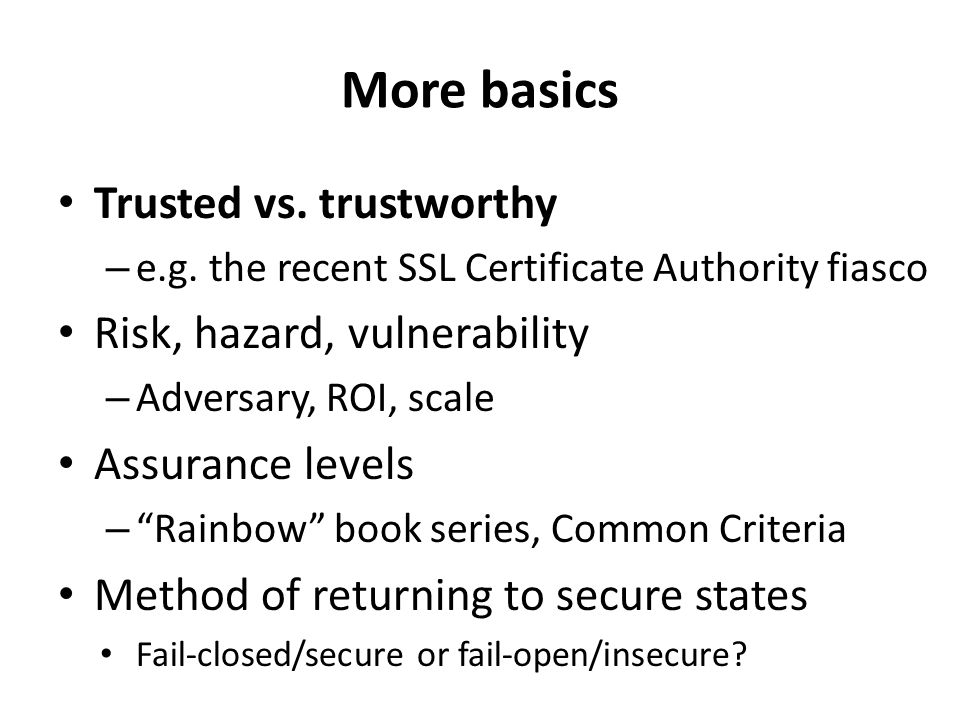

7. More basics Trusted vs. trustworthy – e.g. the recent SSL Certificate Authority fiasco Risk, hazard, vulnerability – Adversary, ROI, scale Assurance levels – “Rainbow” book series, Common Criteria Method of returning to secure states Fail-closed/secure or fail-open/insecure?

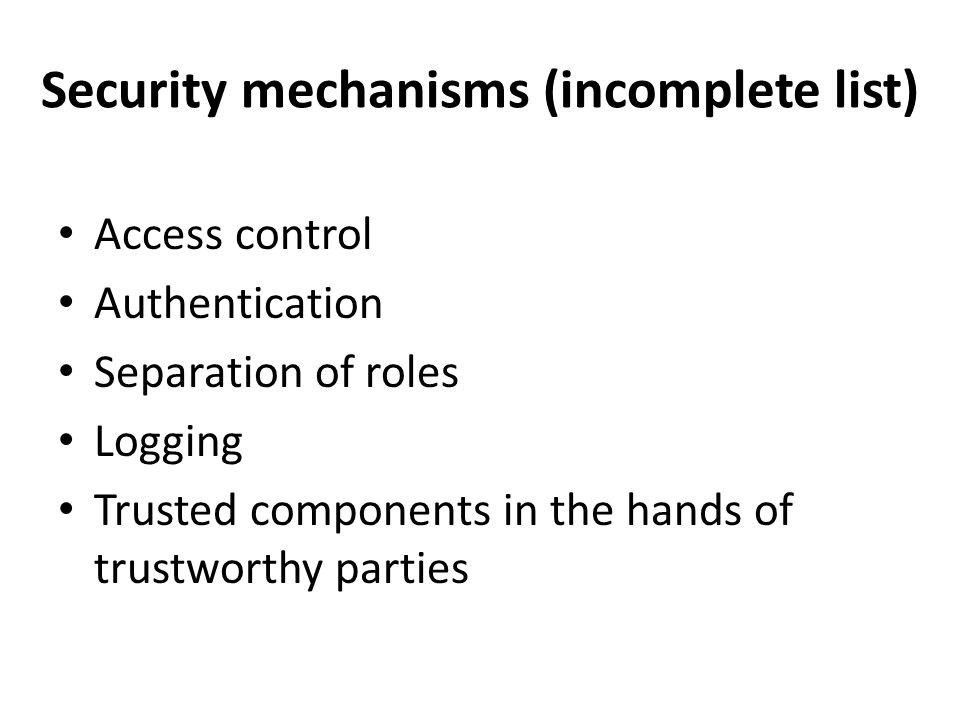

8. Security mechanisms (incomplete list) Access control Authentication Separation of roles Logging Trusted components in the hands of trustworthy parties

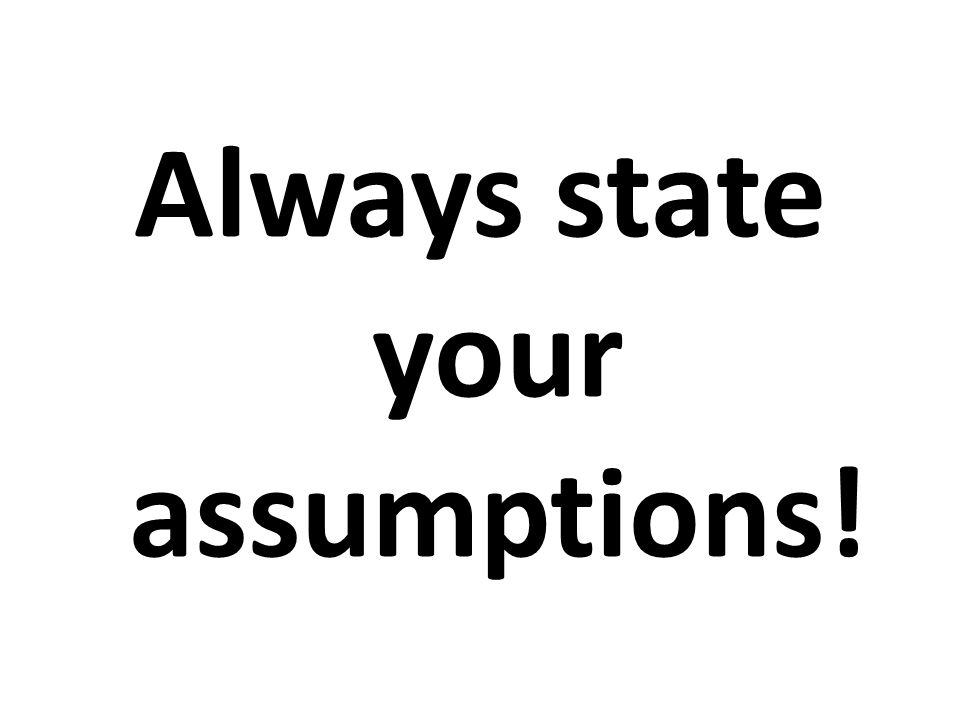

9. Always state your assumptions!

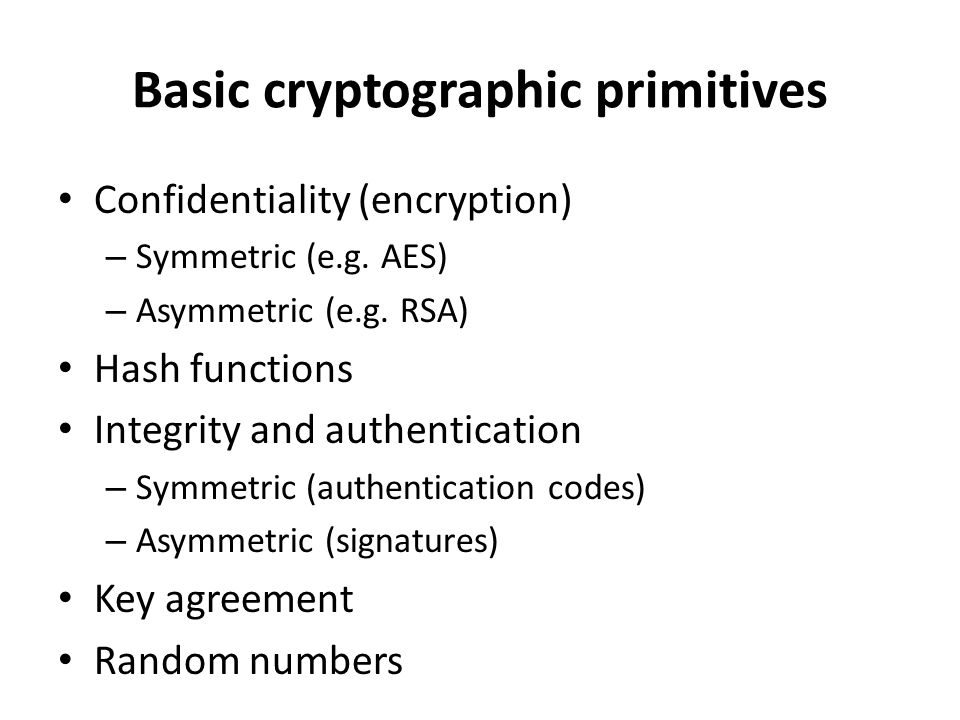

10. Basic cryptographic primitives Confidentiality (encryption) – Symmetric (e.g. AES) – Asymmetric (e.g. RSA) Hash functions Integrity and authentication – Symmetric (authentication codes) – Asymmetric (signatures) Key agreement Random numbers

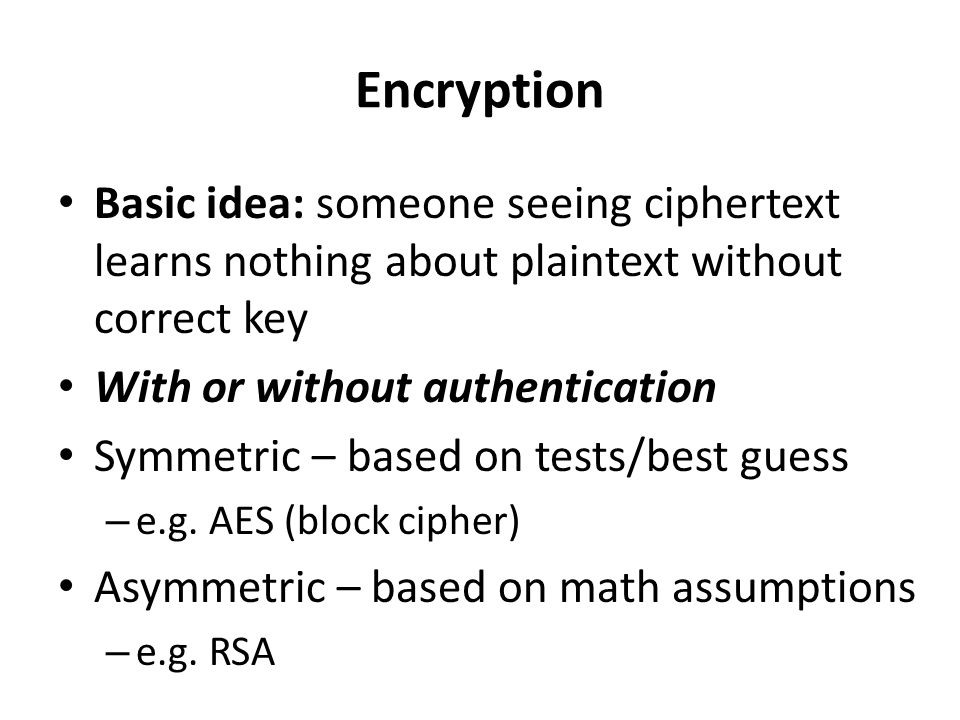

11. Encryption Basic idea: someone seeing ciphertext learns nothing about plaintext without correct key With or without authentication Symmetric – based on tests/best guess – e.g. AES (block cipher) Asymmetric – based on math assumptions – e.g. RSA

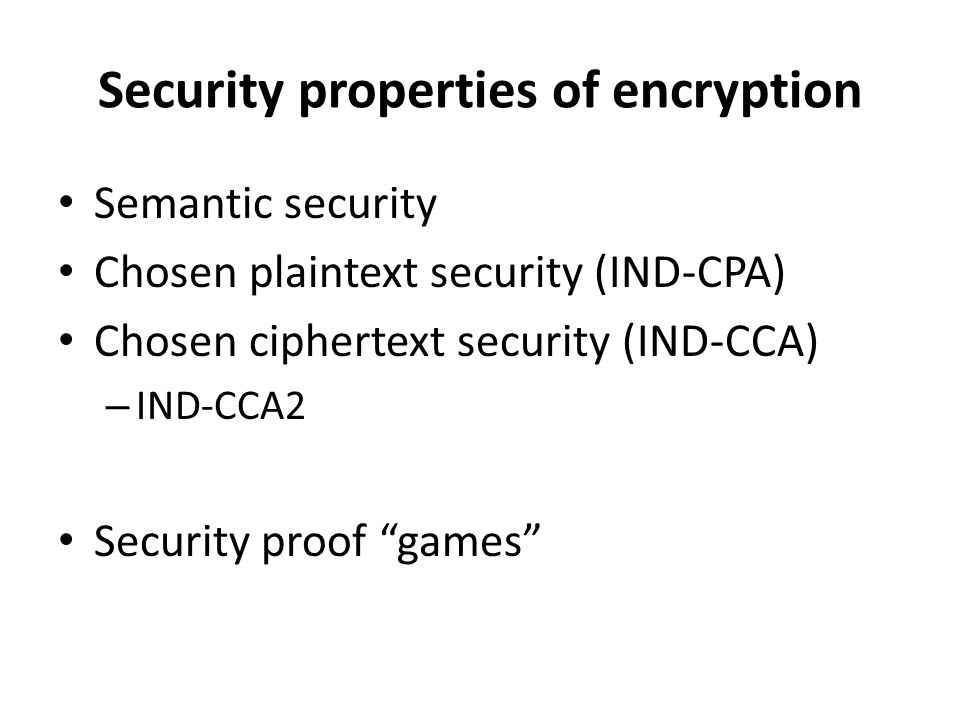

12. Security properties of encryption Semantic security Chosen plaintext security (IND-CPA) Chosen ciphertext security (IND-CCA) – IND-CCA2 Security proof “games”

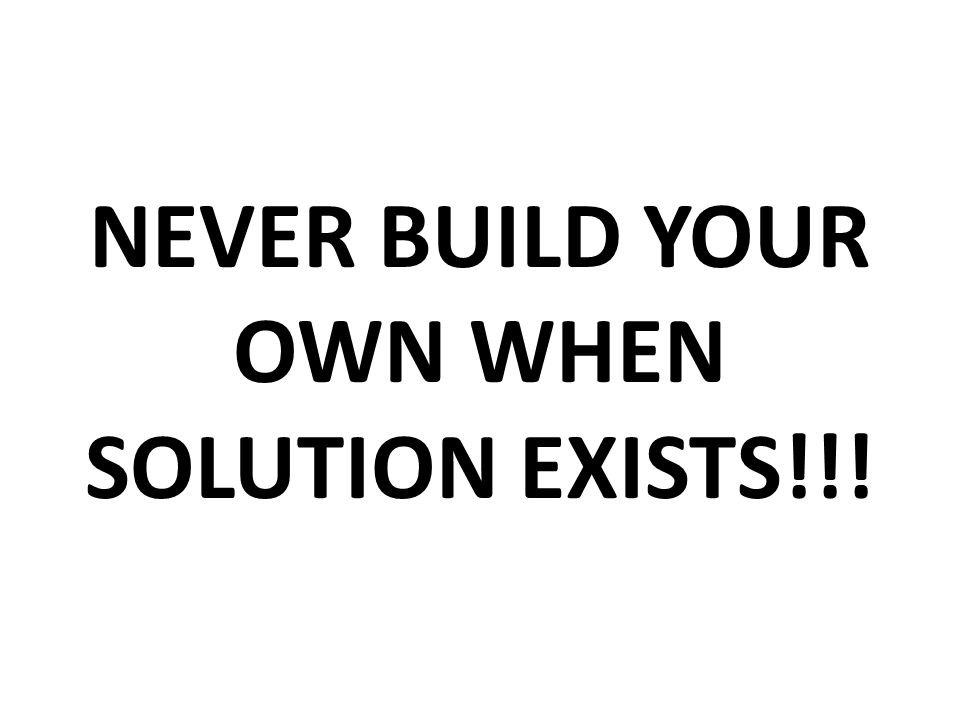

13. NEVER BUILD YOUR OWN WHEN SOLUTION EXISTS!!!

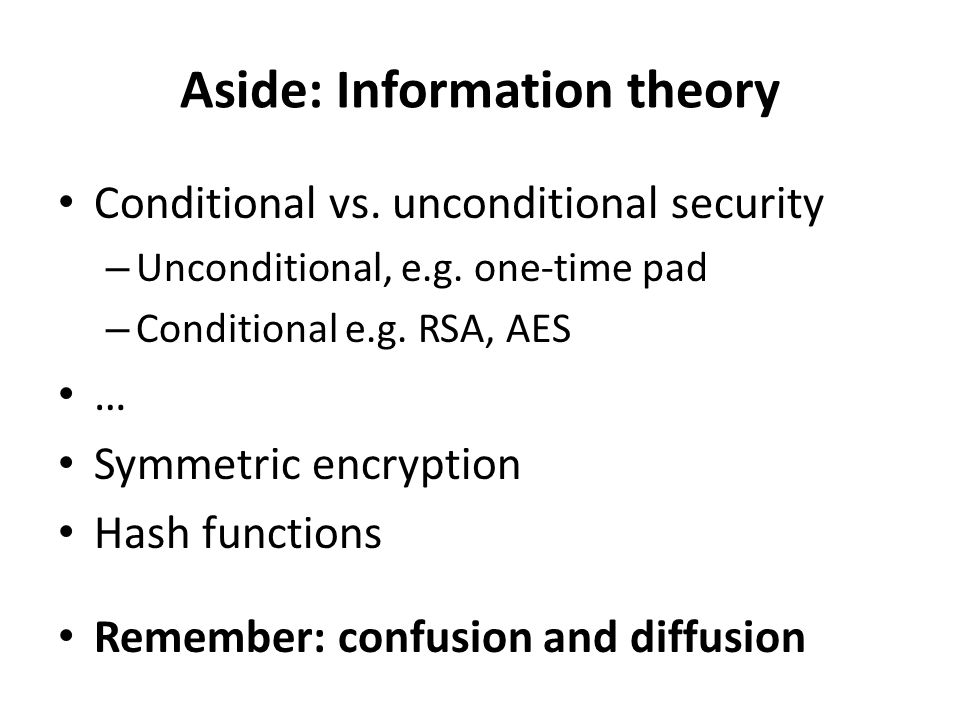

14. Aside: Information theory Conditional vs. unconditional security – Unconditional, e.g. one-time pad – Conditional e.g. RSA, AES … Symmetric encryption Hash functions Remember: confusion and diffusion

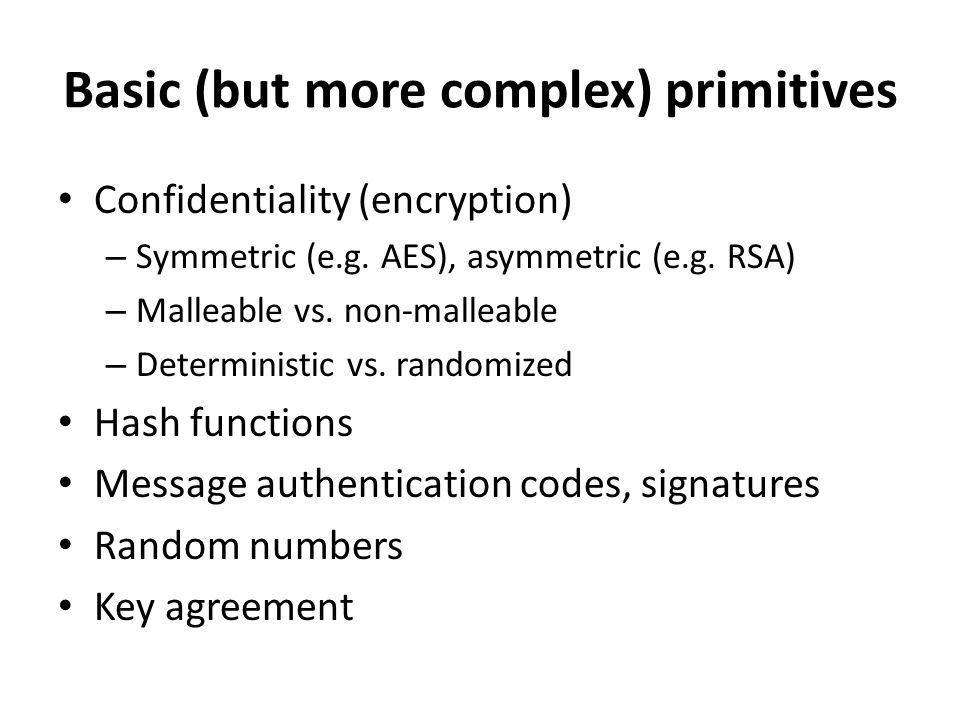

15. Basic (but more complex) primitives Confidentiality (encryption) – Symmetric (e.g. AES), asymmetric (e.g. RSA) – Malleable vs. non-malleable – Deterministic vs. randomized Hash functions Message authentication codes, signatures Random numbers Key agreement

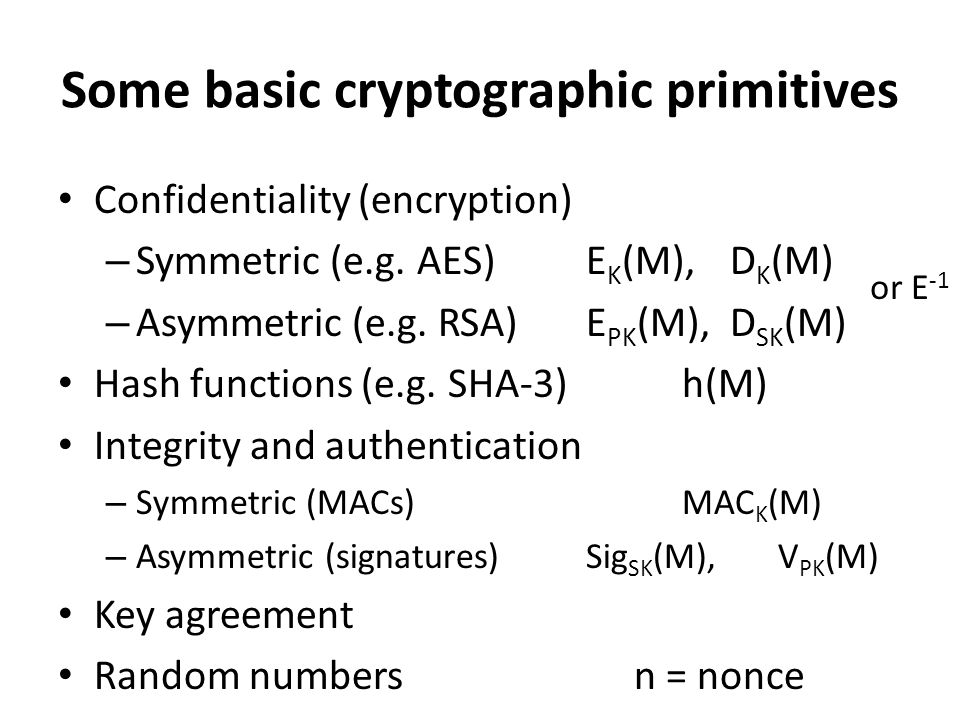

16. Some basic cryptographic primitives Confidentiality (encryption) – Symmetric (e.g. AES)E K (M),D K (M) – Asymmetric (e.g. RSA)E PK (M),D SK (M) Hash functions (e.g. SHA-3)h(M) Integrity and authentication – Symmetric (MACs)MAC K (M) – Asymmetric (signatures)Sig SK (M),V PK (M) Key agreement Random numbersn = nonce or E -1

17. Example: WEP – IV, RC4(IV, k)  (M, c(M)) – Claim: 24-bit IV + 40-bit key = 64-bit security Example: WEP – IV, RC4(IV, k)  (M, c(M)) – Claim: 24-bit IV + 40- bit key = 64-bit security On your right: text from Jonathan Katz Aside: composability Is this secure against chosen-plaintext attacks? – It is randomized… 40-bit key (in some implementations)! – Claims that, with IV, this gives a 64-bit effective key(!) And how is the IV chosen? – Only 24 bits long -- IV repetitions are a problem! – Reset to 0 upon re-initialization – Some implementations increment the IV as a counter A repeating IV allows the attacker to compute the XOR of two plaintexts – We have discussed already how this can be damaging Small IV space means the attacker can build a dictionary of (IV, RC4(IV, k)) pairs – If portions of some plaintexts known, this enables determination of other plaintexts Known-plaintext attacks discovered on this usage of RC4 – Possible because the first byte of plaintext is a fixed, known header! Chosen-plaintext attacks – Send IP traffic/e-mail to the mobile host and watch it get forwarded – Transmit broadcast messages to access point – Authentication spoofing No cryptographic integrity protection – The checksum is linear (i.e., c(x  y) = c(x)  c(y)) and unkeyed, and therefore easy to attack – Allows IP redirection attack – Allows TCP “reaction” attacks Look at whether TCP checksum is valid Form of chosen-ciphertext attack Encryption used to provide authentication of mobile station (access point sends nonce; station returns an encryption of the nonce) – Allows easy spoofing after eavesdropping

18. Questions?
