1. Module 13: Designing Active Directory Migrations in Windows Server 2008

2. Module Overview Choosing an Active Directory Migration Strategy Designing a Domain Upgrade Strategy Designing a Domain Restructure Strategy

3. Lesson 1: Choosing an Active Directory Migration Strategy AD DS Migration Strategies Criteria for Choosing a Migration Strategy Guidelines for Choosing the Domain Upgrade Strategy Guidelines for Choosing the Domain Restructure Strategy Guidelines for Choosing the Domain Upgrade and Restructure Strategy

4. AD DS Migration Strategies Active Directory migration strategies include: Domain upgrade strategy Domain restructure strategy Domain upgrade and restructure strategy

5. Additionally, when choosing a migration strategy, consider: Current domain structure Amount of acceptable downtime Time and budget constraints Criteria for Choosing a Migration Strategy StrategyConsiderations Domain Upgrade No impetus for major change No domain hierarchy to restructure (such as a single domain forest) Restructuring is too complex and expensive Domain Restructure Current structure is too complicated Current structure no longer satisfies the business requirements Will achieve cost savings over time Business can accept risk of restructure Domain Upgrade and Restructure Most likely route in a restructuring Some domains will be untouched Other domains will be collapsed Current structure is too complicated Current structure no longer satisfies the business requirements Will achieve cost savings over time Business can accept risk of restructure

6. Guidelines for Choosing the Domain Upgrade Strategy Choose the domain upgrade strategy when: The existing domain structure and the target domain structure are the same The existing domain structure meets the business and technical needs of the organization The domain names must remain the same The organization requires the migration path with the lowest risk The migration must be completed in the least amount of time possible

7. Guidelines for Choosing the Domain Restructure Strategy Choose the domain restructure strategy when: The existing domain structure does not meet the business and migration goals of the organization The organization cannot tolerate any downtime to the production directory services environment The organization can incur some degree of risk to achieve an optimum domain structure There is enough time to complete the additional tasks involved with a restructure There is additional hardware available

8. Guidelines for Choosing the Domain Upgrade and Restructure Strategy Choose the domain upgrade and restructure strategy when: The existing domain structure is similar to the proposed Active Directory domain structure The organization wants to use certain Active Directory features early because of the benefits that they provide The organization wants to lower short-term hardware and administrative costs The organization is averse to risk but does not want to keep its existing domain model long-term

9. Lesson 3: Designing a Domain Restructure Strategy SID History Active Directory Migration Tool ADMT Scenarios Preparing a Domain to Run ADMT Guidelines for Restructuring Domains

10. SID History Domain ADomain B User migrates from Domain A to Domain B 1 1 SID History attribute allows user to access resources in Domain A 2 2 SID history provides a migrated user with continuity of access to resources

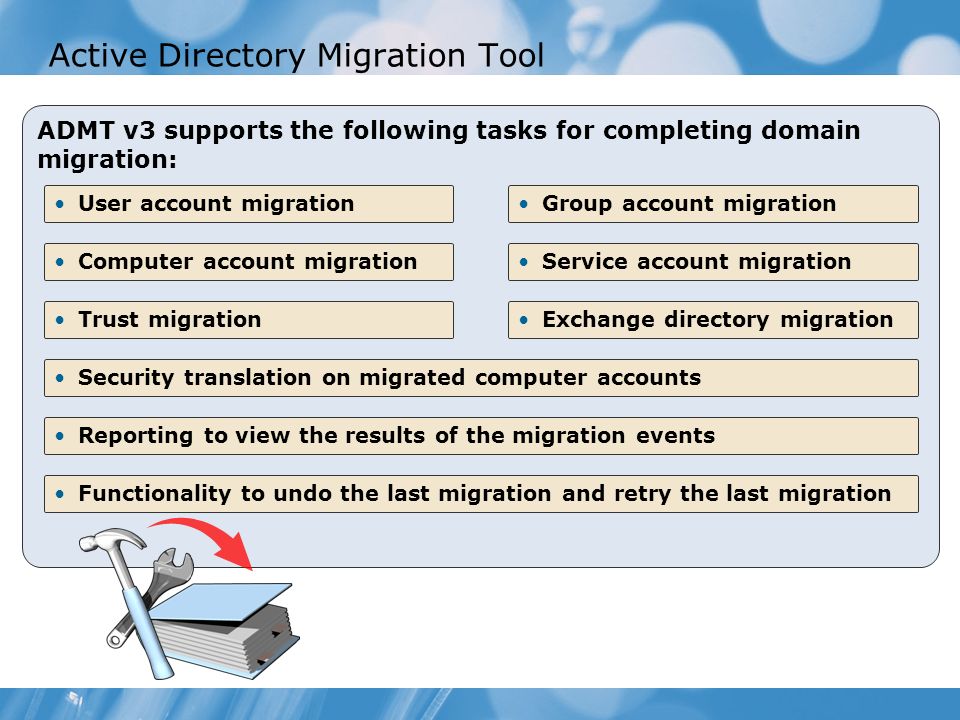

11. Active Directory Migration Tool ADMT v3 supports the following tasks for completing domain migration: Security translation on migrated computer accounts Reporting to view the results of the migration events Functionality to undo the last migration and retry the last migration User account migrationGroup account migration Computer account migration Service account migration Trust migrationExchange directory migration

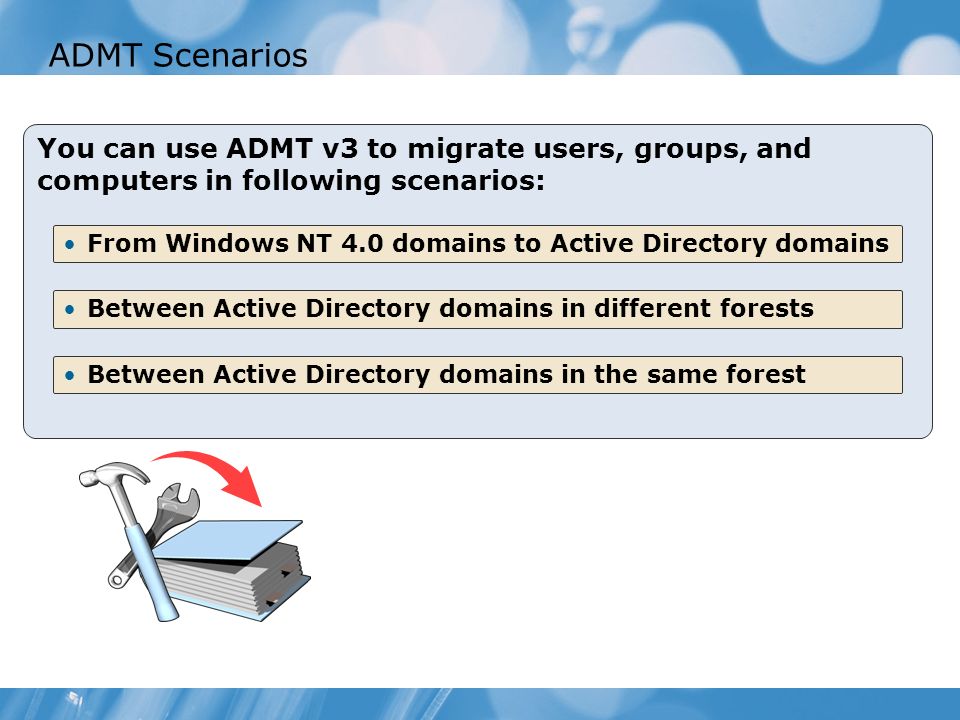

12. ADMT Scenarios You can use ADMT v3 to migrate users, groups, and computers in following scenarios: From Windows NT 4.0 domains to Active Directory domains Between Active Directory domains in different forests Between Active Directory domains in the same forest

13. Preparing a Domain to Run ADMT To prepare a domain to run ADMT, you must: Establish required trusts Configure the source and target domains to migrate SID history before you begin an interforest migration Establish migration accounts Configure the target domain OU structure Install ADMT in the target domain Install high-encryption software
