1 1 Study into IPS Suitability for Air-Ground ATM Communication Carsten Underbjerg, Ericsson Member of Helios Study Consortium European Organisation for the Safety of Air Navigation 18 th September 2006

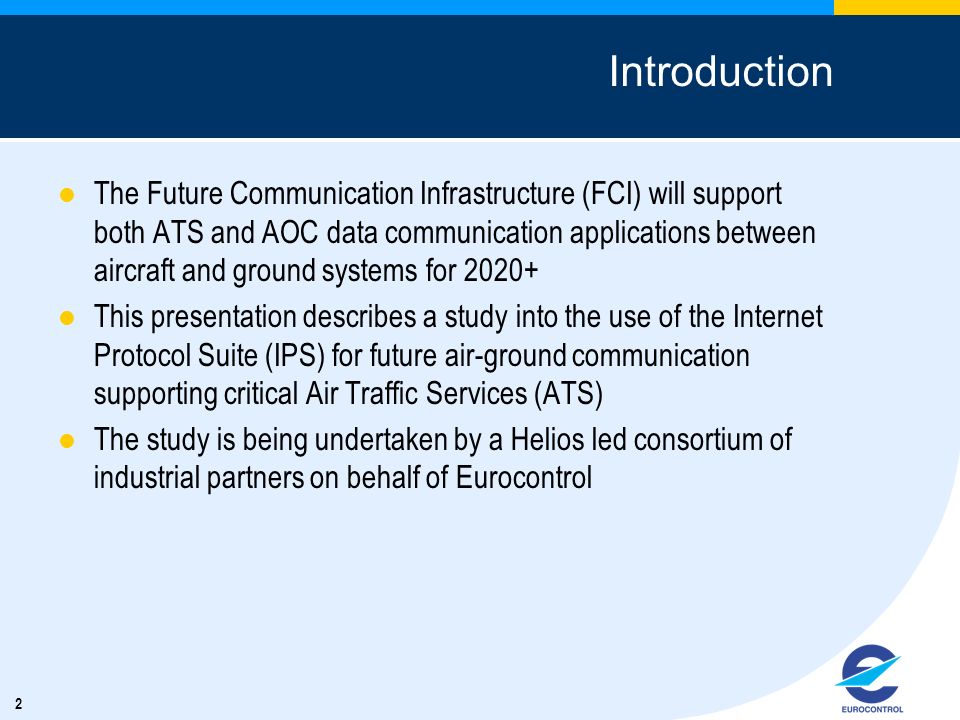

2 2 Introduction The Future Communication Infrastructure (FCI) will support both ATS and AOC data communication applications between aircraft and ground systems for 2020+ This presentation describes a study into the use of the Internet Protocol Suite (IPS) for future air-ground communication supporting critical Air Traffic Services (ATS) The study is being undertaken by a Helios led consortium of industrial partners on behalf of Eurocontrol

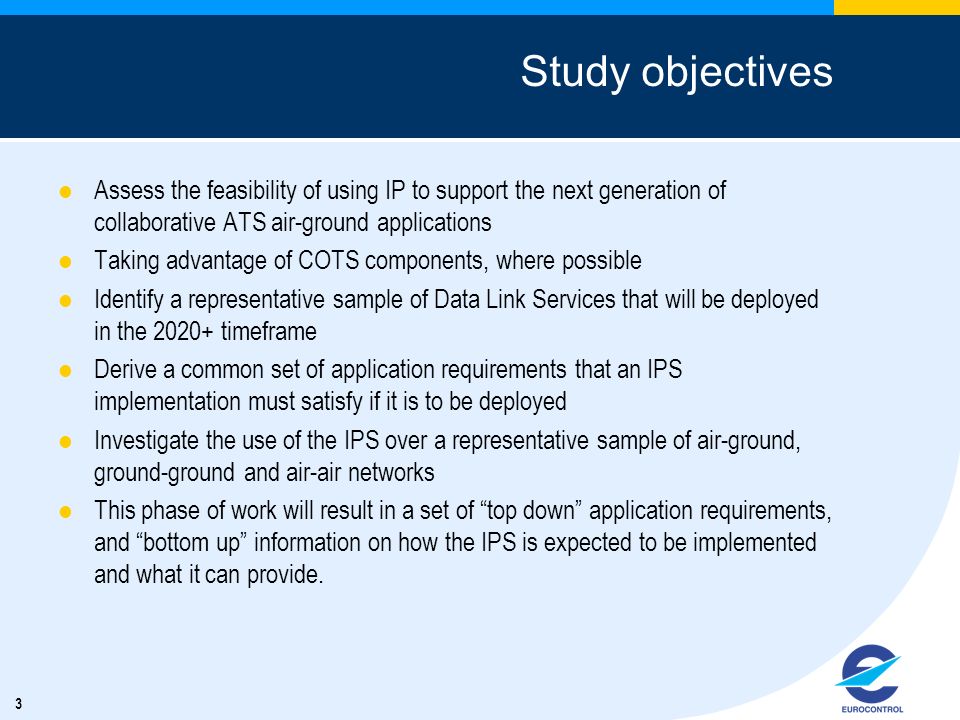

3 3 Study objectives Assess the feasibility of using IP to support the next generation of collaborative ATS air-ground applications Taking advantage of COTS components, where possible Identify a representative sample of Data Link Services that will be deployed in the 2020+ timeframe Derive a common set of application requirements that an IPS implementation must satisfy if it is to be deployed Investigate the use of the IPS over a representative sample of air-ground, ground-ground and air-air networks This phase of work will result in a set of top down application requirements, and bottom up information on how the IPS is expected to be implemented and what it can provide.

4 4 Study team The study team has wide experience both of the aviation and wider industrial applications of the IPS It will explore the potential of a future IPS system, using lessons learnt from current ATN-based implementations. The team is led by Helios Technology (UK), and supported by: Ericsson (Sweden) Sofréavia (France) Luftfartsverket LFV (Sweden) Rockwell Collins (France) DLR (Germany) SITA (Multinational)

5 5 What is the Problem? ATN has already demonstrated that packet mode communications air/ground works The IPS is simply the industry standard means of achieving the same thing Downlinking IP packets is straightforward Aircraft may consider ground station to be a default router Properly addressed IP packets can be forwarded from Ground Station into the ground Internet for delivery However, Uplink is a problem IP Addresses are Network Relative An Aircraft will have a different IP Address on each air/ground network it is attached to Assigned statically or dynamically How can seamless uplink communications be achieved if the air/ground network changes in flight?

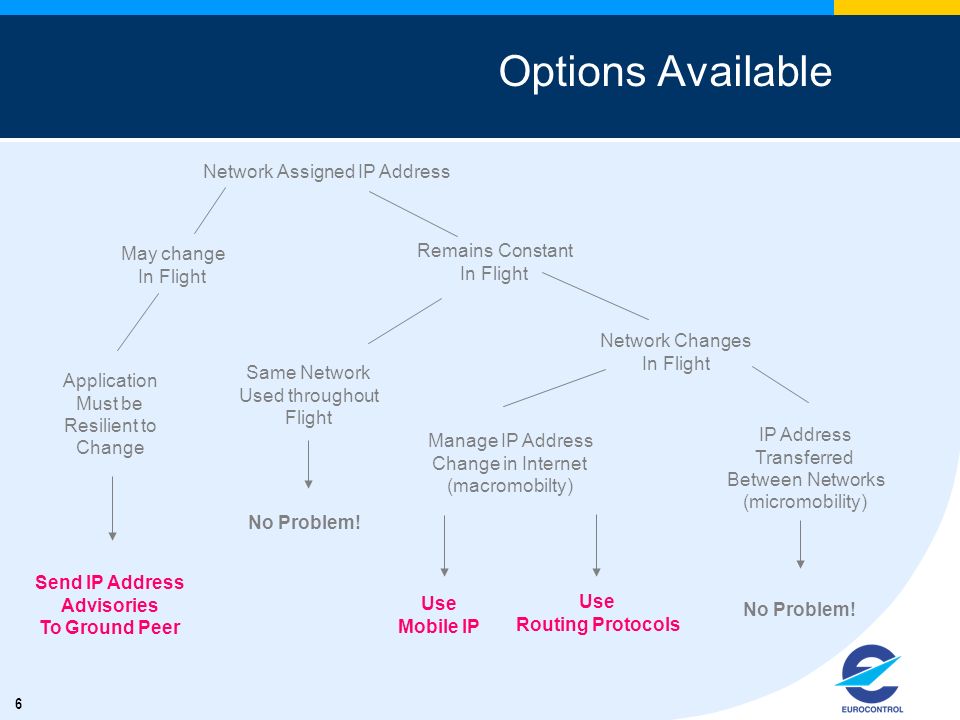

6 6 Options Available Network Assigned IP Address May change In Flight Application Must be Resilient to Change Send IP Address Advisories To Ground Peer Remains Constant In Flight Same Network Used throughout Flight No Problem! Network Changes In Flight IP Address Transferred Between Networks (micromobility) No Problem! Manage IP Address Change in Internet (macromobilty) Use Mobile IP Use Routing Protocols

7 7 Choice of Options Cannot assume same network always available during a Flight Resilience issues Denial of Service Issues Micromobility is attractive but Relies on network providers to co-ordinate Does not permit operations where network providers do not or are unable to co-operate Concern over transition when need to upgrade technology The above solutions may be used wherever possible, but Study needs to address a full Solution

8 8 IP Study will Investigate The design of Applications that are tolerant to IP Address Change Mobile IP based solutions including NEMO Routing Protocol based solutions Building on experience with existing ATN approach A different team will look at each approach A competitive approach will be used to either Select Best Solution Determine when a given solution is appropriate The Study will investigate three scenarios

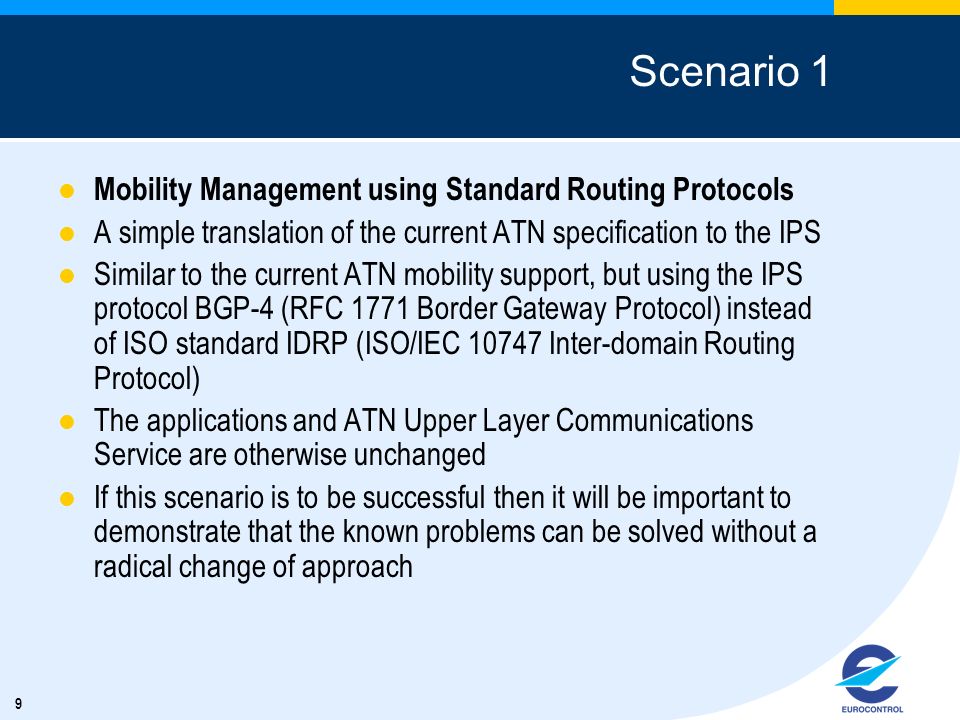

9 9 Scenario 1 Mobility Management using Standard Routing Protocols A simple translation of the current ATN specification to the IPS Similar to the current ATN mobility support, but using the IPS protocol BGP-4 (RFC 1771 Border Gateway Protocol) instead of ISO standard IDRP (ISO/IEC 10747 Inter-domain Routing Protocol) The applications and ATN Upper Layer Communications Service are otherwise unchanged If this scenario is to be successful then it will be important to demonstrate that the known problems can be solved without a radical change of approach

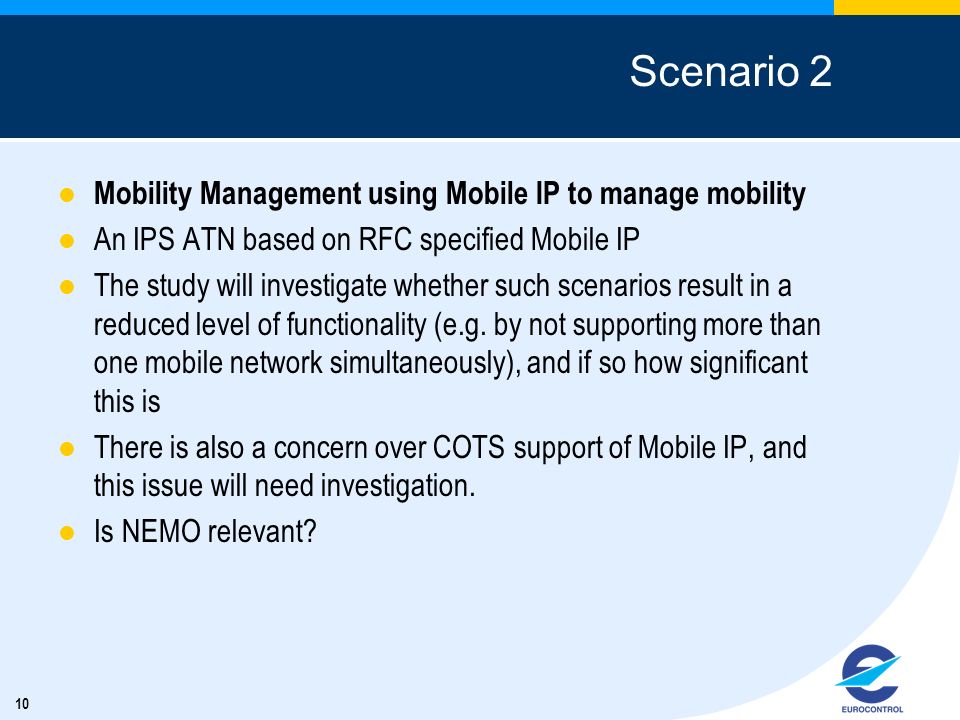

10 10 Scenario 2 Mobility Management using Mobile IP to manage mobility An IPS ATN based on RFC specified Mobile IP The study will investigate whether such scenarios result in a reduced level of functionality (e.g. by not supporting more than one mobile network simultaneously), and if so how significant this is There is also a concern over COTS support of Mobile IP, and this issue will need investigation. Is NEMO relevant?

11 11 Scenario 3 Mobility Management using the Application Message Server Application managed mobility A three layer approach, where The lowest layer is standard TCP/IP with no special requirements including no mobility support requirements The middle layer is an ATN message server and provides a common message exchange and mobility management. It encapsulates what is ATN specific functionality that is common to all Data Link Services, but which is not subject to safety requirements The top layer is the user layer that supports the user exchange of messages and is subject to safety requirements. The separation of top and middle layers follows PM-CPDLC approach The proposed Message Server is resilent to IP Address change but can be used with other Mobility Solutions

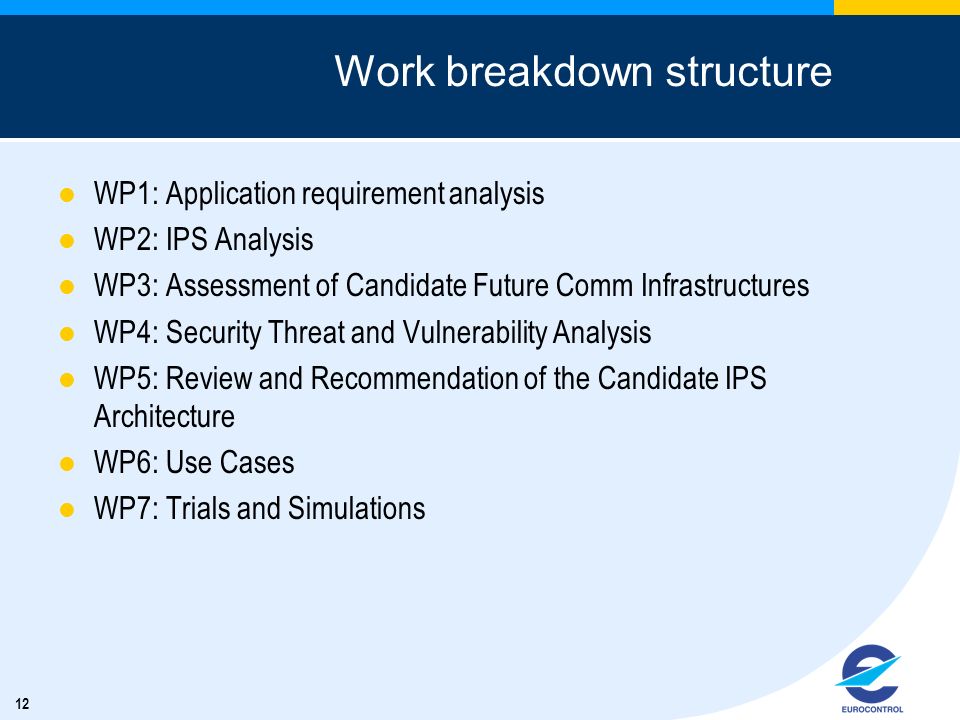

12 12 Work breakdown structure WP1: Application requirement analysis WP2: IPS Analysis WP3: Assessment of Candidate Future Comm Infrastructures WP4: Security Threat and Vulnerability Analysis WP5: Review and Recommendation of the Candidate IPS Architecture WP6: Use Cases WP7: Trials and Simulations

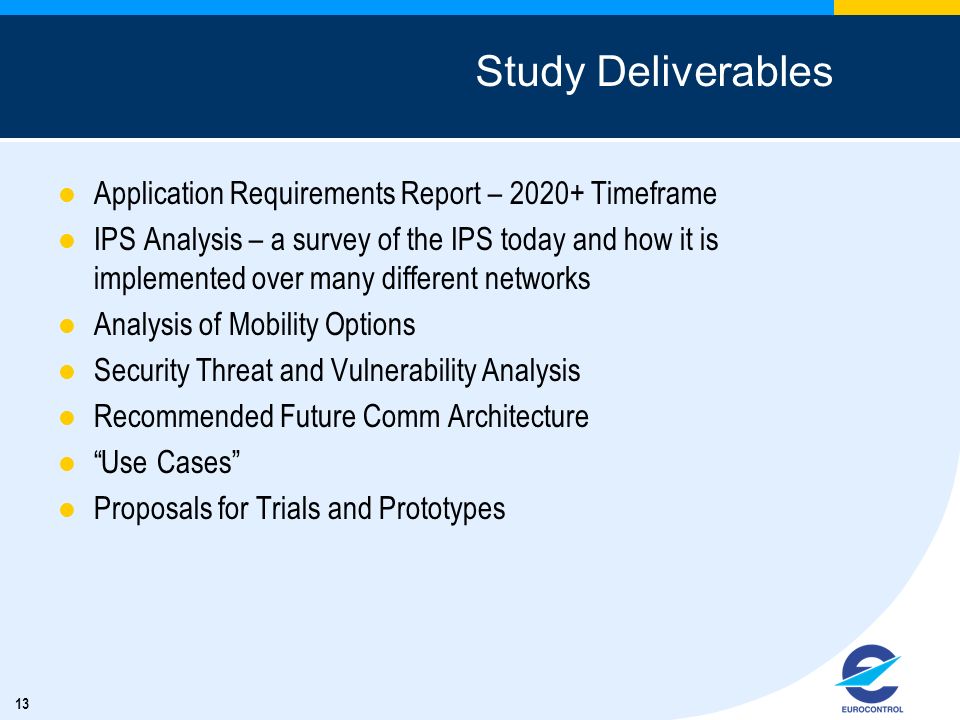

13 13 Study Deliverables Application Requirements Report – 2020+ Timeframe IPS Analysis – a survey of the IPS today and how it is implemented over many different networks Analysis of Mobility Options Security Threat and Vulnerability Analysis Recommended Future Comm Architecture Use Cases Proposals for Trials and Prototypes

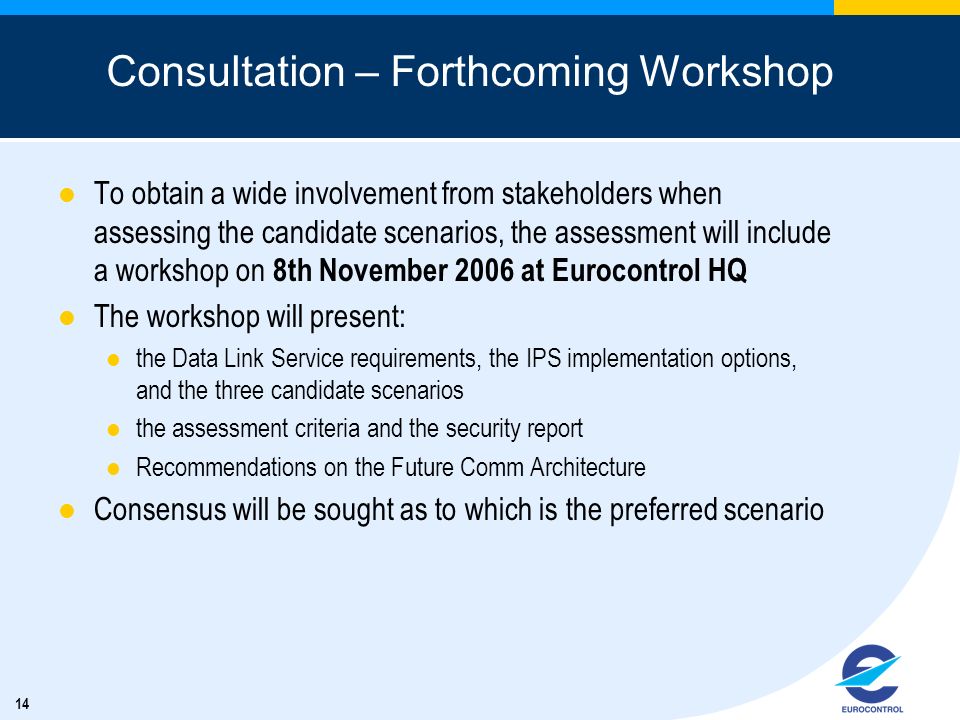

14 14 Consultation – Forthcoming Workshop To obtain a wide involvement from stakeholders when assessing the candidate scenarios, the assessment will include a workshop on 8th November 2006 at Eurocontrol HQ The workshop will present: the Data Link Service requirements, the IPS implementation options, and the three candidate scenarios the assessment criteria and the security report Recommendations on the Future Comm Architecture Consensus will be sought as to which is the preferred scenario

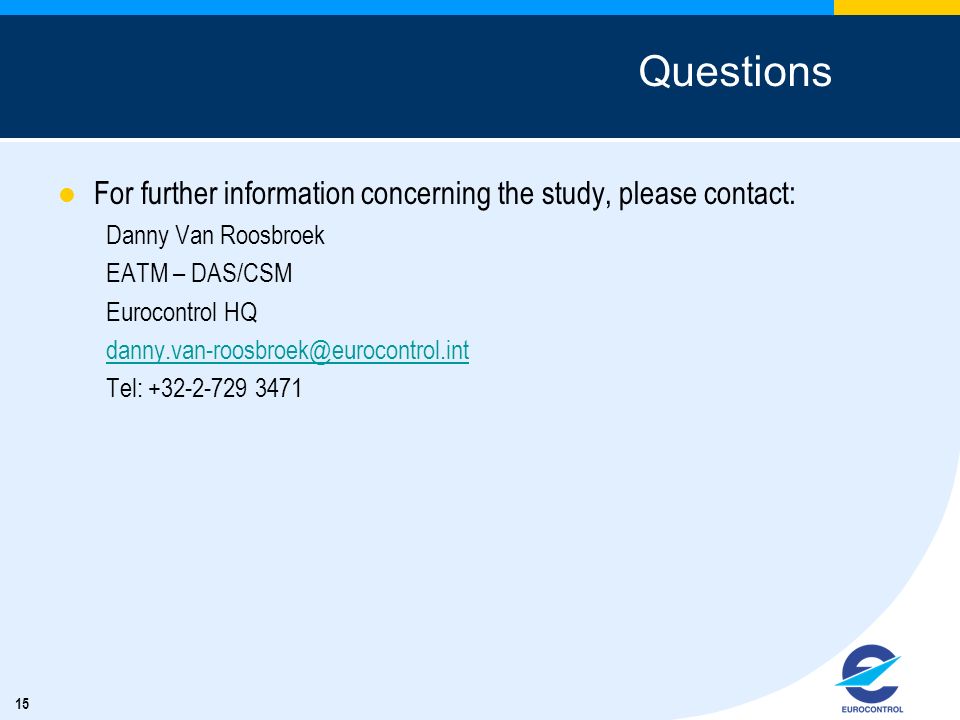

15 15 Questions For further information concerning the study, please contact: Danny Van Roosbroek EATM – DAS/CSM Eurocontrol HQ Tel: +32-2-729 3471
