1. Simulink ® Interface Course 13 Active-HDL Interfaces

2. All materials updated on: September 30, 2004 OverviewOverview The MathWorks' MATLAB®/Simulink® simulation environment provides a powerfull high level mathematical modeling environment for DSP systems that can be widely used for algorithm development and verification. Active-HDL provides an interface to MATLAB and Simulink simulation environment, which allows co-simulation of functional blocks described by using mathematical formulas and behavioral models described by using hardware description languages. The Simulink Interface provides users with the following benefits : –Intuitive interface that fills the gap between HDL simulation and high level mathematical modeling environment for DSP systems –Displaying simulation results in both the Simulink environment and the Active-HDL waveform window –Automatic value conversion between Active-HDL and Simulink –Advanced testbenches employing complex mathematical formulas used to stimulate unit under test –Integration with Xilinx System Generator™

3. All materials updated on: September 30, 2004 13.1 Using Co-Simulation Wizard for Simulink The interface delivered with the Active-HDL installation program allows you to select a Verilog module, EDIF cell or VHDL entity/architecture pair that will be used as a black-box during the verification process performed within Simulink. Before the first use of the Simulink Interface, you need to specify environment settings for Active-HDL and set the path to the interface files delivered with the Active-HDL installation. Since Active-HDL will be initialized during the co-simulation by Simulink, you need to modify the $PATH variable to point to the /Bin subdirectory of the Active-HDL installation. You need to also specify the search path (also referred to as the MATLAB Path) to the directory where the Simulink Interface files are stored. MATLAB will use this path to find files required during co-simulation.

4. All materials updated on: September 30, 2004 Simulation 13.1a Using Co-Simulation Wizard for Simulink 1. Start MATLAB. 2. Choose the Set Path command from the File menu. This command allows to specify the search path (also referred to as the MATLAB Path) to the directory where the Simulink Interface files are stored. MATLAB will use this path to find files required during co- simulation. 3. Click the Add Folder button and browse for $ALDEC\Matlab subdirectory. Then, click OK.

5. All materials updated on: September 30, 2004 13.2 Using Co-Simulation Wizard for Simulink - units for co-simulation This step can be done by using the Co-Simulation Wizard for Simulink. To run the Co-Simulation Wizard for Simulink in Active-HDL: 1.Open the Active-HDL design that contains units to be co-simulated and compile sources. 2.Expand a source file (e.g. abs.vhd) that contains a design unit that will be used as a black-box. 3.Right-click this unit (e.g. m_abs(beh)) and choose the Co-Simulation Wizard for Simulink option or choose the Co-Simulation Wizard for Simulink option from the Tools menu To start the co-simulation process in MATLAB environment, first you need to create configuration files (MATLAB M-Files) for Simulink and then select units to be co- simulated.

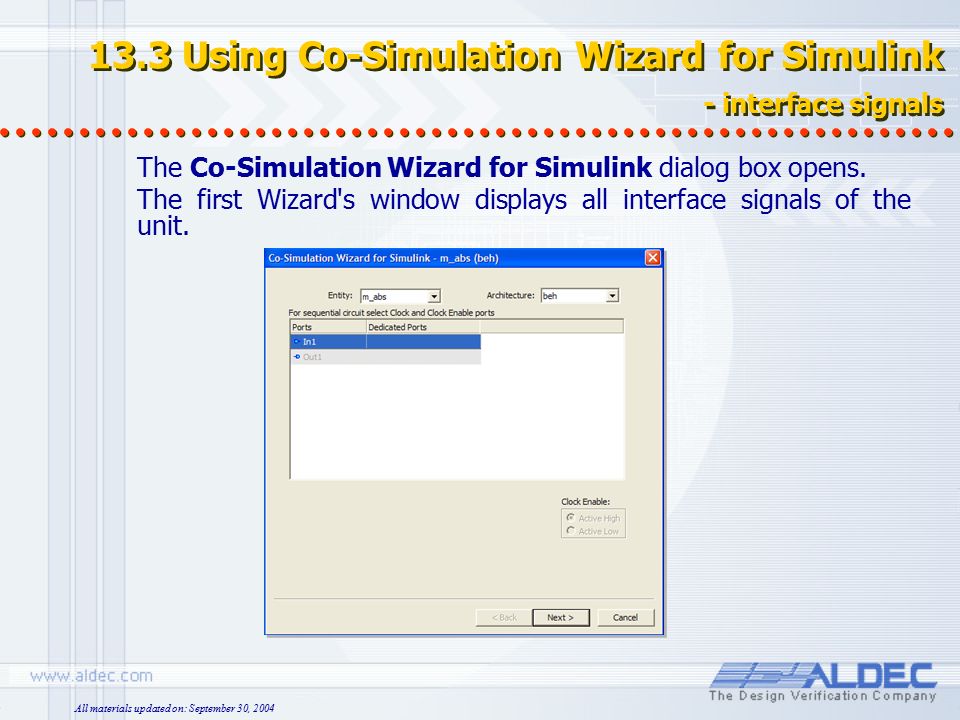

6. All materials updated on: September 30, 2004 13.3 Using Co-Simulation Wizard for Simulink - interface signals The Co-Simulation Wizard for Simulink dialog box opens. The first Wizard's window displays all interface signals of the unit.

7. All materials updated on: September 30, 2004 13.4 Using Co-Simulation Wizard for Simulink - interface signals 1. Entity/Module Allows you to select an entity or module to be co-simulated. You can select an entity/architecture pair or module that you want to co-simulate (black-box) from the pop-up menu in the Design Browser window or you can choose the Co-Simulation Wizard for Simulink option from the Tools menu. 2. Architecture Allows you to select an architecture associated to the entity specified in the Entity list box. 3. Dedicated ports This column lets you specify the ‘special’ interface signals – clock and clock enable inputs. 4. Clock Enable Specifies the active level of the Clock Enable signal.

8. All materials updated on: September 30, 2004 13.5 Using Co-Simulation Wizard for Simulink - interface signals customization

9. All materials updated on: September 30, 2004 13.6 Using Co- Simulation Wizard for Simulink - interface signals customization 1. Ports Lists all ports of the simulated unit. If you have specified the clock (CLK) and clock enable (CE) signals in the first window, these ports are not displayed in the Ports column. 2. Cast Specifies the numerical representation of a signal's value. Available types are:Boolean for scalars, SIGN (2's Complement) and UNSIGN for vectors. 3. Number of Bits Specifies the width of the selected signal. 4. Fractional Part Specifies how many bits are available to the right side of the binary point (i.e. the size of the fraction). The binary point position must fit between zero and the number of bits specified in the Number of Bits column. 5. Quantization Specifies the type of quantization method (available values are: truncate, round ). 6. Overflow Specifies handling method of arithmetical overflow (available values are: saturate, wrap, error). 7. Type Displays the type of the signal. Supported VHDL types are: BIT, BIT_VECTOR, STD_ULOGIC, STD_ULOGIC_VECTOR, STD_LOGIC, STD_LOGIC_VECTOR. 8. Output File Specifies the name of the configuration file generated by Wizard. Folder containng this file should be either added to MATLAB Search Path or set as the current directory during co-simulation. 9. Add signals to waveform If this option is checked then interface signals selected in the last wizard window will be added to the waveform editor during simulation.

10. All materials updated on: September 30, 2004 13.7 Using Simulink Co-Simulation Wizard - ALDEC Blockset library The Co-Simulation Wizard for Simulink creates the configuration files (MATLAB M-Files) dedicated for ALDEC Active-HDL Co-Sim Toolbox library, common for all Active-HDL designs. This library can be found in MATLAB's Simulink Library Browser NOTE: Output Directory. By default output files generated by Wizard are created in $WSP/Matlab folder.

11. All materials updated on: September 30, 2004 13.8 Simulation with MATLAB Active-HDL Design Output Directory selection inside MATLAB. 1. Start MATLAB. 2. Choose the Set Path option form the File menu. This option allows you to specify the path to the directory(ies) containing file(s) that you have specified in the Output File field of the Co-Simulation Wizard for Simulink window. 2. Click the Add Folder button and browse for folder containing Output File. Then, click OK. 3. Choose the Save option and close the Set Path window by pressing the Close button.

12. All materials updated on: September 30, 2004 1. Start Simulink. 2. Choose the Simulink icon from MATLAB's main toolbar to open the Simulink Library Browser window. 3. In the left pane of the Simulink Library Browser window, the ALDEC Active-HDL Co-Sim Toolbox is displayed. The Active-HDL Co-Sim, HDL Block, and System Generator Compatible HDL Block blocks are visible in the Toolbox. 13.9 Simulation with MATLAB - using simulation black boxes The ALDEC Active-HDL Co-Sim Toolbox is available inside the Simulink library browser.

13. All materials updated on: September 30, 2004 13.10 Simulation with MATLAB - using simulation black boxes User can use: 1. Active-HDL Co-Sim 2. HDL Block, 3. System Generator Compatible HDL Block from the ALDEC Active-HDL Co-Sim Toolobox and other MATLAB simulation libraries to create his own simulation Model. Before user starts co-simulation, he needs to add the Active-HDL Co-Sim block to the model window. This block is required to successfully initialize the simulation process and it can be used to define parameters of the co-simulation session. The black-boxes generated by the Co-Simulation Wizard for Simulink can be simulated after their parameters are setup.

14. All materials updated on: September 30, 2004 13.11 Simulation with MATLAB - using simulation black boxes To replace HDL Block with a unit generated by the Wizard, double-click the symbol and specify its parameters In the Black-Box Name field specify the name of configuration file specified in the Output File field of Co-Simulation Wizard for Simulink.

15. All materials updated on: September 30, 2004 13.12 Simulation with MATLAB - MATLAB simulation Model Active-HDL simulation Black-box block Simulink blocks Active-HDL co-simulation block

16. All materials updated on: September 30, 2004 13.13 Co-Simulation between Active-HDL and MATLAB 1. All Aldec black boxes library are simulated with Active-HDL simulator. 2. Run simulation from MATLAB in automatic way create inside Active-HDL all required processes to run co-simulation with used simulation black-boxes. 3. User can review results in MATLAB as also inside Active-HDL waveform. NOTE: Waveform is created in automated way when “Add signals to Waveform” option inside the Co-Simulation Wizard for Simulink has been selected

17. All materials updated on: September 30, 2004 13.14 Co-Simulation between Active-HDL and MATLAB After press Start Simulation button from the Simulink toolbar, co-simulation process will be started. Aldec Black-box simulated with Active-HDL simulator inside of the new, automatically created design.

18. All materials updated on: September 30, 2004 13.15 Simulation with MATLAB - view simulation results User can review simulation results inside MATLAB as also inside the Active-HDL waveform

19. All materials updated on: September 30, 2004 13.16 Example of use – Active-HDL design Open MATLAB_Example workspace. This workspace contain Modulator design. The design contains the following resource files: 1. abs.vhd VHDL equivalent model of the Simulink Abs block. 2. mult.vhd, mult1.vhd VHDL equivalent model of the Simulink Product block. 3. sign.vhd VHDL equivalent model of the Simulink Sign block. 4. Modulation.mdl Simulink models

20. All materials updated on: September 30, 2004 13.17 Design Example – Co-Simulation Wizard for Simulink 1. Compile all files inside design 2. Use Co-Simulation Wizard for Simulink and create simulation black-box symbols and MATLAB library NOTE: Next slide describes all required parameters which need to be set inside the Co-Simulation Wizard for Simulink.

21. All materials updated on: September 30, 2004 13.18 Design Example - Co-Simulation Wizard for Simulink Please specify all required parameters for listed below modules with using Co- Simulation Wizard for Simulink: Black-Box Sample Period = 1/20 Active-HDL CoSim block Sample Period = 1/20 For SIGN block set: Port In1: Cast = sign, Number of Bits = 31, Fractional Part = 24, Quantization = truncate, Overflow = saturate Port Out1: Cast = sign, Number of Bits = 2, Fractional Part = 0 For MULT block set: Port Sin_wav1: Cast = unsign, Number of Bits = 16, Fractional Part = 9, Quantization = truncate, Overflow = saturate Port Sin_wav2: Cast = sign, Number of Bits = 16, Fractional Part = 15, Quantization = truncate, Overflow = saturate Port Out1: Cast = sign, Number of Bits = 31, Fractional Part = 24 For MULT1 block set: Port I_abs: Cast = unsign, Number of Bits = 31, Fractional Part = 24, Quantization = truncate, Overflow = saturate Port I_sig: Cast = sign, Number of Bits = 2, Fractional Part = 0, Quantization = truncate, Overflow = saturate Port Out1: Cast = sign, Number of Bits = 31, Fractional Part = 24 For ABS block set: Port In1: Cast = sign, Number of Bits = 31, Fractional Part = 24, Quantization = truncate, Overflow = saturate Port Out1: Cast = unsign, Number of Bits = 31, Fractional Part = 24 NOTE: Please use in all symbols “Add signals to Waveform” option. This item finishes the task with Co-Simulation Wizard for Simulink. All required parameters and MATLAB design have been completed.

22. All materials updated on: September 30, 2004 13.19 Design Example - MATLAB simulation model 1. Start MATLAB. 2. Set Path’ to the Simulink Interface files and to the Output File’s folder. 3. Start Simulink from the MATLAB toolbar. 4. Choose Open and open Modulator.mdl file stored inside the Active-HDL example design Matlab_example. Then you will have the MATLAB Simulation model as displayed in this slide.

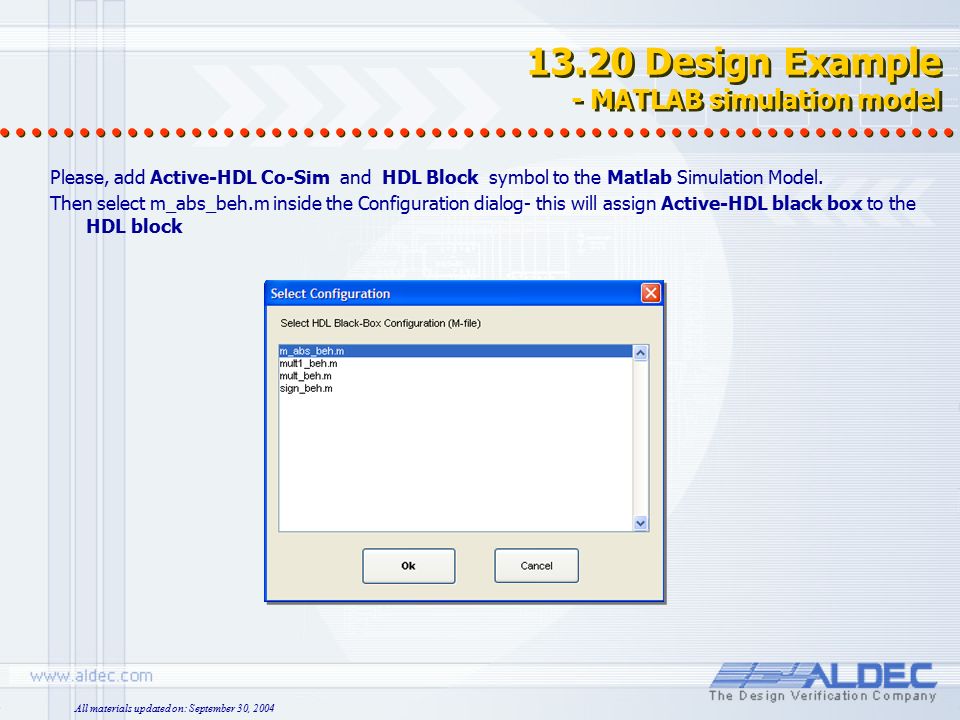

23. All materials updated on: September 30, 2004 Please, add Active-HDL Co-Sim and HDL Block symbol to the Matlab Simulation Model. Then select m_abs_beh.m inside the Configuration dialog- this will assign Active-HDL black box to the HDL block 13.20 Design Example - MATLAB simulation model

24. All materials updated on: September 30, 2004 Specify the sample period of both blocks in the dialog appearing after double-click. For both, please set 1/20. 13.21 Design Example - MATLAB simulation model

25. All materials updated on: September 30, 2004 13.22 Design Example - create co-simulation model Inside Modulator.mdl please replace the Simulink blocks with the corresponding black-boxes coming from the ALDEC blockset. Active-HDL Co-Sim block. m_abs_beh Black-box symbol from the Aldec library

26. All materials updated on: September 30, 2004 13.23 Design Example - simulation Please run simulation using Start Simulation button from the Simulink toolbar. Simulation can be stopped using Stop Simulation button from the Simulink toolbar.

27. All materials updated on: September 30, 2004 13.24 Design Example - waveform settings Active-HDL waveform can display signal values in analog shape. Please use inside the waveform signal properties to define display parameters for m_abs symbol ports. Please set paramaters: Signal In1: Radix - decimal, Notation - Signed 2`s Complement, Display - Analog, Height - 128 Signal Out1: Radix - decimal, Notation - Unsigned, Display - Analog, Height - 128
