1. Optimizing Sensor Networks in the Energy-Latency-Density Design Space Curt Schurgers, Vlasios Tsiatsis, Saurabh Ganeriwal, Mani Srivastava, IEEE TRANSACTIONS ON MOBILE COMPUTING,2002 Speaker : hsiwei

2. Outline  INTRODUCTION  STEM  SIMULATION  CONCLUSIONS

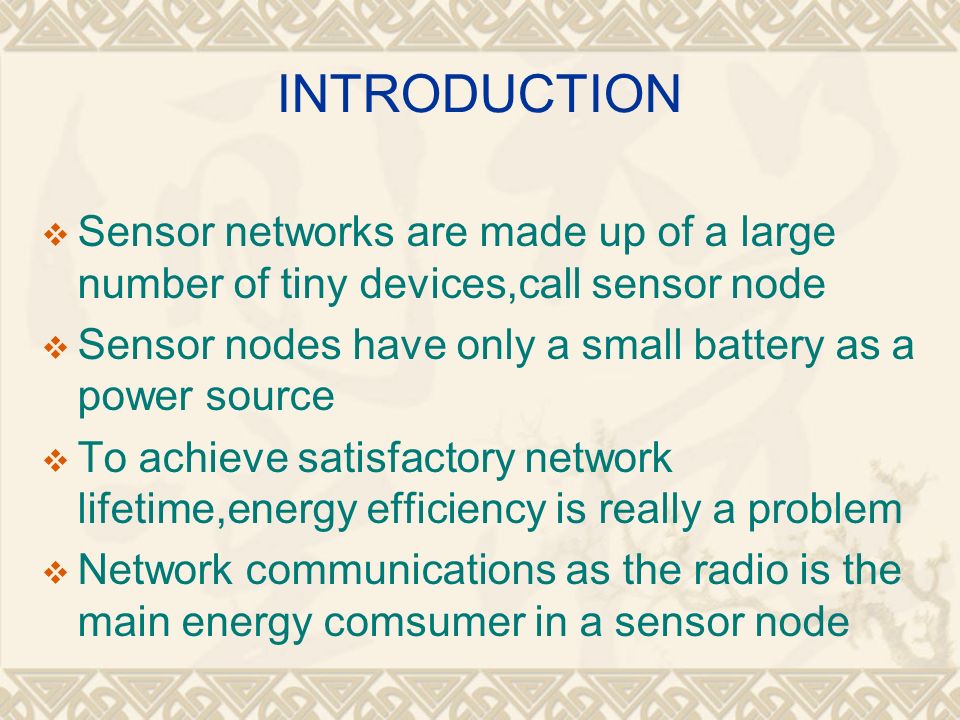

3. INTRODUCTION  Sensor networks are made up of a large number of tiny devices,call sensor node  Sensor nodes have only a small battery as a power source  To achieve satisfactory network lifetime,energy efficiency is really a problem  Network communications as the radio is the main energy comsumer in a sensor node

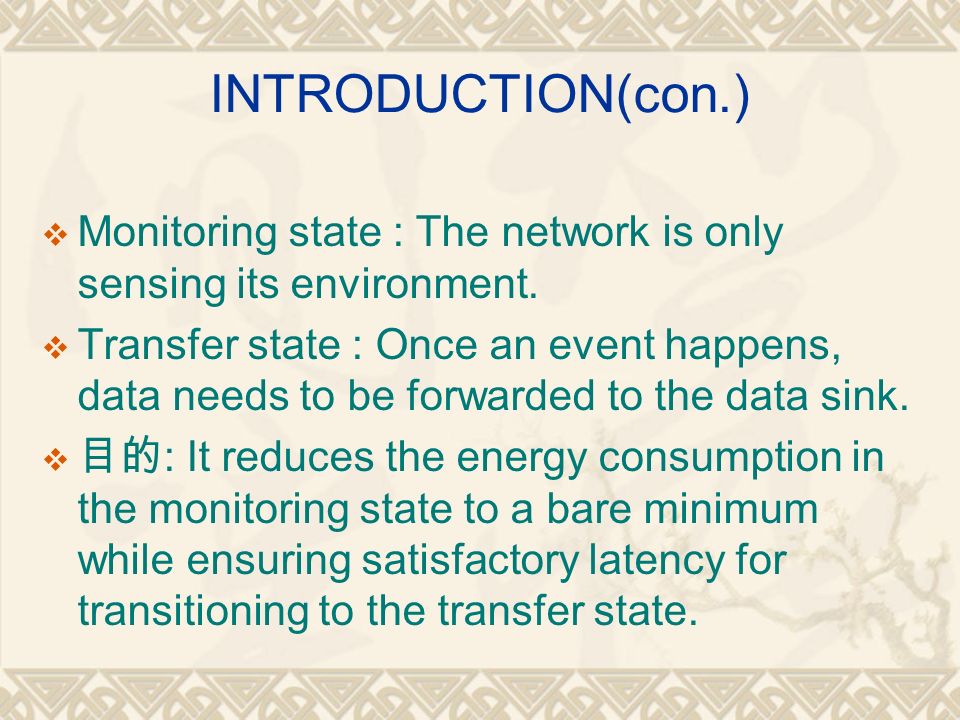

4. INTRODUCTION(con.)  Monitoring state : The network is only sensing its environment.  Transfer state : Once an event happens, data needs to be forwarded to the data sink.  目的 : It reduces the energy consumption in the monitoring state to a bare minimum while ensuring satisfactory latency for transitioning to the transfer state.

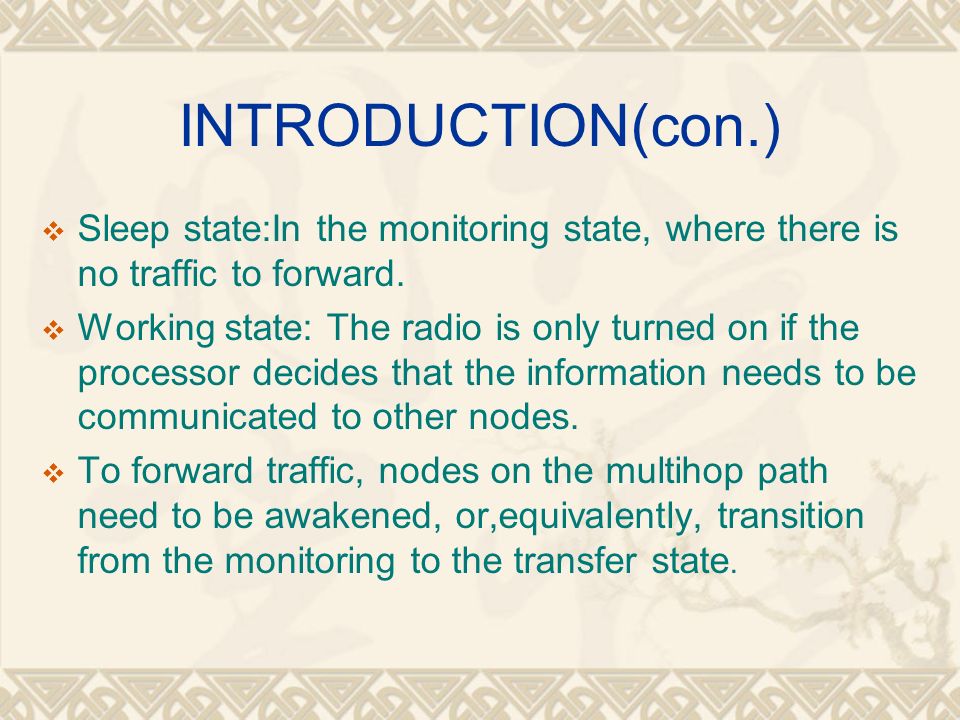

5. INTRODUCTION(con.)  Sleep state:In the monitoring state, where there is no traffic to forward.  Working state: The radio is only turned on if the processor decides that the information needs to be communicated to other nodes.  To forward traffic, nodes on the multihop path need to be awakened, or,equivalently, transition from the monitoring to the transfer state.

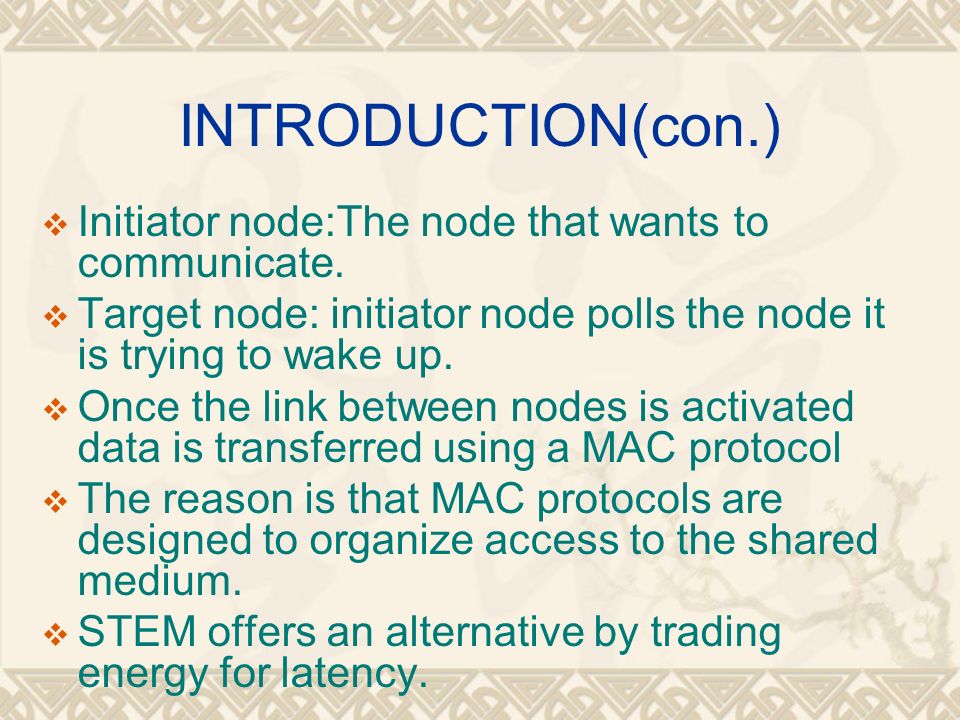

6. INTRODUCTION(con.)  Initiator node:The node that wants to communicate.  Target node: initiator node polls the node it is trying to wake up.  Once the link between nodes is activated data is transferred using a MAC protocol  The reason is that MAC protocols are designed to organize access to the shared medium.  STEM offers an alternative by trading energy for latency.

7. STEM  Each node periodically turns on its radio for a short time to listen if someone wants to communicate with it. Since this aggressive nature is needed to limit the wakeup latency

8. STEM  The solution : is to completely separate data transfer from wakeup. transfer state wakeup band

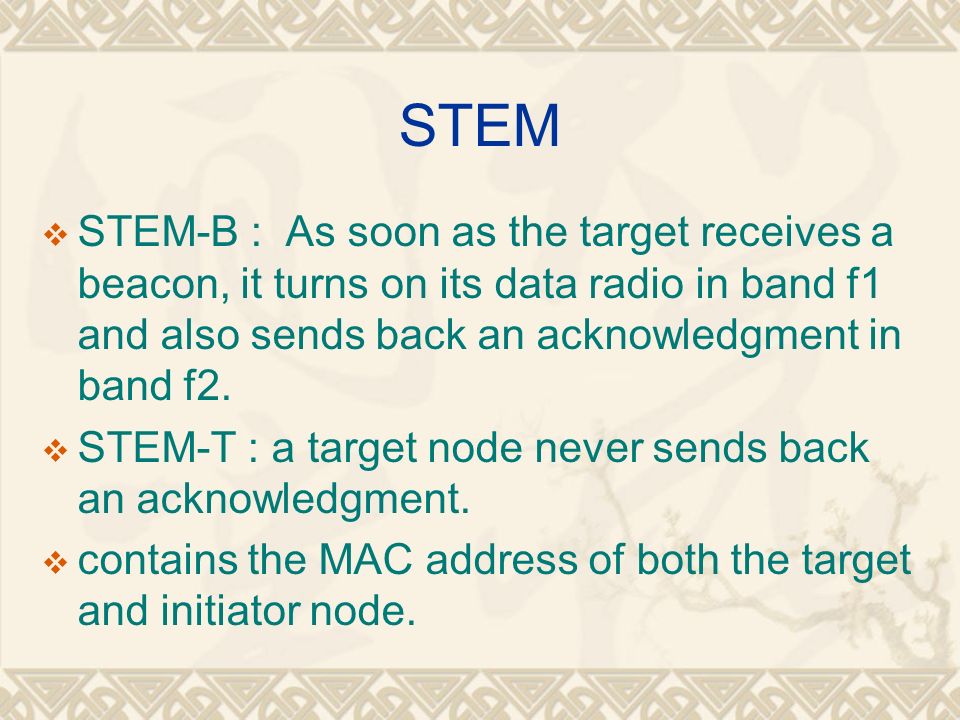

9. STEM  STEM-B : As soon as the target receives a beacon, it turns on its data radio in band f1 and also sends back an acknowledgment in band f2.  STEM-T : a target node never sends back an acknowledgment.  contains the MAC address of both the target and initiator node.

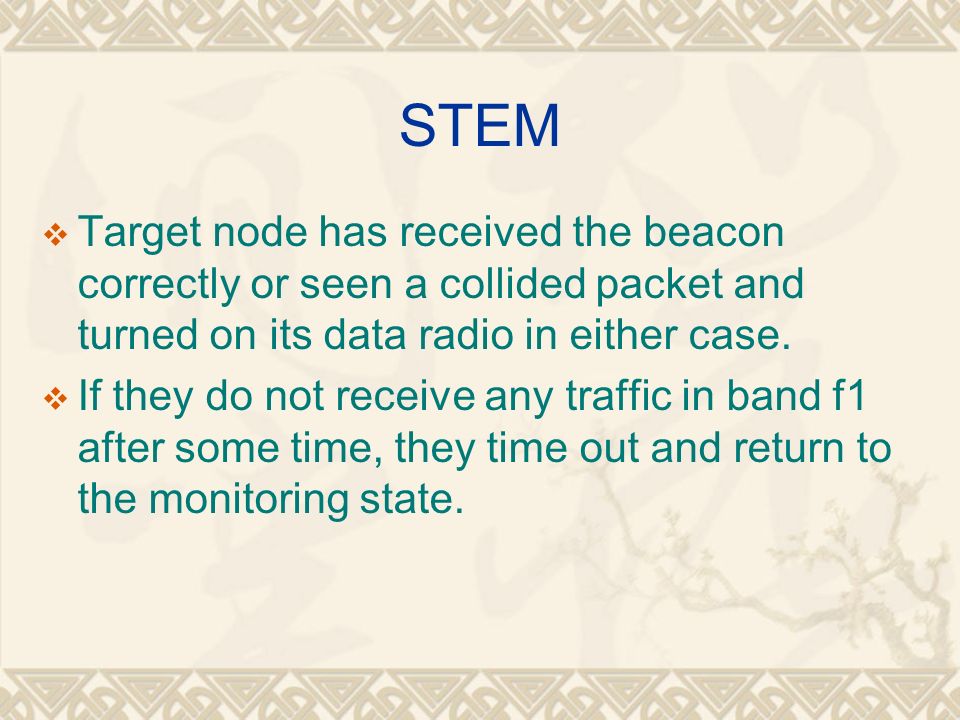

10. STEM  Target node has received the beacon correctly or seen a collided packet and turned on its data radio in either case.  If they do not receive any traffic in band f1 after some time, they time out and return to the monitoring state.

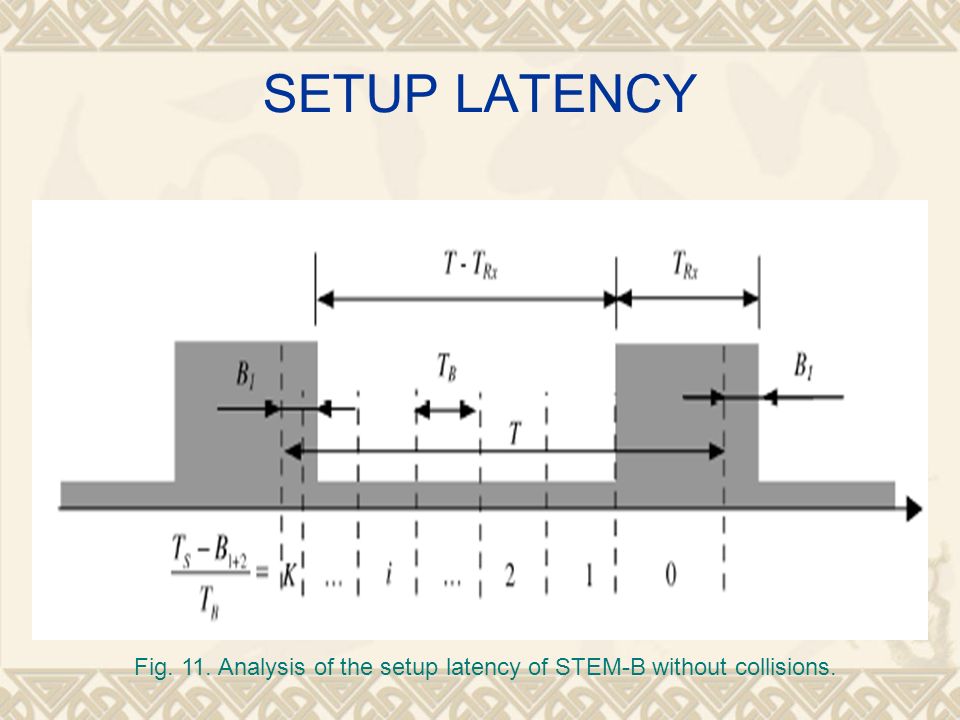

11. SETUP LATENCY Fig. 11. Analysis of the setup latency of STEM-B without collisions.

12. SETUP LATENCY K=1….K

13. SETUP LATENCY NO collision

14. SETUP LATENCY Beacon collision

15. SETUP LATENCY Fig. 12. Analysis of the worst-case setup latency of STEM-T. Tone -based

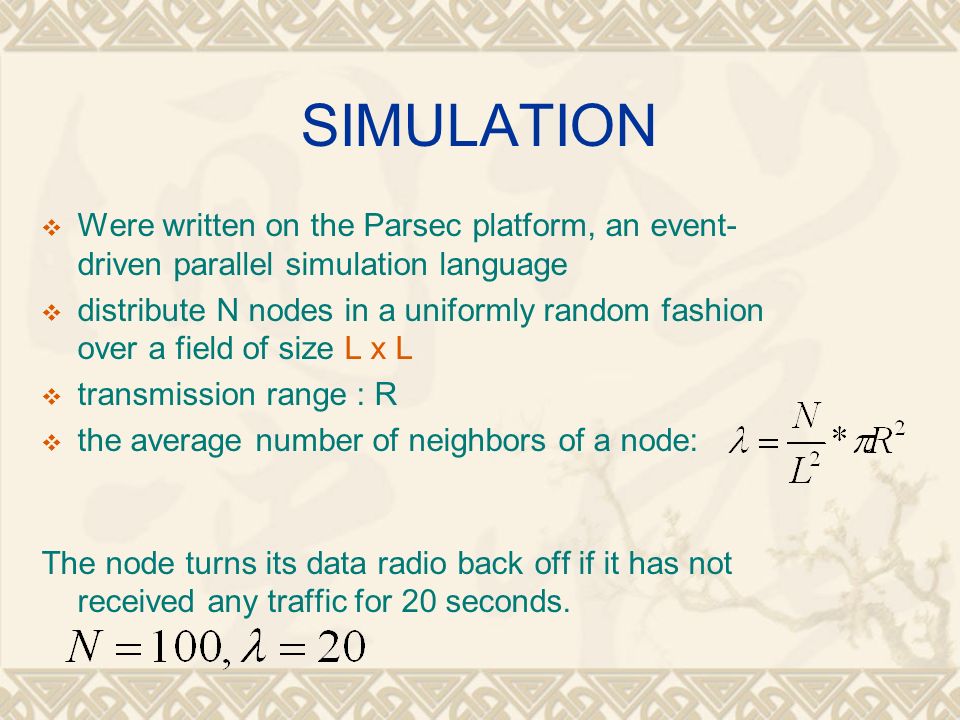

16. SIMULATION  Were written on the Parsec platform, an event- driven parallel simulation language  distribute N nodes in a uniformly random fashion over a field of size L x L  transmission range : R  the average number of neighbors of a node: The node turns its data radio back off if it has not received any traffic for 20 seconds.

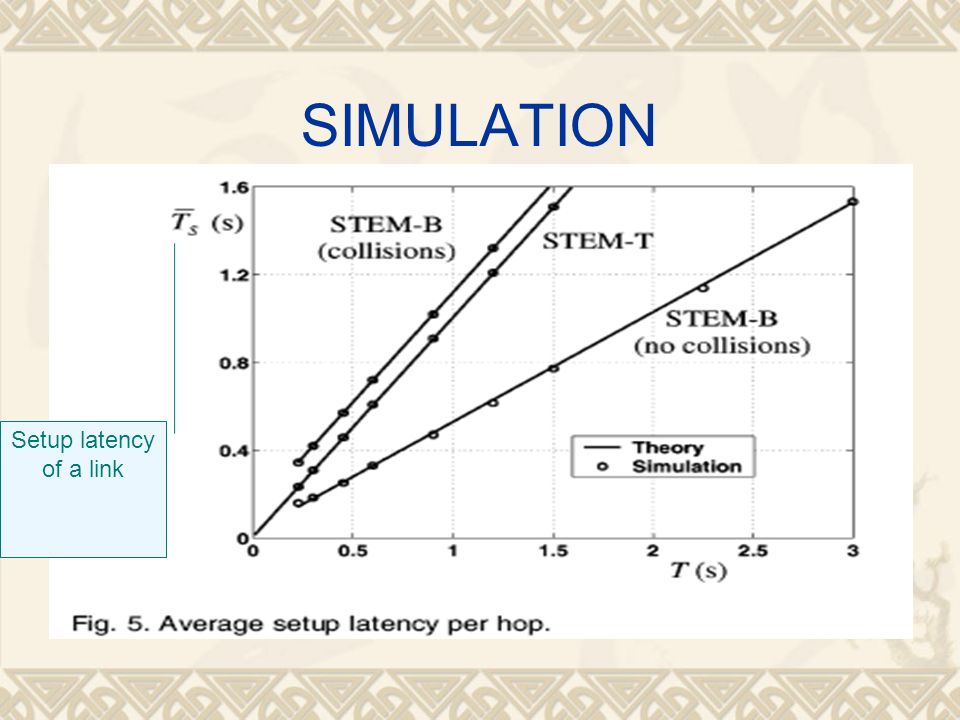

17. SIMULATION Setup latency of a link

18. ENERGY CONSUMPTION power of wakeup radio and data radio sleep power for the data and wakeup radio The average time the radio is on during one such data communication phase The number of such transitions per second the node sets up a link

19. ENERGY CONSUMPTION there is only one radio that is never in the sleep state,

20. ENERGY CONSUMPTION 其中 Setup frequency

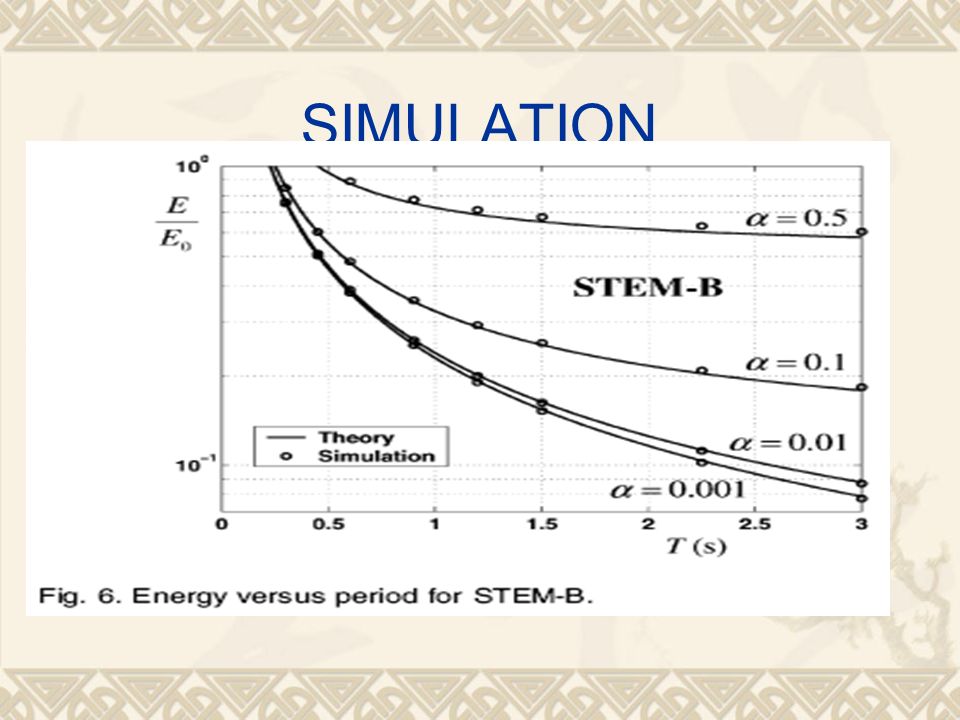

21. SIMULATION

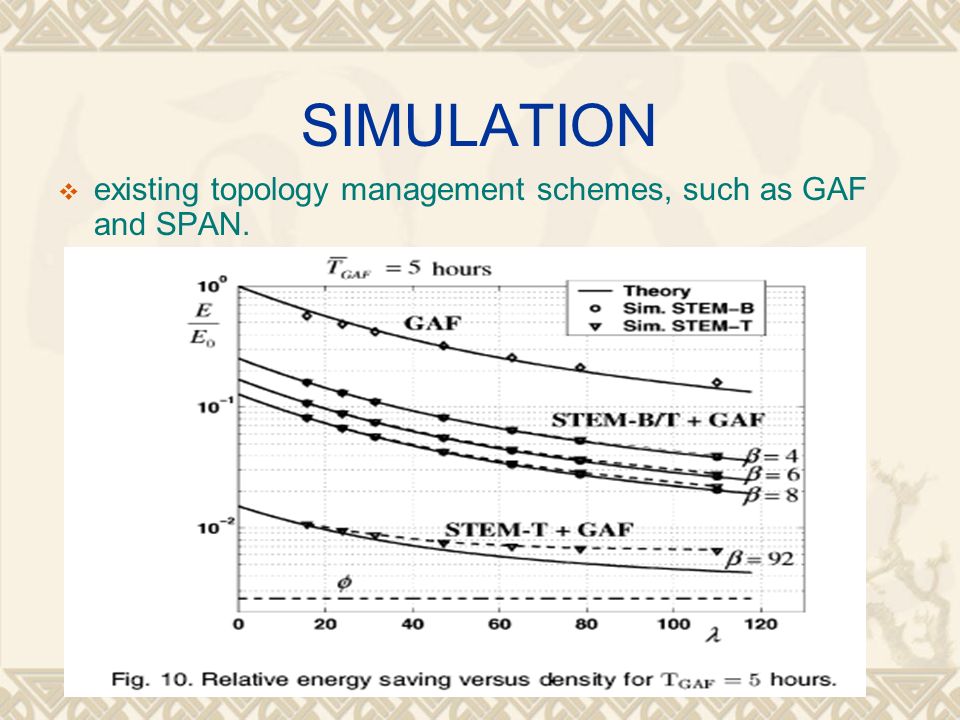

23.  existing topology management schemes, such as GAF and SPAN.

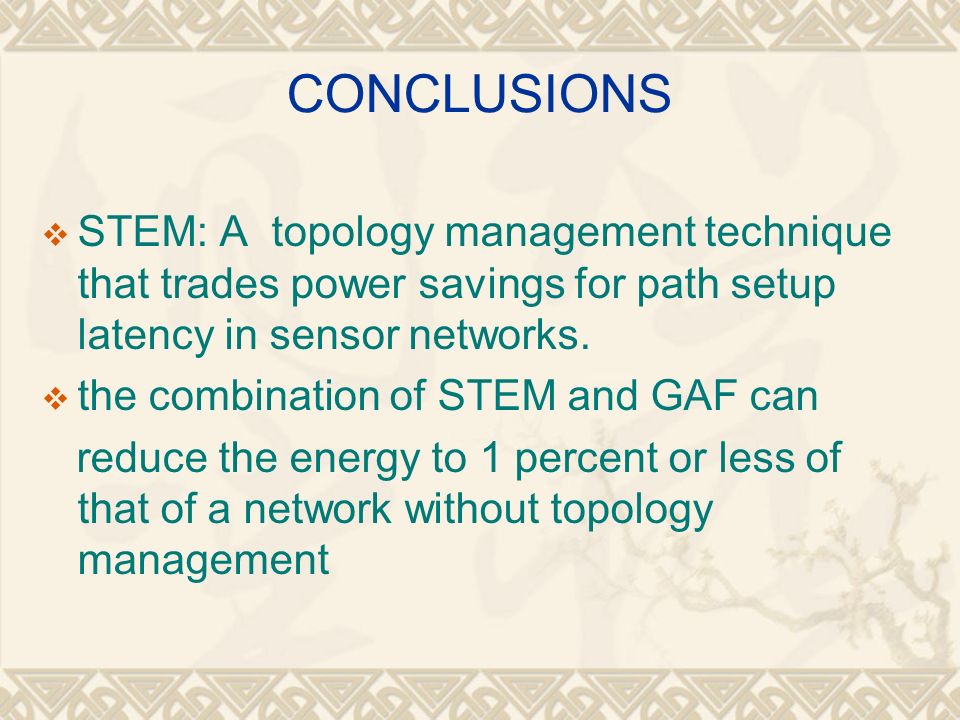

24. CONCLUSIONS  STEM: A topology management technique that trades power savings for path setup latency in sensor networks.  the combination of STEM and GAF can reduce the energy to 1 percent or less of that of a network without topology management

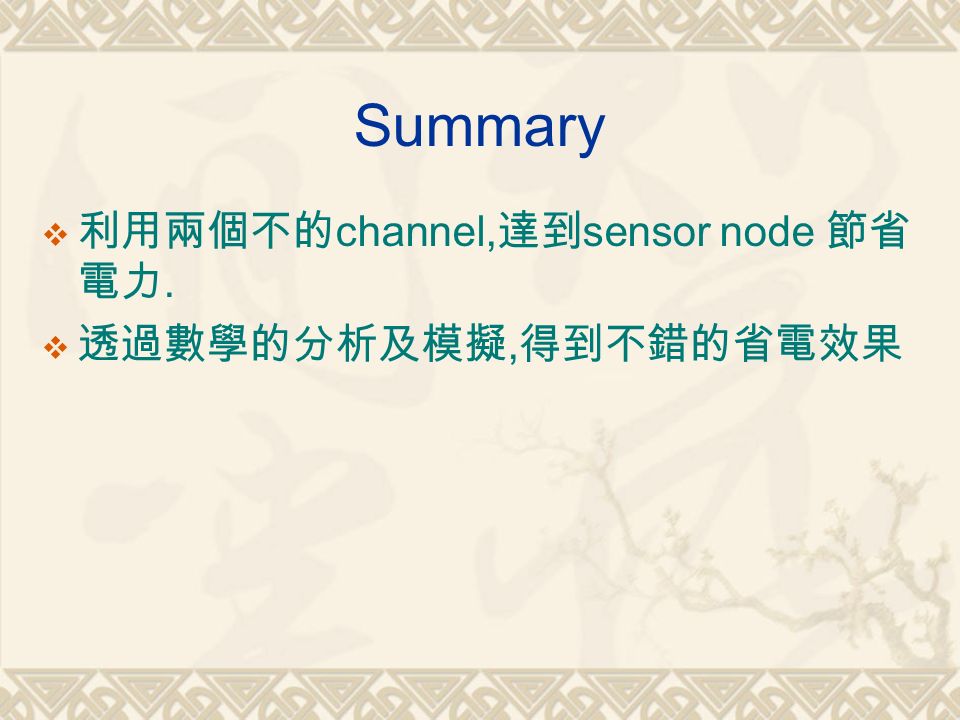

25. Summary  利用兩個不的 channel, 達到 sensor node 節省 電力.  透過數學的分析及模擬, 得到不錯的省電效果
