1 Car Communication based on Bluetooth Links ITN, October 2009, Lingotto Fiere, Turin October 2009 Car Communication Based on Bluetooth Links Michael HERVE

2 Car Communication based on Bluetooth Links ITN, October 2009, Lingotto Fiere, Turin Plan of the Presentation Introduction Bluetooth Link Interest of Bluetooth for car communication Different phases of Bluetooth Hands-Free connection Improvements Conclusion

3 Car Communication based on Bluetooth Links ITN, October 2009, Lingotto Fiere, Turin Origin of Bluetooth Idea of universal compatibility Wireless Link Hands-Free systems Interest of using Bluetooth for car communication Introduction

4 Car Communication based on Bluetooth Links ITN, October 2009, Lingotto Fiere, Turin Introduction Bluetooth Link Interest of Bluetooth for car communication Different phases of Bluetooth Hands- Free connection Improvements Conclusion

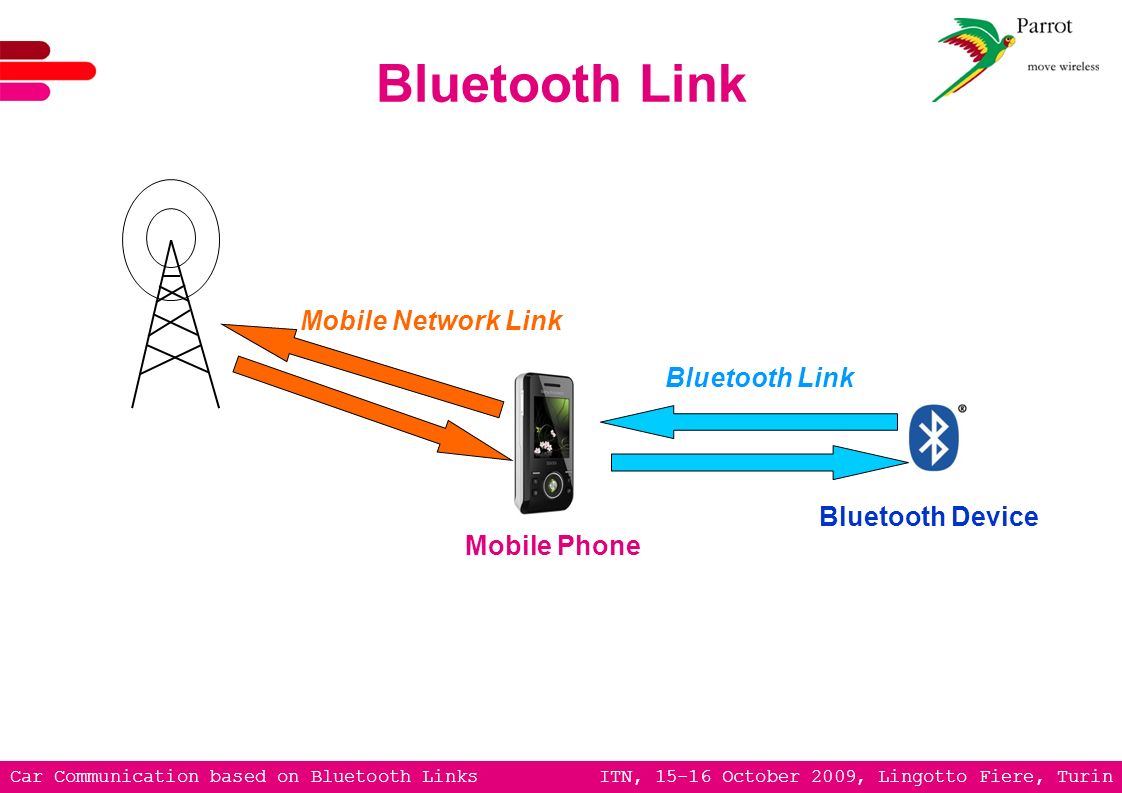

5 Car Communication based on Bluetooth Links ITN, October 2009, Lingotto Fiere, Turin Bluetooth Link Mobile Network Link Mobile Phone Bluetooth Device Bluetooth Link

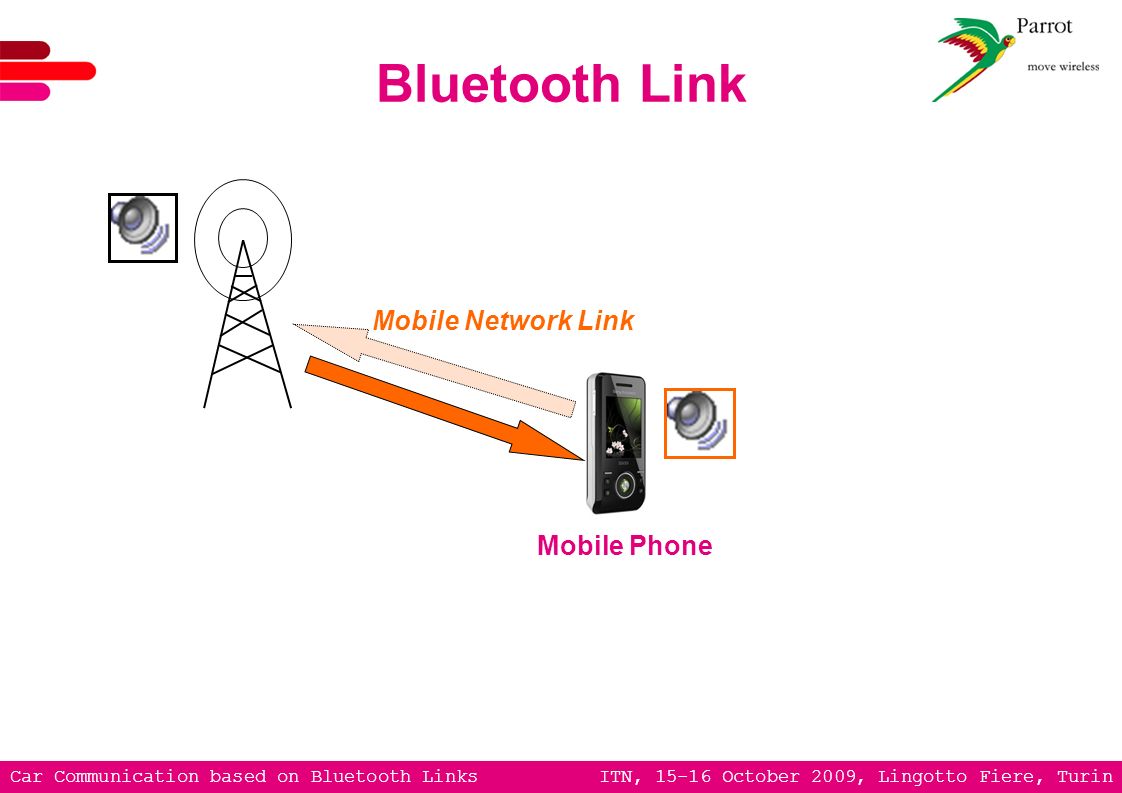

6 Car Communication based on Bluetooth Links ITN, October 2009, Lingotto Fiere, Turin Bluetooth Link Mobile Network Link Mobile Phone

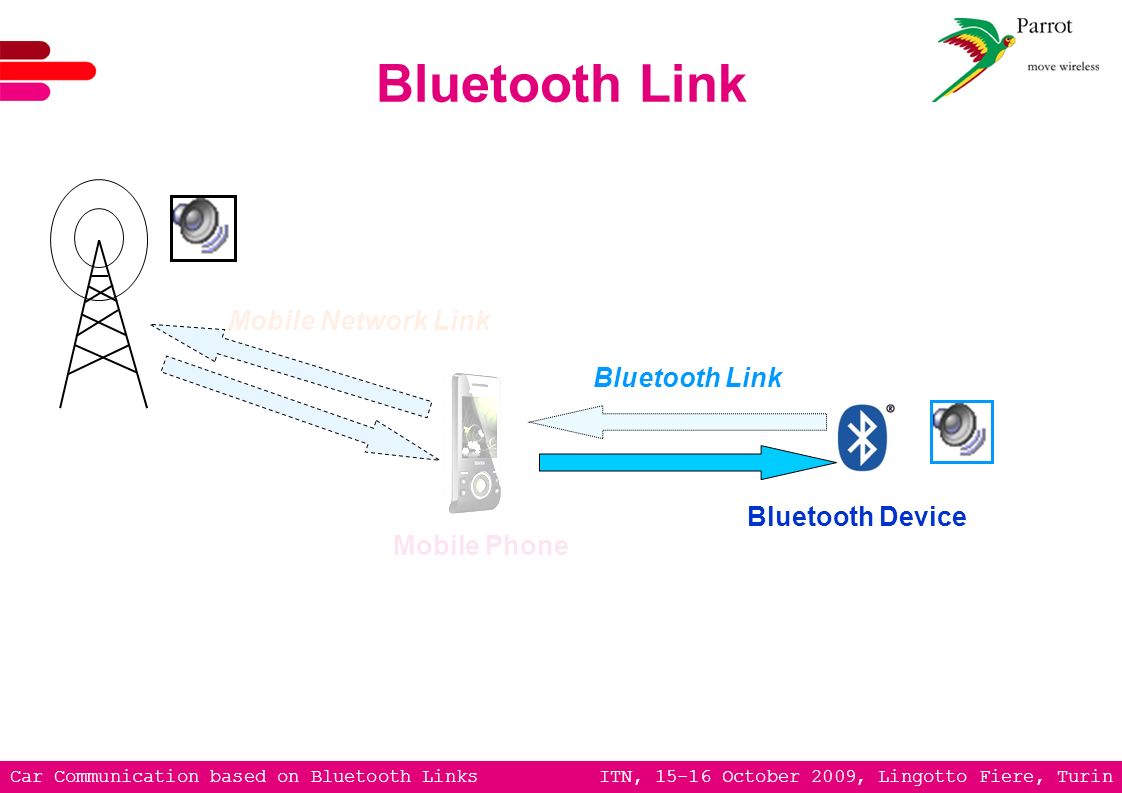

7 Car Communication based on Bluetooth Links ITN, October 2009, Lingotto Fiere, Turin Bluetooth Link Mobile Network Link Mobile Phone Bluetooth Device Bluetooth Link

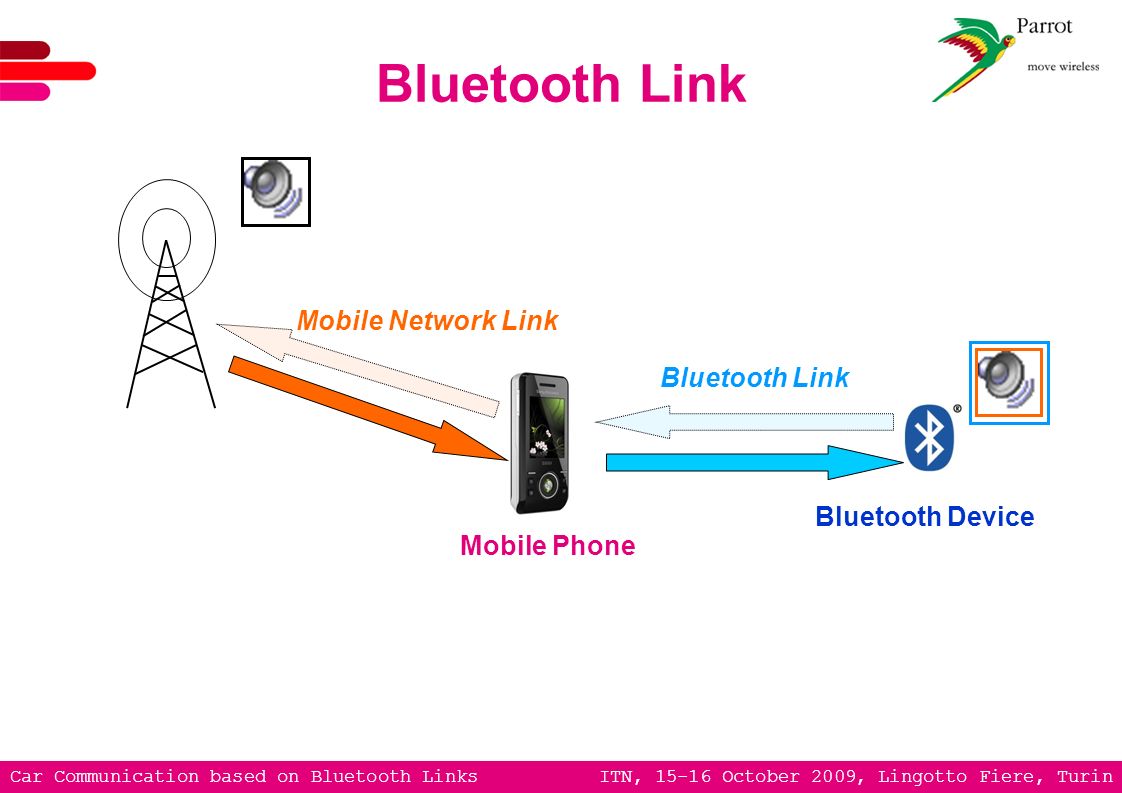

8 Car Communication based on Bluetooth Links ITN, October 2009, Lingotto Fiere, Turin Bluetooth Link Mobile Network Link Mobile Phone Bluetooth Device Bluetooth Link

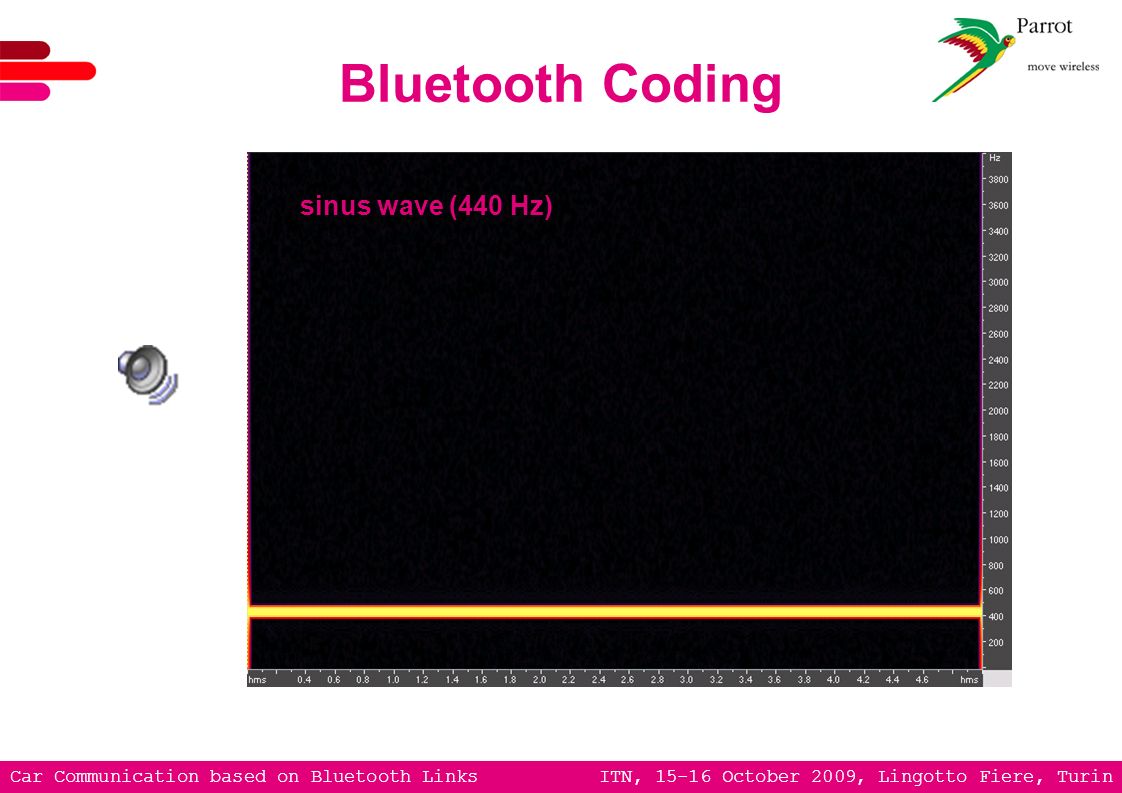

9 Car Communication based on Bluetooth Links ITN, October 2009, Lingotto Fiere, Turin Bluetooth Coding sinus wave (440 Hz)

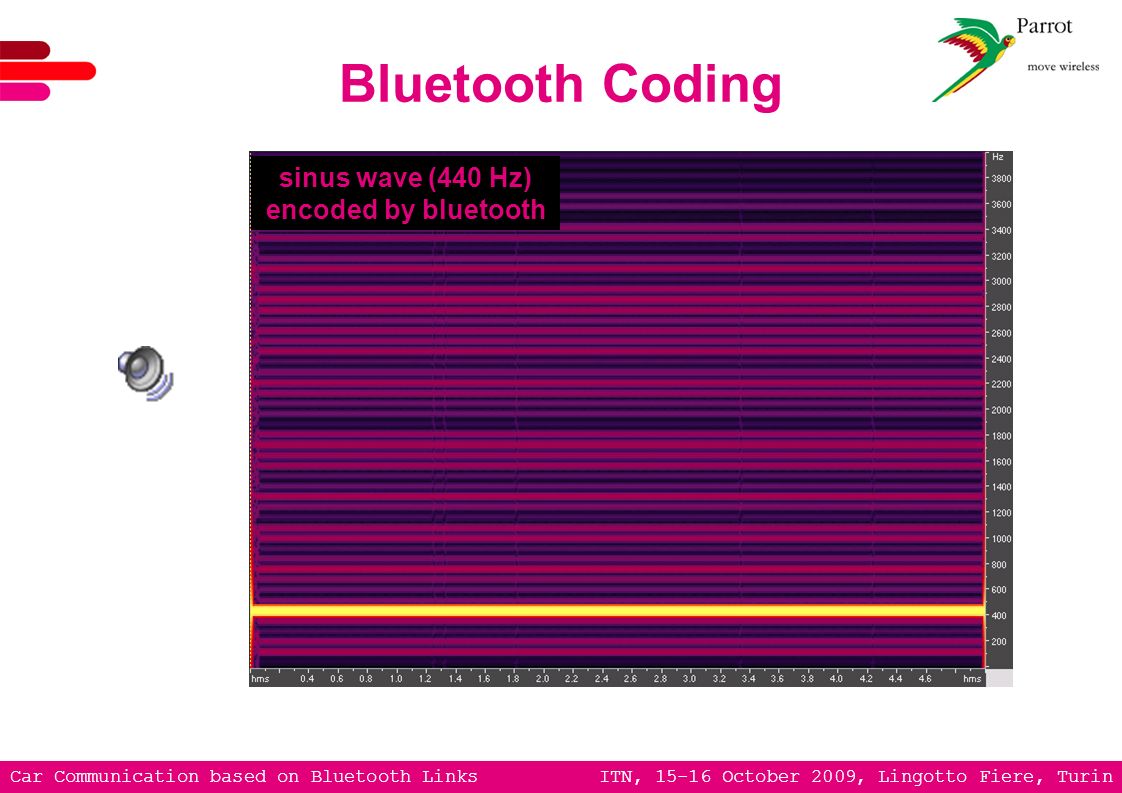

10 Car Communication based on Bluetooth Links ITN, October 2009, Lingotto Fiere, Turin Bluetooth Coding sinus wave (440 Hz) encoded by bluetooth

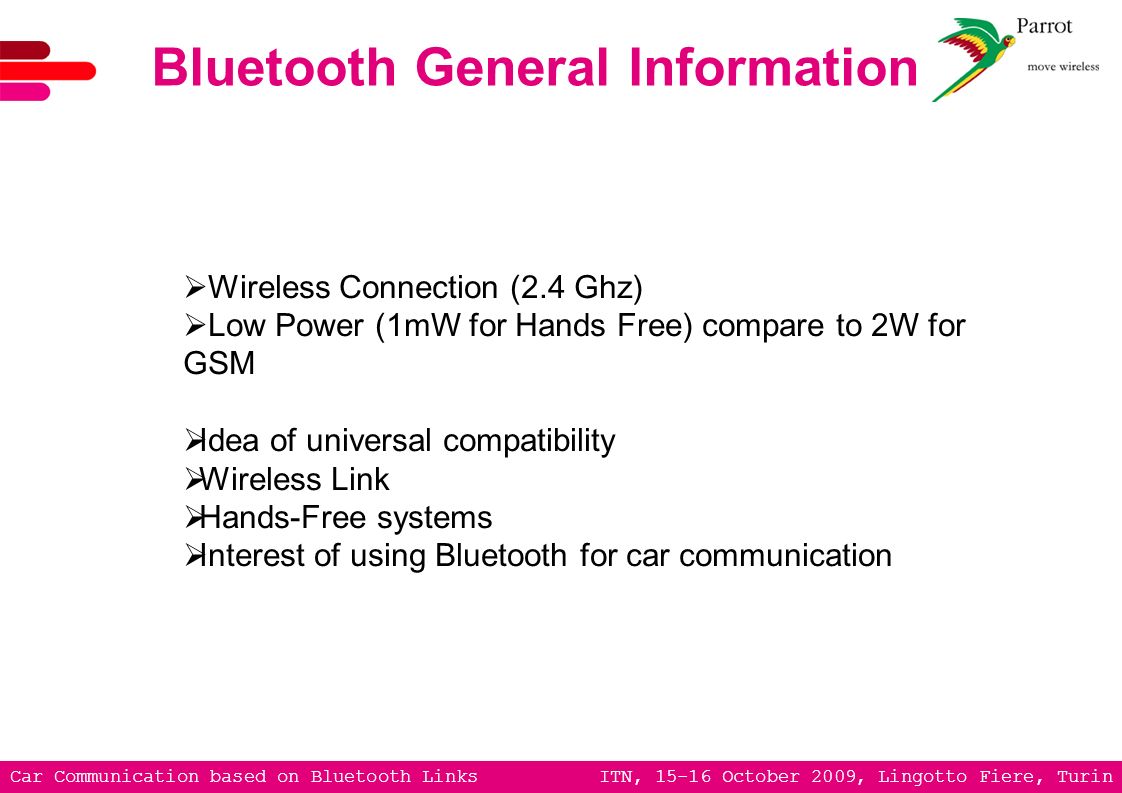

11 Car Communication based on Bluetooth Links ITN, October 2009, Lingotto Fiere, Turin Bluetooth General Information Wireless Connection (2.4 Ghz) Low Power (1mW for Hands Free) compare to 2W for GSM Idea of universal compatibility Wireless Link Hands-Free systems Interest of using Bluetooth for car communication

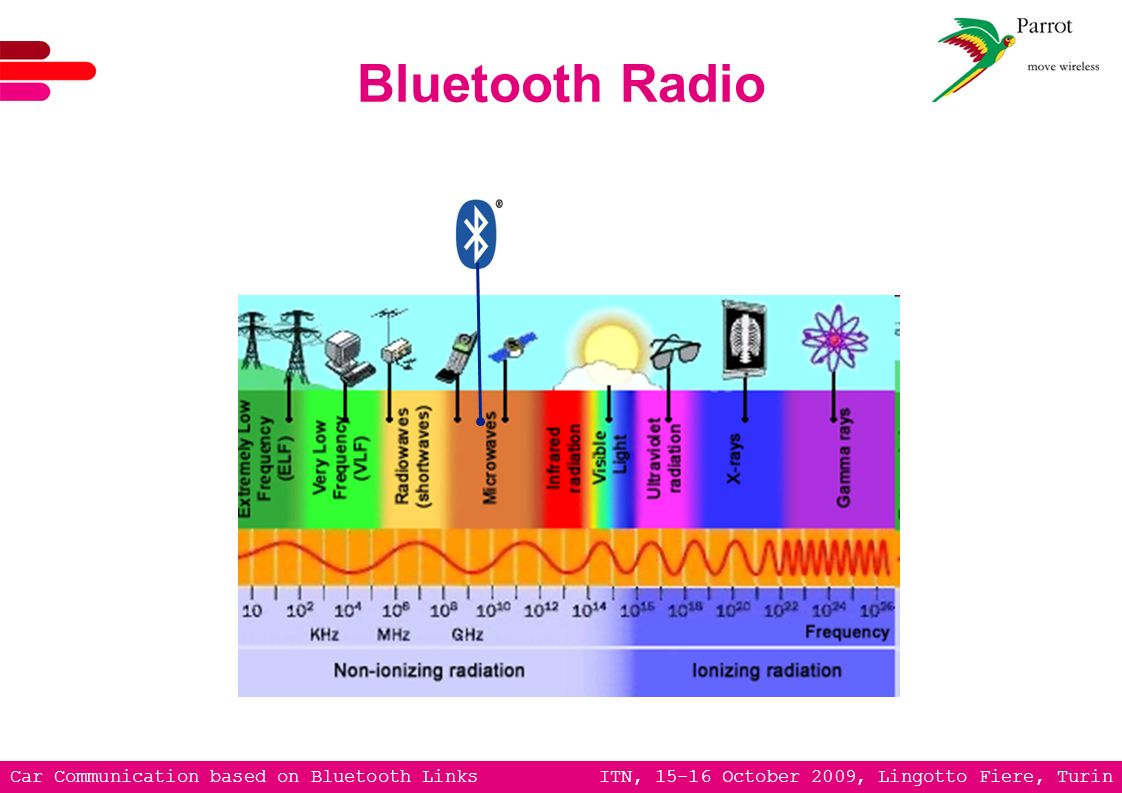

12 Car Communication based on Bluetooth Links ITN, October 2009, Lingotto Fiere, Turin Bluetooth Radio

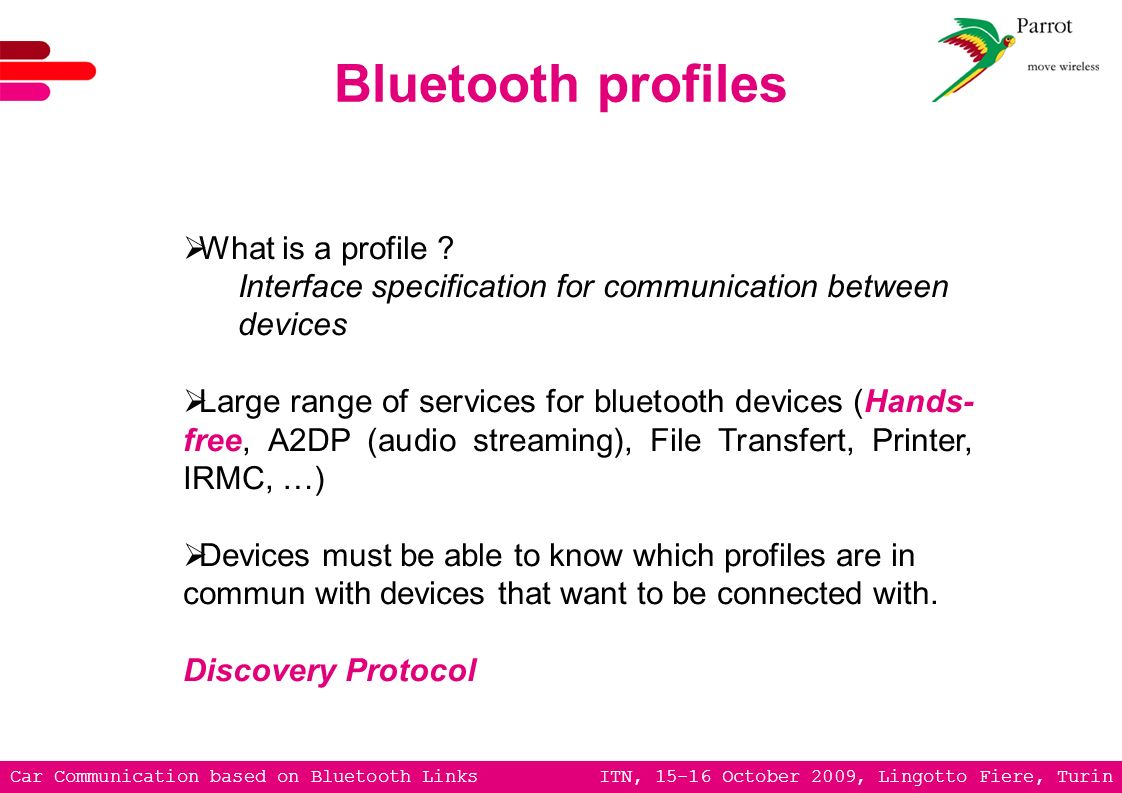

13 Car Communication based on Bluetooth Links ITN, October 2009, Lingotto Fiere, Turin Bluetooth profiles What is a profile ? Interface specification for communication between devices Large range of services for bluetooth devices (Hands- free, A2DP (audio streaming), File Transfert, Printer, IRMC, …) Devices must be able to know which profiles are in commun with devices that want to be connected with. Discovery Protocol

14 Car Communication based on Bluetooth Links ITN, October 2009, Lingotto Fiere, Turin Introduction Bluetooth Link Interest of Bluetooth for car communication Different phases of Bluetooth Hands- Free connection Improvements Conclusion

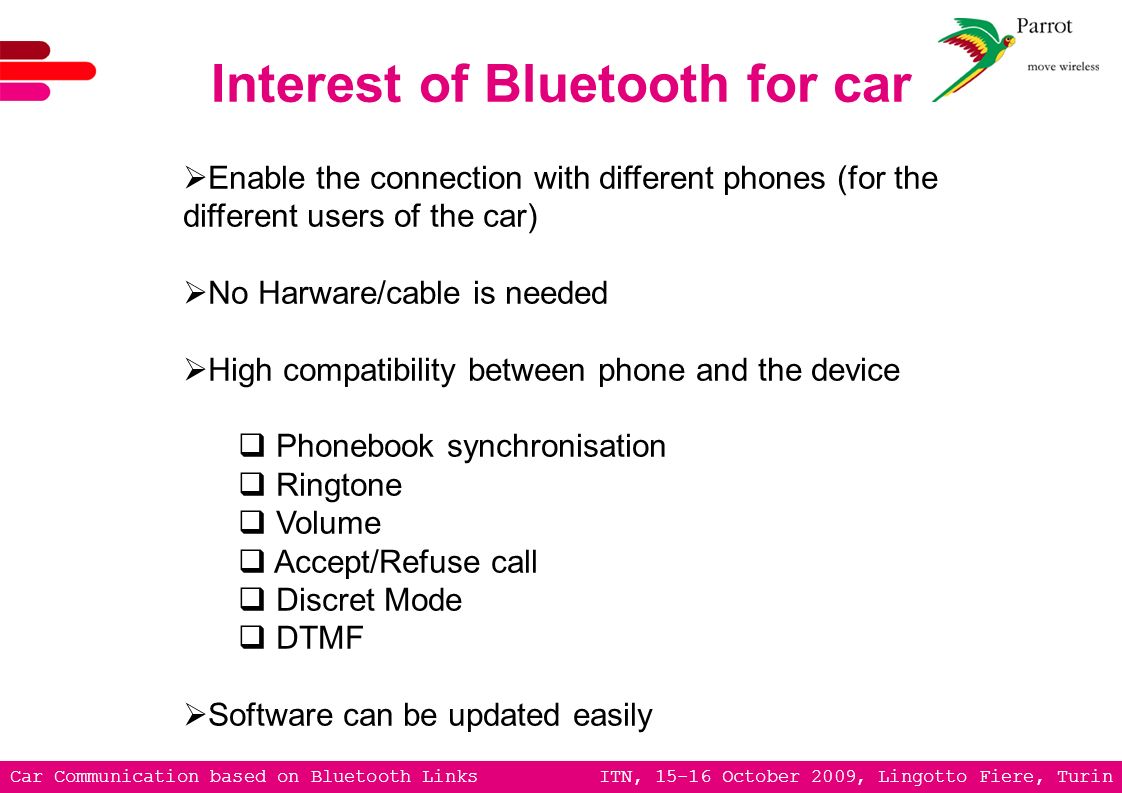

15 Car Communication based on Bluetooth Links ITN, October 2009, Lingotto Fiere, Turin Interest of Bluetooth for car Enable the connection with different phones (for the different users of the car) No Harware/cable is needed High compatibility between phone and the device Phonebook synchronisation Ringtone Volume Accept/Refuse call Discret Mode DTMF Software can be updated easily

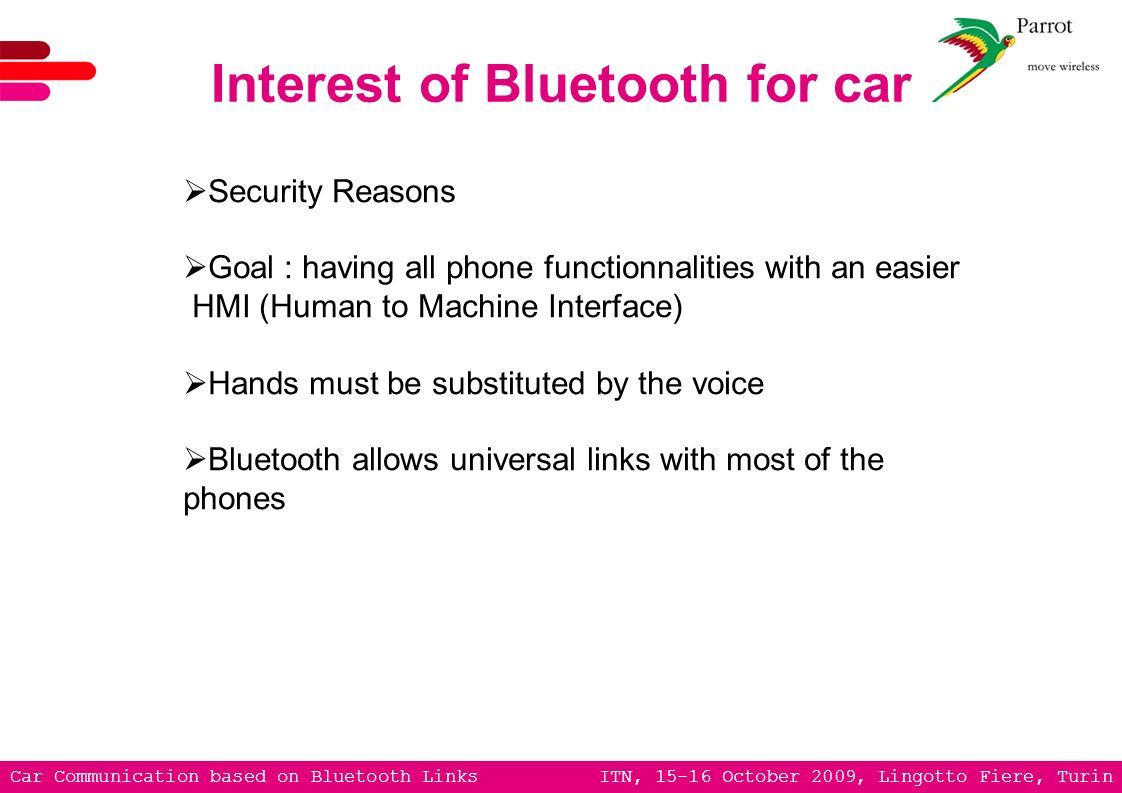

16 Car Communication based on Bluetooth Links ITN, October 2009, Lingotto Fiere, Turin Interest of Bluetooth for car Security Reasons Goal : having all phone functionnalities with an easier HMI (Human to Machine Interface) Hands must be substituted by the voice Bluetooth allows universal links with most of the phones

17 Car Communication based on Bluetooth Links ITN, October 2009, Lingotto Fiere, Turin Introduction Bluetooth Link Interest of Bluetooth for car communication Different phases of Bluetooth Hands-Free connection Improvements Conclusion

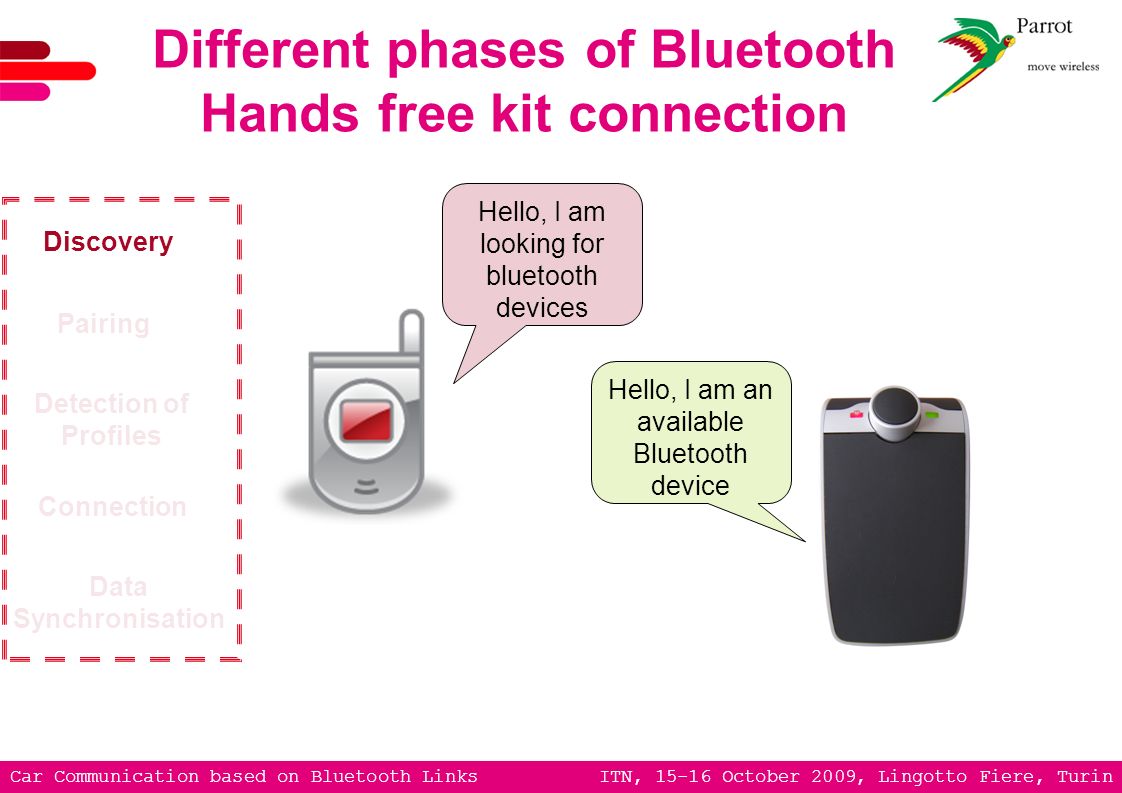

18 Car Communication based on Bluetooth Links ITN, October 2009, Lingotto Fiere, Turin Different phases of Bluetooth Hands free kit connection Discovery Pairing Detection of Profiles Connection Data Synchronisation Hello, I am looking for bluetooth devices Hello, I am an available Bluetooth device

19 Car Communication based on Bluetooth Links ITN, October 2009, Lingotto Fiere, Turin Different phases of Bluetooth Hands free kit connection Discovery Pairing Detection of Profiles Connection Data Synchronisation What is your authentification Code ? 1234… This code has to be typed on your keyboard Ok ! Now we are paired

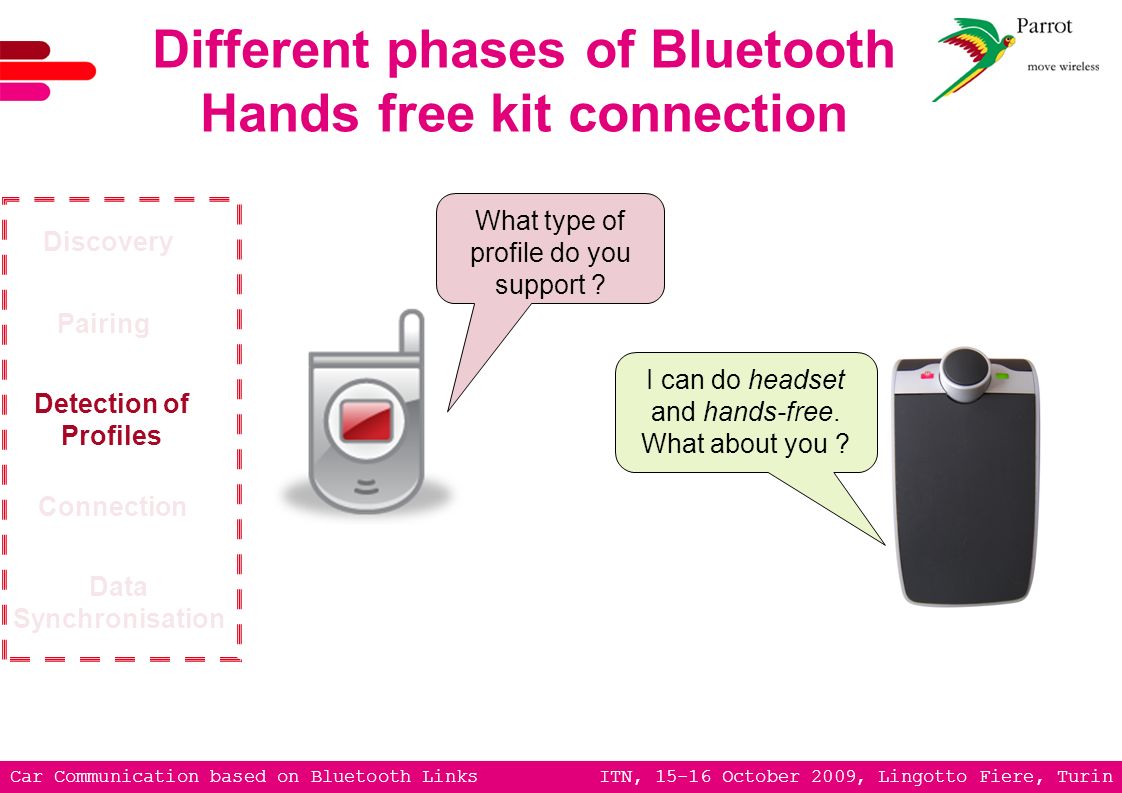

20 Car Communication based on Bluetooth Links ITN, October 2009, Lingotto Fiere, Turin Different phases of Bluetooth Hands free kit connection Discovery Pairing Detection of Profiles Connection Data Synchronisation What type of profile do you support ? I can do headset and hands-free. What about you ?

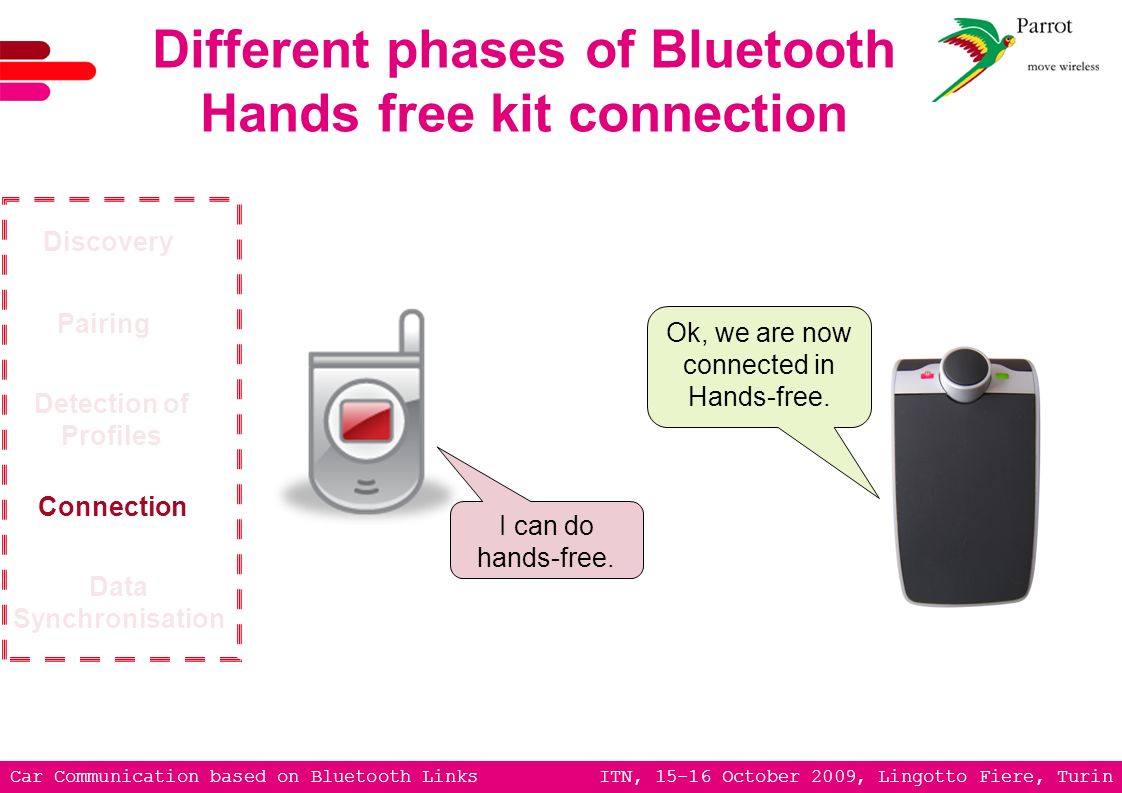

21 Car Communication based on Bluetooth Links ITN, October 2009, Lingotto Fiere, Turin Different phases of Bluetooth Hands free kit connection Discovery Pairing Detection of Profiles Connection Data Synchronisation Ok, we are now connected in Hands-free. I can do hands-free.

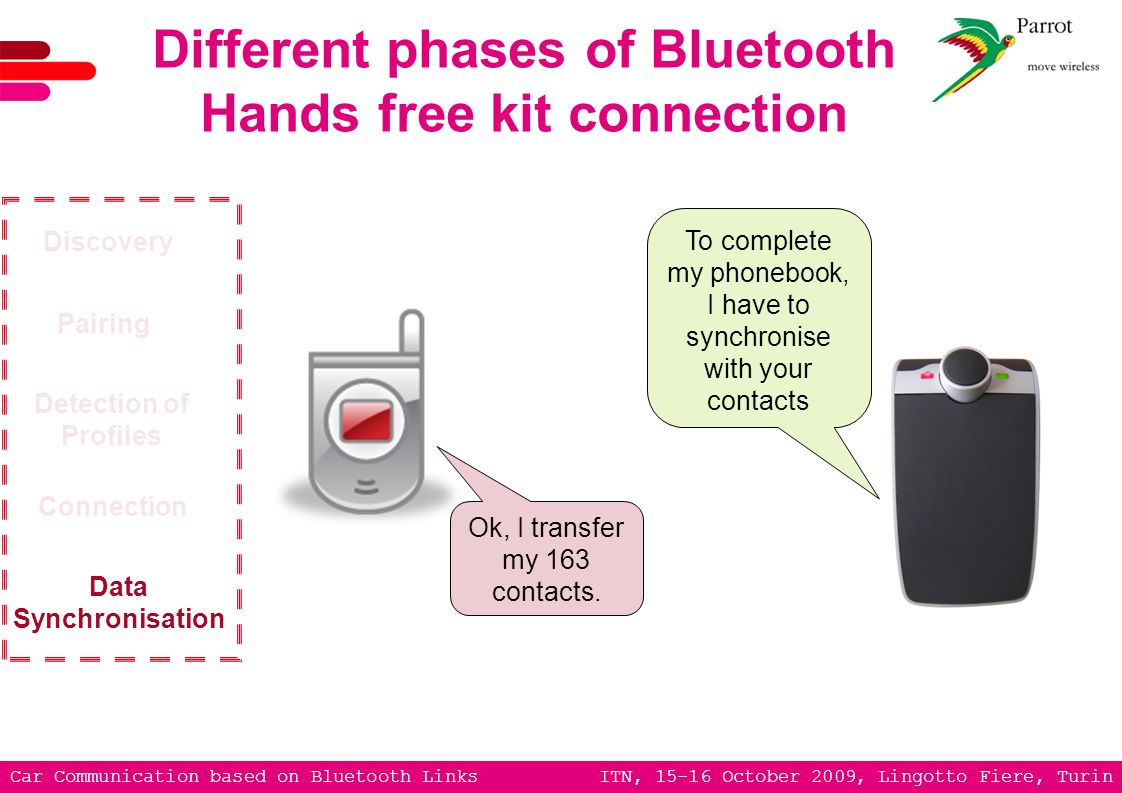

22 Car Communication based on Bluetooth Links ITN, October 2009, Lingotto Fiere, Turin Different phases of Bluetooth Hands free kit connection Discovery Pairing Detection of Profiles Connection Data Synchronisation To complete my phonebook, I have to synchronise with your contacts Ok, I transfer my 163 contacts.

23 Car Communication based on Bluetooth Links ITN, October 2009, Lingotto Fiere, Turin The Hands Free synchronizes its phonebook with the contacts on the mobile phone. The phonebook is vocally available at any time through Voice Recognition, Text To Speech & Voice Tags. Synchronisation is done only once (at first connection) Phonebook synchronisation Automatic Alessandro Del Piero Gianluigi Buffon Fabio Cannavaro Fabio Grosso Tiago David Trezeguet Alessandro Del Piero Gianluigi Buffon Fabio Cannavaro Fabio Grosso Tiago David Trezeguet

24 Car Communication based on Bluetooth Links ITN, October 2009, Lingotto Fiere, Turin Introduction Bluetooth Link Interest of Bluetooth for car communication Different phases of Bluetooth Hands- Free connection Improvements Conclusion

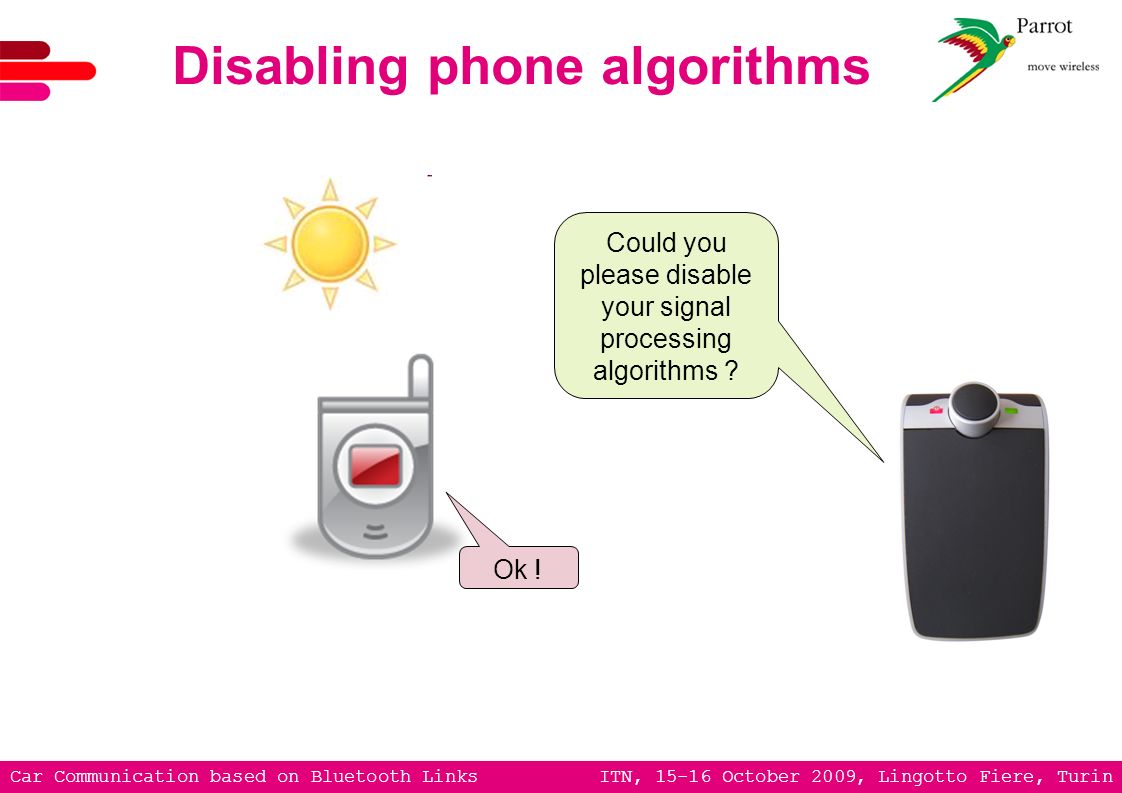

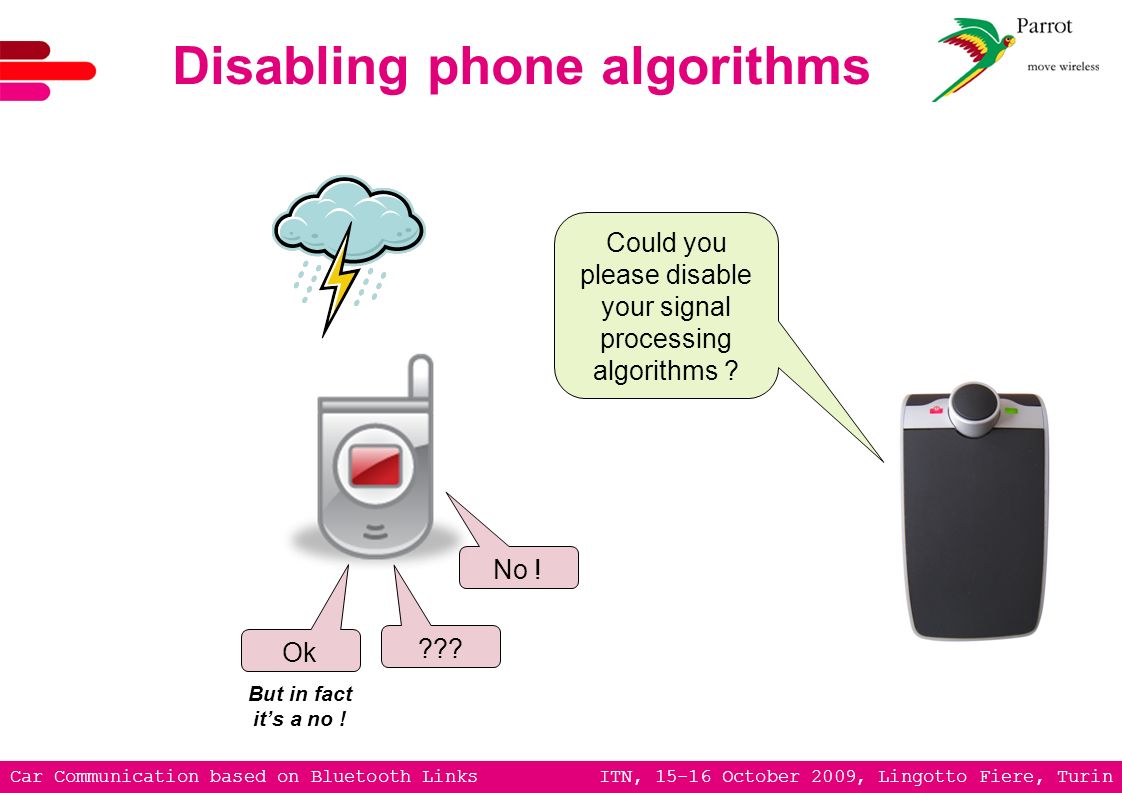

25 Car Communication based on Bluetooth Links ITN, October 2009, Lingotto Fiere, Turin Disabling phone algorithms Could you please disable your signal processing algorithms ? Ok !

26 Car Communication based on Bluetooth Links ITN, October 2009, Lingotto Fiere, Turin Disabling phone algorithms Could you please disable your signal processing algorithms ? No ! ??? Ok But in fact its a no !

27 Car Communication based on Bluetooth Links ITN, October 2009, Lingotto Fiere, Turin Initial noised signal Disabling phone algorithms No longer…

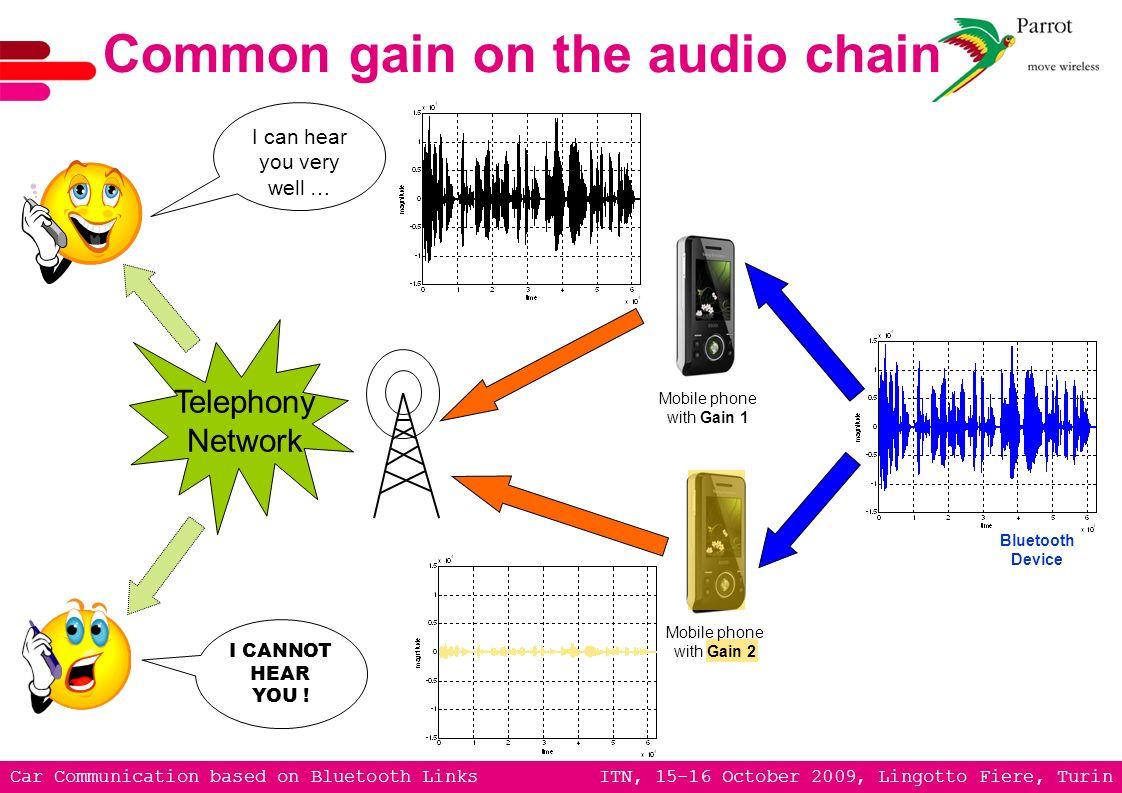

28 Car Communication based on Bluetooth Links ITN, October 2009, Lingotto Fiere, Turin Common gain on the audio chain Bluetooth Device Telephony Network Mobile phone with Gain 1 Mobile phone with Gain 2 I can hear you very well … I CANNOT HEAR YOU !

29 Car Communication based on Bluetooth Links ITN, October 2009, Lingotto Fiere, Turin Common gain on the audio chain Bluetooth Device Telephony Network Mobile phone with Gain 1 Mobile phone with Gain 2 I can hear you very well … I CANNOT HEAR YOU !

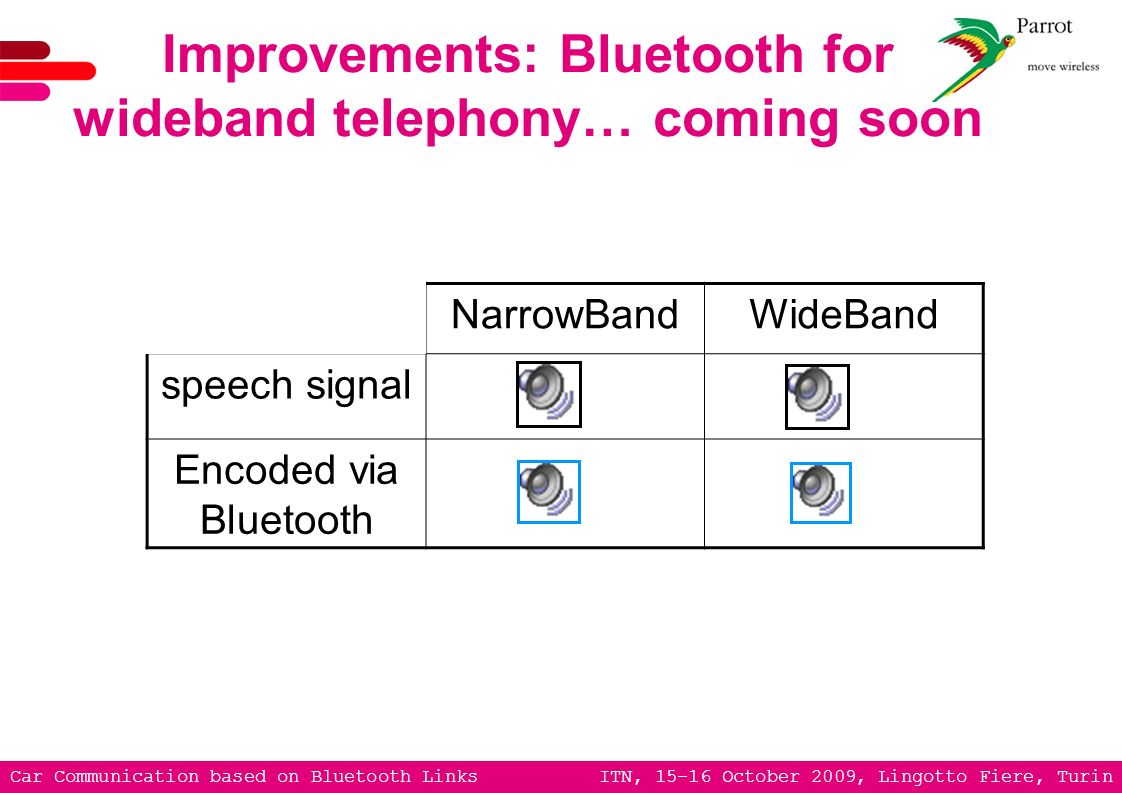

30 Car Communication based on Bluetooth Links ITN, October 2009, Lingotto Fiere, Turin Improvements: Bluetooth for wideband telephony… coming soon NarrowBandWideBand speech signal Encoded via Bluetooth

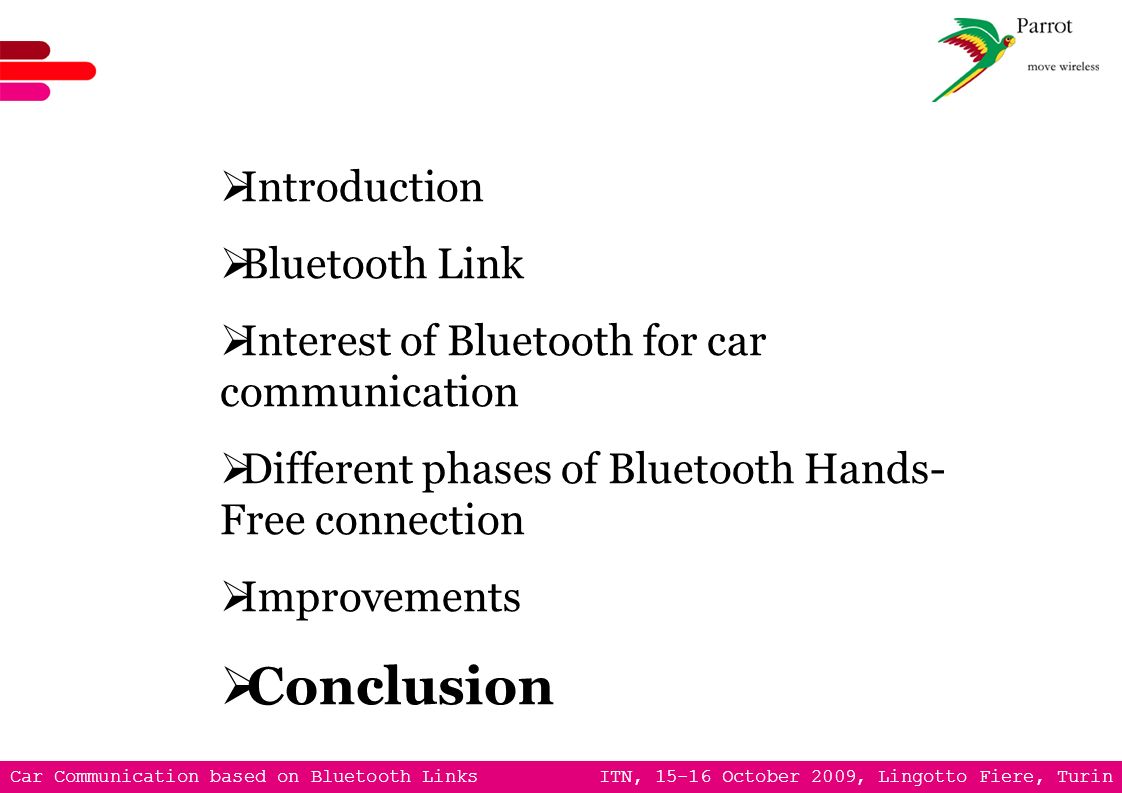

31 Car Communication based on Bluetooth Links ITN, October 2009, Lingotto Fiere, Turin Introduction Bluetooth Link Interest of Bluetooth for car communication Different phases of Bluetooth Hands- Free connection Improvements Conclusion

32 Car Communication based on Bluetooth Links ITN, October 2009, Lingotto Fiere, Turin Conclusion Presentation of Bluetooth Integration of Bluetooth in car communication Limits and exemple of problems encountered The future of Bluetooth

33 Car Communication based on Bluetooth Links ITN, October 2009, Lingotto Fiere, Turin Thank you ! QUESTIONS ?
