1 International Telecommunication Union Plenary Session on ITU-T Standards 15th Biennial TDI International Conference – Las Vegas, Nevada, USA V.18 The bridge between old and future communication for deaf people Products & Concepts George Skorkowski DSPG/Sensory Communication

2 ITU-T July th Biennial TDI International Conference – Las Vegas, Nevada, USA V.18 practical aspects & misconceptions Current developments in V.18 Recommendation Consumer products based on V.18 technology V.18 Mobile access Simultaneous Voice and Text products Service type products based on V.18 technology Contents

3 ITU-T July th Biennial TDI International Conference – Las Vegas, Nevada, USA V.18 Practical aspects of the standard and general misconceptions about it

4 ITU-T July th Biennial TDI International Conference – Las Vegas, Nevada, USA Why V.18 ? International standard - Accepted as a standard in all European countries, Australia & New Zealand Bridge between old and new technologies - Higher speed modems - Multimedia Inter-working - Can inter-work with any existing text Telephone - Future global integration with Internet & Multimedia Ease of use - More reliable call set-up - User friendly operation

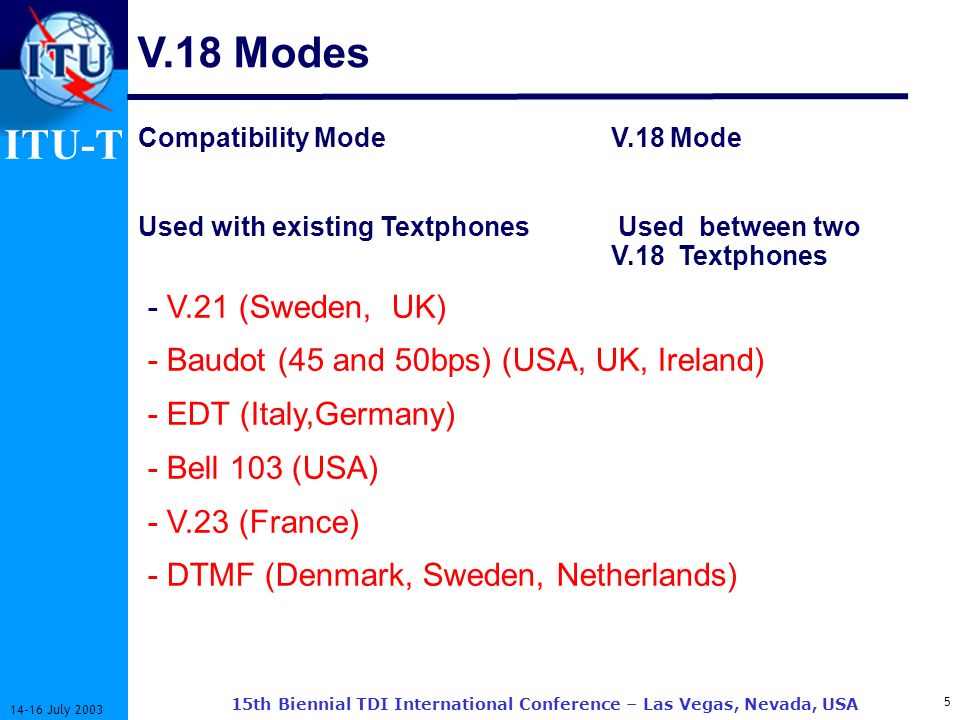

5 ITU-T July th Biennial TDI International Conference – Las Vegas, Nevada, USA Compatibility Mode V.18 Mode Used with existing TextphonesUsed between two V.18 Textphones - V.21 (Sweden, UK) - Baudot (45 and 50bps) (USA, UK, Ireland) - EDT (Italy,Germany) - Bell 103 (USA) - V.23 (France) - DTMF (Denmark, Sweden, Netherlands) V.18 Modes

6 ITU-T July th Biennial TDI International Conference – Las Vegas, Nevada, USA CTM Mobile access for the textphones Simultaneous Text & Voice Current development of V.18

7 ITU-T July th Biennial TDI International Conference – Las Vegas, Nevada, USA V.18 Conformance testing to the standard Why it is important

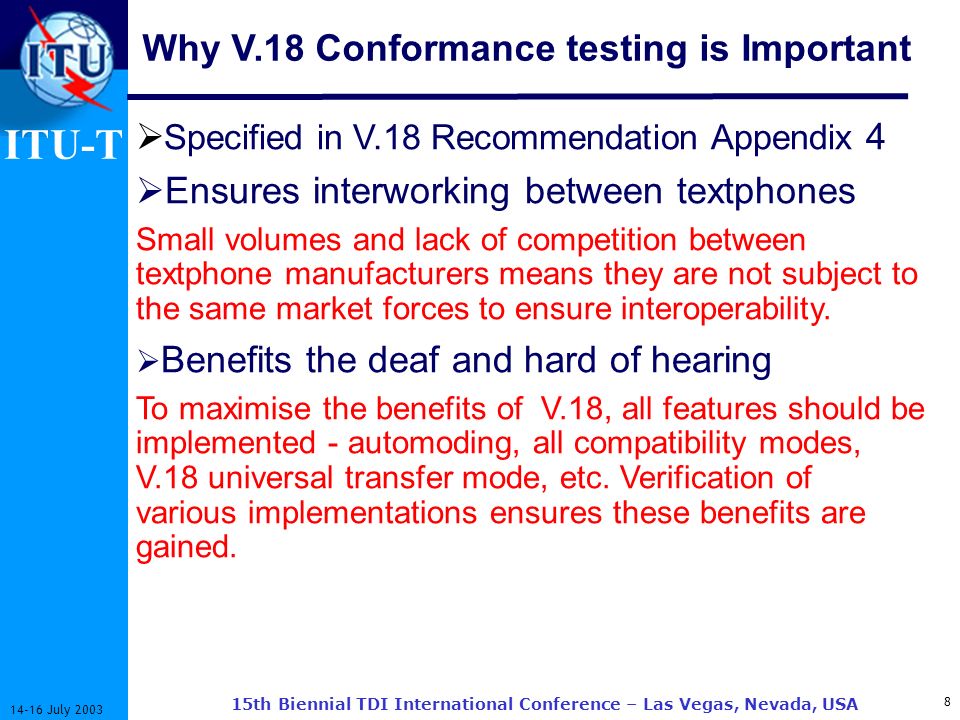

8 ITU-T July th Biennial TDI International Conference – Las Vegas, Nevada, USA Why V.18 Conformance testing is Important Specified in V.18 Recommendation Appendix 4 Ensures interworking between textphones Small volumes and lack of competition between textphone manufacturers means they are not subject to the same market forces to ensure interoperability. Benefits the deaf and hard of hearing To maximise the benefits of V.18, all features should be implemented - automoding, all compatibility modes, V.18 universal transfer mode, etc. Verification of various implementations ensures these benefits are gained.

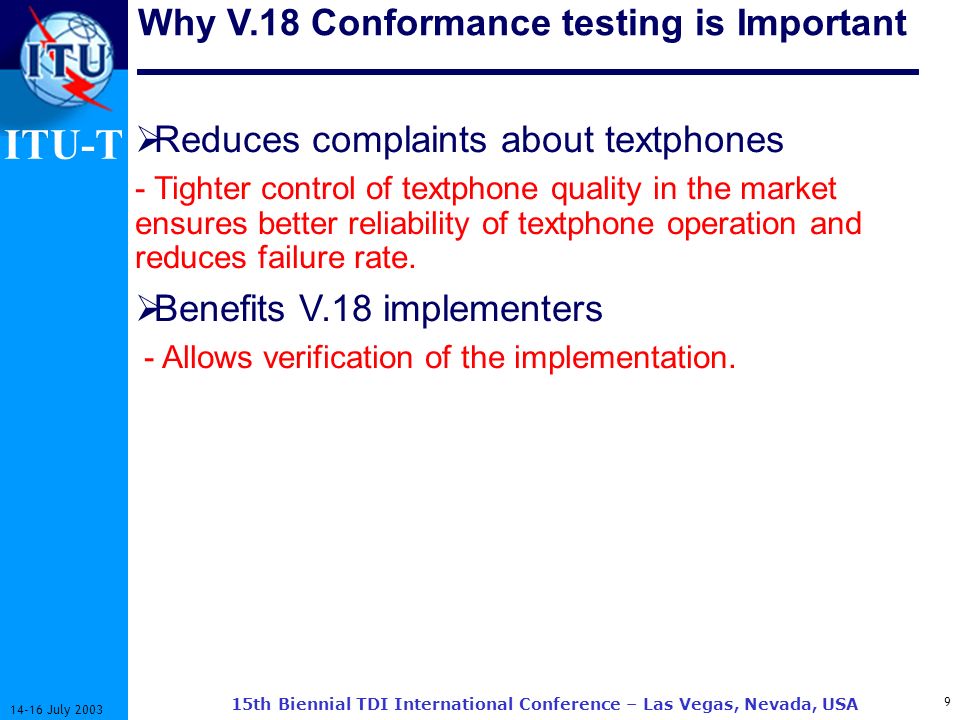

9 ITU-T July th Biennial TDI International Conference – Las Vegas, Nevada, USA Why V.18 Conformance testing is Important Reduces complaints about textphones - Tighter control of textphone quality in the market ensures better reliability of textphone operation and reduces failure rate. Benefits V.18 implementers - Allows verification of the implementation.

10 ITU-T July th Biennial TDI International Conference – Las Vegas, Nevada, USA V.18 conformance Tester Applications: Verification of proper implementation of V.18 according to the Appendix 4 of V.18 ITU-T Recommendation V.18 based Text Telephony Products

11 ITU-T July th Biennial TDI International Conference – Las Vegas, Nevada, USA Review of some of existing legacy text telephone products used in Europe

12 ITU-T July th Biennial TDI International Conference – Las Vegas, Nevada, USA Type: DTS Manufacturer: Ecotron (Italy) View: Front Existing Text Telephony Products

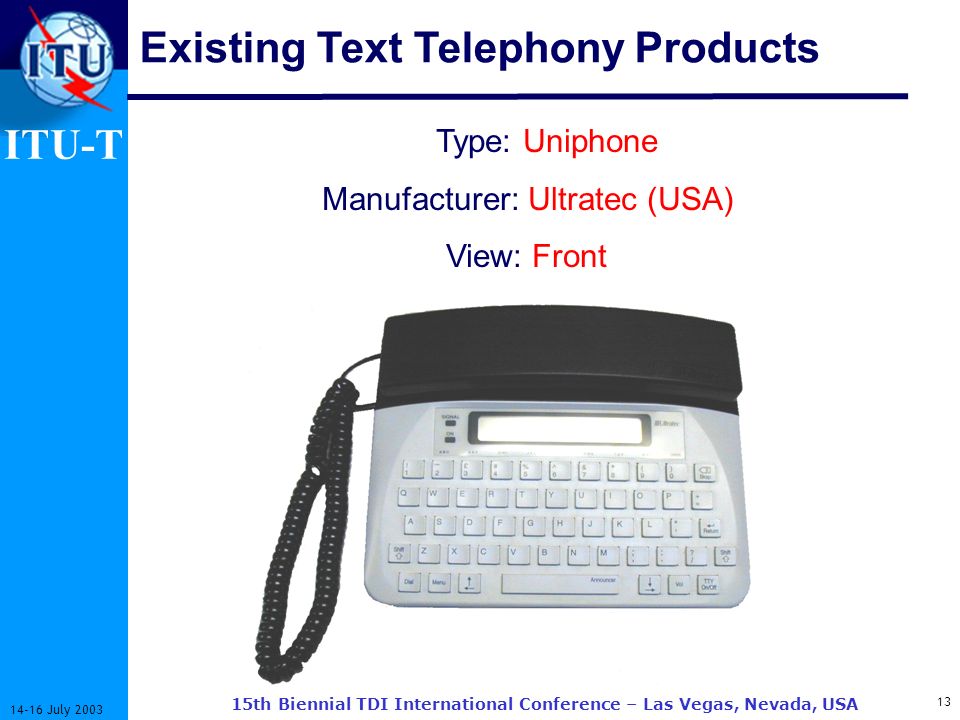

13 ITU-T July th Biennial TDI International Conference – Las Vegas, Nevada, USA Existing Text Telephony Products Type: Uniphone Manufacturer: Ultratec (USA) View: Front

14 ITU-T July th Biennial TDI International Conference – Las Vegas, Nevada, USA Type: Qwerty phone Manufacturer: BT Merlin (UK) Status: discontinued Existing Text Telephony Products

15 ITU-T July th Biennial TDI International Conference – Las Vegas, Nevada, USA Existing Text Telephony Products Type: Minicom pro 400 Manufacturer: Ultratec (USA) View: Front

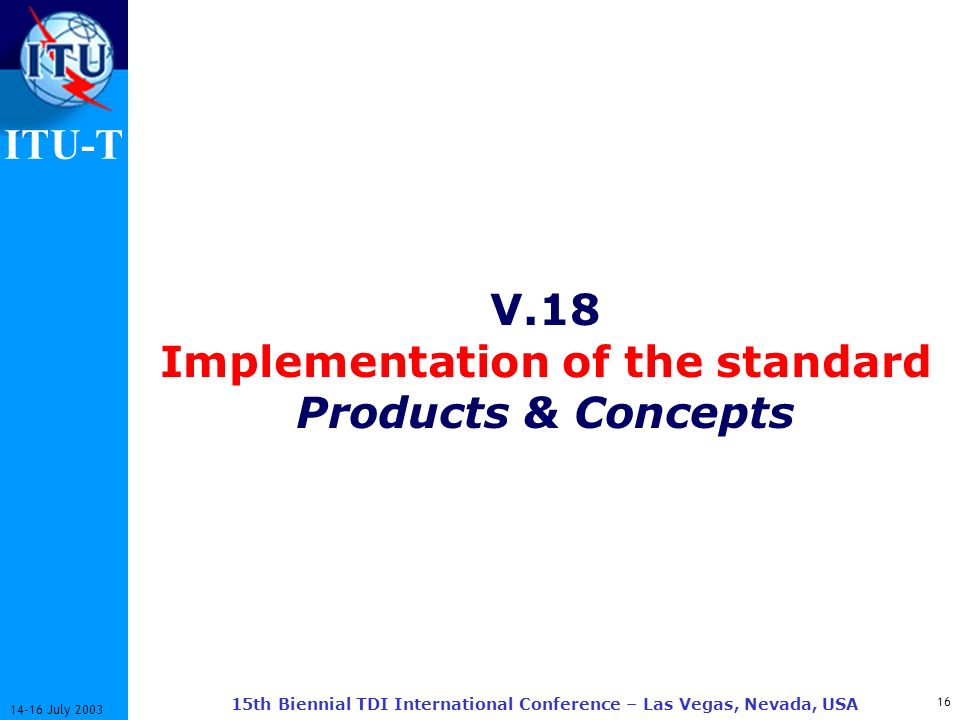

16 ITU-T July th Biennial TDI International Conference – Las Vegas, Nevada, USA V.18 Implementation of the standard Products & Concepts

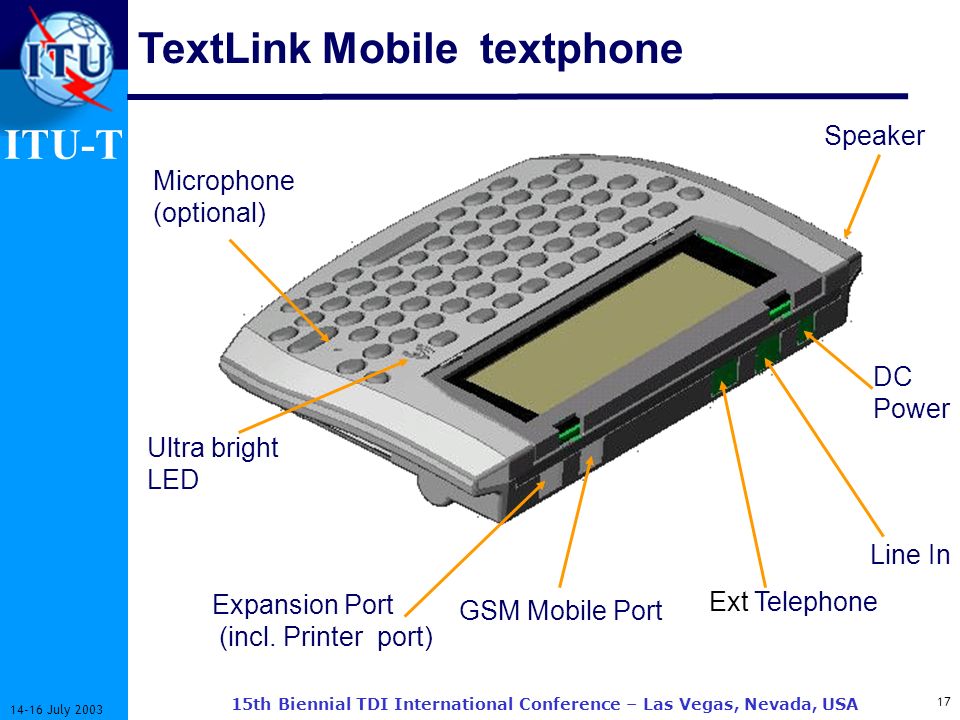

17 ITU-T July th Biennial TDI International Conference – Las Vegas, Nevada, USA TextLink Mobile textphone Microphone (optional) Expansion Port (incl. Printer port) GSM Mobile Port Ext Telephone Line In DC Power Ultra bright LED Speaker

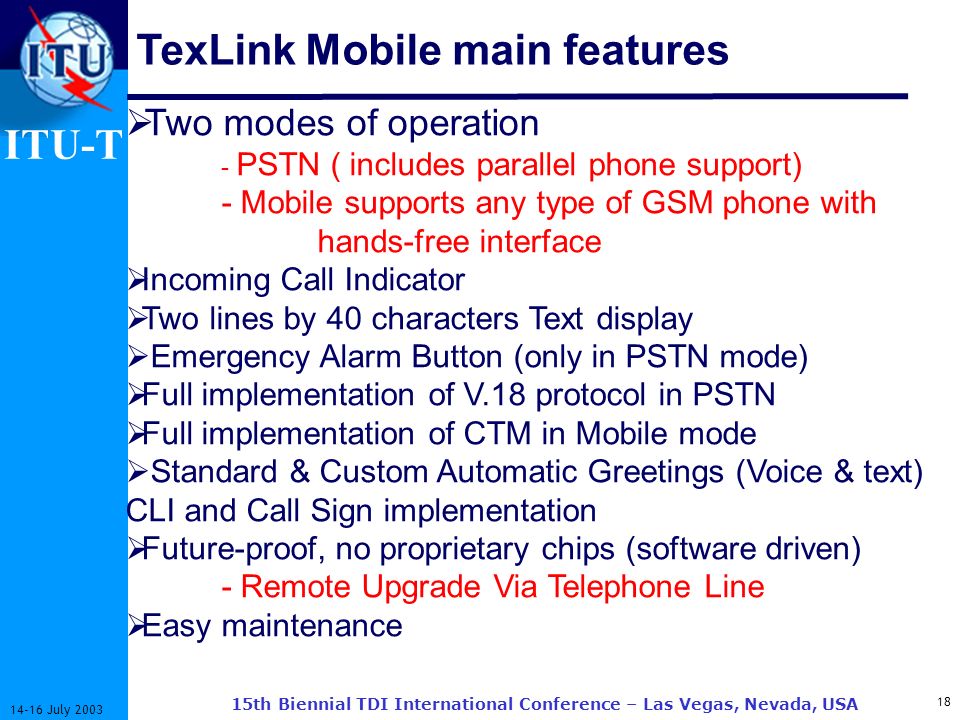

18 ITU-T July th Biennial TDI International Conference – Las Vegas, Nevada, USA TexLink Mobile main features Two modes of operation - PSTN ( includes parallel phone support) - Mobile supports any type of GSM phone with hands-free interface Incoming Call Indicator Two lines by 40 characters Text display Emergency Alarm Button (only in PSTN mode) Full implementation of V.18 protocol in PSTN Full implementation of CTM in Mobile mode Standard & Custom Automatic Greetings (Voice & text) CLI and Call Sign implementation Future-proof, no proprietary chips (software driven) - Remote Upgrade Via Telephone Line Easy maintenance

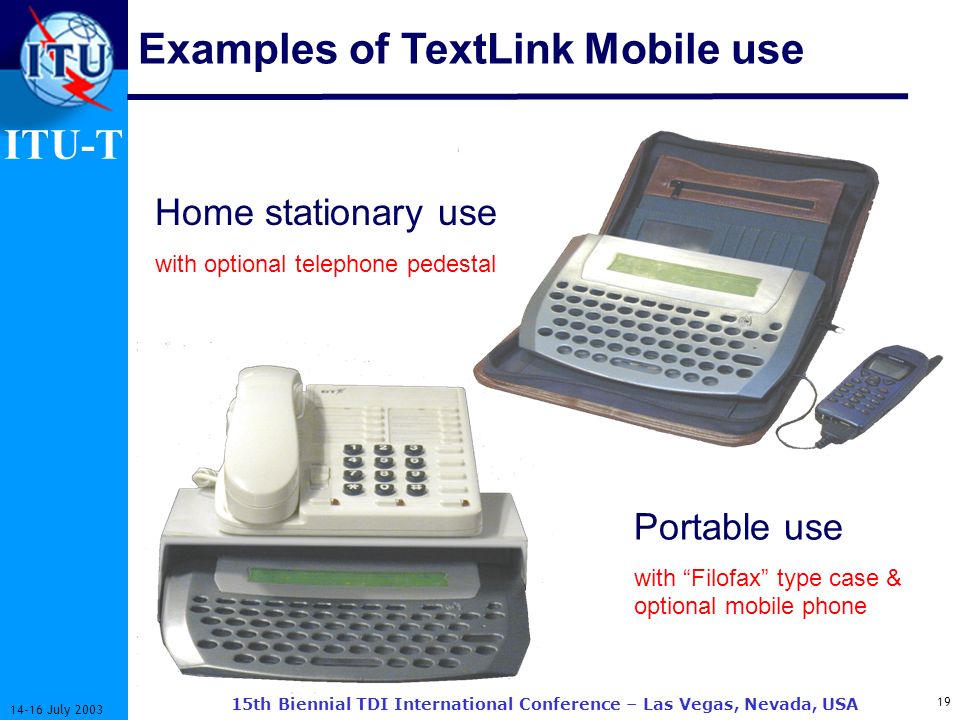

19 ITU-T July th Biennial TDI International Conference – Las Vegas, Nevada, USA Examples of TextLink Mobile use Home stationary use with optional telephone pedestal Portable use with Filofax type case & optional mobile phone

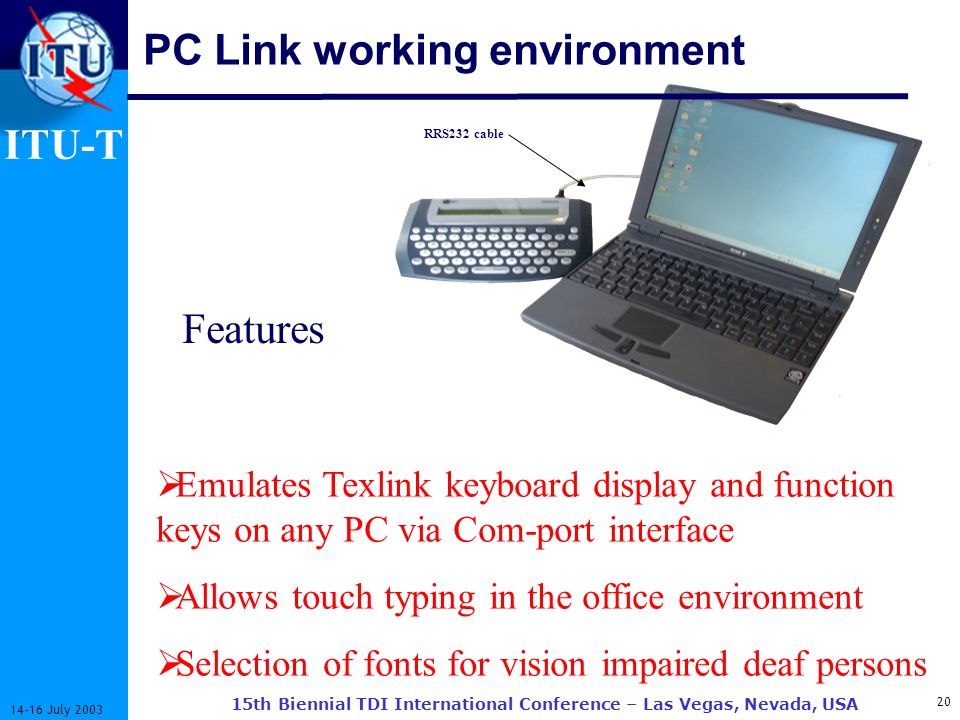

20 ITU-T July th Biennial TDI International Conference – Las Vegas, Nevada, USA PC Link working environment Features Emulates Texlink keyboard display and function keys on any PC via Com-port interface Allows touch typing in the office environment Selection of fonts for vision impaired deaf persons RRS232 cable

21 ITU-T July th Biennial TDI International Conference – Las Vegas, Nevada, USA PC Link working environment TexLink Function keys emulated on the screen

22 ITU-T July th Biennial TDI International Conference – Las Vegas, Nevada, USA TextLink 800 portable V.18 Modem Lighter for comparison only Features –Com-port connection to laptop/palm top PC. –Battery or mains operated. –Full implementation of V.18 & CTM Recommendations –User friendly GUI, –Long battery (PP3) operation

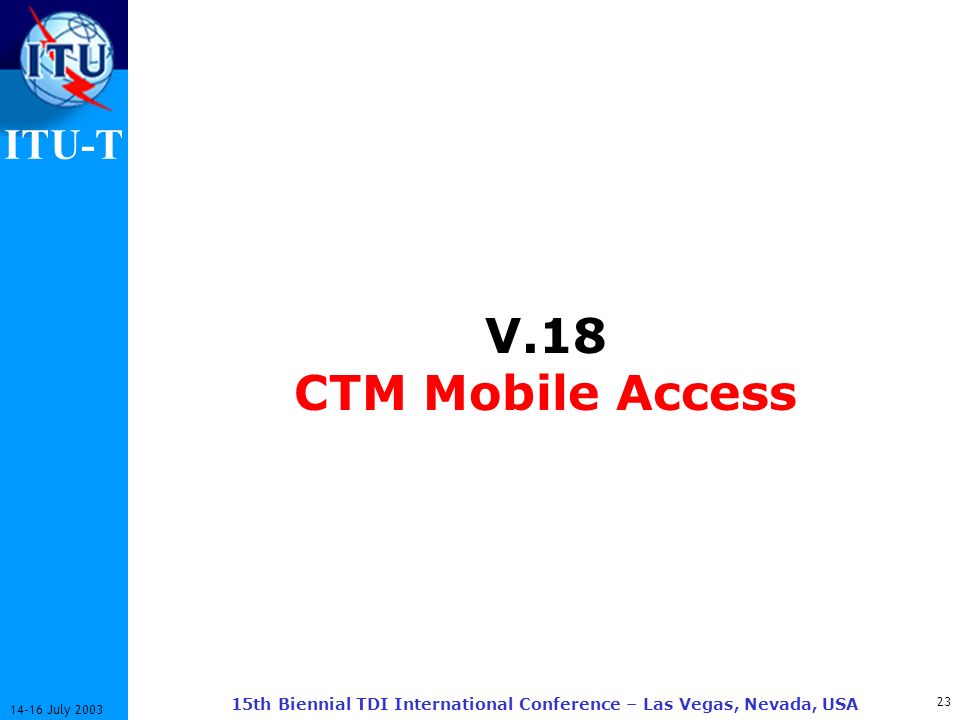

23 ITU-T July th Biennial TDI International Conference – Las Vegas, Nevada, USA V.18 CTM Mobile Access

24 ITU-T July th Biennial TDI International Conference – Las Vegas, Nevada, USA TextLink Mobile textphone Microphone (optional) Expansion Port (incl. Printer port) GSM Mobile Port Ext Telephone Line In DC Power Ultra bright LED Speaker

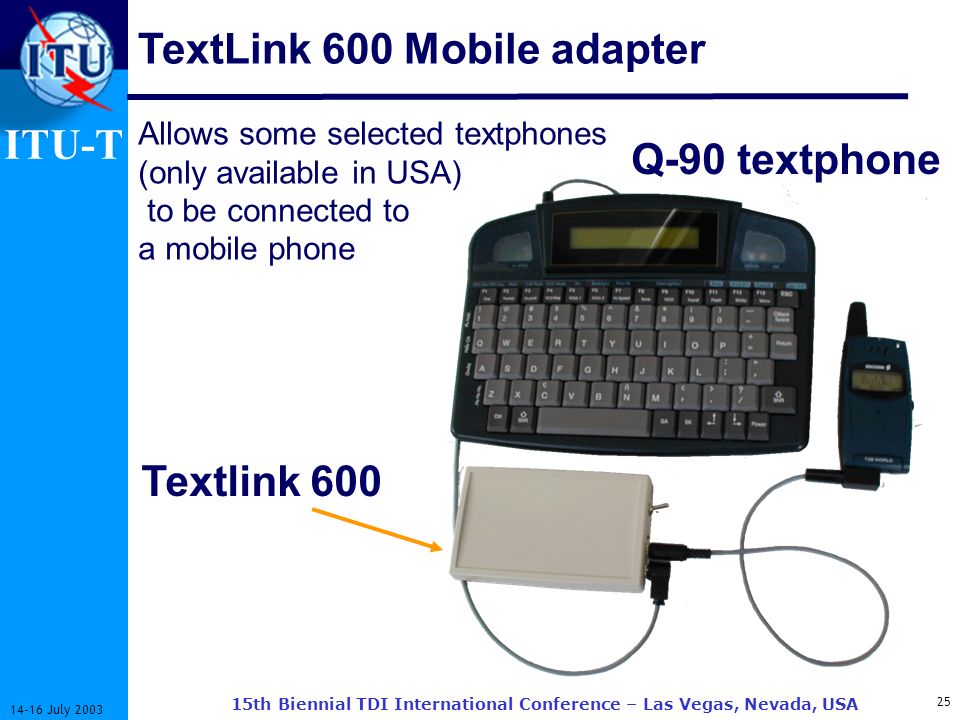

25 ITU-T July th Biennial TDI International Conference – Las Vegas, Nevada, USA Textlink 600 Q-90 textphone Allows some selected textphones (only available in USA) to be connected to a mobile phone TextLink 600 Mobile adapter

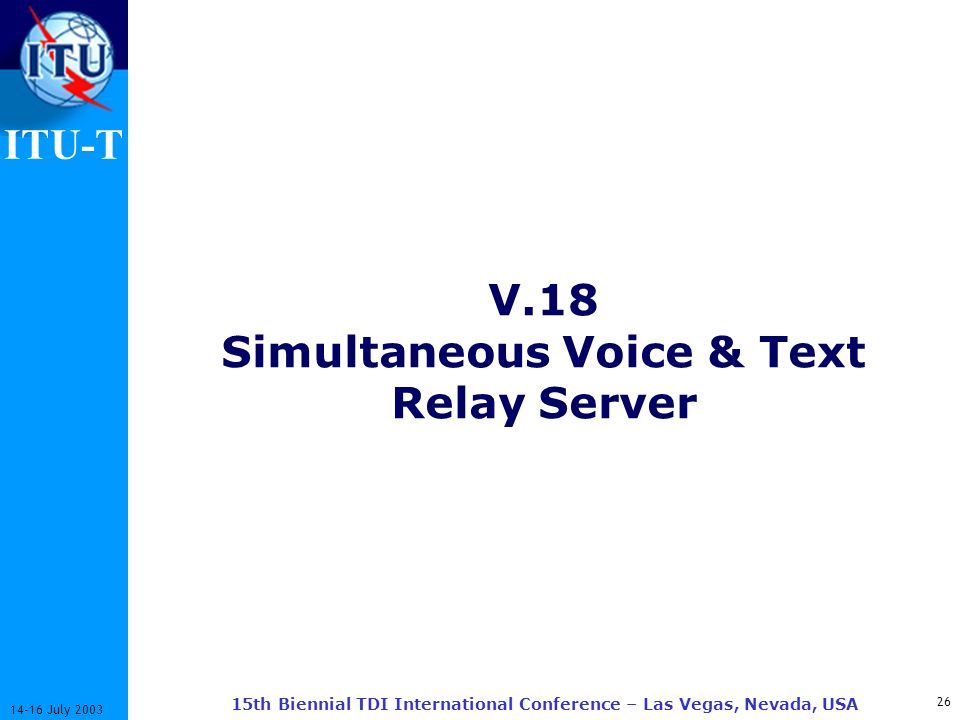

26 ITU-T July th Biennial TDI International Conference – Las Vegas, Nevada, USA V.18 Simultaneous Voice & Text Relay Server

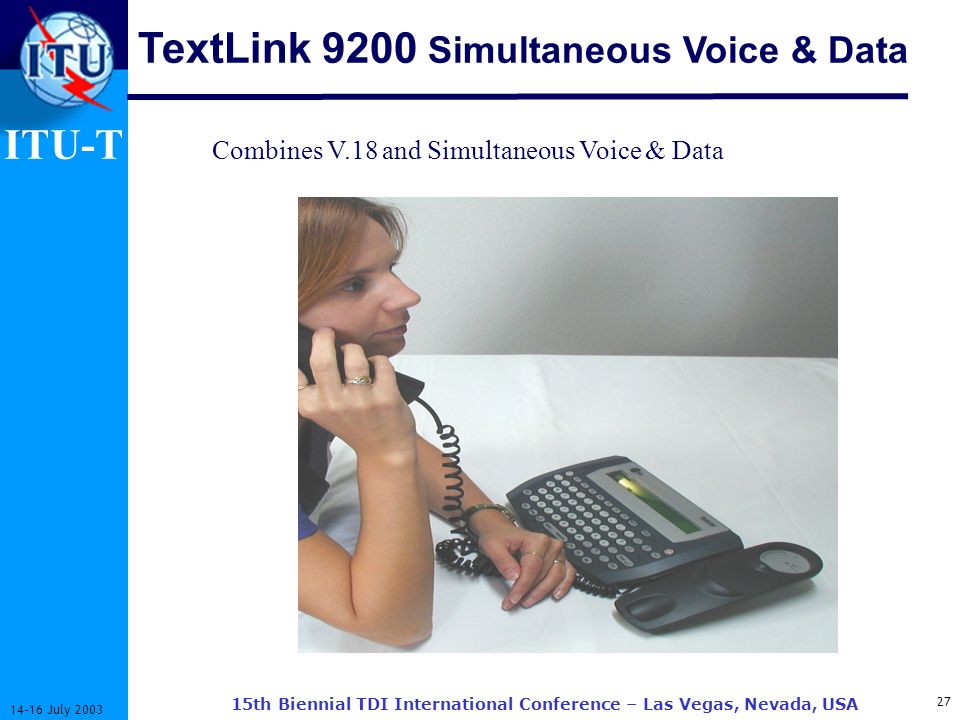

27 ITU-T July th Biennial TDI International Conference – Las Vegas, Nevada, USA TextLink 9200 Simultaneous Voice & Data Combines V.18 and Simultaneous Voice & Data

28 ITU-T July th Biennial TDI International Conference – Las Vegas, Nevada, USA Textlink 9100 mobile applications SMS messages messages FAX LAN TexBox Textlink user Other textphone user Call centre operator TexGate server

29 ITU-T July th Biennial TDI International Conference – Las Vegas, Nevada, USA Wireless Home monitoring, security & panic alarms

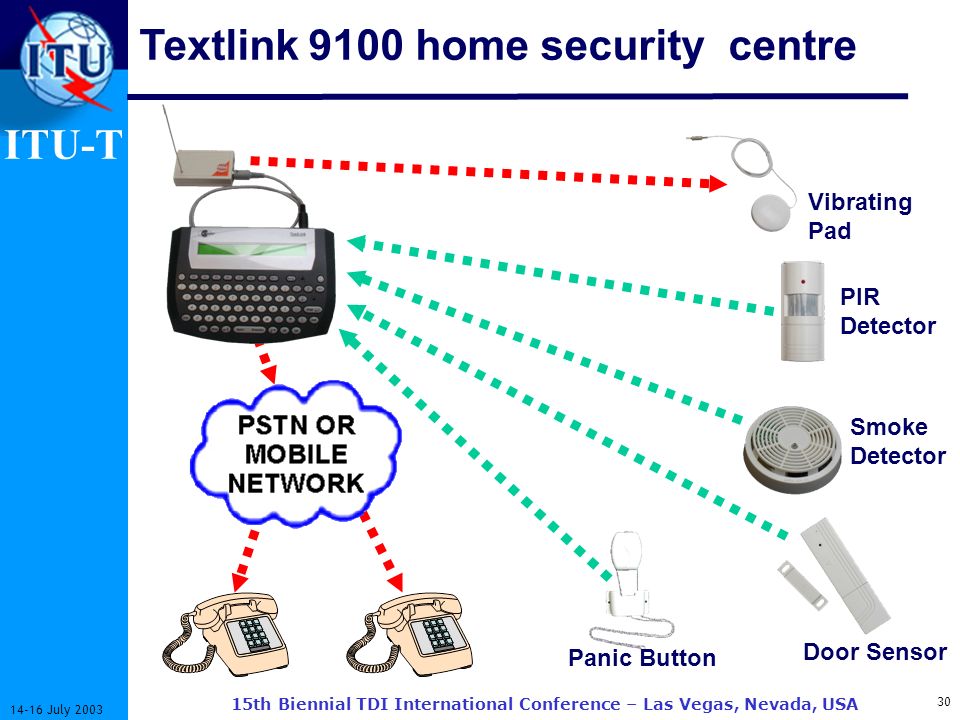

30 ITU-T July th Biennial TDI International Conference – Las Vegas, Nevada, USA Textlink 9100 home security centre Vibrating Pad PIR Detector Smoke Detector Panic Button Door Sensor

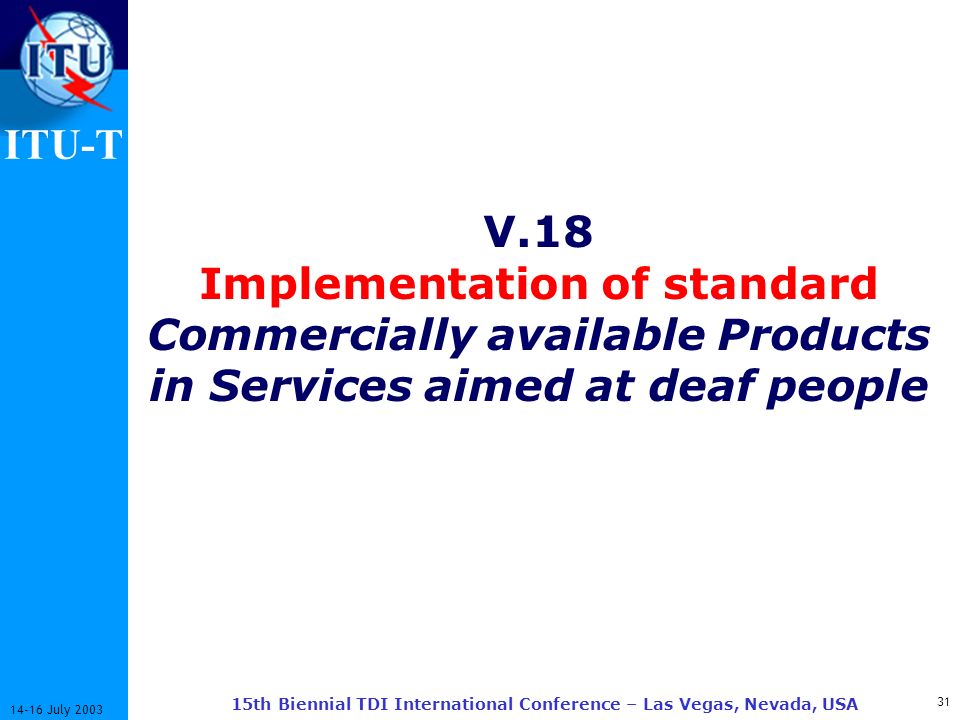

31 ITU-T July th Biennial TDI International Conference – Las Vegas, Nevada, USA V.18 Implementation of standard Commercially available Products in Services aimed at deaf people

32 ITU-T July th Biennial TDI International Conference – Las Vegas, Nevada, USA What is TexBox? TexBox is a text gateway which connects hard of hearing, deaf or speech impaired customers who use textphones, to almost anyone in the organisation or business via existing internal computer network (LAN or WAN), where the textphone call is routed via menu system to a relevant persons PC. Rack Based SystemTower Based System

33 ITU-T July th Biennial TDI International Conference – Las Vegas, Nevada, USA TexBox Specification PC platform running Linux (Unix). Custom designed and built V.18 hardware text modems which connect to standard analogue telephone lines. Connection to the local area network via 10/100 Base T Ethernet connection. TexBox is a stand-alone solution with no need for integration with existing call centre equipment.

34 ITU-T July th Biennial TDI International Conference – Las Vegas, Nevada, USA Advantages of TexBox Elimination of textphones in the organisation. User friendly. No additional software to be installed on the users PCs. Internal text calls between deaf and hearing colleagues. Stores personal or group messages from incoming calls. Incoming call & text conversation transfers. Low maintenance costs. Simple training.

35 ITU-T July th Biennial TDI International Conference – Las Vegas, Nevada, USA TexBox Communicator Status bars User settings User login/ logout Call dialler Message handling Internal call/ Call transfer Save conversation Conversation window

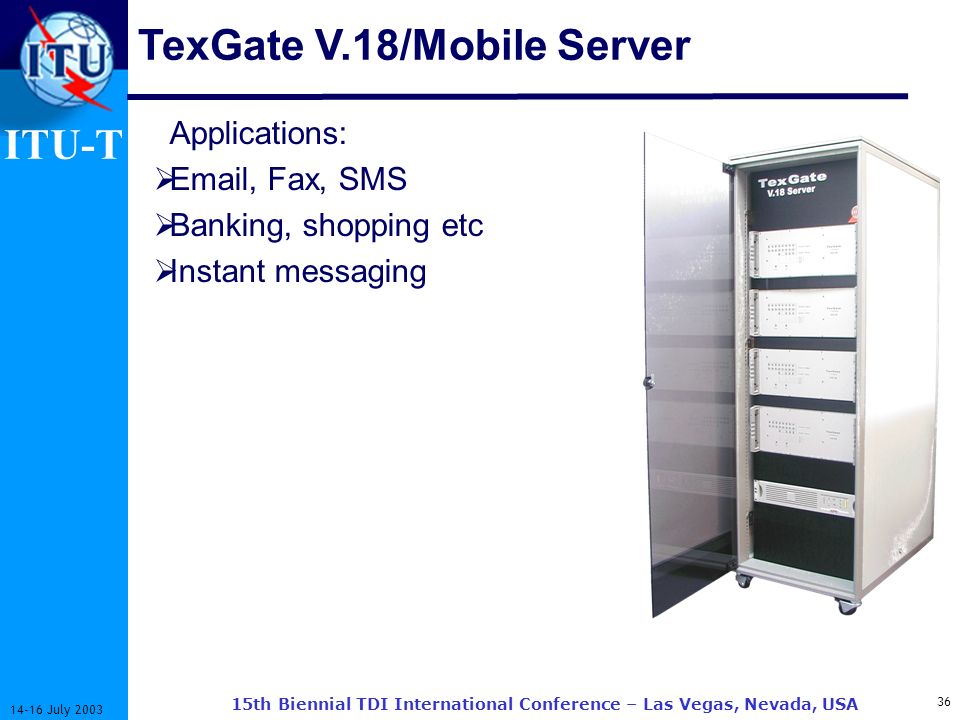

36 ITU-T July th Biennial TDI International Conference – Las Vegas, Nevada, USA Applications: , Fax, SMS Banking, shopping etc Instant messaging TexGate V.18/Mobile Server

37 ITU-T July th Biennial TDI International Conference – Las Vegas, Nevada, USA Standard Telephone Any Textphone PC & V.18 Modem V.18 Textphone V.18 Gateway Information Service Internet Mail Service Information Gateway Text to/from Voice Service Internet V.18/CTM Global Integration

38 ITU-T July th Biennial TDI International Conference – Las Vegas, Nevada, USA Thank You
