1. LiveCycle Data Services Introduction Part 2

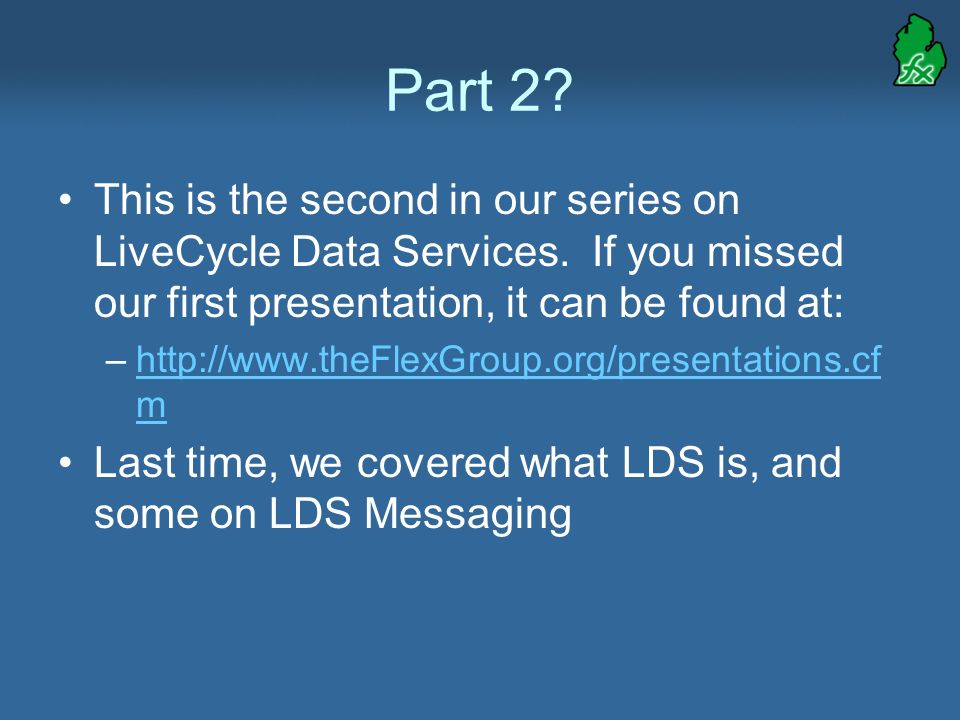

2. Part 2? This is the second in our series on LiveCycle Data Services. If you missed our first presentation, it can be found at: –http://www.theFlexGroup.org/presentations.cf mhttp://www.theFlexGroup.org/presentations.cf m Last time, we covered what LDS is, and some on LDS Messaging

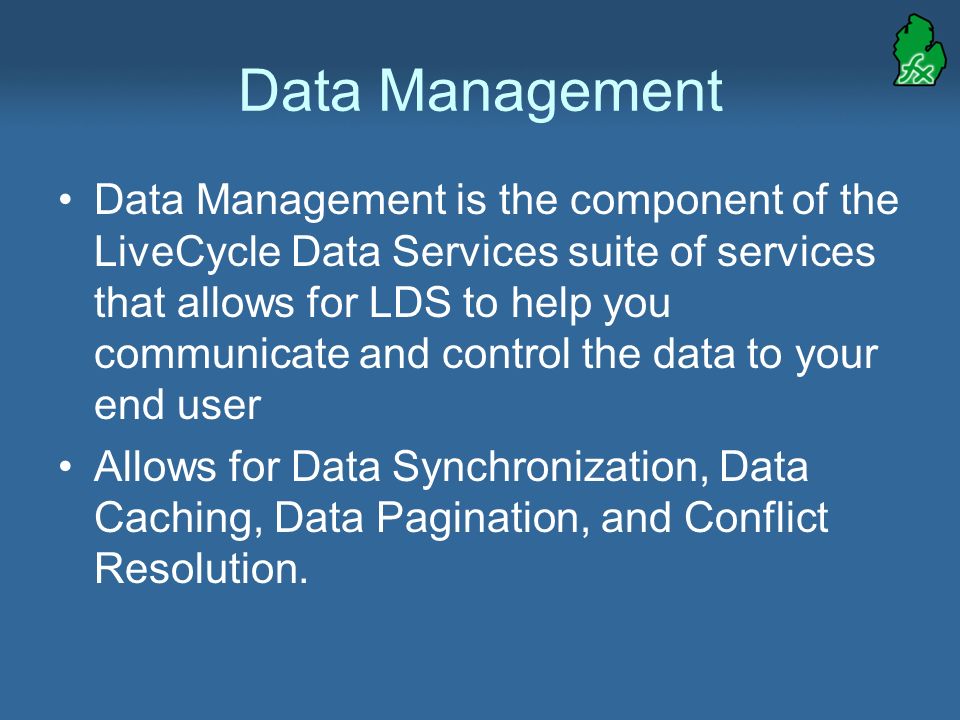

3. Data Management Data Management is the component of the LiveCycle Data Services suite of services that allows for LDS to help you communicate and control the data to your end user Allows for Data Synchronization, Data Caching, Data Pagination, and Conflict Resolution.

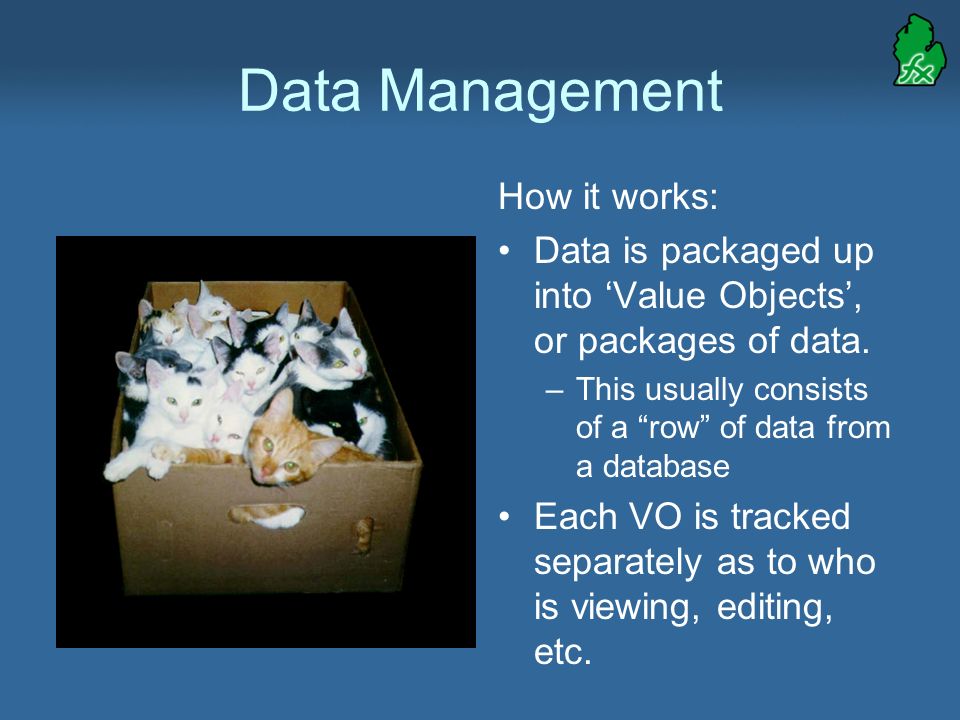

4. Data Management How it works: Data is packaged up into ‘Value Objects’, or packages of data. –This usually consists of a “row” of data from a database Each VO is tracked separately as to who is viewing, editing, etc.

5. Data Management Users then Subscribe to a set of data. –LDS will then keep track of the state of that data, and send it from the Application Server to the Flex Application. LDS will ‘listen’ to any changes made to the data in the Flex Client.

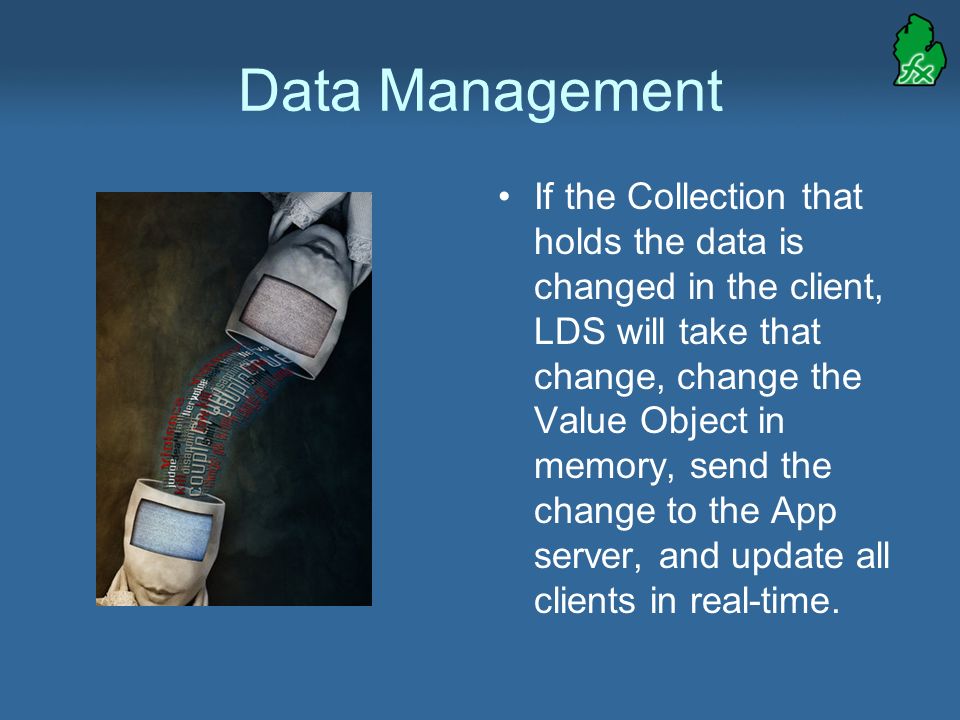

6. Data Management If the Collection that holds the data is changed in the client, LDS will take that change, change the Value Object in memory, send the change to the App server, and update all clients in real-time.

7. Data Management When an update is sent to the other clients, it will check its local copy, to make sure that record has not changed. If it has, it will issue a “Conflict” event, and allow the Client to choose what to do.

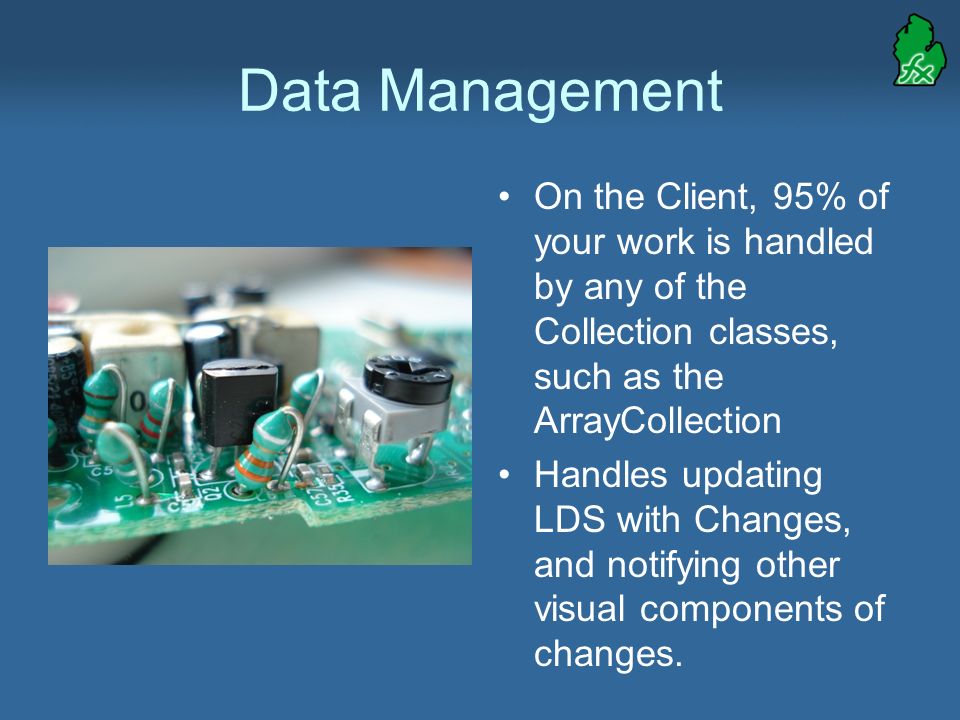

8. Data Management On the Client, 95% of your work is handled by any of the Collection classes, such as the ArrayCollection Handles updating LDS with Changes, and notifying other visual components of changes.

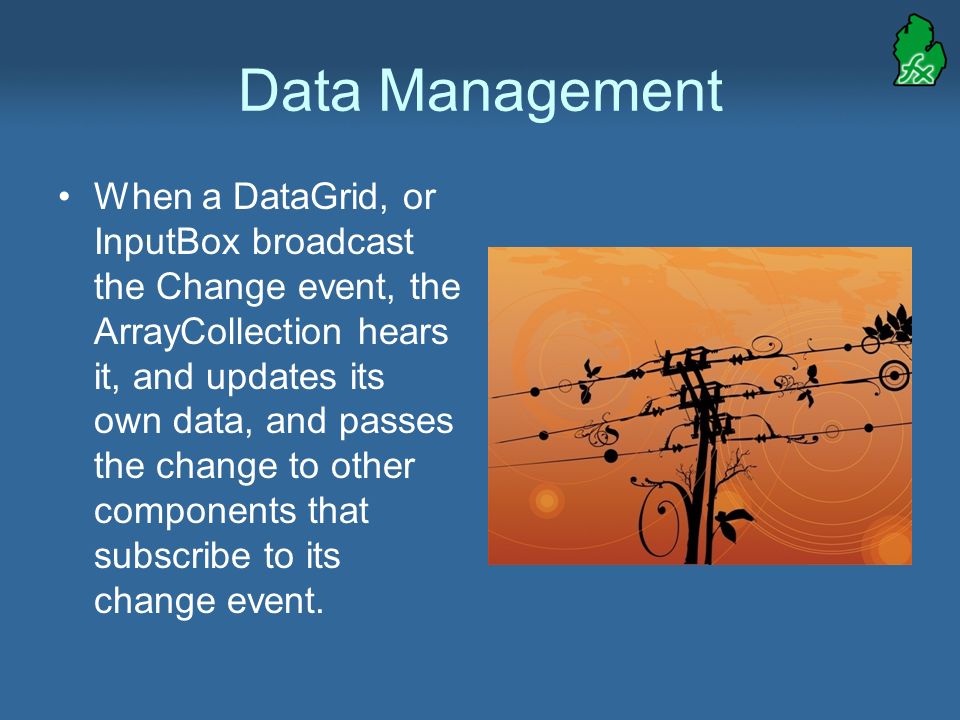

9. Data Management When a DataGrid, or InputBox broadcast the Change event, the ArrayCollection hears it, and updates its own data, and passes the change to other components that subscribe to its change event.

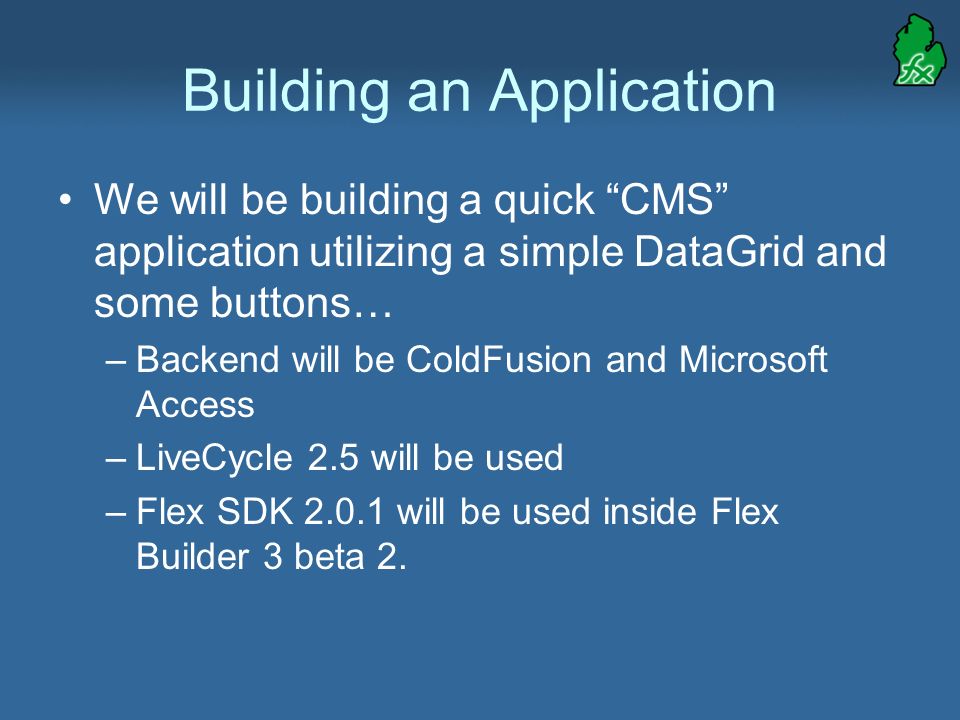

10. Building an Application We will be building a quick “CMS” application utilizing a simple DataGrid and some buttons… –Backend will be ColdFusion and Microsoft Access –LiveCycle 2.5 will be used –Flex SDK 2.0.1 will be used inside Flex Builder 3 beta 2.

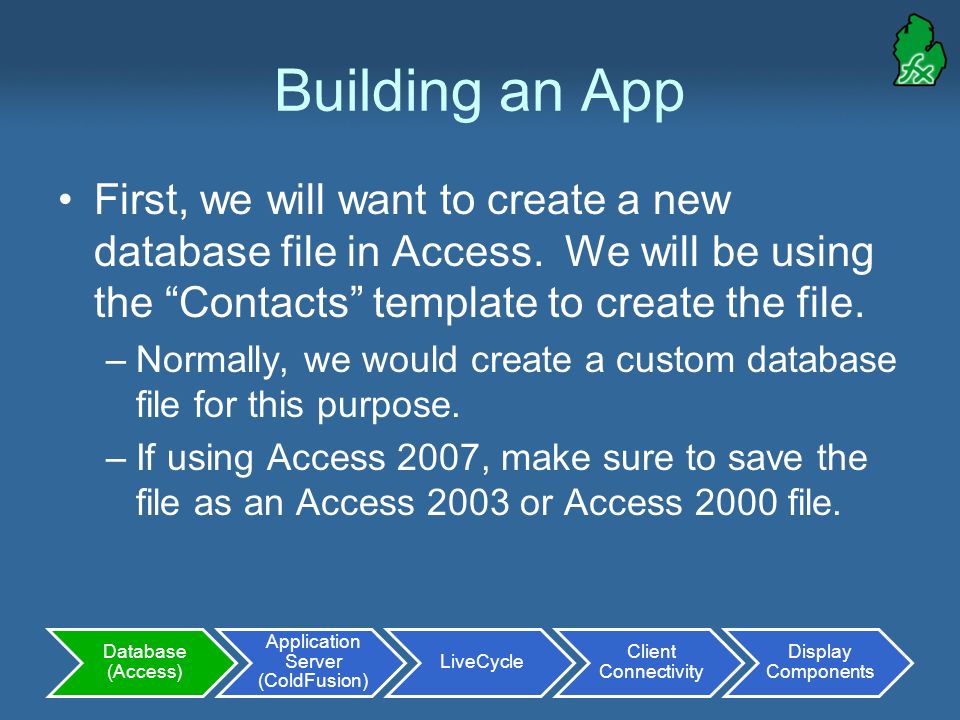

11. Building an App First, we will want to create a new database file in Access. We will be using the “Contacts” template to create the file. –Normally, we would create a custom database file for this purpose. –If using Access 2007, make sure to save the file as an Access 2003 or Access 2000 file. Database (Access) Application Server (ColdFusion) LiveCycle Client Connectivity Display Components

12. Building an App Next, we will want to add the new Database as a ‘Datasource’ in ColdFusion –Named “ug_contacts”, using the Access Unicode Driver Load up Flex Builder, and create a new Flex Project –Web Application, ColdFusion App Server, LiveCycle Data Services Database (Access) Application Server (ColdFusion) LiveCycle Client Connectivity Display Components

13. Building an App Create a new folder on the server for the ‘Value Objects’, \bin\cfcs\ Create a new AS Class folder : \src\ascript Open the RDS view, and find the Contacts table Right-Click on Table, ColdFusion Wizards, Create CFC Database (Access) Application Server (ColdFusion) LiveCycle Client Connectivity Display Components

14. Building an App CFC Folder: –/contact_cms/bin/cfcs CFC Package Name: –contact_cms-debug.cfcs CFC Type: –LiveCycle DS Assembler Create AS-VO –AS Folder: \src\ascript Database (Access) Application Server (ColdFusion) LiveCycle Client Connectivity Display Components

15. Building an App Next, we need to modify the LDS configuration files to tell LDS about the components we just created. –File is in the wwwroot\WEB-INF\Flex\ directory, named data-management- config.xml Add a new entry (Destination) to represent the component we just created. Database (Access) Application Server (ColdFusion) LiveCycle Client Connectivity Display Components

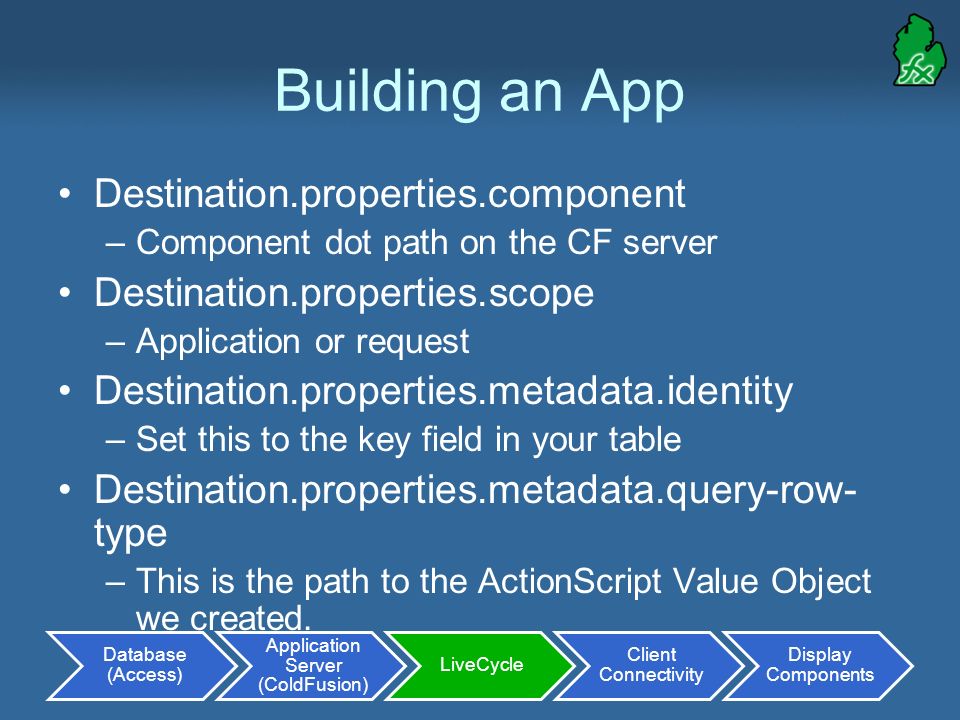

16. Building an App Database (Access) Application Server (ColdFusion) LiveCycle Client Connectivity Display Components Destination.properties.component –Component dot path on the CF server Destination.properties.scope –Application or request Destination.properties.metadata.identity –Set this to the key field in your table Destination.properties.metadata.query-row- type –This is the path to the ActionScript Value Object we created.

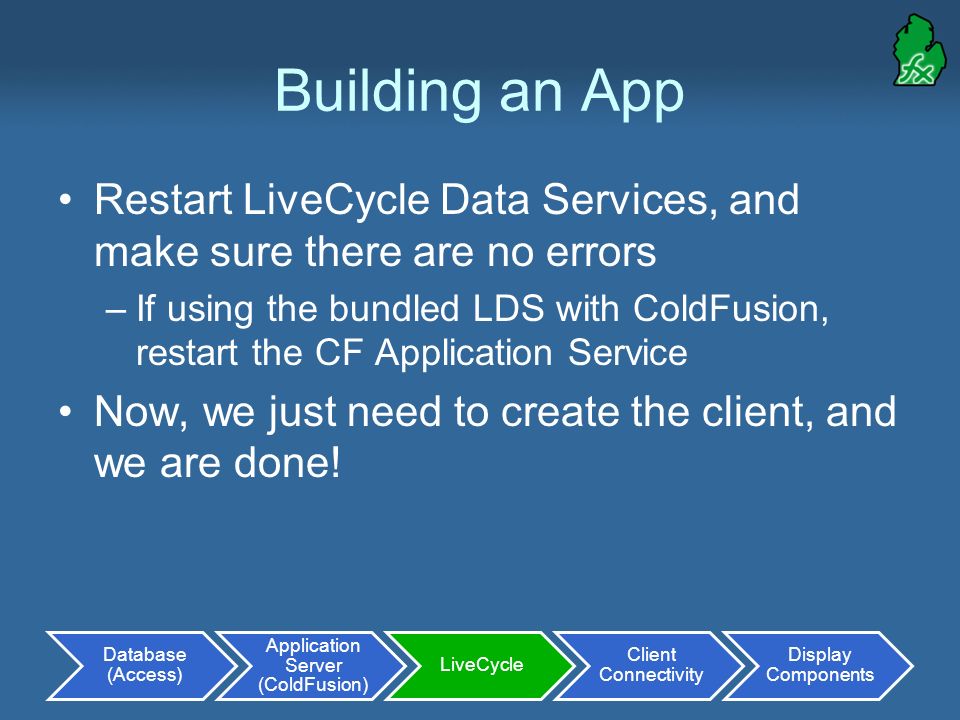

17. Building an App Restart LiveCycle Data Services, and make sure there are no errors –If using the bundled LDS with ColdFusion, restart the CF Application Service Now, we just need to create the client, and we are done! Database (Access) Application Server (ColdFusion) LiveCycle Client Connectivity Display Components

18. Building an App Open your MXML document, and add a tag –Give it an ID, and the Destination that we used in the last step Add a new ArrayCollection variable (to hold your data) Add a new function to execute the DataService.fill(arrayCollection); Database (Access) Application Server (ColdFusion) LiveCycle Client Connectivity Display Components

19. Building an App Next, add a DataGrid and at the very least, a button to trigger the fill() command. Bind this DataGrid to your ArrayCollection, and set the editable property to true. Also, open up the Contacts.as file, and notice the [Managed] metadata. This code tells the AS to broadcast its changes to outside components. Database (Access) Application Server (ColdFusion) LiveCycle Client Connectivity Display Components

20. RUNNING THE APPLICATION Connect to http://kwiatk27.msu.edu:8500

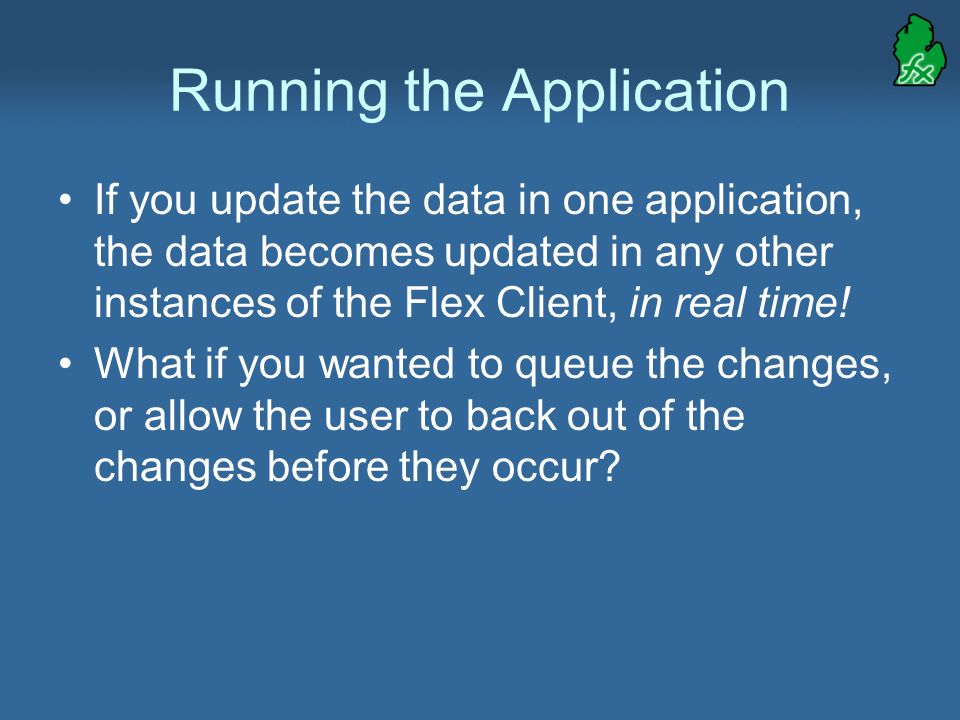

21. Running the Application If you update the data in one application, the data becomes updated in any other instances of the Flex Client, in real time! What if you wanted to queue the changes, or allow the user to back out of the changes before they occur?

22. Turning off AutoCommit In order to allow the clients to queue changes, and control when they commit the changes, we need to turn off the AutoCommit feature of the DataService Add the autoCommit=“false” declaration to the DataService component. We will now need to add two buttons to allow the user to commit their changes.

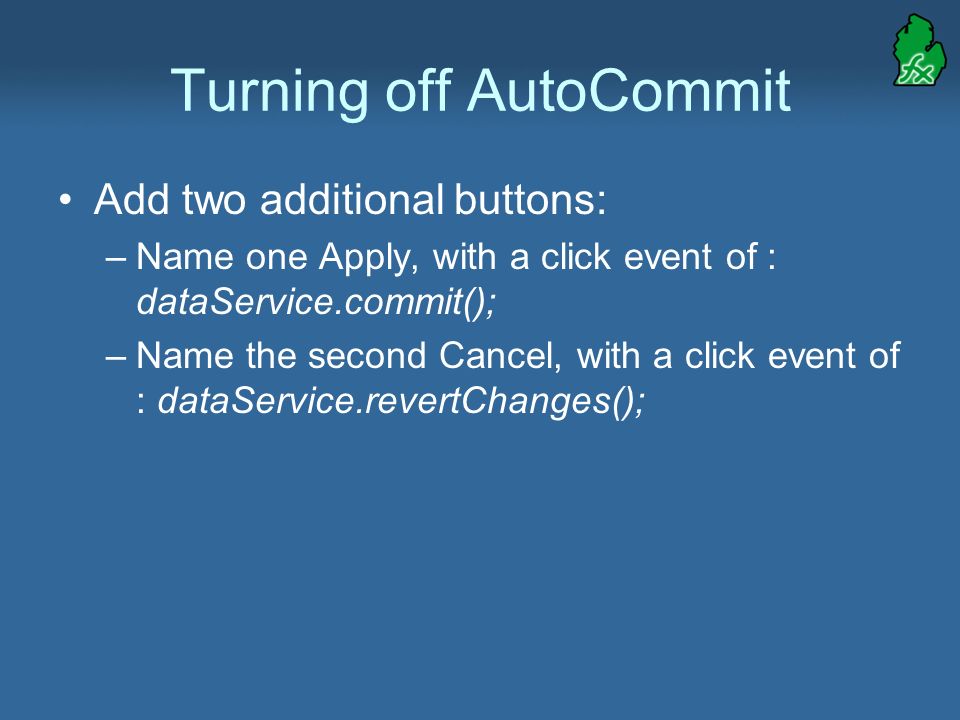

23. Turning off AutoCommit Add two additional buttons: –Name one Apply, with a click event of : dataService.commit(); –Name the second Cancel, with a click event of : dataService.revertChanges();

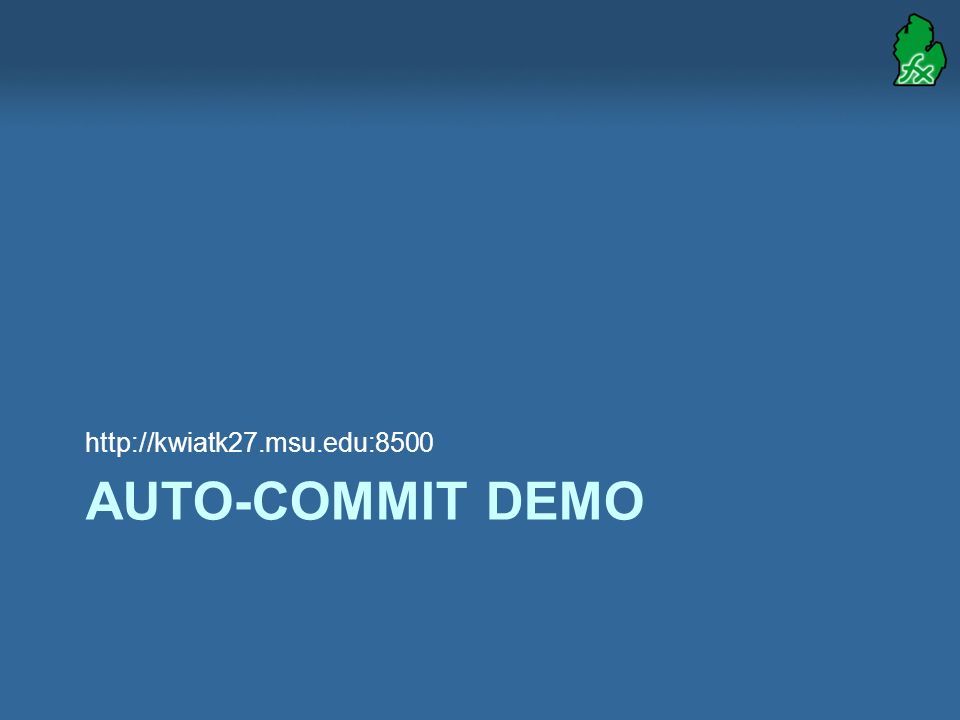

24. AUTO-COMMIT DEMO http://kwiatk27.msu.edu:8500

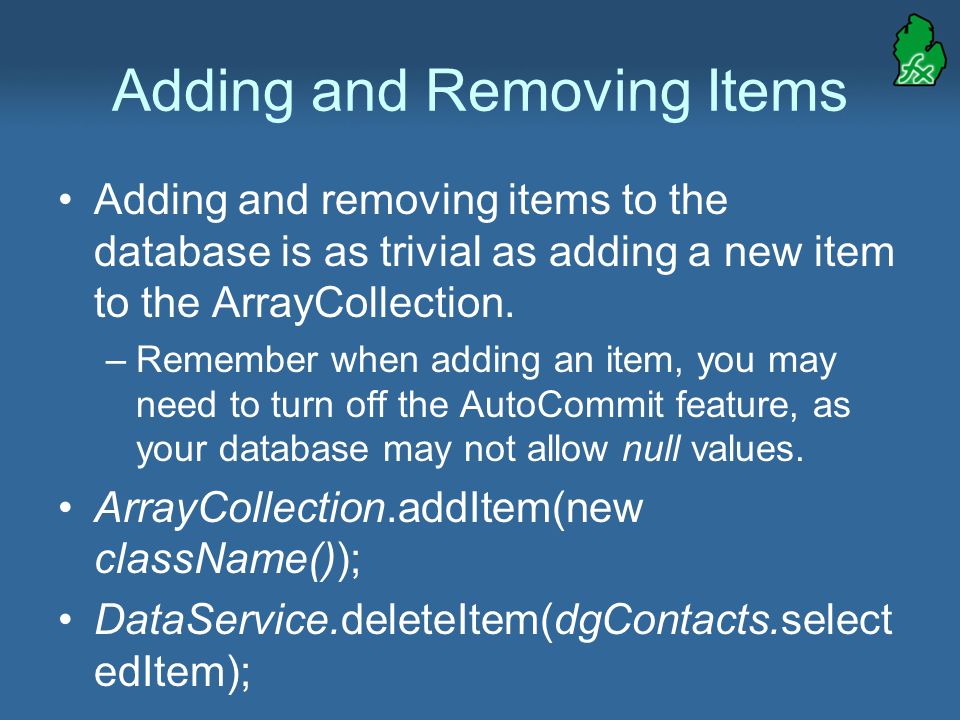

25. Adding and Removing Items Adding and removing items to the database is as trivial as adding a new item to the ArrayCollection. –Remember when adding an item, you may need to turn off the AutoCommit feature, as your database may not allow null values. ArrayCollection.addItem(new className()); DataService.deleteItem(dgContacts.select edItem);

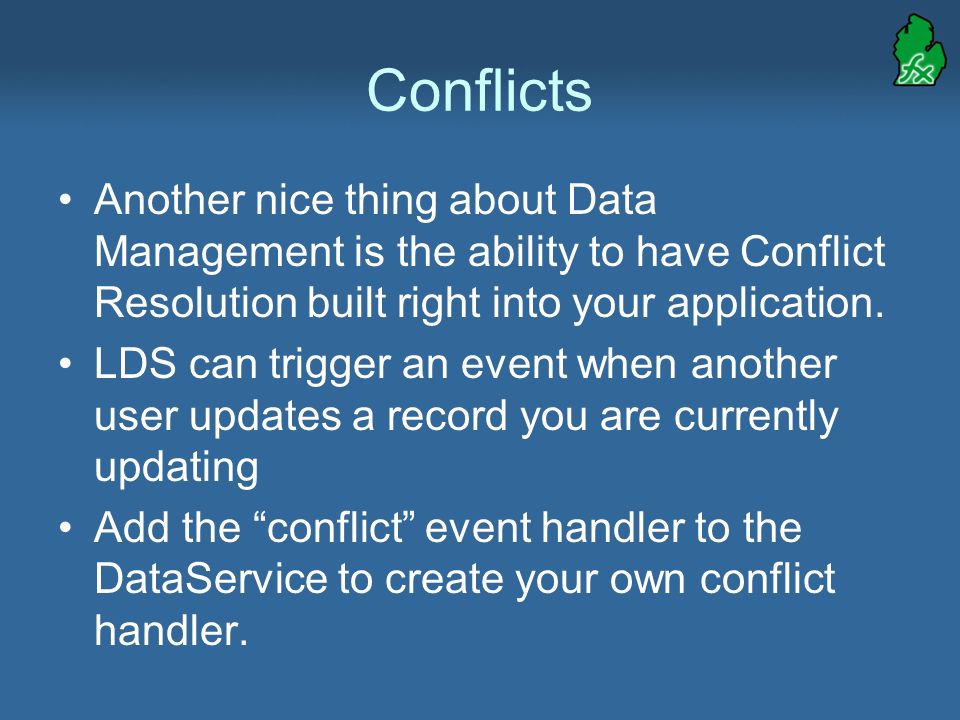

26. Conflicts Another nice thing about Data Management is the ability to have Conflict Resolution built right into your application. LDS can trigger an event when another user updates a record you are currently updating Add the “conflict” event handler to the DataService to create your own conflict handler.

27. Conflict When handling a conflict, you have the option to update with your version, take the server’s version, or to let the user choose what version to keep. Lets show how to detect a conflict in data sets, notify the end user, overwrite the client’s data with the server’s version.

28. CONFLICT RESOLUTION http://kwiatk27.msu.edu:8500

29. Fill Queries Using the ‘out of the box’ data management is great if you want to return full sets of data –But what happens if you want to return only a portion of your full table; for example a search result? You can customize your fill parameters by modifying your assembler’s Fill() function and passing the fill as the second parameter of the call.

30. Fill Queries For example: –DataService.fill(ArrayCollection,SearchString: string); Translates to: – –

31. Paging What happens if you have too much data returned from a query to send down to the clients? –For example, do you really want to send 50,000 records down the pipe? LDS has a built in Paging mechanism!

32. Paging To configure it, edit your data- management-config.xml file. –Destination.properties.network That is all you have to do!

33. PAGING & QUERIES http://kwiatk27.msu.edu:8500

34. Questions? kwiatk27@msu.edu
