2
Copyright © 2009 Pearson Education, Inc. CHAPTER 1: Graphs, Functions, and Models 1.1 Introduction to Graphing 1.2 Functions and Graphs 1.3 Linear Functions, Slope, and Applications 1.4 Equations of Lines and Modeling 1.5 Linear Equations, Functions, Zeros and Applications 1.6 Solving Linear Inequalities
3
Copyright © 2009 Pearson Education, Inc. 1.1 Introduction to Graphing Plot points. Determine whether an ordered pair is a solution of an equation. Find the x-and y-intercepts of an equation of the form Ax + By = C. Graph equations. Find the distance between two points in the plane and find the midpoint of a segment. Find an equation of a circle with a given center and radius, and given an equation of a circle in standard form, find the center and the radius. Graph equations of circles.
4
Slide 1.1 - 4 Copyright © 2009 Pearson Education, Inc. Cartesian Coordinate System
5
Slide 1.1 - 5 Copyright © 2009 Pearson Education, Inc. To graph or plot a point, the first coordinate tells us to move left or right from the origin. The second coordinate tells us to move up or down. Plot ( 3, 5). Move 3 units left. Next, we move 5 units up. Plot the point. (–3, 5) Example
6
Slide 1.1 - 6 Copyright © 2009 Pearson Education, Inc. Solutions of Equations Equations in two variables have solutions (x, y) that are ordered pairs. Example: 2x + 3y = 18 When an ordered pair is substituted into the equation, the result is a true equation. The ordered pair has to be a solution of the equation to receive a true statement.
7
Slide 1.1 - 7 Copyright © 2009 Pearson Education, Inc. Examples a. Determine whether the ordered pair ( 5, 7) is a solution of 2x + 3y = 18. 2( 5) + 3(7) ? 18 10 + 21 ? 18 11 = 18 FALSE ( 5, 7) is not a solution. b. Determine whether the ordered pair (3, 4) is a solution of 2x + 3y = 18. 2(3) + 3(4) ? 18 6 + 12 ? 18 18 = 18 TRUE (3, 4) is a solution.
8

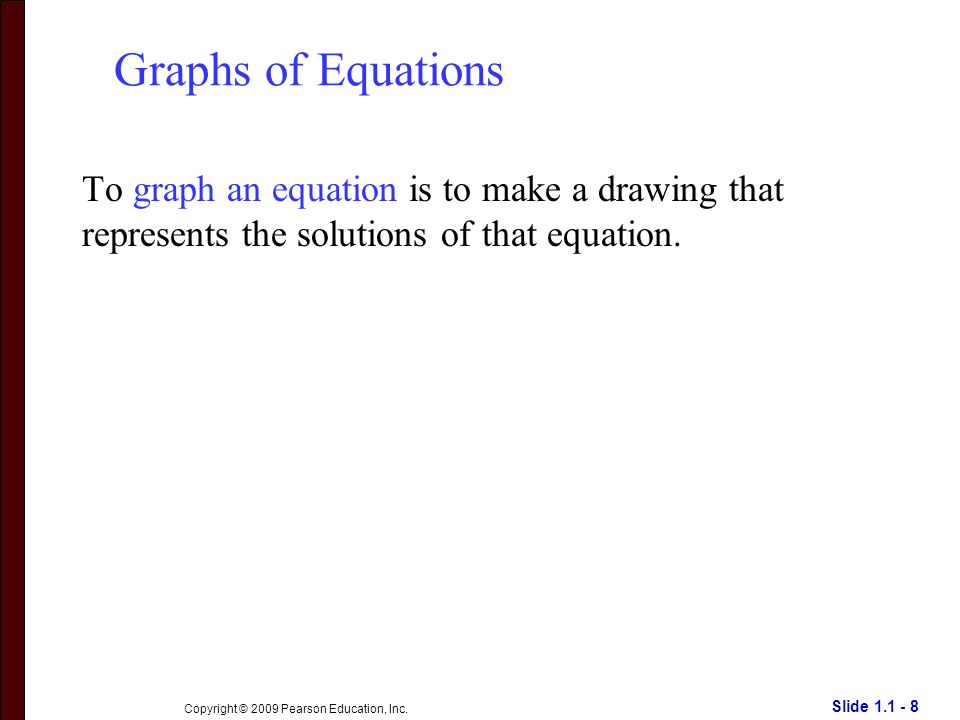

Slide 1.1 - 8 Copyright © 2009 Pearson Education, Inc. Graphs of Equations To graph an equation is to make a drawing that represents the solutions of that equation.
9
Slide 1.1 - 9 Copyright © 2009 Pearson Education, Inc. x-Intercept The point at which the graph crosses the x-axis. An x-intercept is a point (a, 0). To find a, let y = 0 and solve for x. Example: Find the x-intercept of 2x + 3y = 18. 2x + 3(0) = 18 2x = 18 x = 9 The x-intercept is (9, 0).
10
Slide 1.1 - 10 Copyright © 2009 Pearson Education, Inc. y-Intercept The point at which the graph crosses the y-axis. A y-intercept is a point (0, b). To find b, let x = 0 and solve for y. Example: Find the y-intercept of 2x + 3y = 18. 2(0) + 3y = 18 3y = 18 y = 6 The y-intercept is (0, 6).
11
Slide 1.1 - 11 Copyright © 2009 Pearson Education, Inc. Example We already found the x-intercept: (9, 0) We already found the y-intercept: (0, 6) We find a third solution as a check. If x is replaced with 5, then Graph 2x + 3y = 18. Thus, is a solution.
12
Slide 1.1 - 12 Copyright © 2009 Pearson Education, Inc. Example (continued) Graph: 2x + 3y = 18. x-intercept: (9, 0) y-intercept: (0, 6) Third point:
13
Slide 1.1 - 13 Copyright © 2009 Pearson Education, Inc. Example Graph y = x 2 – 9x – 12. (12, 24)2412 –2 32 26 12 –2 24 y (10, –2)10 (5, 32) 5 (4, 32) 4 (2, 26) 2 (0, 12) 0 ( 1, –2) 11 ( 3, 24) 33 (x, y)x Make a table of values.
14
Slide 1.1 - 14 Copyright © 2009 Pearson Education, Inc. The Distance Formula The distance d between any two points (x 1, y 1 ) and (x 2, y 2 ) is given by
15
Slide 1.1 - 15 Copyright © 2009 Pearson Education, Inc. Example Find the distance between the points (–2, 2) and (3, 6).
16
Slide 1.1 - 16 Copyright © 2009 Pearson Education, Inc. Midpoint Formula If the endpoints of a segment are (x 1, y 1 ) and (x 2, y 2 ), then the coordinates of the midpoint are
17
Slide 1.1 - 17 Copyright © 2009 Pearson Education, Inc. Example Find the midpoint of a segment whose endpoints are ( 4, 2) and (2, 5).
18
Slide 1.1 - 18 Copyright © 2009 Pearson Education, Inc. Circles A circle is the set of all points in a plane that are a fixed distance r from a center (h, k). The equation of a circle with center (h, k) and radius r, in standard form, is (x h) 2 + (y k) 2 = r 2.
19
Slide 1.1 - 19 Copyright © 2009 Pearson Education, Inc. Example Find an equation of a circle having radius 5 and center (3, 7). Using the standard form, we have (x h) 2 + (y k) 2 = r 2 [x 3] 2 + [y ( 7)] 2 = 5 2 (x 3) 2 + (y + 7) 2 = 25.
