1 What’s New?

2 Web Map Servers: Re-projection Web maps are now automatically converted to your Project geodesy! AVI

3 SHELL: Quickly Setting the Color Palette Sets the color palette from the minimum to maximum z-values.

4 Vector Style Soundings

5 SHELL: New File Categories Side Scan imagery and Web Maps downloaded using the Web Map Service now have their own categories under Project Files. The Network folder has returned!

6 SHELL: Import Settings from 2014 Copies the following from HYPACK 2014: Web Map Server Configuration ARCS Permits and Licenses. S-63 Permits and Licenses HYPACK Group Folders Info from Tools menu of SHELL. Boat Shape files (*.SHP) 3D Shape files (*.3OD) HYPLOT Template Files HYPLOT Title Blocks TPU EDITOR Settings HYDRO DATABASES Location

7 SURVEY: Enhanced MTX Display Light shading of MTX is now done 100% of the time and not just on MTX redraws. You can also exaggerate the vertical of the MTX. AVI

8 SURVEY: Multiple MTX Display Options Display depth (average, minimum or maximum), number of samples per cell, or standard deviation per cell in any Area Map window of HYPACK SURVEY, along with the REAL TIME POINT CLOUD window. AVI

9 SURVEY: Tracking Points SURVEY can track multiple positions on your vessel and show the distance from each tracking point to an assigned target, or the horizontal angle between tracking points. AVI

10 SURVEY: Anchor Handling AVI

11 SURVEY: Remote Viewing Faster updates, each user can have their own screen display and zoom in/out independently. Now built into SURVEY.

12 Automatic File Transfer at End of Line Hardwire of WiFi Connection InternetConnection *.RAW,*.HSX SURVEY COMPUTER Other Computer on LAN *.HSX, *.RAW SURVEY COMPUTER Dropbox Folder Computer with DropBox Account SURVEY DATA TRANSFER sends a copy of your data files via a LAN or an Internet connection.

13 HYSWEEP SURVEY: Real Time Point Cloud

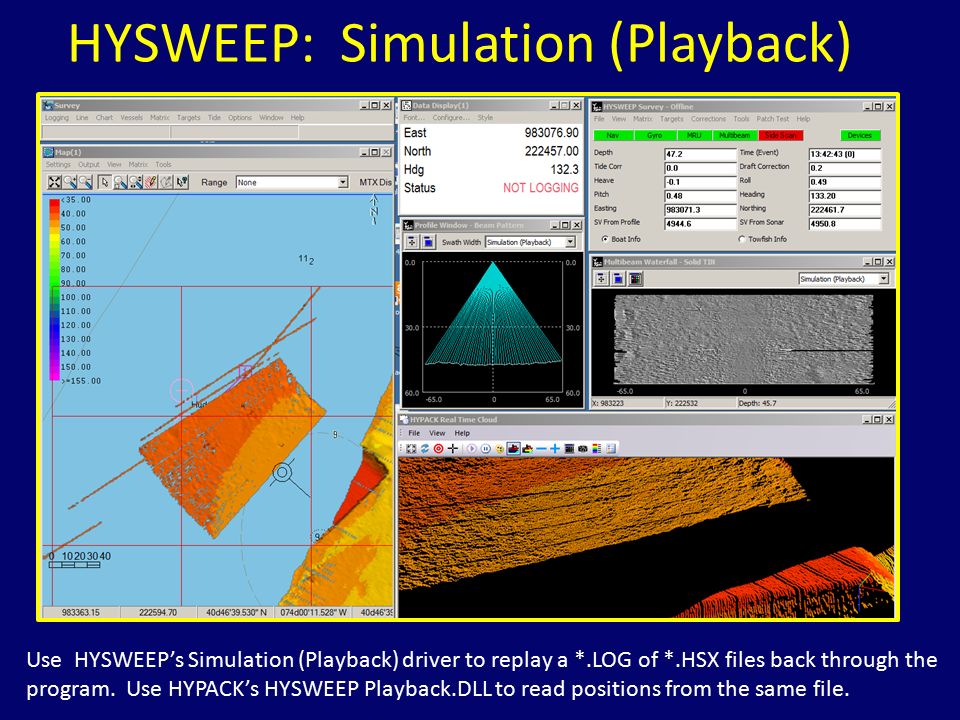

14 HYSWEEP: Simulation (Playback) Use HYSWEEP’s Simulation (Playback) driver to replay a *.LOG of *.HSX files back through the program. Use HYPACK’s HYSWEEP Playback.DLL to read positions from the same file.

15 HYSWEEP SURVEY: Multiple Systems HYSWEEP SURVEY MultibeamPort LIDAR Starboard LIDAR HYSWEEP SURVEY can now handle multiple combinations of Multibeam and/or Topographic LIDAR systems.

16 Water Column Data HYSWEEP SURVEY can now log water column data from Reson 71xx and R2Sonic. Review the data in the WATER COLUMN PLAYBACK program and incorporate the data in your MBMAX-64 editing sessions.

17 HYSCAN: Threaded Reading of HSX You can begin editing the raw parameters as soon as the first file is loaded! The remaining files are loading in the background.

18 TIN MODEL: Improved Rotation Tool 3D Model views in TIN MODEL can now be rotated with a mouse click-and-drag.

19 TIN MODEL: 3D Printing Both TIN MODEL and ADVANCED CHANNEL DESIGN can output their 3D surfaces to STL format that is used in 3D printing applications.

20 TIN MODEL: Color-Filled 2D Sections 2D Sections in TIN MODEL can now be color-filled and saved to BMP.

21 ENC EDITOR Updated to IENC Product Spec 2.3

22 Adoption of Unicode for Text Display Foreign language support is enhanced to allow complex character sets (Chinese, Japanese, Korean, Cyrillic) in Project Names and File Names.

23 3D Mouse Integration in CLOUD & MBMAX-64 Control rotation in CLOUD and MBMAX-64 windows using the 3DConnexion mouse while deleting points with your normal mouse.

24 New SURVEY Devices SBG Ekinox Series Motion Sensor Blueview P900 Forward Scanning Sonar SonarTech SonarBeam Side ScanSimrad ME-70Leica P-20

25 More New SURVEY Devices Reson T20-P MBTritech Gemini Imaging Sonar Renishaw DynascanVelodyne HLD-32e

26 Integration of GoPro Camera Device driver GoPro_Capture.DLL captures BMP files at a user- defined time interval.

27 Google Glass Helmsman Display Displays helmsman information, including left/right indicator, DTG and On-Line/Off-Line status.
