1. Vibration Isolation Overview Session 3 Examples

2. Choosing the right part Example

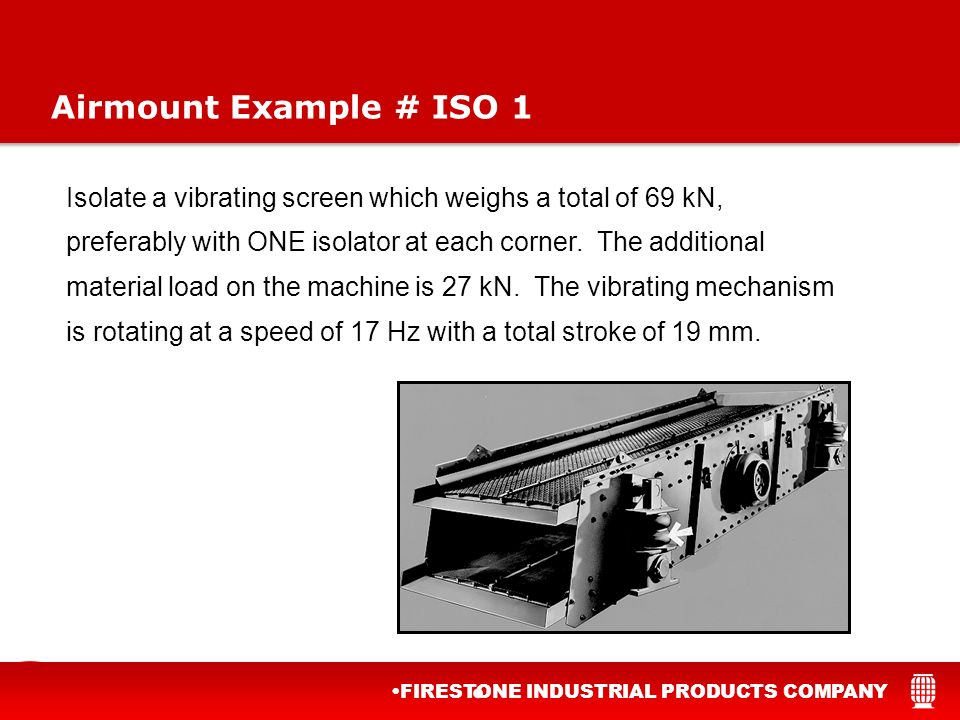

3. FIRESTONE INDUSTRIAL PRODUCTS COMPANY Airmount Example # ISO 1 Isolate a vibrating screen which weighs a total of 69 kN, preferably with ONE isolator at each corner. The additional material load on the machine is 27 kN. The vibrating mechanism is rotating at a speed of 17 Hz with a total stroke of 19 mm.

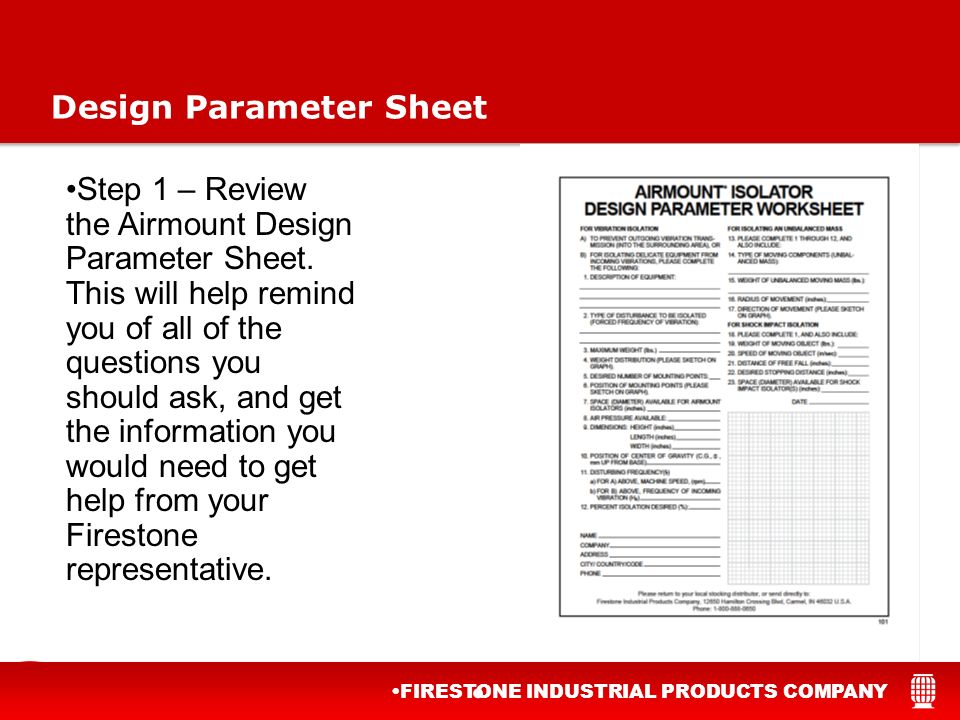

4. FIRESTONE INDUSTRIAL PRODUCTS COMPANY Design Parameter Sheet Step 1 – Review the Airmount Design Parameter Sheet. This will help remind you of all of the questions you should ask, and get the information you would need to get help from your Firestone representative.

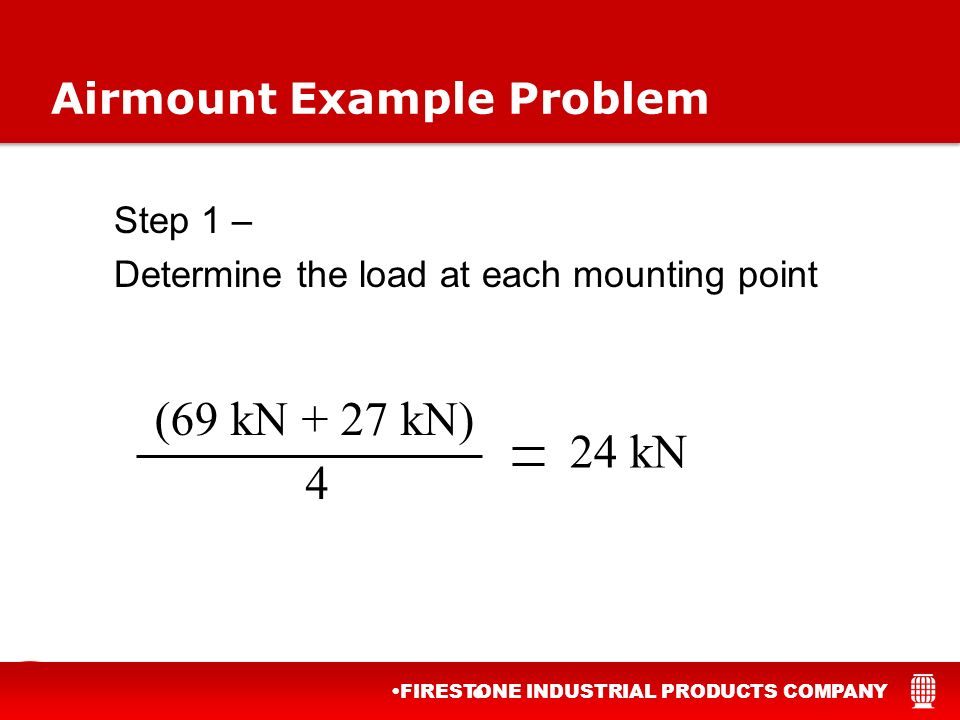

5. FIRESTONE INDUSTRIAL PRODUCTS COMPANY Step 1 – Determine the load at each mounting point (69 kN + 27 kN) 4 24 kN Airmount Example Problem

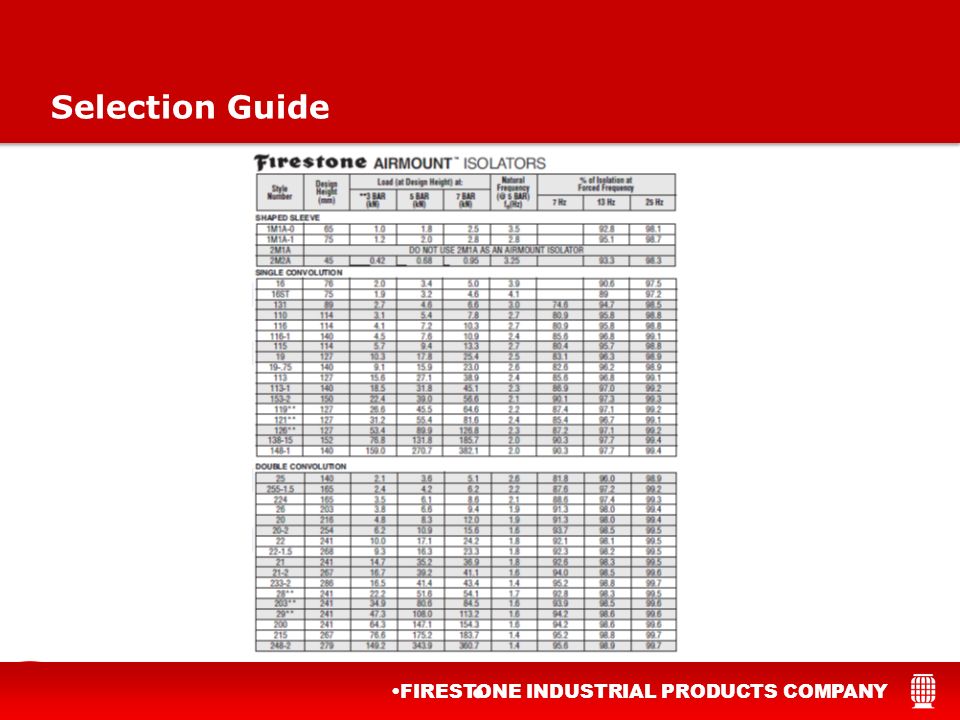

6. FIRESTONE INDUSTRIAL PRODUCTS COMPANY Selection Guide

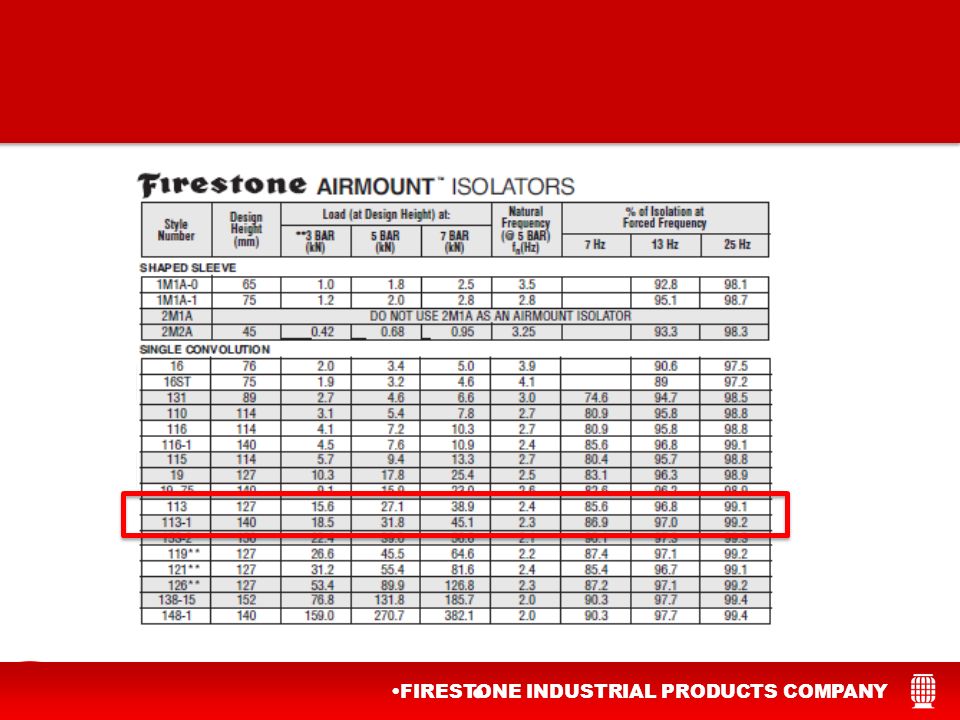

7. FIRESTONE INDUSTRIAL PRODUCTS COMPANY

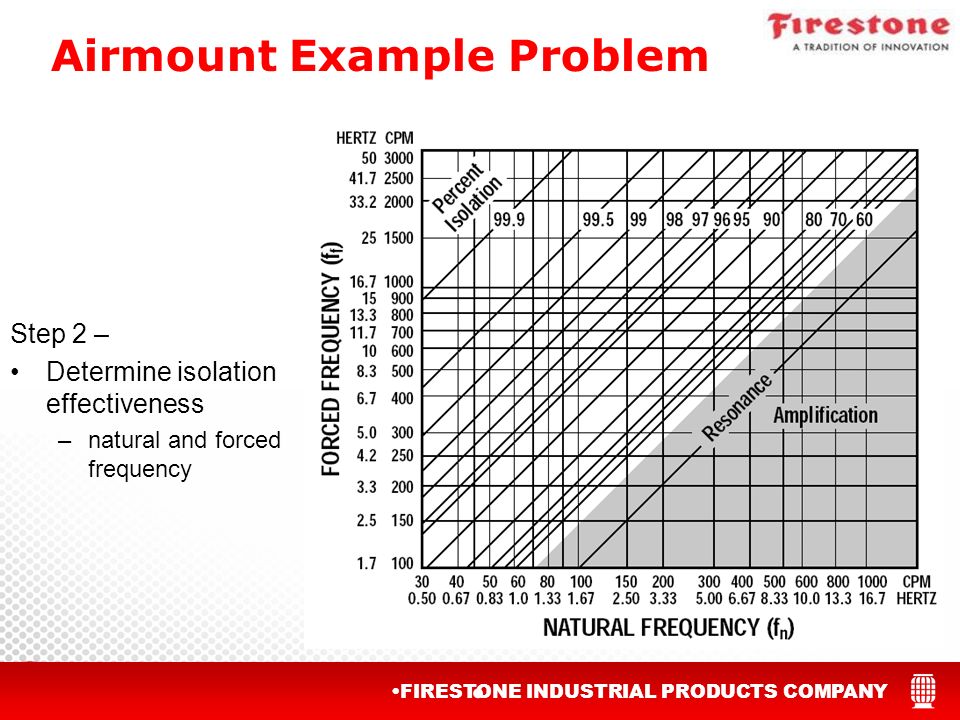

8. FIRESTONE INDUSTRIAL PRODUCTS COMPANY Step 2 – Determine isolation effectiveness –natural and forced frequency Airmount Example Problem

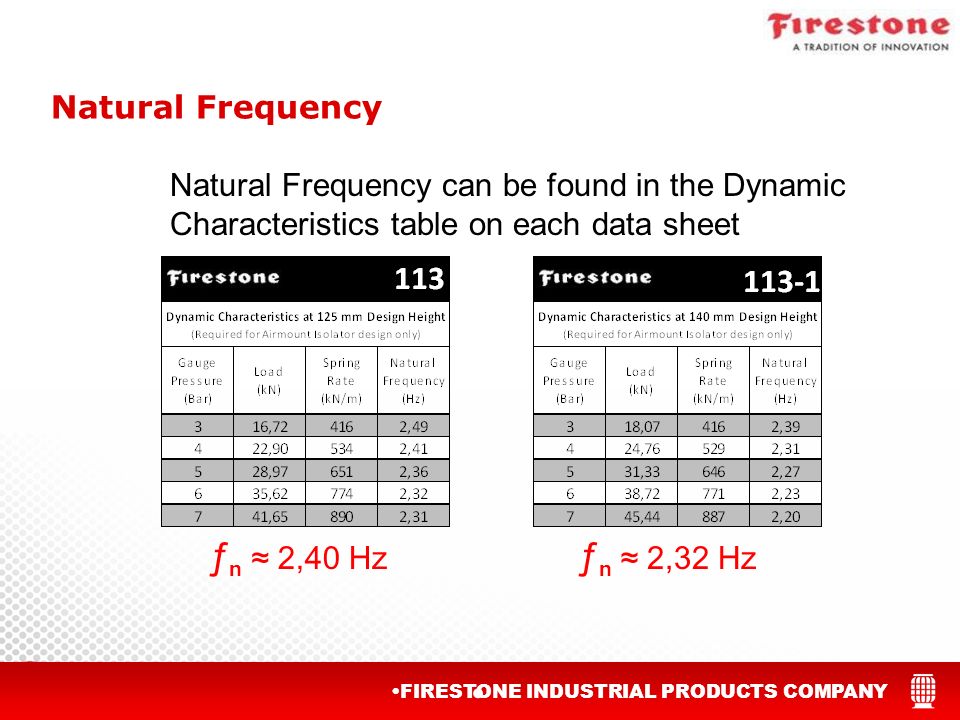

9. FIRESTONE INDUSTRIAL PRODUCTS COMPANY Natural Frequency Natural Frequency can be found in the Dynamic Characteristics table on each data sheet ƒ n ≈ 2,40 Hz ƒ n ≈ 2,32 Hz

10. FIRESTONE INDUSTRIAL PRODUCTS COMPANY Natural Frequency Natural Frequency can be found in the Dynamic Characteristics table on each data sheet ƒ n ≈ 1,76 Hz ƒ n ≈ 1,61 Hz

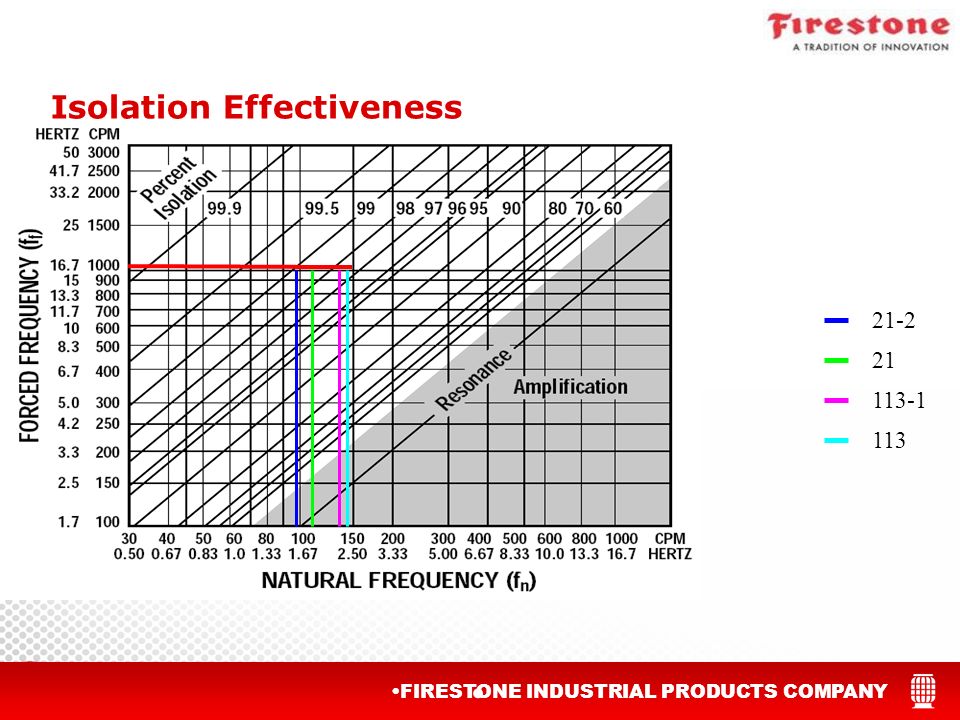

11. FIRESTONE INDUSTRIAL PRODUCTS COMPANY Isolation Effectiveness 21-2 21 113-1 113

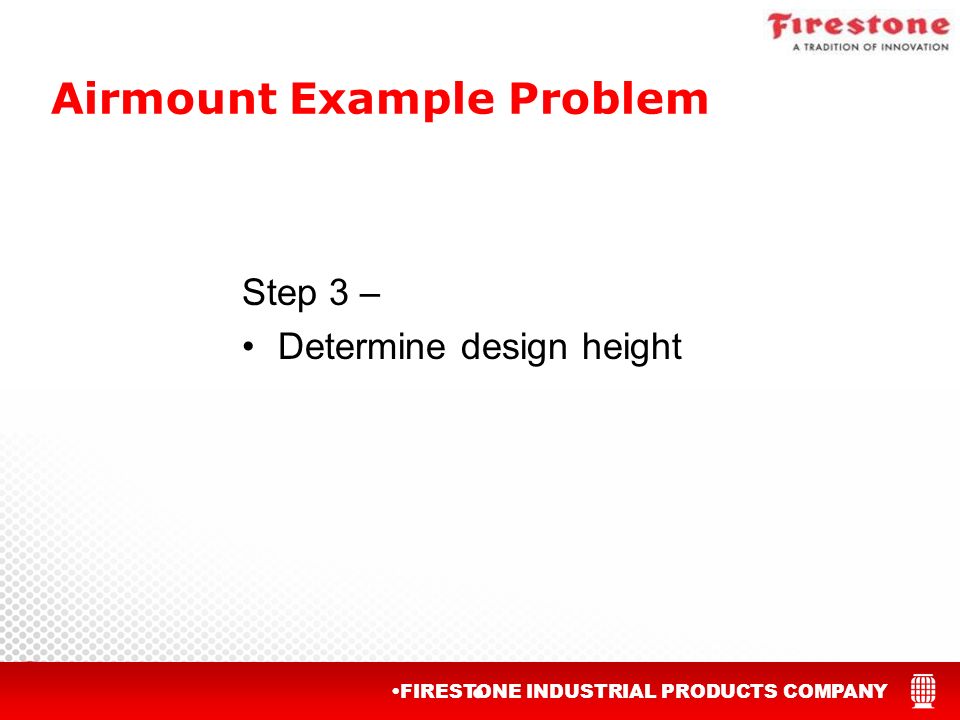

12. FIRESTONE INDUSTRIAL PRODUCTS COMPANY Step 3 – Determine design height Airmount Example Problem

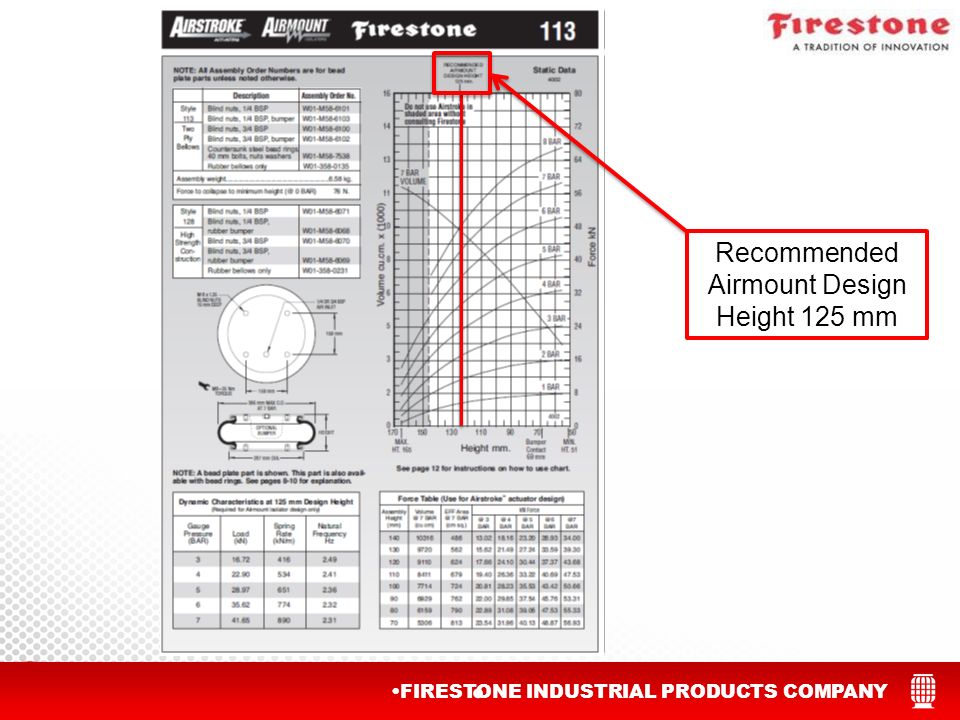

13. FIRESTONE INDUSTRIAL PRODUCTS COMPANY Recommended Airmount Design Height 125 mm

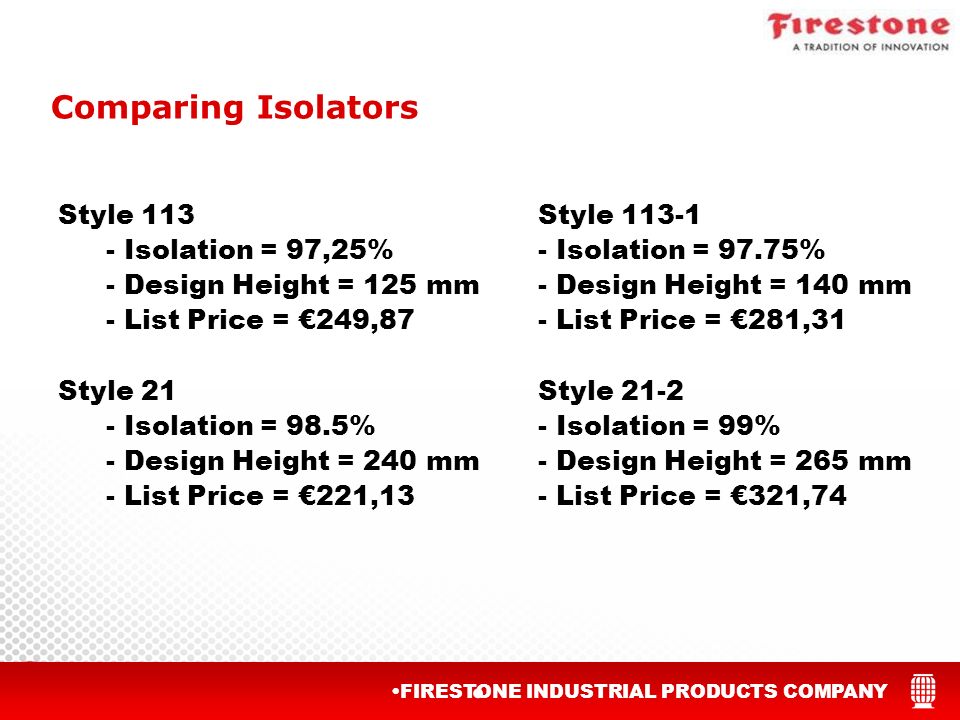

14. FIRESTONE INDUSTRIAL PRODUCTS COMPANY Comparing Isolators Style 113Style 113-1 - Isolation = 97,25% - Isolation = 97.75% - Design Height = 125 mm- Design Height = 140 mm - List Price = €249,87 - List Price = €281,31 Style 21Style 21-2 - Isolation = 98.5% - Isolation = 99% - Design Height = 240 mm - Design Height = 265 mm - List Price = €221,13 - List Price = €321,74

15. Why is Style 21 a better isolator than Style 113?

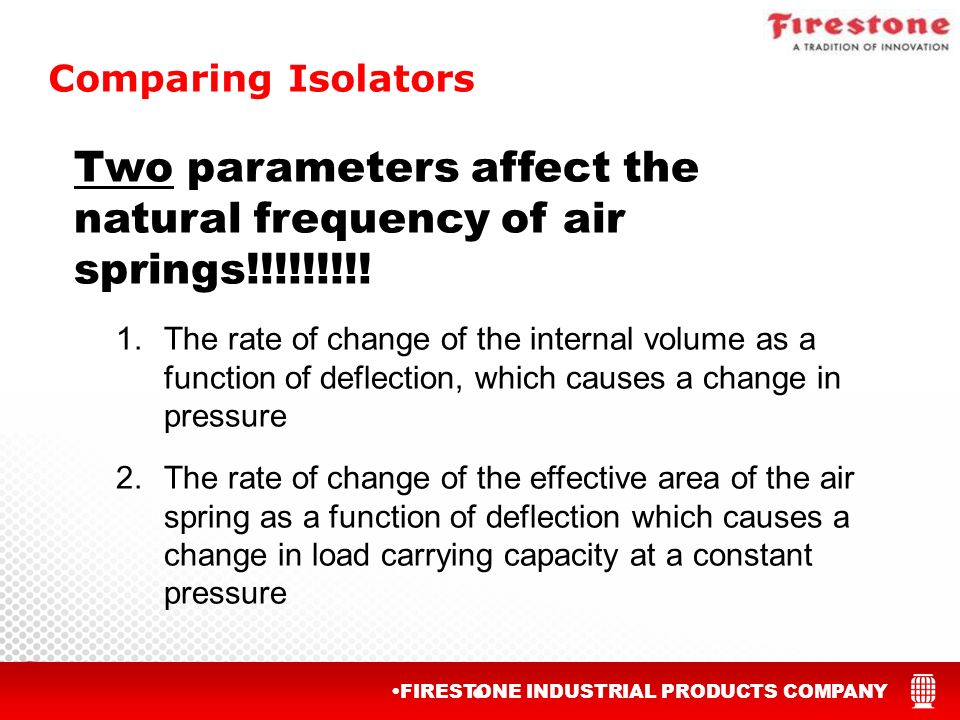

16. FIRESTONE INDUSTRIAL PRODUCTS COMPANY Comparing Isolators Two parameters affect the natural frequency of air springs!!!!!!!!! 1.The rate of change of the internal volume as a function of deflection, which causes a change in pressure 2.The rate of change of the effective area of the air spring as a function of deflection which causes a change in load carrying capacity at a constant pressure

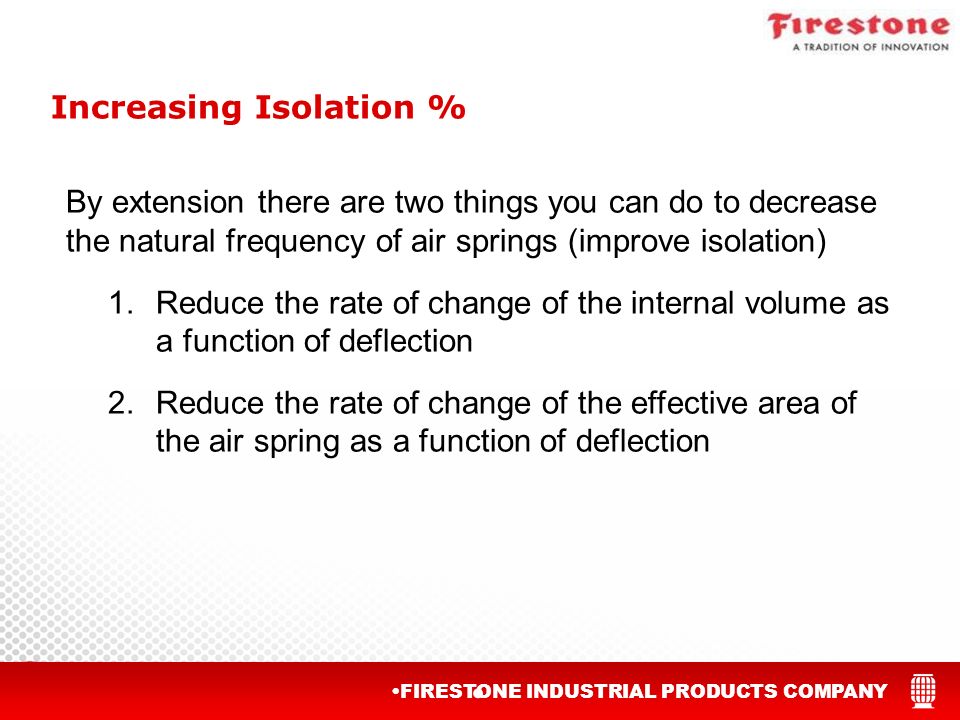

17. FIRESTONE INDUSTRIAL PRODUCTS COMPANY Increasing Isolation % By extension there are two things you can do to decrease the natural frequency of air springs (improve isolation) 1.Reduce the rate of change of the internal volume as a function of deflection 2.Reduce the rate of change of the effective area of the air spring as a function of deflection

18. FIRESTONE INDUSTRIAL PRODUCTS COMPANY Comparing Isolators

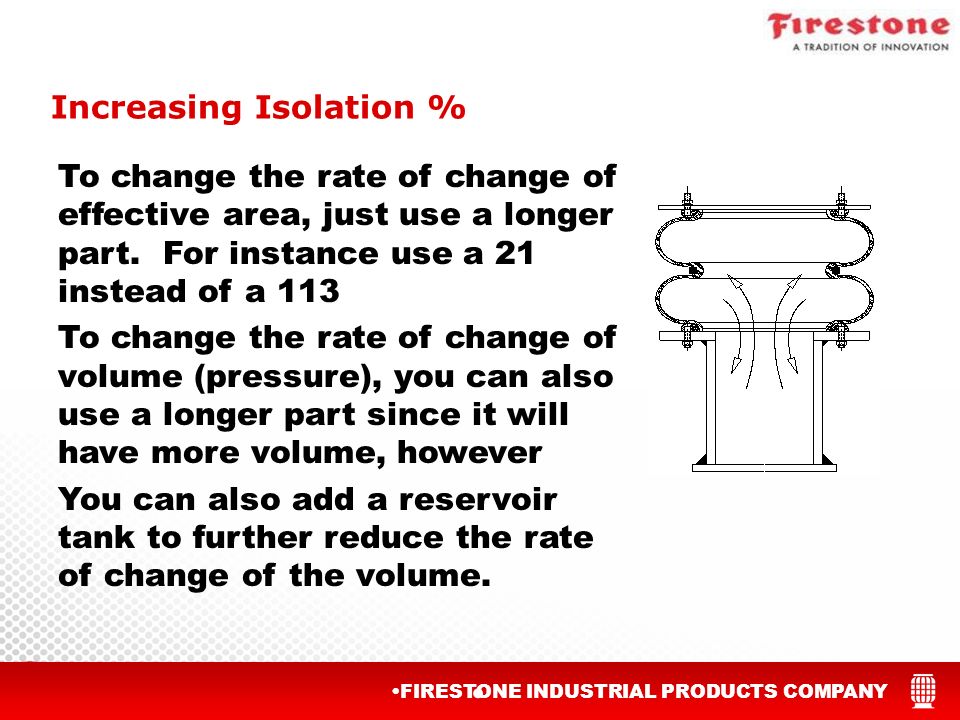

19. FIRESTONE INDUSTRIAL PRODUCTS COMPANY Increasing Isolation % To change the rate of change of effective area, just use a longer part. For instance use a 21 instead of a 113 To change the rate of change of volume (pressure), you can also use a longer part since it will have more volume, however You can also add a reservoir tank to further reduce the rate of change of the volume.

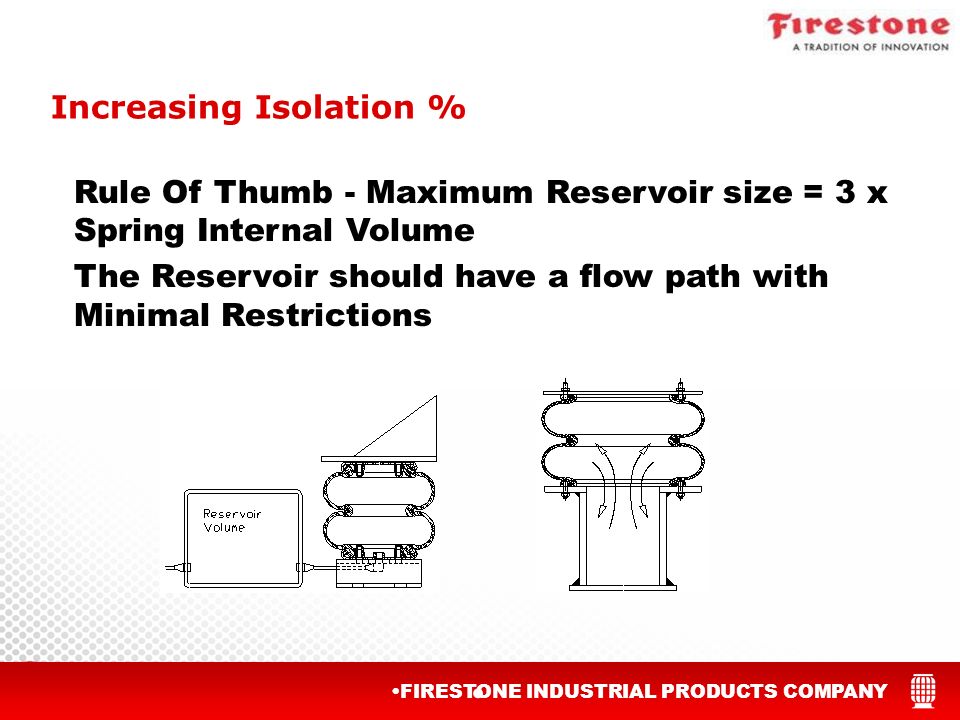

20. FIRESTONE INDUSTRIAL PRODUCTS COMPANY Increasing Isolation % Rule Of Thumb - Maximum Reservoir size = 3 x Spring Internal Volume The Reservoir should have a flow path with Minimal Restrictions

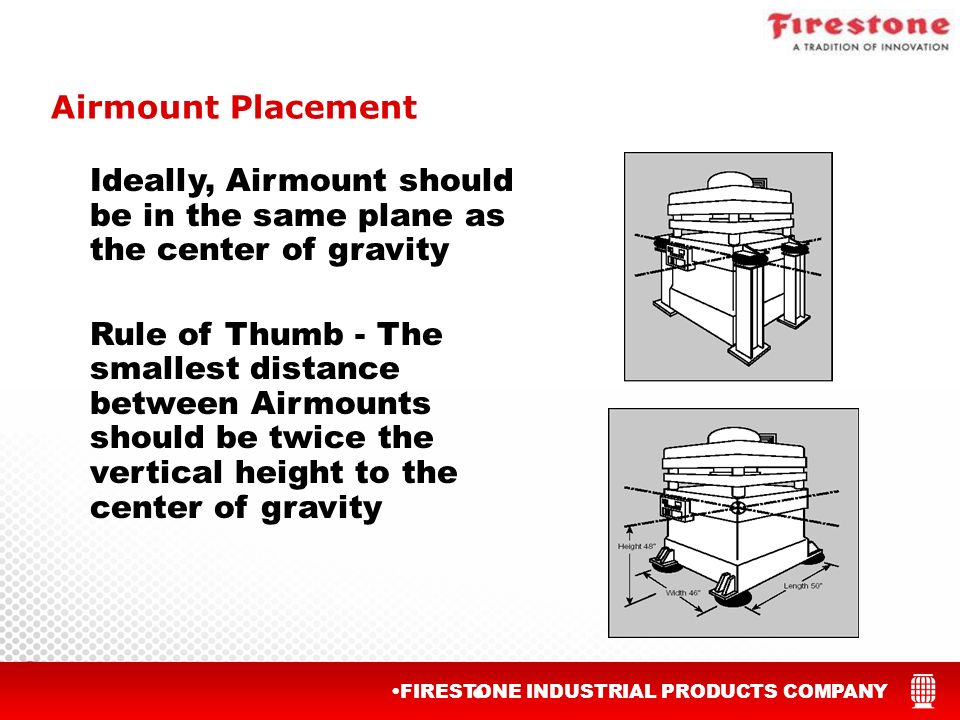

21. FIRESTONE INDUSTRIAL PRODUCTS COMPANY Airmount Placement Ideally, Airmount should be in the same plane as the center of gravity Rule of Thumb - The smallest distance between Airmounts should be twice the vertical height to the center of gravity

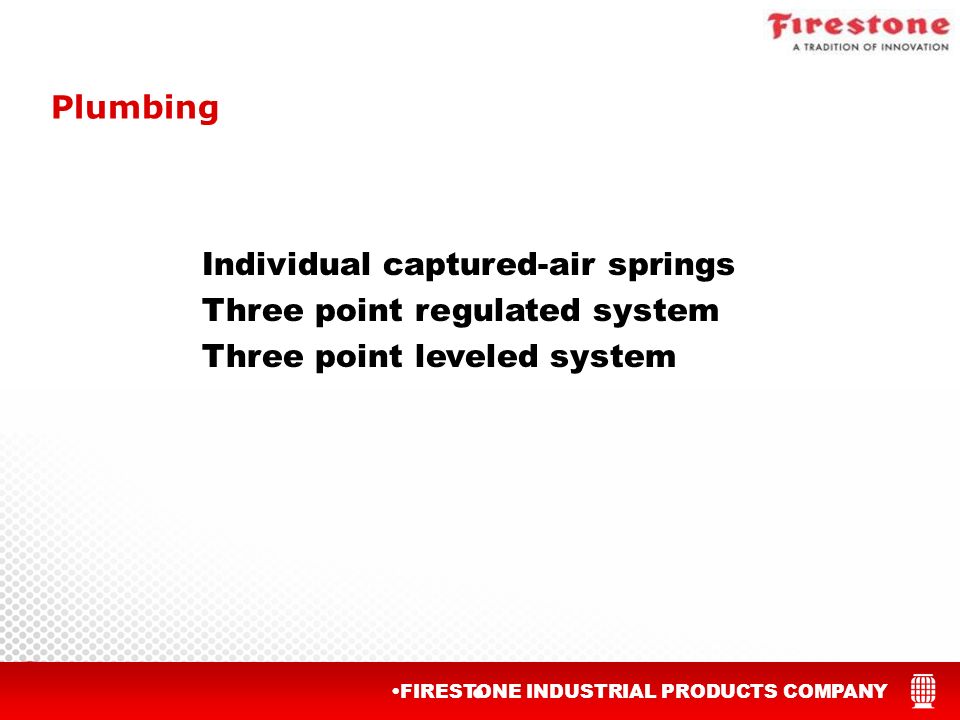

22. FIRESTONE INDUSTRIAL PRODUCTS COMPANY Plumbing Individual captured-air springs Three point regulated system Three point leveled system

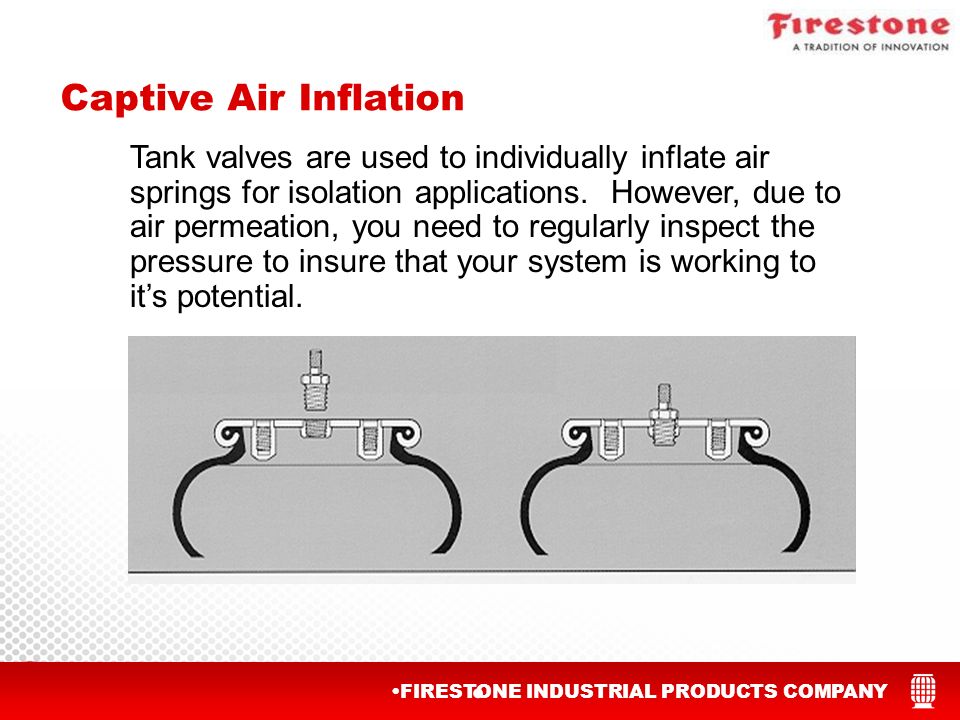

23. FIRESTONE INDUSTRIAL PRODUCTS COMPANY Captive Air Inflation Tank valves are used to individually inflate air springs for isolation applications. However, due to air permeation, you need to regularly inspect the pressure to insure that your system is working to it’s potential.

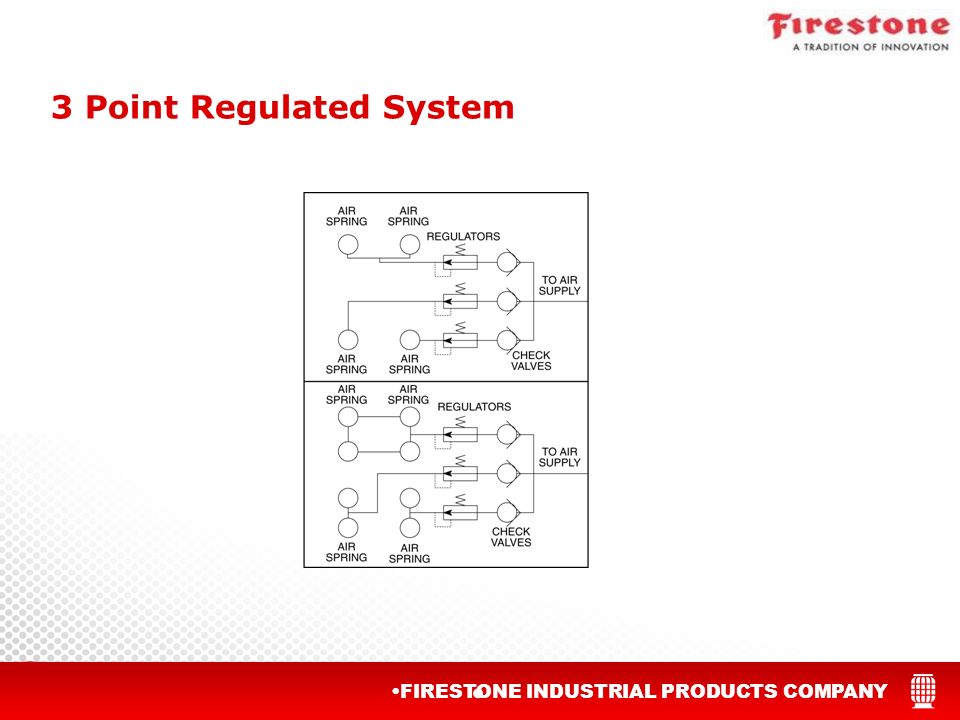

24. FIRESTONE INDUSTRIAL PRODUCTS COMPANY 3 Point Regulated System

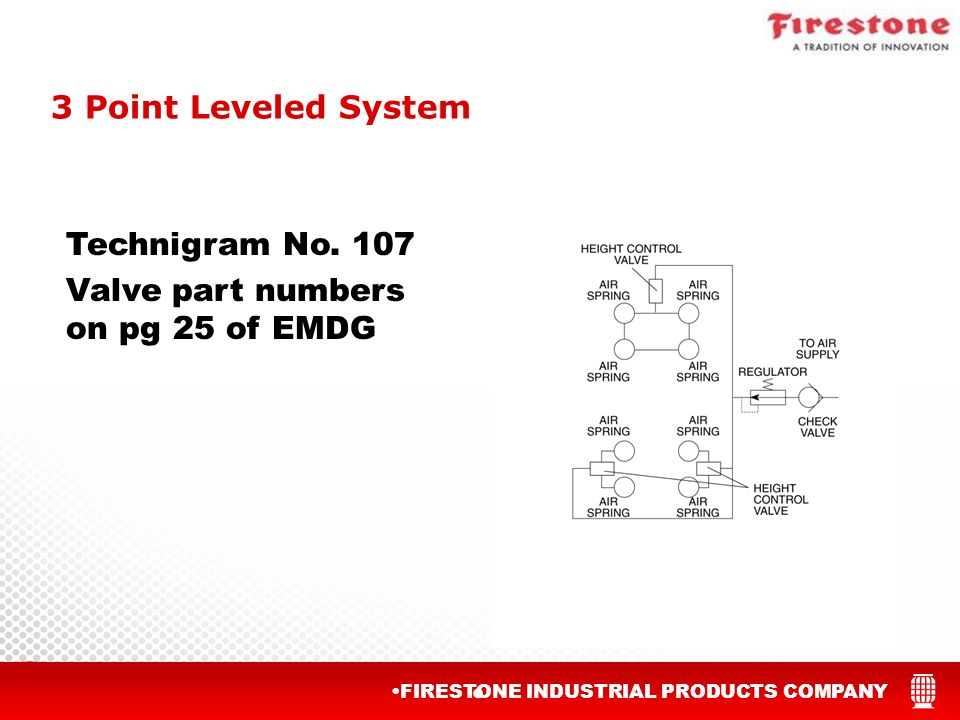

25. FIRESTONE INDUSTRIAL PRODUCTS COMPANY 3 Point Leveled System Technigram No. 107 Valve part numbers on pg 25 of EMDG

26. MarshMellow Isolation Problem

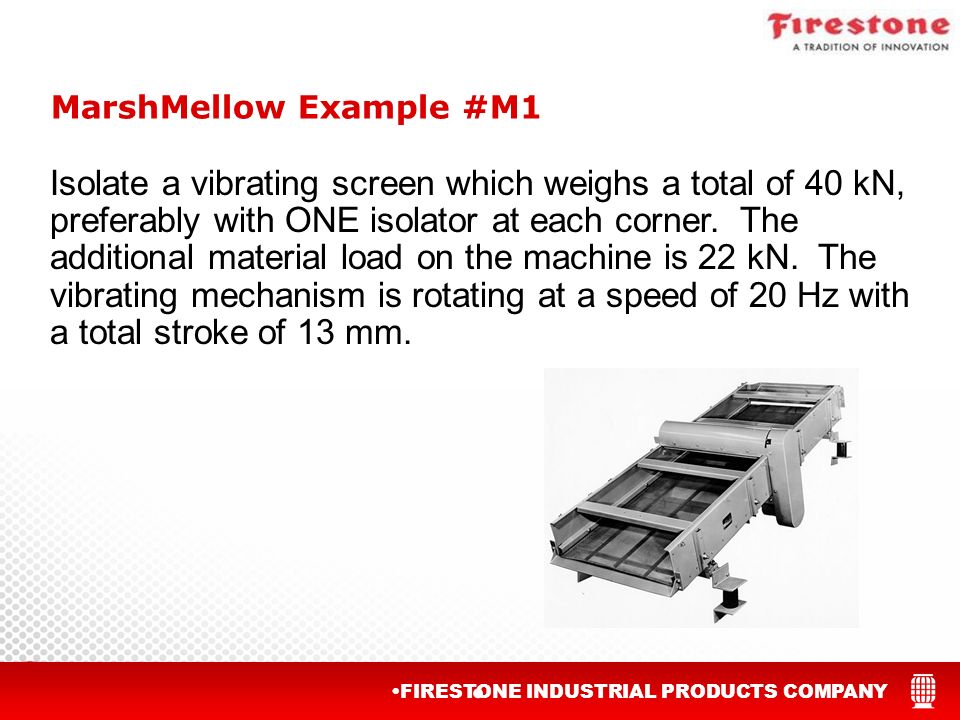

27. FIRESTONE INDUSTRIAL PRODUCTS COMPANY MarshMellow Example #M1 Isolate a vibrating screen which weighs a total of 40 kN, preferably with ONE isolator at each corner. The additional material load on the machine is 22 kN. The vibrating mechanism is rotating at a speed of 20 Hz with a total stroke of 13 mm.

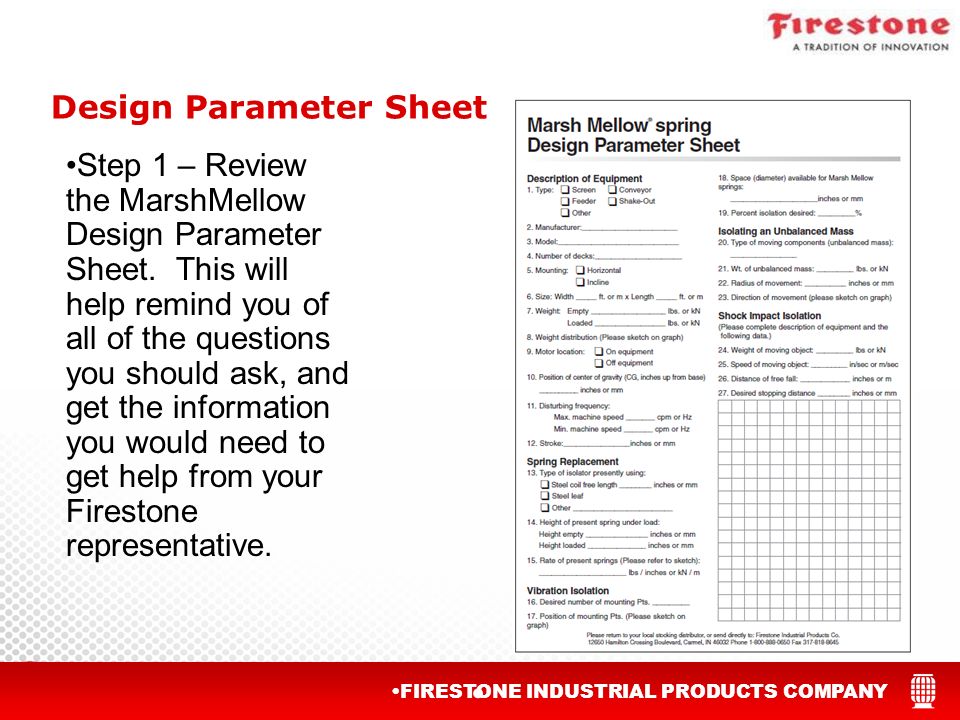

28. FIRESTONE INDUSTRIAL PRODUCTS COMPANY Design Parameter Sheet Step 1 – Review the MarshMellow Design Parameter Sheet. This will help remind you of all of the questions you should ask, and get the information you would need to get help from your Firestone representative.

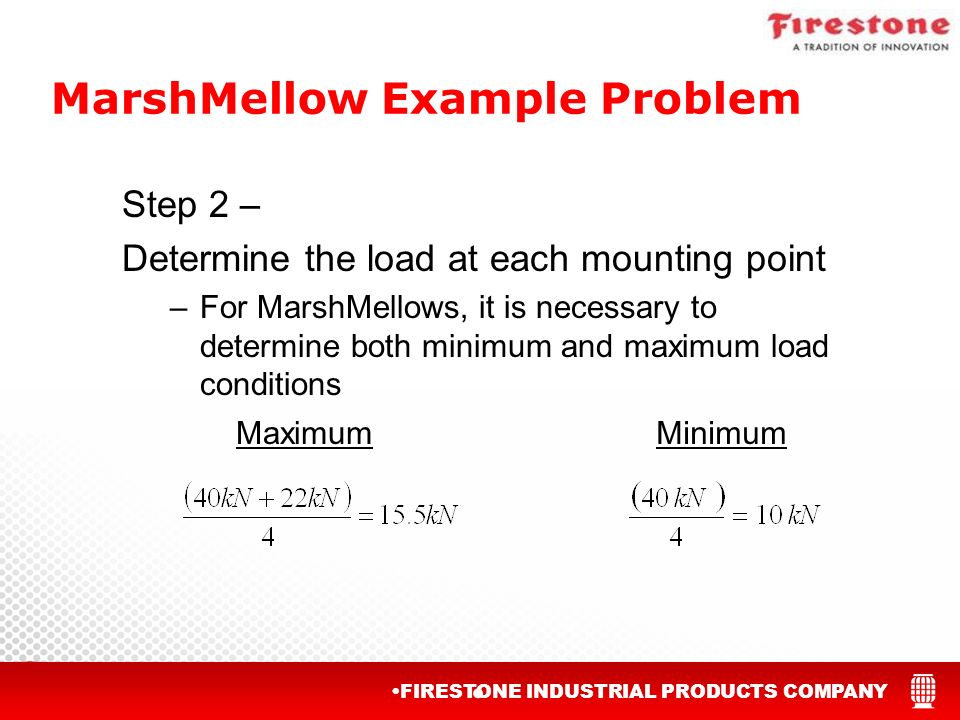

29. FIRESTONE INDUSTRIAL PRODUCTS COMPANY Step 2 – Determine the load at each mounting point –For MarshMellows, it is necessary to determine both minimum and maximum load conditions MaximumMinimum MarshMellow Example Problem

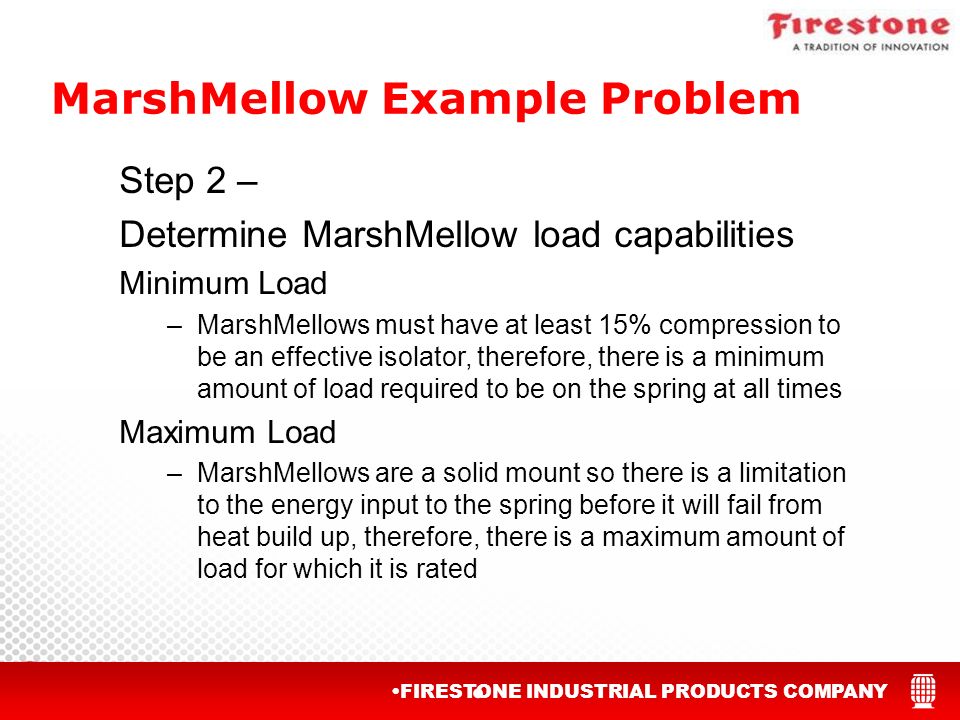

30. FIRESTONE INDUSTRIAL PRODUCTS COMPANY Step 2 – Determine MarshMellow load capabilities Minimum Load –MarshMellows must have at least 15% compression to be an effective isolator, therefore, there is a minimum amount of load required to be on the spring at all times Maximum Load –MarshMellows are a solid mount so there is a limitation to the energy input to the spring before it will fail from heat build up, therefore, there is a maximum amount of load for which it is rated MarshMellow Example Problem

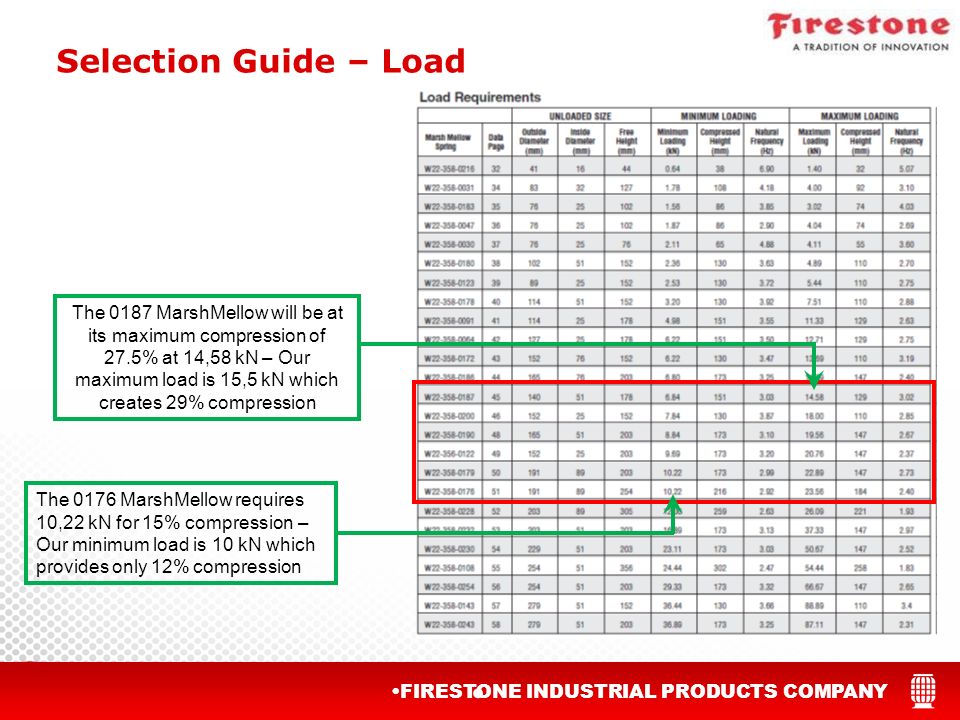

31. FIRESTONE INDUSTRIAL PRODUCTS COMPANY Selection Guide – Load The 0176 MarshMellow requires 10,22 kN for 15% compression – Our minimum load is 10 kN which provides only 12% compression The 0187 MarshMellow will be at its maximum compression of 27.5% at 14,58 kN – Our maximum load is 15,5 kN which creates 29% compression

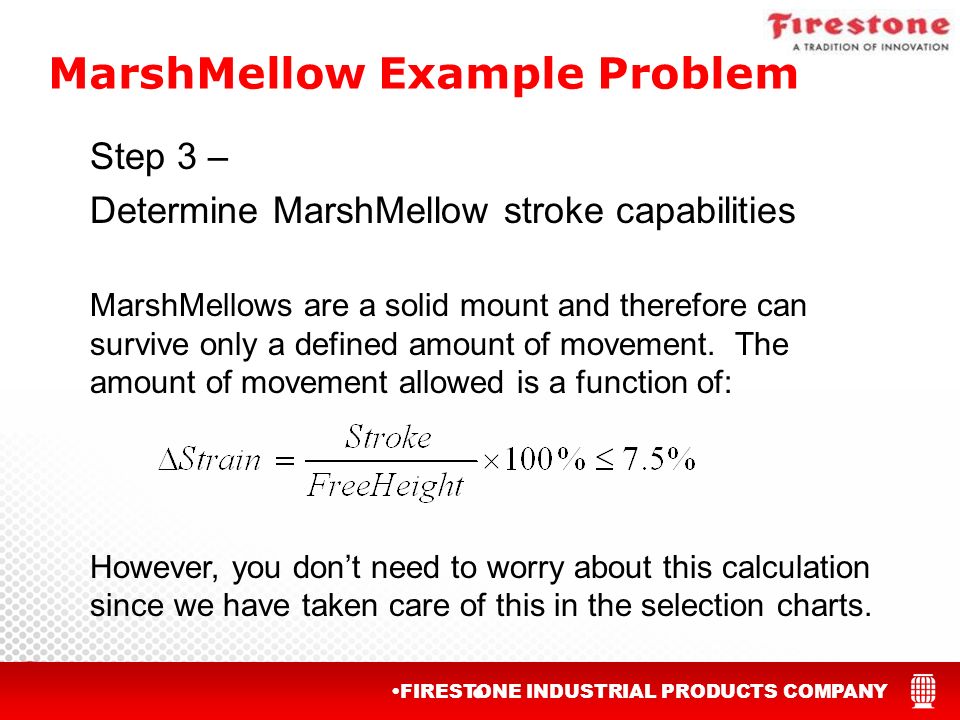

32. FIRESTONE INDUSTRIAL PRODUCTS COMPANY Step 3 – Determine MarshMellow stroke capabilities MarshMellows are a solid mount and therefore can survive only a defined amount of movement. The amount of movement allowed is a function of: However, you don’t need to worry about this calculation since we have taken care of this in the selection charts. MarshMellow Example Problem

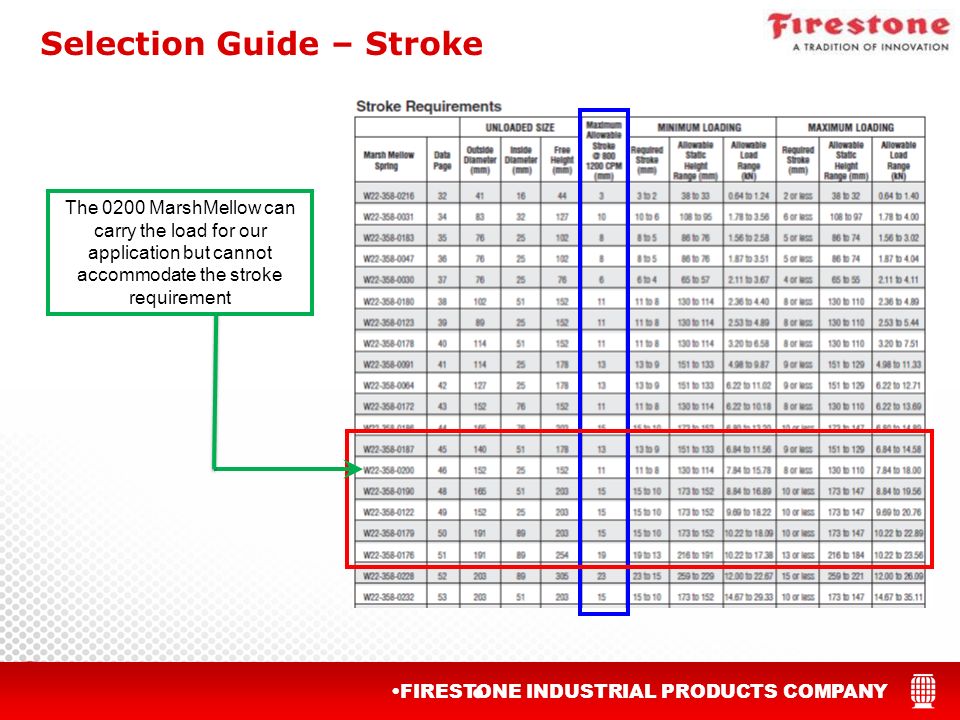

33. FIRESTONE INDUSTRIAL PRODUCTS COMPANY Selection Guide – Stroke The 0200 MarshMellow can carry the load for our application but cannot accommodate the stroke requirement

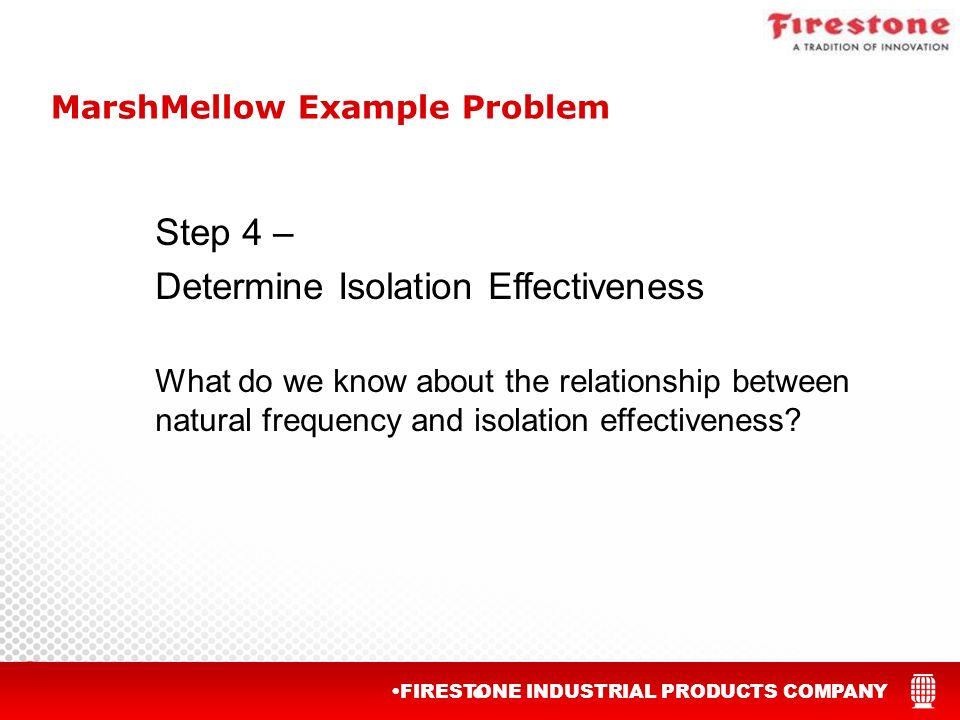

34. FIRESTONE INDUSTRIAL PRODUCTS COMPANY MarshMellow Example Problem Step 4 – Determine Isolation Effectiveness What do we know about the relationship between natural frequency and isolation effectiveness?

35. FIRESTONE INDUSTRIAL PRODUCTS COMPANY Natural Frequency Natural Frequency can be found in the Dynamic Characteristics table on each data sheet 3,17 Hz2,93 Hz

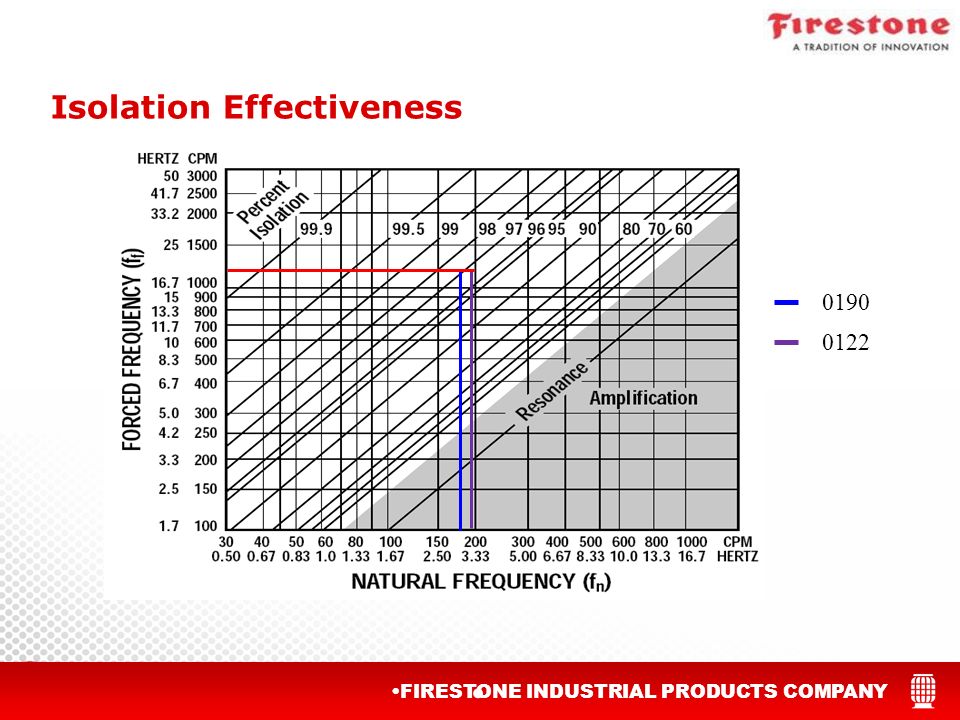

36. FIRESTONE INDUSTRIAL PRODUCTS COMPANY Isolation Effectiveness 0190 0122

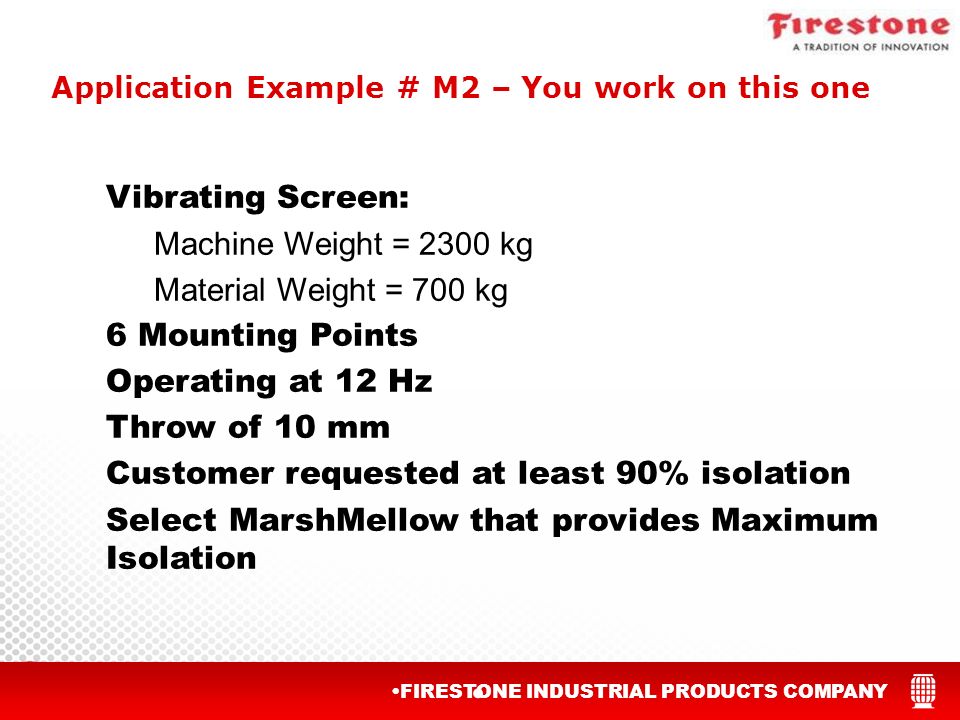

37. FIRESTONE INDUSTRIAL PRODUCTS COMPANY Application Example # M2 – You work on this one Vibrating Screen: Machine Weight = 2300 kg Material Weight = 700 kg 6 Mounting Points Operating at 12 Hz Throw of 10 mm Customer requested at least 90% isolation Select MarshMellow that provides Maximum Isolation

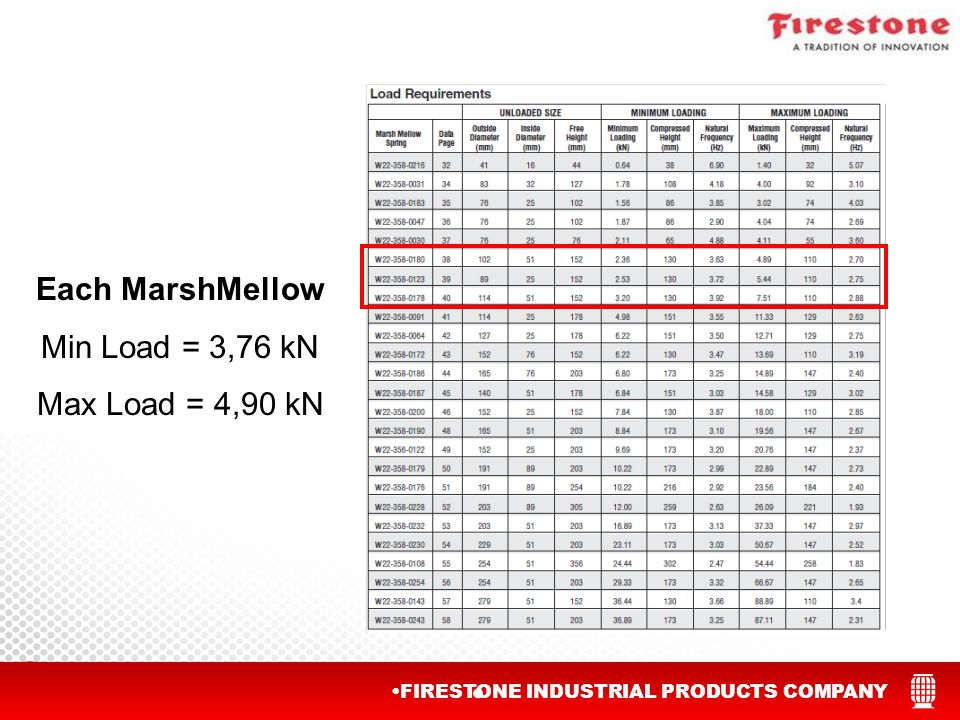

38. FIRESTONE INDUSTRIAL PRODUCTS COMPANY Each MarshMellow Min Load = 3,76 kN Max Load = 4,90 kN

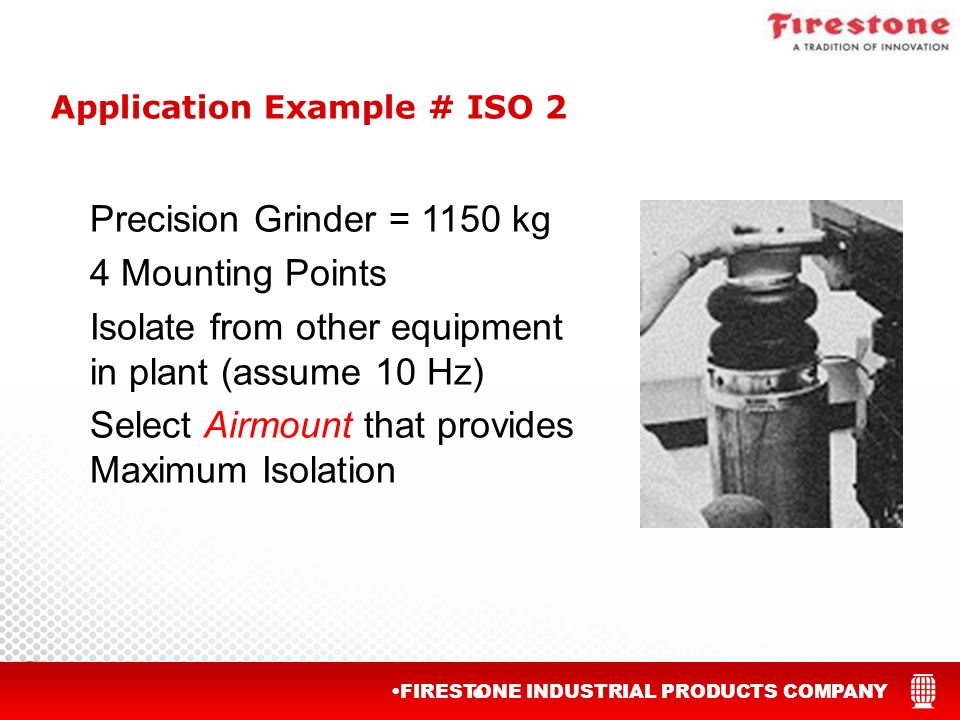

39. FIRESTONE INDUSTRIAL PRODUCTS COMPANY Application Example # ISO 2 Precision Grinder = 1150 kg 4 Mounting Points Isolate from other equipment in plant (assume 10 Hz) Select Airmount that provides Maximum Isolation

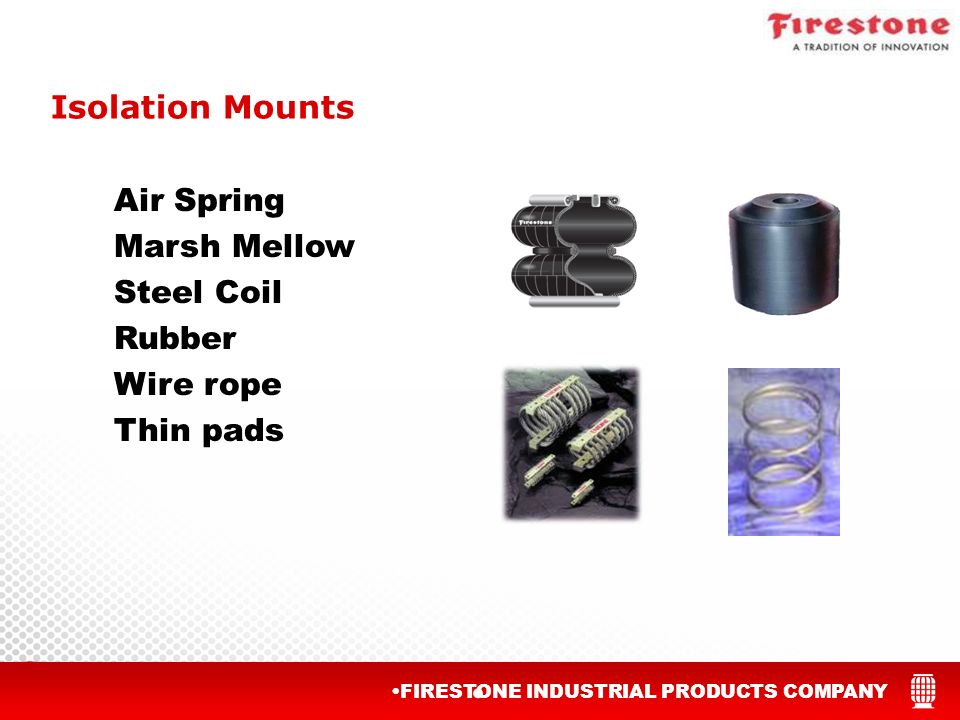

40. FIRESTONE INDUSTRIAL PRODUCTS COMPANY Isolation Mounts Air Spring Marsh Mellow Steel Coil Rubber Wire rope Thin pads

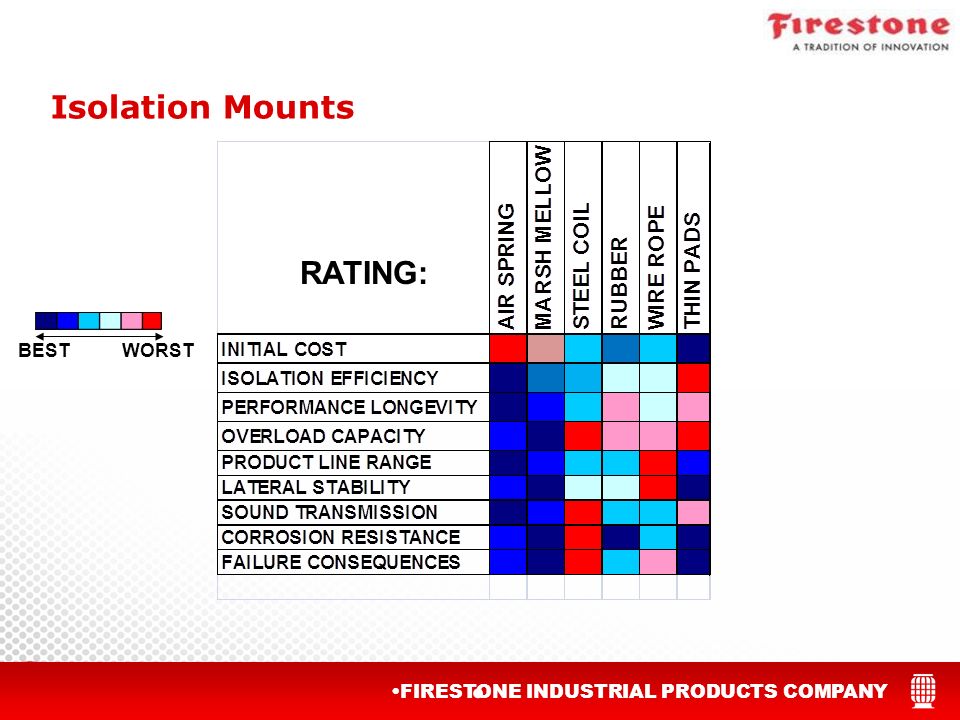

41. FIRESTONE INDUSTRIAL PRODUCTS COMPANY Isolation Mounts RATING: BESTWORST

42. FIRESTONE INDUSTRIAL PRODUCTS COMPANY

43. Questions? Quiz Time

44. The End (of this presentation)
