Overview of groundwater and soil contamination in Lithuania Kestutis Kadunas, Geological Survey of Lithuania Tel. 370 5 2136 272,

Similar presentations


Presentation on theme: "Overview of groundwater and soil contamination in Lithuania Kestutis Kadunas, Geological Survey of Lithuania Tel. 370 5 2136 272,"— Presentation transcript:

1 Overview of groundwater and soil contamination in Lithuania Kestutis Kadunas, Geological Survey of Lithuania Tel. 370 5 2136 272, E-mail.Kestutis.Kadunas@lgt.lt

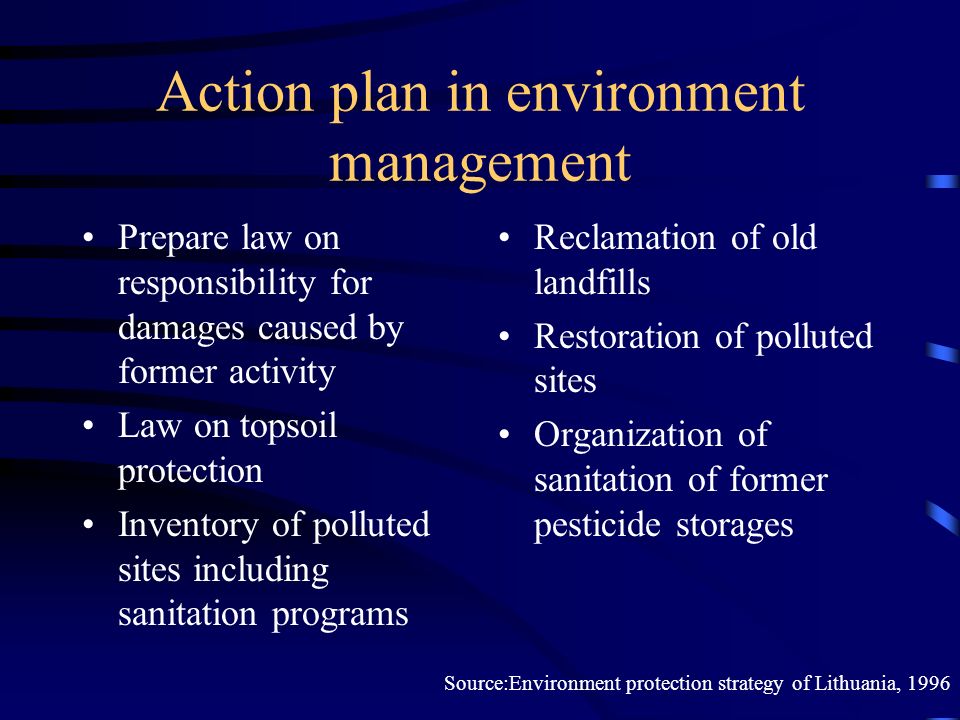

2 Action plan in environment management Prepare law on responsibility for damages caused by former activity Law on topsoil protection Inventory of polluted sites including sanitation programs Reclamation of old landfills Restoration of polluted sites Organization of sanitation of former pesticide storages Source:Environment protection strategy of Lithuania, 1996

3 Groundwater use and protection Strategy, 2002 - 2010 To prepare and keep the Register of Pollution Sources of the Geological Environment To survey pollution sources, to carry out their monitoring, to establish priorities of reclamation, to prepare programmes, to initiate the sanitation of priority territories To produce methodical recommendations on investigation and monitoring of pollution sources To set pollution thresholds in the soil and groundwater

4 Overview of contaminated lands (point sources of pollution) Sanitary landfills and waste sites Former and present military sites Civil oil facilities Pesticide storages

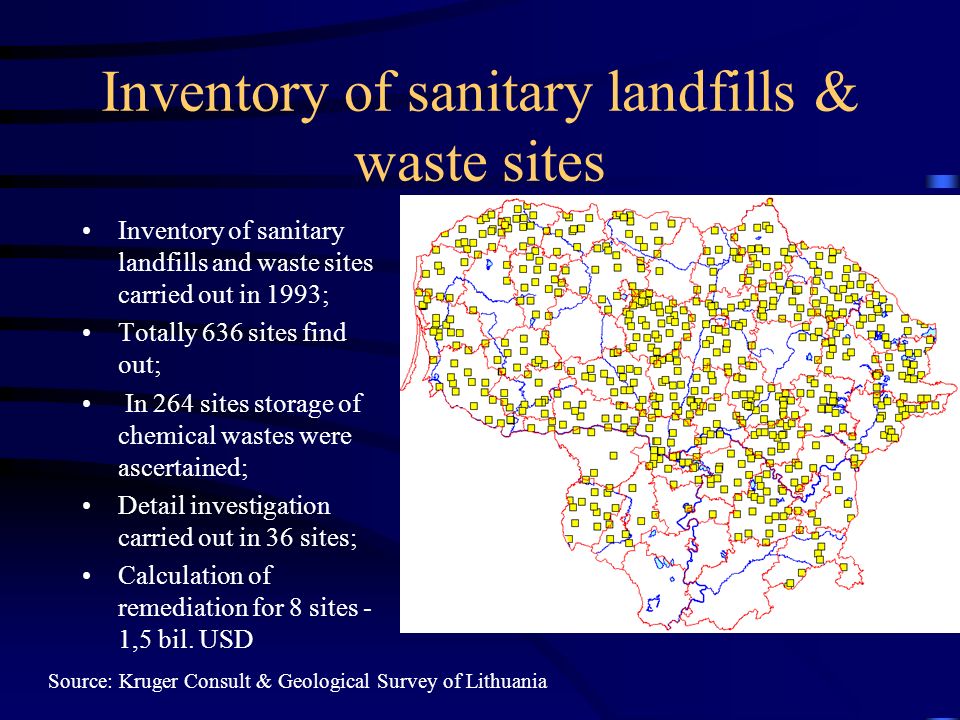

5 Inventory of sanitary landfills & waste sites Inventory of sanitary landfills and waste sites carried out in 1993; Totally 636 sites find out; In 264 sites storage of chemical wastes were ascertained; Detail investigation carried out in 36 sites; Calculation of remediation for 8 sites - 1,5 bil. USD Source: Kruger Consult & Geological Survey of Lithuania

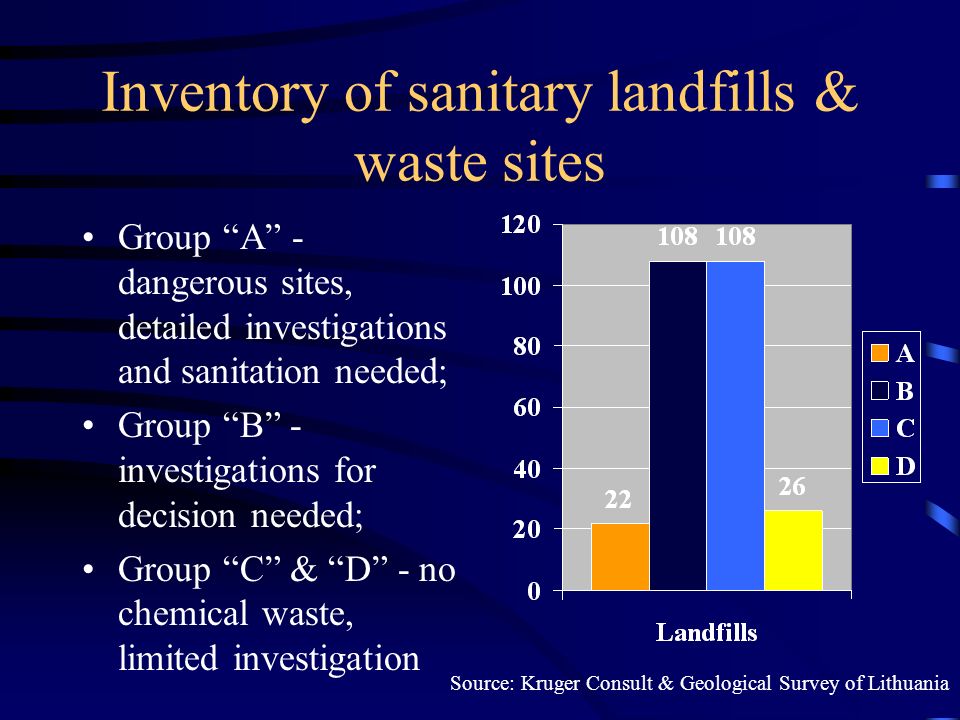

6 Inventory of sanitary landfills & waste sites Group A - dangerous sites, detailed investigations and sanitation needed; Group B - investigations for decision needed; Group C & D - no chemical waste, limited investigation Source: Kruger Consult & Geological Survey of Lithuania

7 Industrial landfill, Ketvergiai Source: Geological Survey of Lithuania Wood (bark) waste Sludge from waste water treatment plant 500000 + 100 000 m 3 Contamination of GW ponds SW Phenols, NH4, organic compounds Risk to contaminate private dug wells Contaminated SW flows to Baltic see

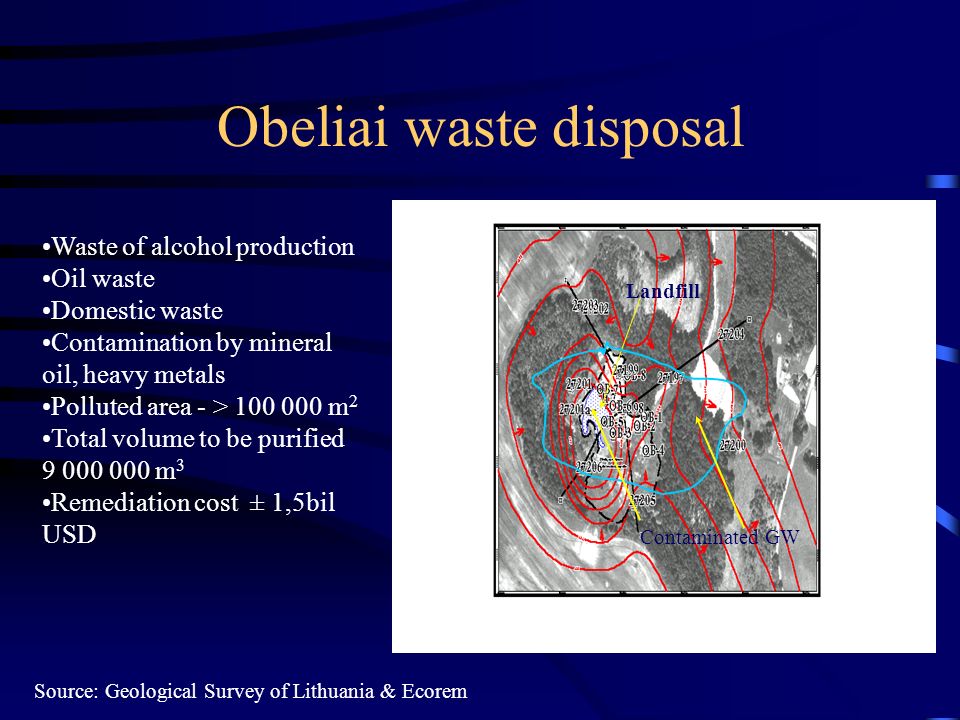

8 Obeliai waste disposal Landfill Contaminated GW Source: Geological Survey of Lithuania & Ecorem Waste of alcohol production Oil waste Domestic waste Contamination by mineral oil, heavy metals Polluted area - > 100 000 m 2 Total volume to be purified 9 000 000 m 3 Remediation cost ± 1,5bil USD

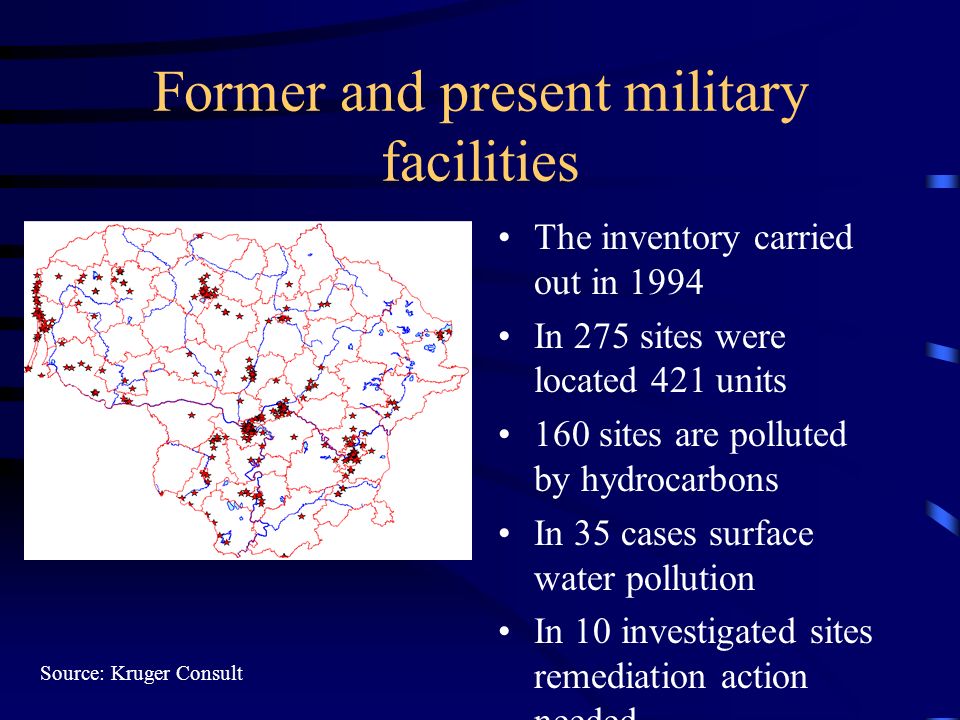

9 Former and present military facilities The inventory carried out in 1994 In 275 sites were located 421 units 160 sites are polluted by hydrocarbons In 35 cases surface water pollution In 10 investigated sites remediation action needed Source: Kruger Consult

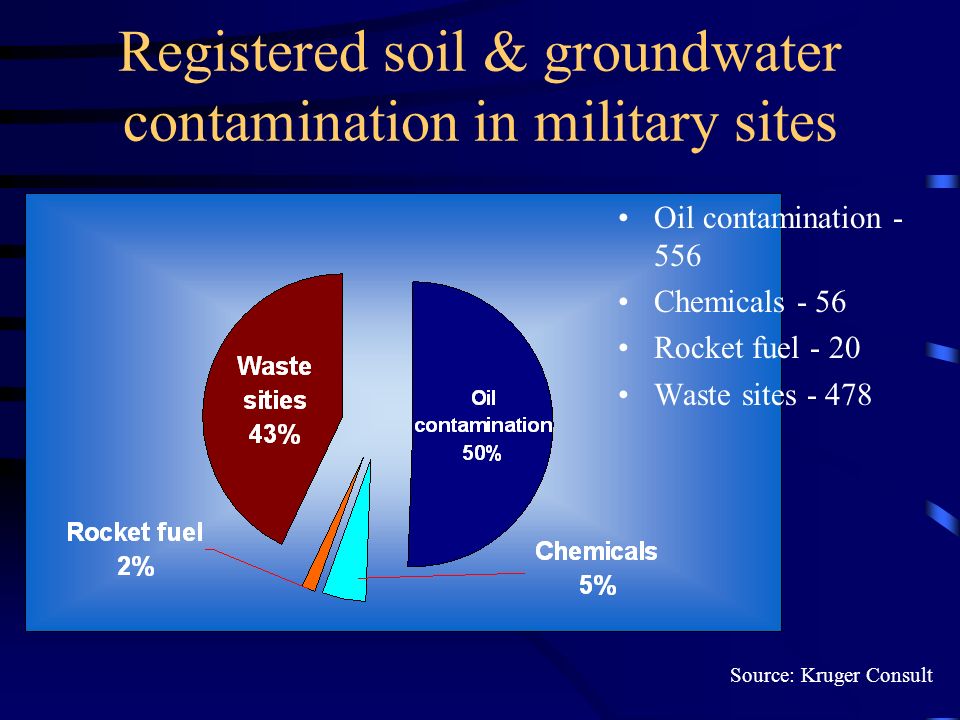

10 Registered soil & groundwater contamination in military sites Oil contamination - 556 Chemicals - 56 Rocket fuel - 20 Waste sites - 478 Source: Kruger Consult

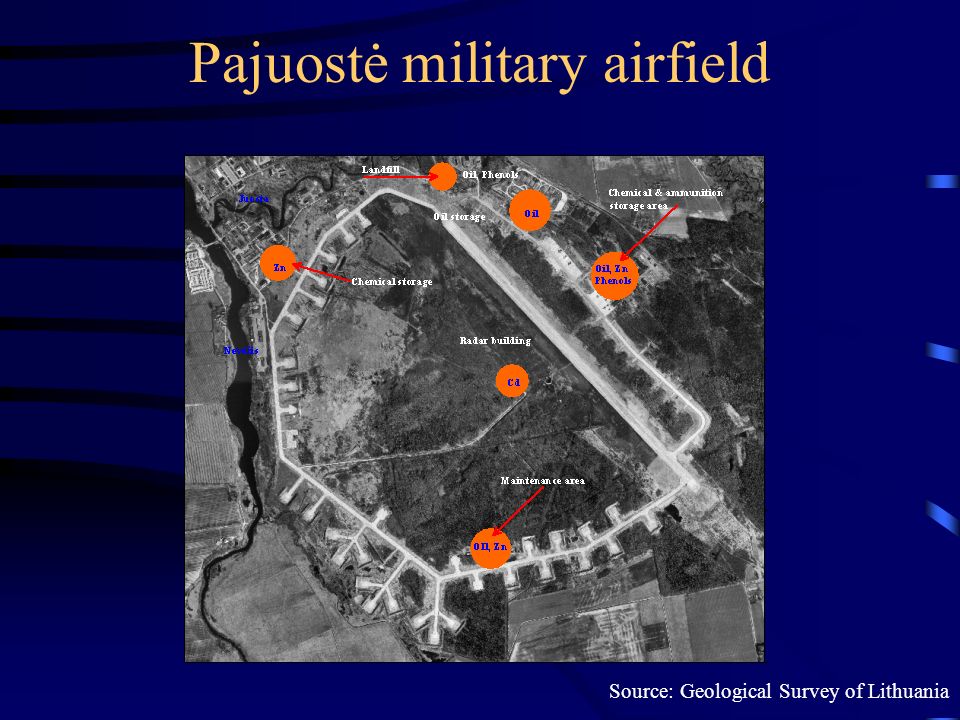

11 Pajuostė military airfield Source: Geological Survey of Lithuania

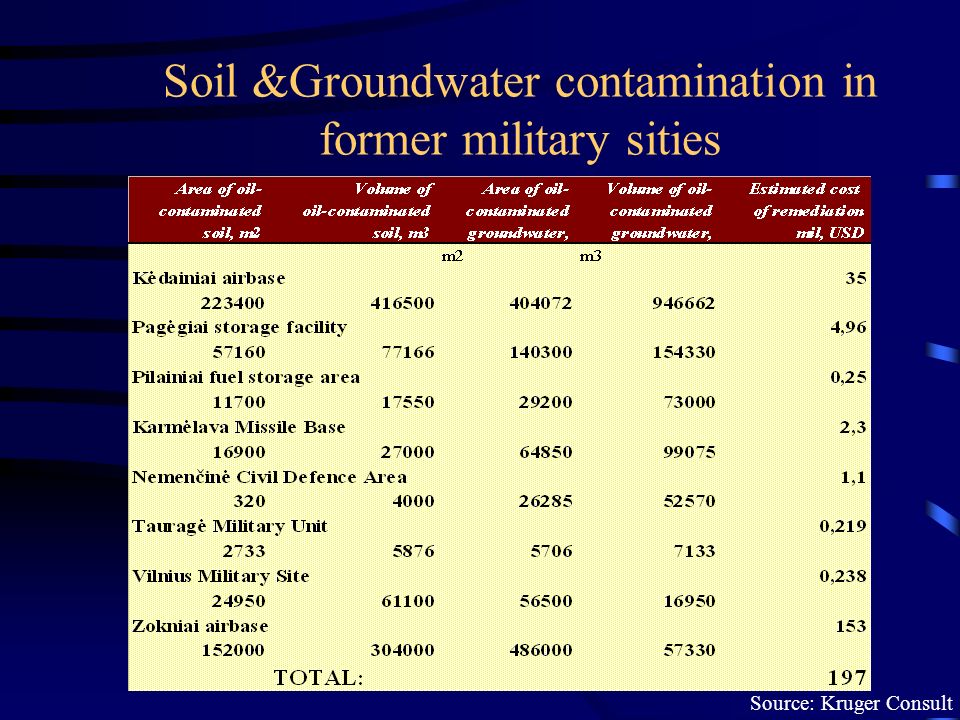

12 Soil &Groundwater contamination in former military sities Source: Kruger Consult

13 Civil oil facilities (petrol stations,oil storages) Source: GROTA Ltd

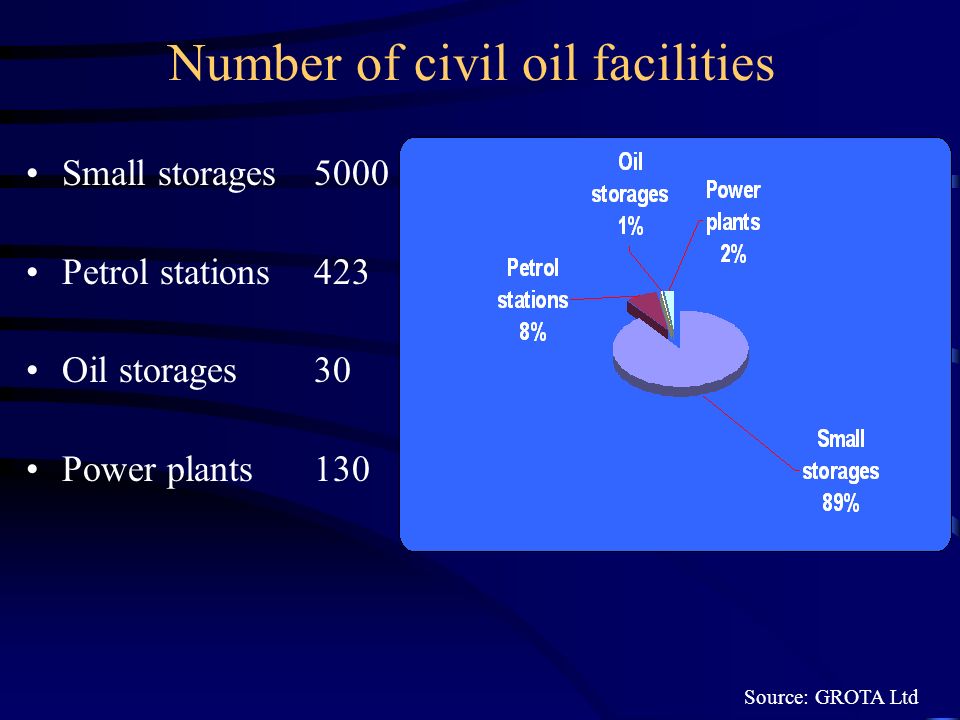

14 Number of civil oil facilities Small storages5000 Petrol stations423 Oil storages30 Power plants130 Source: GROTA Ltd

15 Area of civil oil facilities Source: GROTA Ltd

16 Number of investigated civil oil facilities. Source: GROTA Ltd

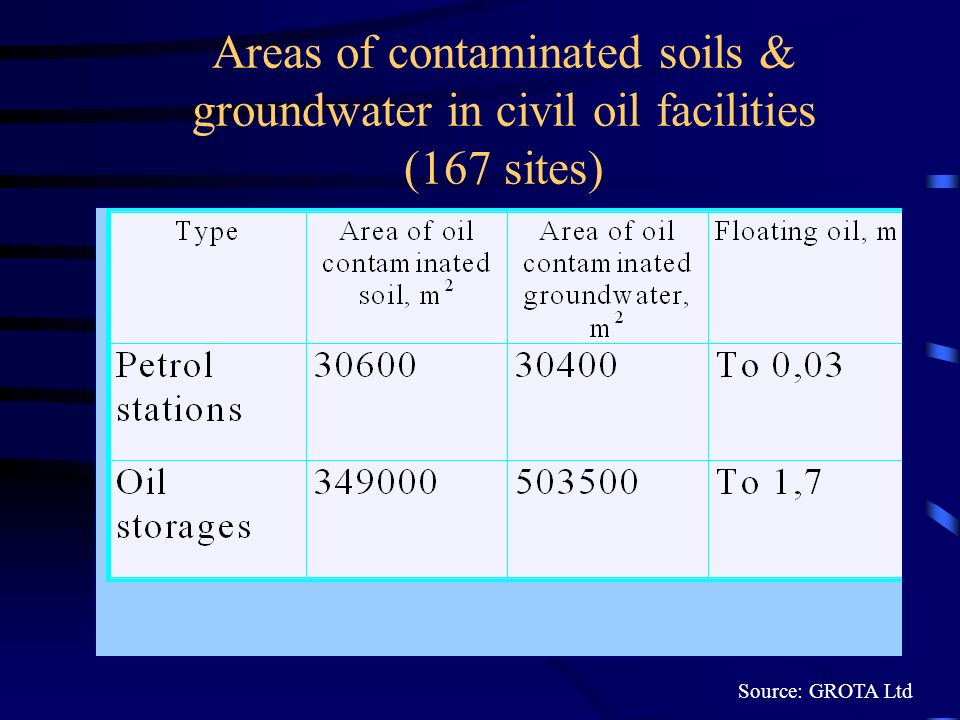

17 Areas of contaminated soils & groundwater in civil oil facilities (167 sites) Source: GROTA Ltd

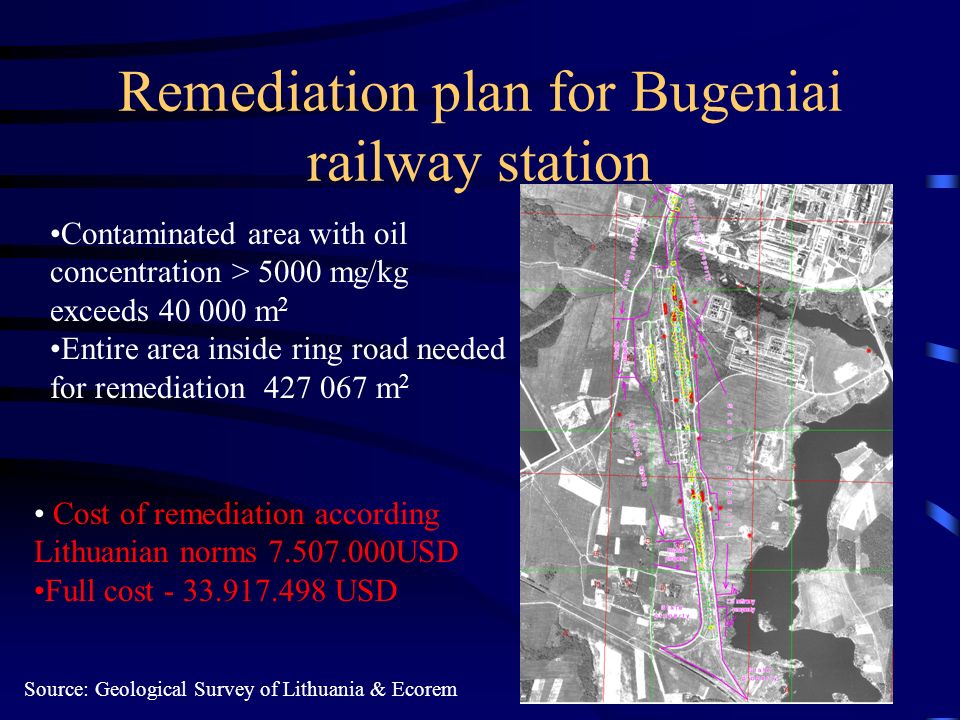

18 Remediation plan for Bugeniai railway station Source: Geological Survey of Lithuania & Ecorem Contaminated area with oil concentration > 5000 mg/kg exceeds 40 000 m 2 Entire area inside ring road needed for remediation 427 067 m 2 Cost of remediation according Lithuanian norms 7.507.000USD Full cost - 33.917.498 USD

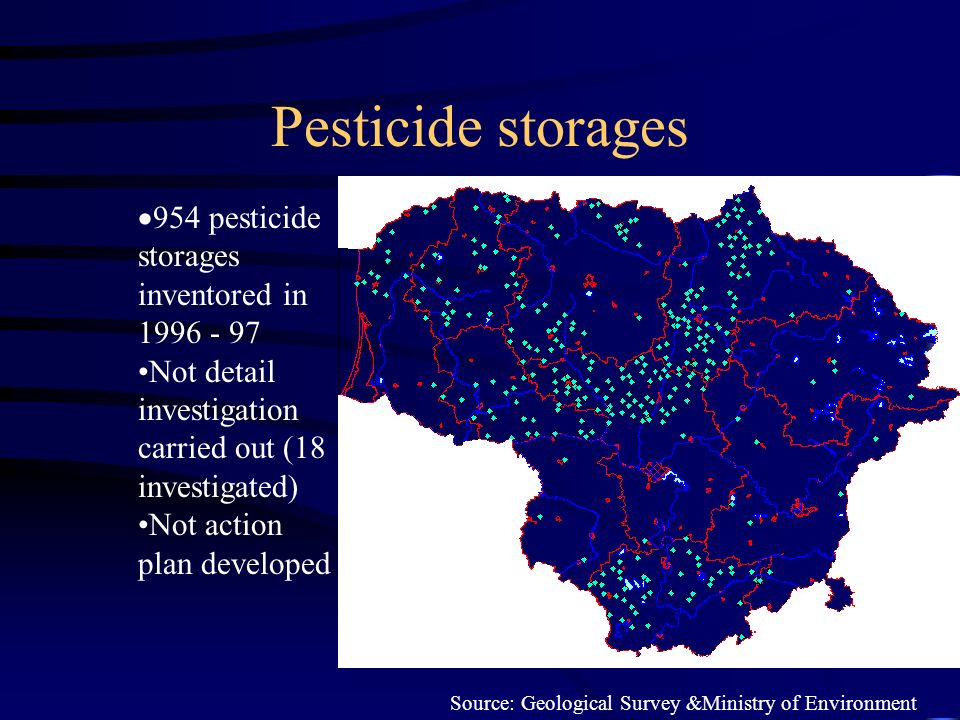

19 Pesticide storages Source: Geological Survey &Ministry of Environment 954 pesticide storages inventored in 1996 - 97 Not detail investigation carried out (18 investigated) Not action plan developed

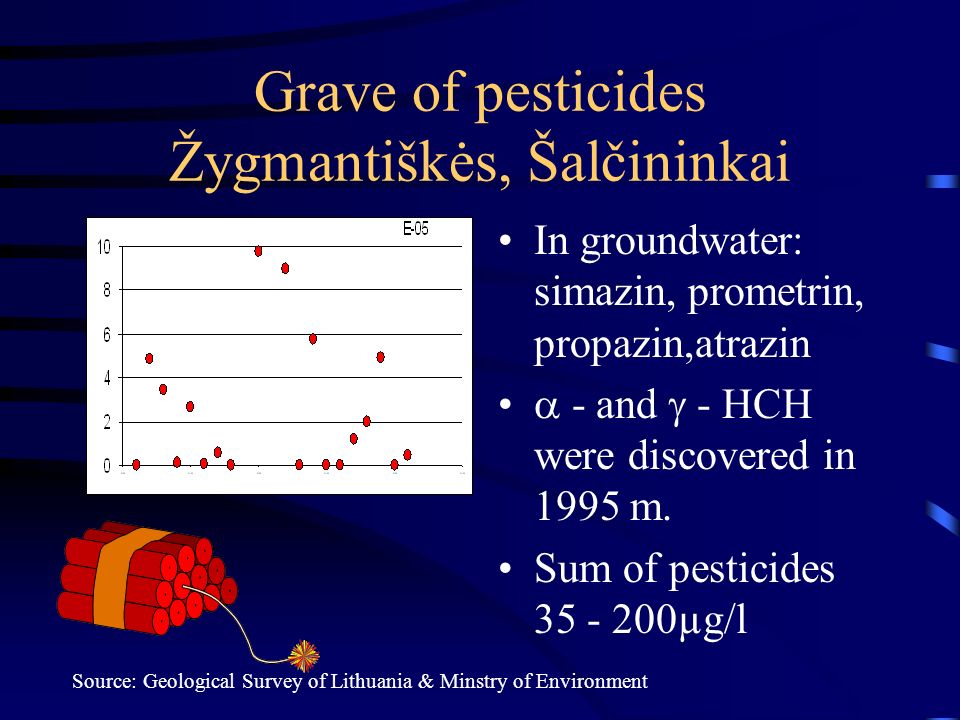

20 Grave of pesticides Žygmantiškės, Šalčininkai In groundwater: simazin, prometrin, propazin,atrazin - and - HCH were discovered in 1995 m. Sum of pesticides 35 - 200µg/l Source: Geological Survey of Lithuania & Minstry of Environment

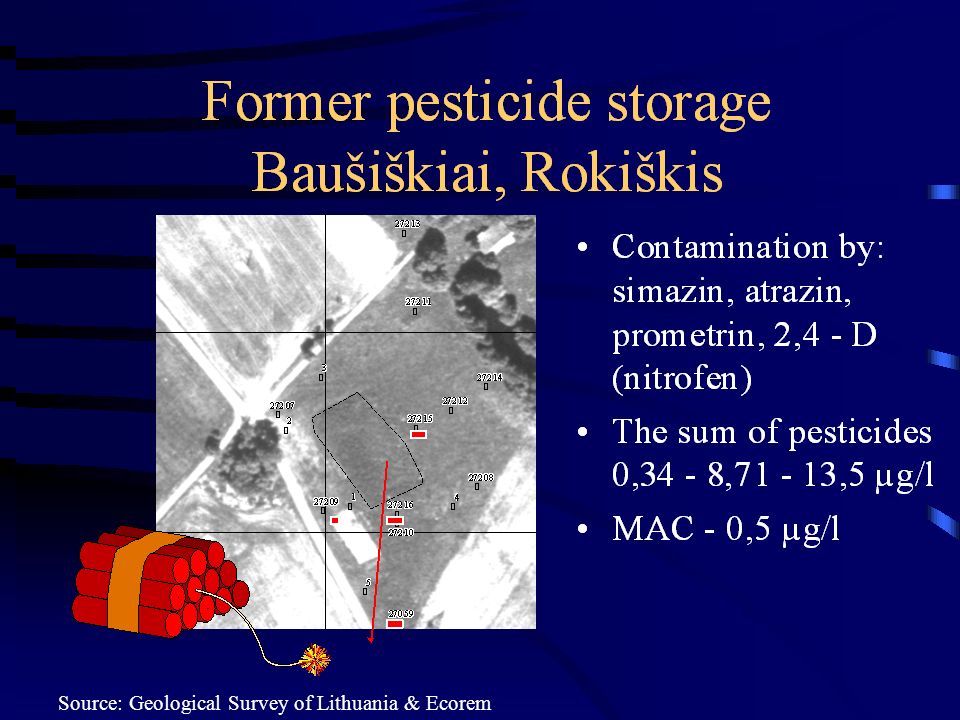

21 Source: Geological Survey of Lithuania & Ecorem

22 What we lack to be faster ?? Law on responsibility for damages caused by former activity Developed clean - up priorities/criteria To develop methodology for prioritisation of inventored sites for action plan design

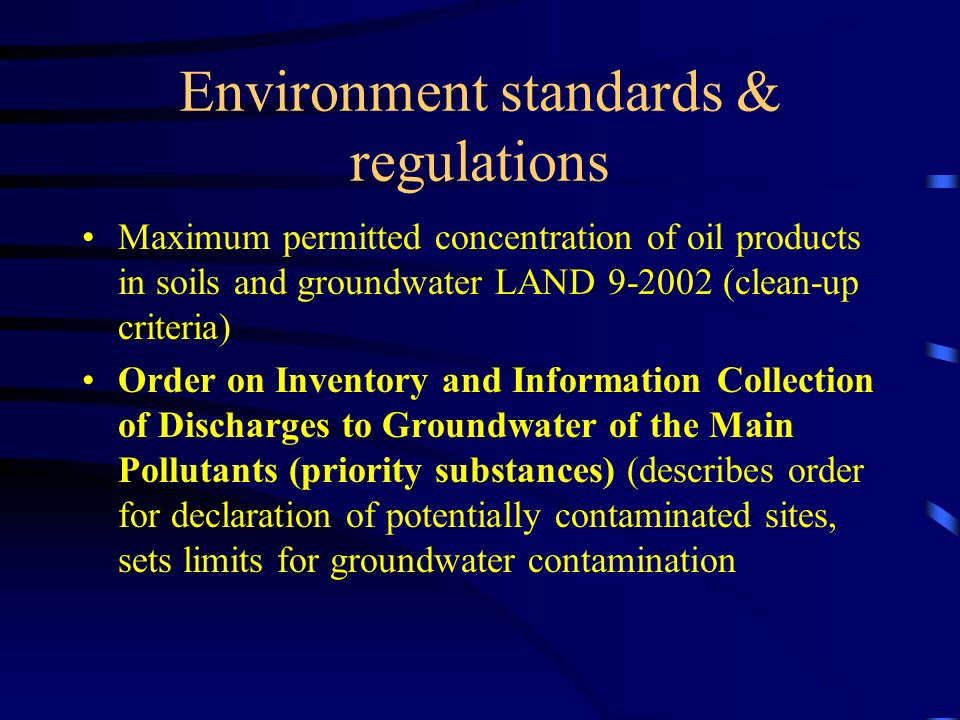

23 Environment standards & regulations Maximum permitted concentration of oil products in soils and groundwater LAND 9-2002 (clean-up criteria) Order on Inventory and Information Collection of Discharges to Groundwater of the Main Pollutants (priority substances) (describes order for declaration of potentially contaminated sites, sets limits for groundwater contamination

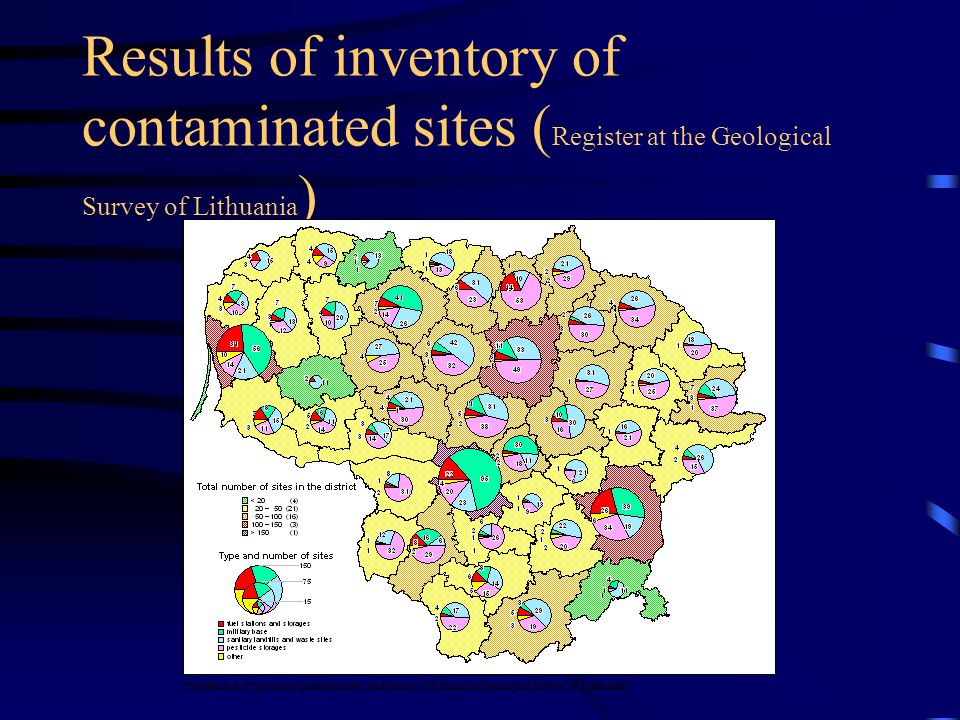

24 Results of inventory of contaminated sites ( Register at the Geological Survey of Lithuania )
