1. Sysol Downloader Version 3.3 SAMSUNG ELECTRONICS

2. Down Load Procedure Install & Setting Nand Format (Optional : Case of Downloading TFS) Select Downloading File - Bin Only - TFS Only - Bin & TFS Downloading

3. Install & Setting Launch the downloader software “DOWNLOADER” (currently v3.3). Select comPort and speed according to your setup. - For EX: COM4 for comport and 460800 for speed. Select “Bin and Nand” for mode selection to install the binary and the TFS file.

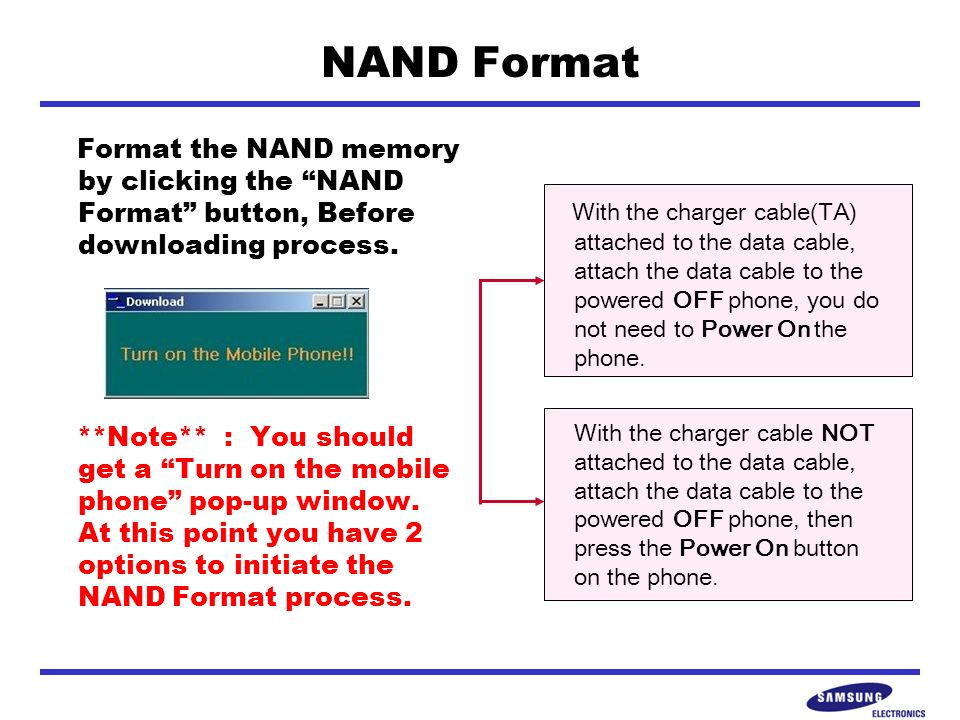

4. NAND Format Format the NAND memory by clicking the “NAND Format” button, Before downloading process. **Note** : You should get a “Turn on the mobile phone” pop-up window. At this point you have 2 options to initiate the NAND Format process. With the charger cable(TA) attached to the data cable, attach the data cable to the powered OFF phone, you do not need to Power On the phone. With the charger cable NOT attached to the data cable, attach the data cable to the powered OFF phone, then press the Power On button on the phone.

5. Result of NAND Format

6. Download Bin Only Select and load Bin Click START button and press power-on key of the mobile before timeout.

7. Download Bin & TFS file Select binary file “.bin” by clicking on the “Bin File” tab. Select TFS file “.tfs” by clicking on the “TFS File” tab. **Note** : Make sure the configuration file “.cfg” is the same directory as the TFS file “.tfs”

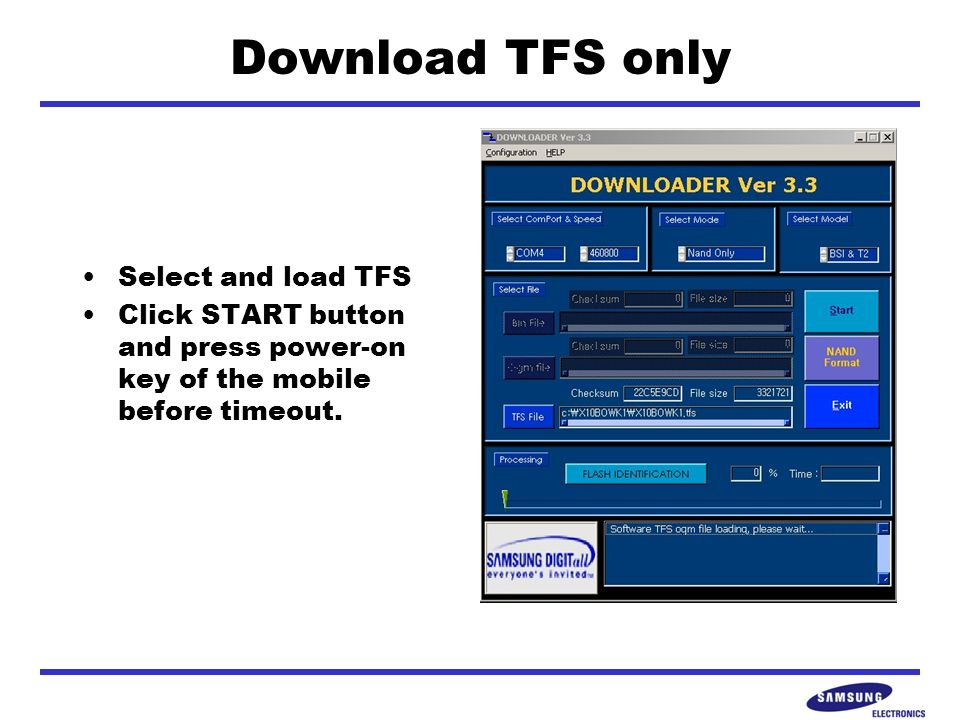

8. Download TFS only Select and load TFS Click START button and press power-on key of the mobile before timeout.

9. download process Click the “Start” button **Note** : You should get a “Turn on the mobile phone” pop-up window. At this point you have two ways to power on the mobile phone.

10. Download Successful!! When the downloading process is finished, The Confirm Message “Download Successful!!” is shown. At this point, you may unplug the data cable from the phone and power on the phone.
