1
**Outline Stokes Vectors, Jones Calculus and Mueller Calculus**

Optics of Crystals: Birefringence Common polarization devices for the laboratory and for astronomical instruments Principles of Polarimetry: Modulation and Analysis. Absolute and Relative Polarimetry Principles of Polarimetry: Spatial modulation, Temporal modulation, Spectral modulation Principles of Polarimetry: Noise and errors Spurious sources of polarization

2
**Stokes Vector, Jones Calculus, Mueller Calculus playing around with matrices**

A. López Ariste

3
Assumptions: A plane transverse electromagnetic wave Quasi-monochromatic Propagating in a well defined direction z

4
Jones Vector

5
**Jones Vector: It is actually a complex vector with 3 free parameters**

It transforms under the Pauli matrices. It is a spinor

6
**The Jones matrix of an optical device**

In group theory: SL(2,C)

7
**From the quantum-mechanical point of view, the wave function cannot be measured directly.**

Observables are made of quadratic forms of the wave function: J is a density matrix : The coherence matrix

8
Like Jones matrices, J also belongs to the SL(2,C) group, and can be decomposed in the basis of the Pauli matrices. Is the Stokes Vector

9
**The Stokes vector is the quadractic form of a spinor**

The Stokes vector is the quadractic form of a spinor. It is a bi-spinor, or also a 4-vector

10

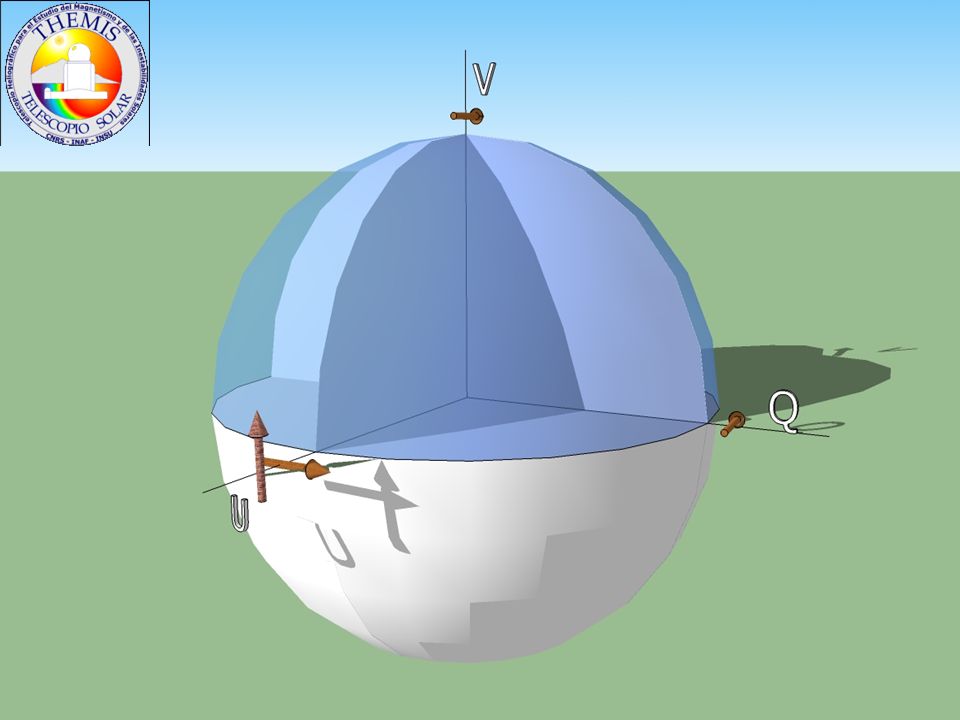

**4-vectors live in a Minkowsky space with metric (+,-,-,-)**

11
**The Minkowski space I Partially polarized light Cone of**

(fully polarized) light Fully polarized light V Q

13
**M is the Mueller matrix of the transformation**

14
From group theory, the Mueller matrix belongs to a group of transformations which is the square of SL(2,C) Actually a subgroup of this general group called O+(3,1) or Lorentz group

15
**The cone of (fully polarized) light**

Lorentz boost = de/polarizer, attenuators, dichroism V Q

16
**The cone of (fully polarized) light**

3-d rotation = retardance, optical rotation V Q

17
Mueller Calculus Any macroscopic optical device that transforms one input Stokes vector to an output Stokes vector can be written as a Mueller matrix Lorentz group is a group under matrix multiplication: A sequence of optical devices has as Mueller matrix the product of the individual matrices

18
**Mueller Calculus: 3 basic operations**

Absorption of one component Retardance of one component respect to the other Rotation of the reference system

19
**Mueller Calculus: 3 basic operations**

Absorption of one component

20
**Mueller Calculus: 3 basic operations**

Absorption of one component Retardance of one component respect to the other

22
**Mueller Calculus: 3 basic operations**

Absorption of one component Retardance of one component respect to the other Rotation of the reference system

24
**Optics of Crystals: Birefringence**

A. López Ariste

26
Chapter XIV, Born & Wolf

27
!!

31
Ellipsoïd

32
Ellipsoïd

33
**Three types of crystals**

A spherical wavefront

34
**Three types of crystals**

Two apparent waves propagating at different speeds: An ordinary wave, with a spherical wavefront propagating at ordinary speed vo An extraordinary wave with an elliptical wavefront, its speed depends on direction with characteristic values vo and ve

37
**Three types of crystals**

40
**The ellipsoïd of D in uniaxial crystals**

z s The ellipsoïd of D in uniaxial crystals De The two propagating waves are linearly polarized and orthogonal one to each other Do

42
**Typical birefringences**

Quartz Calcite Rutile Lithium Niobate

43
**Common polarization devices for the laboratory and for astronomical instruments**

A. López Ariste

44
Linear Polarizer

45
Retarder

47
Savart Plate

48
**Glan-Taylor Polarizer**


49
**Glan-Thompson Polarizing Beam-Splitter**

50
**Rochon Polarizing Beamsplitter**

51
Polaroid

52
**Dunn Solar Tower. New Mexico**

53
**Typical birefringences**

Quartz Calcite Rutile Lithium Niobate Zero-order waveplates Multiple-order waveplates

54
Waveplates

56
**Principles of Polarimetry Modulation Absolute and Relative Polarimetry**

A. López Ariste

57
**How to switch from Measure # 1 to Measure # 2?**

Measure # 1 : I + Q Measure # 2 : I - Q Subtraction: 0.5 (M1 – M2 ) = Q Addition: (M1 + M2 ) = I How to switch from Measure # 1 to Measure # 2? MODULATION

58
**Measure # 1 : I + Q Measure # 2 : I - Q**

Subtraction: 0.5 (M1 – M2 ) = Q Addition: (M1 + M2 ) = I Principle of Polarimetry Everything should be the same EXCEPT for the sign

59
MODULATION

60
MODULATION

61
**O is the Modulation Matrix**

62
**MODULATION Conceptually, it is the easiest thing**

Is it so instrumentally? Is it efficient respect to photon collection, noise and errors?

63
**MODULATION Del Toro Iniesta & Collados (2000)**

Asensio Ramos & Collados (2008) MODULATION

64
**MODULATION Del Toro Iniesta & Collados (2000)**

Asensio Ramos & Collados (2008) Del Toro Iniesta & Collados (2000) MODULATION

65
MODULATION

66
**Design of a Polarimeter**

Specify an efficient modulation scheme: The answer is constrained by our instrumental choices

67
**Absolute vs. Relative Polarimetry**

Efficiency in Q,U and V limited by efficiency in I What limits efficiency in I?

68
**Absolute vs. Relative Polarimetry**

What limits efficiency in I? Measure # 1 : I + Q Measure # 2 : I - Q Subtraction: 0.5 (M1 – M2 ) = Q Addition: (M1 + M2 ) = I Principle of Polarimetry Everything should be the same EXCEPT for the sign

69
**Absolute vs. Relative Polarimetry**

What limits efficiency in I? Measure # 1 : I + Q Measure # 2 : I - Q Subtraction: 0.5 (M1 – M2 ) = Q Addition: (M1 + M2 ) = I Usual photometry of present astronomical detectors is around 10-3 Principle of Polarimetry Everything should be the same EXCEPT for the sign

70
**Absolute vs. Relative Polarimetry**

What limits efficiency in I? Usual photometry of present astronomical detectors is around 10-3 You cannot do polarimetry better than photometry

71
**Absolute vs. Relative Polarimetry**

What limits efficiency in I? Usual photometry of present astronomical detectors is around 10-3 You cannot do ABSOLUTE polarimetry better than photometry

72
**Absolute vs. Relative Polarimetry**

Absolute error : 10-3 I Relative error : 10-3 Q

73
**Absolute vs. Relative Polarimetry**

Li 6708 Absolute error : 10-3 I Relative error : 10-3 Q

75
D2 D1 D2 Phase de 45 deg Phase de 102 deg

76
**Design of a Polarimeter**

Specify an efficient modulation scheme: The answer is constrained by our instrumental choices Define a measurement that depends on relative polarimetry, if a good sensitivity is required

77
**Principles of Polarimetry Spatial modulation, Temporal modulation, Spectral modulation**

A. López Ariste

78
**How to switch from Measure # 1 to Measure # 2?**

Measure # 1 : I + Q Measure # 2 : I - Q Subtraction: 0.5 (M1 – M2 ) = Q Addition: (M1 + M2 ) = I How to switch from Measure # 1 to Measure # 2? MODULATION

79
**How to switch from Measure # 1 to Measure # n?**

80
**Analyser: Calcite beamsplitter**

81
**Analyser: Rotating Polariser**

82
**Analyser: Calcite beamsplitter**

2 beams ≡2 images Spatial modulation Analyser: Rotating Polariser 2 angles ≡ 2 exposures Temporal modulation

83
Modulator: What about U and V?

84
Modulator:

85
Modulator:

86
**Modulator: Rotating λ/4**

87
The basic Polarimeter Modulator Analyzer

88
**Examples QW1 QW2 Measure T1 0° 0 ° Q T2 22.5 ° U T3 -45 ° V T4 45 ° -V**

2 Quarter-Waves + Calcite Beamsplitter QW1 QW2 Measure T1 0° 0 ° Q T2 22.5 ° U T3 -45 ° V T4 45 ° -V ….

89
LCVR Calcite

90
**Examples Rotating Quarterwave plate + Calcite Beamsplitter**

Photelastic Modulators (PEM) + Linear Polariser

91
Spectral Modulation Chromatic waveplate: Followed by an analyzer

92
**See Video from Frans Snik (Univ. Leiden)**

Spectral Modulation Chromatic waveplate: Followed by an analyzer See Video from Frans Snik (Univ. Leiden)

93
**Principles of Polarimetry Noise and errors**

A. López Ariste

94
**Sensitivity vs. Accuracy**

SENSITIVITY: Smallest detectable polarization signal related to noise levels in Q/I, U/I, V/I. RELATIVE POLARIMETRY ACCURACY: The magnitude of detected polarization signal That can be quantiﬁed Parametrized by position of zero point for Q, U, V ABSOLUTE POLARIMETRY

95
**Sensitivity vs. Accuracy**

SENSITIVITY: Smallest detectable polarization signal related to noise levels in Q/I, U/I, V/I. RELATIVE POLARIMETRY Gaussian Noise (e.g. Photon Noise, Camera Shot Noise)

96
**Correcting some unknown errors Spatio-temporal modulation**

Goal: to make the measurements symmetric respect to unknown errors in space and time I+V Detectin in different pixels I-V Exposure 1

97
**Spatio-temporal modulation**

Goal: to make the measurements symmetric respect to unknown errors in space and time I+V I-V Detection at different times Detectin in different pixels I-V I+V Exposure 1 Exposure 2

98
**Spatio-temporal modulation**

I+V I-V I-V I+V Exposure 1 Exposure 2

99
**Spatio-temporal modulation**

Let’s make it more general

100
**Cross-Talk Is this true? This is our polarimeter**

This is what comes from the outer universe Is this true?

103
CrossTalk

105
**Solutions to Crosstalk**

Avoid it: Measure it Mirrors with spherical symmetry (M1,M2) introduce no polarization Cassegrain-focus are good places for polarimeters THEMIS, CFHT-Espadons, AAT-Sempol,TBL-Narval,HARPS-Pol,… Given find its inverse and apply it to the measurements It may be dependent on time and wavelength It forces you to observe the full Stokes vector

106
**Dunn Solar Tower. New Mexico**

108
**Solutions to Crosstalk**

Compensate it Several procedures: Introduce elements that compensate the instrumental polarization Measure the Stokes vector that carries the information Project the Stokes vector into the Eigenvector of the matrix
