Lock-Free Consistency Control for Web 2.0 Applications Jiang-Ming Yang, Hai-Xun Wang, Ning Gu, Yi-Ming Liu, Chun- Song Wang, Qi-Wei Zhang 25 April 2008
Problem Setting Data shared in mirrored sites can be in varied forms. Here, we assume the shared data on mirrored sites are XML documents. Consequently, operations on the data are expressed by XML queries and updates.

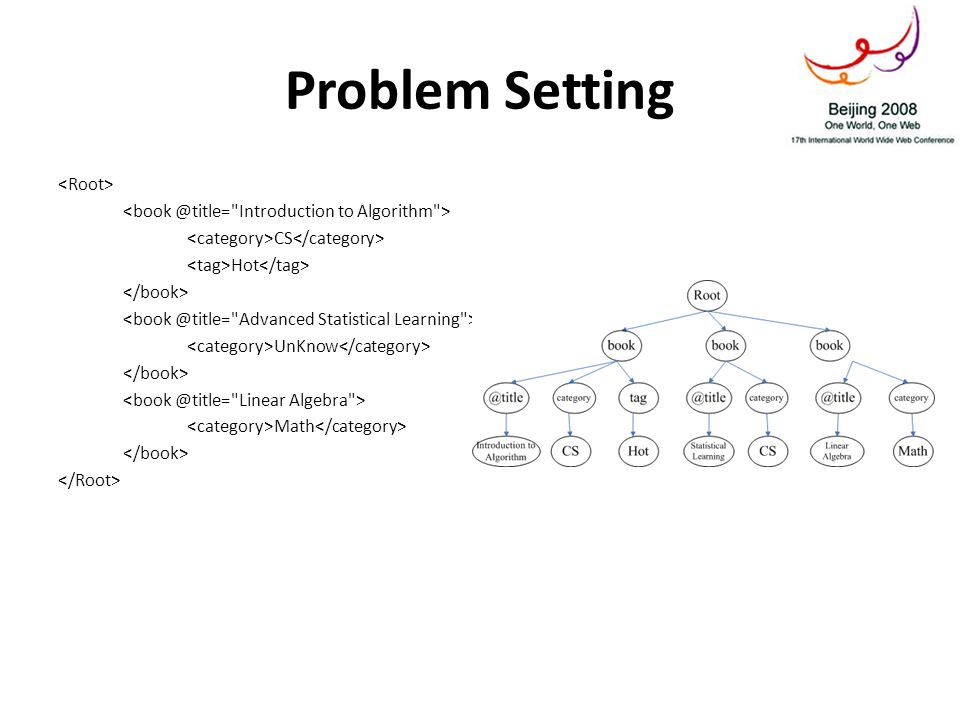

Problem Setting CS Hot UnKnow Math

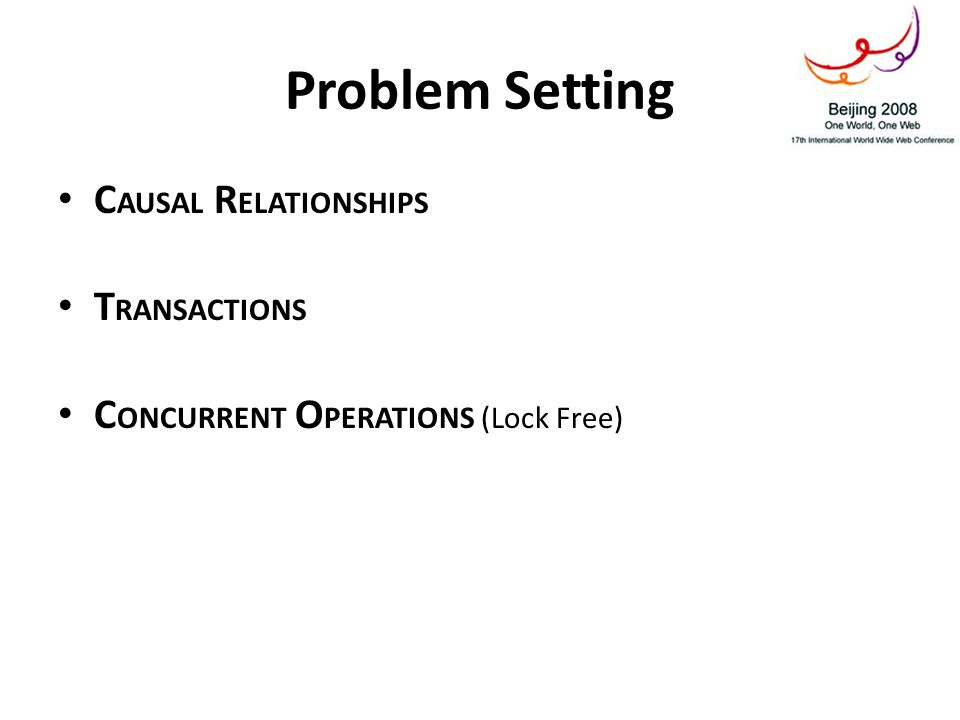

Problem Setting C AUSAL R ELATIONSHIPS T RANSACTIONS C ONCURRENT O PERATIONS (Lock Free)

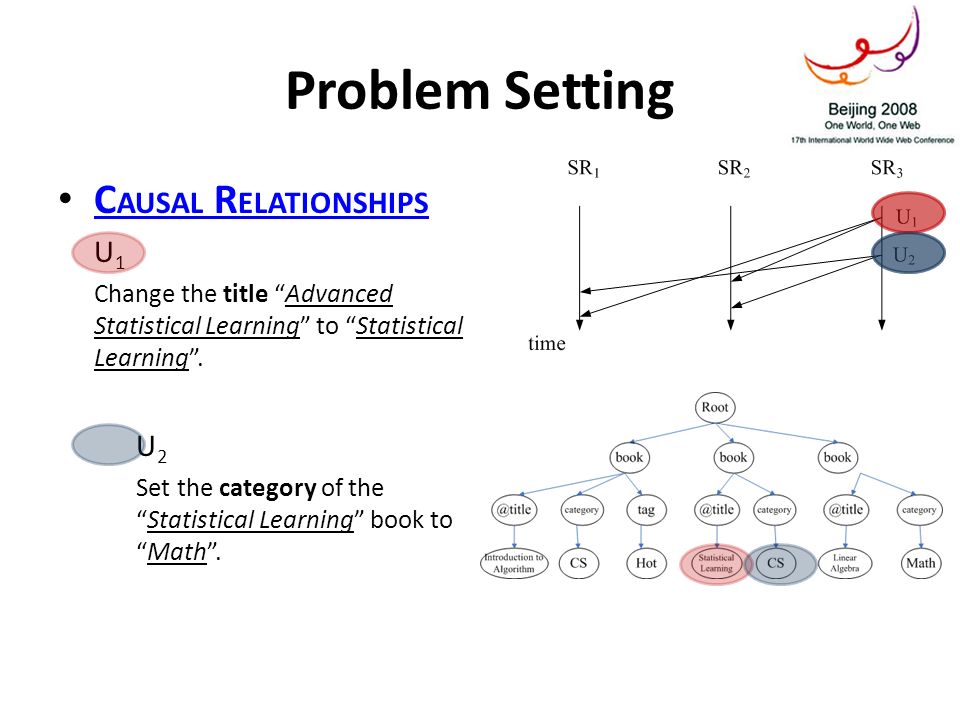

Problem Setting C AUSAL R ELATIONSHIPS C AUSAL R ELATIONSHIPS U 1 Change the title Advanced Statistical Learning to Statistical Learning. U 2 Set the category of theStatistical Learning book toMath.

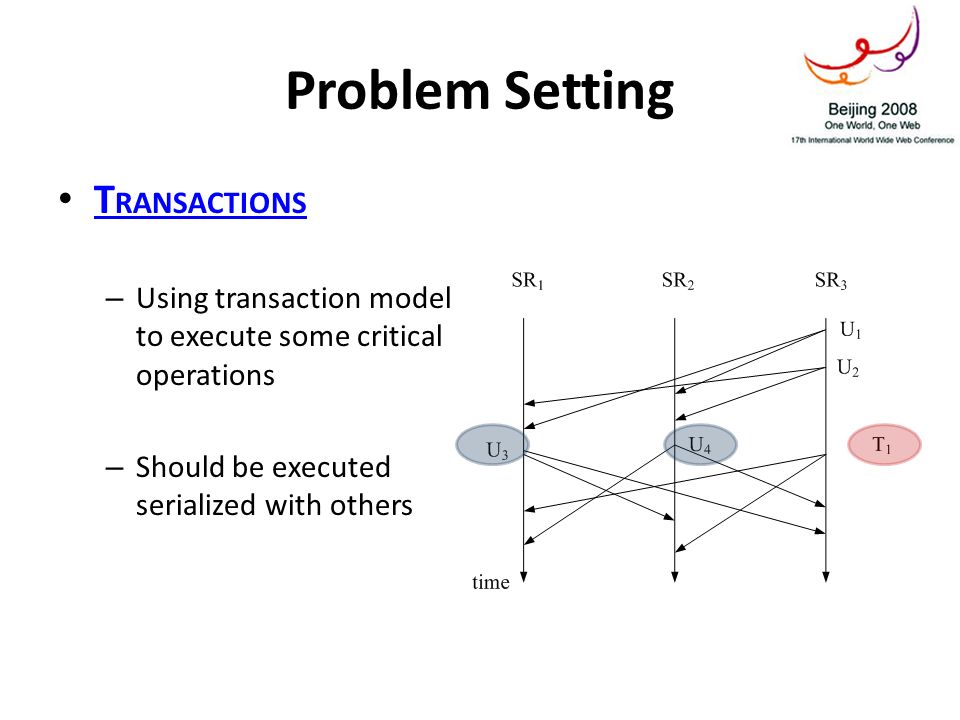

Problem Setting T RANSACTIONS T RANSACTIONS – Using transaction model to execute some critical operations – Should be executed serialized with others

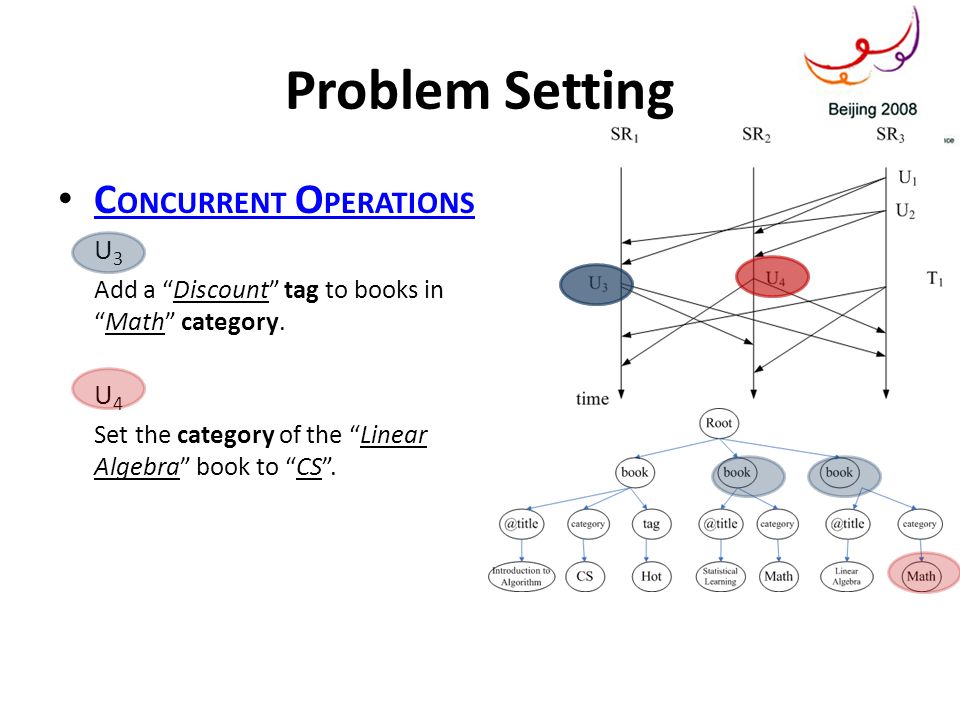

Problem Setting C ONCURRENT O PERATIONS C ONCURRENT O PERATIONS U 3 Add a Discount tag to books inMath category. U 4 Set the category of the Linear Algebra book to CS.
Outline Motivation & Challenges Problem Setting Our Solutions – Causality Preservation – Transaction – Consistency Control Experiments Conclusions

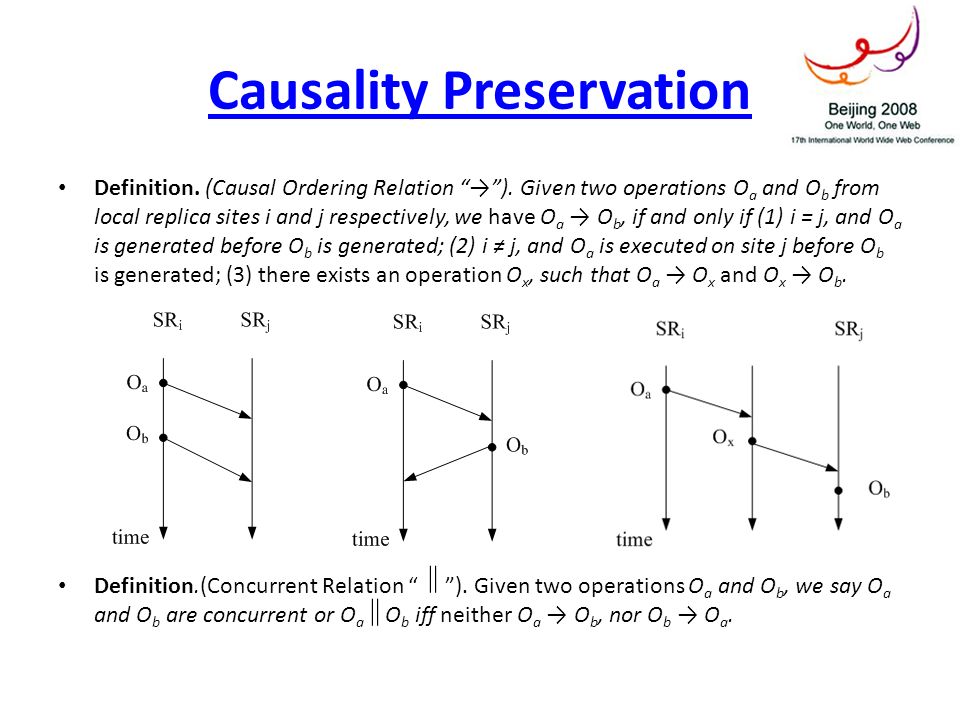

Causality Preservation Definition. (Causal Ordering Relation ). Given two operations O a and O b from local replica sites i and j respectively, we have O a O b, if and only if (1) i = j, and O a is generated before O b is generated; (2) i j, and O a is executed on site j before O b is generated; (3) there exists an operation O x, such that O a O x and O x O b. Definition.(Concurrent Relation ). Given two operations O a and O b, we say O a and O b are concurrent or O a O b iff neither O a O b, nor O b O a.

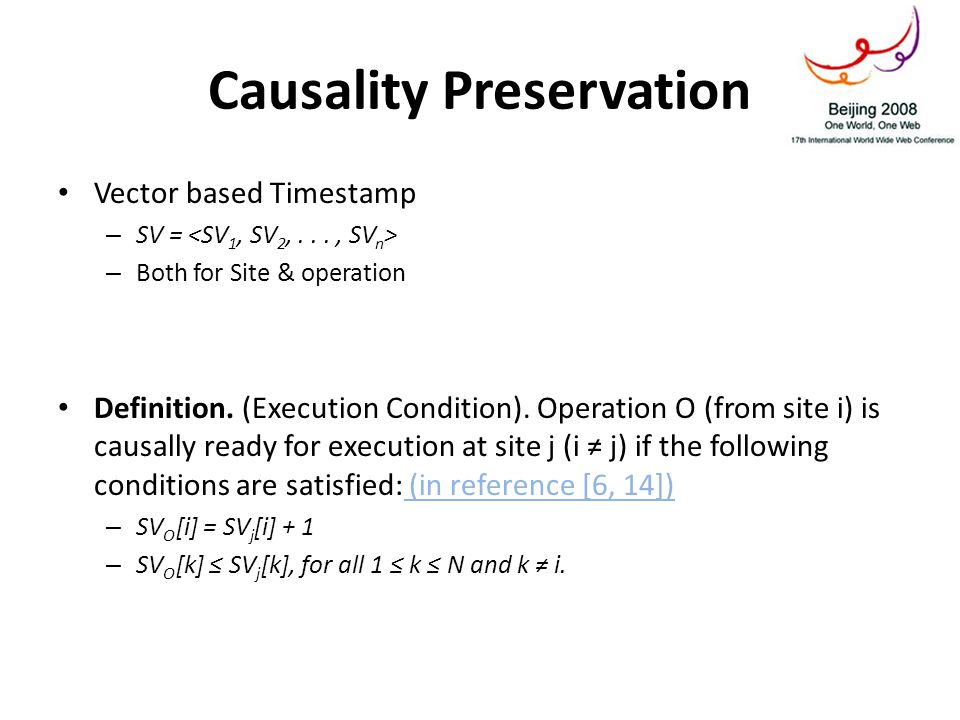

Causality Preservation Vector based Timestamp – SV = – Both for Site & operation Definition. (Execution Condition). Operation O (from site i) is causally ready for execution at site j (i j) if the following conditions are satisfied: (in reference [6, 14]) – SV O [i] = SV j [i] + 1 – SV O [k] SV j [k], for all 1 k N and k i.
Transaction The transaction model is introduced to achieve concurrent transparency Definition. (Serialized Transaction). Let T be a transaction, and O be an operation (O may or may not be a transaction). Transaction T is a serialized transaction only if either O is executed before T in all sites, or O is executed after T in all sites.
Transaction O 1 NOOP 1 O 3 and O 2 NOOP 2 O 4

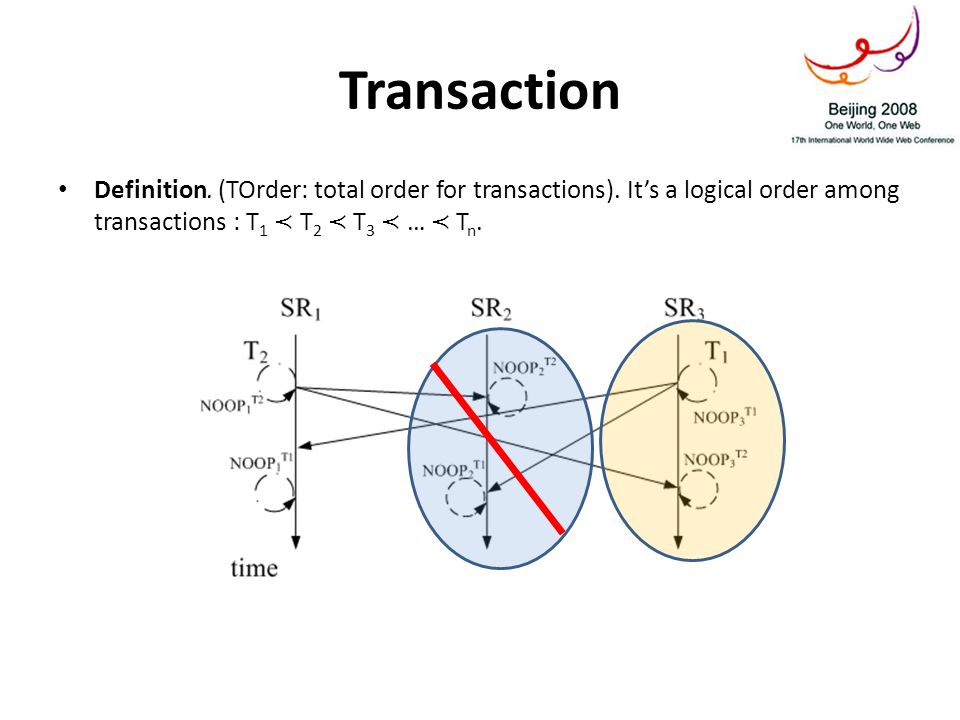

Transaction Definition. (TOrder: total order for transactions). Its a logical order among transactions : T 1 T 2 T 3 … T n.
Consistency Control Consistency Control – Basic Idea

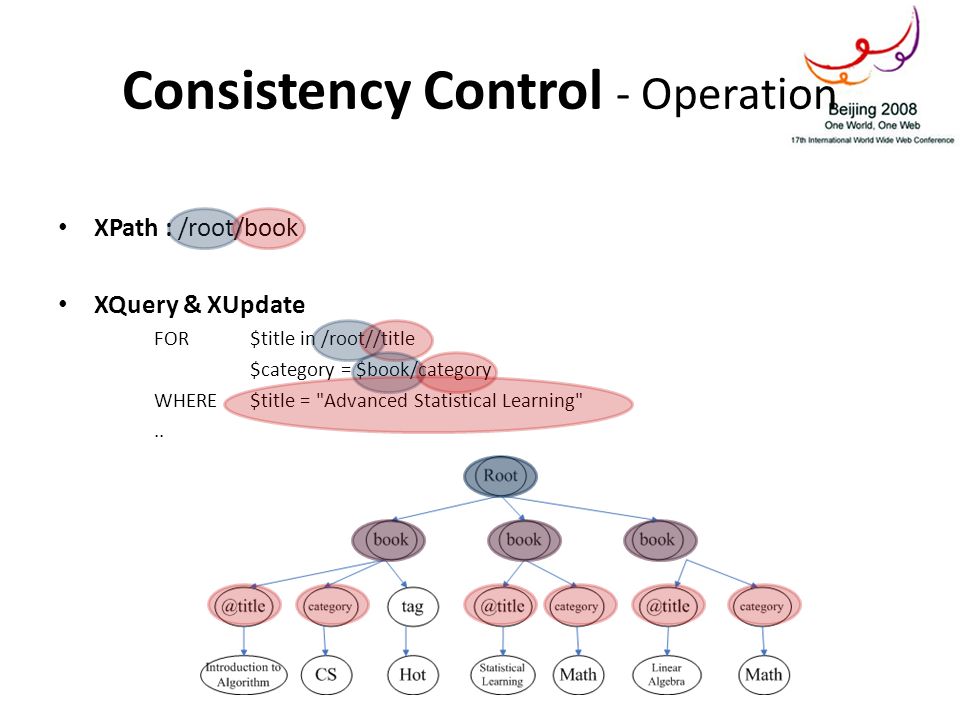

Consistency Control - Operation XPath : /root/book XQuery & XUpdate FOR $title in /root//title $category = $book/category WHERE $title = "Advanced Statistical Learning"..

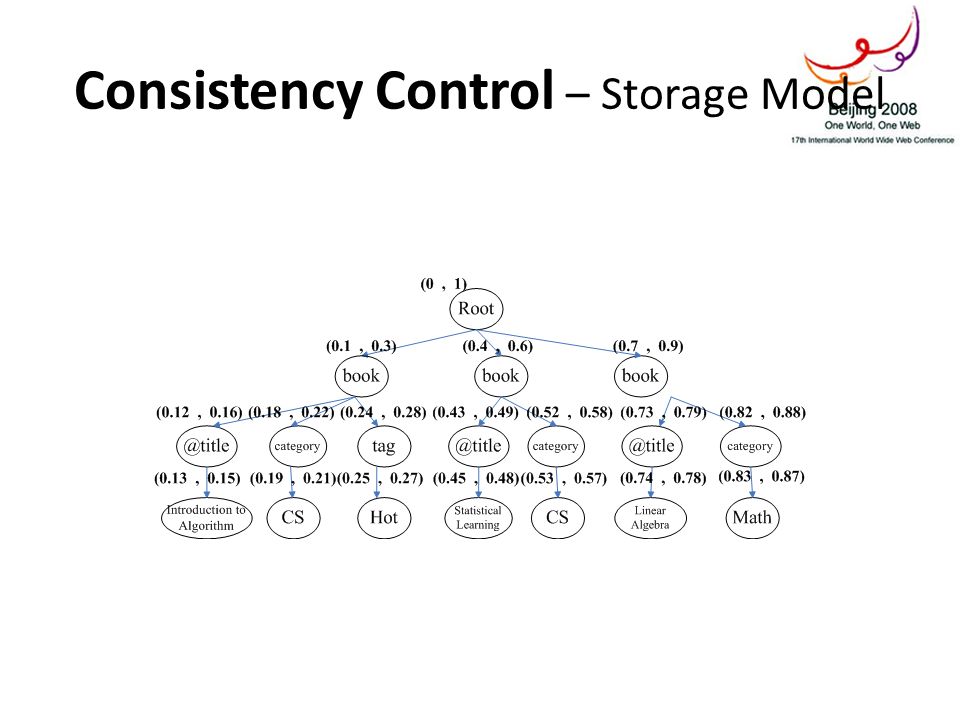

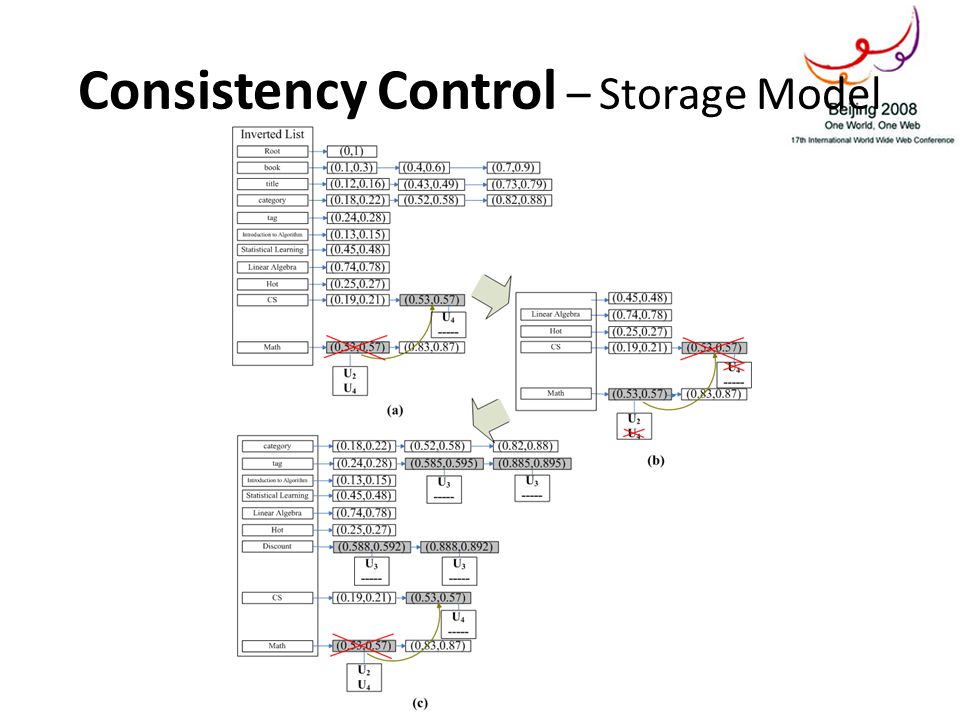

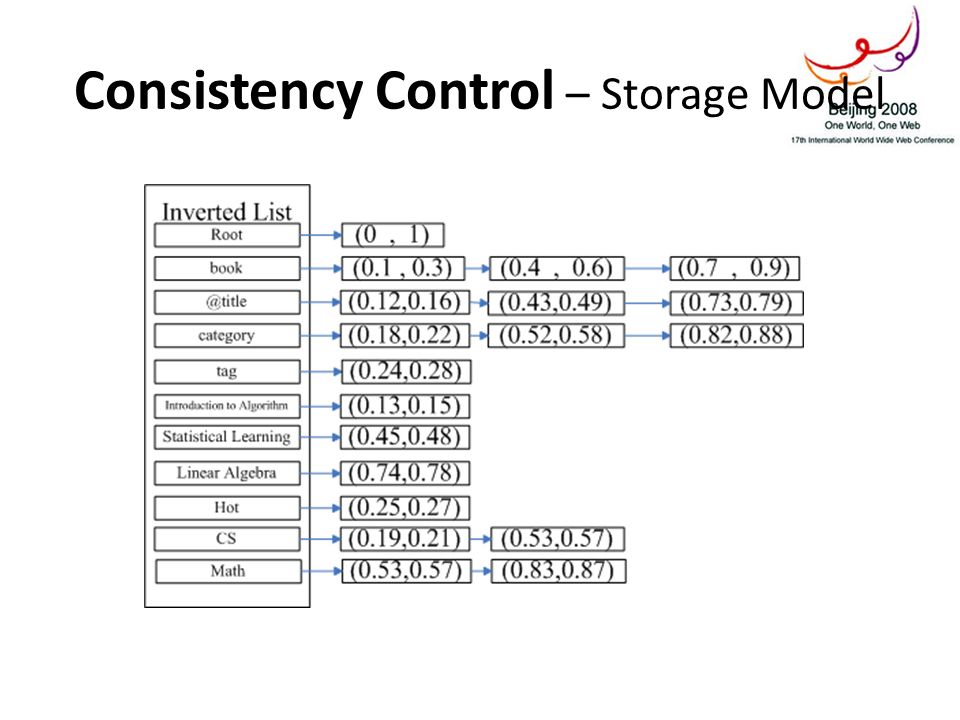

Consistency Control – Storage Model
Consistency Control - Query Process It is clear that there is no overlap in their timestamps, and at any time only one of them is valid. In general, only nodes whose timestamp (t create, t delete ) satisfies t (t create, t delete ) are valid at t.
Consistency Control - Query Process

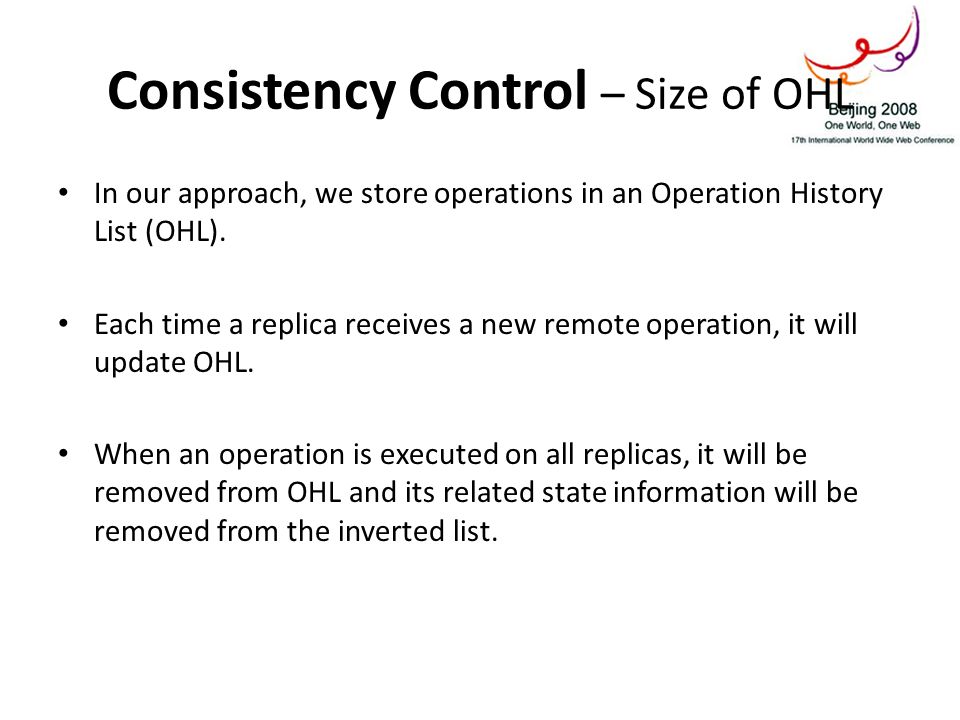

Consistency Control – Size of OHL In our approach, we store operations in an Operation History List (OHL). Each time a replica receives a new remote operation, it will update OHL. When an operation is executed on all replicas, it will be removed from OHL and its related state information will be removed from the inverted list.
We proposed a lock-free approach for consistency maintance in Web 2.0 environment. – We do not use the locking mechanism, so concurrent operations are executed as soon as possible upon their arrival with ensuring the convergence. – We also support the transaction semantics for critical operations without using the locking mechanism relying on the causality preservation approach. Better load balance, high-speed access and shorter respond time
