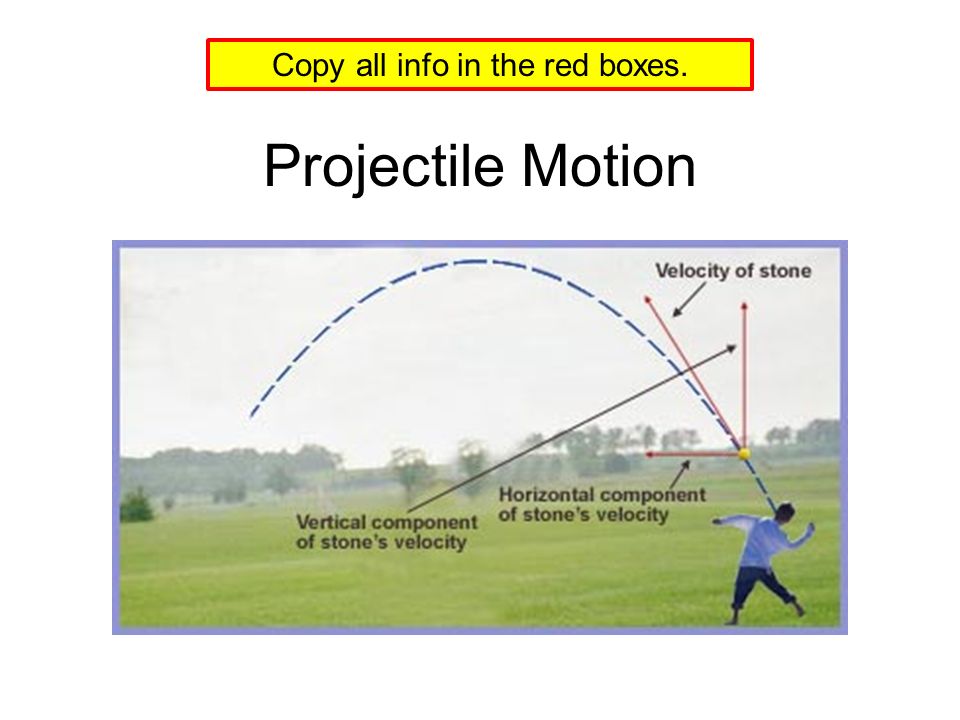

Projectile Motion Copy all info in the red boxes.

2

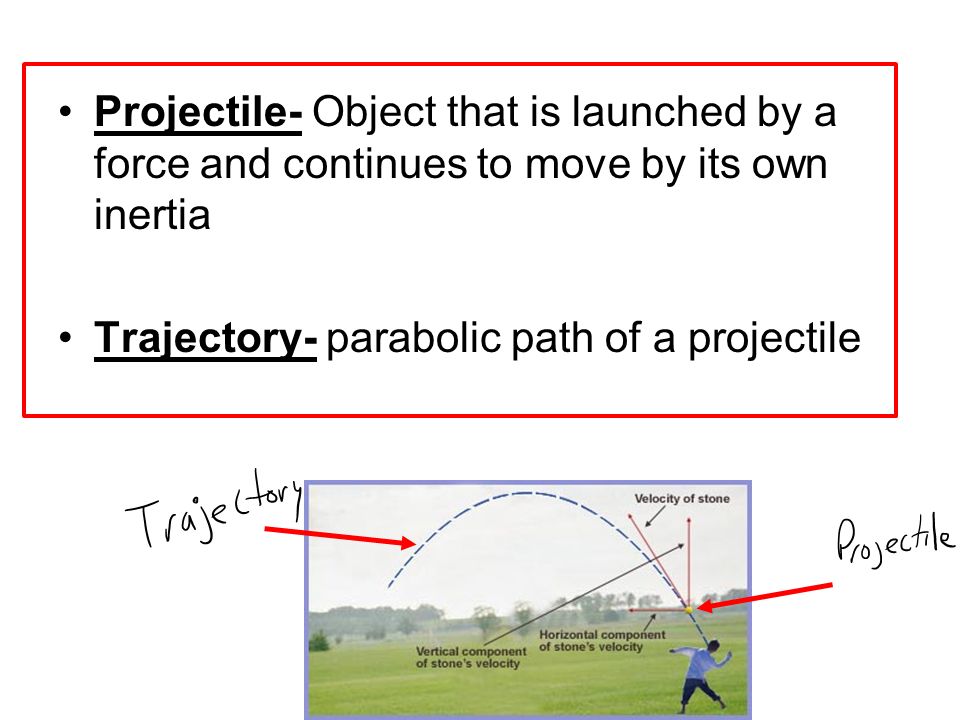

Projectile- Object that is launched by a force and continues to move by its own inertia Trajectory- parabolic path of a projectile

3
Projectile motion involves an object moving in 2D (horizontally and vertically) but only vertically is influenced by gravity. The X and Y components act independently from each other and will be separated in our calculations.

4
The equations for uniform acceleration, from unit one, can be written for either x or y variables: the kinematic equations

5
If we push the ball harder, giving it a greater horizontal velocity as it rolls off the table, the ball would take _________ time to fall to the floor.

6
Horizontal and vertical movement is independent If we push the ball harder, giving it a greater horizontal velocity as it rolls off the table, the ball would: –Y axis: take the same time to fall to the floor. –X axis: It would just go further.

7
Horizontal and vertical movement is independent Horizontal uniform (no acceleration due to gravity) use this equation Vertical accelerated by gravity (use kinematic equations)

8

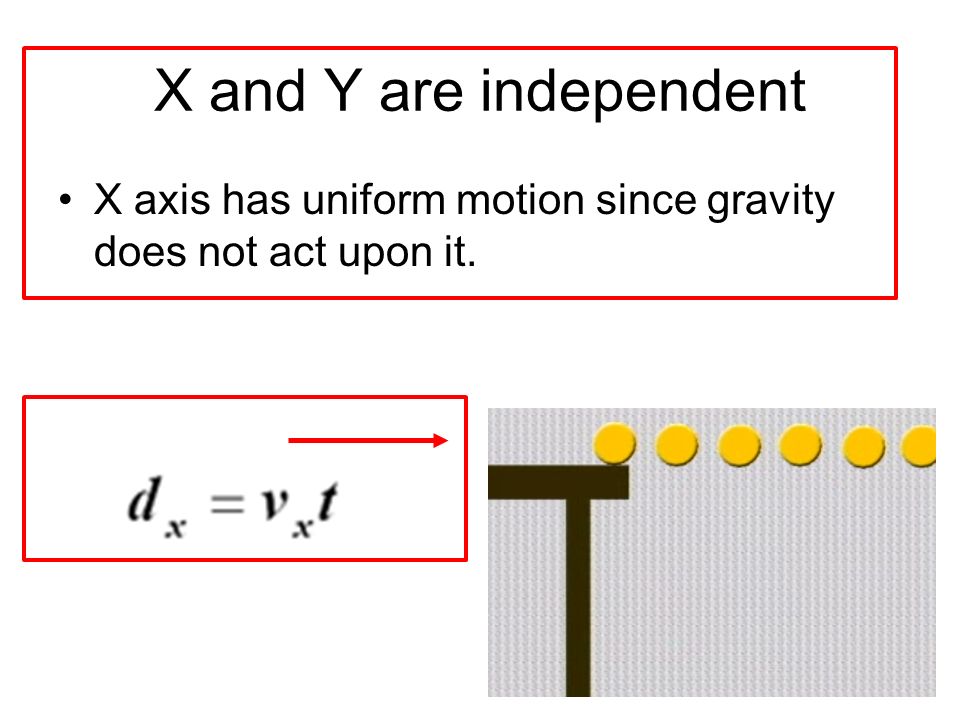

X and Y are independent X axis has uniform motion since gravity does not act upon it.

9

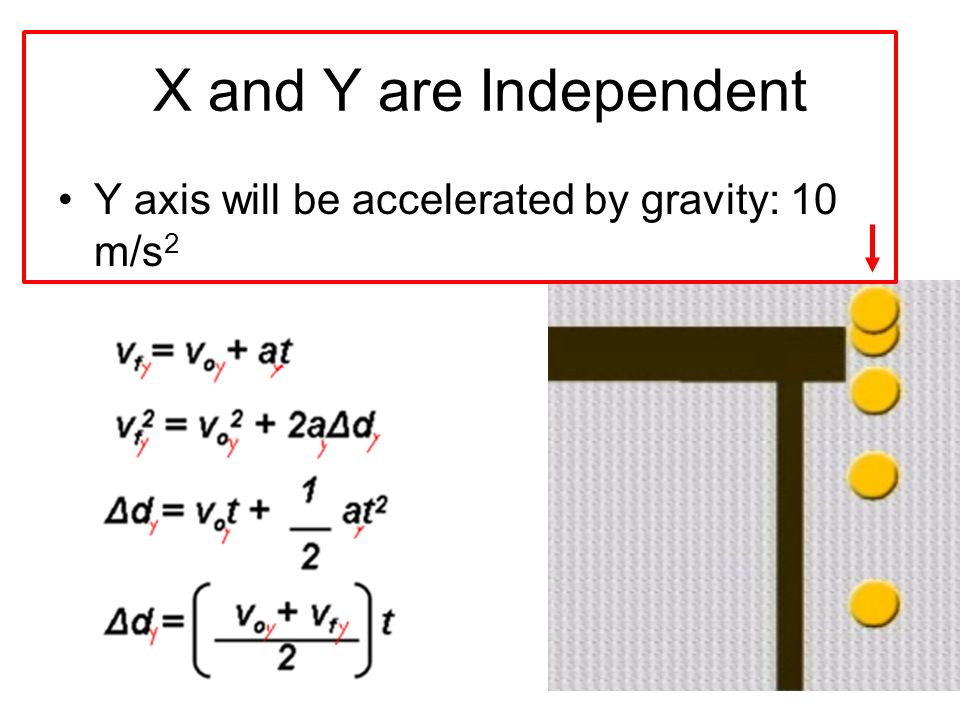

X and Y are Independent Y axis will be accelerated by gravity: 10 m/s 2

10
Combined, a projectile with v oy = 0 follows this path. Wording that means V oy = 0 rolled of a table thrown horizontally

11

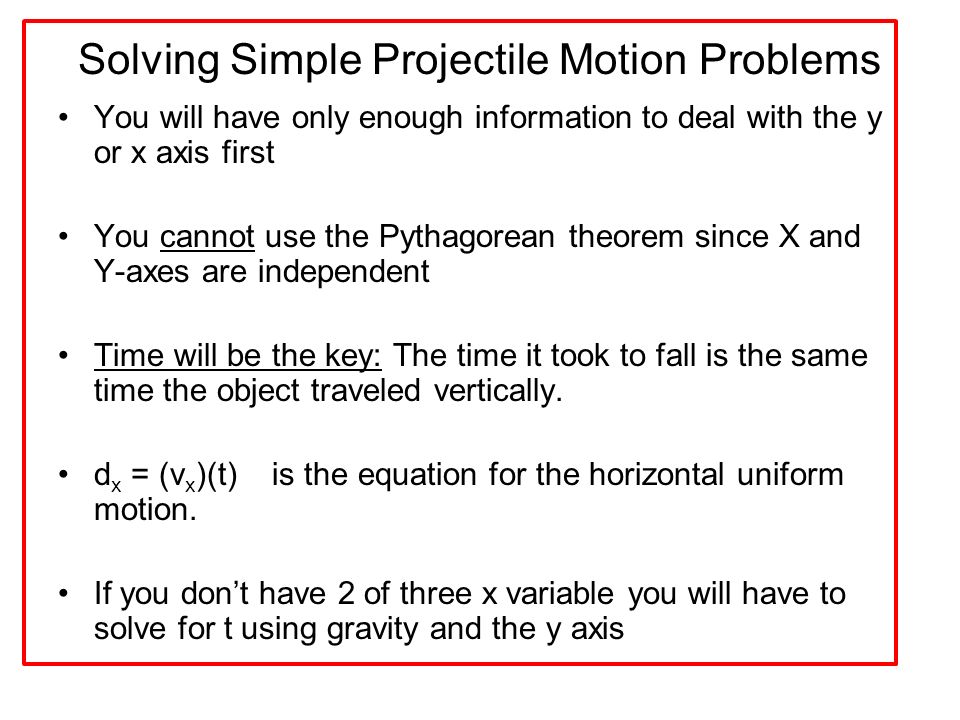

Solving Simple Projectile Motion Problems You will have only enough information to deal with the y or x axis first You cannot use the Pythagorean theorem since X and Y-axes are independent Time will be the key: The time it took to fall is the same time the object traveled vertically. d x = (v x )(t) is the equation for the horizontal uniform motion. If you don’t have 2 of three x variable you will have to solve for t using gravity and the y axis

12

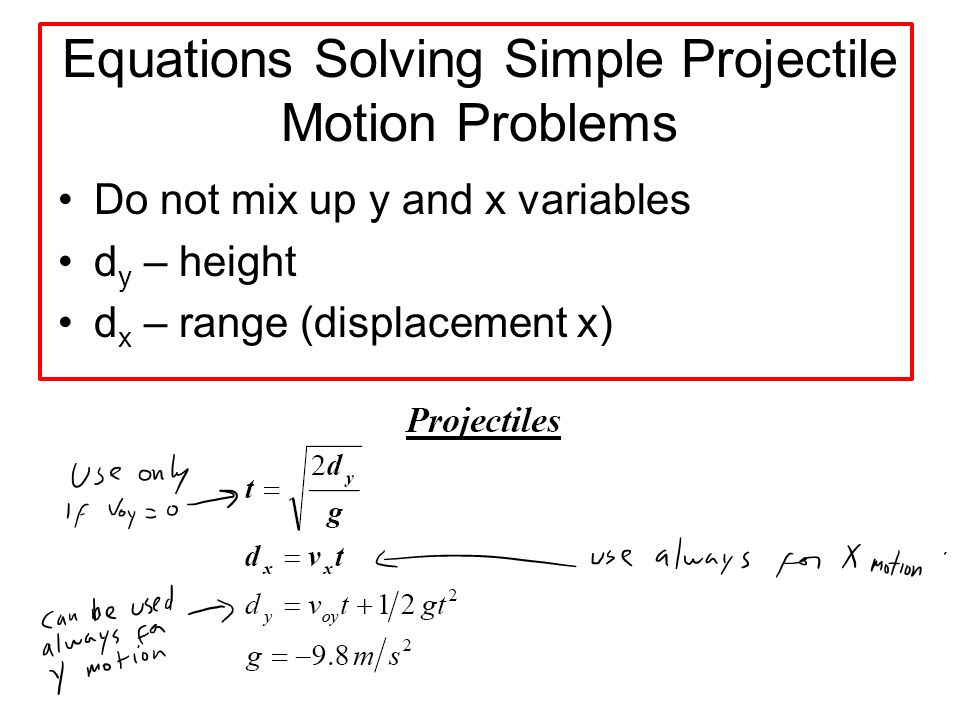

Equations Solving Simple Projectile Motion Problems Do not mix up y and x variables d y – height d x – range (displacement x)

13
For all projectile motion problems Draw a diagram Separate the X and Y givens Something is falling in these problems X GivensY Givens d X =a = -10 m/s v X = … t =… …

14

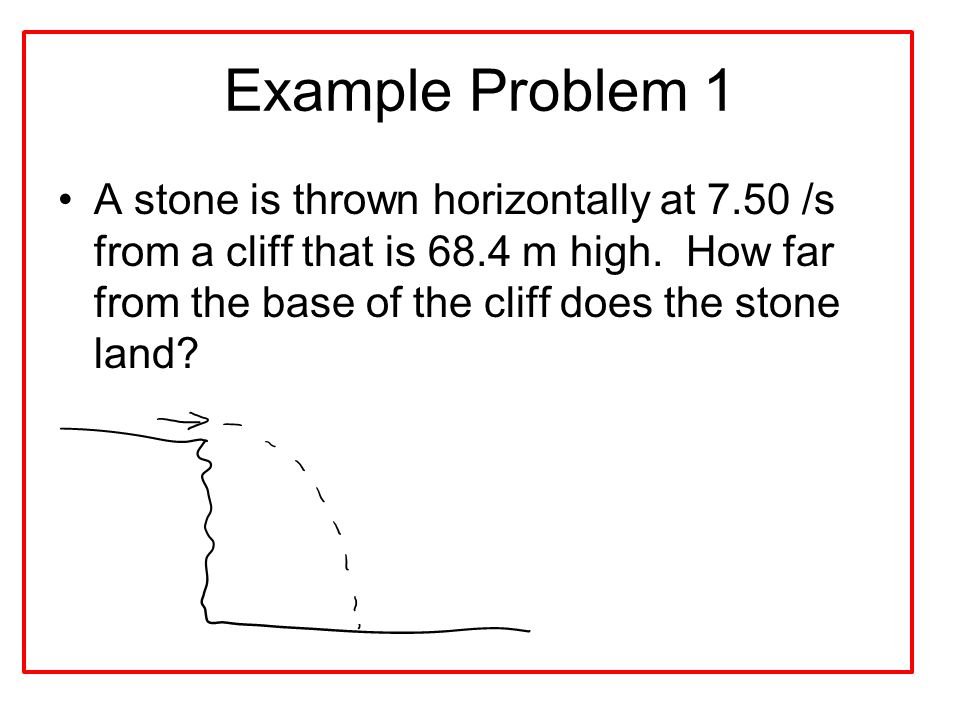

Example Problem 1 A stone is thrown horizontally at 7.50 /s from a cliff that is 68.4 m high. How far from the base of the cliff does the stone land?

15
Write out your x and y givens separately A stone is thrown horizontally at 7.50 /s from a cliff that is 68.4 m high. How far from the base of the cliff does the stone land? X givensY givens

16

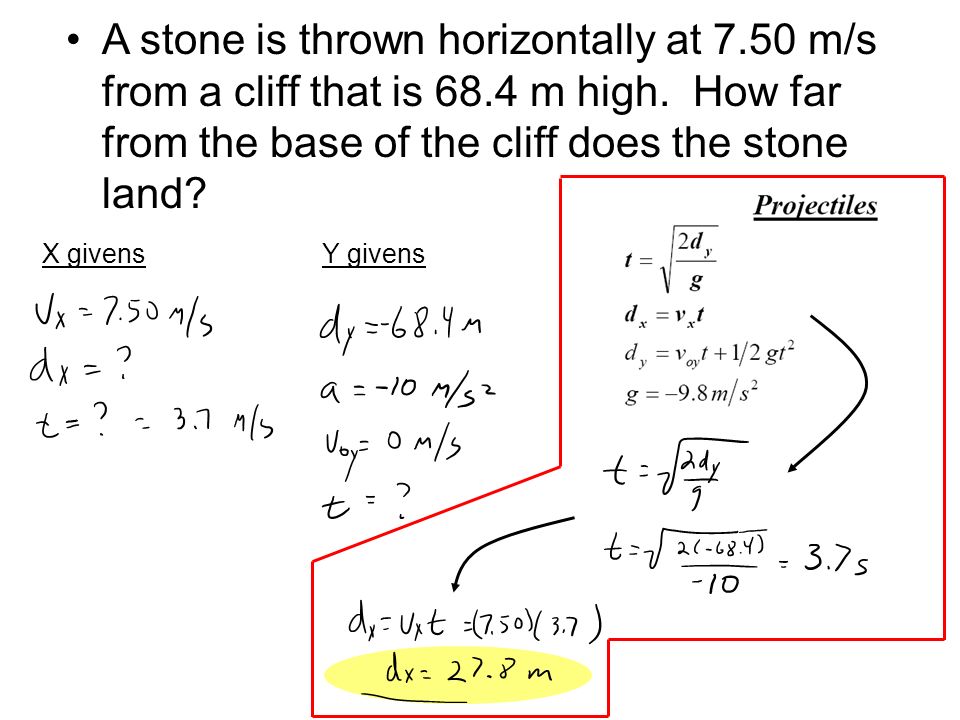

A stone is thrown horizontally at 7.50 m/s from a cliff that is 68.4 m high. How far from the base of the cliff does the stone land? X givensY givens
