1. Chapter 9 Regression Wisdom
math2200

2. Sifting residuals for groups
Residuals: ‘left over’ after the model
How to examine residuals?
Residual plot: residuals against fitted values or residuals against x variable.
Histogram

3. The histogram of the residual should be unimodal, symmetric and centered at 0 if the linear model is appropriate.

4. Sifting Residuals for Groups (cont.)
Researchers recorded about 77 breakfast cereals, including Calories and Sugar content (in grams) of a serving.
The linear regression gives the intercept 89.6, the slope 2.5 and R-squared

5. Sifting Residuals for Groups (cont.)
It is a good idea to look at both a histogram of the residuals and a scatterplot of the residuals vs. predicted values:
The small modes in the histogram are marked with different colors and symbols in the residual plot above. What do you see?

6. Sifting Residuals for Groups (cont.)
An examination of residuals often leads us to discover groups of observations that are different from the rest.
When we discover that there is more than one group in a regression, we may decide to analyze the groups separately, using a different model for each group.
All the data must come from the same group. e.g. height vs. weight, different models for male and female.

7. Another Example: Groups (cont.)
Regression lines fit to the calories and sugar for the cereals on different shelves at a supermarket:

8. Getting the “bends”
Linear regression is used to model linear relationship!
Sounds obvious? Violation of Straight Enough Condition counts for most misuse of linear regression.
Reasons
People take it for granted
Might be hard to see in scatterplots of data
Check residual plots.

9. Getting the “Bends” (cont.)
The curved relationship between fuel efficiency and weight is more obvious in the plot of the residuals than in the original scatterplot:

10. Example: stopping distance vs. car speed
The distribution of the residuals is skewed to the right.

11. Extrapolation Extrapolation
make a prediction at an x-value beyond the range of the data
Be careful!
It is only valid when you assume that the relationship does not change even at extreme values of x
Extrapolations can get you into deep trouble. You’re better off not making extrapolations.

12. Example Y: age at first marriage X: year of the century (1900 is 0)
From 1900 to 1940
Regression line
Age = * year
R^2 = 0.926
Slope = -0.04
First marriage age for men was falling at a rate of about 4 years per century
Intercept = 25.7
Mean age of men at first marriage at 1900
Make a prediction at year 2000?
Predicted age = 21.7
Reality is almost 27 years
What’s wrong?

13. Extrapolation (cont.)
A regression of median age at first marriage for men vs. year fit to the years from does not hold for later years:
After 1950, the pattern changed.

14. Predicting the future Who does this? Seers, oracles, wizards
Mediums, fortune-tellers, Tarot card readers
Scientists, e.g., statisticians, economists

15. Prediction is difficult, especially about the future
Here’s some more realistic advice: If you must extrapolate into the future, at least don’t believe that the prediction will come true.

16. Example: Predicting the future (cont.)
Mid 1970’s, in the midst of an energy crisis
Oil price surged
$3 a barrel in 1970
$15 a barrel a few years later
Using 15 top econometric forecasting models (built by groups that included Nobel winners), the prediction at 1985 is $50 to $200 a barrel.
What is the reality?
Price in 1985 is even lower than in 1975 (after accounting for inflation)
In year 2000, oil price is about $7 in 1975 dollars
Why wrong?
All models assumed that oil prices would continue to rise at the same rate or even faster

17. Example: presidential election in Florida
2000 U.S. presidential election
George W. Bush
Al Gore
Pat Buchanan
Ralph Nader
Generally, Nader earns more votes than Buchanan
Regression model
Y: Buchanan’s votes
X: Nader’s votes
Buchanan = Nadar
R^2 = 0.428

18. Outliers (cont’)

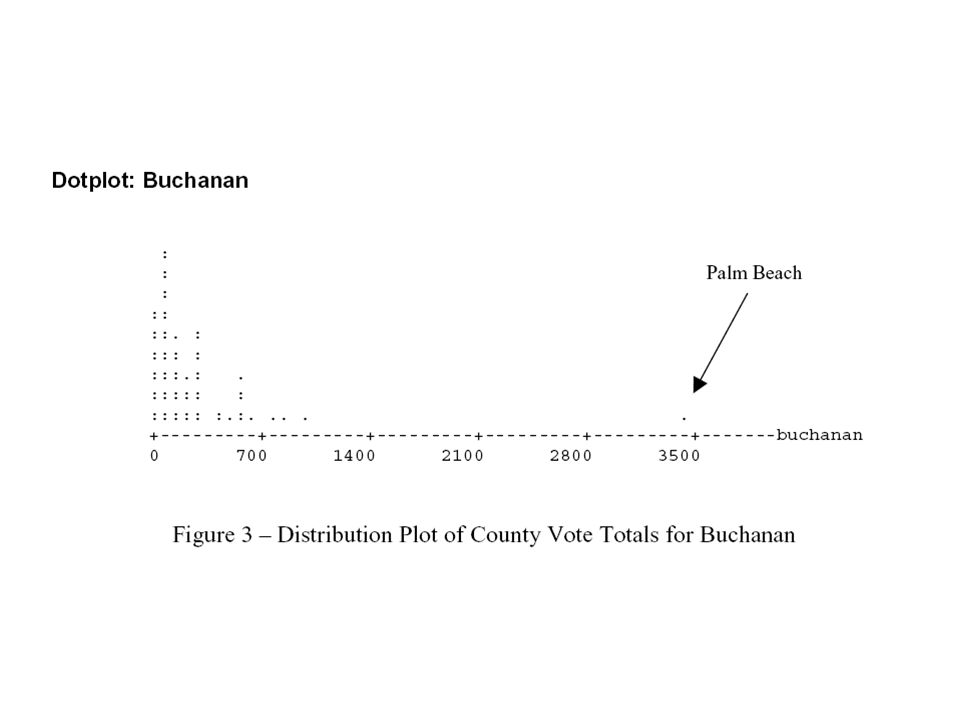

The following scatterplot shows that something was awry in Palm Beach County, Florida, during the 2000 presidential election…

19. Outliers
The red line shows the effects that one unusual point can have on a regression:

21. Outliers Remove Palm Beach County
Slope = 0.1
Outliers: data points with large residuals
Butterfly ballot may confuse the voters

22. Butterfly ballot

23. Leverage
Points extraordinary in x can especially influence a regression model, we say they have high leverage.

24. High leverage points Has the potential to change the regression line
Does not always influence the slope
High leverage points can hide in residual plots
Better use to scatter plot of the data the find it out

25. Outliers, Leverage, and Influence (cont.)
A point with high leverage has the potential to change the regression line.
We say that a point is influential if omitting it from the analysis gives a very different model.
How to identify influential points?
Model outliers, High-leverage points
By finding a regression model with and without the points.

26. Influential points Example: IQ and Shoe Size Y = IQ X = shoe size
With the influential point
Y= * X
R^2 = 0.248
Without the influential point
Y= * X
R^2 = 0.007

27. Lurking Variables and Causation
Once again!
People often interpret a regression line by
A change of 1 unit in x results in a change of b1 units in y
This often gives an impression of causation
But NOT true!
With observational data, as opposed to data from a designed experiment, there is no way to be sure that a lurking variable is not the cause of any apparent association.

28. Lurking Variables and Causation (cont.)
The following scatterplot shows that the average life expectancy for a country is related to the number of doctors per person in that country. There is a strong positive association (R-squared = 62.4%) between the two variables.

29. Lurking Variables and Causation (cont.)
This new scatterplot shows that the average life expectancy for a country is related to the number of televisions per person in that country. The positive association here is even stronger (R-squared = 72.3%)

30. Lurking Variables and Causation
Since televisions are cheaper than doctors, send TVs to countries with low life expectancies in order to increase the life expectancy. Right?
A lurking variable gives better explanation
Countries with higher standards of living have both longer life expectancies and more doctors (and TVs!).
If higher living standards cause changes in these other variables, improving living standards might be expected to prolong lives and increase the numbers of doctors and TVs.

31. Working With Summary Values
Usually, summary statistics vary less than the data on the individuals do.
For example,
If we use the group means as x instead of the original data
Then we see less variation
Hence a stronger association
But this is not the truth
We are overestimating R^2

32. Working With Summary Values (cont.)
A strong, positive, linear association between weight and height for men
Mean Weight vs. Height gives a false impression how well this model fits the data.

33. Working With Summary Values (cont.)
Means vary less than individual values.
Scatterplots of summary statistics show less scatter than the baseline data on individuals.
There is no simple correction for this phenomenon.
Once we have summary data, there’s no simple way to get the original values back.

34. What Can Go Wrong? Make sure the relationship is straight.
Check the Straight Enough Condition.
Be on guard for different groups in your regression.
If you find subsets that behave differently, consider fitting a different linear model to each subset.
Beware of extrapolating.
Beware especially of extrapolating into the future!

35. What Can Go Wrong? (cont.)
Look for unusual points.
Unusual points always deserve attention and that may well reveal more about your data than the rest of the points combined.
Beware of high leverage points, and especially those that are influential.
Such points can alter the regression model a great deal.
Consider comparing two regressions.
Run regressions with extraordinary points and without and then compare the results.

36. What Can Go Wrong? (cont.)
Treat unusual points honestly.
Don’t just remove unusual points to get a model that fits better.
Beware of lurking variables—and don’t assume that association is causation.
Watch out when dealing with data that are summaries.
Summary data tend to inflate the impression of the strength of a relationship.

37. What have we learned?
There are many ways in which a data set may be unsuitable for a regression analysis:
Watch out for subsets in the data.
Examine the residuals to re-check the Straight Enough Condition.
Consider Does the Plot Thicken? Condition.
The Outlier Condition means two things:
Points with large residuals or high leverage (especially both) can influence the regression model significantly.

38. What have we learned? (cont.)
Even a good regression doesn’t mean we should believe the model completely:
Extrapolation far from the mean can lead to silly and useless predictions.
An R2 value near 100% doesn’t indicate that there is a causal relationship between x and y.
Watch out for lurking variables.
Watch out for regressions based on summaries of the data sets.
These regressions tend to look stronger than the regression on the original data.
