1 Building a Chemical Informatics Grid Marlon Pierce Community Grids Laboratory Indiana University

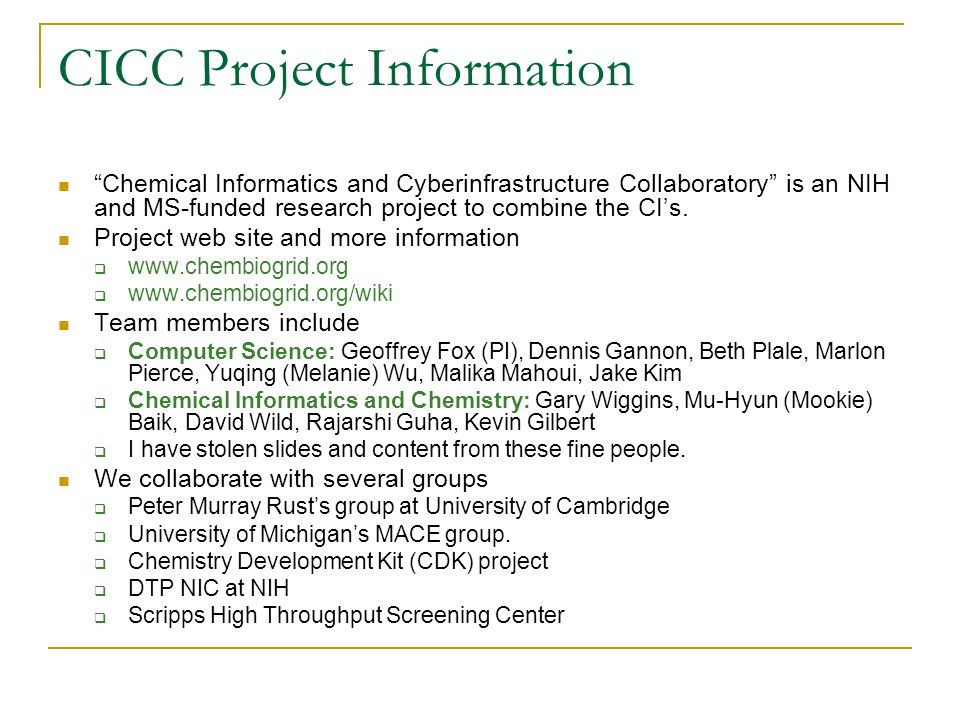

2 CICC Project Information Chemical Informatics and Cyberinfrastructure Collaboratory is an NIH and MS-funded research project to combine the CIs. Project web site and more information Team members include Computer Science: Geoffrey Fox (PI), Dennis Gannon, Beth Plale, Marlon Pierce, Yuqing (Melanie) Wu, Malika Mahoui, Jake Kim Chemical Informatics and Chemistry: Gary Wiggins, Mu-Hyun (Mookie) Baik, David Wild, Rajarshi Guha, Kevin Gilbert I have stolen slides and content from these fine people. We collaborate with several groups Peter Murray Rusts group at University of Cambridge University of Michigans MACE group. Chemistry Development Kit (CDK) project DTP NIC at NIH Scripps High Throughput Screening Center

3 Chemical Informatics and Cyber- infrastructure Building Blocks Chemical Informatics Resources: Deluge of experimental data > 100,000 compounds screened by 10 publicly funded high throughput screening centers using various assay techniques (molecular to cellular) Molecular Libraries Screening Center Network Chemical databases maintained by various groups NIH PubChem, NIH DTP Chemical informatics and computational chemistry Data clustering, data mining, descriptor calculations, toxicity prediction, docking, molecular modeling, and quantum chemistry Visualization tools Web resources: journal articles, etc. A Chemical Informatics Grid will need to integrate these into a common, loosely coupled, open, distributed computing environment.

4 Our Solution Stack Domain specific Web Services VOTables, CDK services Grid services, Cyber- infrastructure for computationally intensive applications. Clustering, quantum chemistry Workflow and service management We work with Taverna Many solutions: Kepler, BPEL engines, etc. Portlets and other user interfaces Rich desktop apps Ubiquitous clients Portals and Other User Interfaces Workflow and Service Management Web and Grid Services Each level is subject for research and development, as is their integration.

5 A Library of Chemical Informatics Web Services

6 All Services Great and Small Like most Grids, a Chemical Informatics Grid will have the classic styles: Data Grid Services: these provide access to data sources like PubChem, etc. Execution Grid Services: used for running cluster analysis programs, molecular modeling codes, etc, on TeraGrid and similar places. But we also need many additional services Handling format conversions (InChI SMILES) Shipping and manipulating tabular data Determining toxicity of compounds Generating batch 2D images So one of our core activities is build lots of services

7 VOTables: Handling Tabular Data Developed by the Virtual Observatory community for encoding astronomy data. The VOTable format is an XML representation of the tabular data (data coming from BCI, NIH DTP databases, and so on). VOTables-compatible tools have been built We just inherit them. SAVOT and JAVOT JAVA Parser APIs for VOTable allow us to easily build VOTable-based applications Web Services Spread sheet Plotting applications. VOPlot and TopCat are two

8 mrtd1.txt – smiles representation of chemical compounds along with its properties

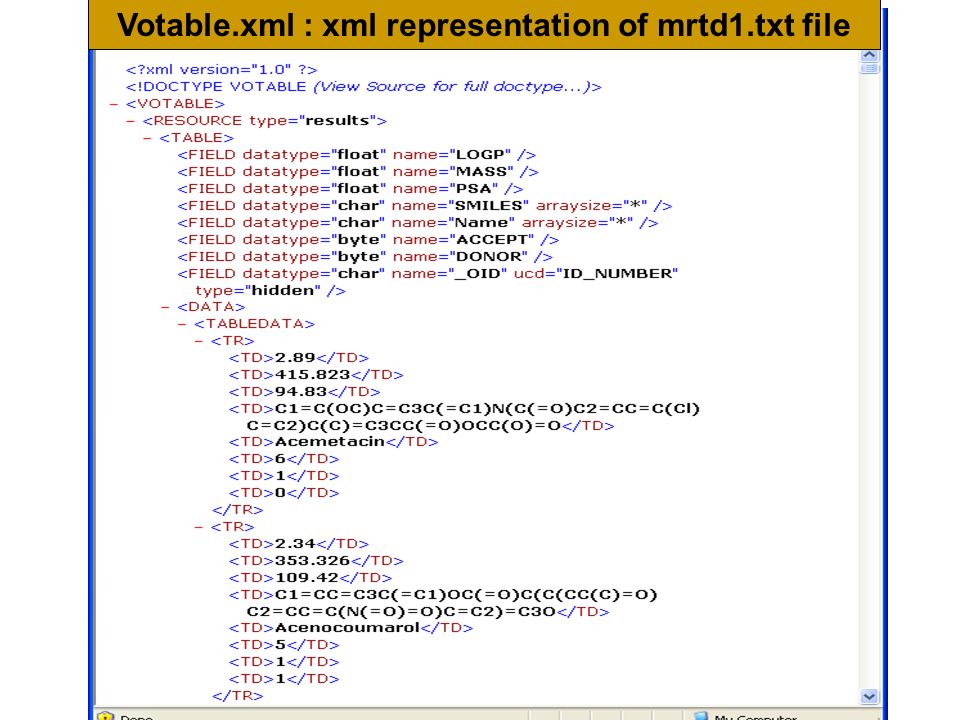

9 Votable.xml : xml representation of mrtd1.txt file

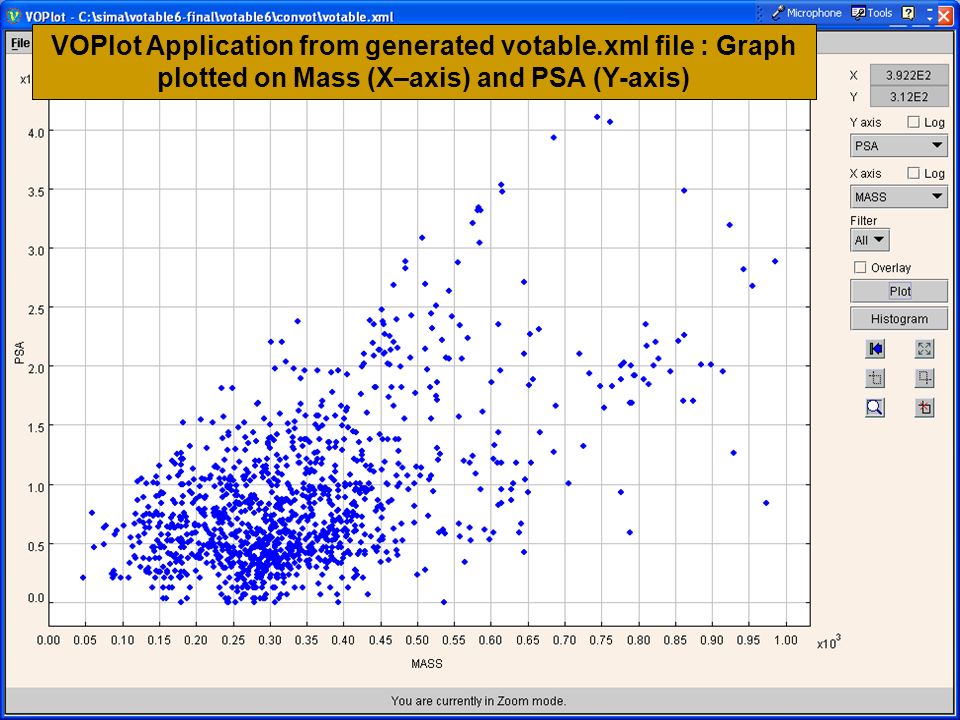

10 VOPlot Application from generated votable.xml file : Graph plotted on Mass (X–axis) and PSA (Y-axis)

11 More Services: WWMM Services ServicesDescriptionsInputOutput InChIGoogleSearch an InChI structure through Google inchiBasic type Search result in HTML format InChIServerGenerate InChIversion format An InChI structure OpenBabelS erver Transform a chemical format to another using Open Babel format inputData outputData options Converted chemical structure string CMLRSSSer ver Generate CMLRSS feed from CML data mol, title description link, source Converted CMLRSS feed of CML data

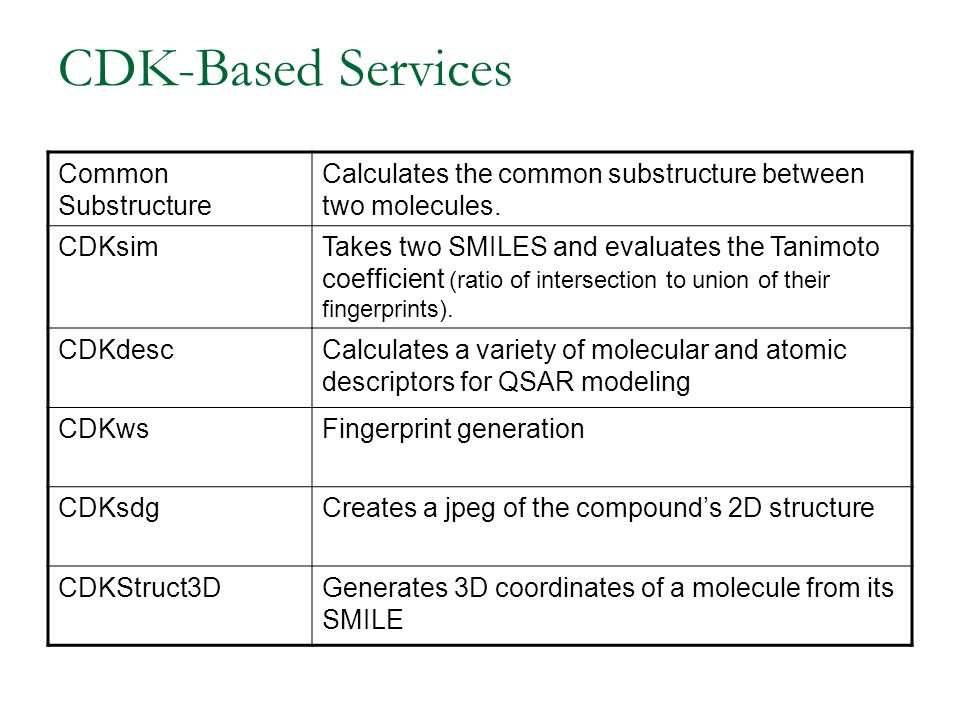

12 CDK-Based Services Common Substructure Calculates the common substructure between two molecules. CDKsimTakes two SMILES and evaluates the Tanimoto coefficient (ratio of intersection to union of their fingerprints). CDKdescCalculates a variety of molecular and atomic descriptors for QSAR modeling CDKwsFingerprint generation CDKsdgCreates a jpeg of the compounds 2D structure CDKStruct3DGenerates 3D coordinates of a molecule from its SMILE

13 ToxTree Service The Threshold of Toxicological Concern (TTC) establishes a level of exposure for all chemicals below which there would be no appreciable risk to human health. ToxTree implements the Cramer Decision Tree approach to estimate TTC. We have converted this into a service. Uses SMILES as input. Note the GUI must be separated from the library to be a service

14 OSCAR3 Service Oscar3 is a tool for shallow, chemistry-specific natural language parsing of chemical documents (i.e. journal articles). It identifies (or attempts to identify): Chemical names: singular nouns, plurals, verbs etc., also formulae and acronyms. Chemical data: Spectra, melting/boiling point, yield etc. in experimental sections. Other entities: Things like N(5)-C(3) and so on. Results are exported as an XML file. There is a larger effort, SciBorg, in this area It also has potentially very interesting Workflows

15 Use Cases and Workflows Putting data and clustering together in a distributed environment.

16 A Workflow Scenario: HTS Data Organization and Flagging This workflow demonstrates how screening data can be flagged and organized for human analysis. The compounds and data values for a particular screen are retrieved from the NIH DTP database and then are filtered to remove compounds with reactive groups, etc. A tumor cell line is selected. The activity results for all the compounds in the DTP database in the given range are extracted from the PostgreSQL database OpenEye FILTER is used to calculate biological and chemical properties of the compounds that are related to their potential effectiveness as drugs ToxTree is used to flag the potential toxicities of compounds. Divkmeans is used to add a column of cluster numbers. Finally, the results are visualized using VOPlot and the 2D viewer applet.

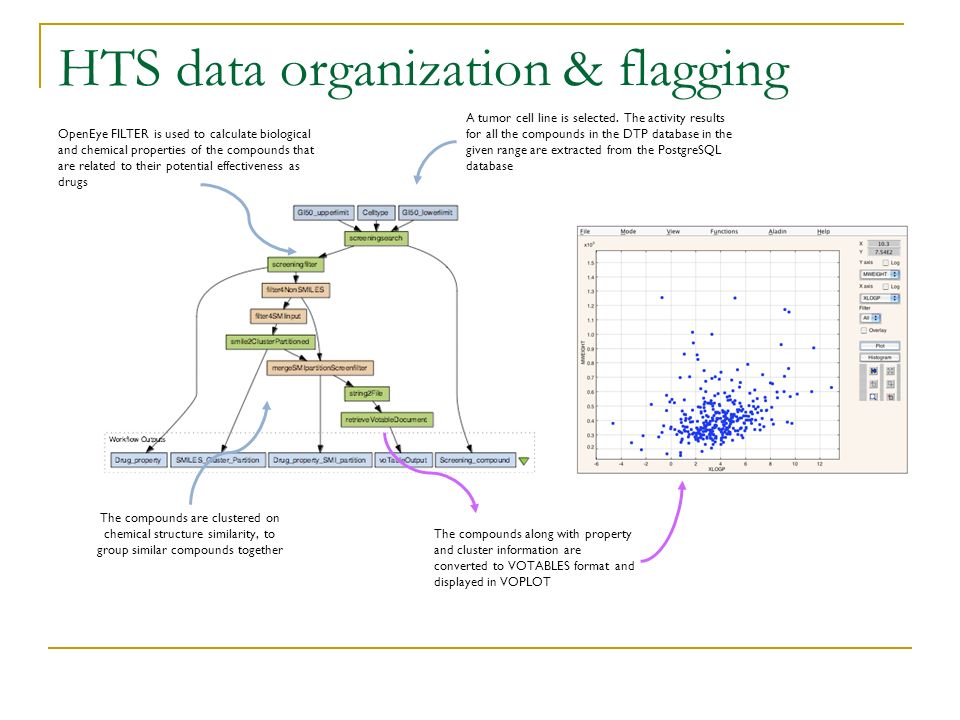

17 HTS data organization & flagging A tumor cell line is selected. The activity results for all the compounds in the DTP database in the given range are extracted from the PostgreSQL database The compounds are clustered on chemical structure similarity, to group similar compounds together The compounds along with property and cluster information are converted to VOTABLES format and displayed in VOPLOT OpenEye FILTER is used to calculate biological and chemical properties of the compounds that are related to their potential effectiveness as drugs

18 Web Services

19 Example plots of our workflow output using VOPlot and VOTables

20 Chemical Informatics and the TeraGrid

21 A Workflow for IUs Big Red Demo PubMed abstracts 555,007 PubMed abstracts of 2005 – 2006 (part) 1,000 abstracts per node 511 nodes X 1,000 input abstracts used for the demo OSCAR3 Extracts chemical information from text and produces an XML instance highlighting the chemical information SMILES extraction Extracting SMILES elements from OSCARs XML output files Unique SMILES list within a batch Use this to drive docking and molecular modeling applications.

22 Bigger Picture for the Workflow NIH PubMed Database OSCAR Text Analysis POV-Ray Parallel Rendering Initial 3D Structure Calculation Toxicity Filtering Cluster Grouping Docking Molecular Mechanics Calculations Quantum Mechanics Calculations IUs Varuna Database NIH PubChem Database Big Red Demo High Throughput Screening (HTS) Data Organization and Flagging

23 A Workflow for Big Red Demo Final HTML pages

24 VARUNA – Towards a Grid-based Molecular Modeling Environment Taking the Big Red demo from stunt to science.

25 Automatic Quantum Mechanical Curation of Structure Data (AutoGeFF) Chemical research logic is often driven by molecular structure Large-scale, small molecule DBs (such as PubChem and, through OSCAR, PubMed) have low-resolution structure data Often key properties are not consistently available: e.g.: Rotation-barriers, Redox Potentials, Polarizabilities, IR frequencies, reactivity towards nucleophiles QM web-services will provide tools for generating high-resolution data Produces a new, curated database of QM results These can then be combined with databases of proteins (PDB, MOAD, PDB-Bind) for docking and other detailed simulation studies.

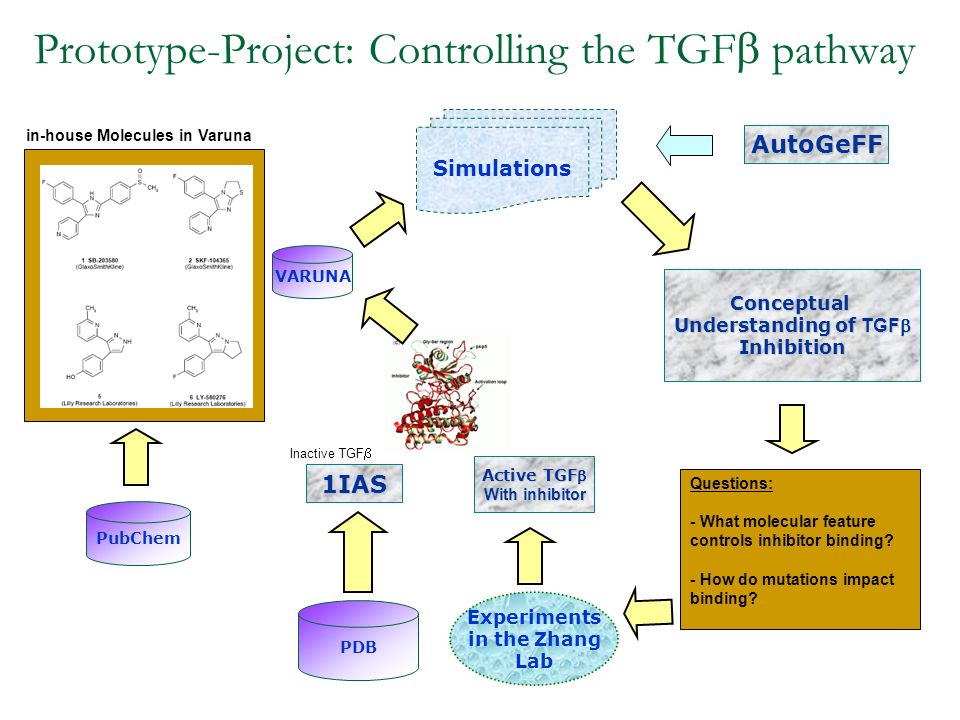

26 Prototype-Project: Controlling the TGF pathway PDB 1IAS Inactive TGF VARUNA Experiments in the Zhang Lab Active TGF With inhibitor PubChem in-house Molecules in Varuna Conceptual Understanding of TGF Understanding of TGF Inhibition Simulations AutoGeFF Questions: - What molecular feature controls inhibitor binding? - How do mutations impact binding?

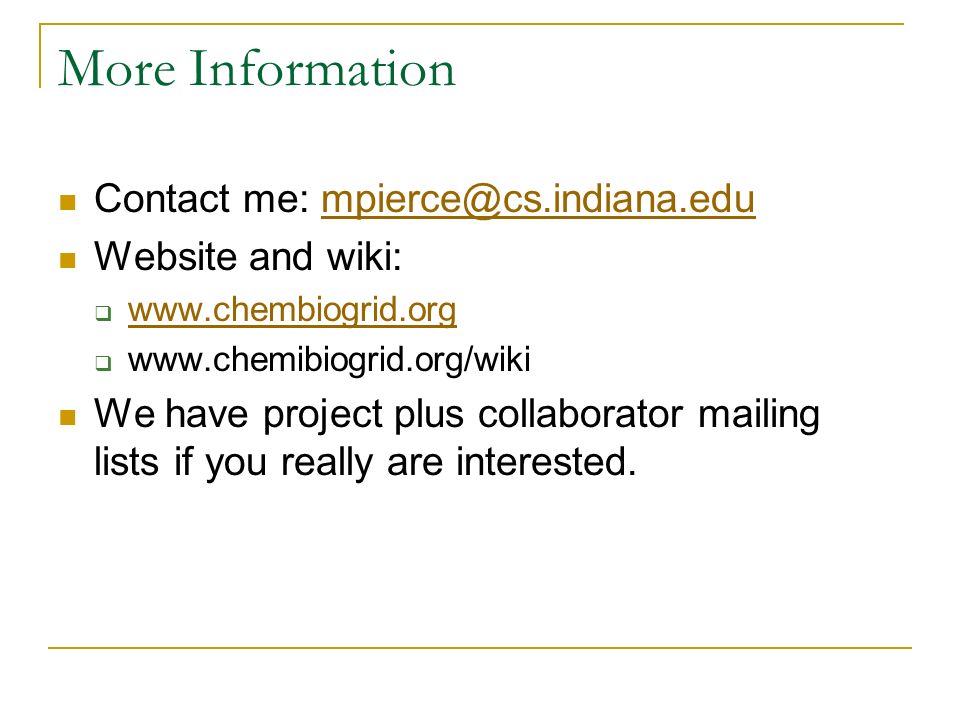

27 More Information Contact me: Website and wiki: We have project plus collaborator mailing lists if you really are interested.
