1. CS 3610: Software Engineering – Spring 2009 Dr. Hisham Haddad – CSIS Dept. Class Project OO Design Document Here is what you need to do for your class project SDD...

2. CS 3610: Software Engineering – Spring 2009 Dr. Hisham Haddad – CSIS Dept. Software Design Documentation Class project design will focus on component-level design. That is, the detailed design of class attributes (variables) and methods. Since there no single template for OO SDD, we’ll modify (reuse) the SRS document to capture major sections of SDD shown on the following slide. Section 3 of the SRS (Specific Requirements) is the major section for your SDD. You’ll expand the class tables of the SRS to include more design details about class variables and methods. You’ll need to update diagrams in the SRS as per changes made during the design phase, and any diagrams missing from the SRS should be included in the SDD submission.

3. CS 3610: Software Engineering – Spring 2009 Dr. Hisham Haddad – CSIS Dept. RUP Major Sections of OO SDD Other sections and subsections may be added as needed. Table of Contents 1. Introduction 1.1 Purpose 1.2 Scope 1.3 Definitions, acronyms, and abbreviations 1.4 References 2. System Object Model (System Design) 2.1 Introduction 2.2 Subsystems 2.3 Subsystem Interfaces 3. Object Descriptions (Object Design) 3.1 Objects in Subsystem 1 (Use table format as in the SRS) 3.2 Objects in Subsystem 1 (Use table format as in the SRS)... 4. Sequence Diagrams (Update as needed) 5. Object Collaboration Diagrams (Update as needed) 6. Object Behavior Diagrams (Update as needed) 7. Data Design (Data structures and data table design) 8. Other Design Requirements (Any design requirements specific for your project)

4. CS 3610: Software Engineering – Spring 2009 Dr. Hisham Haddad – CSIS Dept. Step 1: System Design (1) (Partitioning the Analysis Model if needed) - From your SRS description, identify potential subsystems. A subsystem is a self-contained and highly-independent groups of classes that define a main function of the system. Subsystem design goes in section 2 as outlined. - A subsystem has: - a well-define interface (check use-cases) - reasonable number of essential classes - classes that communicate with each others - possibly some internal subsystems. (check use-cases)

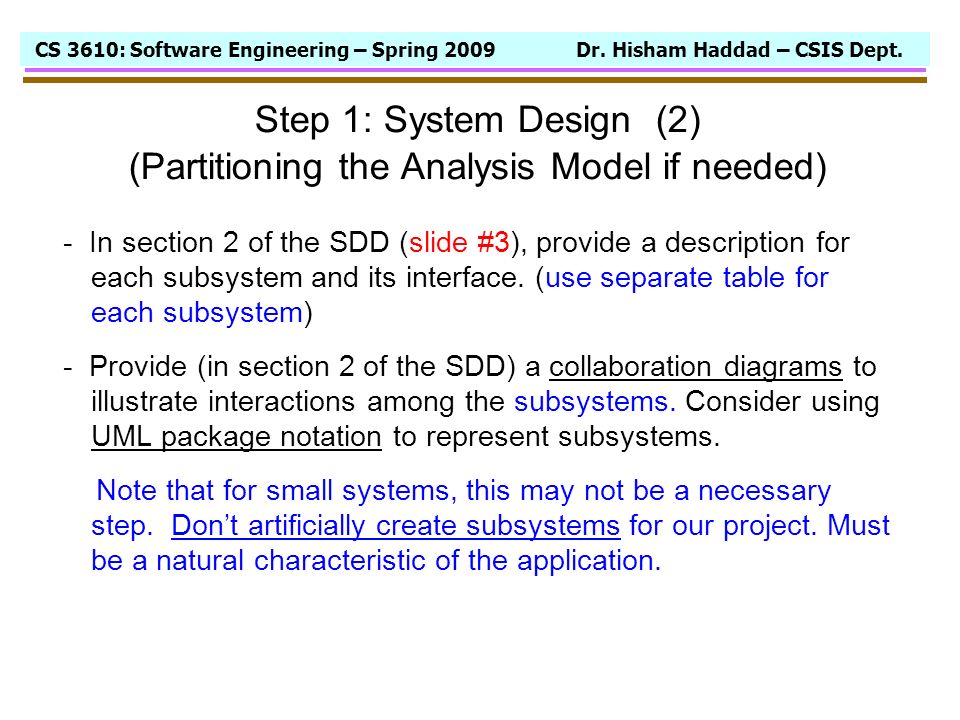

5. CS 3610: Software Engineering – Spring 2009 Dr. Hisham Haddad – CSIS Dept. Step 1: System Design (2) (Partitioning the Analysis Model if needed) - In section 2 of the SDD (slide #3), provide a description for each subsystem and its interface. (use separate table for each subsystem) - Provide (in section 2 of the SDD) a collaboration diagrams to illustrate interactions among the subsystems. Consider using UML package notation to represent subsystems. Note that for small systems, this may not be a necessary step. Don’t artificially create subsystems for our project. Must be a natural characteristic of the application.

6. CS 3610: Software Engineering – Spring 2009 Dr. Hisham Haddad – CSIS Dept. Step 2: Object Design (1) Here, focus on the component-level design of your objects (attributes and methods) and their messages. 1 - Data structure design 2 - Algorithm design Make sure to adhere to “information Hiding” and “functional independence” concepts as you design your objects.

7. CS 3610: Software Engineering – Spring 2009 Dr. Hisham Haddad – CSIS Dept. Step 2: Object Design (2) (Class Diagram) - Create a specification class diagram by expanding the conceptual class diagram you created for the SRS. The new diagram should include: - other classes and relationships needed for modeling the solution (those are classes of interest to you - the designer) - details of new classes (attributes and operations) - Include the class diagram at beginning of section 3 of the SDD (slide #3), before the class description tables.

8. CS 3610: Software Engineering – Spring 2009 Dr. Hisham Haddad – CSIS Dept. Step 2: Object Design (3) (Data Structure Design) For each attribute (variable) in each class, you need to provide more information about it (add columns to top part of the class table, SRS section 5). Such information include, but note limited to, the type, initial value, valid range of values (upper and lower values), visibility (public or private), what it represent ($, age, grade, etc…), and possible other information… For aggregate data structures (arrays, records, lists, etc…), define needed data structures (if any) in conjunction with class operations. Document your data structures and database tables in section 7 (Data Design) of the SDD (slide #3).

9. CS 3610: Software Engineering – Spring 2009 Dr. Hisham Haddad – CSIS Dept. Step 2: Object Design (4) (Algorithmic Design) For each operation of the class, provide an algorithm description as a self-contained module (add a new column to the table for this purpose). Consider dividing complex operations into separate smaller operations, such that each smaller operation performs a well-defined functions. Apply stepwise refinement concept, such that: - define operation interfaces (list of parameters if any) - fill-in operation body sections - refine body details as needed Note: The level of details of your algorithmic description should be sufficient enough so that the implementer can translated it to source code without help from you (the designer).

10. CS 3610: Software Engineering – Spring 2009 Dr. Hisham Haddad – CSIS Dept. Step 3: Modeling Diagrams Revise UML sequence diagrams you have in the SRS to include newly added control objects during the design phase and to reflect any changes made to the use-cases. Include revised diagrams in section 6 of the SDD (slide #3). Revise UML object collaboration diagrams you have in the SRS to include newly added control objects during the design phase. Include revised diagrams in section 7 of the SDD (slide #3). Revise UML state transition (behavior) diagrams you have in the SRS to include newly added control objects during the design phase. Include revised diagrams in section 8 of the SDD (slide #3).

11. CS 3610: Software Engineering – Spring 2009 Dr. Hisham Haddad – CSIS Dept. Please Remember… - The SDD has to be self-contained document. Thus, it should includes all the sections outlined in the TOC on slide #3. - SDD content should be updated from that of the SRS to include information and modeling of control objects. Those are implementation related classes that you did not include in the SRS (boundary and control classes) - Most design effort is spent on the object design (algorithmic and data structures details) - Make sure to include information and/or diagrams that were missing from your SRS. - Any other design requirements specific to your application go into section 8.

12. CS 3610: Software Engineering – Spring 2009 Dr. Hisham Haddad – CSIS Dept. SDD Submission Submit a complete SDD as outline in slide #3. When appropriate, include references toward the end of the document. Review your SDD in conjunction with your SRS and check for flow, consistency, and potential updates to the SRS (if any) Due date is Tuesday April 21, 2009. This is a firm deadline since we will NOT have class meeting the following week (See syllabus, Instructor Absence section). The cover page should be similar to that of the SRS and to include name(s), project title, class, semester, and submission date. Bring printed copy to class and send electronic copy to the instructor (Word or PDF format).

13. CS 3610: Software Engineering – Spring 2009 Dr. Hisham Haddad – CSIS Dept. Last Slide
