Presentation on theme: "Power Control. Objectives –Understand the purpose of Power Control in CDMA. –Identify the different types of Power Control mechanisms used in CDMA »Reverse."— Presentation transcript:
Objectives –Understand the purpose of Power Control in CDMA. –Identify the different types of Power Control mechanisms used in CDMA »Reverse Open Loop Power Control »Reverse Closed Loop Power Control »Reverse Outer Loop Power Control »Forward Traffic Channel Power Control –Identify the Access Parameters Message parameters that participate in Reverse Power Control. –Identify the Access Parameters Message parameters that participate in Forward Traffic Channel Power Control. –Review the concepts of power control groups.

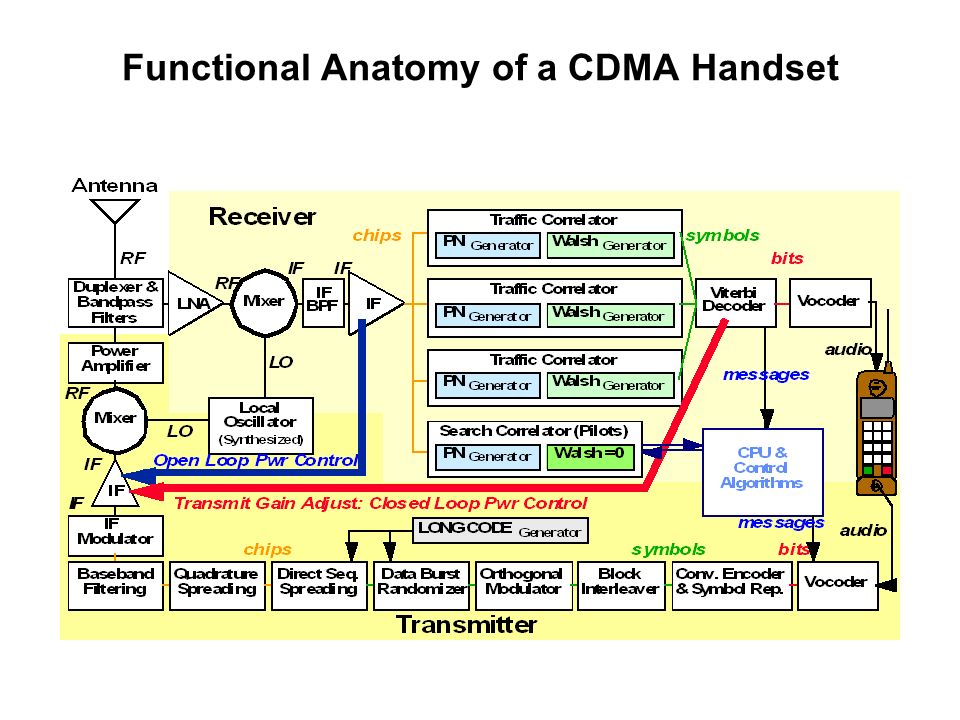

CDMA Power Control
Reverse Loop Power Control

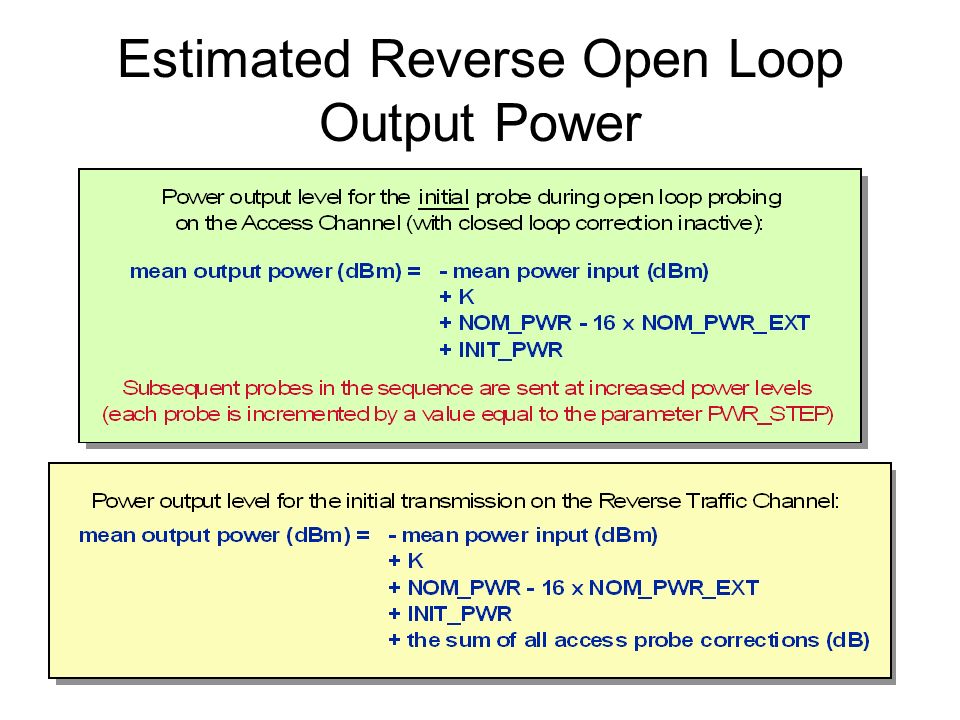

Estimated Reverse Open Loop Output Power
Reverse Close Loop Power Control
The Reverse Closed Loop Power Control mechanism provides a correction on the Reverse Traffic Channel mean output power level with respect to the Open Loop estimate. 800 times per second (or once every 1.25 milliseconds) the base station overwrites one (13 kb vocoder) or two (8 kb vocoder) code symbols with a power up or power down command based on the strength of the signal received from the mobile during the preceding 1.25 ms interval. These power control bits are always transmitted at full power. As during some 1.25 ms intervals the mobile stations transmitter is gated on, and during some other 1.25 ms intervals it is gated off, not every power up command received from the base station is meaningful. A power control bit is considered valid (and acted upon) only if it is received in the second 1.25 interval following an interval during which the mobile station transmitted. The mobile station locks on the accumulation of valid level changes and ignores received power control bits related to gated-off periods when the transmitter is disabled. Following the reception of a valid power control bit, the mean output power of the mobile station must be within ±0.3 dB of the final value in less than 500 µs. The change in mean output power level per single valid power control bit is ±1 dB nominal, and the total change in mean output power is the accumulation of all these individual changes. The actual change must be within ±0.5 dB of the nominal value, and the change in mean output power level per 10 valid power control bits of the same sign must be within ±20% of 10 times the nominal change.
Reverse Closed Loop Output Power Correction
Power Output Estimations (Summary)
Access Parameters Message(Paging Channel)
INIT_PWR – Initial Power. This is the correction factor to be used by the mobile stations in the open-loop power estimation for initial transmission on an Access Channel, expressed as a twos complement value in units of 1 dB. NOM_PWR – Nominal Transmit Power Offset. If the correction factor to be used by the mobile stations in the open-loop power estimation is between - 24 dB and -9 dB, the NOM_PWR parameter must be set to 16 dB plus the correction factor. Otherwise (the correction factor is in the range -8 dB to 7 dB inclusive), the NOM_PWR parameter must be set to the correction factor. The NOM_PWR is expressed as a twos complement value in units of 1 dB. NOM_PWR_EXT – Extended Nominal Transmit Power. If the correction factor to be used by the mobile stations in the open-loop power estimation is between -24 dB and -9 dB, this parameter must be set to 1. Otherwise (the correction factor is in the range -8 dB to 7 dB inclusive), this parameter must be set to 0. PWR_STEP - Power increment. This is the value, in units of 1 dB, by which a mobile station is to increase its transmit power between successive probes in an access probe.
Reverse Outer Loop Power Control
Forward Traffic Channel Power Control
The following applies only to the 8 kb vocoder: To support Forward Traffic Channel power control, the mobile station reports FER statistics to the base station. If the base station enables periodic reporting, the mobile station reports FER statistics at specified intervals. If the base station enables threshold reporting, the mobile station reports FER statistics when the frame error rate exceeds a specified threshold. Either, or both types of reporting can be enabled or disabled at any given time by the base station. Periodic reporting is controlled by PWR_PERIOD_ENABLE and PWR_REP_FRAMES. Threshold reporting is controlled by PWR_THRESH_ENABLE and PWR_REP_THRESH. The mobile station maintains a counter of the total number of received frames and a counter for the number of received bad frames. At the end of the specified period or when the threshold is exceeded, depending on what has been enabled, the mobile station sends a Power Measurement Report Message to the base station. Then it resets both counters to zero and freezes them for PWR_REP_DELAY x 4 frames following the first transmission of the message. These parameters are delivered to the mobile station in the System Parameters Message. BAD FRAMES are either (a) 9600 bps primary-traffic-only frames, with bit errors, or (b) frames with insufficient frame quality A frame has INSUFFICIENT FRAME QUALITY if the mobile station cannot figure out its rate or if errors (other than bit errors in a 9600 bps traffic only frame) are detected. When a 13 kb vocoder is used, the mechanism just described is automatically disabled, and the mobile station reports the quality of the received frames on a frame-by-frame basis through the erasure bit at the beginning of each frame transmitted on a reverse traffic channel. Forward Traffic Channel Power Control

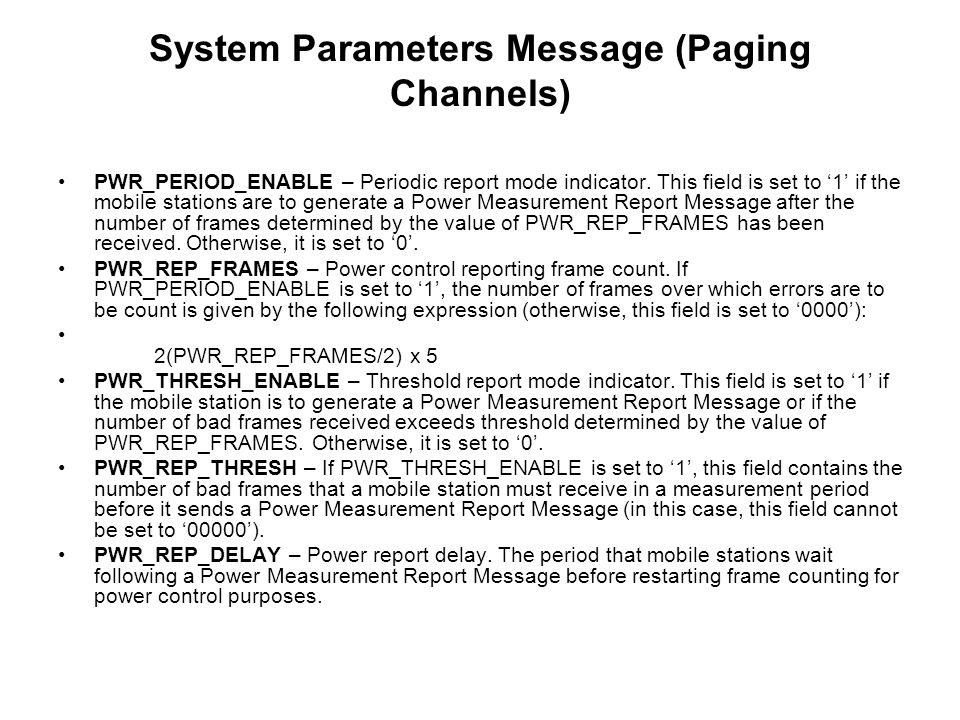

System Parameters Message (Paging Channels)
PWR_PERIOD_ENABLE – Periodic report mode indicator. This field is set to 1 if the mobile stations are to generate a Power Measurement Report Message after the number of frames determined by the value of PWR_REP_FRAMES has been received. Otherwise, it is set to 0. PWR_REP_FRAMES – Power control reporting frame count. If PWR_PERIOD_ENABLE is set to 1, the number of frames over which errors are to be count is given by the following expression (otherwise, this field is set to 0000): 2(PWR_REP_FRAMES/2) x 5 PWR_THRESH_ENABLE – Threshold report mode indicator. This field is set to 1 if the mobile station is to generate a Power Measurement Report Message or if the number of bad frames received exceeds threshold determined by the value of PWR_REP_FRAMES. Otherwise, it is set to 0. PWR_REP_THRESH – If PWR_THRESH_ENABLE is set to 1, this field contains the number of bad frames that a mobile station must receive in a measurement period before it sends a Power Measurement Report Message (in this case, this field cannot be set to 00000). PWR_REP_DELAY – Power report delay. The period that mobile stations wait following a Power Measurement Report Message before restarting frame counting for power control purposes. System Parameters Message (Paging Channels)
Power Control Parameters Message (Forward Traffic Channels) The same parameters can also be sent by the base station in a Power Control Parameters Message over the Forward Traffic Channel.
Power Measurement Report Message (Reverse Traffic Channels)
ENCRYPT_MODE field (binary)Encryption Mode Used 00Encryption disabled 01Encrypt call control messages All other values are reserved ERRORS_DETECTED – Number of frame errors detected. If the number of bad frames received in the measurement period is less than or equal to 31, the mobile station sets this field to the number of bad frames. If that number exceeds 31, this field is set to 11111. PWR_MEAS_FRAMES – Number of Forward Traffic Channel frames in the measurement period. Power Measurement Report Message (Reverse Traffic Channels)
