1. VISUAL C++ PROGRAMMING: CONCEPTS AND PROJECTS Chapter 1B Introduction (Tutorial)

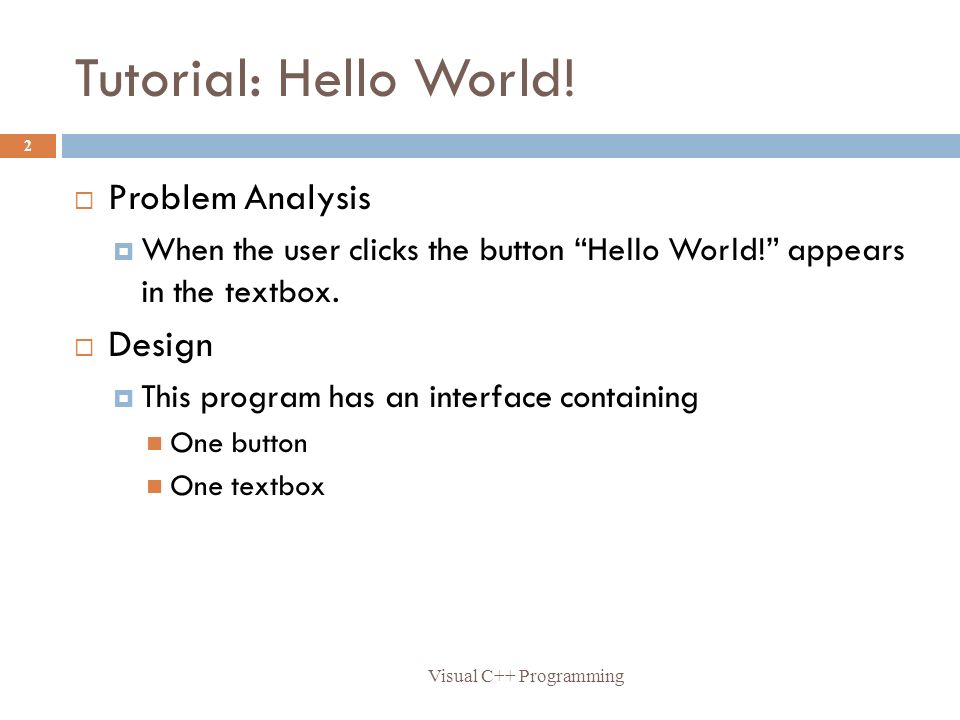

2. Tutorial: Hello World! Visual C++ Programming 2  Problem Analysis  When the user clicks the button “Hello World!” appears in the textbox.  Design  This program has an interface containing One button One textbox

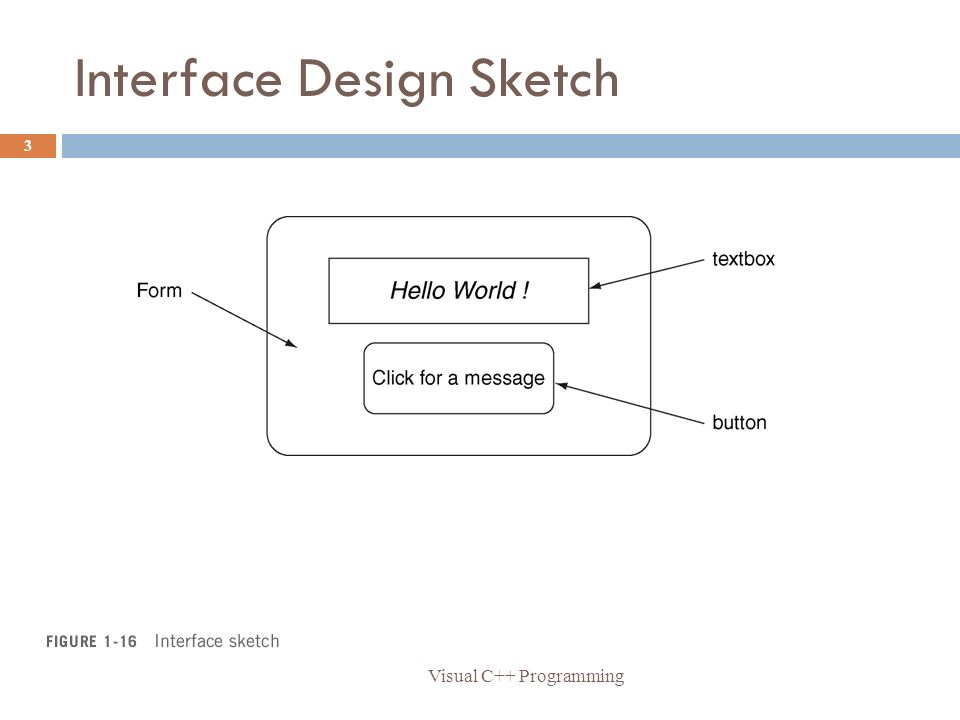

3. Interface Design Sketch Visual C++ Programming 3

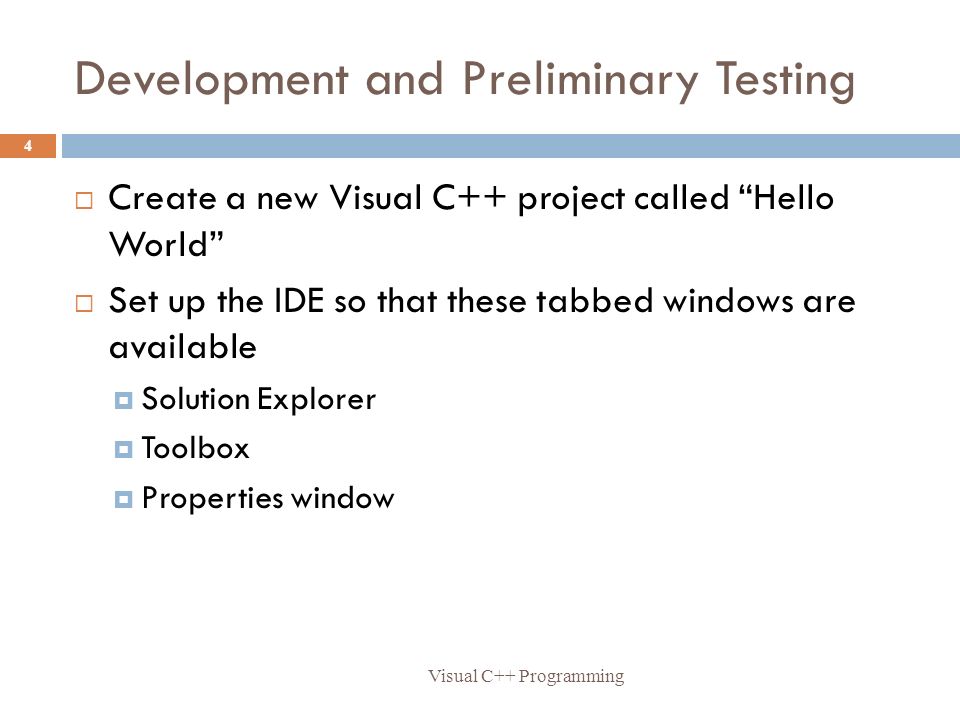

4. Development and Preliminary Testing Visual C++ Programming 4  Create a new Visual C++ project called “Hello World”  Set up the IDE so that these tabbed windows are available  Solution Explorer  Toolbox  Properties window

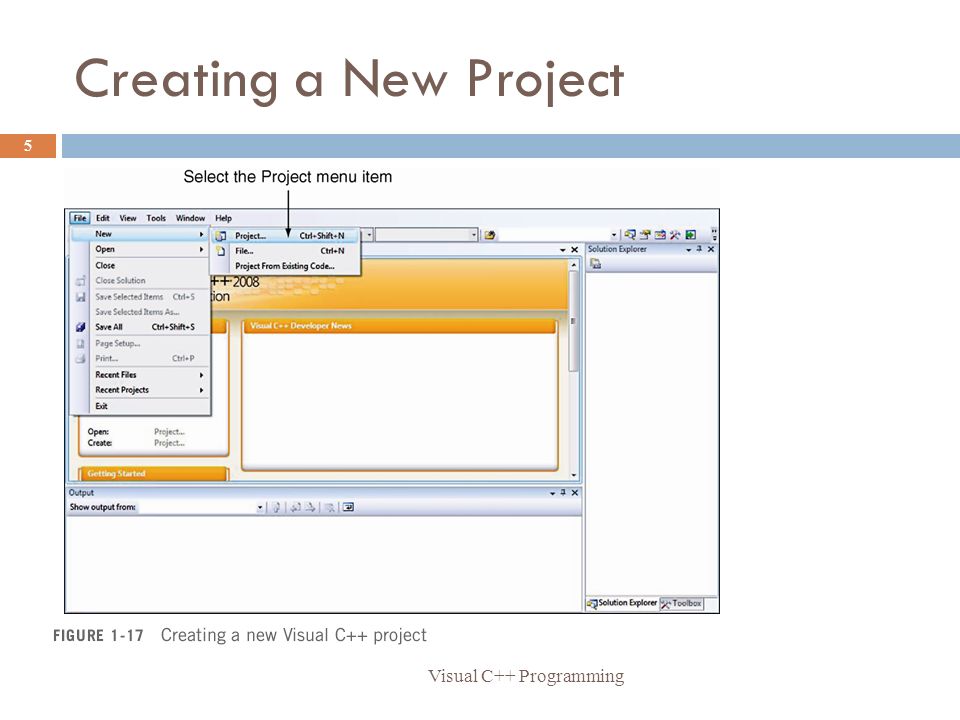

5. Creating a New Project Visual C++ Programming 5

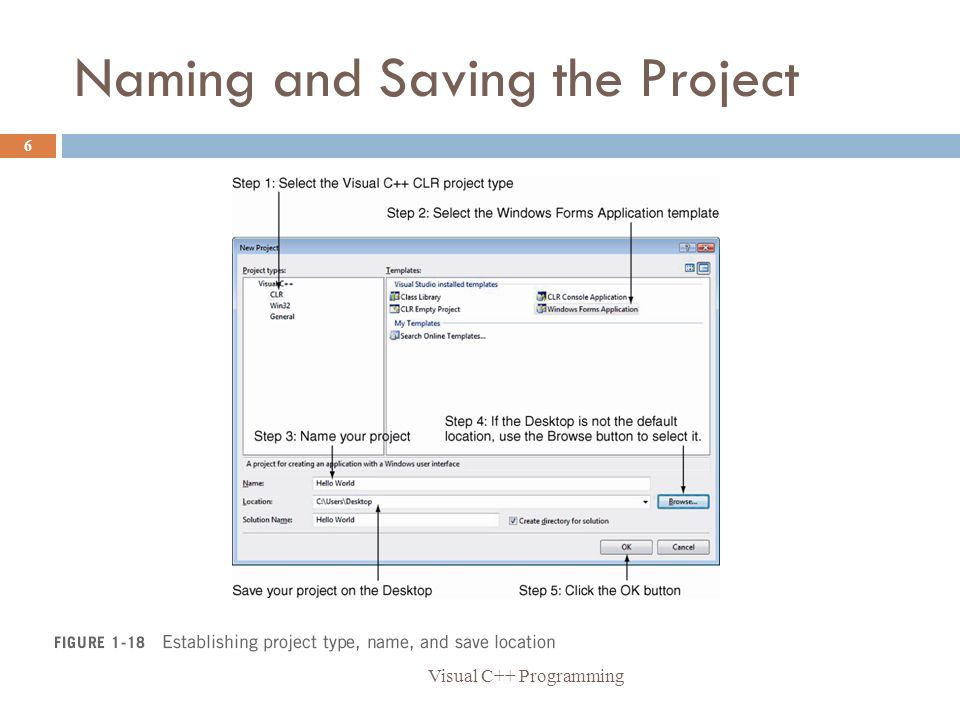

6. Naming and Saving the Project Visual C++ Programming 6

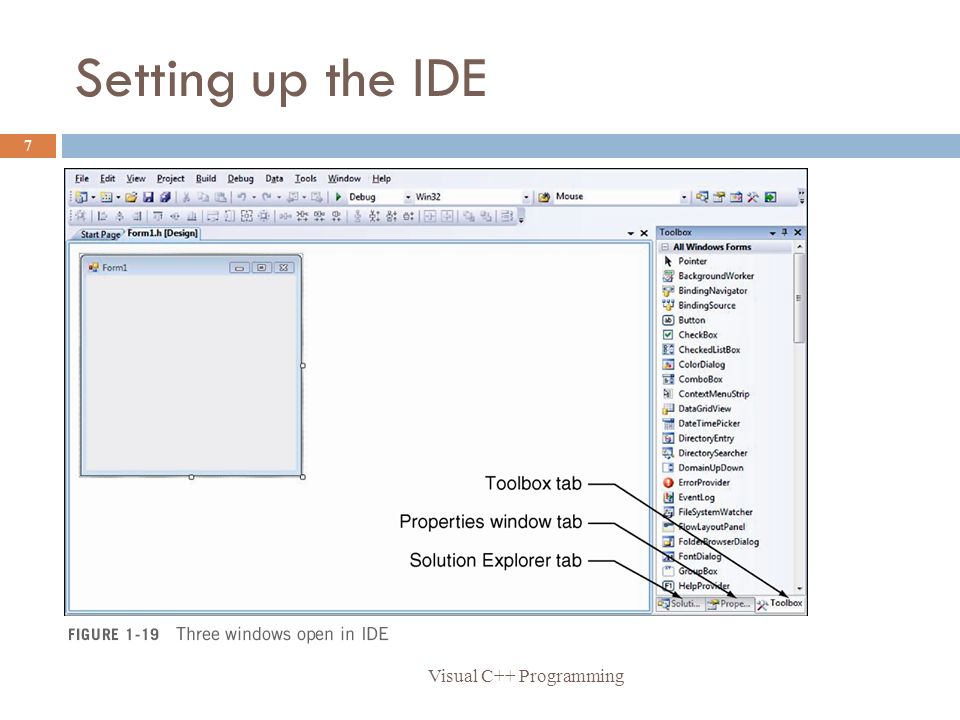

7. Setting up the IDE Visual C++ Programming 7

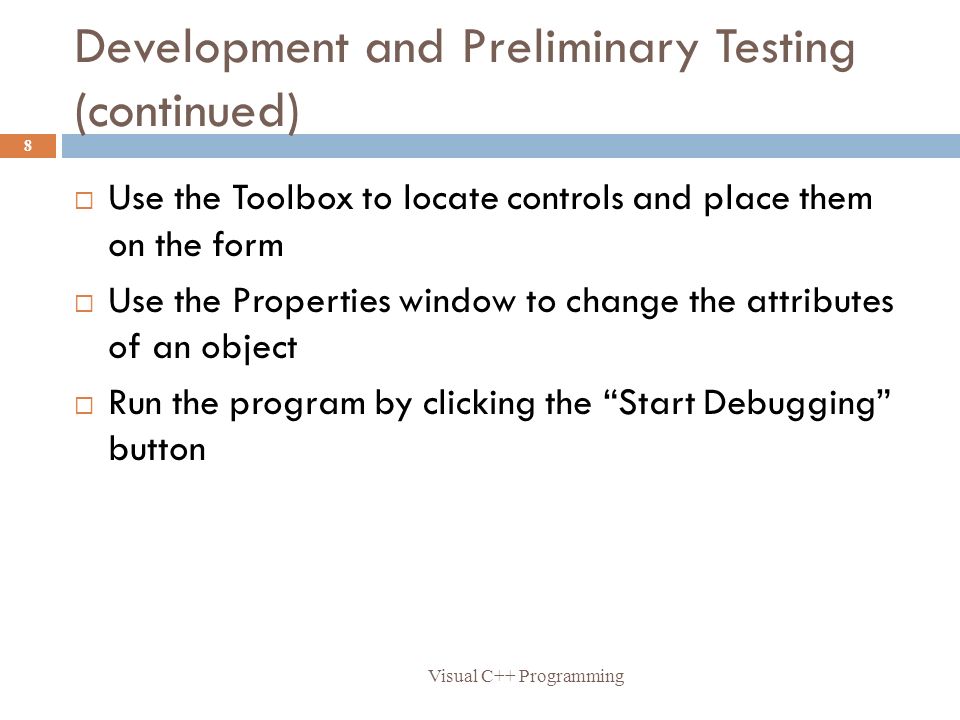

8. Development and Preliminary Testing (continued) Visual C++ Programming 8  Use the Toolbox to locate controls and place them on the form  Use the Properties window to change the attributes of an object  Run the program by clicking the “Start Debugging” button

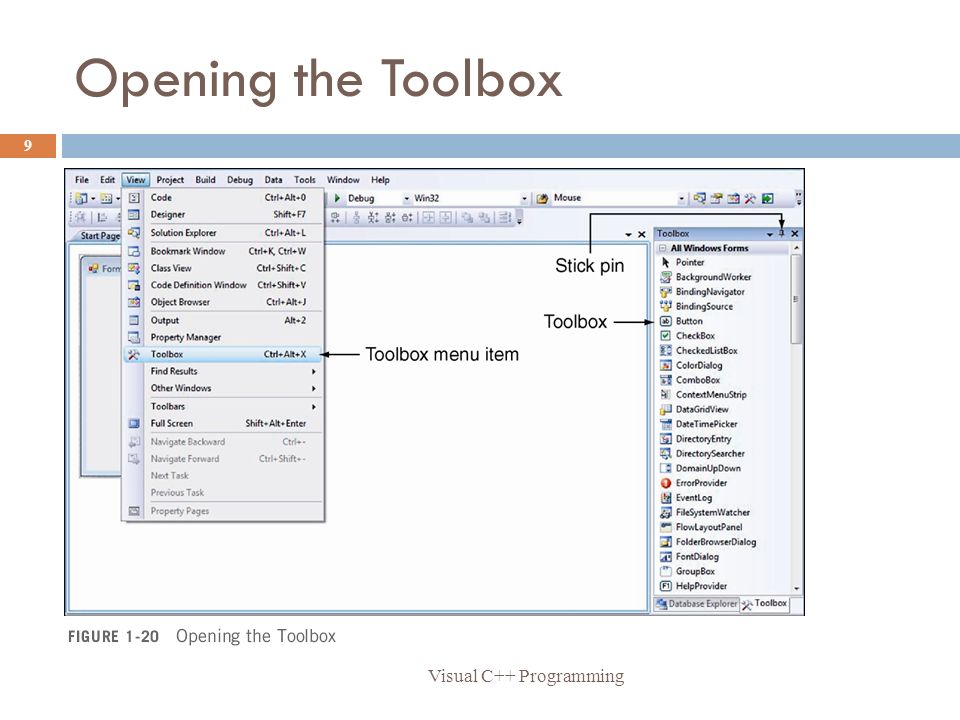

9. Opening the Toolbox Visual C++ Programming 9

10. Select the Properties Window Visual C++ Programming 10

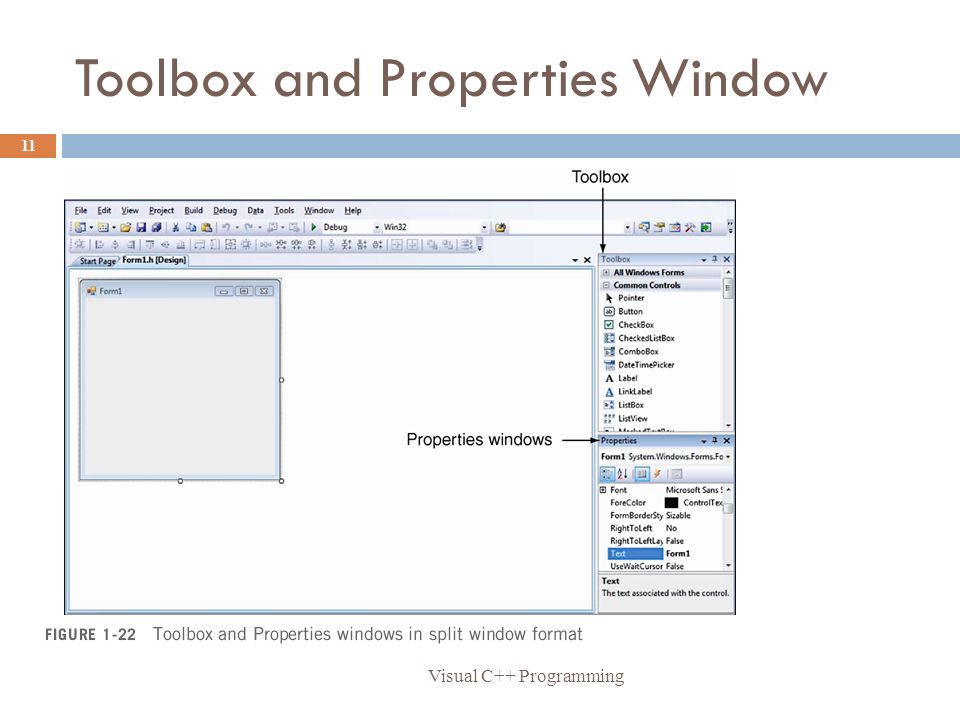

11. Toolbox and Properties Window Visual C++ Programming 11

12. Repositioning the Properties Window Visual C++ Programming 12

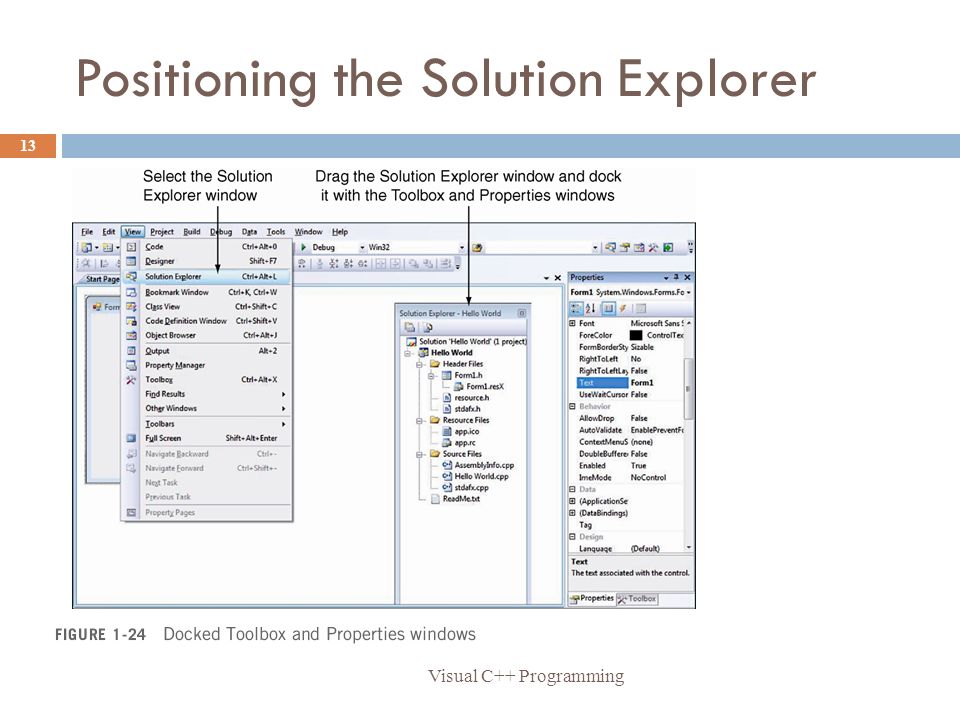

13. Positioning the Solution Explorer Visual C++ Programming 13

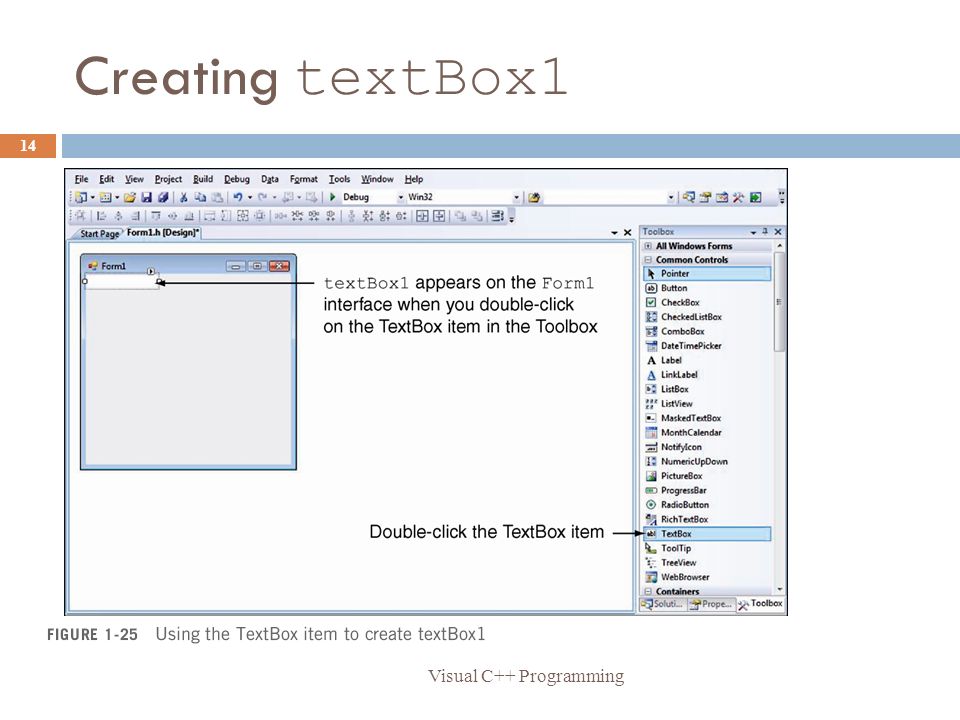

14. Creating textBox1 Visual C++ Programming 14

15. Creating button1 Visual C++ Programming 15

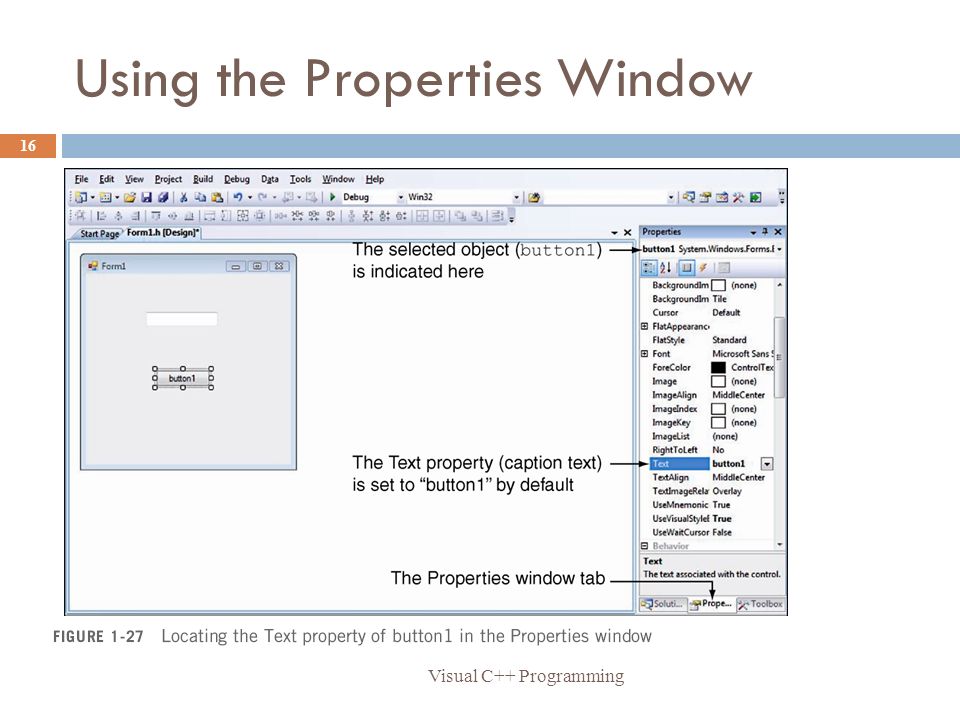

16. Using the Properties Window Visual C++ Programming 16

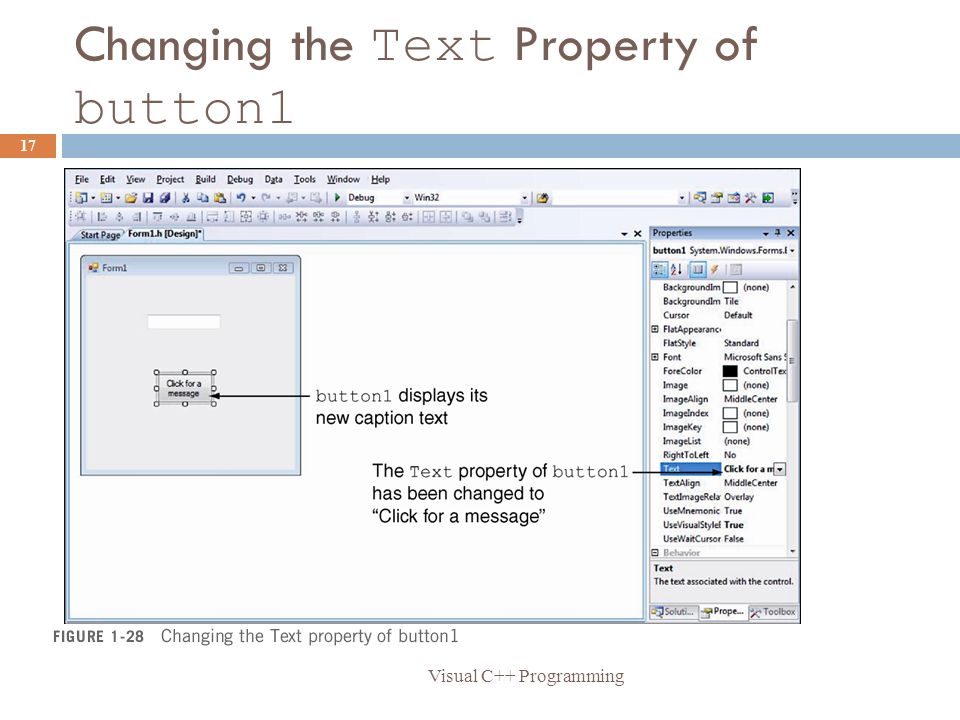

17. Changing the Text Property of button1 Visual C++ Programming 17

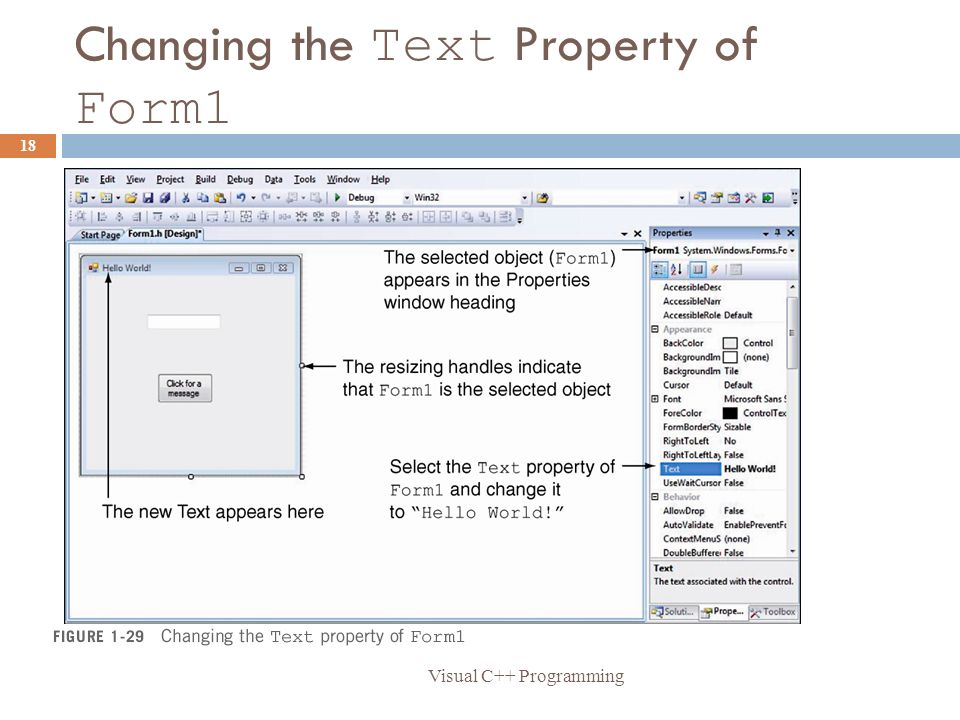

18. Changing the Text Property of Form1 Visual C++ Programming 18

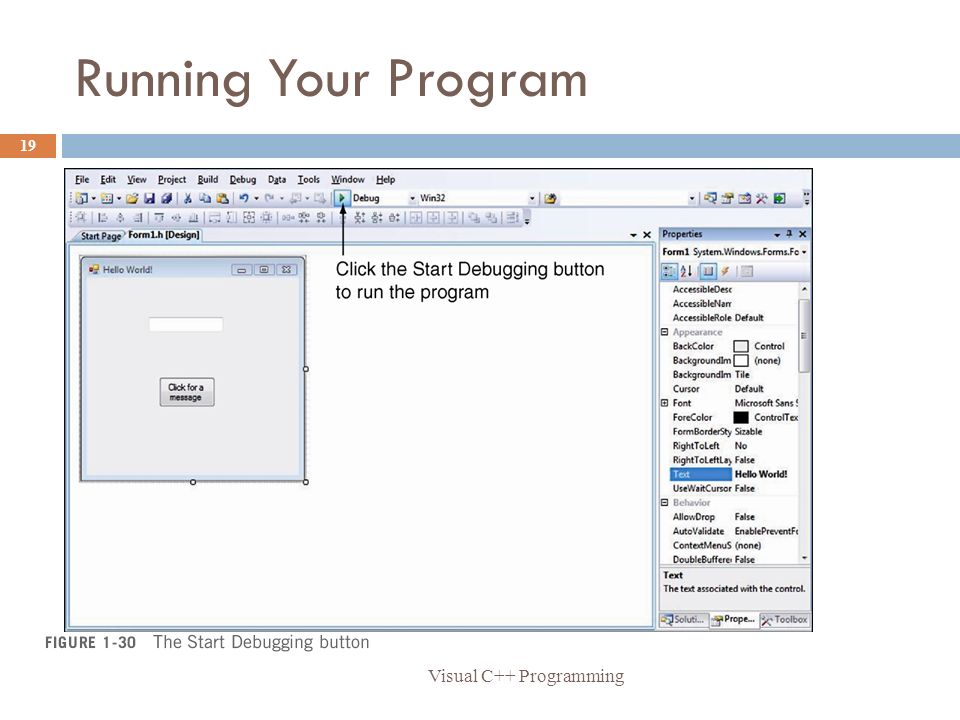

19. Running Your Program Visual C++ Programming 19

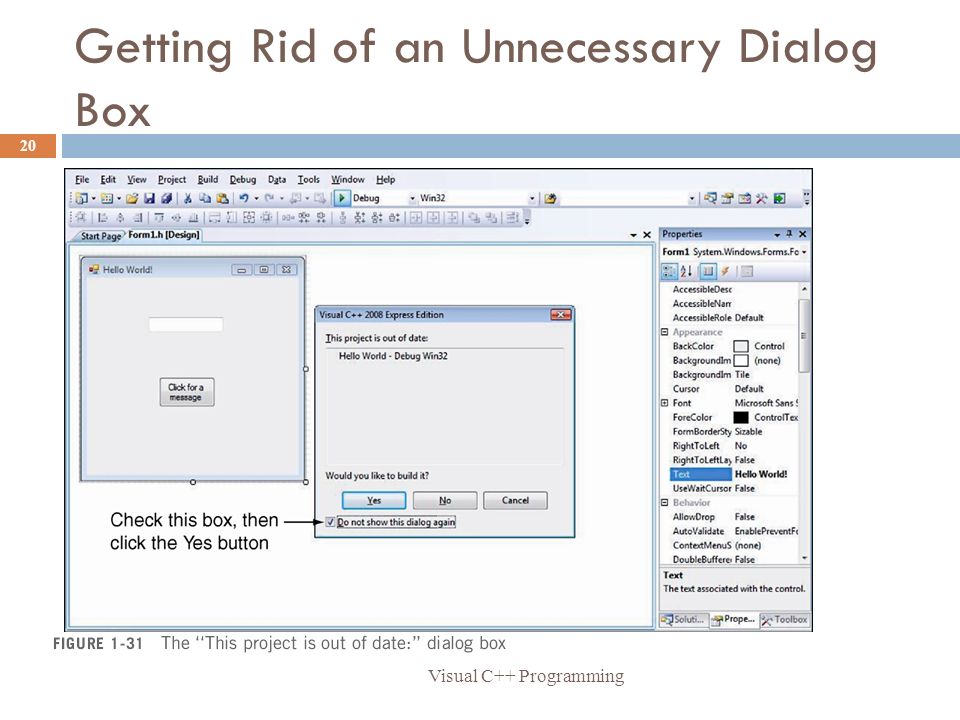

20. Getting Rid of an Unnecessary Dialog Box Visual C++ Programming 20

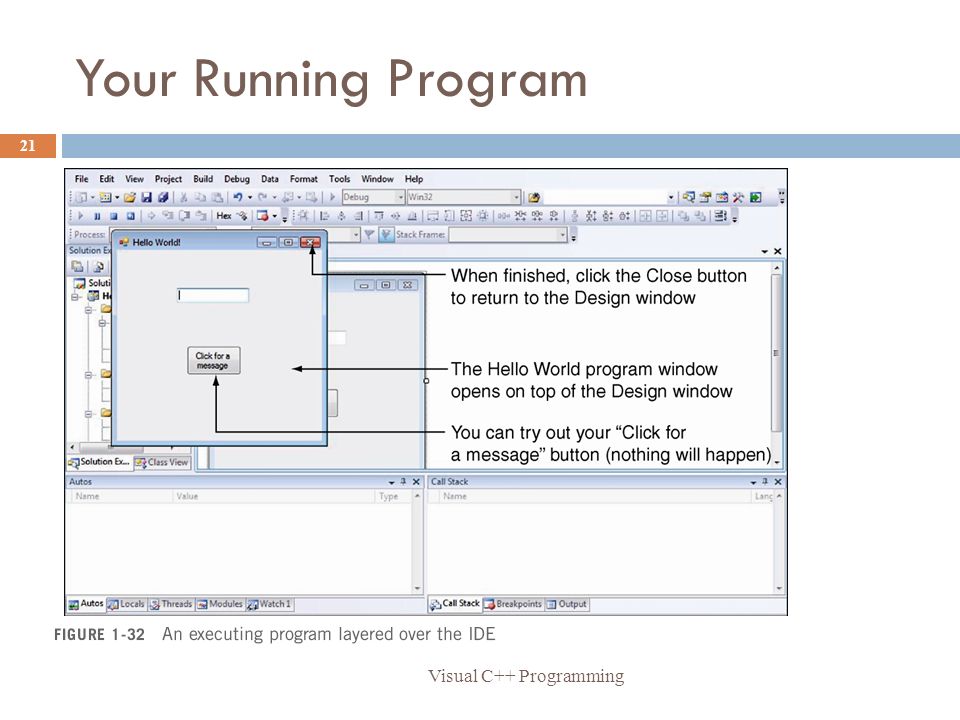

21. Your Running Program Visual C++ Programming 21

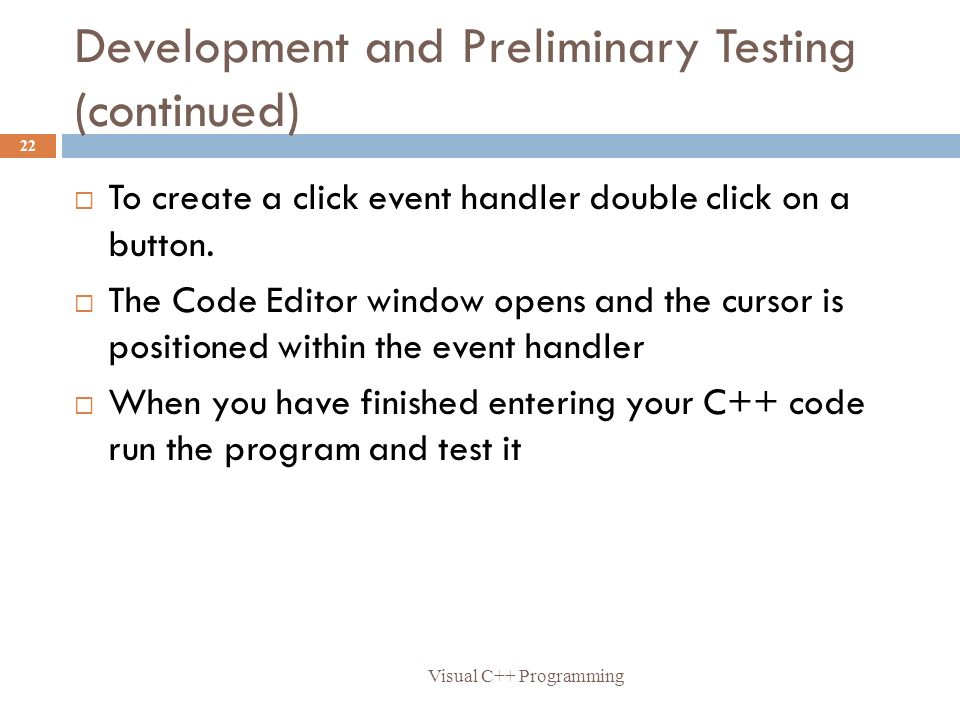

22. Development and Preliminary Testing (continued) Visual C++ Programming 22  To create a click event handler double click on a button.  The Code Editor window opens and the cursor is positioned within the event handler  When you have finished entering your C++ code run the program and test it

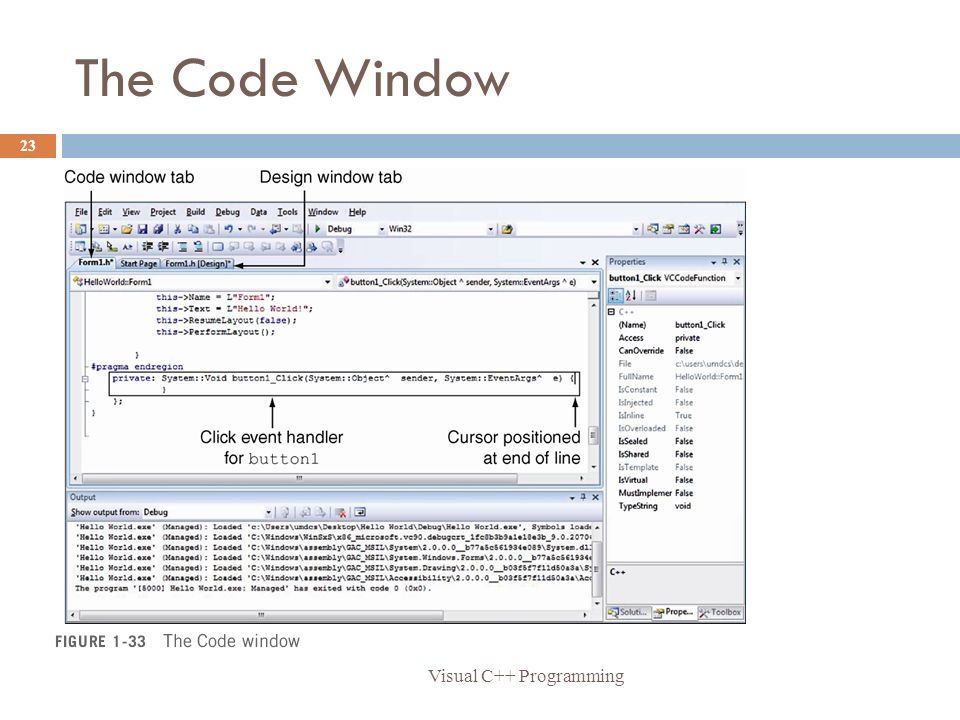

23. The Code Window Visual C++ Programming 23

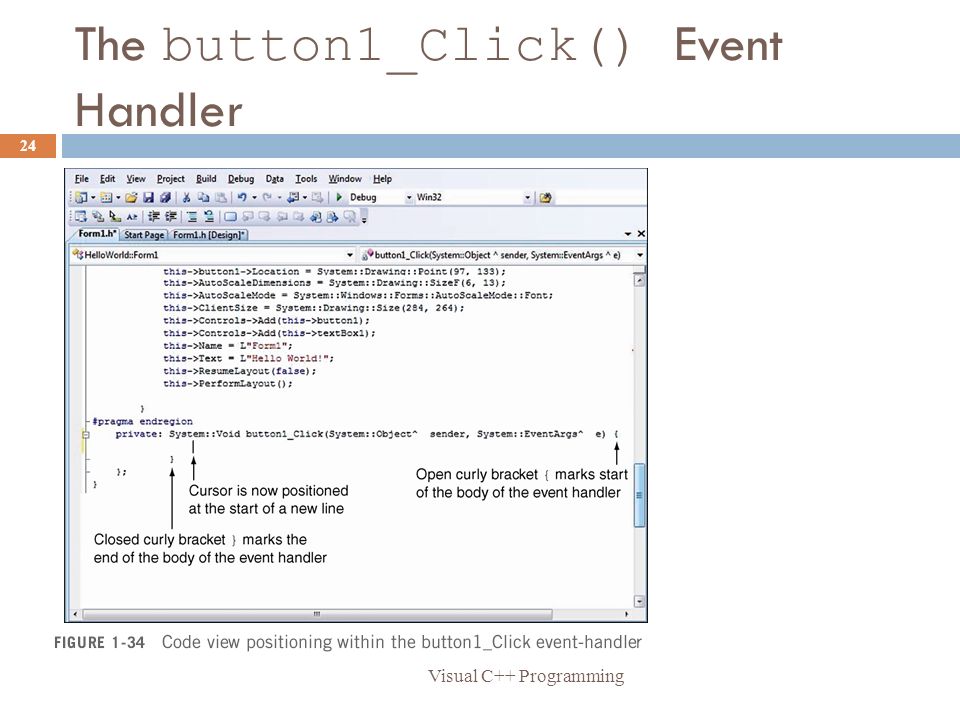

24. The button1_Click() Event Handler Visual C++ Programming 24

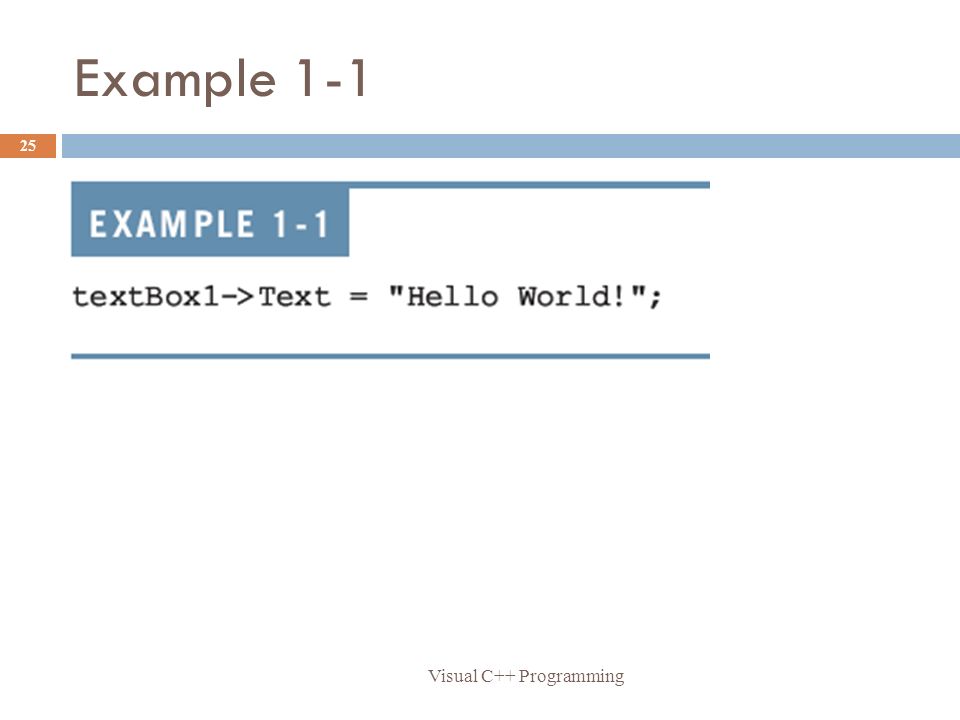

25. Example 1-1 Visual C++ Programming 25

26. The Statement Completion Dropdown Box Visual C++ Programming 26

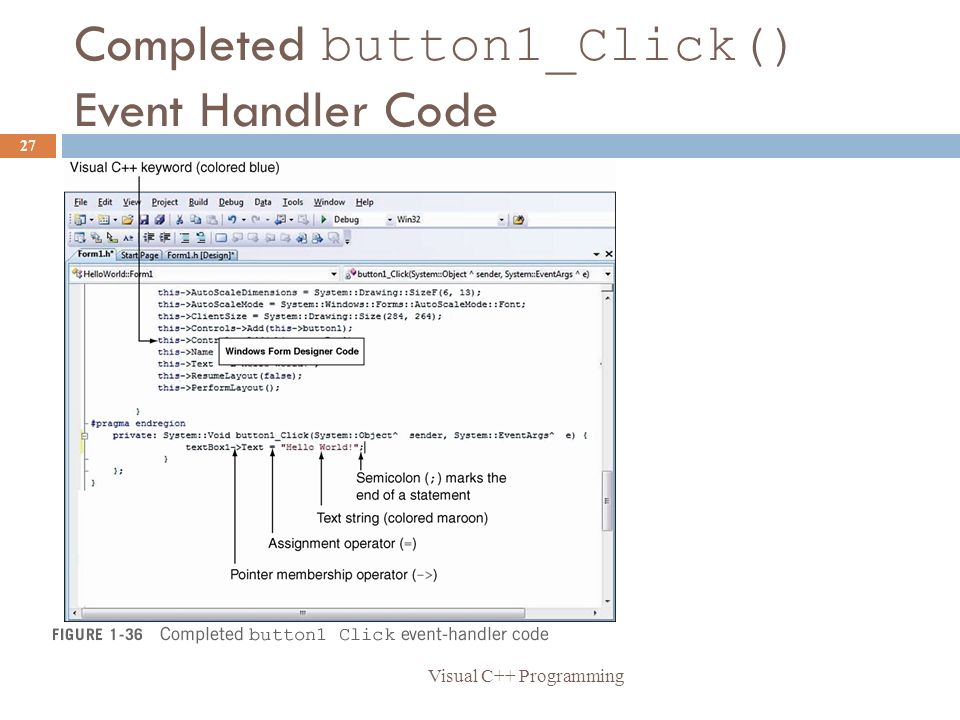

27. Completed button1_Click() Event Handler Code Visual C++ Programming 27

28. Understanding the Code Visual C++ Programming 28  Windows Forms Designer code  Created automatically  Defines the Form1 class definition  Do not modify it or your program may not work  Keywords  Keywords have a special meaning in Visual C++ and can only be used in their designated context  Keywords are automatically colored blue  Example: this->BackColor  See Appendix B for a list of C++ keywords

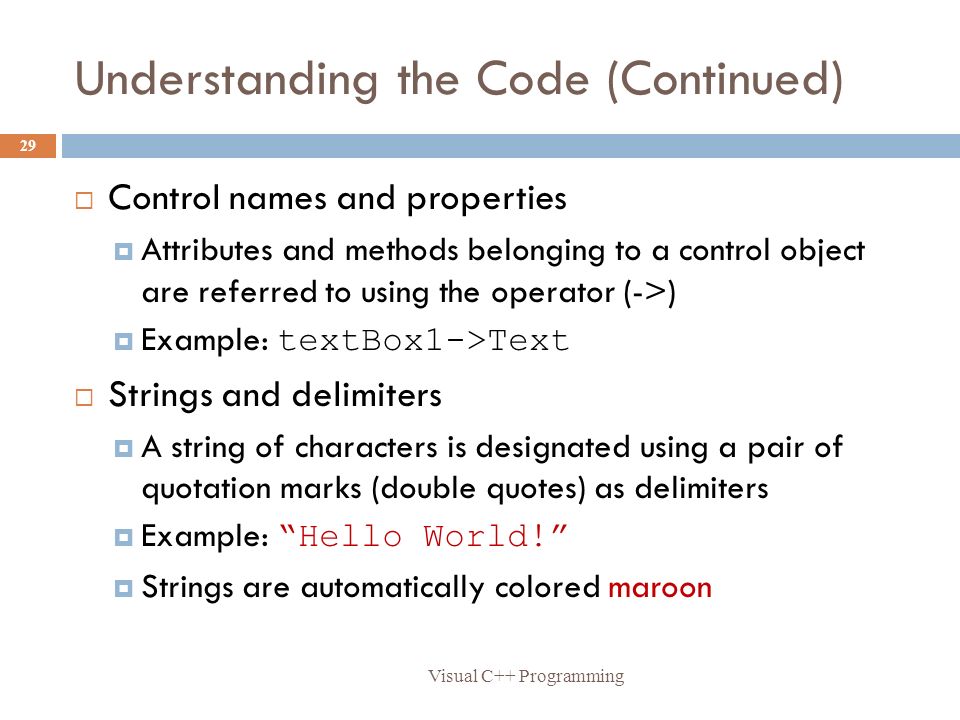

29. Understanding the Code (Continued) Visual C++ Programming 29  Control names and properties  Attributes and methods belonging to a control object are referred to using the operator (->)  Example: textBox1->Text  Strings and delimiters  A string of characters is designated using a pair of quotation marks (double quotes) as delimiters  Example: “Hello World!”  Strings are automatically colored maroon

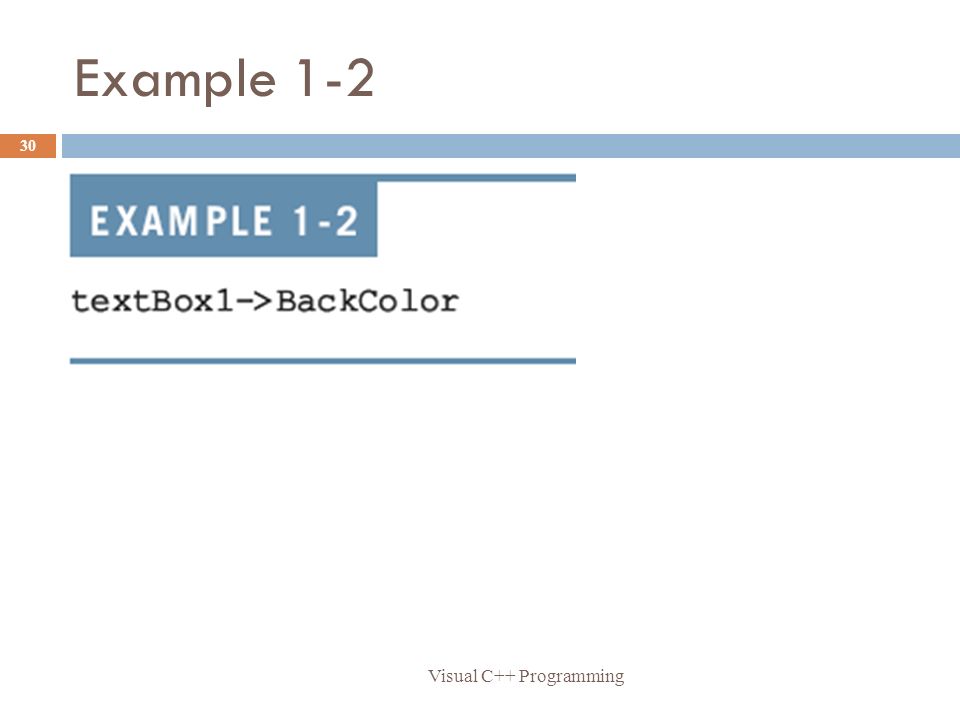

30. Example 1-2 Visual C++ Programming 30

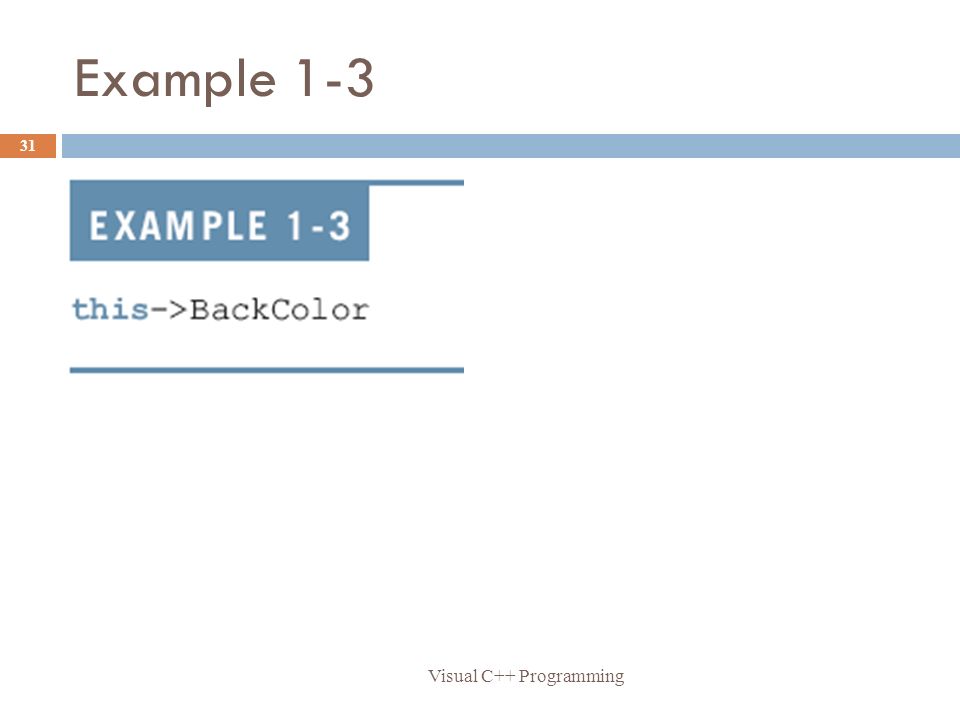

31. Example 1-3 Visual C++ Programming 31

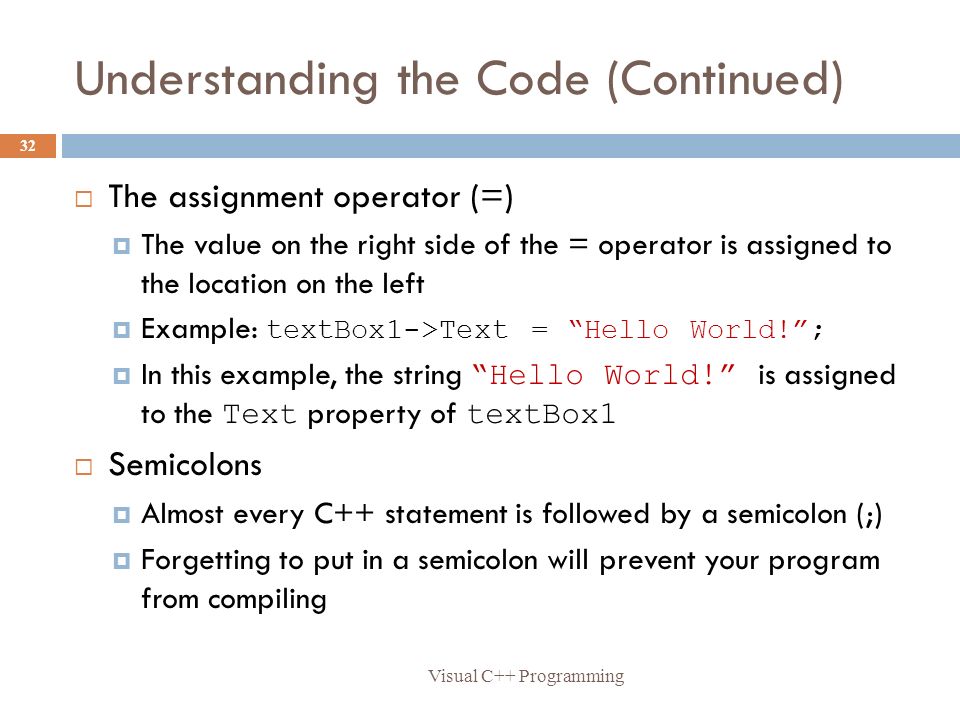

32. Understanding the Code (Continued) Visual C++ Programming 32  The assignment operator (=)  The value on the right side of the = operator is assigned to the location on the left  Example: textBox1->Text = “Hello World!”;  In this example, the string “Hello World!” is assigned to the Text property of textBox1  Semicolons  Almost every C++ statement is followed by a semicolon (;)  Forgetting to put in a semicolon will prevent your program from compiling

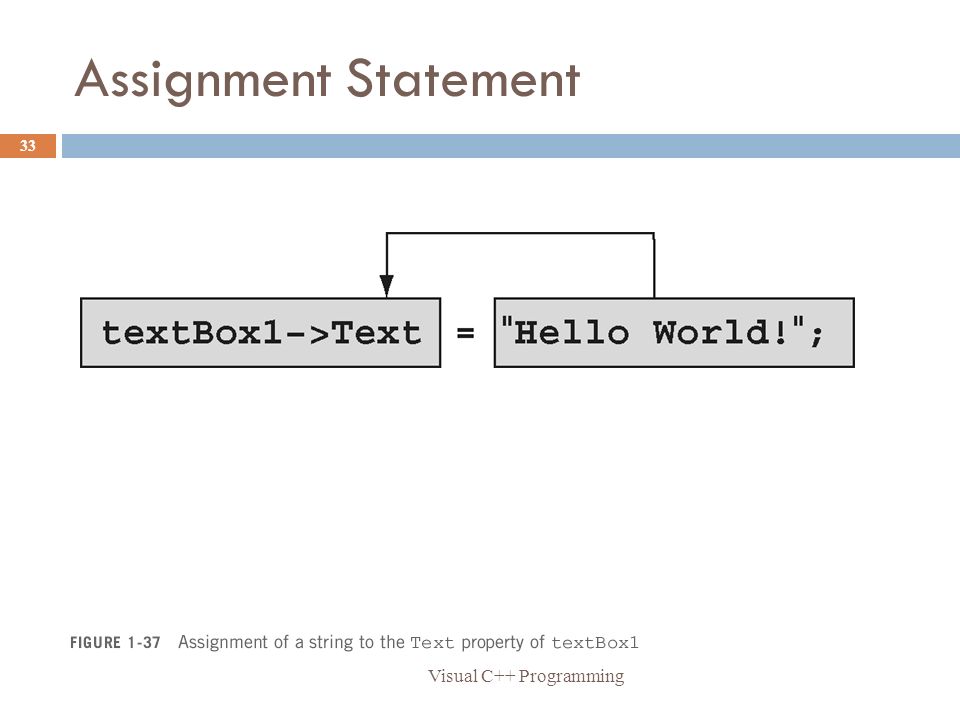

33. Assignment Statement Visual C++ Programming 33

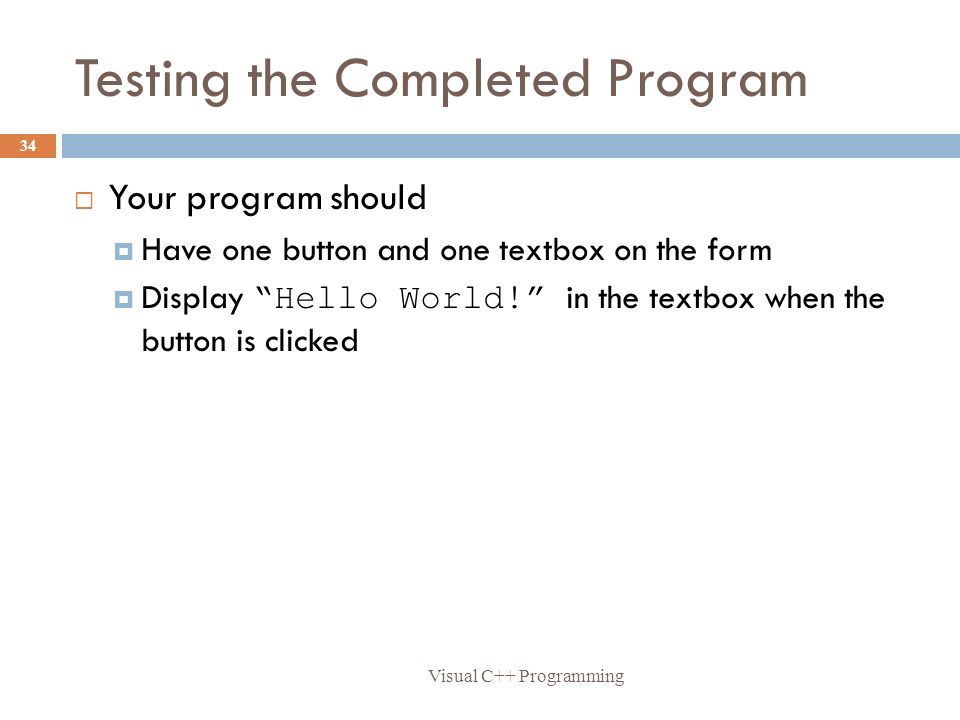

34. Testing the Completed Program Visual C++ Programming 34  Your program should  Have one button and one textbox on the form  Display “Hello World!” in the textbox when the button is clicked

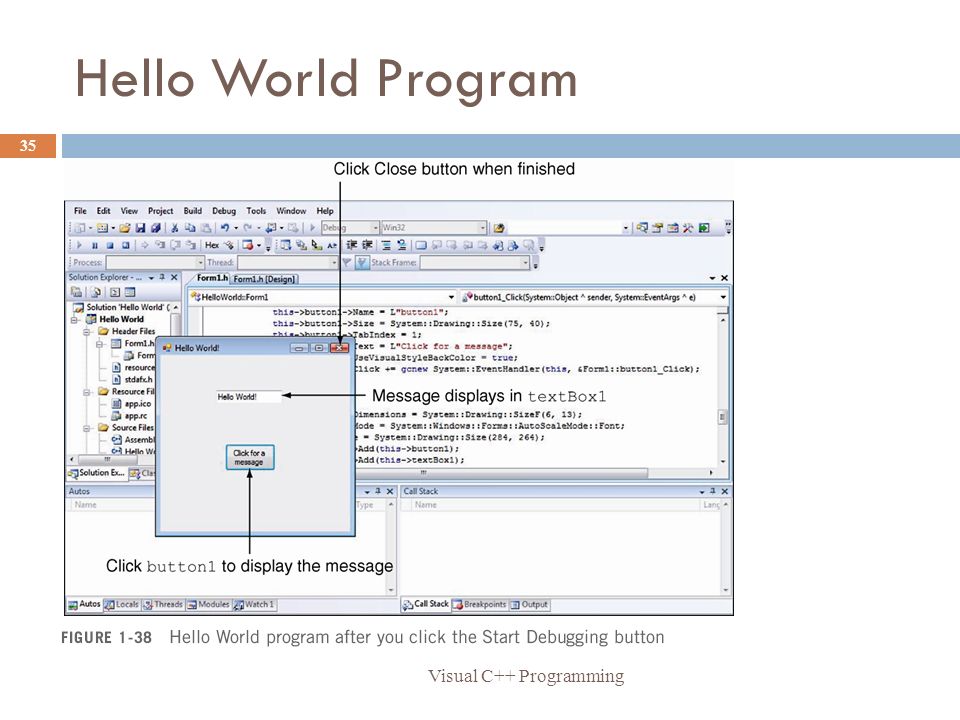

35. Hello World Program Visual C++ Programming 35

36. Debugging a Program Visual C++ Programming 36  Remove the semicolon (;) from the end of the line you entered earlier  Now run your program and look at the error messages displaying in the Output window  Find the error number and description  Find the line at which the error was detected by the compiler  Fix the error and run your program again

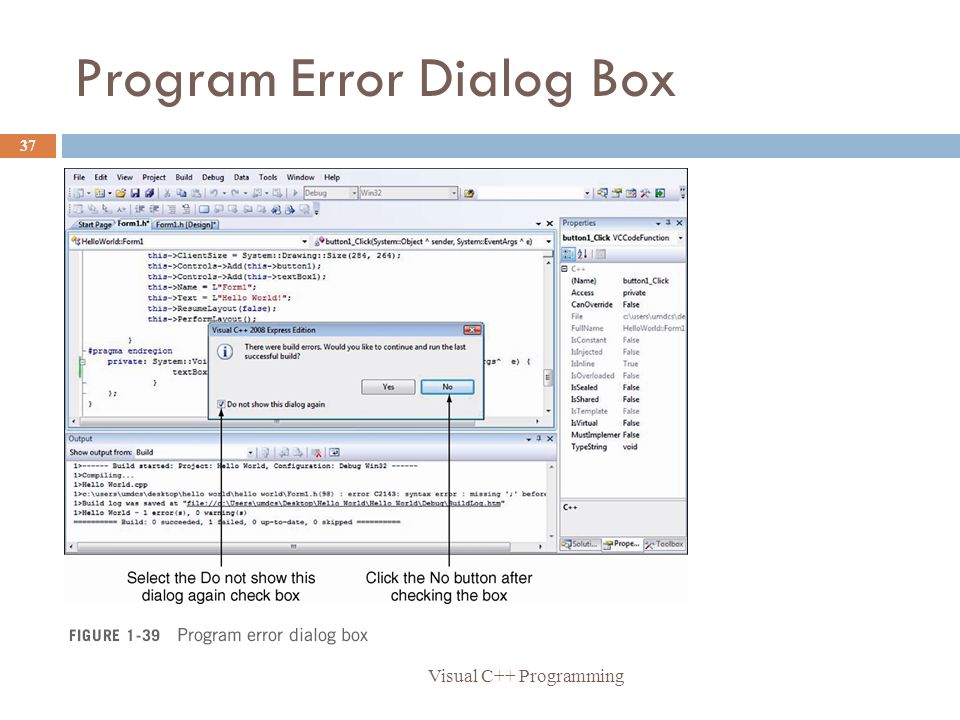

37. Program Error Dialog Box Visual C++ Programming 37

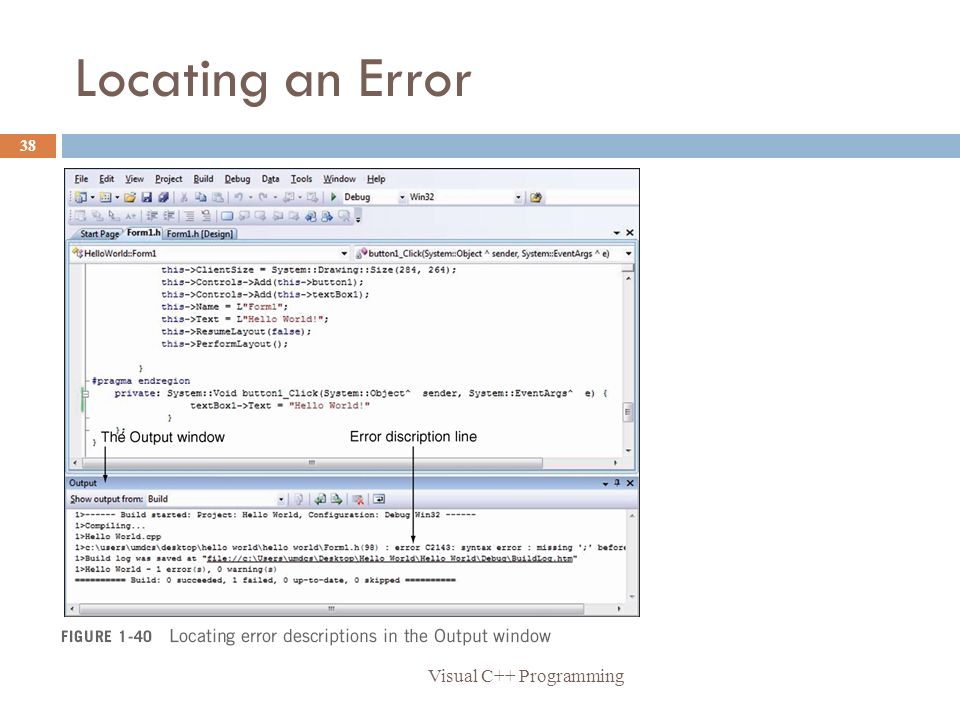

38. Locating an Error Visual C++ Programming 38

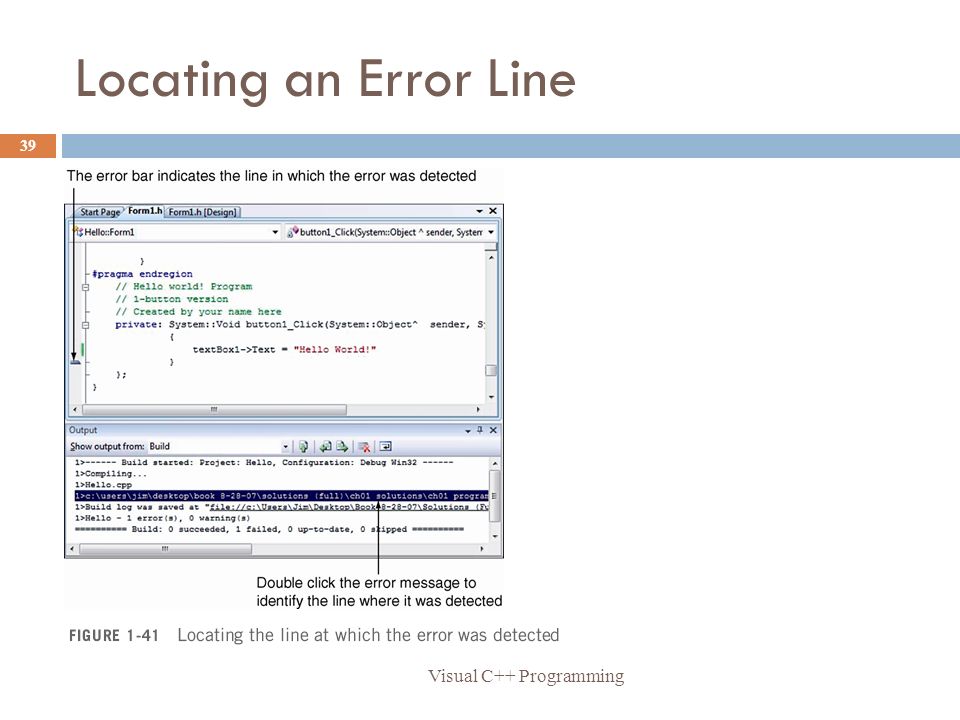

39. Locating an Error Line Visual C++ Programming 39

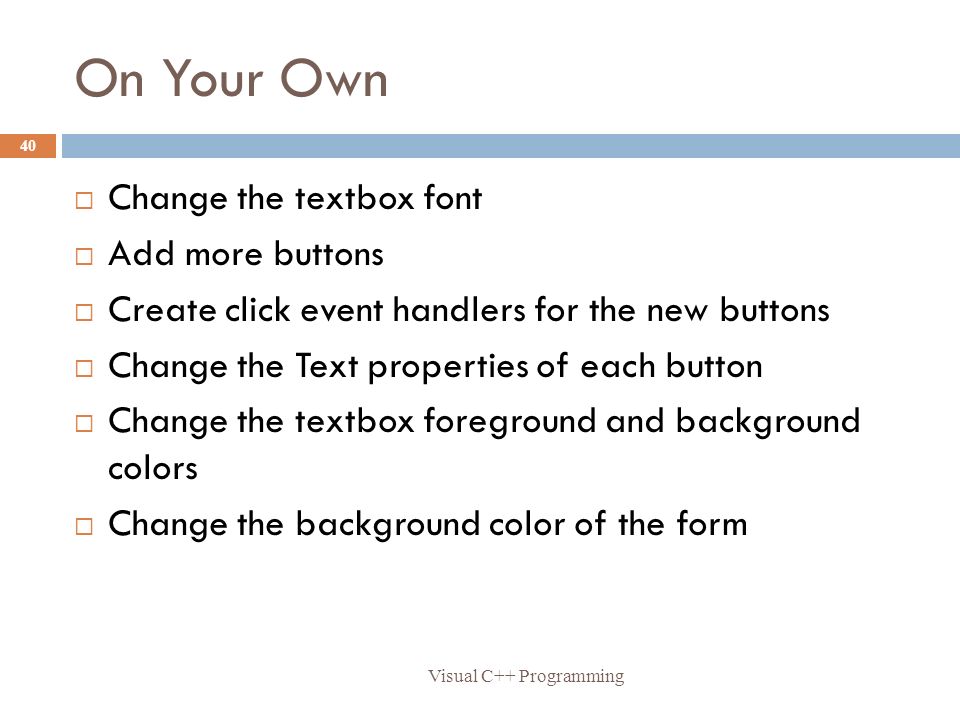

40. On Your Own Visual C++ Programming 40  Change the textbox font  Add more buttons  Create click event handlers for the new buttons  Change the Text properties of each button  Change the textbox foreground and background colors  Change the background color of the form

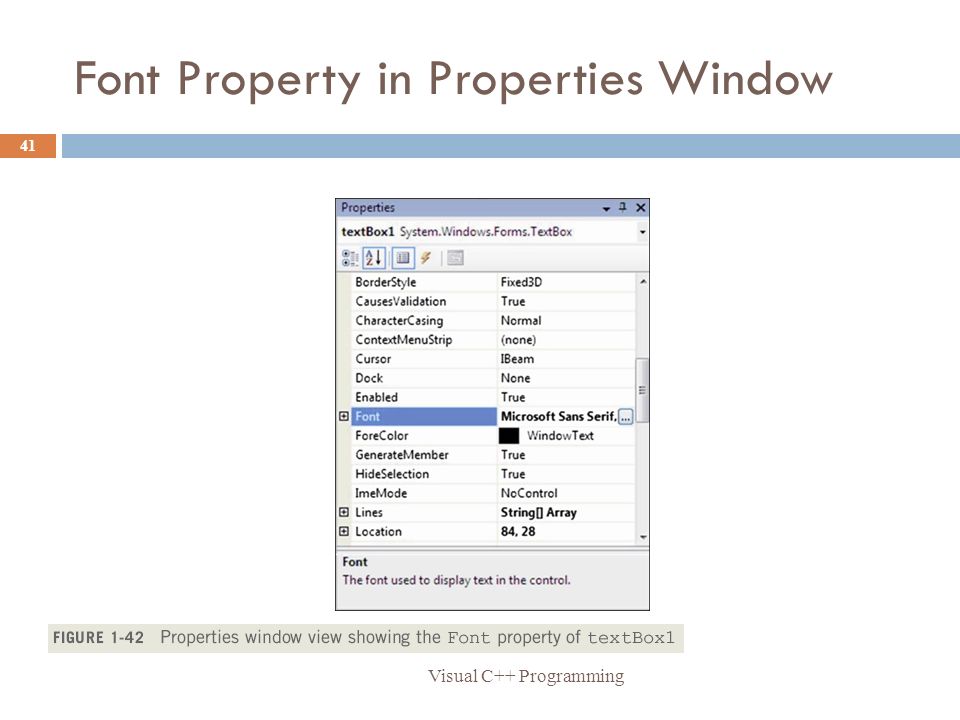

41. Font Property in Properties Window Visual C++ Programming 41

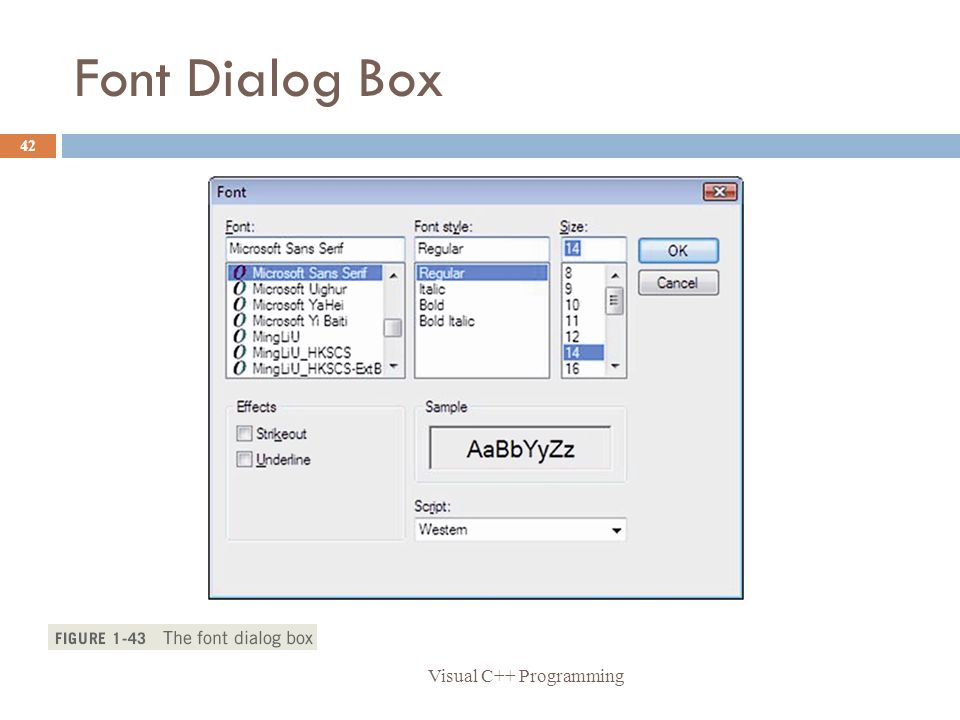

42. Font Dialog Box Visual C++ Programming 42

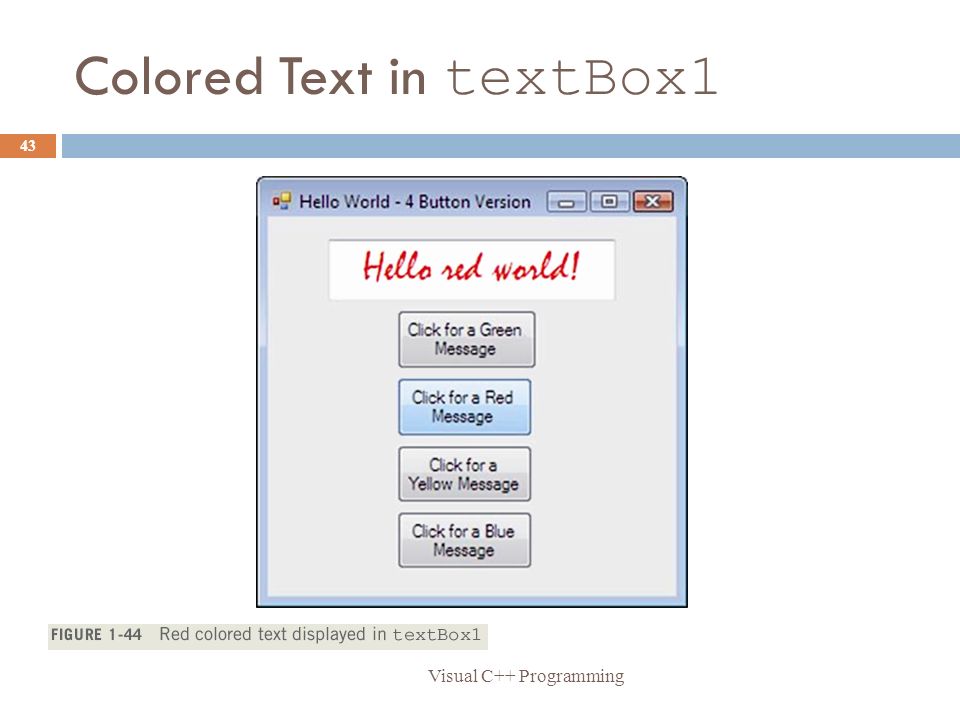

43. Colored Text in textBox1 Visual C++ Programming 43

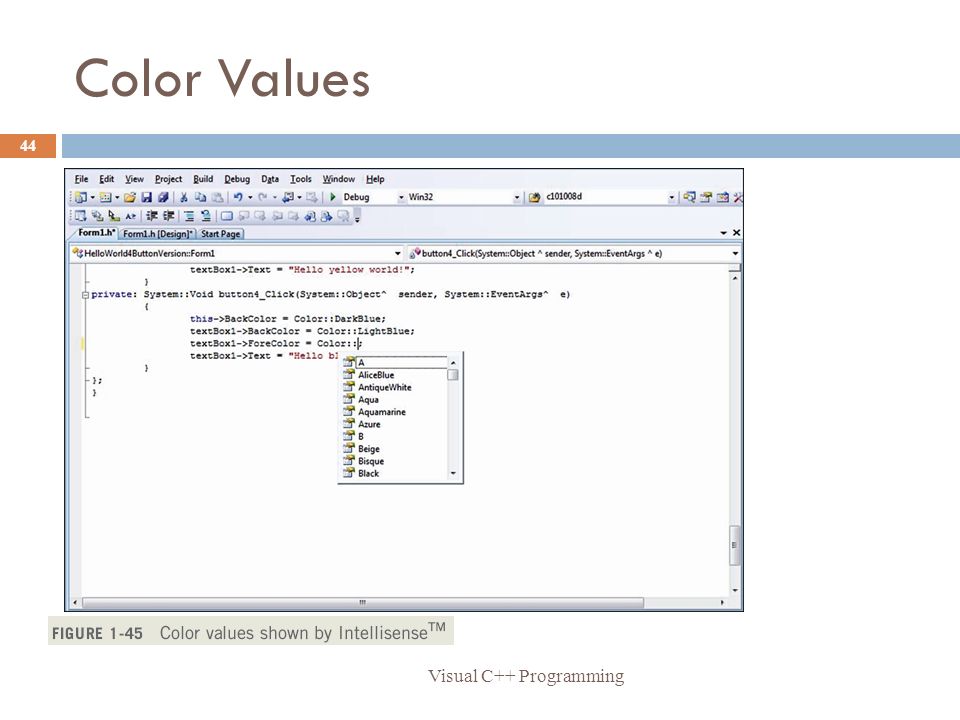

44. Color Values Visual C++ Programming 44

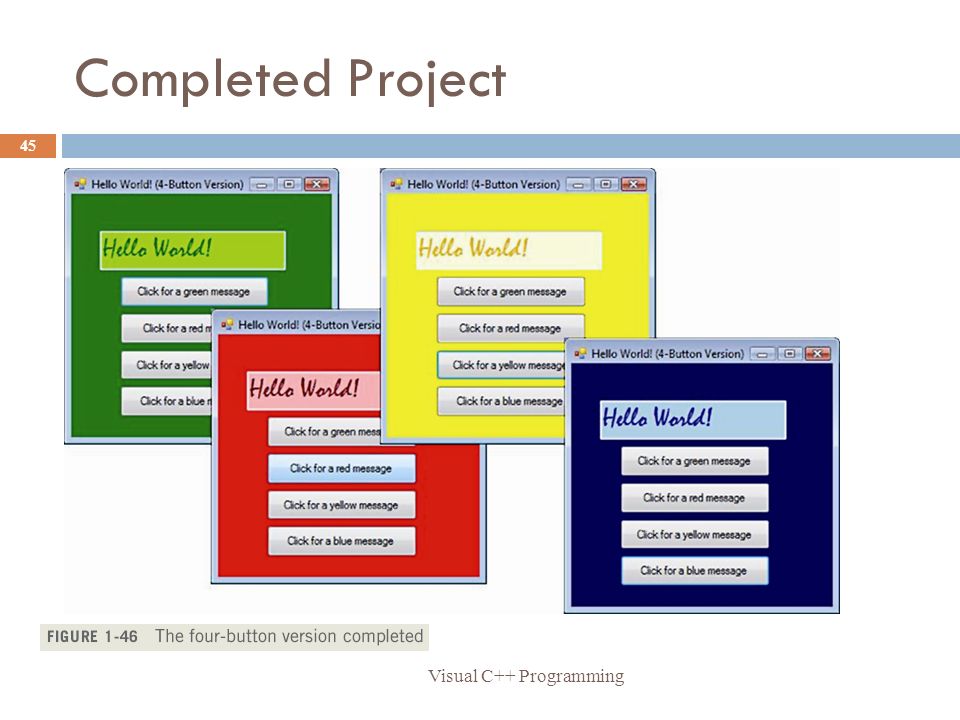

45. Completed Project Visual C++ Programming 45
