1. Nsure ™ Identity Manager 2 (formerly DirXML ® ) Driver Development Overview Richard Matheson DirXML Driver Engineering Manager Novell, Inc. rmatheson@novell.com

2. © March 9, 2004 Novell Inc. 2 one Net: Information without boundaries…where the right people are connected with the right information at the right time to make the right decisions. The one Net vision Novell exteNd ™ Novell Nsure ™ Novell Nterprise ™ Novell Ngage SM : : : :

3. © March 9, 2004 Novell Inc. 3 The one Net vision Novell Nsure solutions take identity management to a whole new level. Novell Nsure gives you the power to control access so you can confidently deliver the right resources to the right people — securely, efficiently, and best of all, affordably. Novell Nsure ™ Novell exteNd ™ Novell Nsure ™ Novell Nterprise ™ Novell Ngage SM : : : :

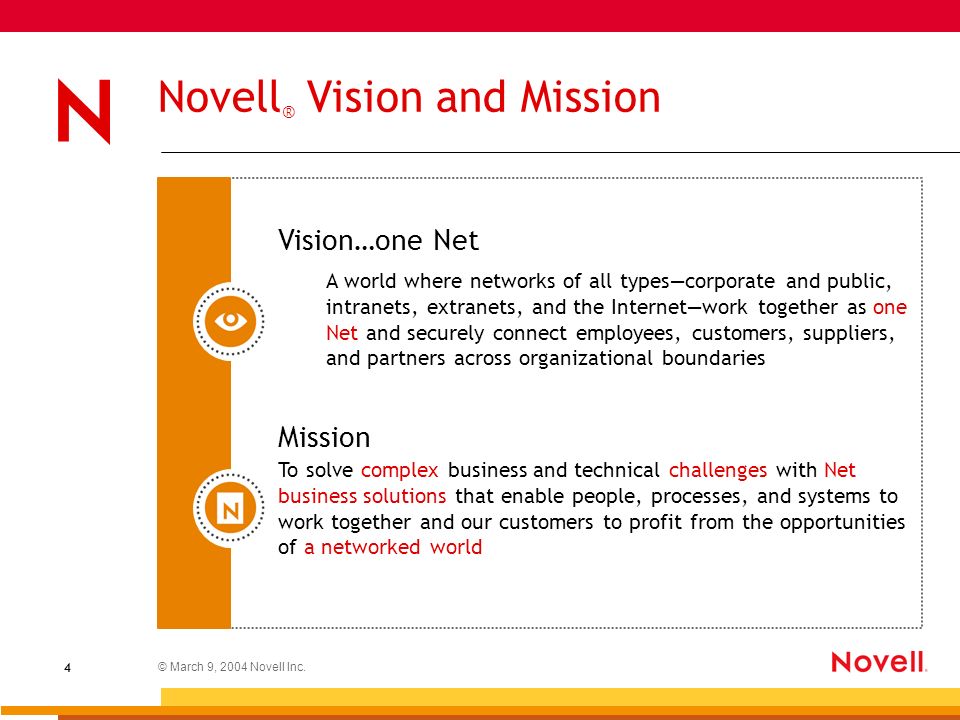

4. © March 9, 2004 Novell Inc. 4 Vision…one Net A world where networks of all types—corporate and public, intranets, extranets, and the Internet—work together as one Net and securely connect employees, customers, suppliers, and partners across organizational boundaries Novell ® Vision and Mission Mission To solve complex business and technical challenges with Net business solutions that enable people, processes, and systems to work together and our customers to profit from the opportunities of a networked world

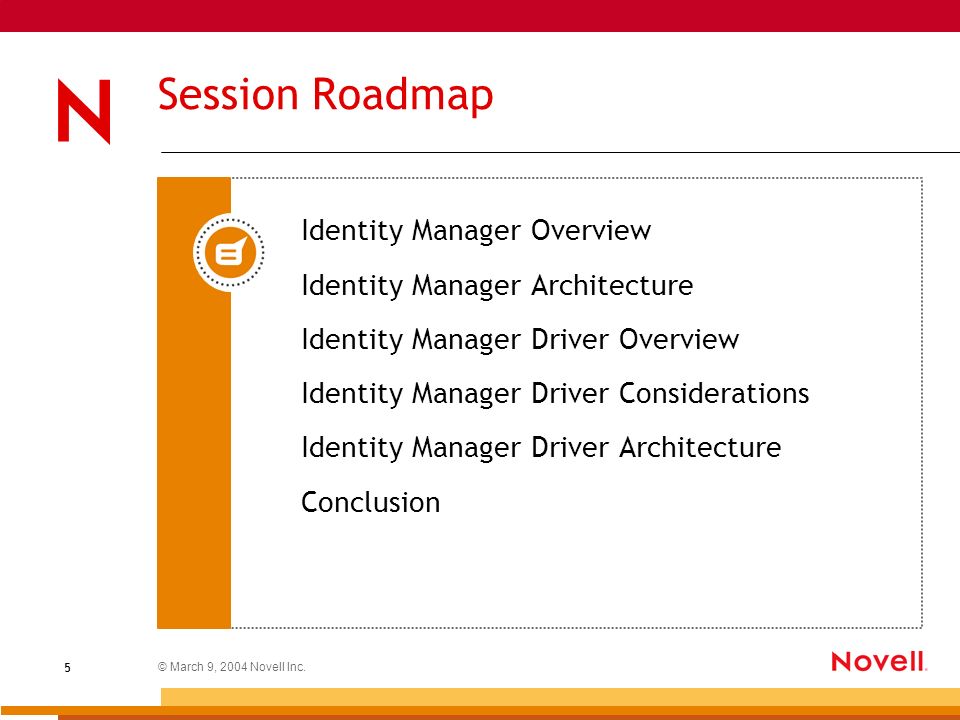

5. © March 9, 2004 Novell Inc. 5 Session Roadmap Identity Manager Overview Identity Manager Architecture Identity Manager Driver Overview Identity Manager Driver Considerations Identity Manager Driver Architecture Conclusion

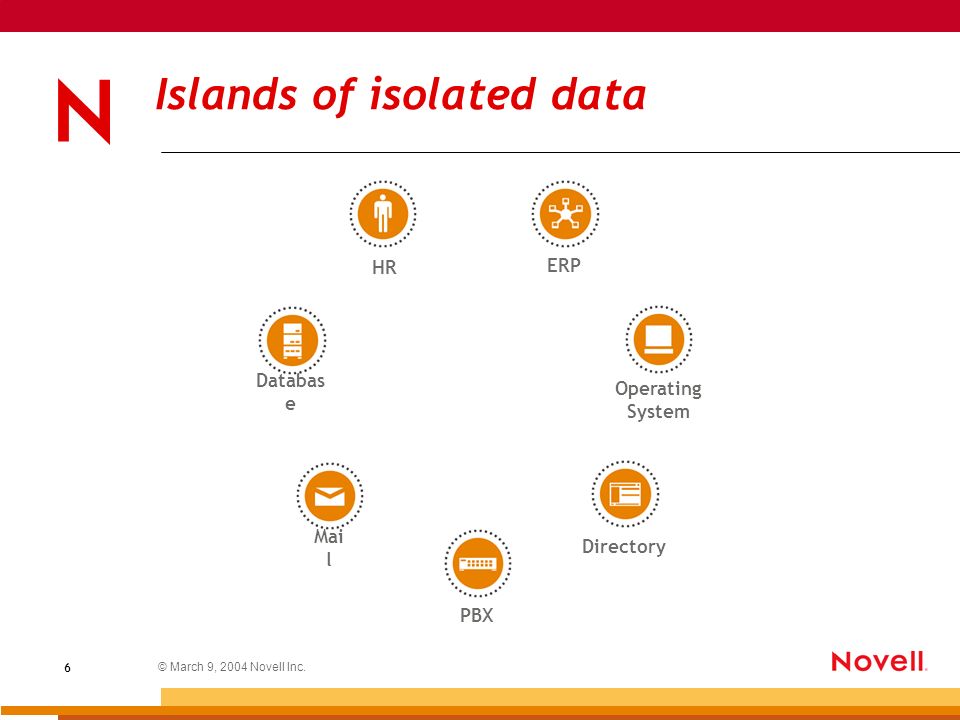

6. © March 9, 2004 Novell Inc. 6 HR ERP Operating System Databas e Mai l PBX Directory Islands of isolated data

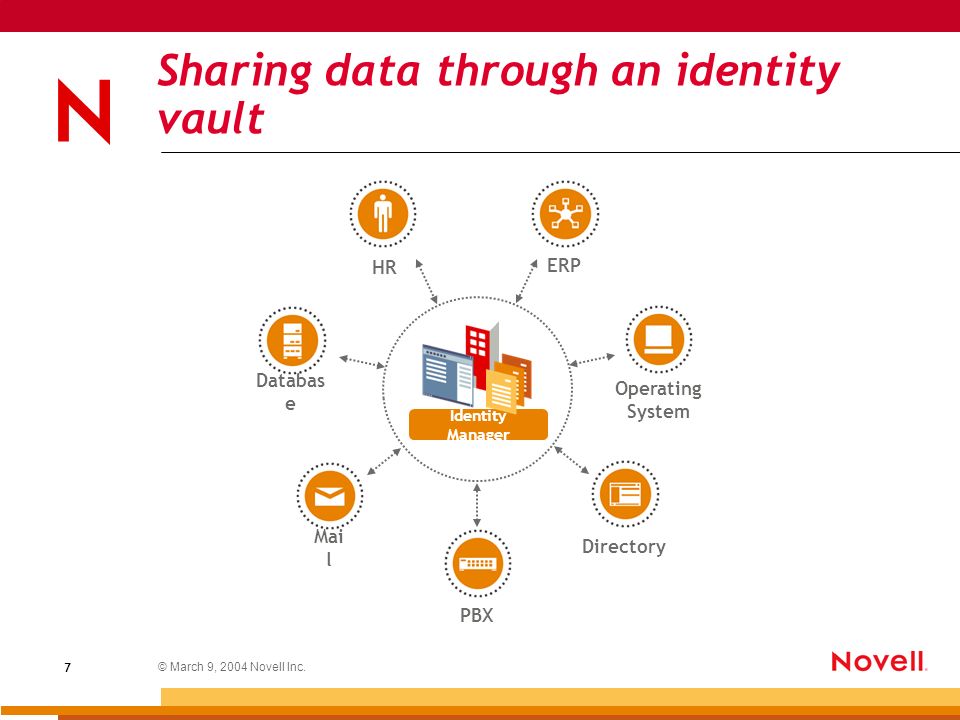

7. © March 9, 2004 Novell Inc. 7 Sharing data through an identity vault HR ERP PBX Directory Mai l Operating System Databas e Identity Manager

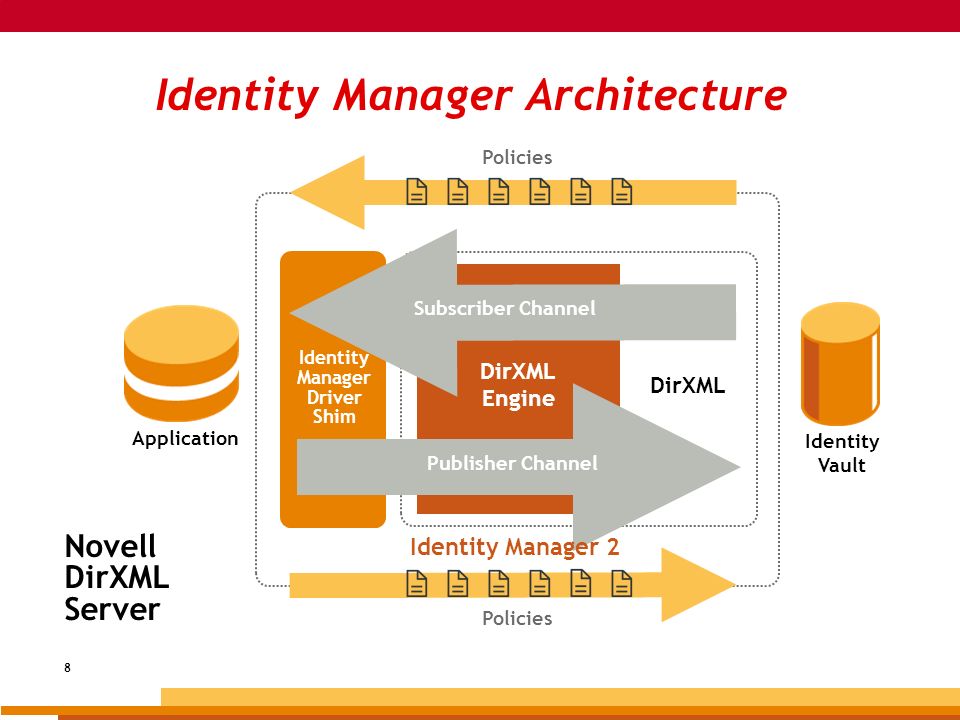

8. 8 Identity Manager Architecture Identity Vault DirXML Engine Identity Manager Driver Shim Policies Subscriber Channel Publisher Channel Application Novell DirXML Server Identity Manager 2

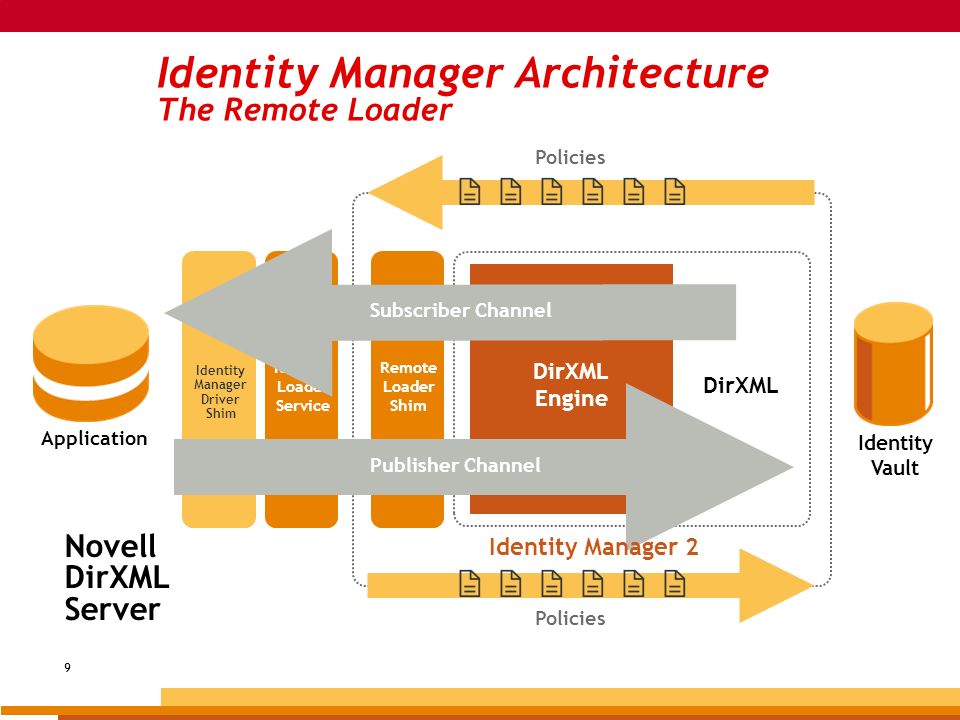

9. 9 Identity Manager Architecture The Remote Loader Identity Vault DirXML Engine Identity Manager Driver Shim Policies Application Novell DirXML Server Remote Loader Shim Remote Loader Service Subscriber Channel Publisher Channel Identity Manager 2

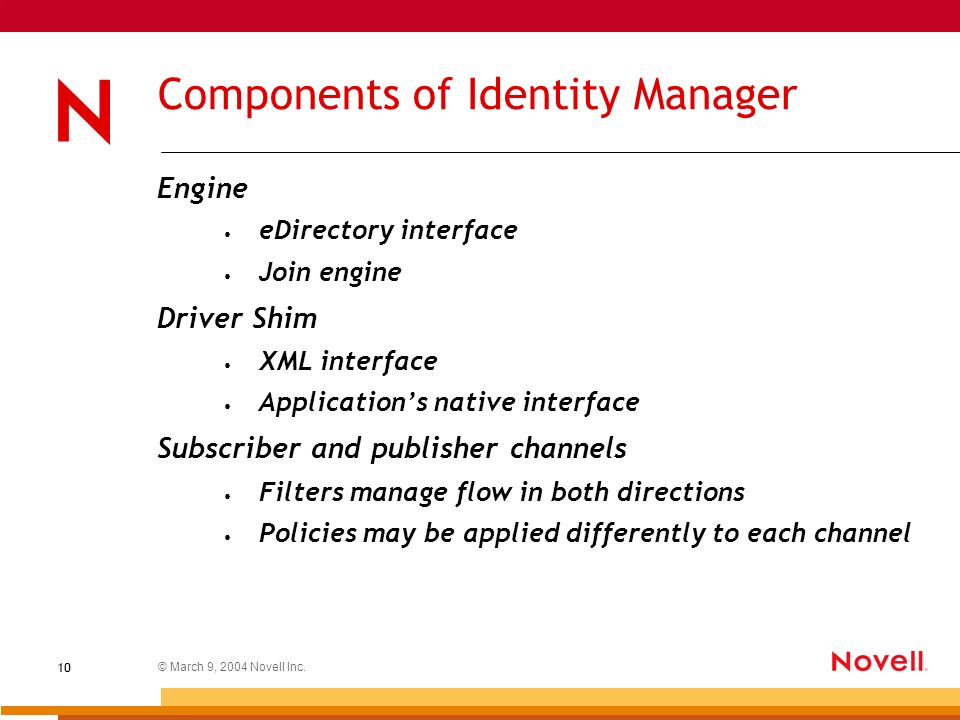

10. © March 9, 2004 Novell Inc. 10 Components of Identity Manager Engine eDirectory interface Join engine Driver Shim XML interface Application’s native interface Subscriber and publisher channels Filters manage flow in both directions Policies may be applied differently to each channel

11. © March 9, 2004 Novell Inc. 11 Identity Manager Engine eDirectory interface Supports loading of multiple drivers Guaranteed delivery of eDirectory events eDirectory event loop-back detection Join engine Handles data transformations Rules processor XSLT processor

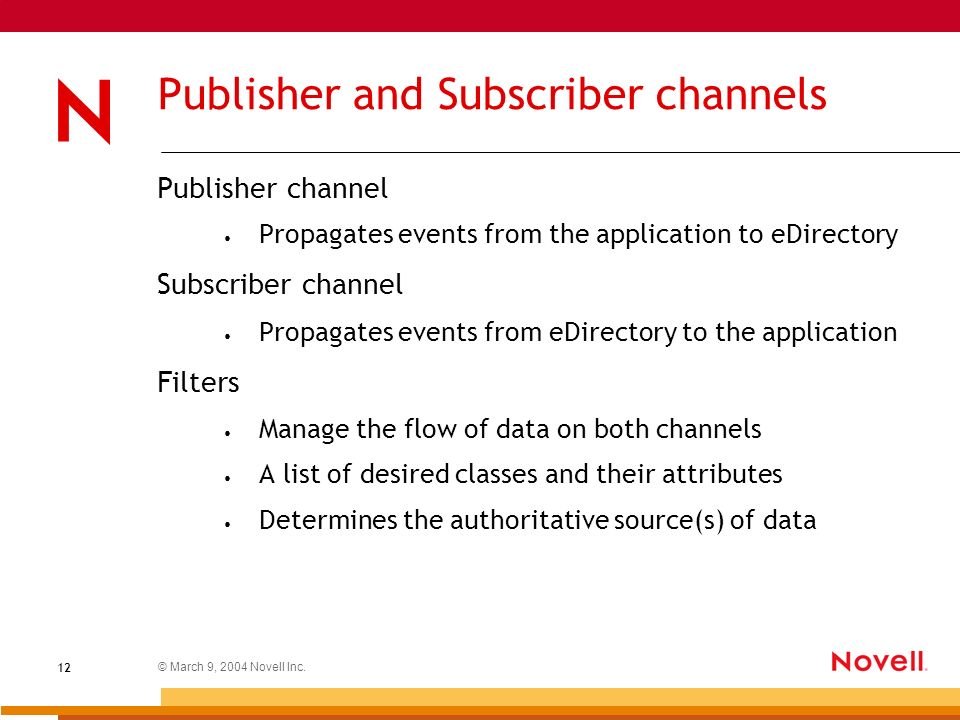

12. © March 9, 2004 Novell Inc. 12 Publisher and Subscriber channels Publisher channel Propagates events from the application to eDirectory Subscriber channel Propagates events from eDirectory to the application Filters Manage the flow of data on both channels A list of desired classes and their attributes Determines the authoritative source(s) of data

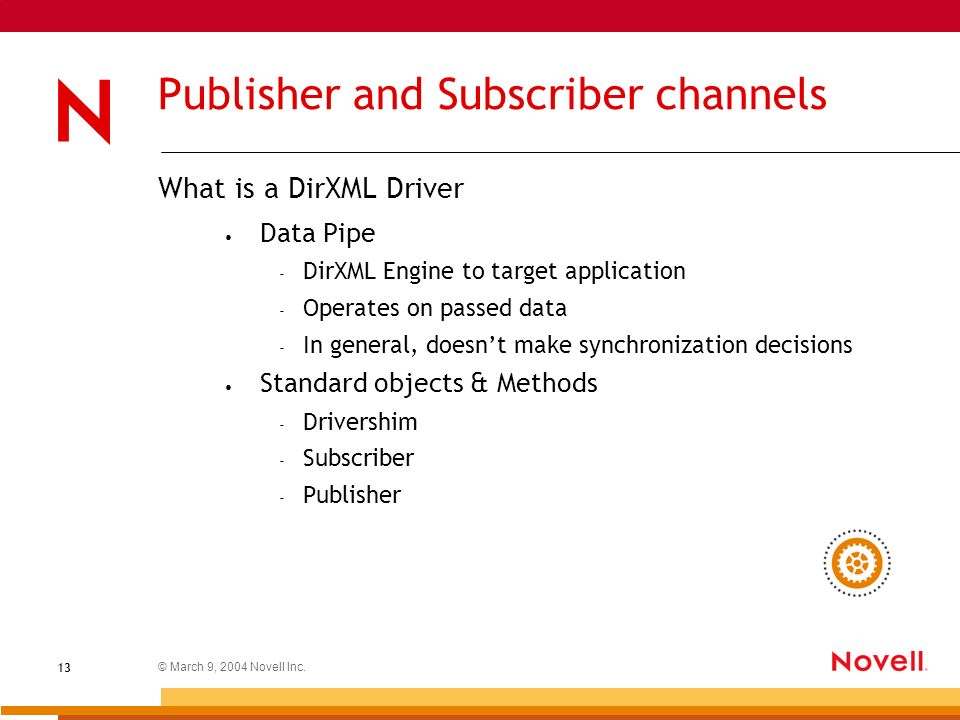

13. © March 9, 2004 Novell Inc. 13 Publisher and Subscriber channels What is a DirXML Driver Data Pipe ‐ DirXML Engine to target application ‐ Operates on passed data ‐ In general, doesn’t make synchronization decisions Standard objects & Methods ‐ Drivershim ‐ Subscriber ‐ Publisher

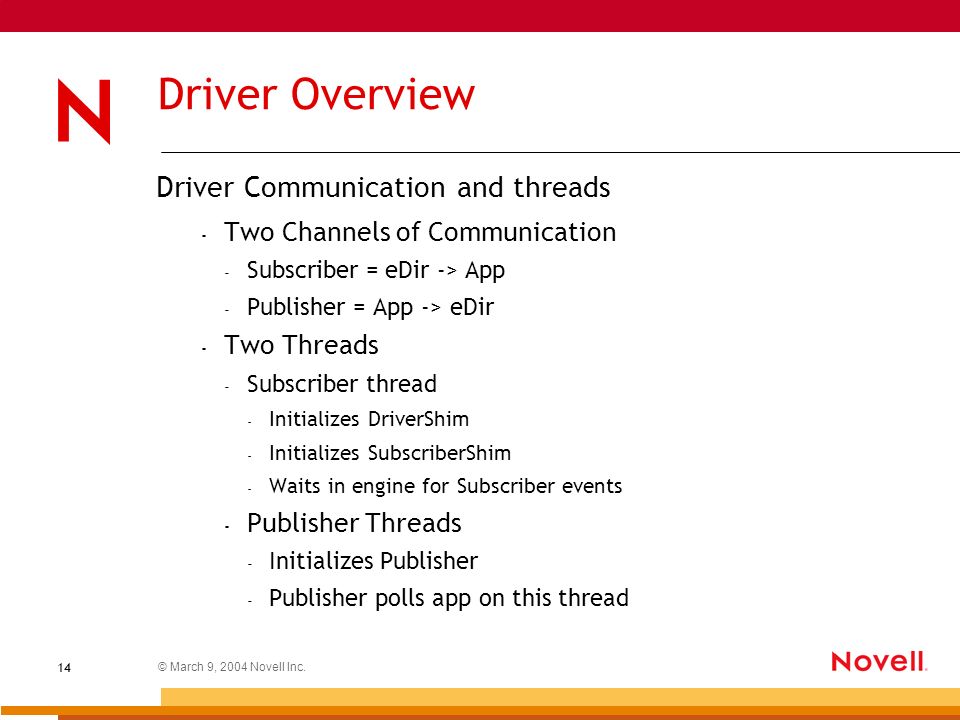

14. © March 9, 2004 Novell Inc. 14 Driver Overview Driver Communication and threads ‐ Two Channels of Communication ‐ Subscriber = eDir -> App ‐ Publisher = App -> eDir ‐ Two Threads ‐ Subscriber thread ‐ Initializes DriverShim ‐ Initializes SubscriberShim ‐ Waits in engine for Subscriber events ‐ Publisher Threads ‐ Initializes Publisher ‐ Publisher polls app on this thread

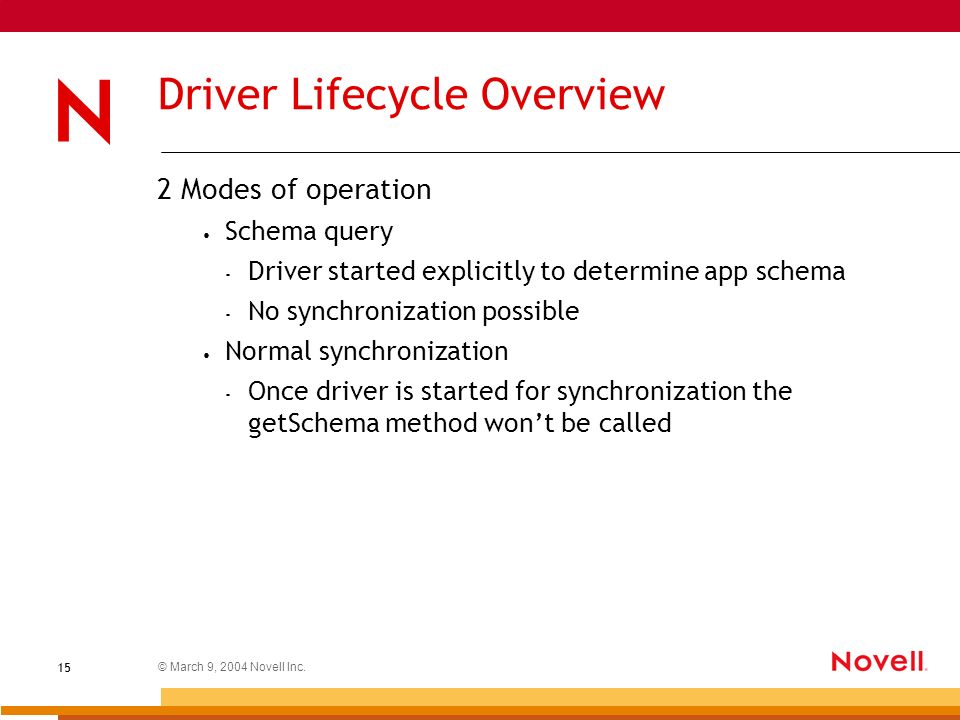

15. © March 9, 2004 Novell Inc. 15 Driver Lifecycle Overview 2 Modes of operation Schema query ‐ Driver started explicitly to determine app schema ‐ No synchronization possible Normal synchronization ‐ Once driver is started for synchronization the getSchema method won’t be called

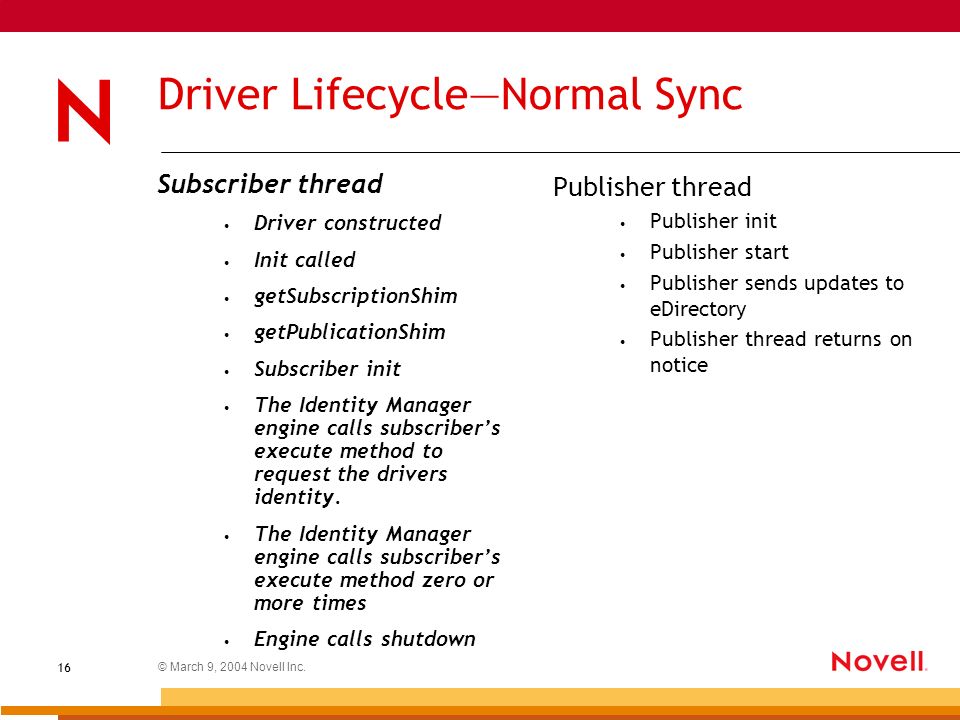

16. © March 9, 2004 Novell Inc. 16 Driver Lifecycle—Normal Sync Subscriber thread Driver constructed Init called getSubscriptionShim getPublicationShim Subscriber init The Identity Manager engine calls subscriber’s execute method to request the drivers identity. The Identity Manager engine calls subscriber’s execute method zero or more times Engine calls shutdown Publisher thread Publisher init Publisher start Publisher sends updates to eDirectory Publisher thread returns on notice

17. © March 9, 2004 Novell Inc. 17 Driver Lifecycle—getSchema Subscriber thread Driver constructed getSchema called with all initialization parameters Driver is destroyed Publisher thread Not used

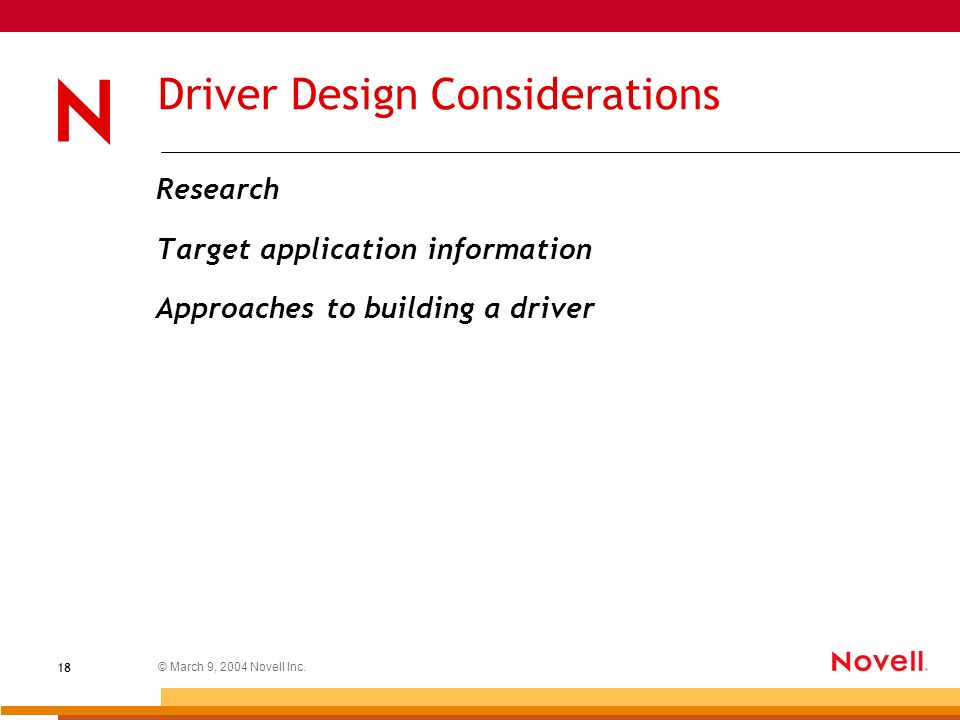

18. © March 9, 2004 Novell Inc. 18 Driver Design Considerations Research Target application information Approaches to building a driver

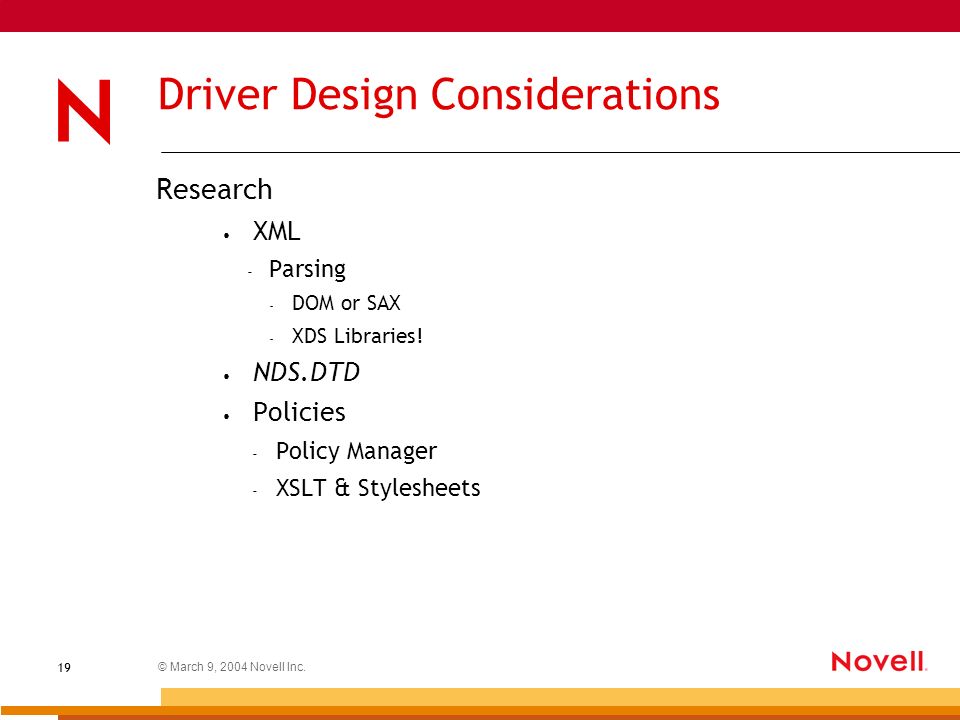

19. © March 9, 2004 Novell Inc. 19 Driver Design Considerations Research XML ‐ Parsing ‐ DOM or SAX ‐ XDS Libraries! NDS.DTD Policies ‐ Policy Manager ‐ XSLT & Stylesheets

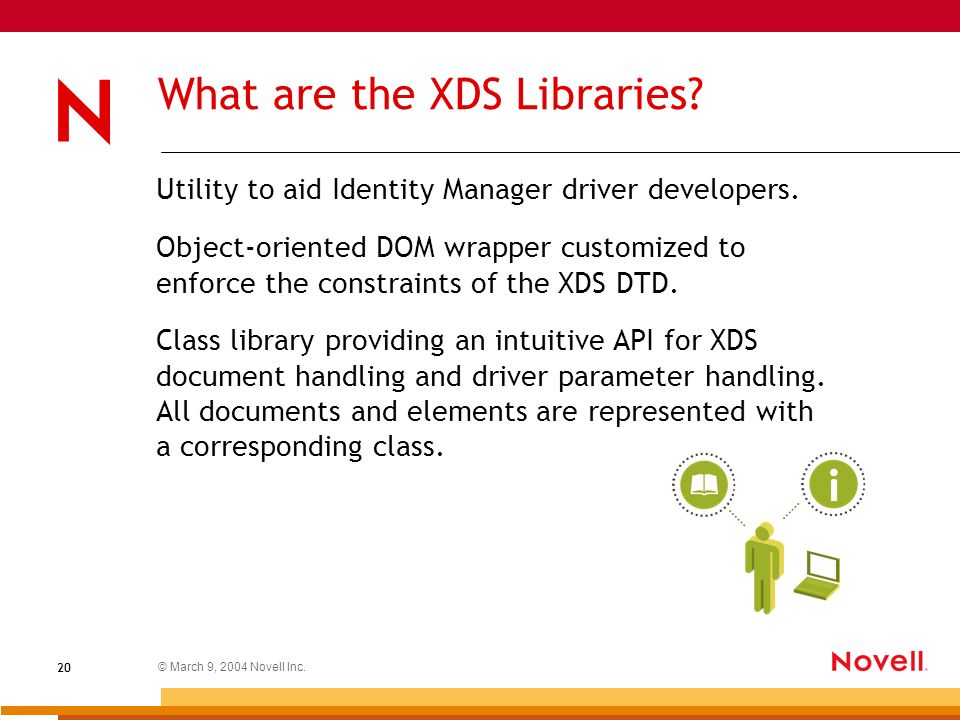

20. © March 9, 2004 Novell Inc. 20 What are the XDS Libraries? Utility to aid Identity Manager driver developers. Object-oriented DOM wrapper customized to enforce the constraints of the XDS DTD. Class library providing an intuitive API for XDS document handling and driver parameter handling. All documents and elements are represented with a corresponding class.

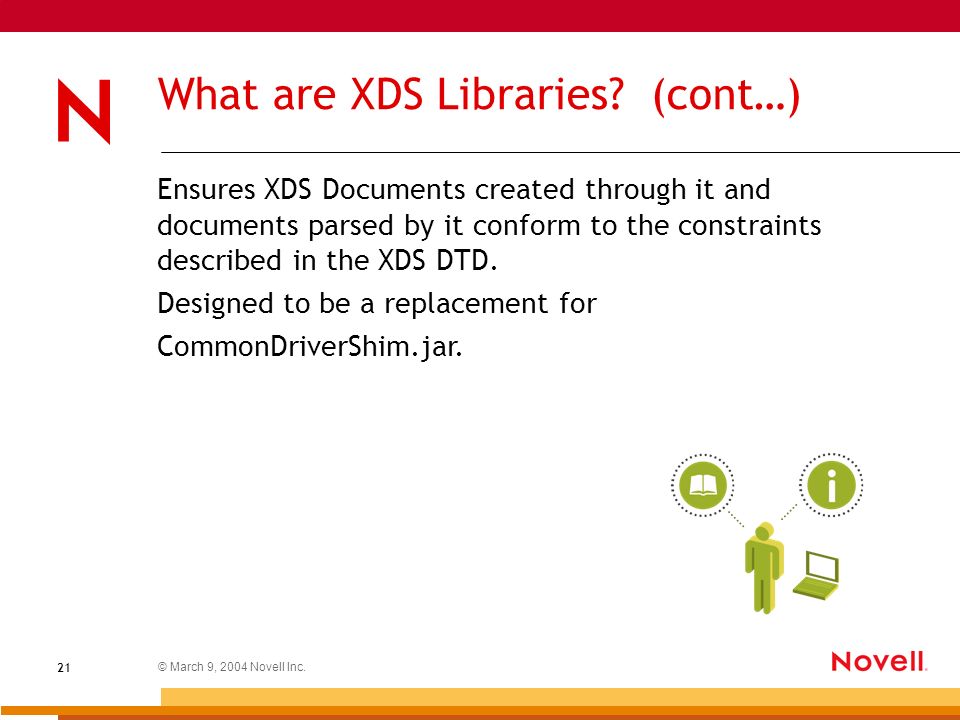

21. © March 9, 2004 Novell Inc. 21 What are XDS Libraries? (cont…) Ensures XDS Documents created through it and documents parsed by it conform to the constraints described in the XDS DTD. Designed to be a replacement for CommonDriverShim.jar.

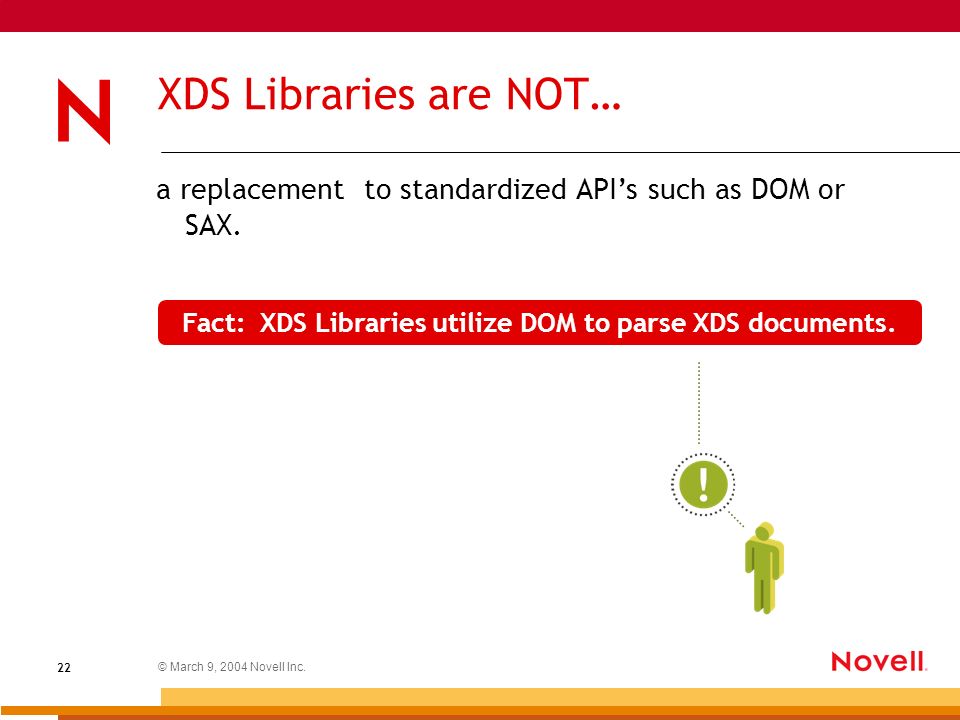

22. © March 9, 2004 Novell Inc. 22 XDS Libraries are NOT… a replacement to standardized API’s such as DOM or SAX. Fact: XDS Libraries utilize DOM to parse XDS documents.

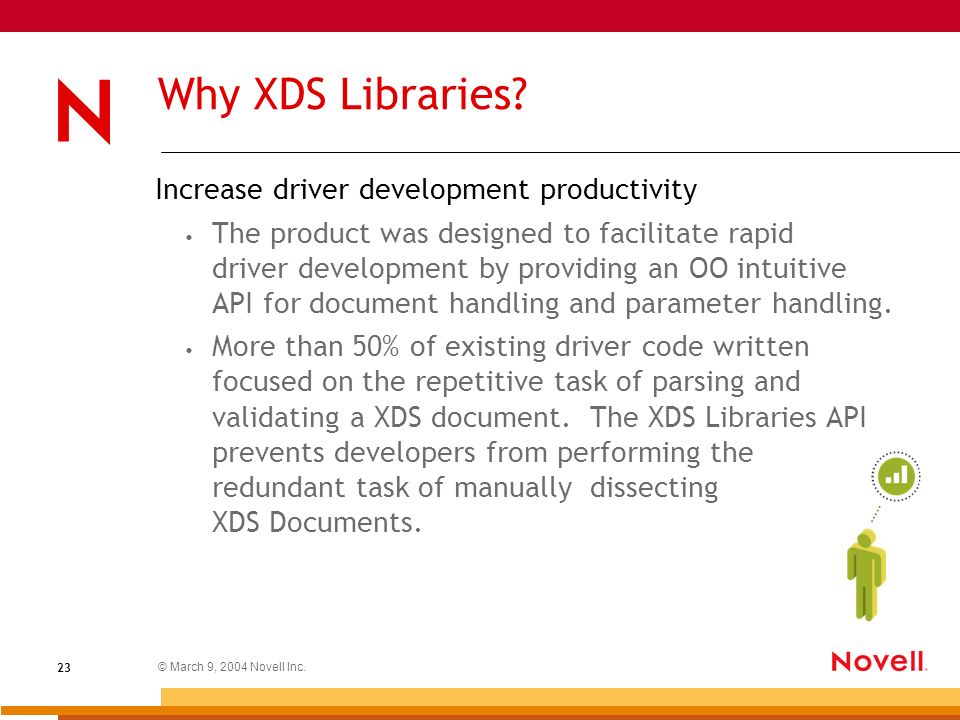

23. © March 9, 2004 Novell Inc. 23 Why XDS Libraries? Increase driver development productivity The product was designed to facilitate rapid driver development by providing an OO intuitive API for document handling and parameter handling. More than 50% of existing driver code written focused on the repetitive task of parsing and validating a XDS document. The XDS Libraries API prevents developers from performing the redundant task of manually dissecting XDS Documents.

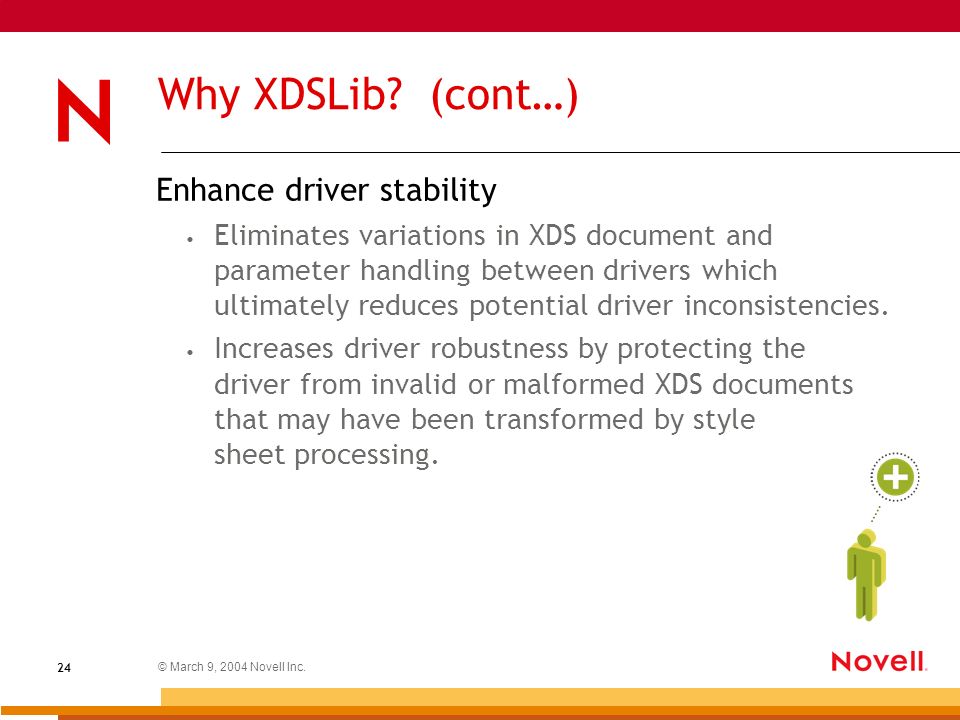

24. © March 9, 2004 Novell Inc. 24 Why XDSLib? (cont…) Enhance driver stability Eliminates variations in XDS document and parameter handling between drivers which ultimately reduces potential driver inconsistencies. Increases driver robustness by protecting the driver from invalid or malformed XDS documents that may have been transformed by style sheet processing.

25. © March 9, 2004 Novell Inc. 25 XDSLib Class Naming Conventions Each XDS Document and Element has a corresponding XDSLib class. All documents instantiated by the end user are prefixed with “XDS”. All elements defined in the XDS DTS are prefixed with “XDS” Example: XDS Document Tag XDSLib Classname XDSAddElement XDSAddAttrElement

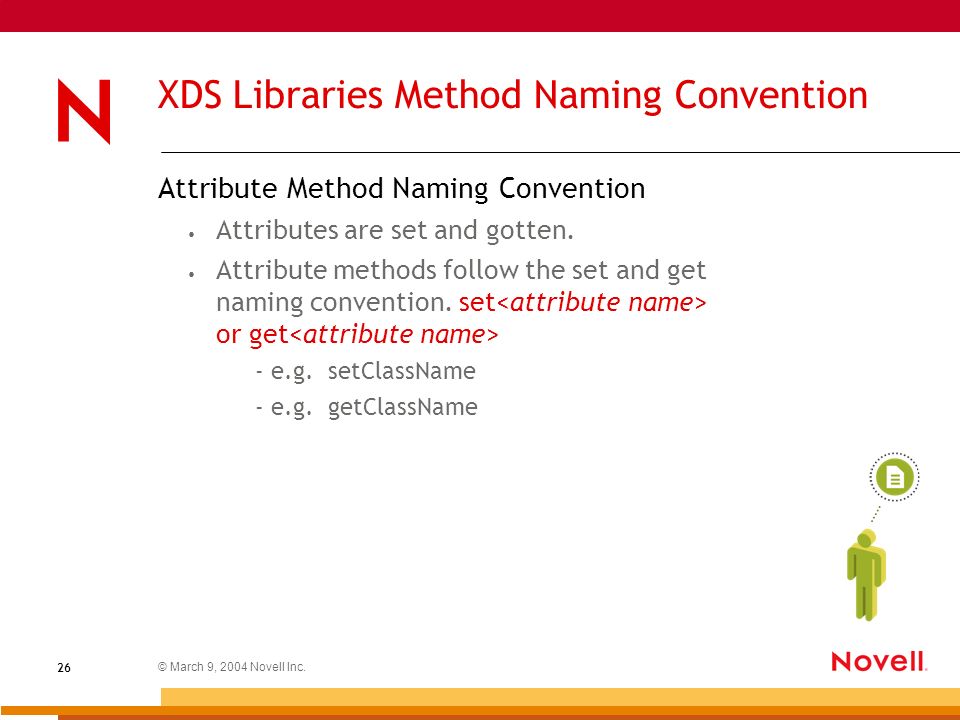

26. © March 9, 2004 Novell Inc. 26 XDS Libraries Method Naming Convention Attribute Method Naming Convention Attributes are set and gotten. Attribute methods follow the set and get naming convention. set or get - e.g. setClassName - e.g. getClassName

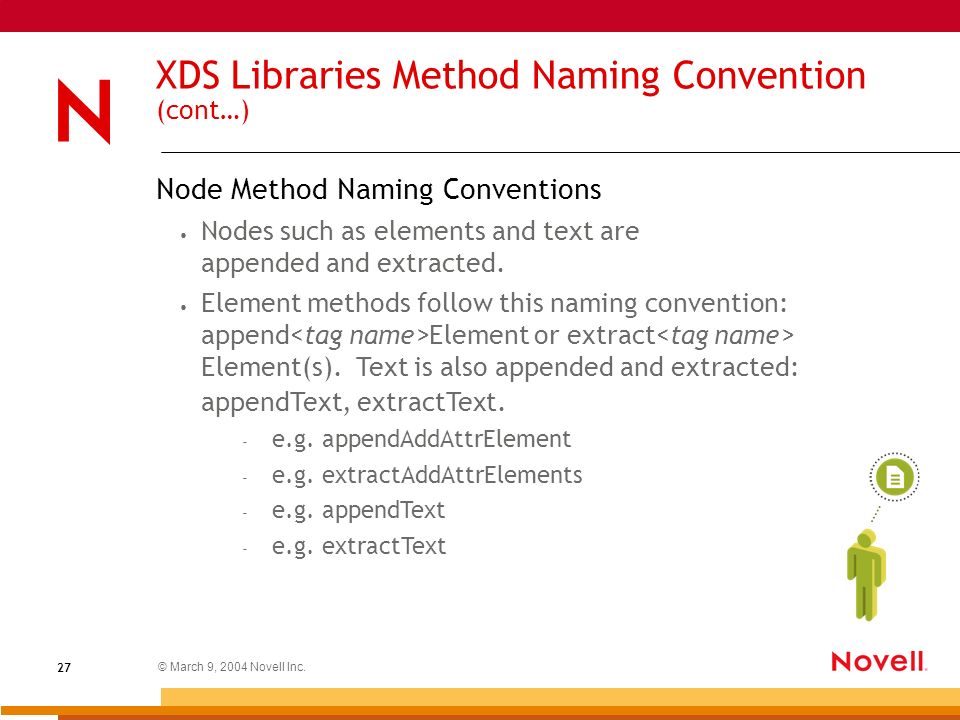

27. © March 9, 2004 Novell Inc. 27 XDS Libraries Method Naming Convention (cont…) Node Method Naming Conventions Nodes such as elements and text are appended and extracted. Element methods follow this naming convention: append Element or extract Element(s). Text is also appended and extracted: appendText, extractText. ‐ e.g. appendAddAttrElement ‐ e.g. extractAddAttrElements ‐ e.g. appendText ‐ e.g. extractText

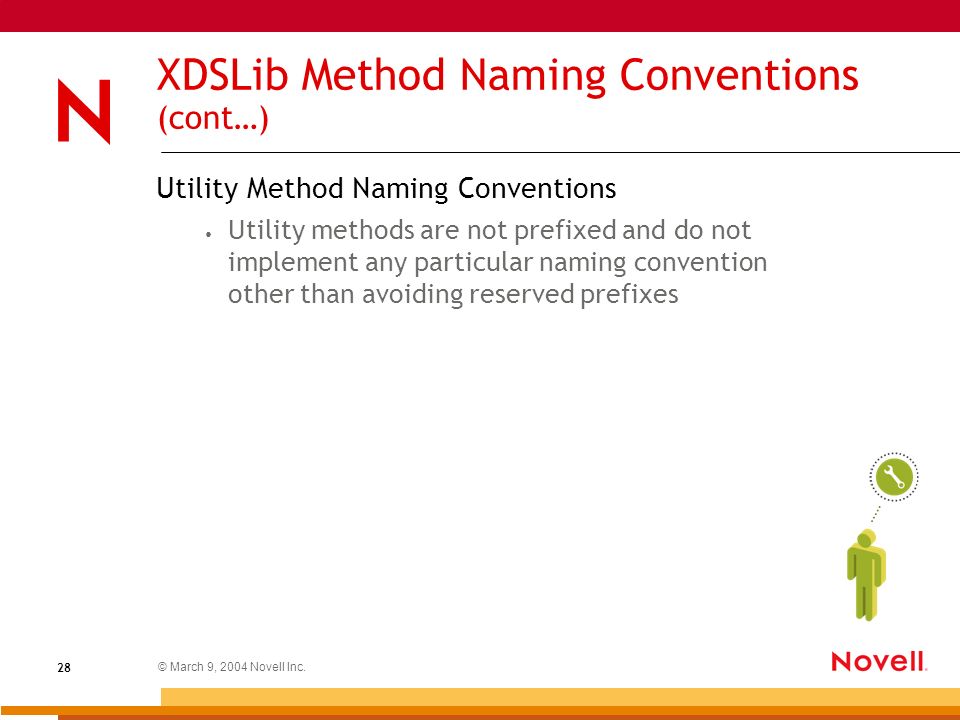

28. © March 9, 2004 Novell Inc. 28 Utility Method Naming Conventions Utility methods are not prefixed and do not implement any particular naming convention other than avoiding reserved prefixes XDSLib Method Naming Conventions (cont…)

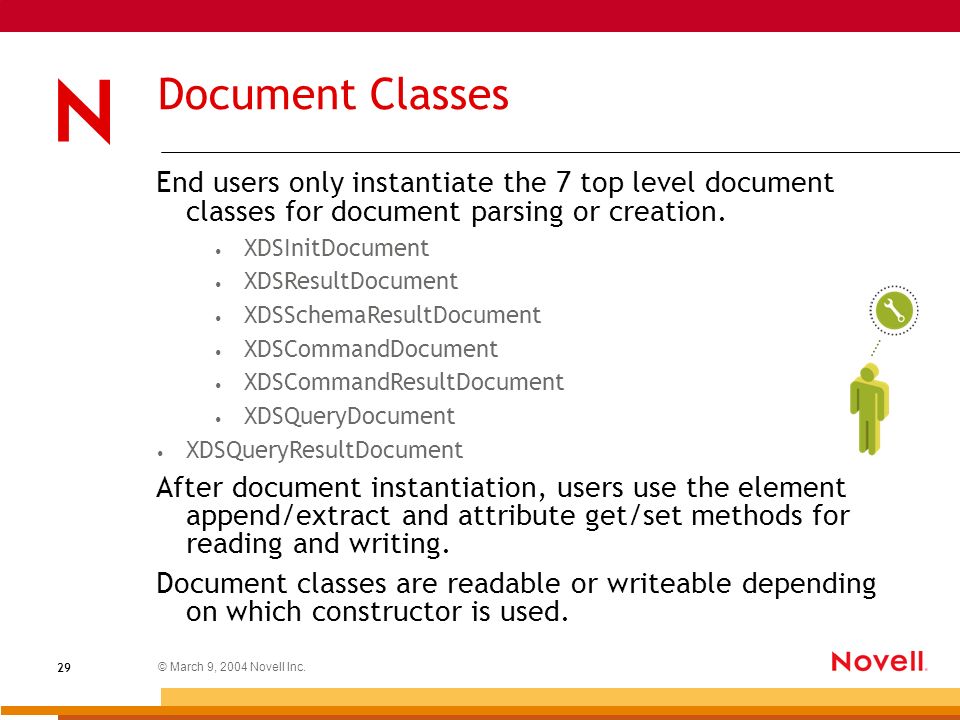

29. © March 9, 2004 Novell Inc. 29 End users only instantiate the 7 top level document classes for document parsing or creation. XDSInitDocument XDSResultDocument XDSSchemaResultDocument XDSCommandDocument XDSCommandResultDocument XDSQueryDocument XDSQueryResultDocument After document instantiation, users use the element append/extract and attribute get/set methods for reading and writing. Document classes are readable or writeable depending on which constructor is used. Document Classes

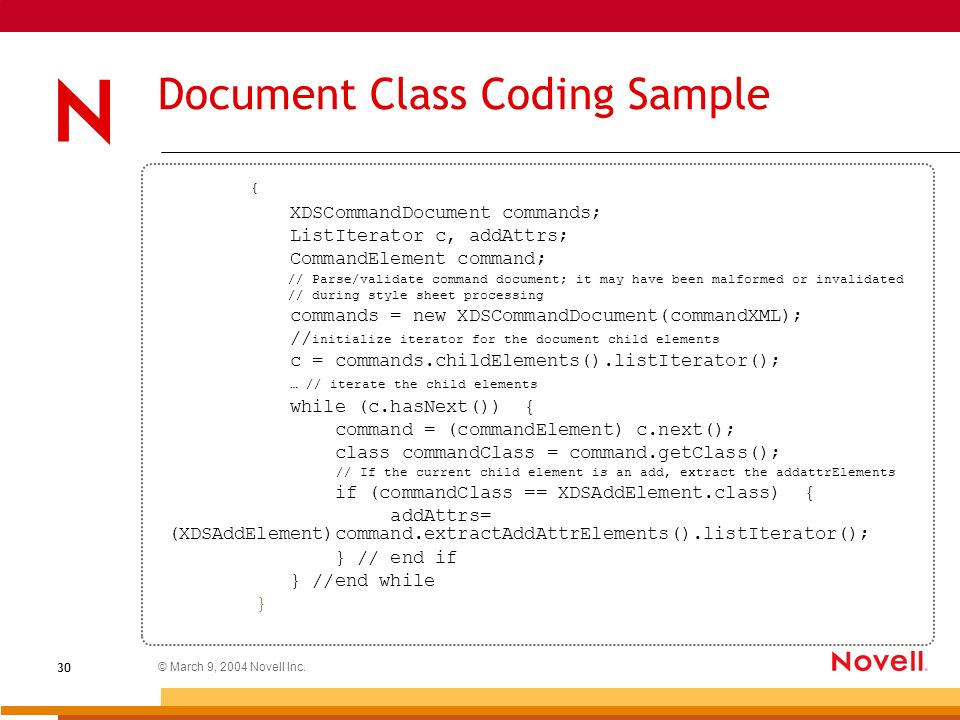

30. © March 9, 2004 Novell Inc. 30 Document Class Coding Sample { XDSCommandDocument commands; ListIterator c, addAttrs; CommandElement command; // Parse/validate command document; it may have been malformed or invalidated // during style sheet processing commands = new XDSCommandDocument(commandXML); // initialize iterator for the document child elements c = commands.childElements().listIterator(); … // iterate the child elements while (c.hasNext()) { command = (commandElement) c.next(); class commandClass = command.getClass(); // If the current child element is an add, extract the addattrElements if (commandClass == XDSAddElement.class) { addAttrs= (XDSAddElement)command.extractAddAttrElements().listIterator(); } // end if } //end while }

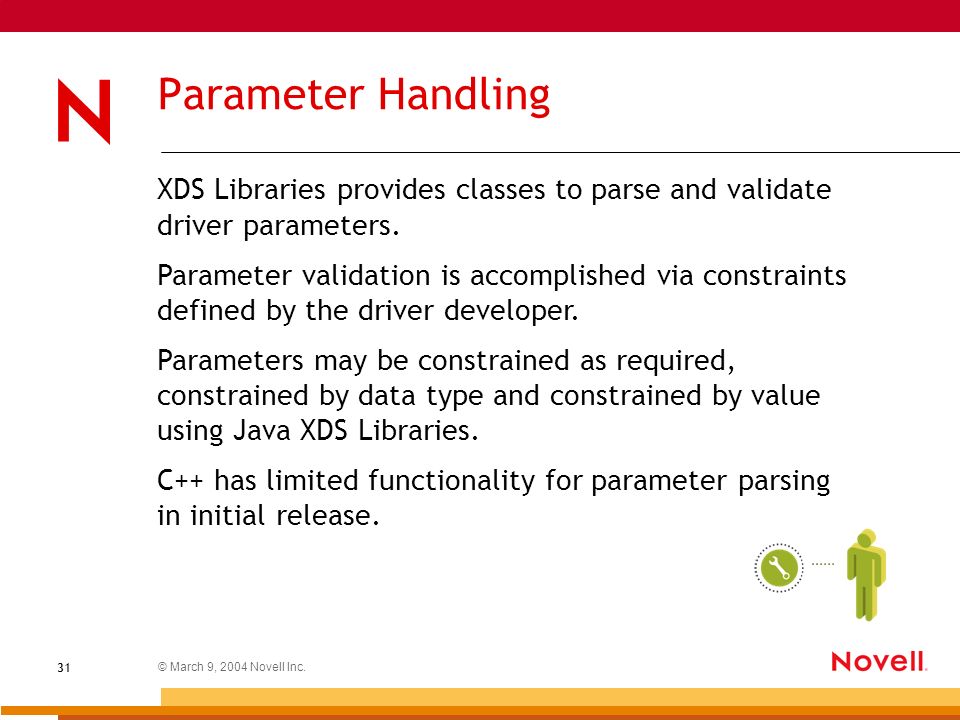

31. © March 9, 2004 Novell Inc. 31 Parameter Handling XDS Libraries provides classes to parse and validate driver parameters. Parameter validation is accomplished via constraints defined by the driver developer. Parameters may be constrained as required, constrained by data type and constrained by value using Java XDS Libraries. C++ has limited functionality for parameter parsing in initial release.

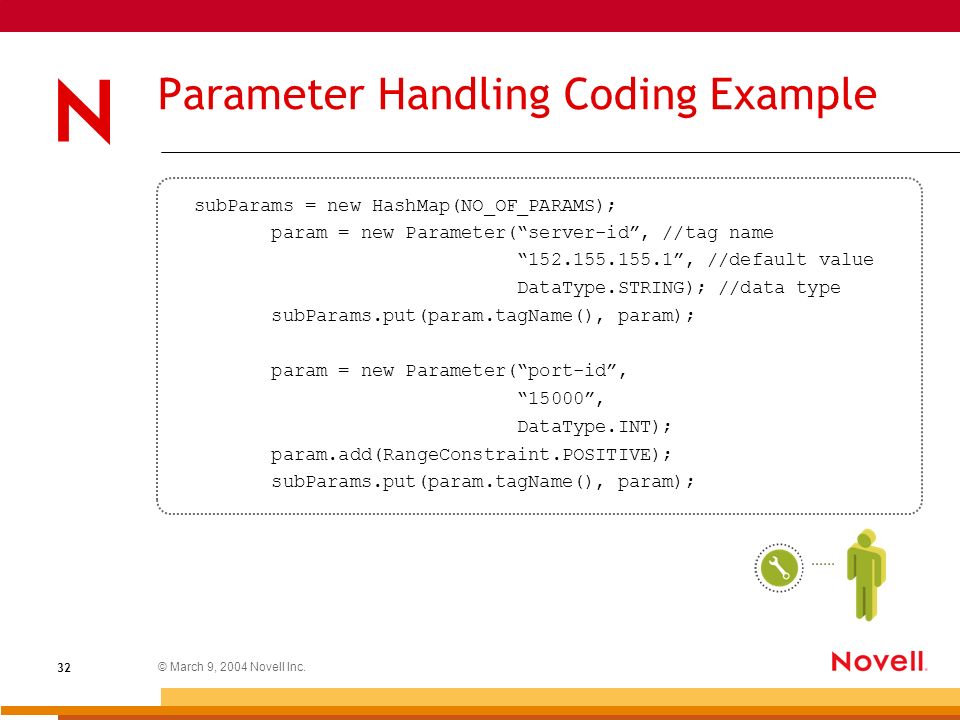

32. © March 9, 2004 Novell Inc. 32 Parameter Handling Coding Example subParams = new HashMap(NO_OF_PARAMS); param = new Parameter(“server-id”, //tag name “152.155.155.1”, //default value DataType.STRING); //data type subParams.put(param.tagName(), param); param = new Parameter(“port-id”, “15000”, DataType.INT); param.add(RangeConstraint.POSITIVE); subParams.put(param.tagName(), param);

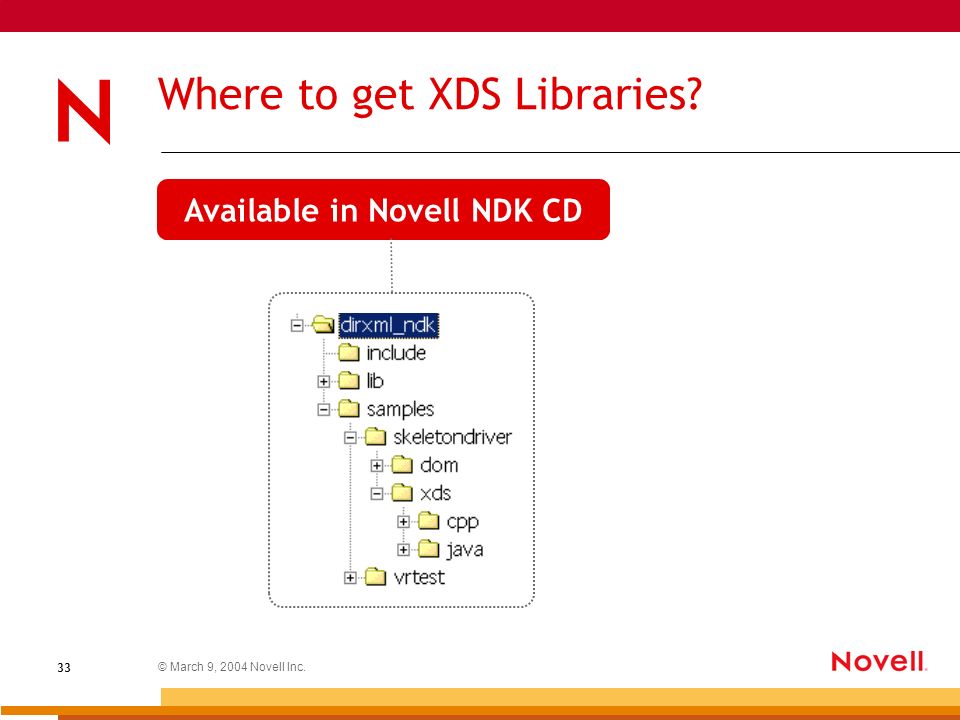

33. © March 9, 2004 Novell Inc. 33 Where to get XDS Libraries? Available in Novell NDK CD

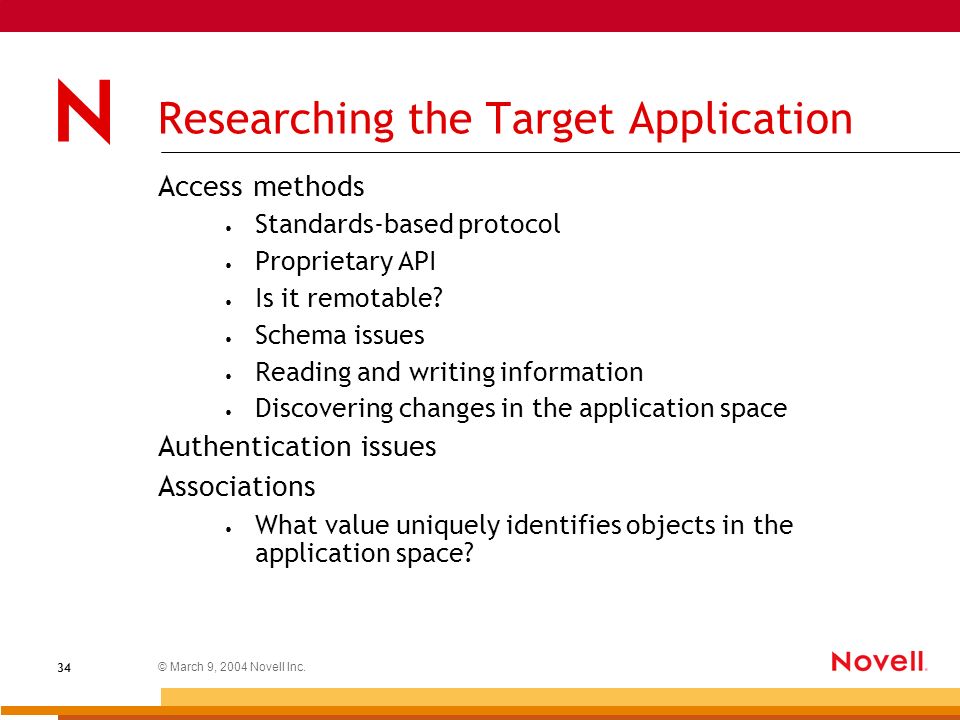

34. © March 9, 2004 Novell Inc. 34 Researching the Target Application Access methods Standards-based protocol Proprietary API Is it remotable? Schema issues Reading and writing information Discovering changes in the application space Authentication issues Associations What value uniquely identifies objects in the application space?

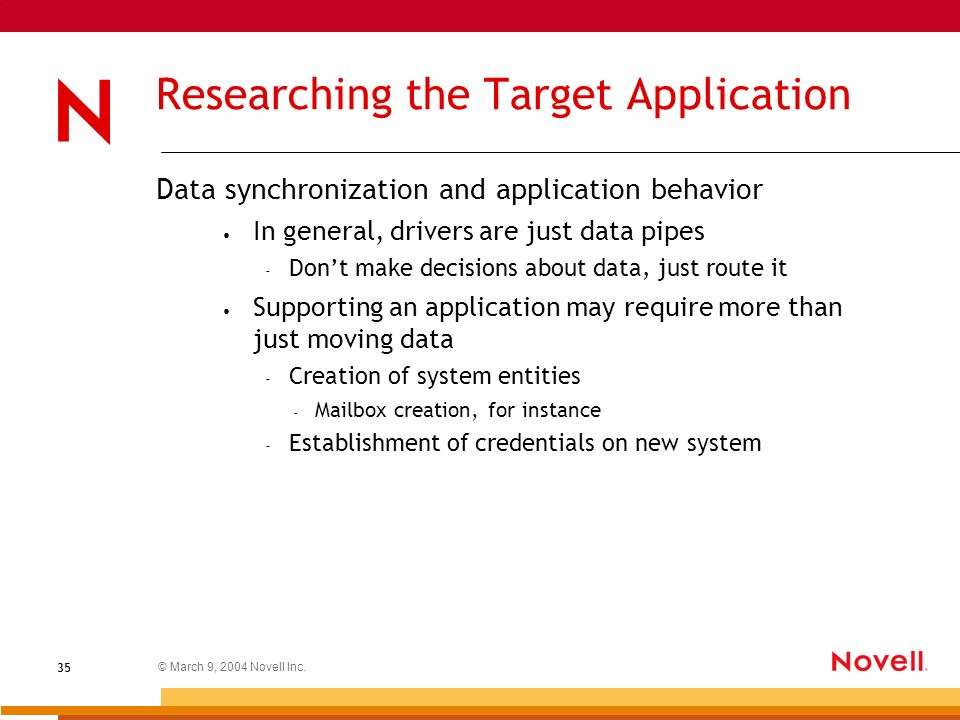

35. © March 9, 2004 Novell Inc. 35 Researching the Target Application Data synchronization and application behavior In general, drivers are just data pipes ‐ Don’t make decisions about data, just route it Supporting an application may require more than just moving data ‐ Creation of system entities ‐ Mailbox creation, for instance ‐ Establishment of credentials on new system

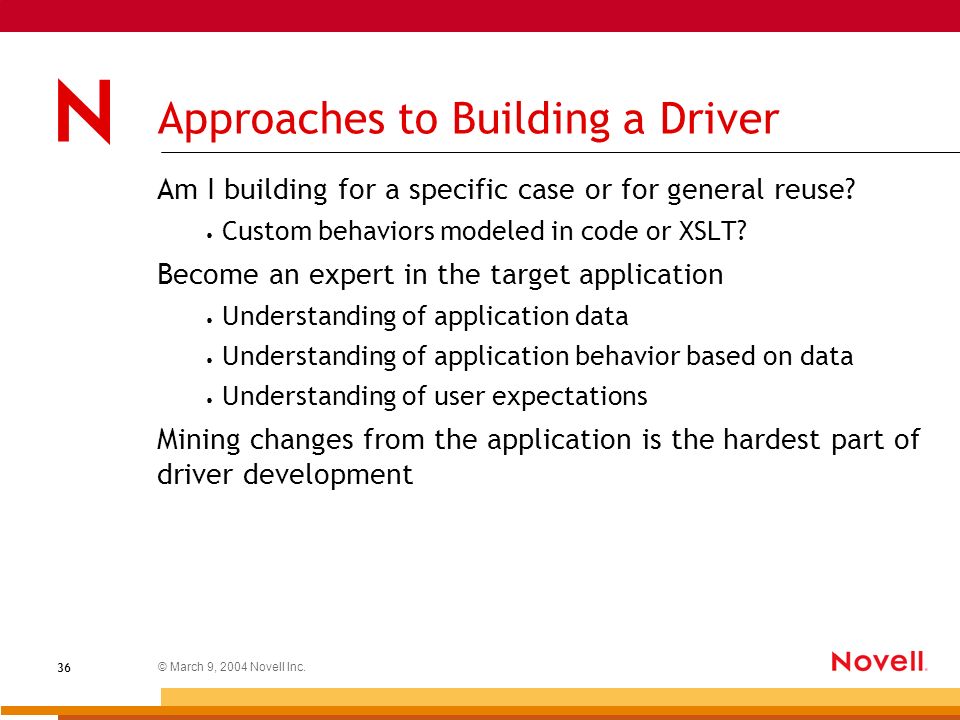

36. © March 9, 2004 Novell Inc. 36 Approaches to Building a Driver Am I building for a specific case or for general reuse? Custom behaviors modeled in code or XSLT? Become an expert in the target application Understanding of application data Understanding of application behavior based on data Understanding of user expectations Mining changes from the application is the hardest part of driver development

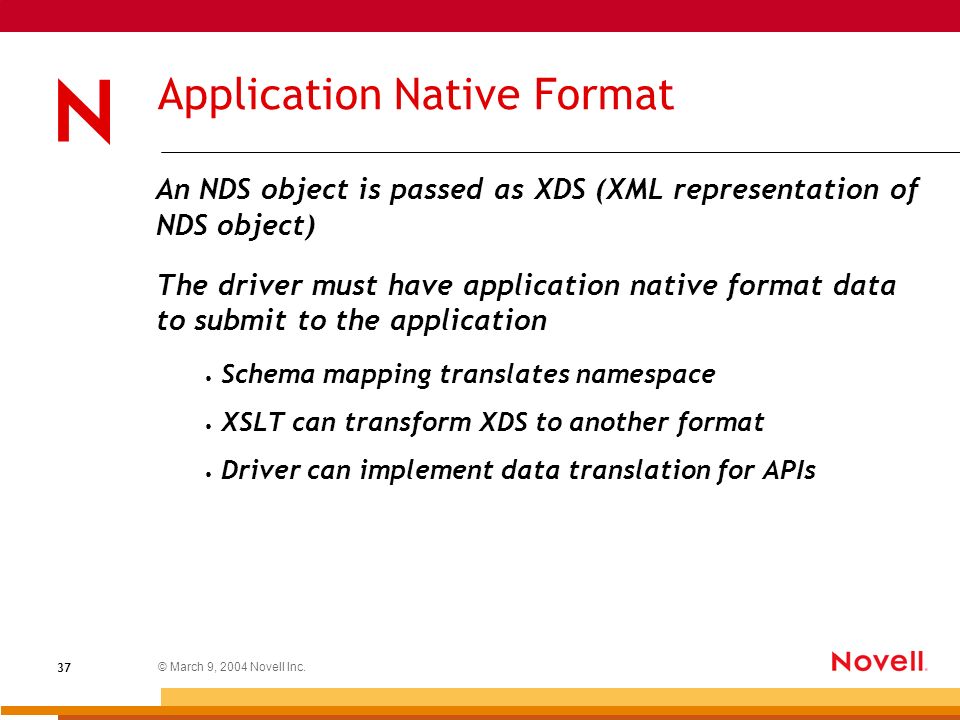

37. © March 9, 2004 Novell Inc. 37 Application Native Format An NDS object is passed as XDS (XML representation of NDS object) The driver must have application native format data to submit to the application Schema mapping translates namespace XSLT can transform XDS to another format Driver can implement data translation for APIs

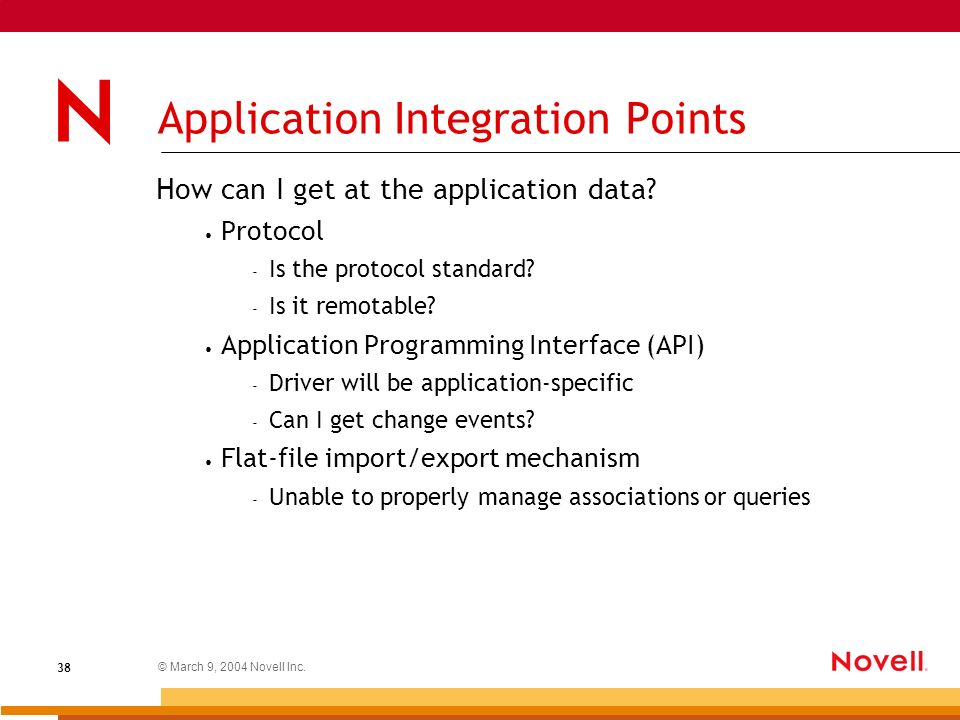

38. © March 9, 2004 Novell Inc. 38 Application Integration Points How can I get at the application data? Protocol ‐ Is the protocol standard? ‐ Is it remotable? Application Programming Interface (API) ‐ Driver will be application-specific ‐ Can I get change events? Flat-file import/export mechanism ‐ Unable to properly manage associations or queries

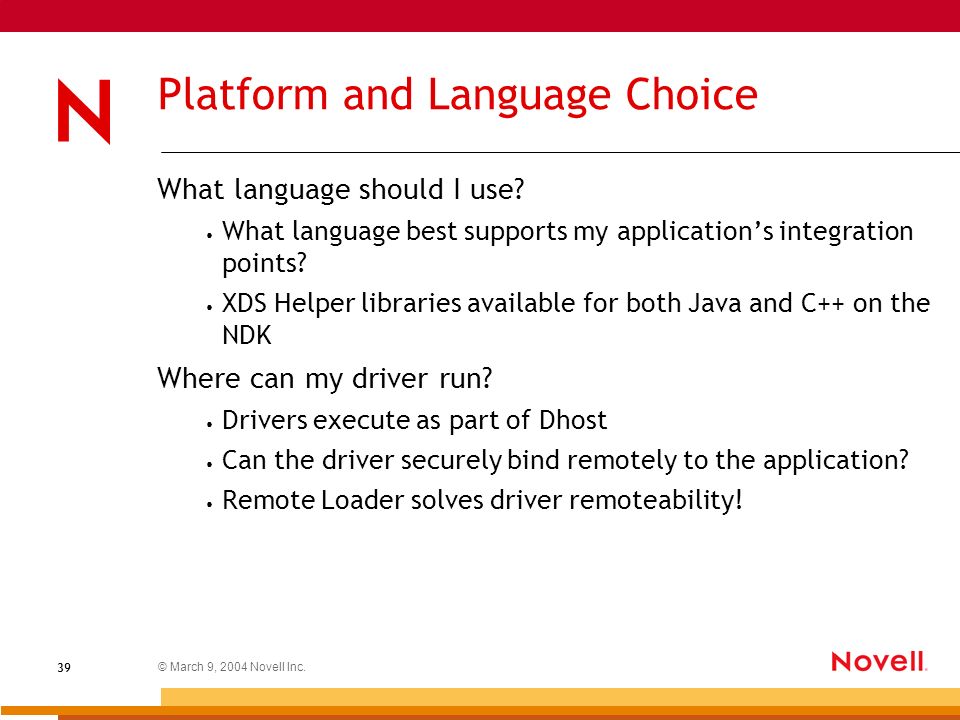

39. © March 9, 2004 Novell Inc. 39 Platform and Language Choice What language should I use? What language best supports my application’s integration points? XDS Helper libraries available for both Java and C++ on the NDK Where can my driver run? Drivers execute as part of Dhost Can the driver securely bind remotely to the application? Remote Loader solves driver remoteability!

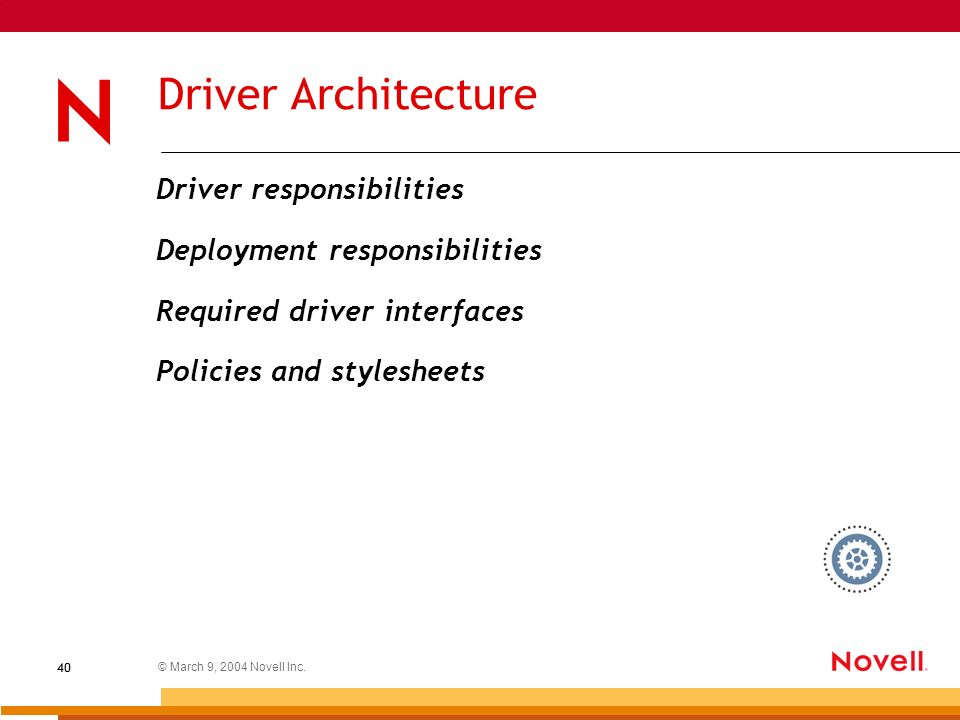

40. © March 9, 2004 Novell Inc. 40 Driver Architecture Driver responsibilities Deployment responsibilities Required driver interfaces Policies and stylesheets

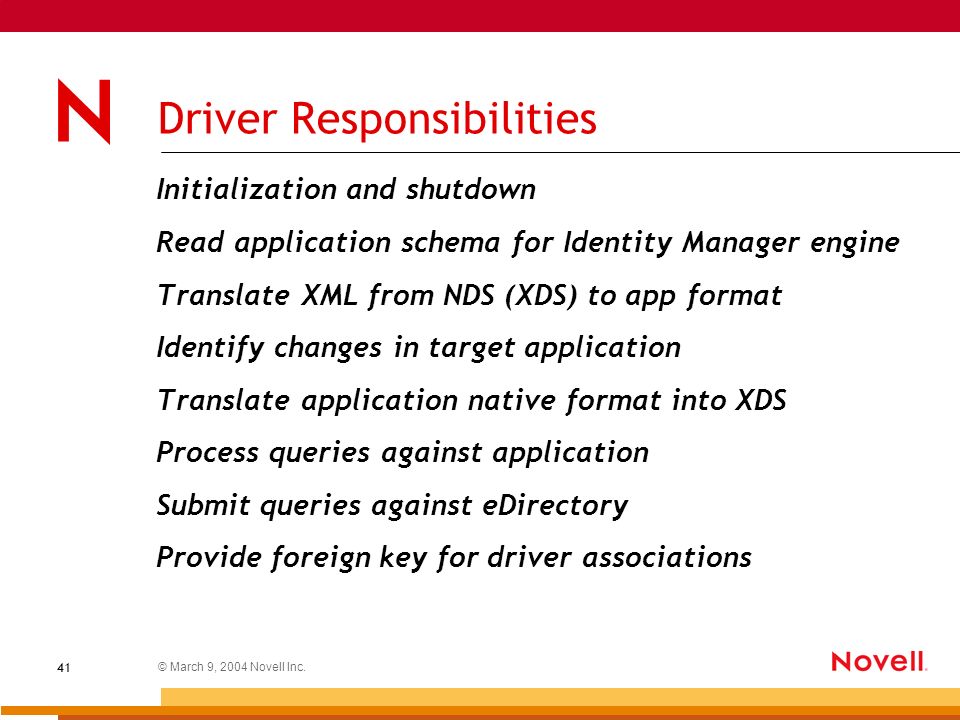

41. © March 9, 2004 Novell Inc. 41 Driver Responsibilities Initialization and shutdown Read application schema for Identity Manager engine Translate XML from NDS (XDS) to app format Identify changes in target application Translate application native format into XDS Process queries against application Submit queries against eDirectory Provide foreign key for driver associations

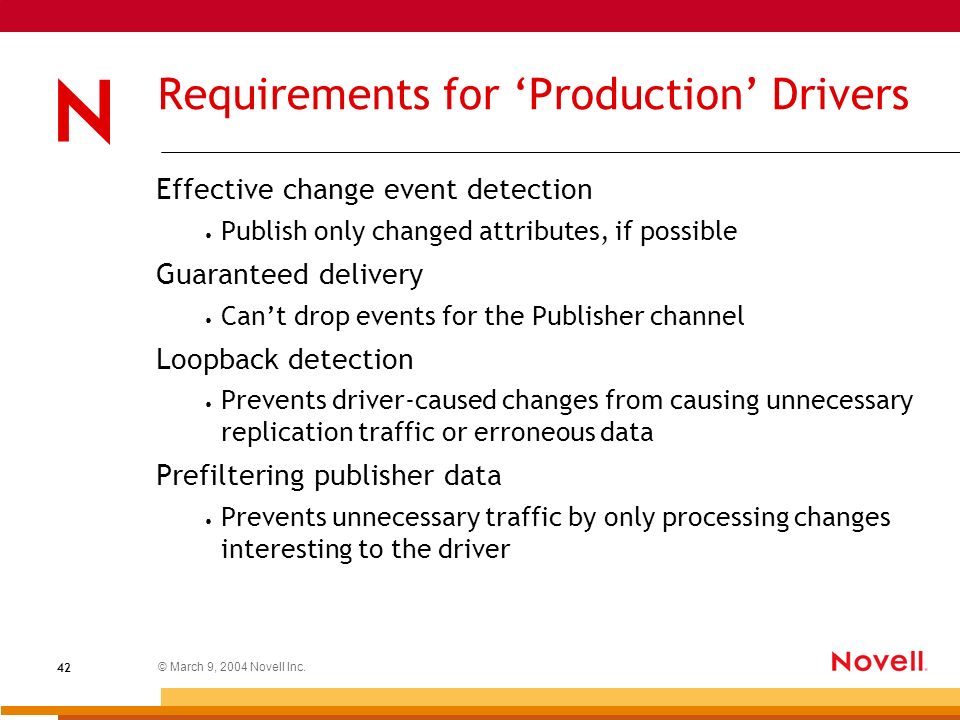

42. © March 9, 2004 Novell Inc. 42 Requirements for ‘Production’ Drivers Effective change event detection Publish only changed attributes, if possible Guaranteed delivery Can’t drop events for the Publisher channel Loopback detection Prevents driver-caused changes from causing unnecessary replication traffic or erroneous data Prefiltering publisher data Prevents unnecessary traffic by only processing changes interesting to the driver

43. © March 9, 2004 Novell Inc. 43 ‘Production’ Drivers - cont. Support for multiple running instances Avoid static, global data Support Remote Loader Shouldn’t require code changes. Just validate the functionality. Can cause configuration problems. ‐ Filesystem parameters must be relative to the remote box ‐ Stylesheets are evaluated on eDir. Be careful about using resources in stylesheets. Driver identity query In DirXML 1.1 the engine queries each driver for its identity and activation levels

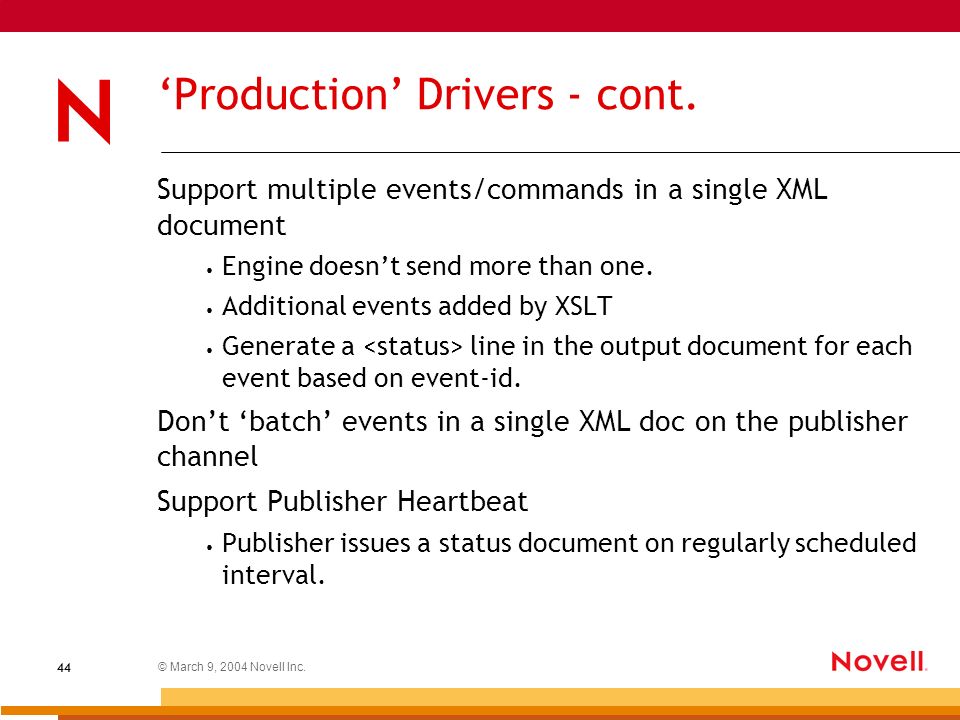

44. © March 9, 2004 Novell Inc. 44 ‘Production’ Drivers - cont. Support multiple events/commands in a single XML document Engine doesn’t send more than one. Additional events added by XSLT Generate a line in the output document for each event based on event-id. Don’t ‘batch’ events in a single XML doc on the publisher channel Support Publisher Heartbeat Publisher issues a status document on regularly scheduled interval.

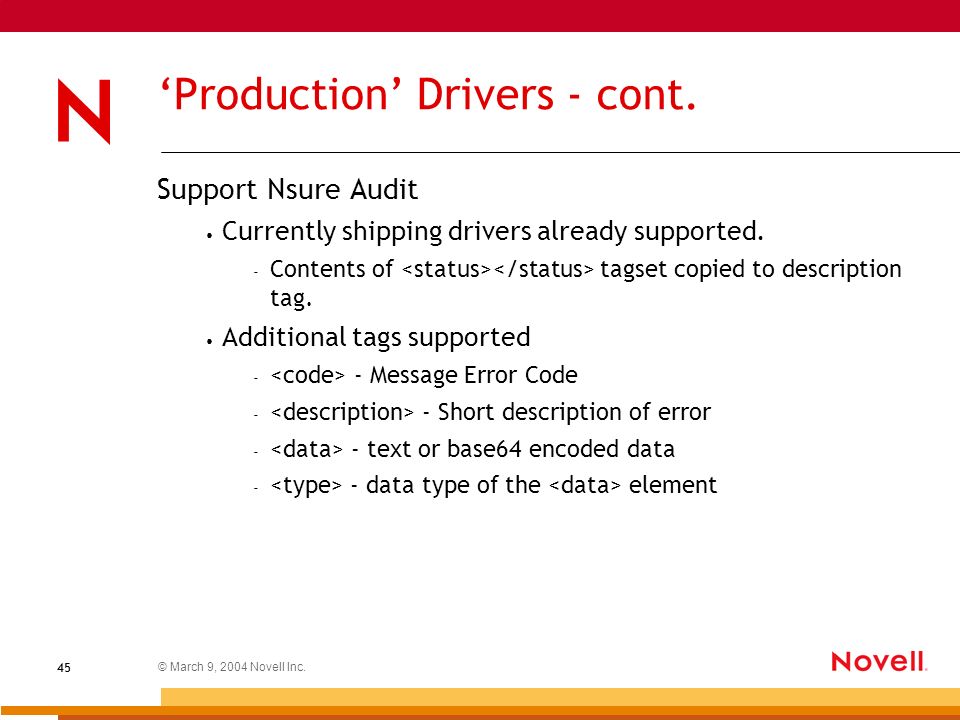

45. © March 9, 2004 Novell Inc. 45 ‘Production’ Drivers - cont. Support Nsure Audit Currently shipping drivers already supported. ‐ Contents of tagset copied to description tag. Additional tags supported ‐ - Message Error Code ‐ - Short description of error ‐ - text or base64 encoded data ‐ - data type of the element

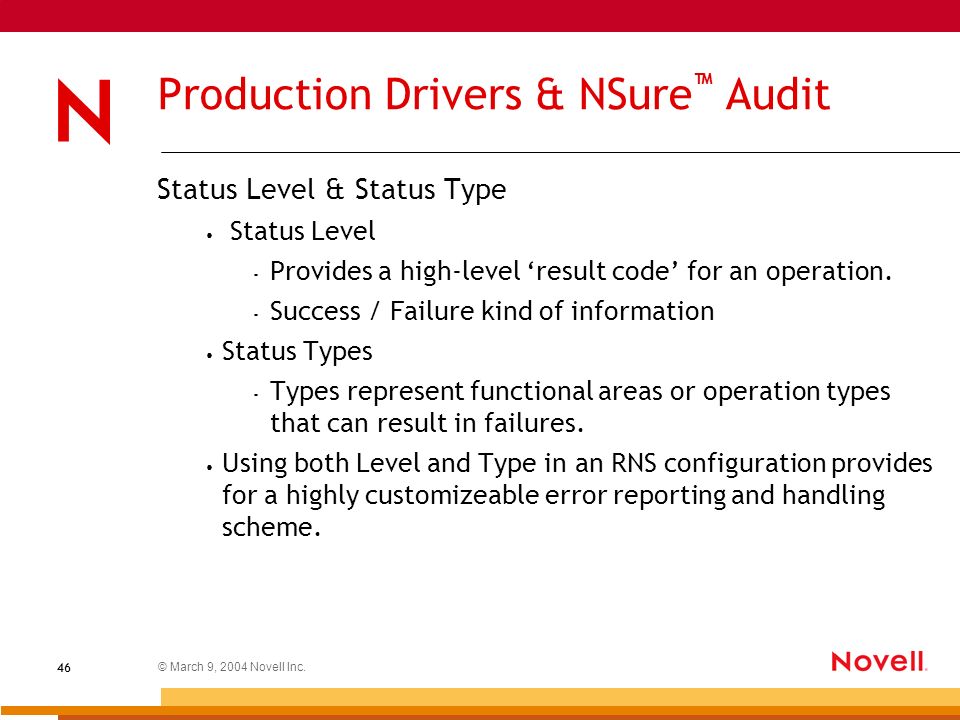

46. © March 9, 2004 Novell Inc. 46 Production Drivers & NSure ™ Audit Status Level & Status Type Status Level ‐ Provides a high-level ‘result code’ for an operation. ‐ Success / Failure kind of information Status Types ‐ Types represent functional areas or operation types that can result in failures. Using both Level and Type in an RNS configuration provides for a highly customizeable error reporting and handling scheme.

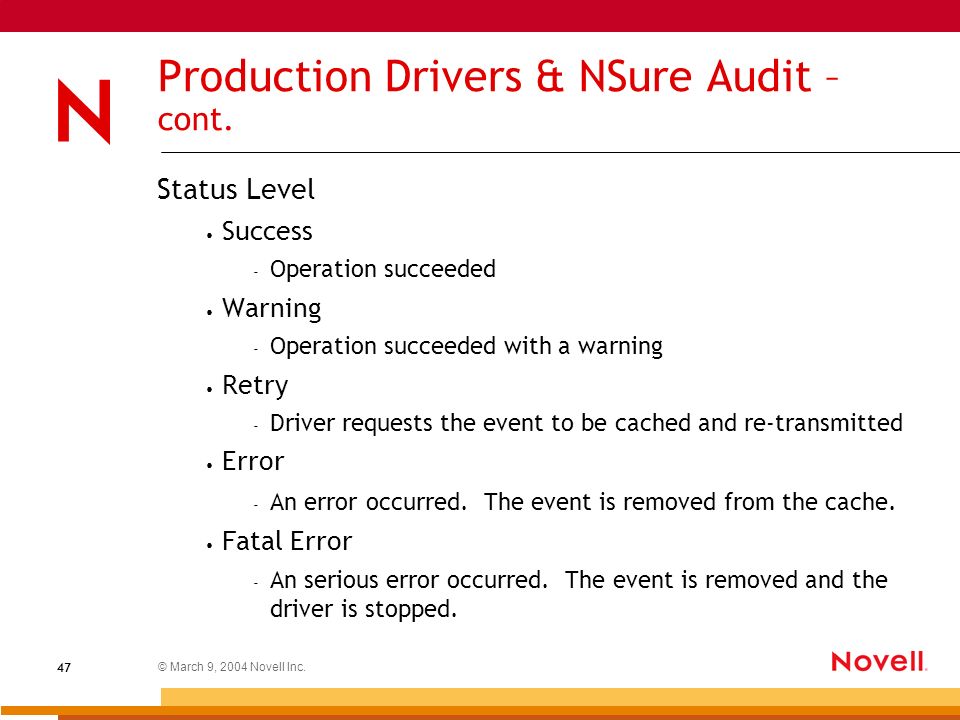

47. © March 9, 2004 Novell Inc. 47 Production Drivers & NSure Audit – cont. Status Level Success ‐ Operation succeeded Warning ‐ Operation succeeded with a warning Retry ‐ Driver requests the event to be cached and re-transmitted Error ‐ An error occurred. The event is removed from the cache. Fatal Error ‐ An serious error occurred. The event is removed and the driver is stopped.

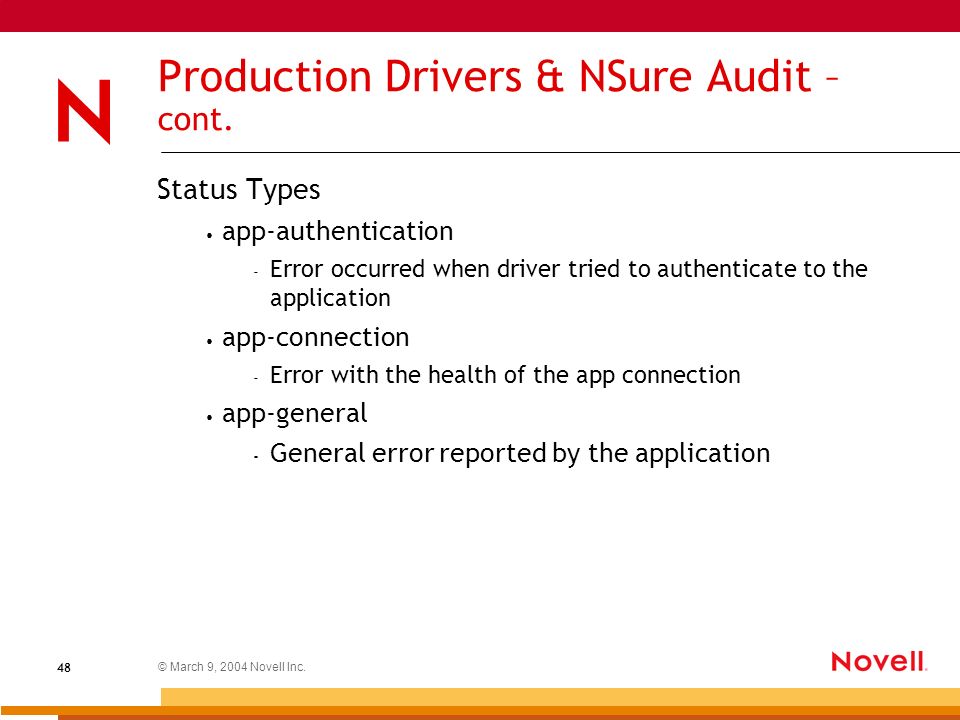

48. © March 9, 2004 Novell Inc. 48 Production Drivers & NSure Audit – cont. Status Types app-authentication ‐ Error occurred when driver tried to authenticate to the application app-connection ‐ Error with the health of the app connection app-general ‐ General error reported by the application

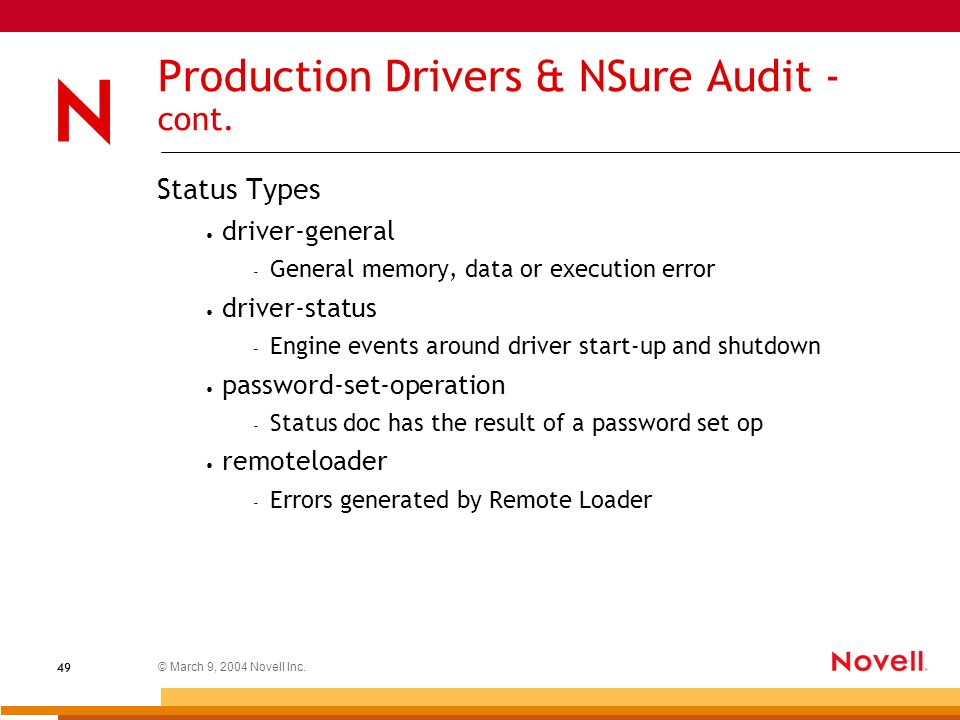

49. © March 9, 2004 Novell Inc. 49 Production Drivers & NSure Audit - cont. Status Types driver-general ‐ General memory, data or execution error driver-status – Engine events around driver start-up and shutdown password-set-operation ‐ Status doc has the result of a password set op remoteloader ‐ Errors generated by Remote Loader

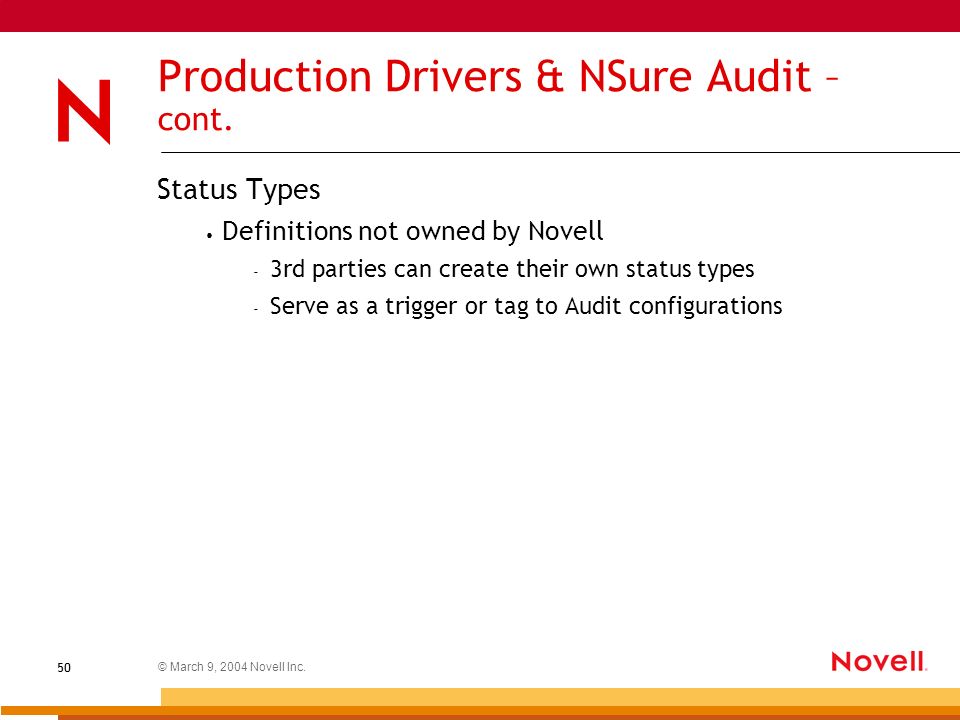

50. © March 9, 2004 Novell Inc. 50 Production Drivers & NSure Audit – cont. Status Types Definitions not owned by Novell ‐ 3rd parties can create their own status types ‐ Serve as a trigger or tag to Audit configurations

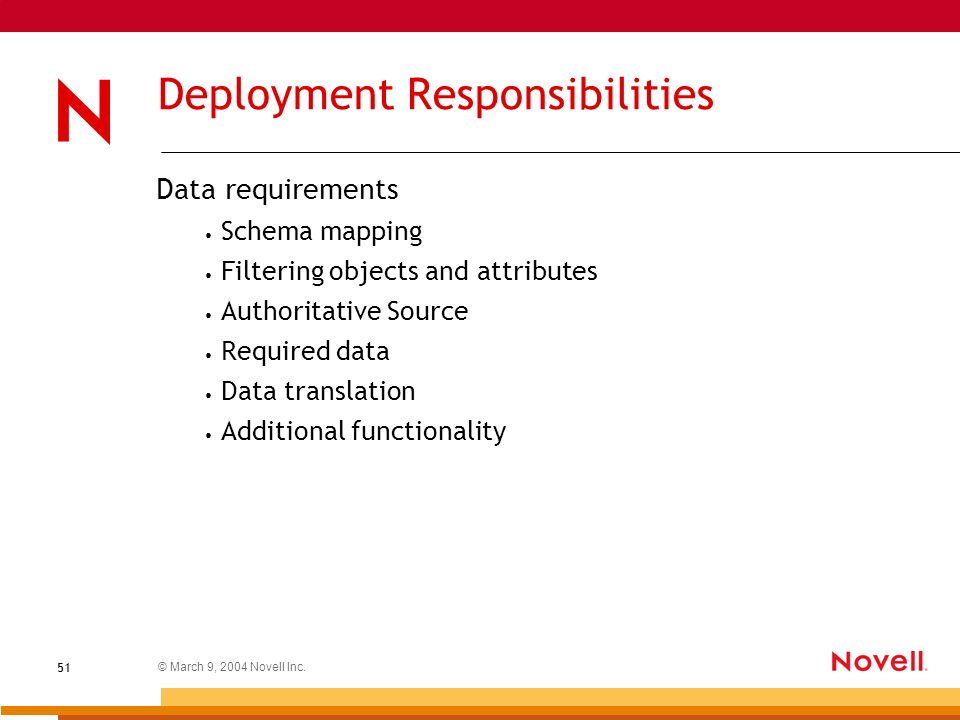

51. © March 9, 2004 Novell Inc. 51 Deployment Responsibilities Data requirements Schema mapping Filtering objects and attributes Authoritative Source Required data Data translation Additional functionality

52. © March 9, 2004 Novell Inc. 52 Deployment Responsibilities - cont. Driver selection Where is the data? What protocols or transports are supported? What application features are needed? Remote?

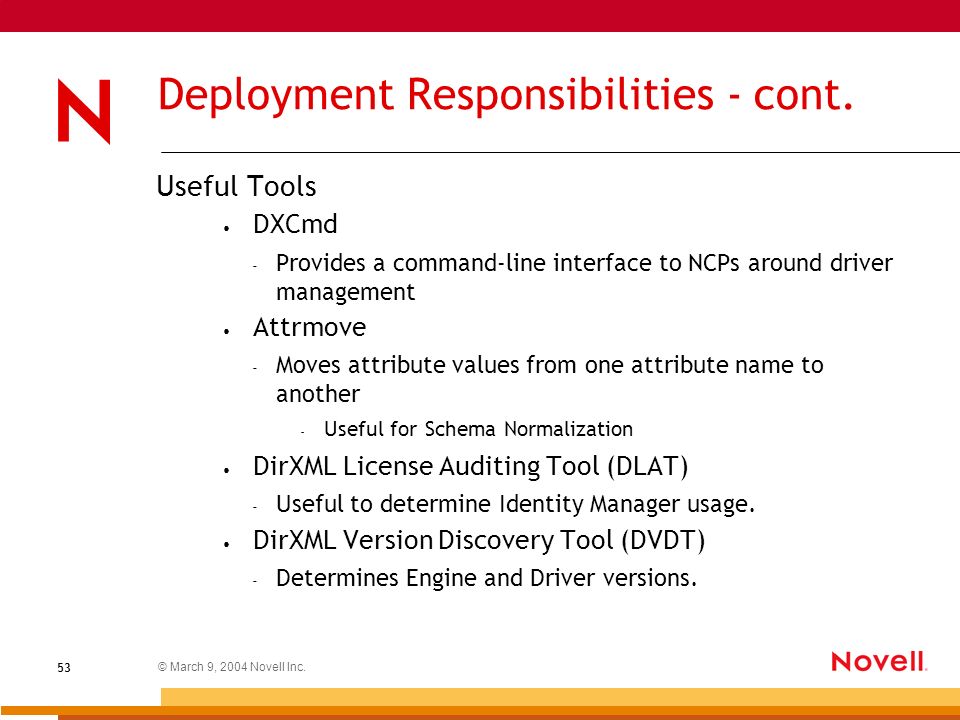

53. © March 9, 2004 Novell Inc. 53 Deployment Responsibilities - cont. Useful Tools DXCmd ‐ Provides a command-line interface to NCPs around driver management Attrmove ‐ Moves attribute values from one attribute name to another ‐ Useful for Schema Normalization DirXML License Auditing Tool (DLAT) ‐ Useful to determine Identity Manager usage. DirXML Version Discovery Tool (DVDT) ‐ Determines Engine and Driver versions.

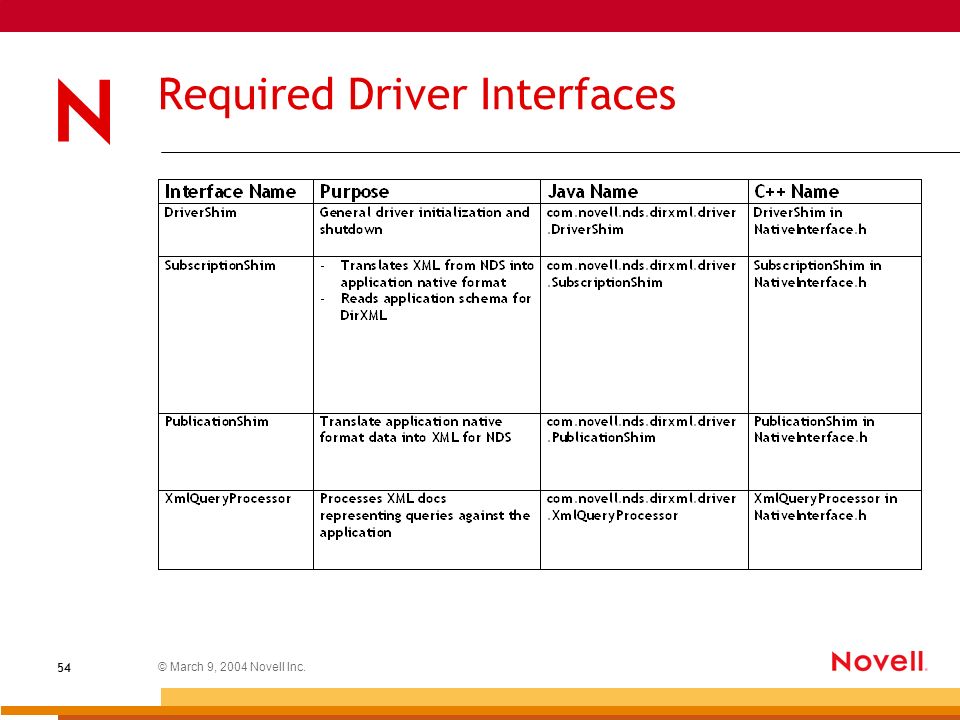

54. © March 9, 2004 Novell Inc. 54 Required Driver Interfaces

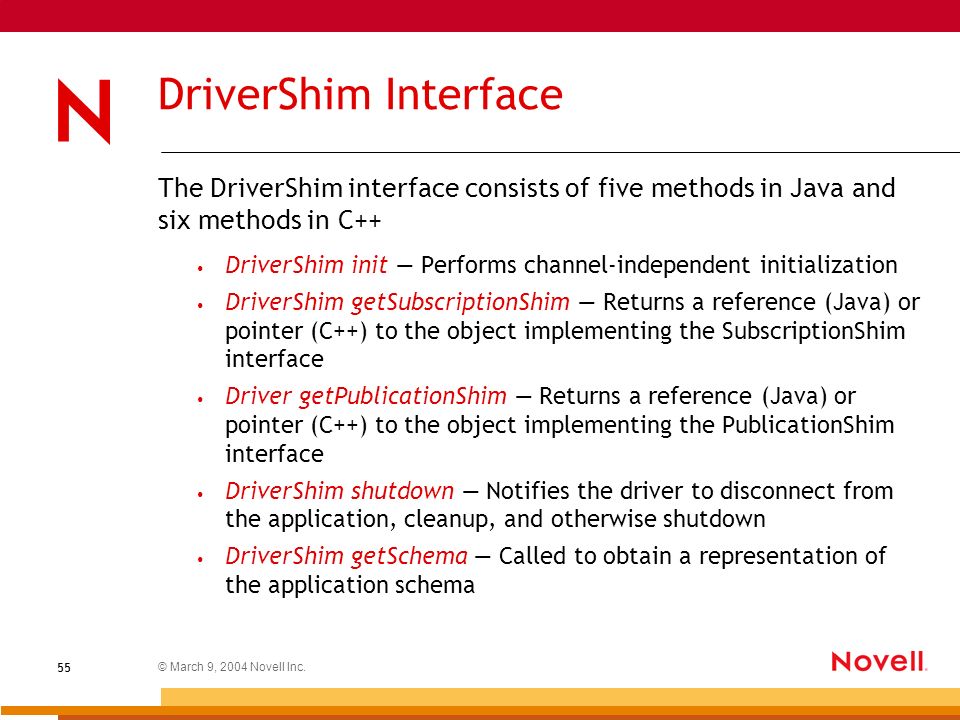

55. © March 9, 2004 Novell Inc. 55 DriverShim Interface The DriverShim interface consists of five methods in Java and six methods in C++ DriverShim init — Performs channel-independent initialization DriverShim getSubscriptionShim — Returns a reference (Java) or pointer (C++) to the object implementing the SubscriptionShim interface Driver getPublicationShim — Returns a reference (Java) or pointer (C++) to the object implementing the PublicationShim interface DriverShim shutdown — Notifies the driver to disconnect from the application, cleanup, and otherwise shutdown DriverShim getSchema — Called to obtain a representation of the application schema

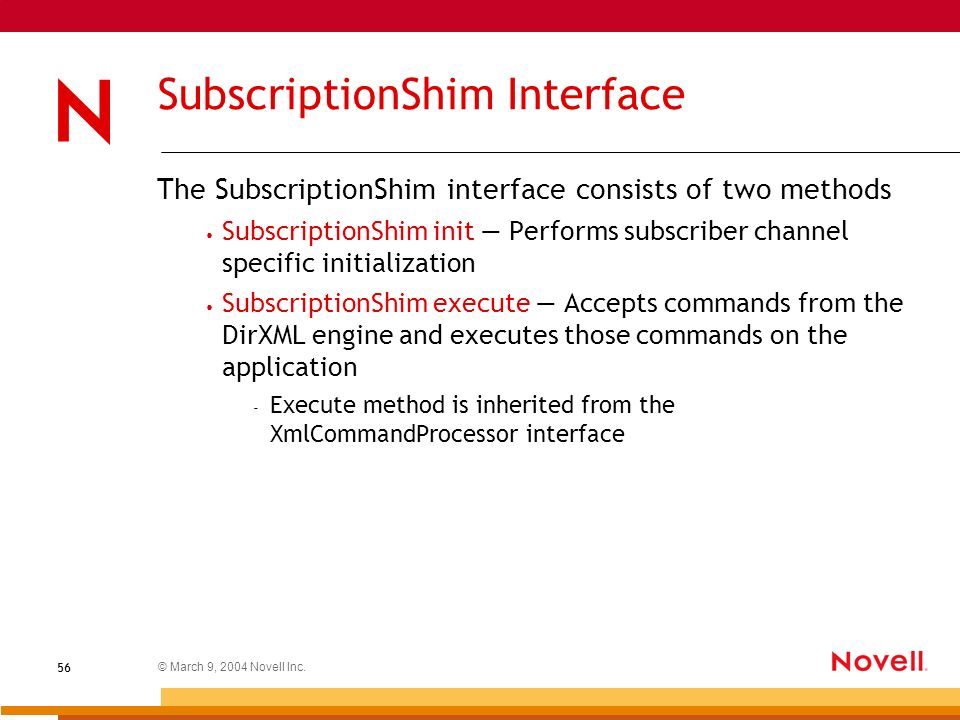

56. © March 9, 2004 Novell Inc. 56 SubscriptionShim Interface The SubscriptionShim interface consists of two methods SubscriptionShim init — Performs subscriber channel specific initialization SubscriptionShim execute — Accepts commands from the DirXML engine and executes those commands on the application ‐ Execute method is inherited from the XmlCommandProcessor interface

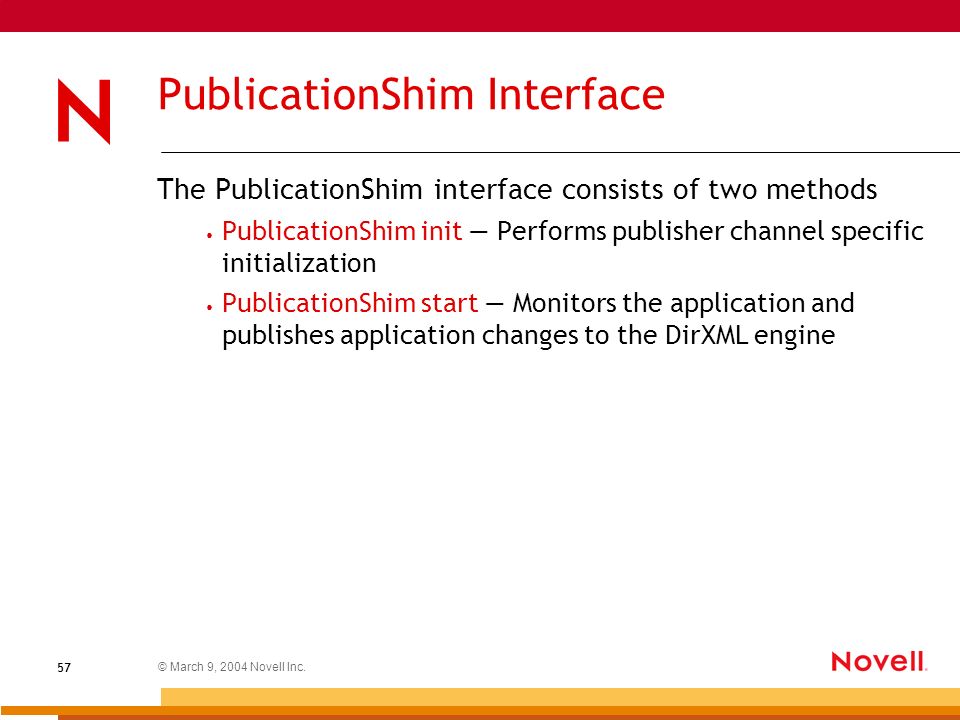

57. © March 9, 2004 Novell Inc. 57 PublicationShim Interface The PublicationShim interface consists of two methods PublicationShim init — Performs publisher channel specific initialization PublicationShim start — Monitors the application and publishes application changes to the DirXML engine

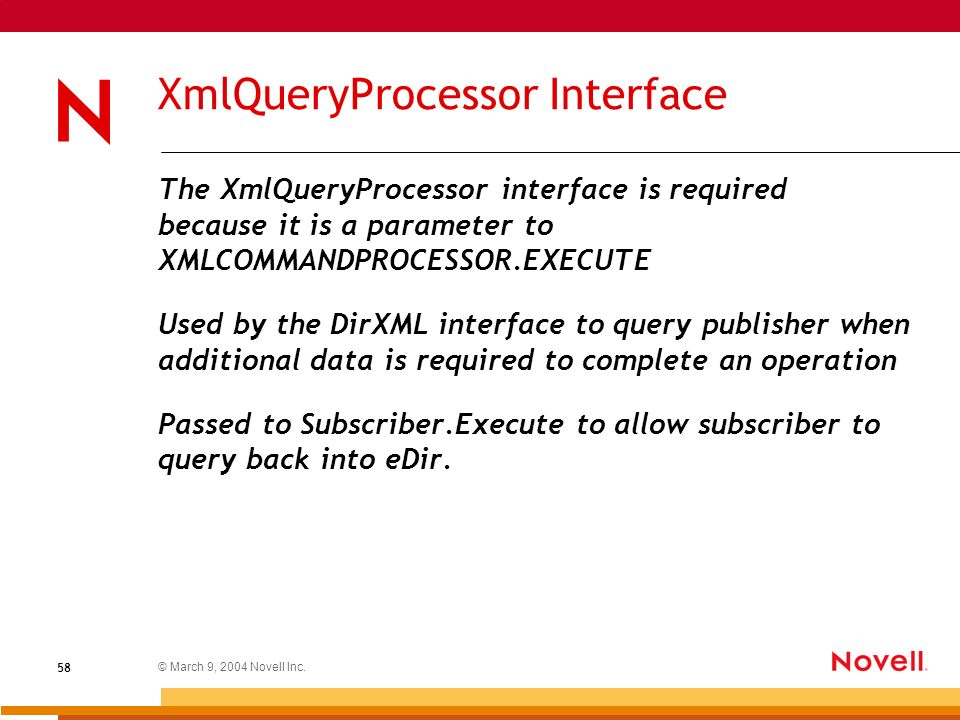

58. © March 9, 2004 Novell Inc. 58 XmlQueryProcessor Interface The XmlQueryProcessor interface is required because it is a parameter to XMLCOMMANDPROCESSOR.EXECUTE Used by the DirXML interface to query publisher when additional data is required to complete an operation Passed to Subscriber.Execute to allow subscriber to query back into eDir.

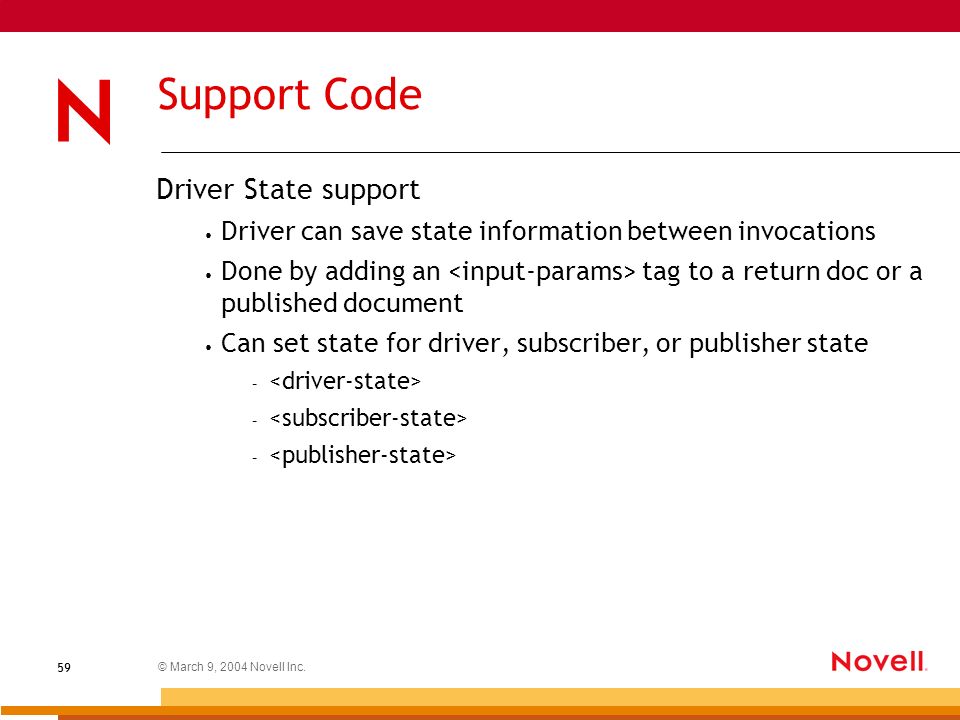

59. © March 9, 2004 Novell Inc. 59 Support Code Driver State support Driver can save state information between invocations Done by adding an tag to a return doc or a published document Can set state for driver, subscriber, or publisher state –

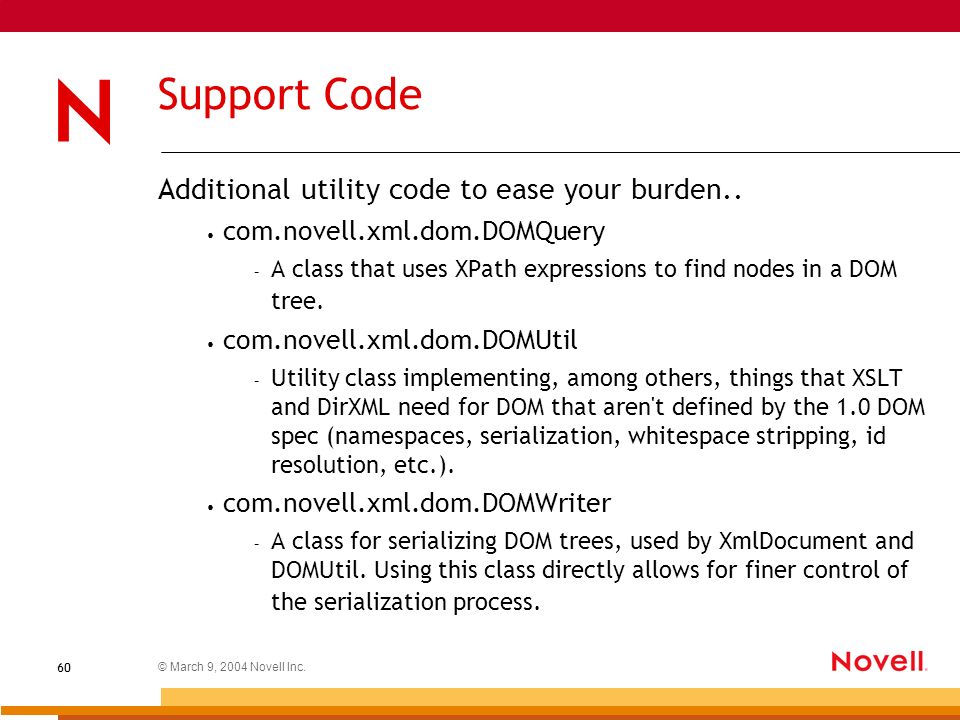

60. © March 9, 2004 Novell Inc. 60 Support Code Additional utility code to ease your burden.. com.novell.xml.dom.DOMQuery – A class that uses XPath expressions to find nodes in a DOM tree. com.novell.xml.dom.DOMUtil – Utility class implementing, among others, things that XSLT and DirXML need for DOM that aren't defined by the 1.0 DOM spec (namespaces, serialization, whitespace stripping, id resolution, etc.). com.novell.xml.dom.DOMWriter – A class for serializing DOM trees, used by XmlDocument and DOMUtil. Using this class directly allows for finer control of the serialization process.

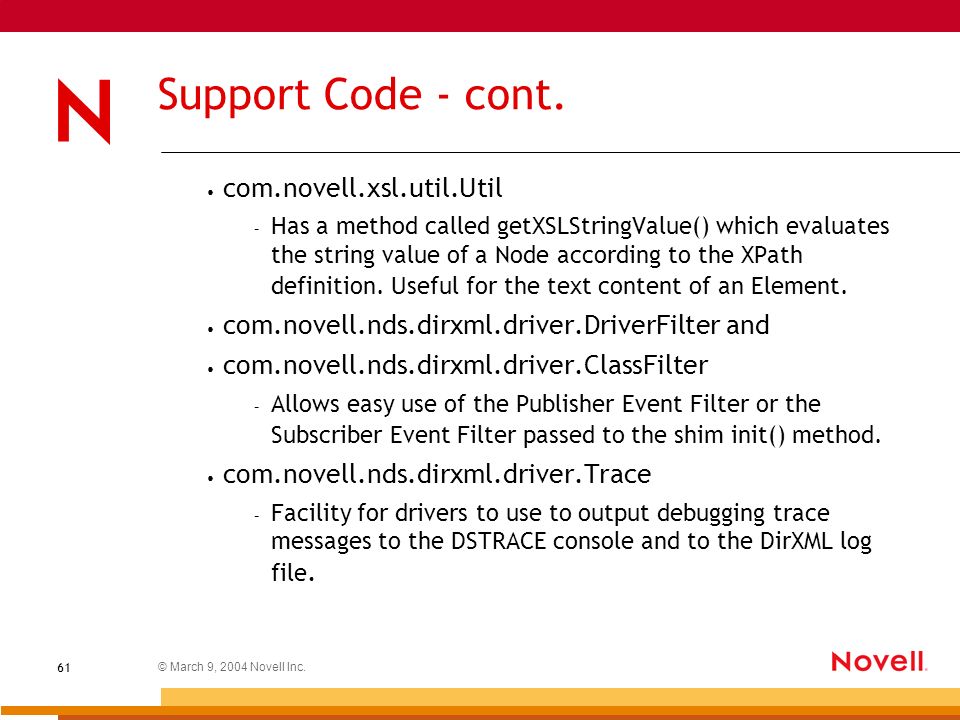

61. © March 9, 2004 Novell Inc. 61 Support Code - cont. com.novell.xsl.util.Util – Has a method called getXSLStringValue() which evaluates the string value of a Node according to the XPath definition. Useful for the text content of an Element. com.novell.nds.dirxml.driver.DriverFilter and com.novell.nds.dirxml.driver.ClassFilter – Allows easy use of the Publisher Event Filter or the Subscriber Event Filter passed to the shim init() method. com.novell.nds.dirxml.driver.Trace – Facility for drivers to use to output debugging trace messages to the DSTRACE console and to the DirXML log file.

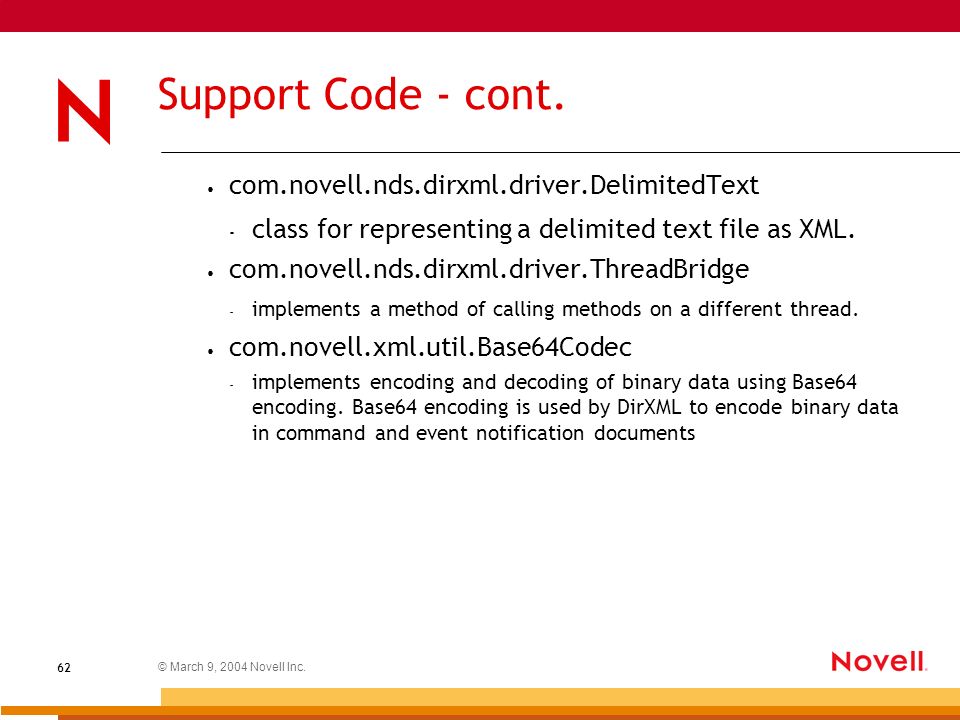

62. © March 9, 2004 Novell Inc. 62 Support Code - cont. com.novell.nds.dirxml.driver.DelimitedText ‐ class for representing a delimited text file as XML. com.novell.nds.dirxml.driver.ThreadBridge ‐ implements a method of calling methods on a different thread. com.novell.xml.util.Base64Codec ‐ implements encoding and decoding of binary data using Base64 encoding. Base64 encoding is used by DirXML to encode binary data in command and event notification documents

63. © March 9, 2004 Novell Inc. 63 Policies & Customization New capabilities in Identity Manager 2.0 Policy Manager ‐ New verbs/commands abstract logic commonly implemented in XSLT ‐ Interface guides you through creation process Global Configuration Variables Named Passwords Role Based Entitlements

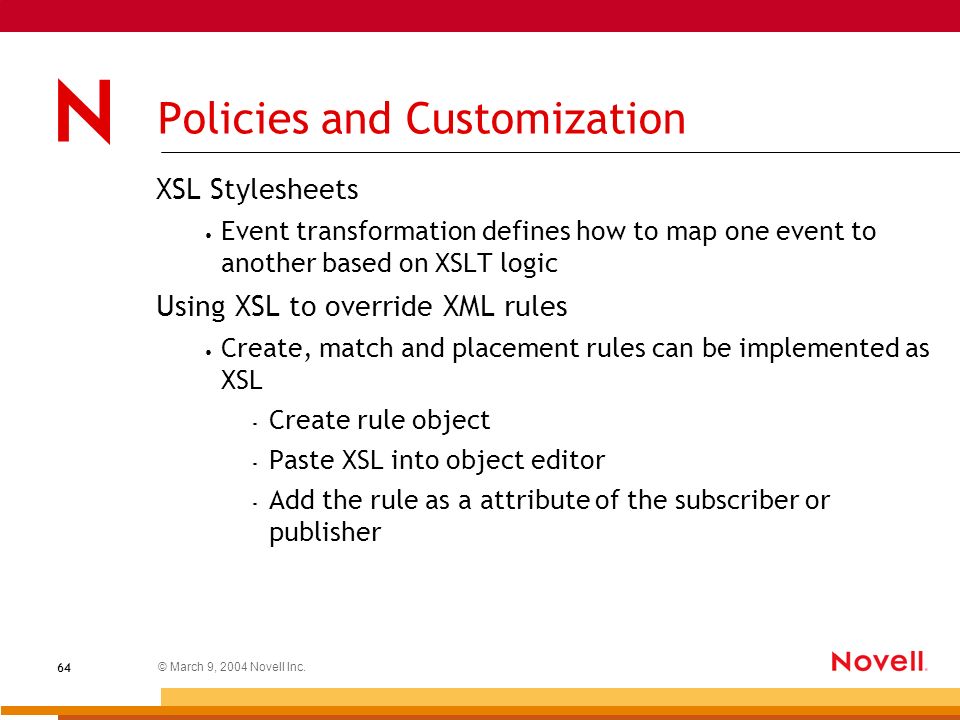

64. © March 9, 2004 Novell Inc. 64 Policies and Customization XSL Stylesheets Event transformation defines how to map one event to another based on XSLT logic Using XSL to override XML rules Create, match and placement rules can be implemented as XSL ‐ Create rule object ‐ Paste XSL into object editor ‐ Add the rule as a attribute of the subscriber or publisher

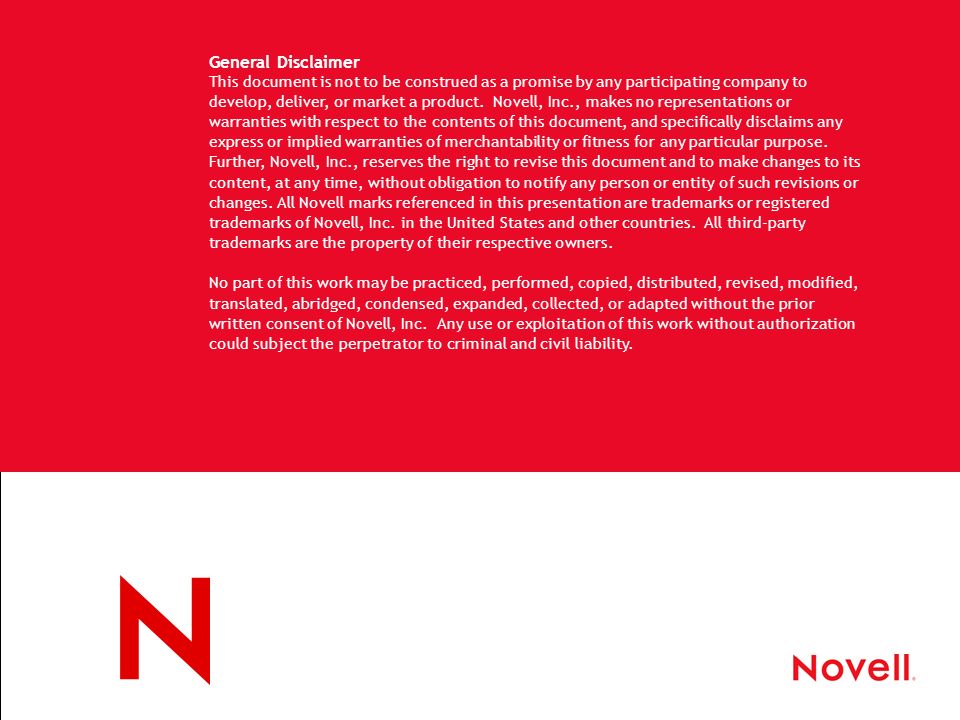

66. General Disclaimer This document is not to be construed as a promise by any participating company to develop, deliver, or market a product. Novell, Inc., makes no representations or warranties with respect to the contents of this document, and specifically disclaims any express or implied warranties of merchantability or fitness for any particular purpose. Further, Novell, Inc., reserves the right to revise this document and to make changes to its content, at any time, without obligation to notify any person or entity of such revisions or changes. All Novell marks referenced in this presentation are trademarks or registered trademarks of Novell, Inc. in the United States and other countries. All third-party trademarks are the property of their respective owners. No part of this work may be practiced, performed, copied, distributed, revised, modified, translated, abridged, condensed, expanded, collected, or adapted without the prior written consent of Novell, Inc. Any use or exploitation of this work without authorization could subject the perpetrator to criminal and civil liability.

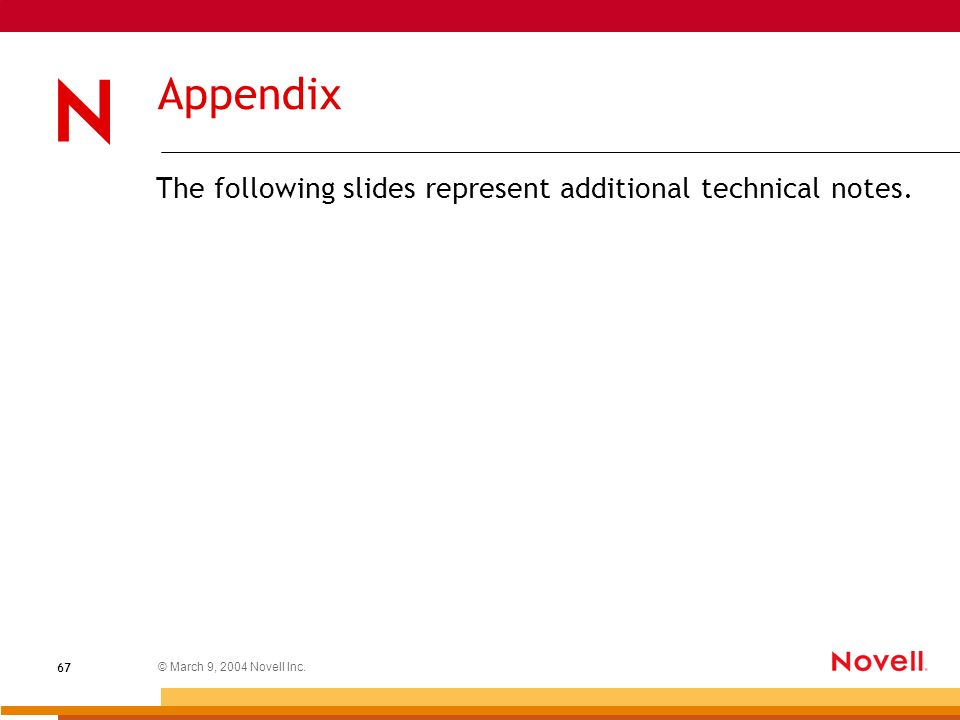

67. © March 9, 2004 Novell Inc. 67 Appendix The following slides represent additional technical notes.

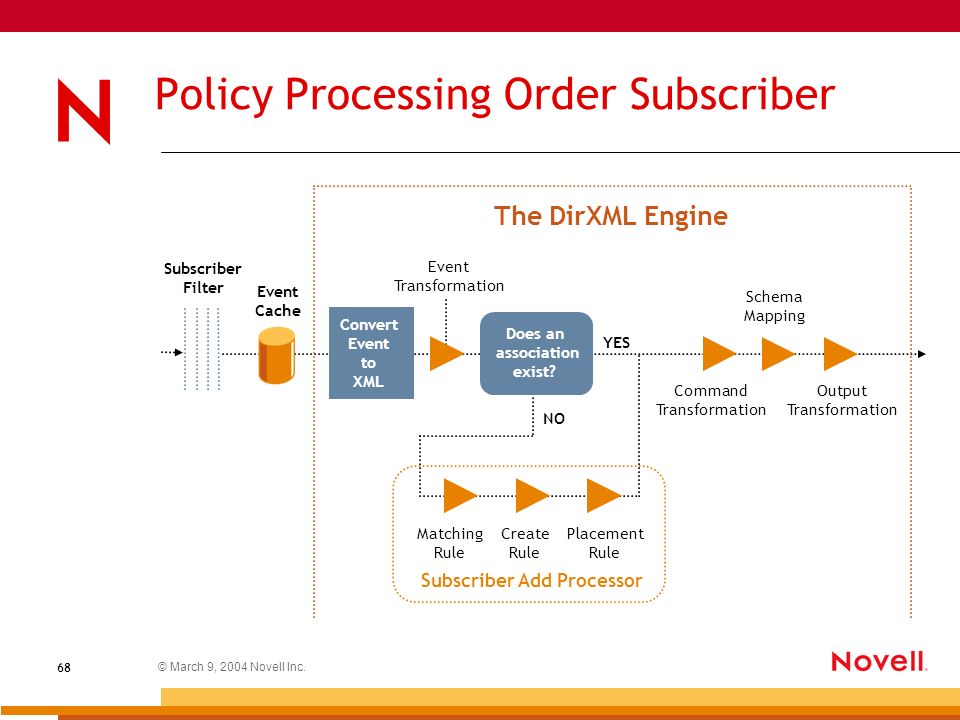

68. © March 9, 2004 Novell Inc. 68 Policy Processing Order Subscriber Convert Event to XML Event Transformation Schema Mapping Output Transformation Matching Rule Create Rule Placement Rule Subscriber Add Processor Subscriber Filter Event Cache NO YES The DirXML Engine Command Transformation Does an association exist?

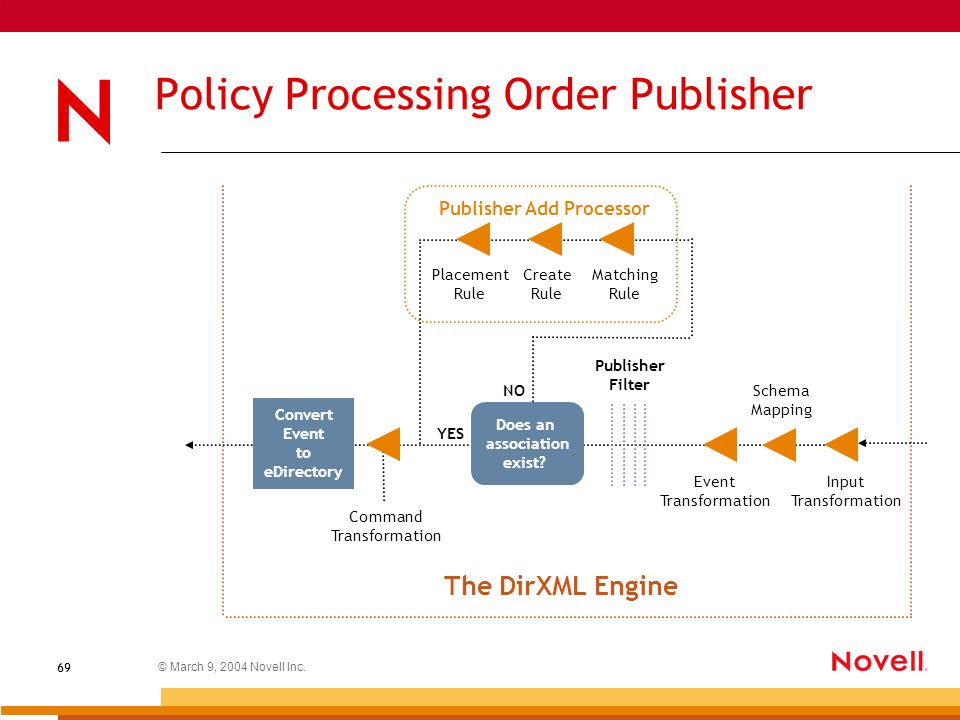

69. © March 9, 2004 Novell Inc. 69 Policy Processing Order Publisher Convert Event to eDirectory Command Transformation Schema Mapping Input Transformation Matching Rule Create Rule Placement Rule Publisher Add Processor NO YES The DirXML Engine Event Transformation Does an association exist? Publisher Filter

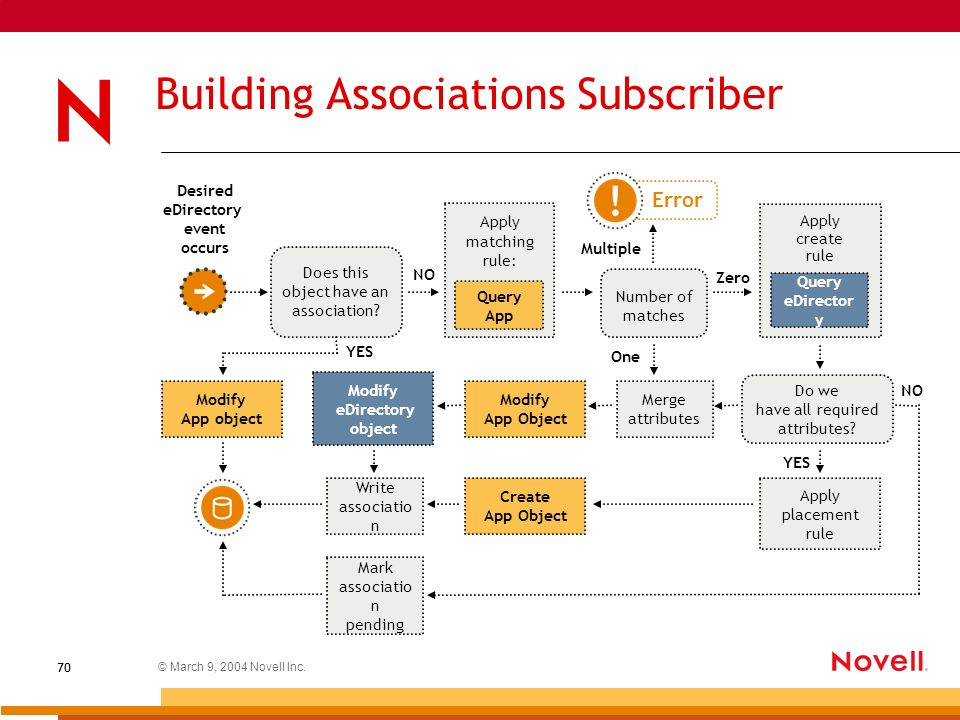

70. © March 9, 2004 Novell Inc. 70 Building Associations Subscriber One Write associatio n Apply matching rule: Query App Merge attributes Mark associatio n pending Apply placement rule Zero NO YES Create App Object Modify App object Multiple YES NO Desired eDirectory event occurs Apply create rule Query eDirector y Modify App Object Modify eDirectory object Does this object have an association? Number of matches Error Do we have all required attributes?

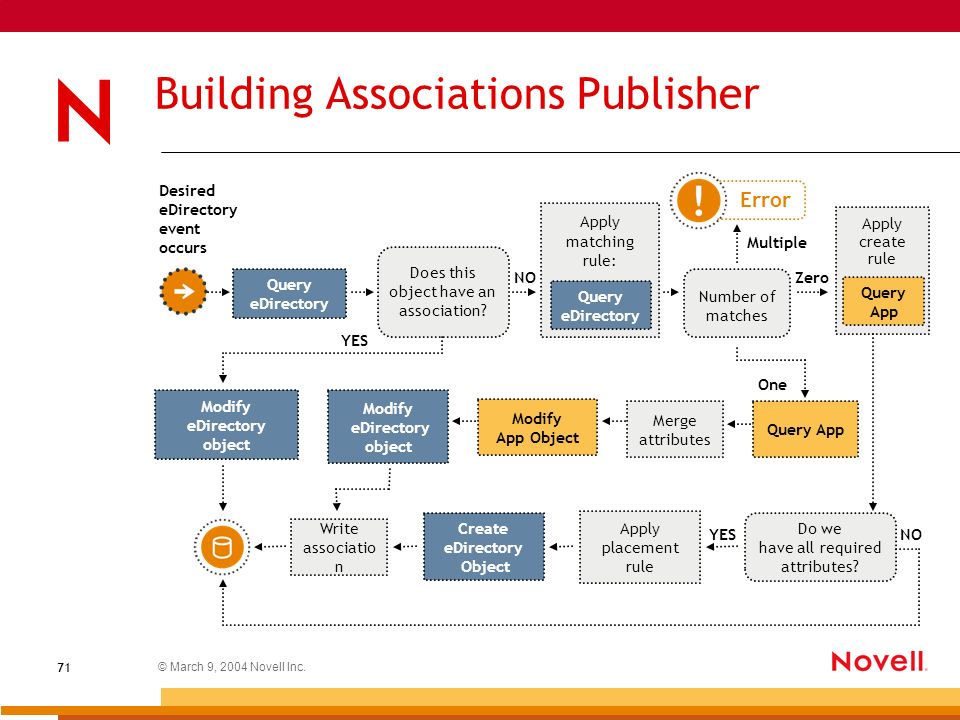

71. © March 9, 2004 Novell Inc. 71 One Write associatio n Apply matching rule: Query eDirectory Merge attributes Apply placement rule Zero NOYES Create eDirectory Object Modify eDirectory object Multiple YES NO Desired eDirectory event occurs Apply create rule Modify App Object Modify eDirectory object Does this object have an association? Number of matches Error Do we have all required attributes? Query eDirectory Query App Query App Building Associations Publisher
