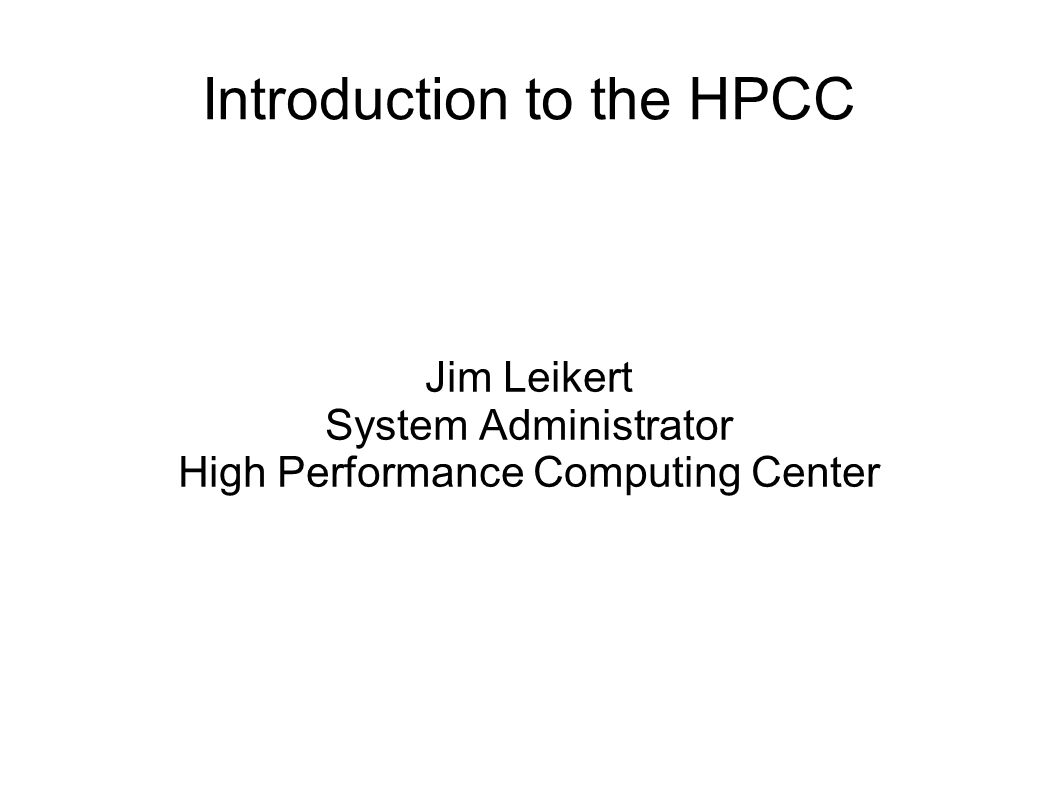

1. Introduction to the HPCC Jim Leikert System Administrator High Performance Computing Center

2. HPCC Online Resources www.hpcc.msu.edu – HPCC home wiki.hpcc.msu.edu – Public/Private Wiki forums.hpcc.msu.edu – User forums rt.hpcc.msu.edu – Help desk request tracking mon.hpcc.msu.edu – System Monitors

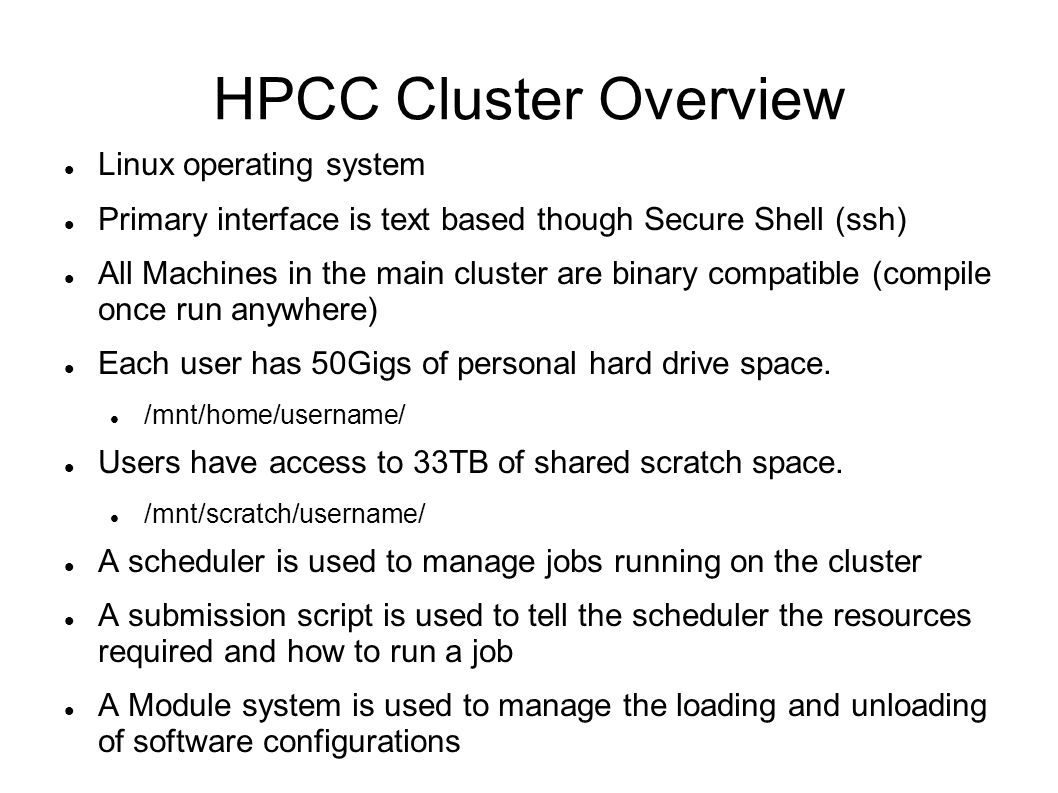

3. HPCC Cluster Overview Linux operating system Primary interface is text based though Secure Shell (ssh) All Machines in the main cluster are binary compatible (compile once run anywhere) Each user has 50Gigs of personal hard drive space. /mnt/home/username/ Users have access to 33TB of shared scratch space. /mnt/scratch/username/ A scheduler is used to manage jobs running on the cluster A submission script is used to tell the scheduler the resources required and how to run a job A Module system is used to manage the loading and unloading of software configurations

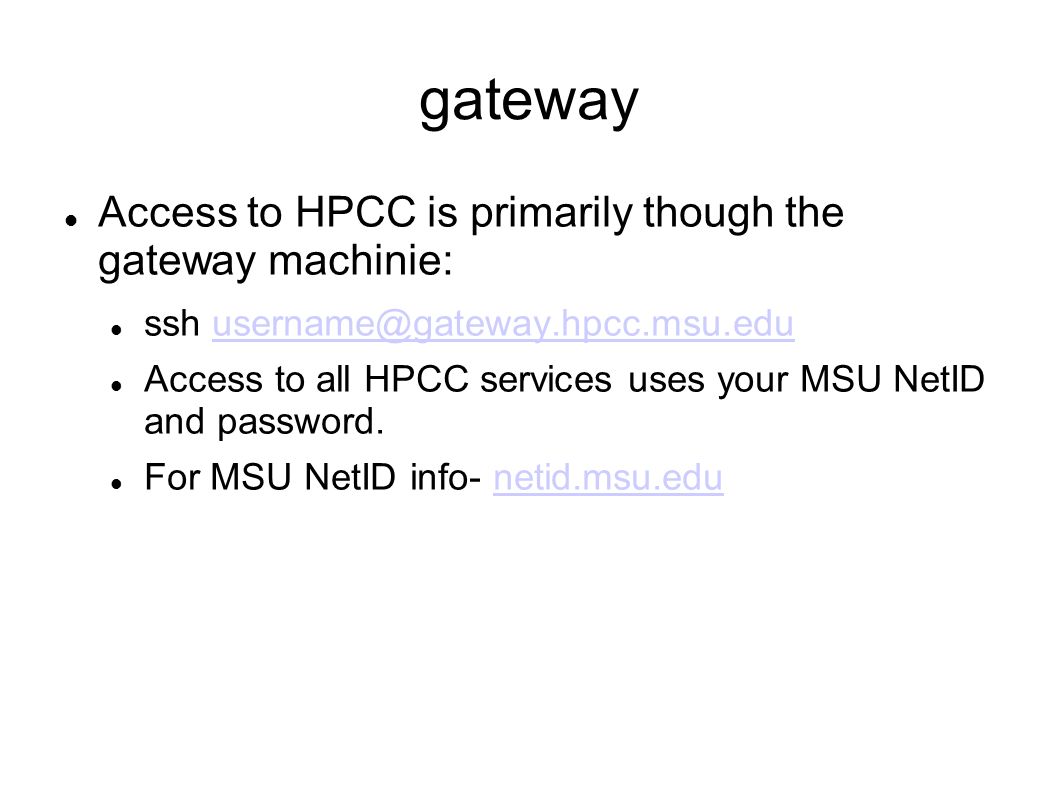

4. gateway Access to HPCC is primarily though the gateway machinie: ssh username@gateway.hpcc.msu.eduusername@gateway.hpcc.msu.edu Access to all HPCC services uses your MSU NetID and password. For MSU NetID info- netid.msu.edunetid.msu.edu

5. HPCC System Diagram

6. Hardware Time Line YearNameDescriptionCoresMemoryTotal Cores 2005green1.6GHz Itanium2 (very old)128 576 (shared) 128 Main Cluster 2005amd05Dual-core 2.2GHz AMD Opterons48GB512 2007intel07Quad-core 2.3GHz Xeons88GB1024 2008intel08Sun x4450s (Fat Node)1664GB32 2009amd09Sun Fire X4600 Opterons (Fat Node)32256GB128 1696 We are currently have two new hardware additions for 2010 Graphics Processing Unit (GPU) Cluster – In House New General Purpose Large Cluster – RFP/RFQ stage

7. HPCC System Diagram

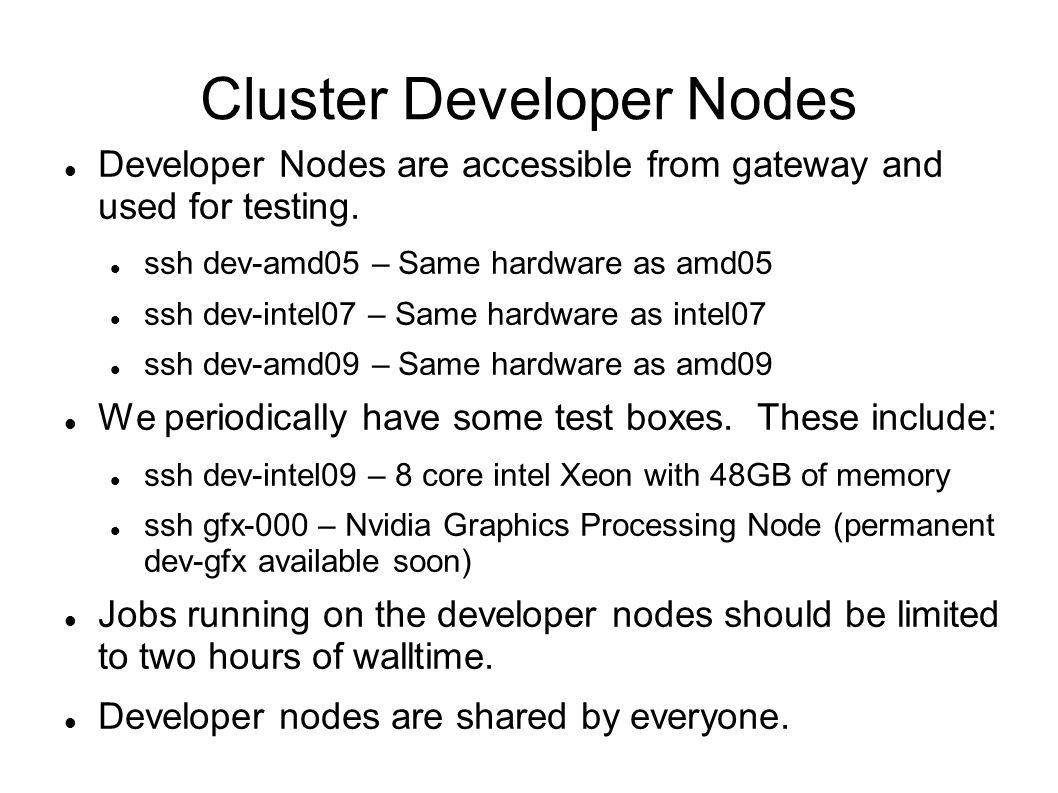

8. Cluster Developer Nodes Developer Nodes are accessible from gateway and used for testing. ssh dev-amd05 – Same hardware as amd05 ssh dev-intel07 – Same hardware as intel07 ssh dev-amd09 – Same hardware as amd09 We periodically have some test boxes. These include: ssh dev-intel09 – 8 core intel Xeon with 48GB of memory ssh gfx-000 – Nvidia Graphics Processing Node (permanent dev-gfx available soon) Jobs running on the developer nodes should be limited to two hours of walltime. Developer nodes are shared by everyone.

9. HPCC System Diagram

10. Available Software Center Supported Development Software Intel compilers, openmp, openmpi, mvapich, totalview, mkl, pathscale, gnu... Center Supported Research Software Matlab, R, fluent, abaqus, HEEDS, amber, blast, ls- dyna, starp... Center Unsupported Software (module use.cus) gromacs, cmake, cuda, imagemagick, java, openmm, siesta...

11. Steps in Using the HPCC 1. Connect to HPCC 2. Transfer required input files and source code 3. Determine required software 4. Compile programs (if needed) 5. Test software/programs on a developer node 6. Write a submission script 7. Submit the job 8. Get your results and write a paper!!

12. Module System To maximize the different types of software and system configurations that are available to the users. HPCC uses a Module system. Key Commands module avail – show available modules module list – list currently loaded modules module load modulename – load a module module unload modulename – unload a module

13. Getting Help Documentation and User Manual - wiki.hpcc.msu.edu User Forums - forums.hpcc.msu.edu Contact HPCC and iCER Staff for: Reporting System Problems HPC Program writing/debugging Consultation Help with HPC grant writing System Requests Other General Questions Primary form of contact - www.hpcc.msu.edu/contactwww.hpcc.msu.edu/contact Apply for an account – www.hpcc.msu.edu/requestwww.hpcc.msu.edu/request HPCC Request tracking system – rt.hpcc.msu.edu HPCC Phone – (517) 353-9309 9am-5pm HPCC Office – Engineering Building 3200 9am-5pm
