1 2 3 Energy in the form of particles or electromagnetic waves emitted from the nuclei of unstable atoms RADIATION 4.

Similar presentations


Presentation on theme: "1 2 3 Energy in the form of particles or electromagnetic waves emitted from the nuclei of unstable atoms RADIATION 4."— Presentation transcript:

1

2 1

3 2

4 3

5 Energy in the form of particles or electromagnetic waves emitted from the nuclei of unstable atoms RADIATION 4

6 The term really includes all forms of electromagnetic radiation The term really includes all forms of electromagnetic radiation Radio Waves, Infrared, Visible Light Radio Waves, Infrared, Visible Light Ultraviolet, X-rays, -rays Ultraviolet, X-rays, -rays Commonly used today to describe particle radiation Commonly used today to describe particle radiation RADIATION 5

7 Protons and neutrons determine nuclear reactions One must understand atomic structure to understand radiation NUCLEAR REACTIONS PRODUCE RADIATION 6

8 Protons and Neutrons are the two basic nuclear particles. Together they contain practically all the mass of an atom and are determinants of an atoms nuclear characteristics. NUCLEAR PARTICLES 7

9 Radioactive decay refers to the spontaneous emission of radiation from the nucleus of an unstable atomic nucleus RADIOACTIVE DECAY 8

10 Radioactive decay is the process of spontaneous emission of radiation in the form of particles or photons from the nuclei of unstable atoms DEFINITION OF RADIOACTIVE DECAY 9

11 CHARACTERISTICS OF RADIOACTIVE DECAY It is a natural process in our universe It is spontaneous – we cannot predict when an atom will undergo decay 10

12 BASIC TYPES OF RADIOACTIVE DECAY Alpha ( ) decay Occurs when atomic nuclei have too many protons and neutrons (i.e., Are heavy) 11

13 ALPHA PARTICLE 12

14 Consist of 2 protons and 2 neutrons Mass of an alpha particle is 4 amu Charge = +2 The isotopes Atomic Mass goes down four; The Atomic Number goes down two Are highly ionizing Have low penetrating abilities (only cm in air and mm in water) CHARACTERISTICS OF ALPHA PARTICLES 13

15 Easily shielded; common types of shielding are paper, cardboard, air, clothing; will not penetrate skin Health hazard when taken internally Not commonly used in medicine Common sources = smoke detectors (Am-241) and lantern mantles (thorium nitrate) MORE ABOUT ALPHA PARTICLES 14

16 Changes both the mass and identity of the nucleus of the parent radionuclide This means that the decay results in the formation of a new element as the daughter product ALPHA PARTICLE DECAY 15

17

18 ? ? QUESTIONS? 16

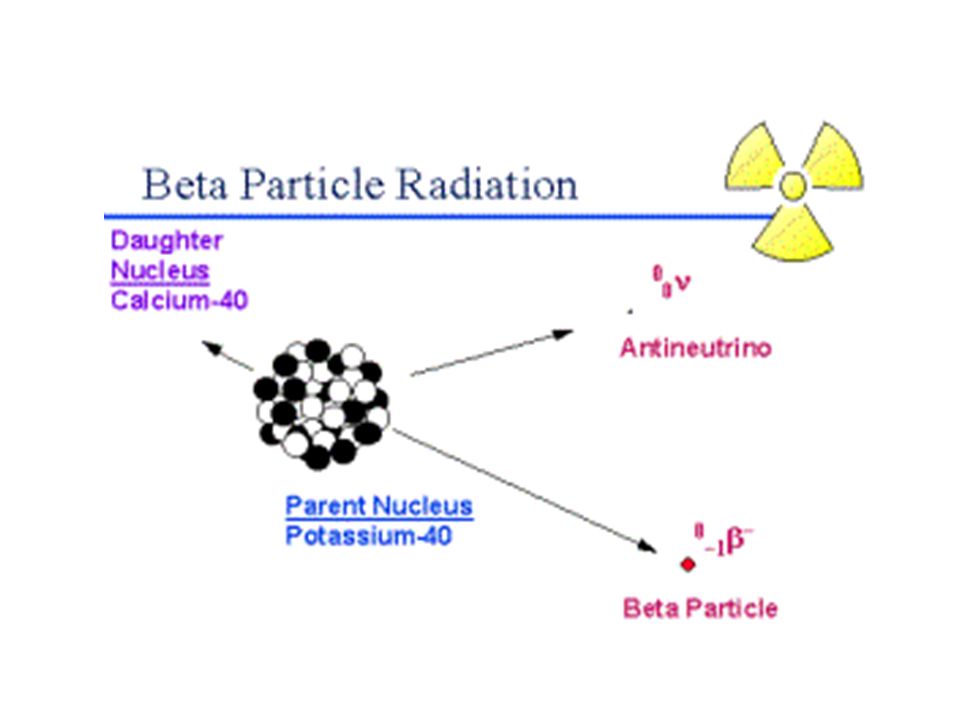

19 NEGATIVE BETA (ß - ) DECAY Occurs when atoms have too many neutrons (i.e., Are neutron-rich) and decay by emitting a negative beta particle (ß - ) 17

20

21 WHAT ARE NEGATIVE BETA PARTICLES? During negative beta decay, neutrons are converted into protons and electrons. The protons remain in the nucleus but the new electrons are emitted as negative beta particles (ß - ) or negatrons. You may wish to think of them as nuclear electrons. 18

22 CHARACTERISTICS OF NEGATIVE BETA DECAY Less ionizing than alphas due to decreased mass of negatrons Changes the identity of the nucleus but not the mass The Atomic Number is increased by one due to conversion of neutrons into protons 19

23 CHARACTERISTICS OF NEGATIVE BETA PARTICLES (NEGATRONS) Negatrons consist of nuclear electrons The mass is the same as electrons There is a charge of –1 in negatrons More penetrating than alpha particles; ~ 12 meters in air They can penetrate skin– best shielding is wood, plastics, thick cardboard, etc. 20

24 24 ? ? QUESTIONS?

25 GAMMA ( ) EMISSION Is a form of pure electromagnetic radiation emitted from nuclei that have excess energy. It is sometimes called gamma photon radiation. 25

26 GAMMA RAYS Are photons emitted from unstable nuclei to rid themselves of excess energy. Gamma photons are subatomic packets of pure energy. They are higher in energy and more penetrating than the photons that make up visible light. 26

27 PROPERTIES OF GAMMA ( ) RAYS Charge is 0 (no charge) Mass is 0 (no mass) Low ionization Penetration abilities can be extremely high; – penetrating power is dependent upon the energy of the emitted photons 28

28

29

30 29 ? ? QUESTIONS?

31 What is a packet of light energy that behaves like a particle? 1.Positron 2.Negatron 3.Megatron 4.Photon

32 Which form of radiation penetrates the least? 1.Alpha Decay 2.Beta Decay 3.Gamma Decay 4.Delta Decay

33 Which radioactive particle increases the Parent Nucleuss atomic number? 1.Alpha Particle 2.Beta Particle 3.Gamma Particle 4.Delta Particle

34 Which form of radiation penetrates the most? 1.Alpha Decay 2.Beta Decay 3.Gamma Decay 4.Delta Decay

35 Which particle drops the Parent Nucleuss atomic number by two? 1.Alpha Particle 2.Beta Particle 3.Gamma Particle 4.Delta Particle

36 Which particle resembles a Helium nucleus? 1.Alpha Particle 2.Beta Particle 3.Gamma Particle 4.Delta Particle

37 Which particle isnt a particle but a photon? 1.Alpha Particle 2.Beta Particle 3.Gamma Particle 4.Delta Particle

38 Decay Systems Each radioactive element will undergo various forms of radiation until it becomes stable The particular elements that a Parent Nucleus changes into are always the same This path is a Decay System

39

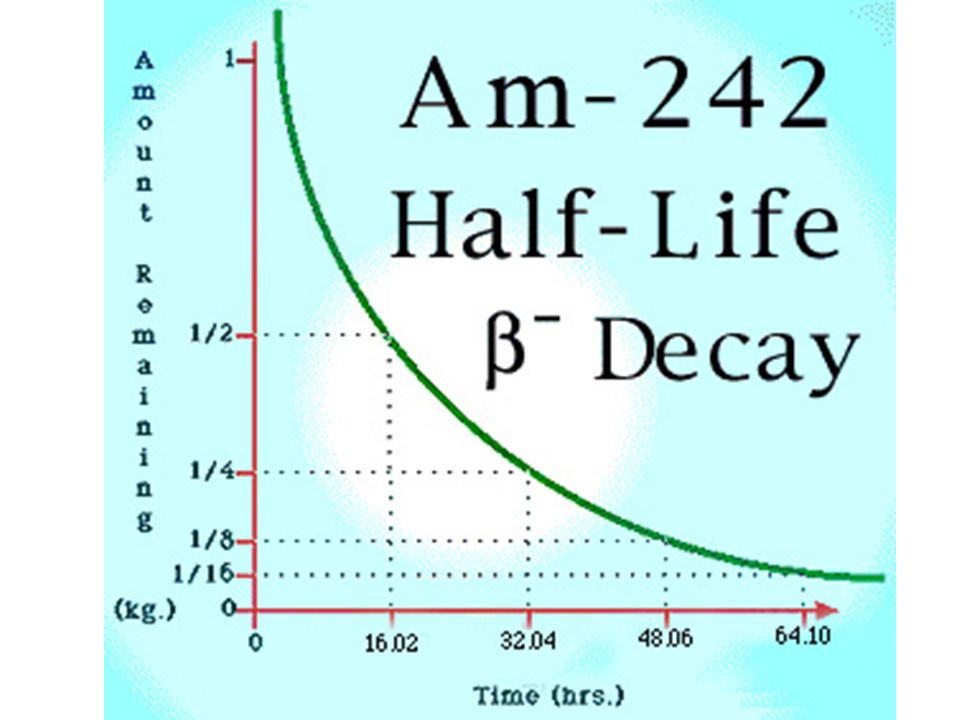

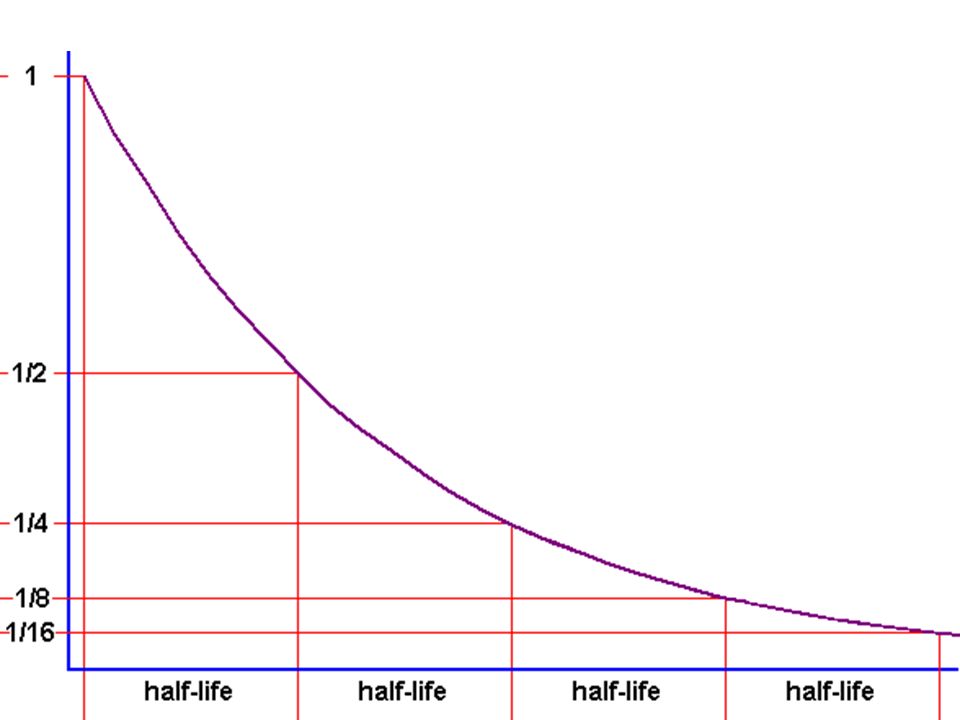

40 Half-life The amount of time it takes for HALF of an amount of a radioactive material to decay One symbol for half-life is (lambda) Original Amount # of Current Amount 100g150g 100g225g 100g312.5g 100g46.25g 100g53.125g

41

42

43

44

45 A Decay System showing half-lives

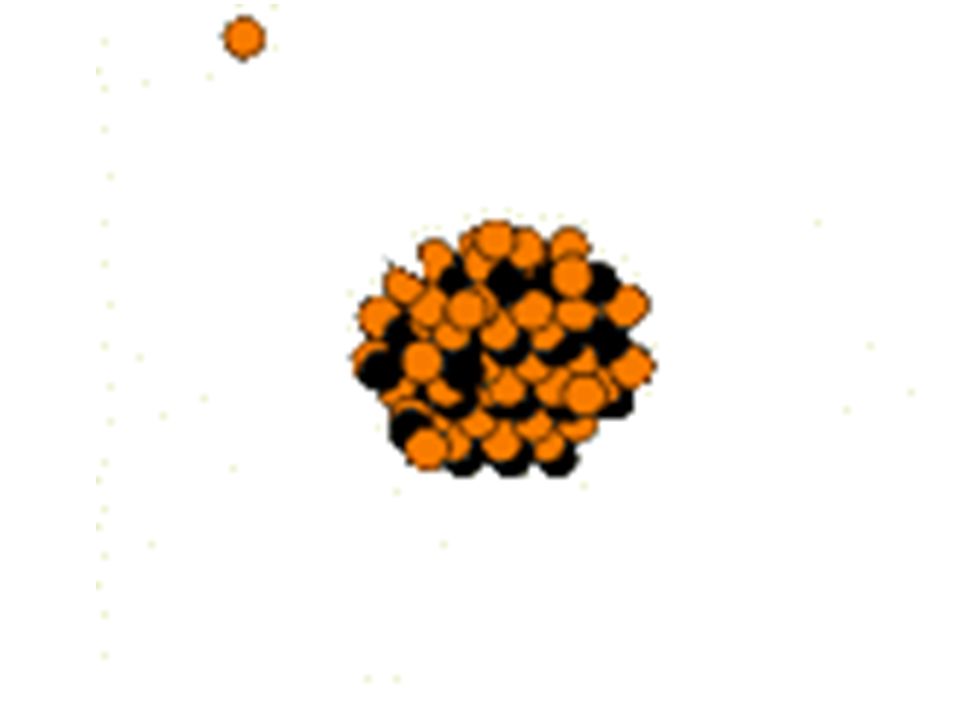

46 Nuclear Processes Fission –The splitting of a large, unstable nucleus into two or more stable nuclei –Scientists can cause fission by injecting a neutron at high speed –These are the uses associated with nuclear fission: Power plants / reactors Bombs Dirty bombs

47

48

49 Nuclear Processes Fusion –The joining of two or more smaller nuclei into one larger, more stable nucleus –Scientists are working on fusion using high pressures, temperatures, and lasers –The only place that fusion occurs naturally is stars

50

51 Chernobyl Disaster April 26, 1986 – flawed reactor design was operated by inadequately trained personnel and w/o regard to safety

52 Chernobyl Disaster Result – steam explosion and fire released at least 5% of the radioactive reactor core into the atmosphere & downwind 28 people died within 4 months from radiation or thermal burns 19 subsequently died and 9 deaths from thyroid cancer

53

54 TERMS TO REVIEW RadiationAlpha decay Alpha particleRadioactive decay NegatronNegative beta decay X-ray Gamma rayPhoton Half-Life Decay Systems Mother NucleusDaughter Nuclei FissionFusion 30

55 Half-Life Problems 1. An isotope of cesium (cesium-137) has a half-life of 30 yrs. If 1.0 mg of cesium-137 disintegrates over a period of 90 yrs., how many mg of cesium-137 would remain?

56 Half-life 2. A 2.5 gram sample of an isotope of strontium-90 was formed in a 1960 explosion of an atomic bomb at Johnson Island in the Pacific Test site. The half-life of strontium-90 is 28 yrs. In what year will only 0.625 grams of this strontium-90 remain?

57 Half-life 3. Actinium-226 has a half-life of 29 hours. If 100 mg of actinium-226 disintegrates over a period of 58 hours, how many mg of actinium- 226 will remain?

58 Half-life 4. Thallium-201 has a half-life of 73 hours. If 4.0 mg of thallium-201 disintegrates over a period of 6.0 days and 2 hours, how many mg of thallium-201 will remain?

59 Half-life 5. Sodium-25 was to be used in an experiment, but it took 3.0 minutes to get the sodium from the reactor to the laboratory. If 5.0 mg of sodium-25 was removed from the reactor, how many mg of sodium-25 were placed in the reaction vessel 3.0 minutes later if the half-life of sodium-25 is 60 seconds?

60 Half-life 6. The half-life of isotope X is 2.0 years. How many years would it take for a 4.0 mg sample of X to decay and have only 0.50 mg of it remain?

61 Half-life 7. Selenium-83 has a half-life of 25.0 minutes. How many minutes would it take for a 10.0 mg sample to decay and have only 1.25 mg of it remain?

62 Half-life 8. Element-106 has a half-life of 0.90 seconds. If one million atoms of it were prepared, how many atoms would remain after 4.5 seconds?

63 Half-life 9. The half-life of Po-218 is three minutes. How much of a 2.0 gram sample remains after 15 minutes? Suppose you wanted to buy some of this isotope, and it required half an hour for it to reach you. How much should you order if you need to use 0.10 gram of this material?

64 Half-life 10. Three grams of Bismuth-218 decay to 0.375 grams in one hour. What is the half-life of this isotope?

65 Half-life 11. The half-life of francium is 21 minutes. Starting with 4 x 10 18 atoms of francium, how many atoms would disintegrate in 1 hour and 45 minutes? What fraction of the original sample remains?

66 Half-life 12. The half-life of a radioactive element is 30 seconds. In what period of time would the activity of the sample be reduced to one- sixteenth of the original activity?
