1 National Alliance for Medical Image Computing Integrating with Slicer3

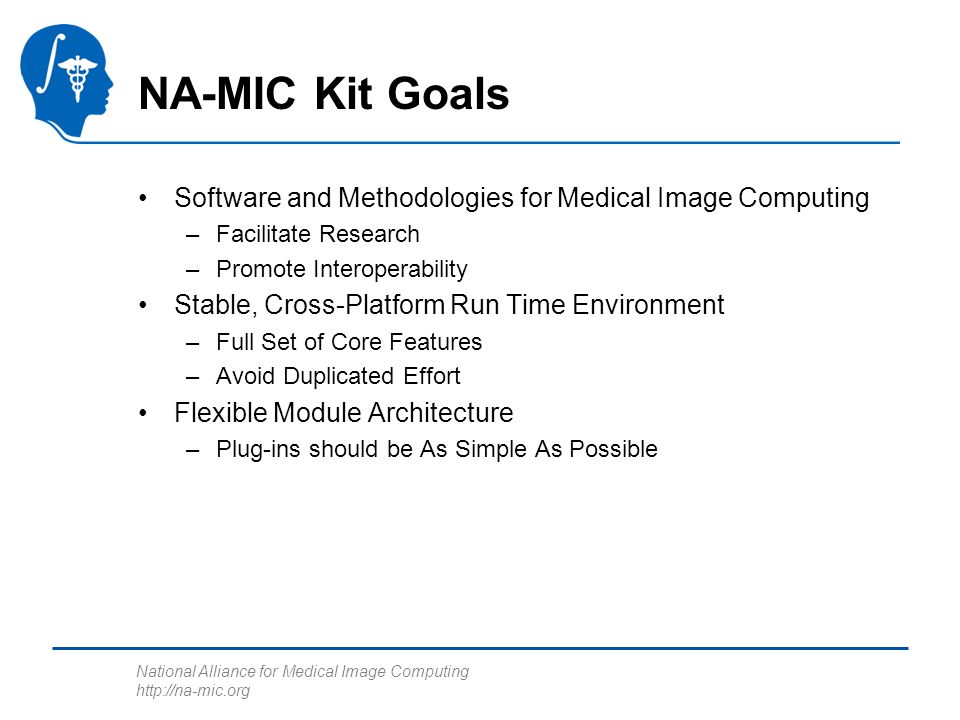

2 National Alliance for Medical Image Computing NA-MIC Kit Goals Software and Methodologies for Medical Image Computing –Facilitate Research –Promote Interoperability Stable, Cross-Platform Run Time Environment –Full Set of Core Features –Avoid Duplicated Effort Flexible Module Architecture –Plug-ins should be As Simple As Possible

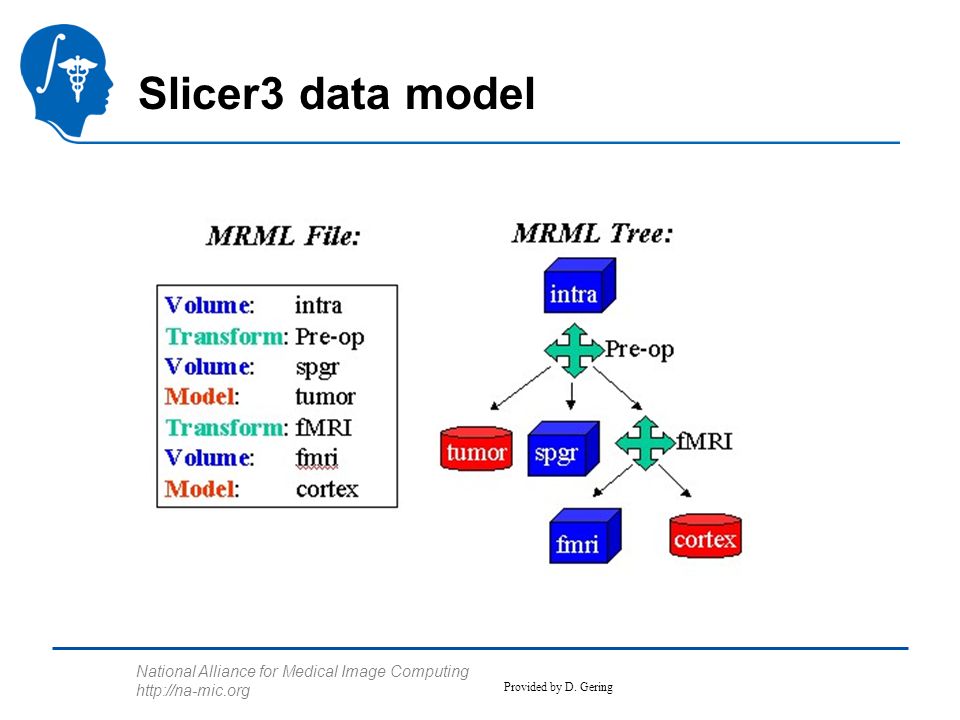

3 National Alliance for Medical Image Computing Provided by D. Gering Slicer3 data model

4 National Alliance for Medical Image Computing Slicer3 Observer MVC Pattern MRML (Model) –For Scene Description and Application State –MRML Nodes are Persistent and Undoable –Scene and Nodes are Observable Logic Encapsulate VTK and ITK Pipelines (Controller) –Observe MRML to Configure Pipelines –Help Create/Manage Nodes –No UI Components (no Widgets, Actors, Mappers, Renderers or RenderWindows) GUI (View) –Observe and Edit MRML –Interact with User and Display Hardware Modules Should Follow Same Conventions Logic MRML Nodes GUI WidgetsRenderers Edit Observe Edit Observe means generic event mechanisms are used to pass information. Edit means code can directly call methods. Example: GUI can call methods in Logic classes, but Logic cannot call GUI methods. MRML cannot call Logic or GUI methods. There can be many observers for any event.

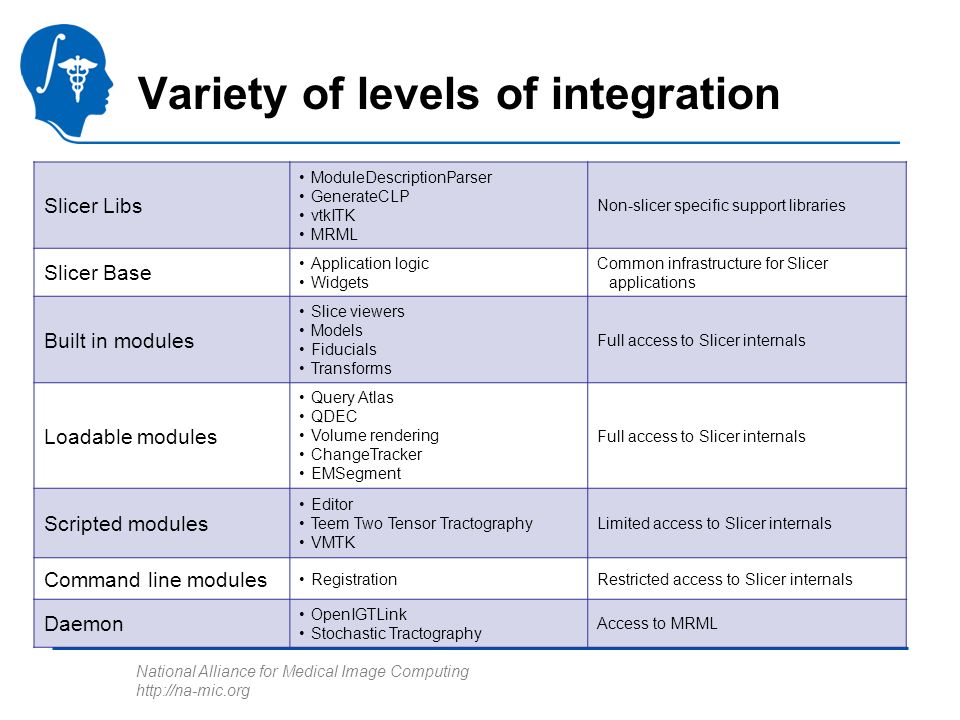

5 National Alliance for Medical Image Computing Variety of levels of integration Slicer Libs ModuleDescriptionParser GenerateCLP vtkITK MRML Non-slicer specific support libraries Slicer Base Application logic Widgets Common infrastructure for Slicer applications Built in modules Slice viewers Models Fiducials Transforms Full access to Slicer internals Loadable modules Query Atlas QDEC Volume rendering ChangeTracker EMSegment Full access to Slicer internals Scripted modules Editor Teem Two Tensor Tractography VMTK Limited access to Slicer internals Command line modules RegistrationRestricted access to Slicer internals Daemon OpenIGTLink Stochastic Tractography Access to MRML

6 National Alliance for Medical Image Computing Base Features vs. Modules FeaturesBaseModules VisualizationMRML: Models, Volumes, Volume Rendering, Fiducials, Continuum Meshes, Labeled Data Can create custom MRML Nodes and behavior FilteringNoneImplemented as Modules using ITK or other Libraries RegistrationTransform Display and Edit, Save/RestoreCalculate Transforms, Resample Data SegmentationLabel Maps, Parcellated SurfacesSegmentation Algorithms in ITK or other Libraries QuantificationLabel, Image, Volume Statistics; Numpy access to MRML Applications in Python or MATLAB Real-time IntegrationVTK Rendering, KWWidgets framework, Tracker Support (as Transforms) Direct Manipulation of the MRML Scene; 2D/3D Widgets; Device Interfaces, OpenIGTLink Module Diffusion ImagingDWI, DTI, Fiber BundlesTractography, Clustering, Atlases ApplicationsBundles of Modules in Distribution: Registration, Editor, some Filters, Customized Extensions, Domain- specific code, Optimized Interfaces…

7 National Alliance for Medical Image Computing Each module has … … an entry in the module menu … a panel of user interface controls

8 National Alliance for Medical Image Computing Built in module vtkMRMLNode.hvtkSlicerModuleGUI.h vtkSlicerModuleLogic.h vtkMRMLYourModuleNode.h GetNodeTagName() Copy() ReadXMLAttributes() WriteXML() vtkSlicerYourModuleGUI.h BuildGUI() ProcessGUIEvents() ProcessLogicEvents() ProcessMRMLEvents() vtkSlicerYourModuleLogic.h ProcessMRMLEvents() ProcessLogicEvents() Slicer provided Module writer provided

9 National Alliance for Medical Image Computing Loadable module vtkMRMLNode.hvtkSlicerModuleGUI.h vtkSlicerModuleLogic.h vtkMRMLYourModuleNode.h GetNodeTagName() Copy() ReadXMLAttributes() WriteXML() vtkSlicerYourModuleGUI.h BuildGUI() ProcessGUIEvents() ProcessLogicEvents() ProcessMRMLEvents() vtkSlicerYourModuleLogic.h ProcessMRMLEvents() ProcessLogicEvents() YourModule.so GetLoadableModuleDescription() GetLoadableModuleLogic() GetLoadableModuleGUI() Slicer provided Module writer provided

10 National Alliance for Medical Image Computing Qt Loadable Module vtkMRMLNode.hqSlicerAbstractModuleWidget.h qSlicerAbstractModuleLogic.h vtkMRMLYourModuleNode.h GetNodeTagName() Copy() ReadXMLAttributes() WriteXML() qSlicerYourModuleWidget.h initialize() showModuleAction() setup() setLogic() qSlicerYourModuleLogic.h initialize() setup() Q_EXPORT_PLUGIN2(qSlicerYourModule, qSllicerYourModule); Slicer provided Module writer provided qSlicerYourModule.ui qSlicerAbstractModule.h qSlicerYourModule.h showModuleAction() setup() setLogic() qSlicerYourModule.qrc QtPlugins

11 National Alliance for Medical Image Computing Tcl scripted module vtkMRMLScriptedModule Node.h vtkSlicerScriptedModule GUI.h vtkSlicerScriptedModule Logic.h YourModuleNode.tcl YourModuleGUI.tcl proc YourModuleBuildGUI proc YourModuleProcessGUIEvents proc YourModuleProcessLogicEvents YourModuleLogic.tcl YourModule.tcl package provide YourModule x.y Slicer provided Module writer provided

12 National Alliance for Medical Image Computing Python scripted module vtkMRMLScriptedModule Node.h vtkSlicerScriptedModule GUI.h vtkSlicerScriptedModule Logic.h YourModuleGUI.py def BuildGUI() def ProcessGUIEvents() def ProcessLogicEvents() Slicer provided Module writer provided

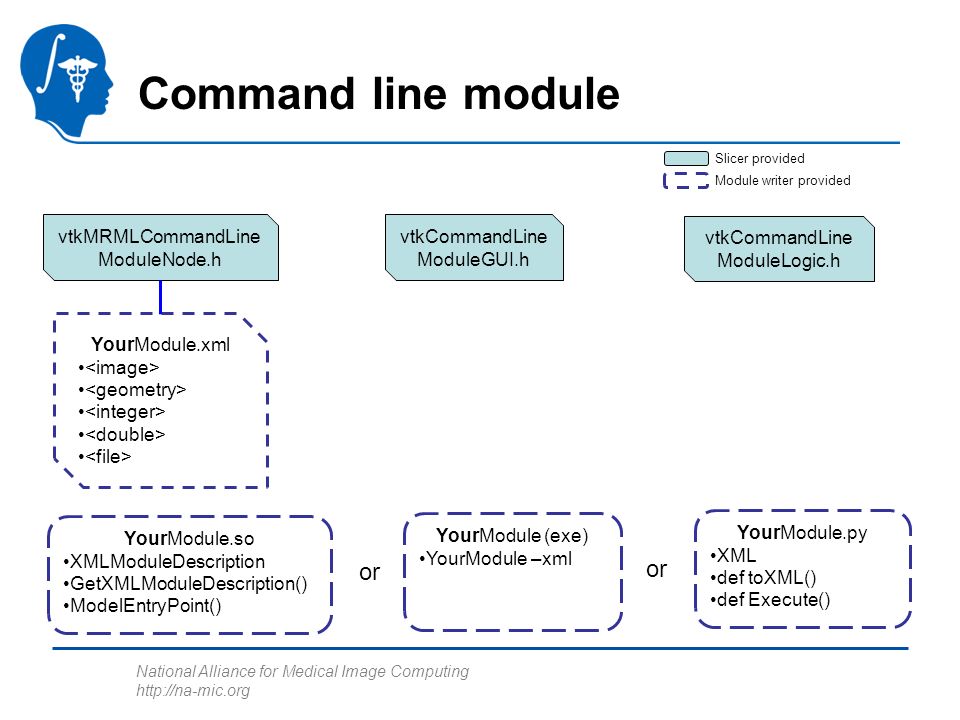

13 National Alliance for Medical Image Computing Command line module vtkMRMLCommandLine ModuleNode.h vtkCommandLine ModuleGUI.h vtkCommandLine ModuleLogic.h YourModule.xml YourModule.so XMLModuleDescription GetXMLModuleDescription() ModelEntryPoint() Slicer provided Module writer provided YourModule (exe) YourModule –xml YourModule.py XML def toXML() def Execute() or

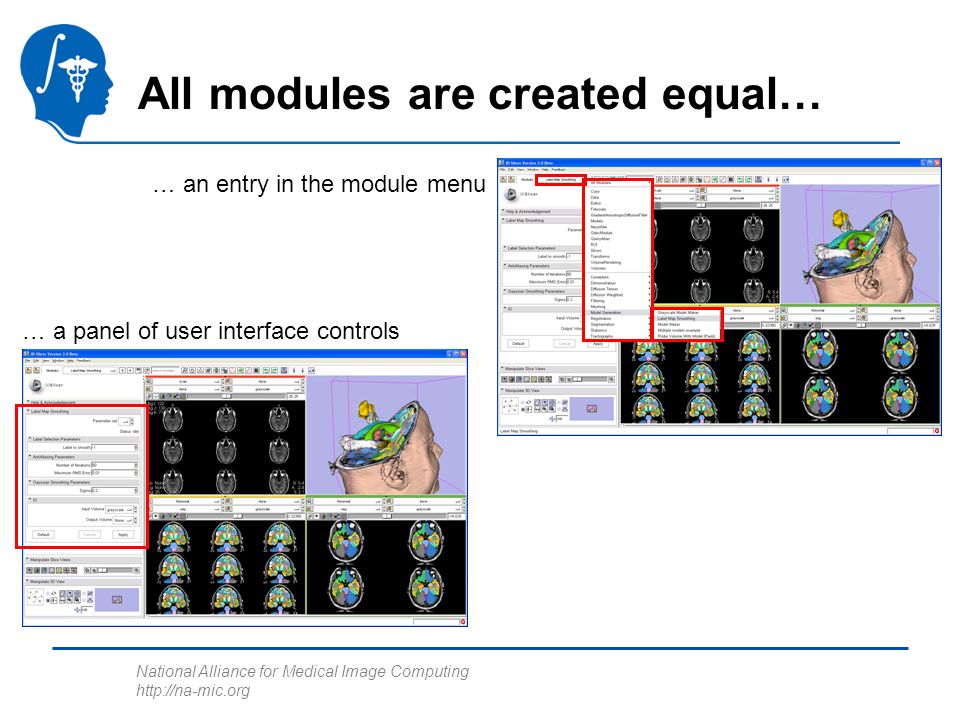

14 National Alliance for Medical Image Computing All modules are created equal… … an entry in the module menu … a panel of user interface controls

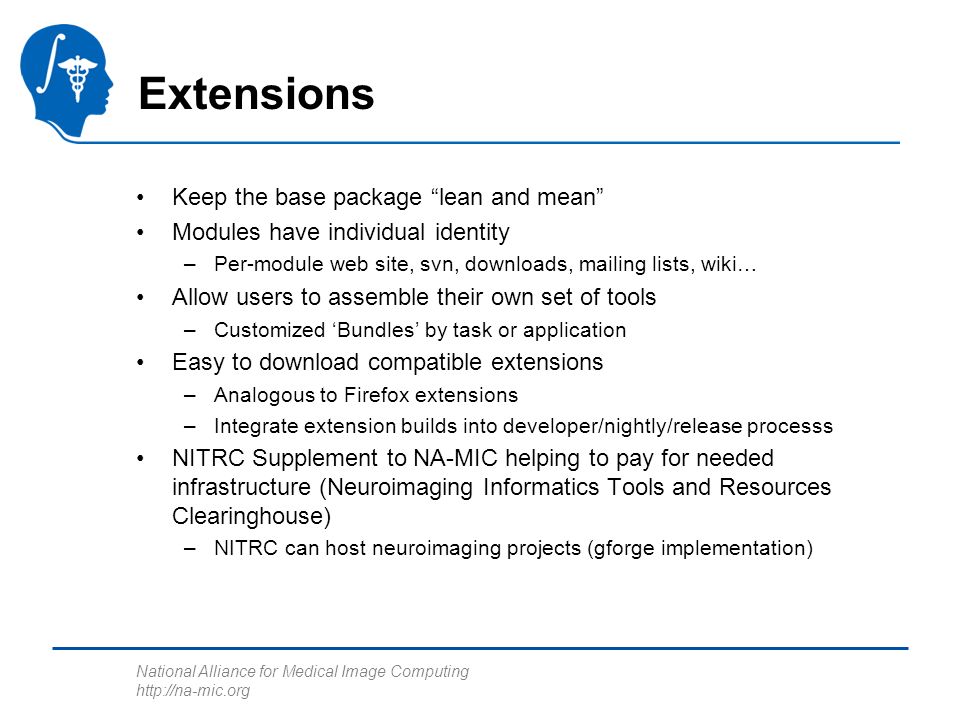

15 National Alliance for Medical Image Computing Extensions Keep the base package lean and mean Modules have individual identity –Per-module web site, svn, downloads, mailing lists, wiki… Allow users to assemble their own set of tools –Customized Bundles by task or application Easy to download compatible extensions –Analogous to Firefox extensions –Integrate extension builds into developer/nightly/release processs NITRC Supplement to NA-MIC helping to pay for needed infrastructure (Neuroimaging Informatics Tools and Resources Clearinghouse) –NITRC can host neuroimaging projects (gforge implementation)

16 National Alliance for Medical Image Computing Extensions distribution

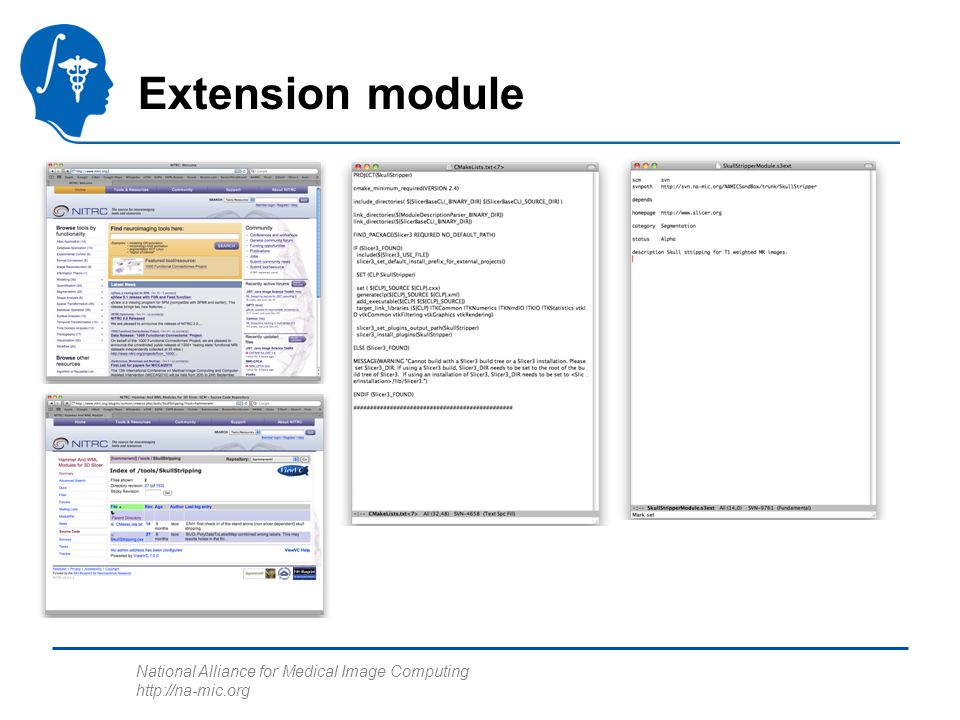

17 National Alliance for Medical Image Computing Extension module

18 National Alliance for Medical Image Computing Daemon slicerget.tcl name > image.nrrd cat image.nrrd | slicerput.tcl name YourTool

19 National Alliance for Medical Image Computing Variety of levels of integration Slicer Libs ModuleDescriptionParser GenerateCLP vtkITK MRML Non-slicer specific support libraries Slicer Base Application logic Widgets Common infrastructure for Slicer applications Built in modules Slice viewers Models Fiducials Transforms Full access to Slicer internals Loadable modules Query Atlas QDEC Volume rendering ChangeTracker EMSegment Full access to Slicer internals Scripted modules Editor Teem Two Tensor Tractography VMTK Limited access to Slicer internals Command line modules RegistrationRestricted access to Slicer internals Daemon OpenIGTLink Stochastic Tractography Access to MRML

20 National Alliance for Medical Image Computing By the numbers…

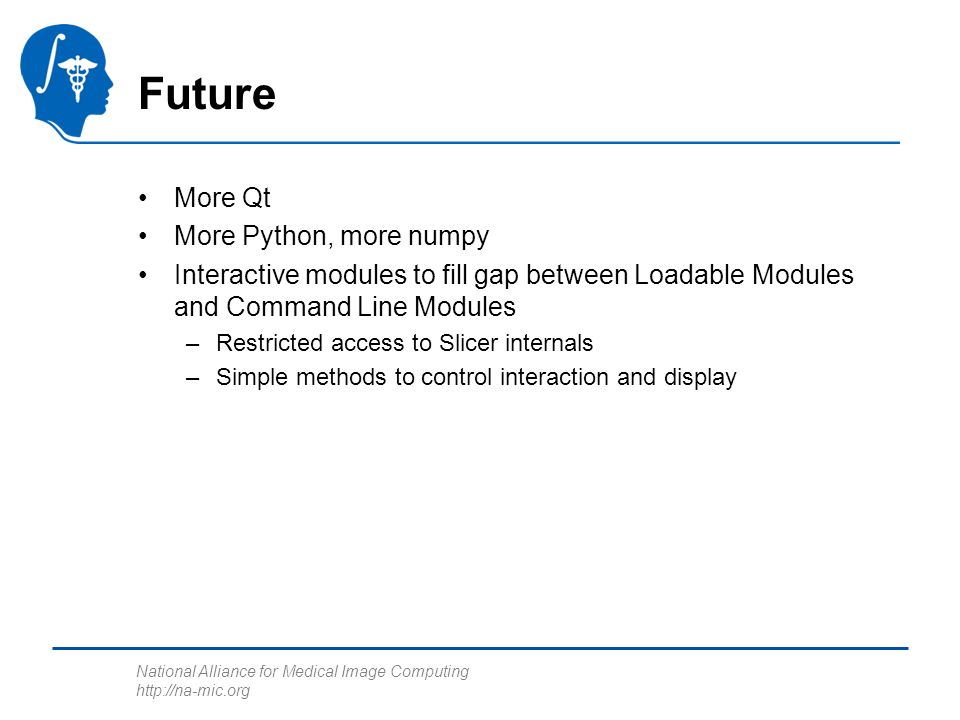

21 National Alliance for Medical Image Computing Future More Qt More Python, more numpy Interactive modules to fill gap between Loadable Modules and Command Line Modules –Restricted access to Slicer internals –Simple methods to control interaction and display

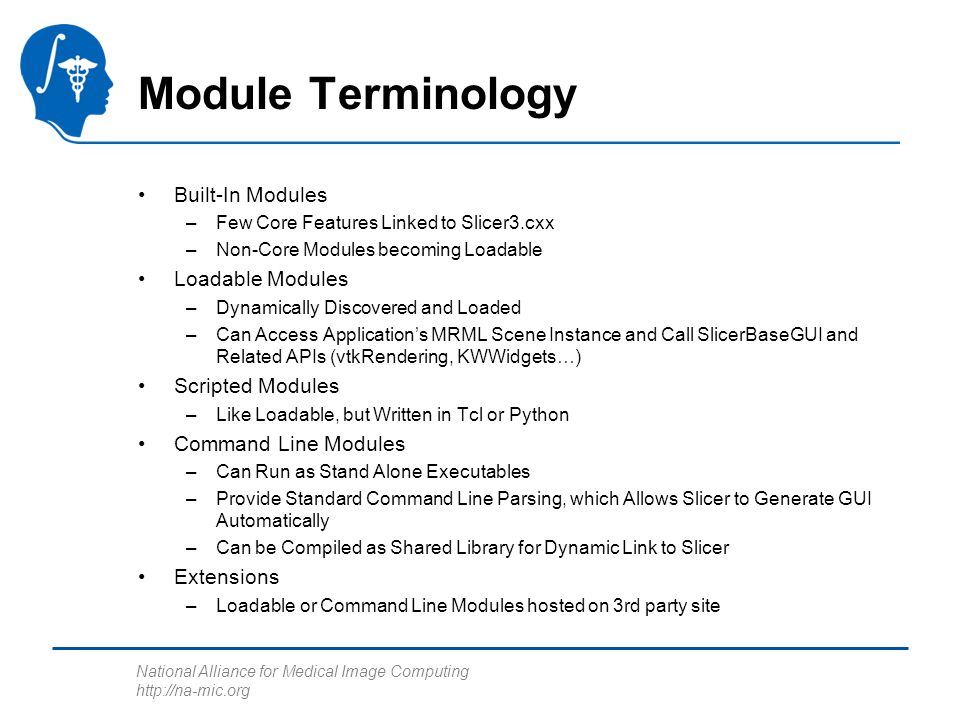

22 National Alliance for Medical Image Computing Module Terminology Built-In Modules –Few Core Features Linked to Slicer3.cxx –Non-Core Modules becoming Loadable Loadable Modules –Dynamically Discovered and Loaded –Can Access Applications MRML Scene Instance and Call SlicerBaseGUI and Related APIs (vtkRendering, KWWidgets…) Scripted Modules –Like Loadable, but Written in Tcl or Python Command Line Modules –Can Run as Stand Alone Executables –Provide Standard Command Line Parsing, which Allows Slicer to Generate GUI Automatically –Can be Compiled as Shared Library for Dynamic Link to Slicer Extensions –Loadable or Command Line Modules hosted on 3rd party site

23 National Alliance for Medical Image Computing Loadable Modules mplement_an_Interactive_Module_GUIhttp://www.slicer.org/slicerWiki/index.php/Slicer3:How_to_i mplement_an_Interactive_Module_GUI Modules:HOWTOhttp://www.slicer.org/slicerWiki/index.php/Slicer3:Loadable_ Modules:HOWTO Create vtkSlicerModuleGUI Subclass –Override Virtual Methods for CreateGUI, ProcessMRMLEvents, etc. Provide Custom vtkMRMLNode Subclass(es) to Represent, Save and Restore state Create Logic Classes to Implement Module Functionality Create CMake Configuration Files to Build and Install Shared Libraries for Runtime Discovery and Packaging

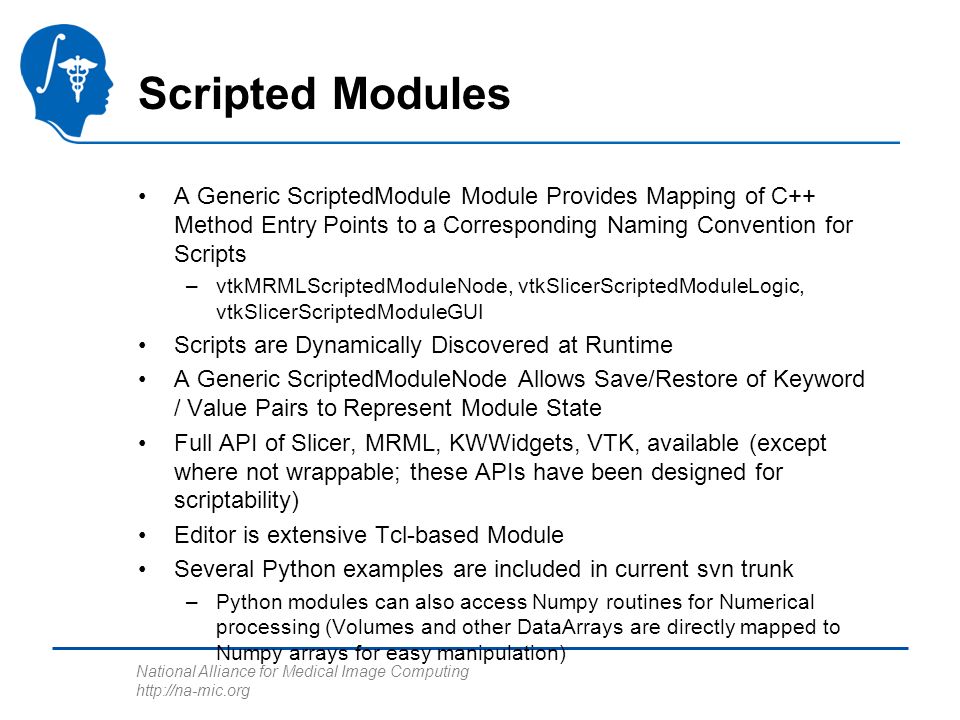

24 National Alliance for Medical Image Computing Scripted Modules A Generic ScriptedModule Module Provides Mapping of C++ Method Entry Points to a Corresponding Naming Convention for Scripts –vtkMRMLScriptedModuleNode, vtkSlicerScriptedModuleLogic, vtkSlicerScriptedModuleGUI Scripts are Dynamically Discovered at Runtime A Generic ScriptedModuleNode Allows Save/Restore of Keyword / Value Pairs to Represent Module State Full API of Slicer, MRML, KWWidgets, VTK, available (except where not wrappable; these APIs have been designed for scriptability) Editor is extensive Tcl-based Module Several Python examples are included in current svn trunk –Python modules can also access Numpy routines for Numerical processing (Volumes and other DataArrays are directly mapped to Numpy arrays for easy manipulation)

25 National Alliance for Medical Image Computing Command Line Modules Use the GenerateCLP command (provided with Slicer) to convert XML description of program arguments into a C++.h file Main program of module uses PARSE_ARGS macro provided by.h file to instance variables corresponding to parameters defined in XML file PARSE_ARGS also defines a --xml argument that returns original XML string on stdout Slicer parses the XML to create GUI for each module Are Covered Extensively in the HelloWorld Tutorial Note: Command Line Modules can be written in any language. C++ utilities are provided, but can be emulated / recreated as needed.
