1 Generations of Programming Languages First generation  Machine Language Second Generation  Assembly Language Third Generation  Procedural language such as Pascal, C, Basic etc. Fourth Generation  Non-procedural language, more natural. 1

2 Machine language 10110000 01100001 2

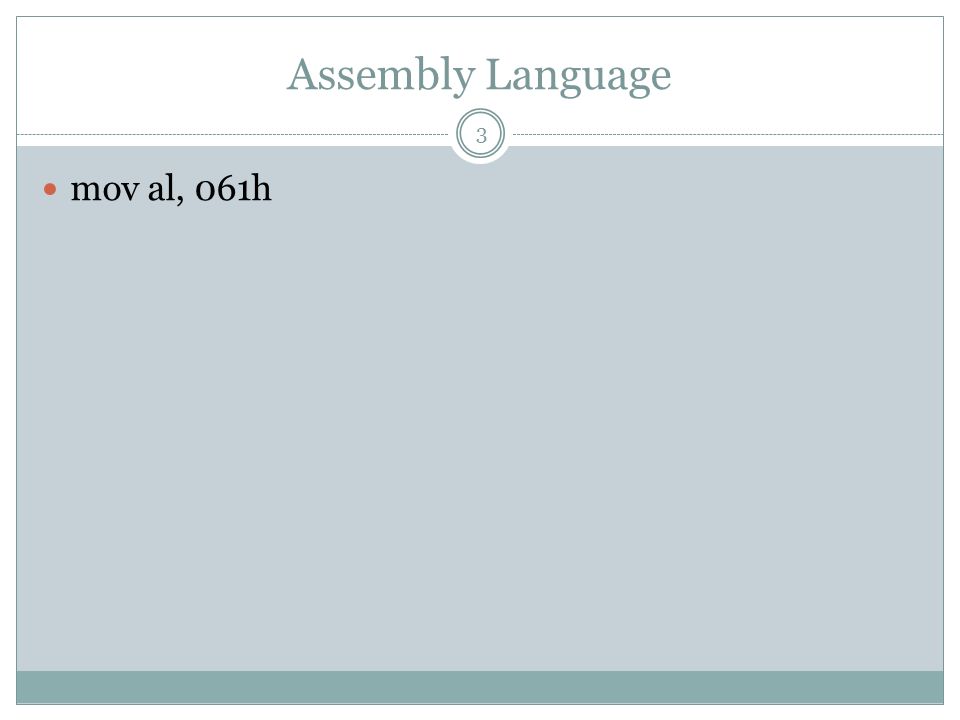

3 Assembly Language mov al, 061h 3

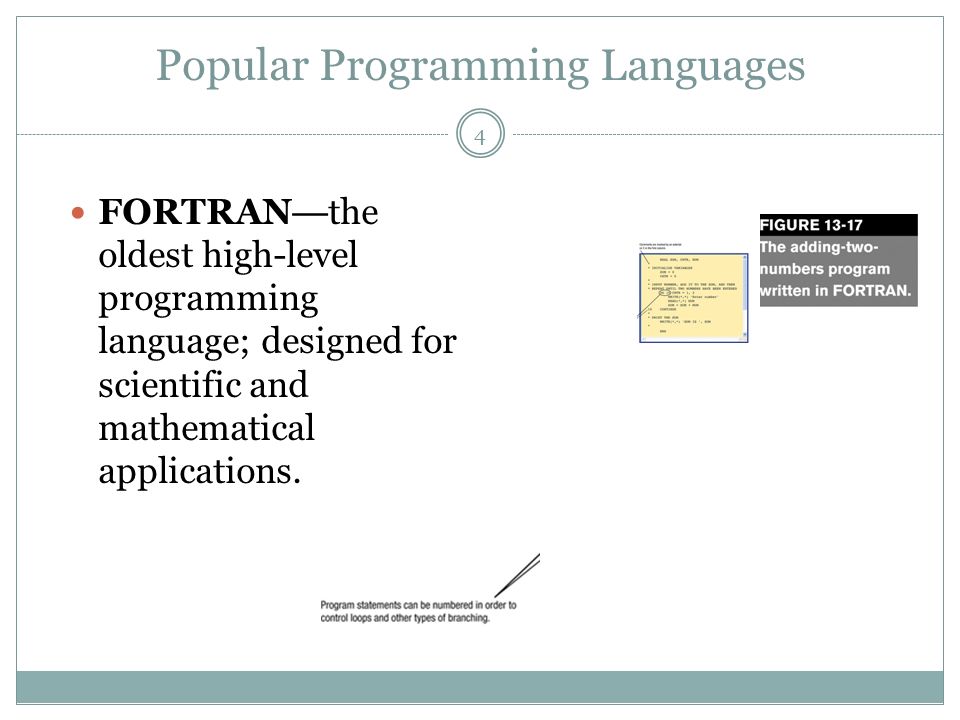

4 Popular Programming Languages FORTRAN — the oldest high-level programming language; designed for scientific and mathematical applications. 4

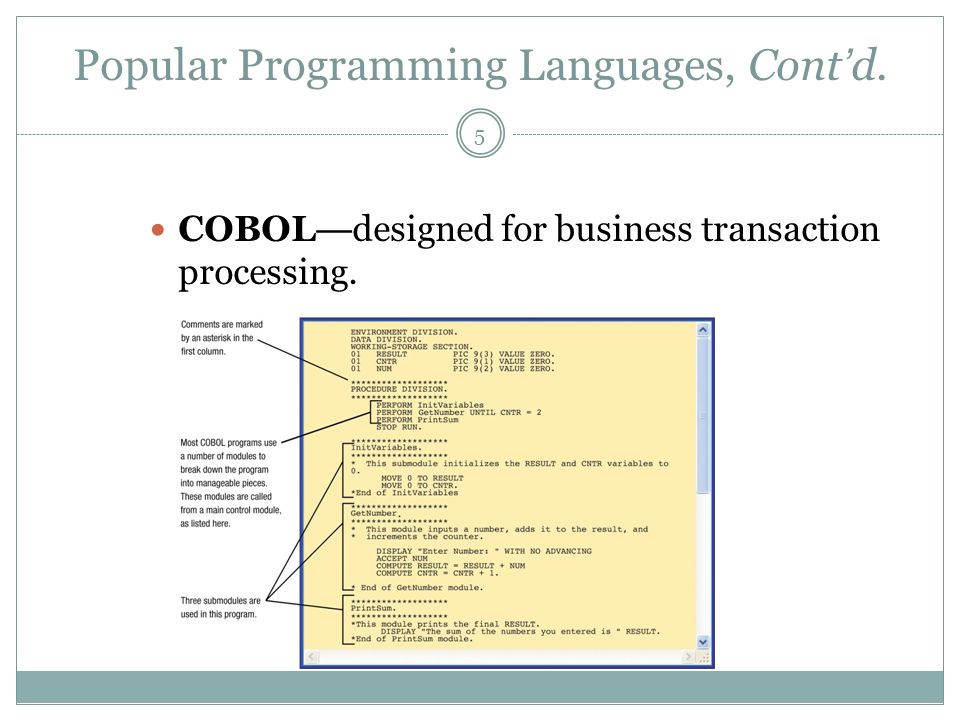

5 Popular Programming Languages, Cont ’ d. COBOL — designed for business transaction processing. 5

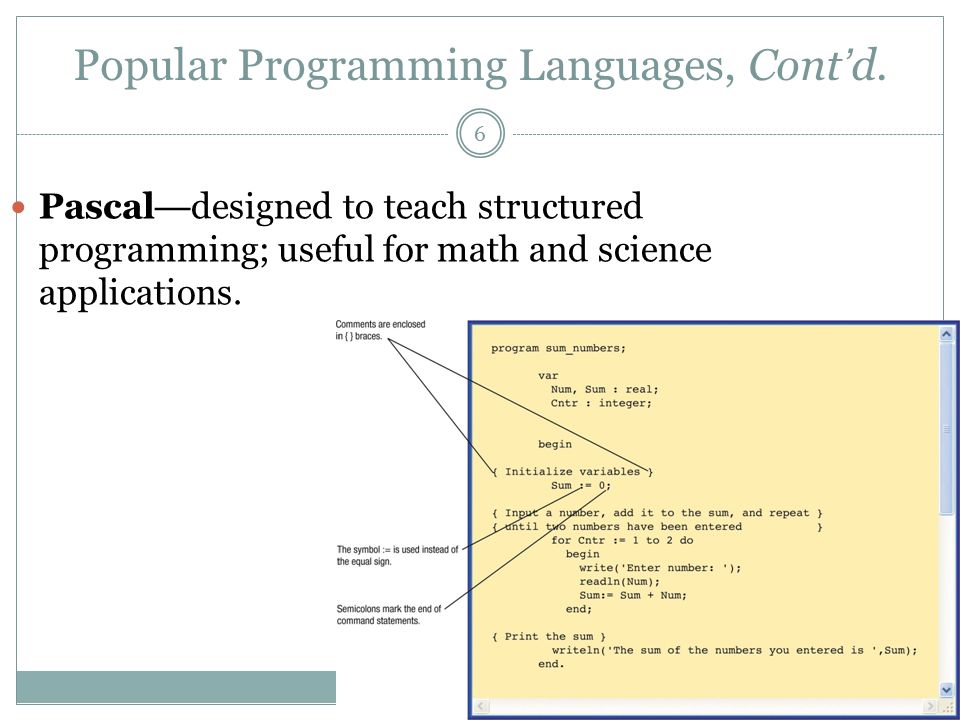

6 Popular Programming Languages, Cont ’ d. Pascal — designed to teach structured programming; useful for math and science applications. 6

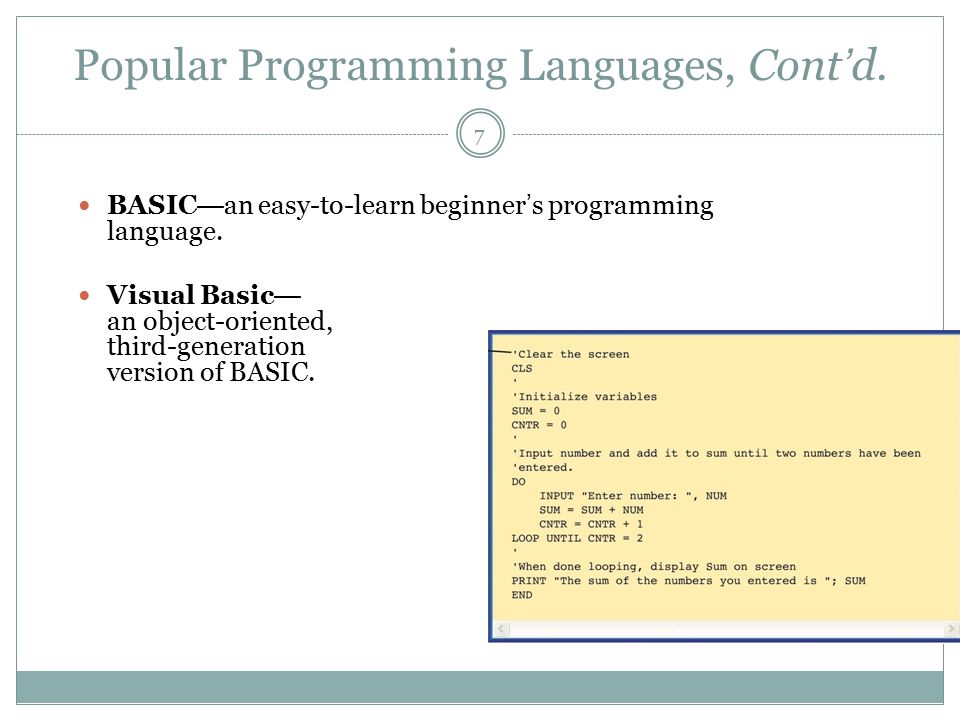

7 Popular Programming Languages, Cont ’ d. BASIC — an easy-to-learn beginner ’ s programming language. Visual Basic — an object-oriented, third-generation version of BASIC. 7

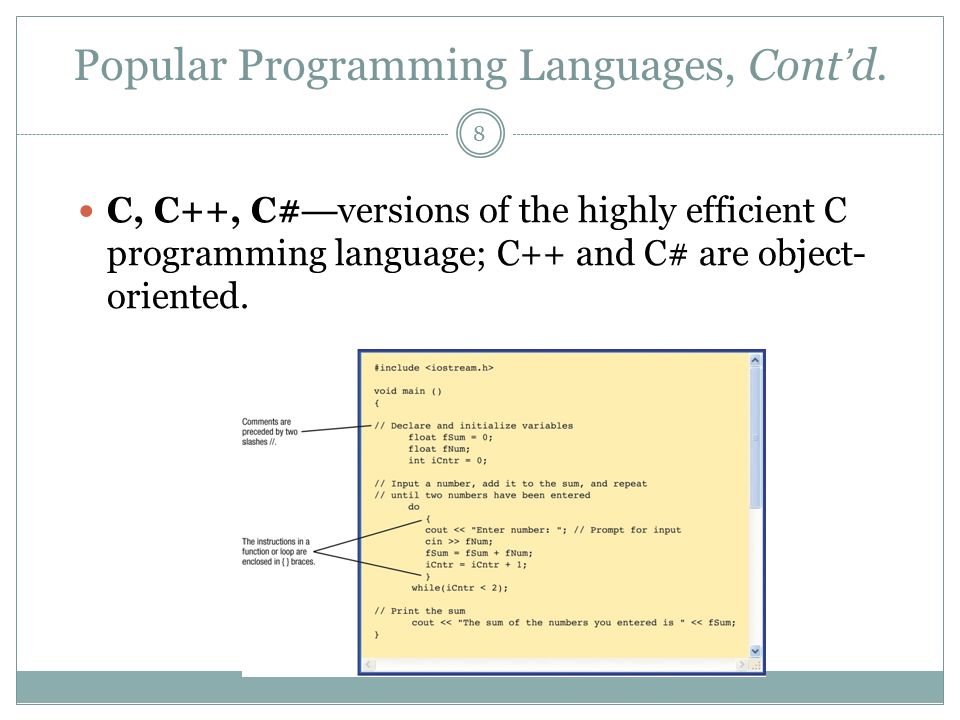

8 Popular Programming Languages, Cont ’ d. C, C++, C# — versions of the highly efficient C programming language; C++ and C# are object- oriented. 8

9 Popular Programming Languages, Cont ’ d. Java — object-oriented programming language commonly used for Web applications.  Platform independence — Java programs can run on any platform that supports the Java Virtual Machine. 9


11 Popular Programming Languages, Cont ’ d. Other high-level languages:  Ada  APL  LISP  Logo 11 PL/1 Prolog RPG SmallTalk

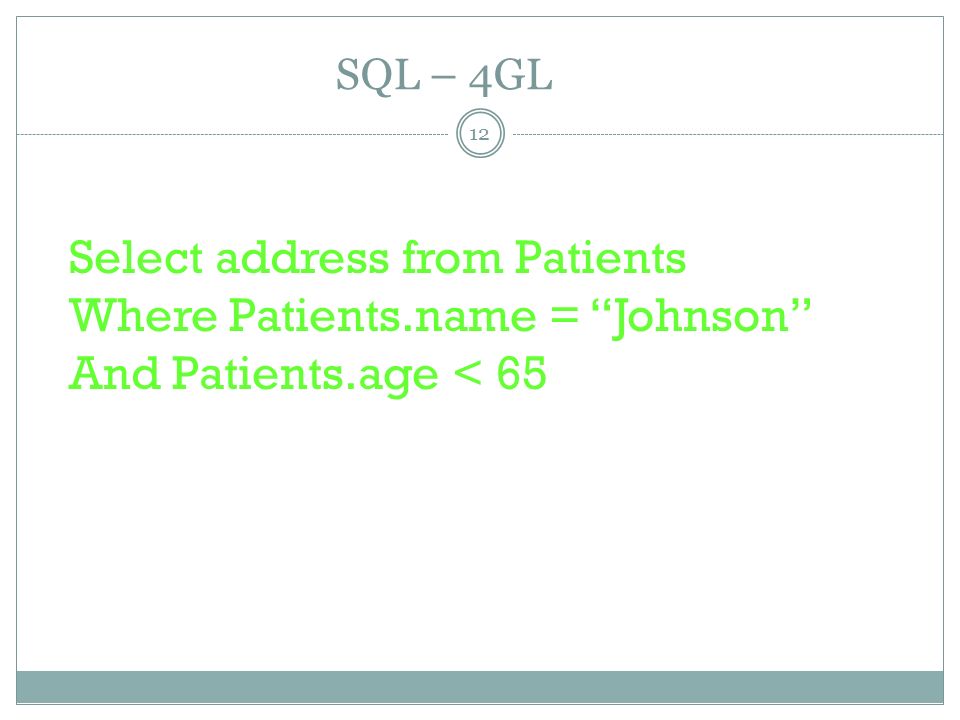

12 SQL – 4GL 12 Select address from Patients Where = “Johnson” And Patients.age < 65

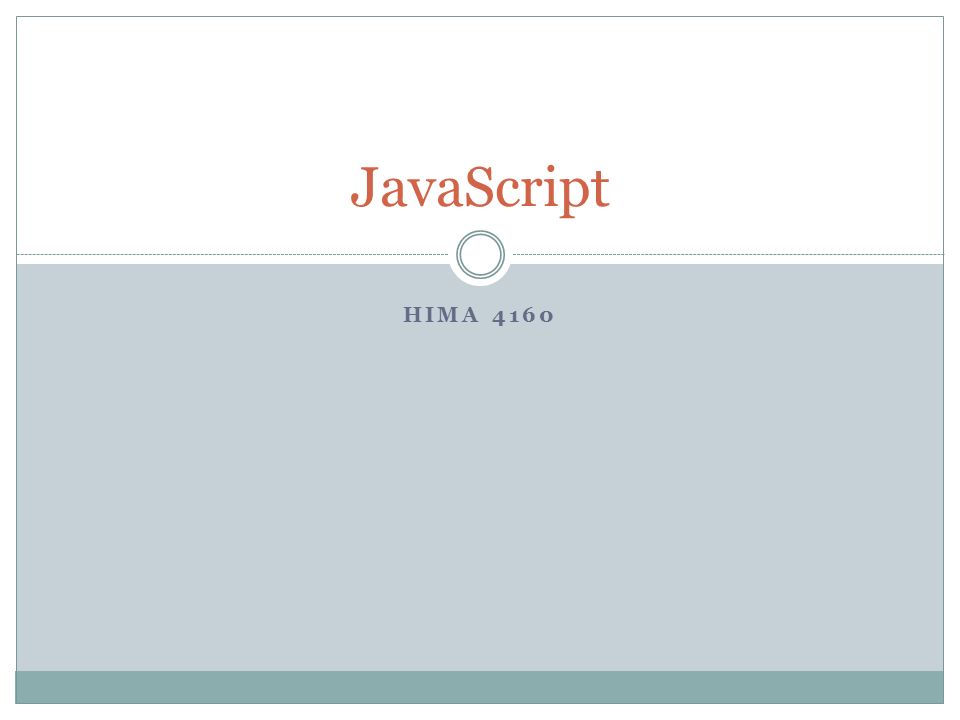

13 HIMA 4160 JavaScript

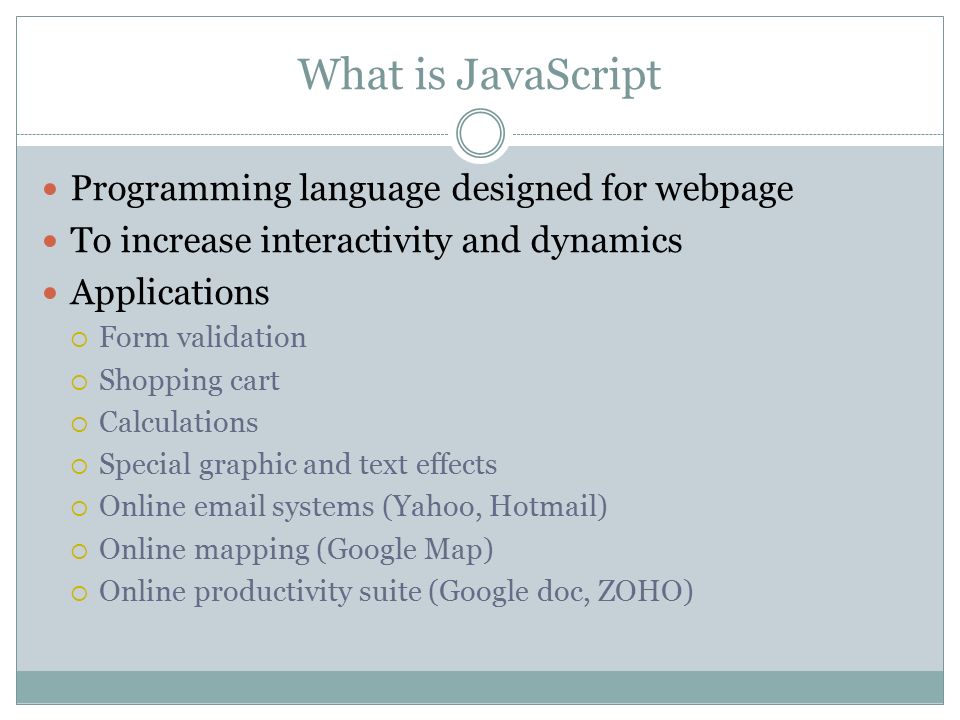

14 What is JavaScript Programming language designed for webpage To increase interactivity and dynamics Applications  Form validation  Shopping cart  Calculations  Special graphic and text effects  Online email systems (Yahoo, Hotmail)  Online mapping (Google Map)  Online productivity suite (Google doc, ZOHO)

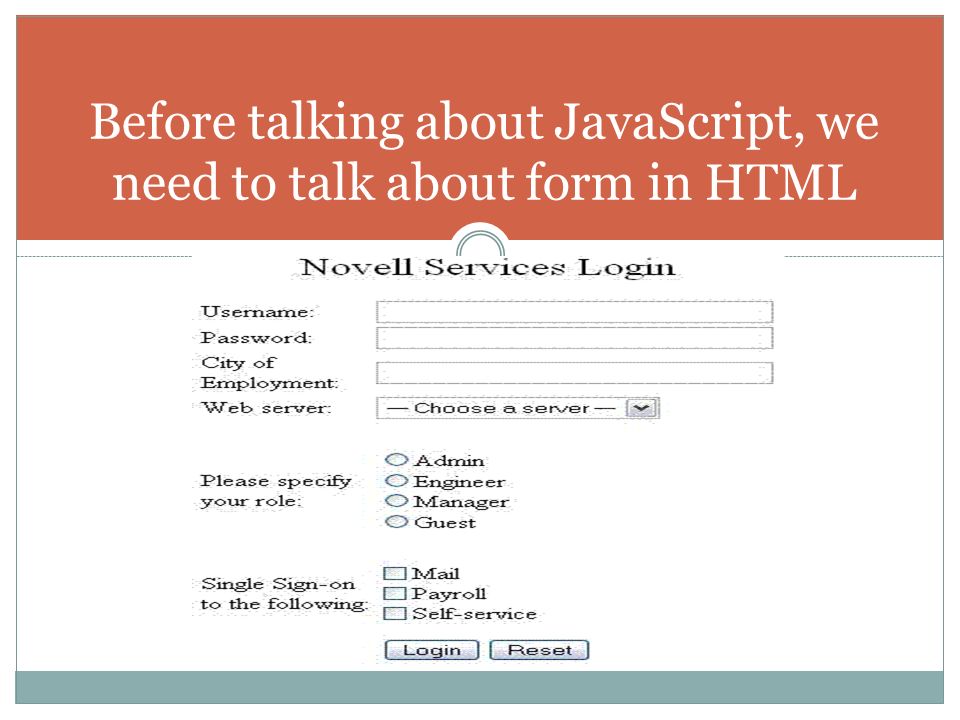

15 Before talking about JavaScript, we need to talk about form in HTML

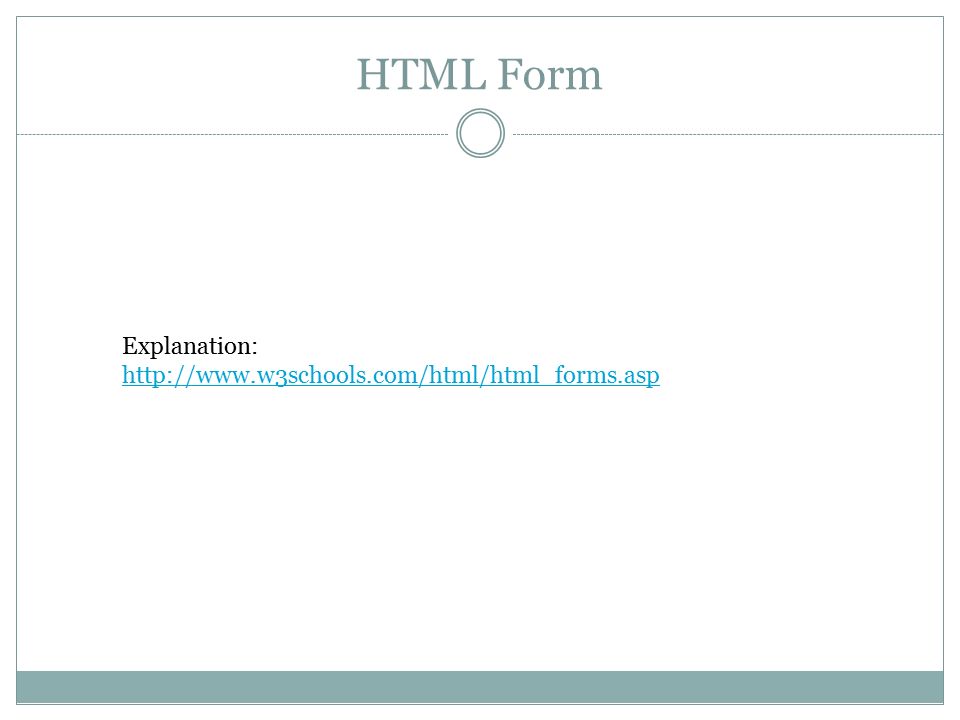

16 HTML Form Explanation:

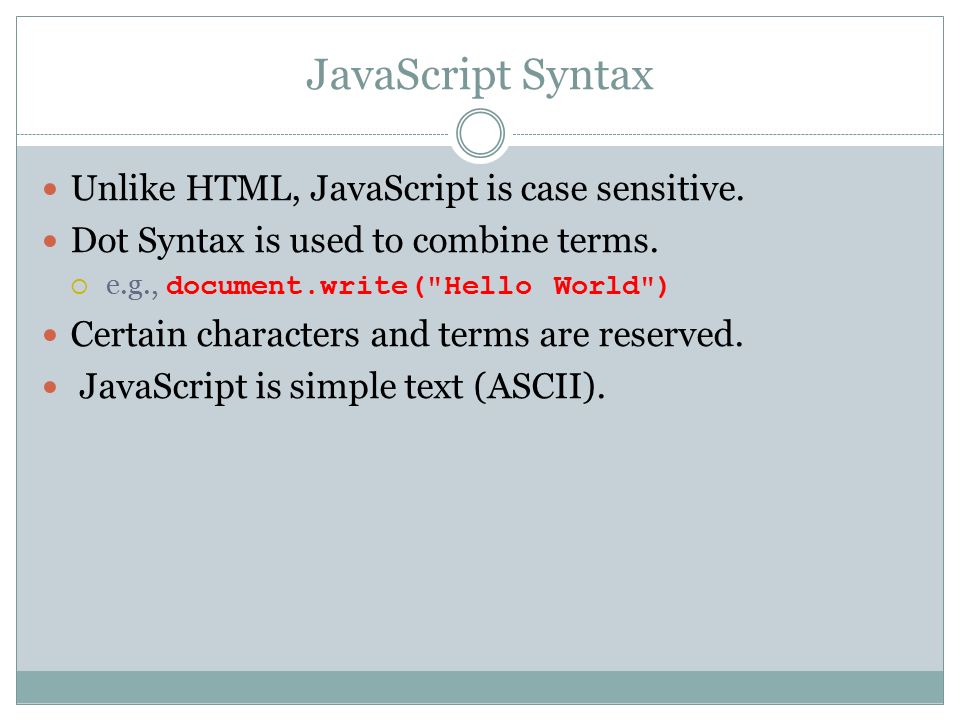

17 JavaScript Syntax Unlike HTML, JavaScript is case sensitive. Dot Syntax is used to combine terms.  e.g., document.write("Hello World") Certain characters and terms are reserved. JavaScript is simple text (ASCII).

18 JavaScript Terminology JavaScript programming uses specialized terminology. Understanding JavaScript terms is fundamental to understanding the script.  Objects, Properties, Methods, Events, Functions, Values, Variables, Expressions, Operators.

19 Objects Objects refers to windows, documents, images, tables, forms, buttons or links, etc. Objects should be named. Objects have properties that act as modifiers.

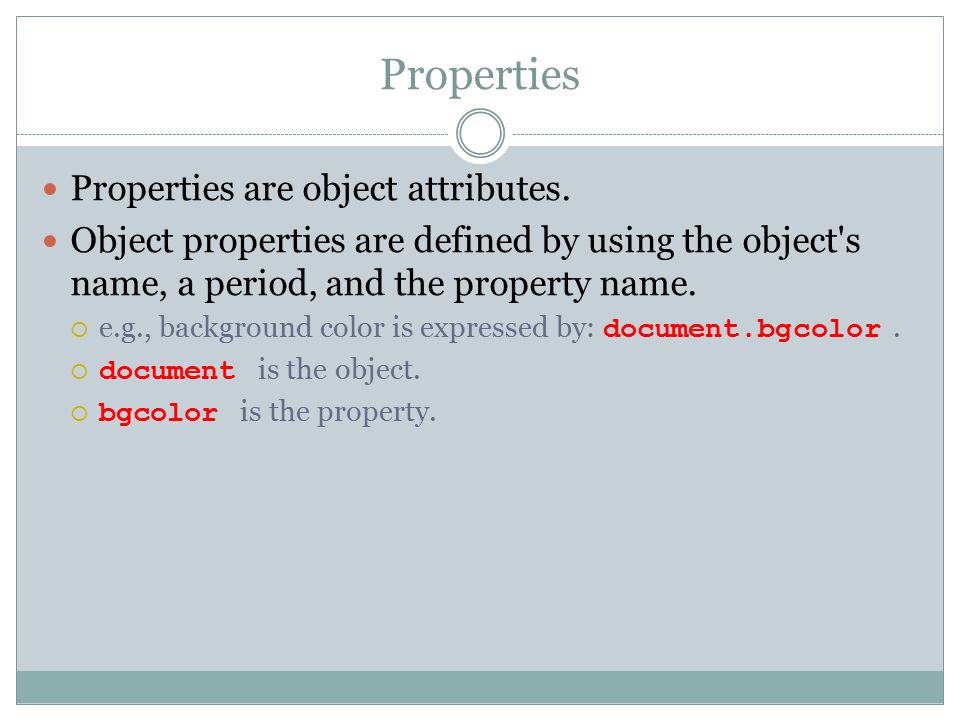

20 Properties Properties are object attributes. Object properties are defined by using the object's name, a period, and the property name.  e.g., background color is expressed by: document.bgcolor.  document is the object.  bgcolor is the property.

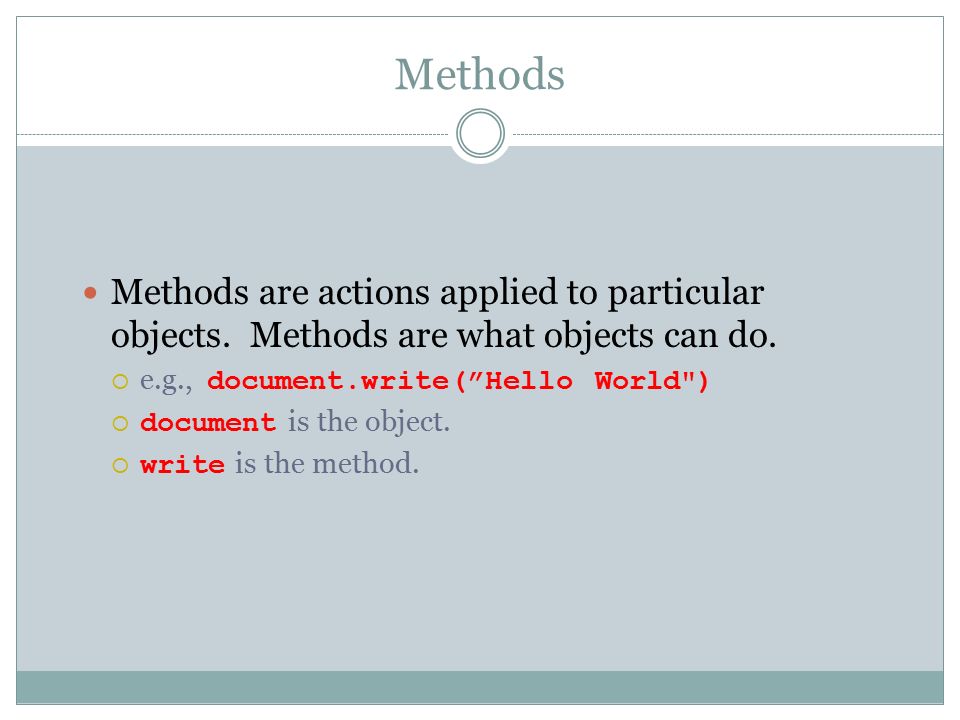

21 Methods Methods are actions applied to particular objects. Methods are what objects can do.  e.g., document.write(”Hello World")  document is the object.  write is the method.

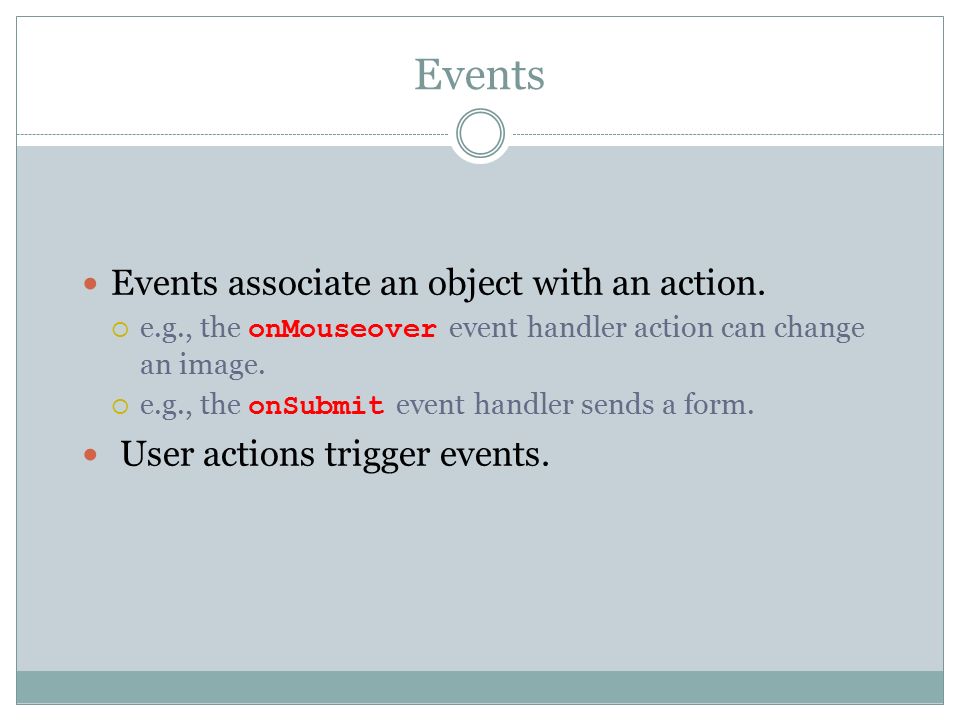

22 Events Events associate an object with an action.  e.g., the onMouseover event handler action can change an image.  e.g., the onSubmit event handler sends a form. User actions trigger events.

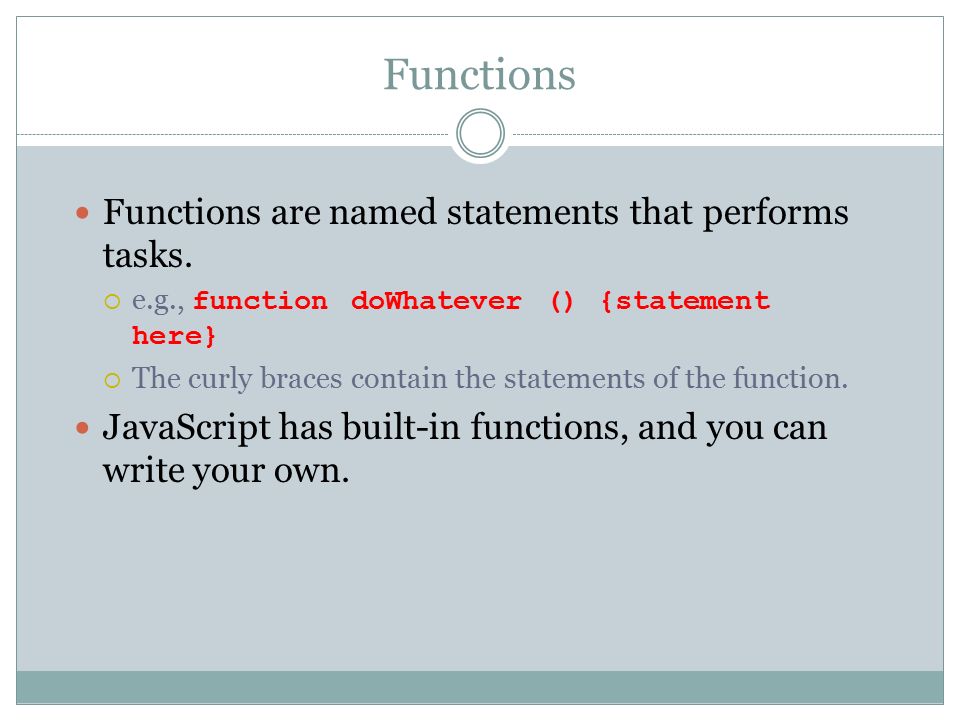

23 Functions Functions are named statements that performs tasks.  e.g., function doWhatever () {statement here}  The curly braces contain the statements of the function. JavaScript has built-in functions, and you can write your own.

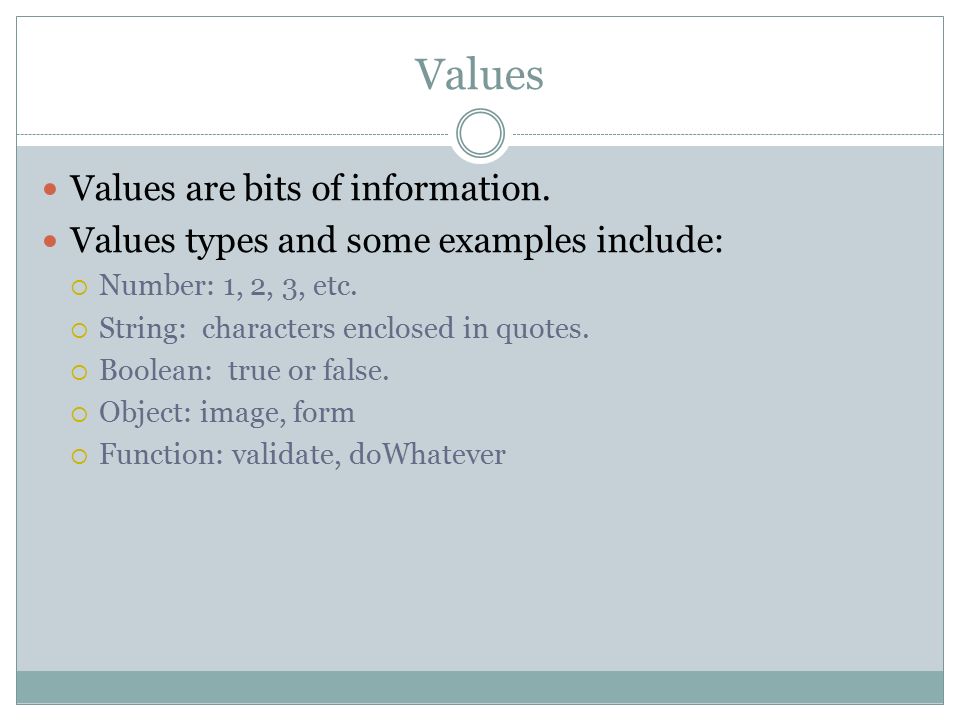

24 Values Values are bits of information. Values types and some examples include:  Number: 1, 2, 3, etc.  String: characters enclosed in quotes.  Boolean: true or false.  Object: image, form  Function: validate, doWhatever

25 Variables Variables contain values and use the equal sign to specify their value. Variables are created by declaration using the var command with or without an initial value state.  e.g. var month;  e.g. var month = “April”;

26 Expressions Expressions are commands that assign values to variables. Expressions always use an assignment operator, such as the equals sign.  e.g., var month = “May”; is an expression. Expressions end with a semicolon.

27 Operators Operators are used to handle variables. Types of operators with examples:  Arithmetic operators, such as plus.  Comparisons operators, such as equals.  Logical operators, such as and.  Control operators, such as if.  Assignment and String operators.

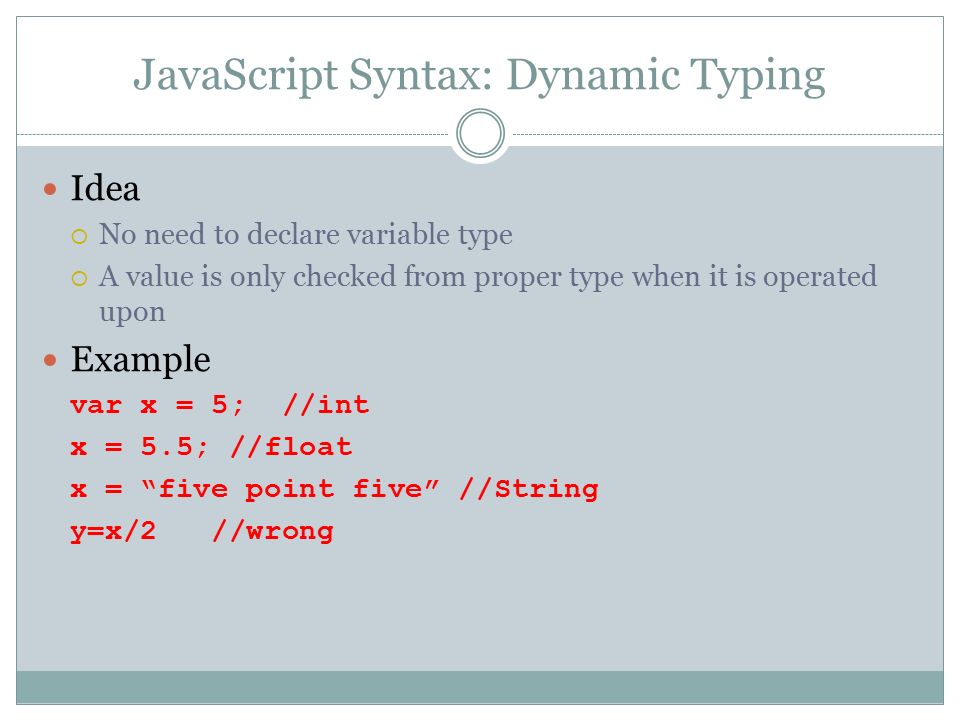

28 JavaScript Syntax: Dynamic Typing Idea  No need to declare variable type  A value is only checked from proper type when it is operated upon Example var x = 5; //int x = 5.5; //float x = “five point five” //String y=x/2 //wrong

29 Methods of Using JavaScript. 1. JavaScripts can reside in a separate page. 2. JavaScript can be embedded in HTML documents -- in the, in the, or in both. 3. JavaScript object attributes can be placed in HTML element tags. e.g.,

30 1. Using Separate JavaScript Files. Linking can be advantageous if many pages use the same script. Use the source element to link to the script file. <script src="myjavascript.js” language="JavaScript1.2” type="text/javascript">

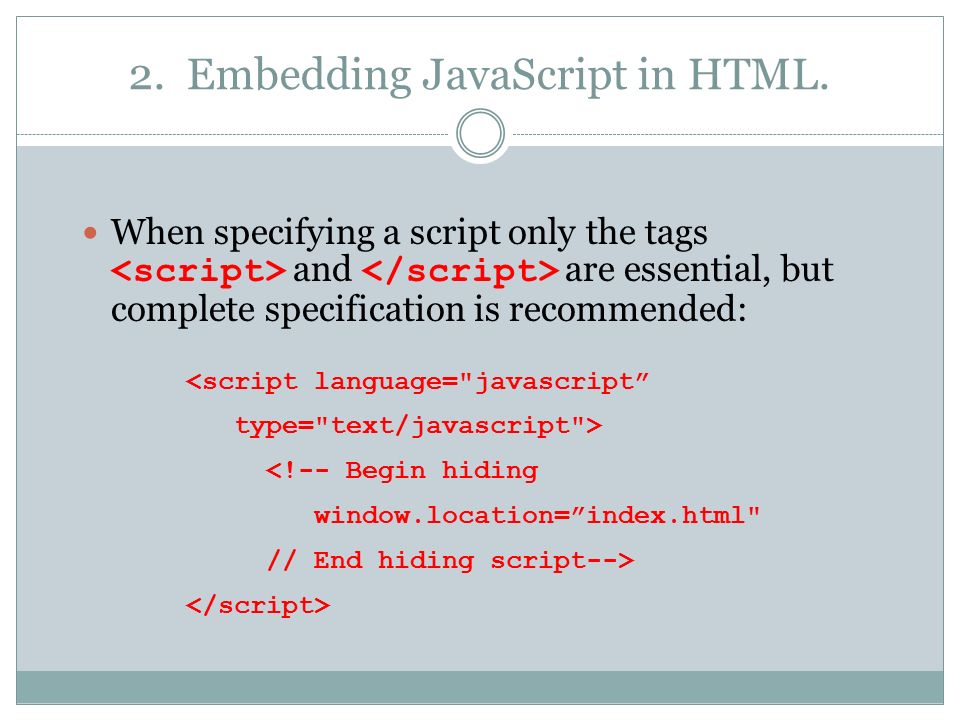

31 2. Embedding JavaScript in HTML. When specifying a script only the tags and are essential, but complete specification is recommended: <script language="javascript” type="text/javascript"> <!-- Begin hiding window.location=”index.html" // End hiding script-->

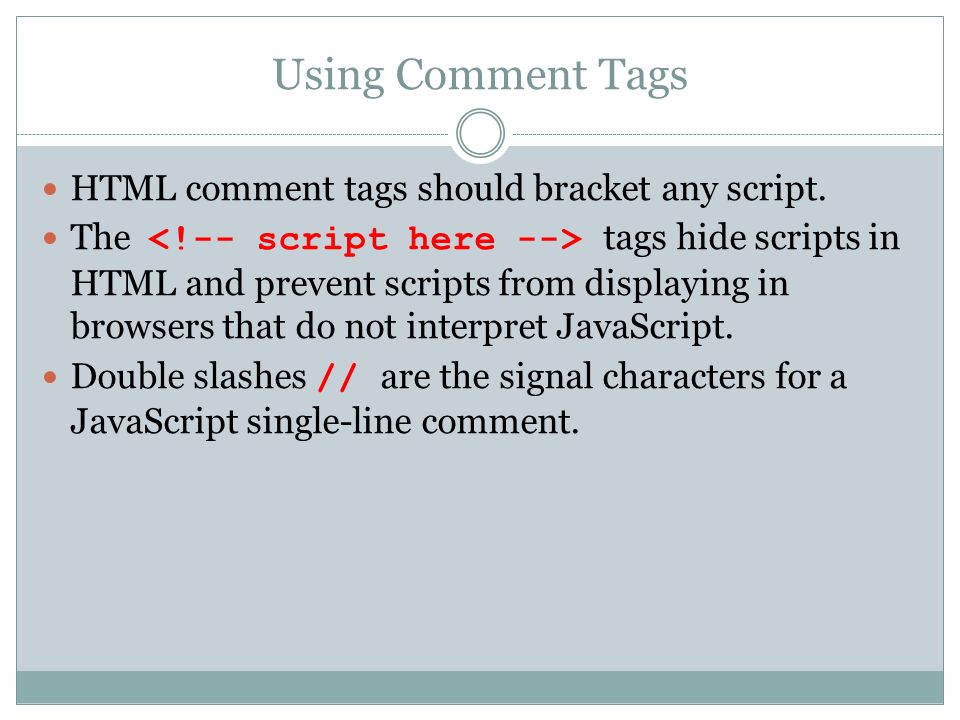

32 Using Comment Tags HTML comment tags should bracket any script. The tags hide scripts in HTML and prevent scripts from displaying in browsers that do not interpret JavaScript. Double slashes // are the signal characters for a JavaScript single-line comment.

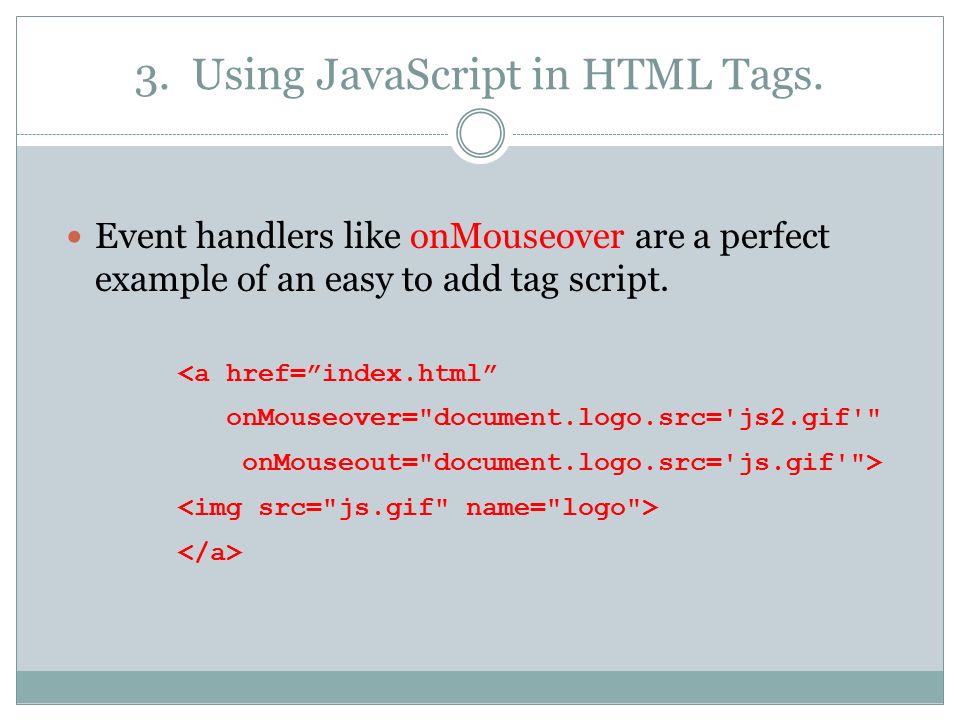

33 3. Using JavaScript in HTML Tags. Event handlers like onMouseover are a perfect example of an easy to add tag script. <a href=”index.html” onMouseover="document.logo.src='js2.gif'" onMouseout="document.logo.src='js.gif'">

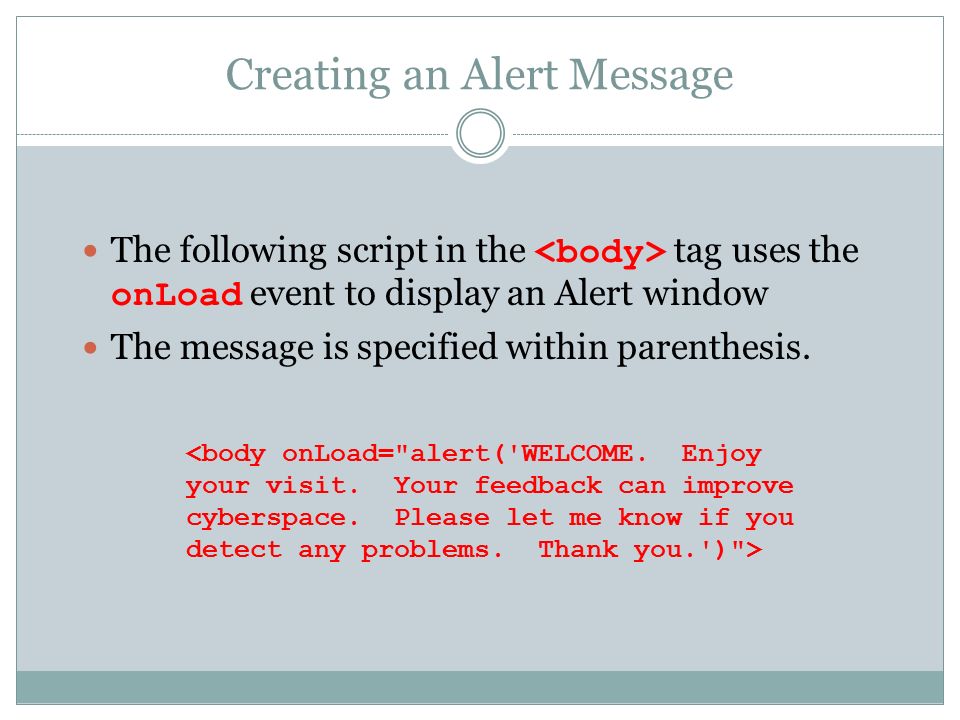

34 Creating an Alert Message The following script in the tag uses the onLoad event to display an Alert window The message is specified within parenthesis.

35 Generating HTML Dynamically Idea  Script is interpreted as page is loaded, and uses document.write or document.writeln to insert HTML at the location the script occurs Template … Regular HTML <!-- Build HTML Here // --> More regular HTML

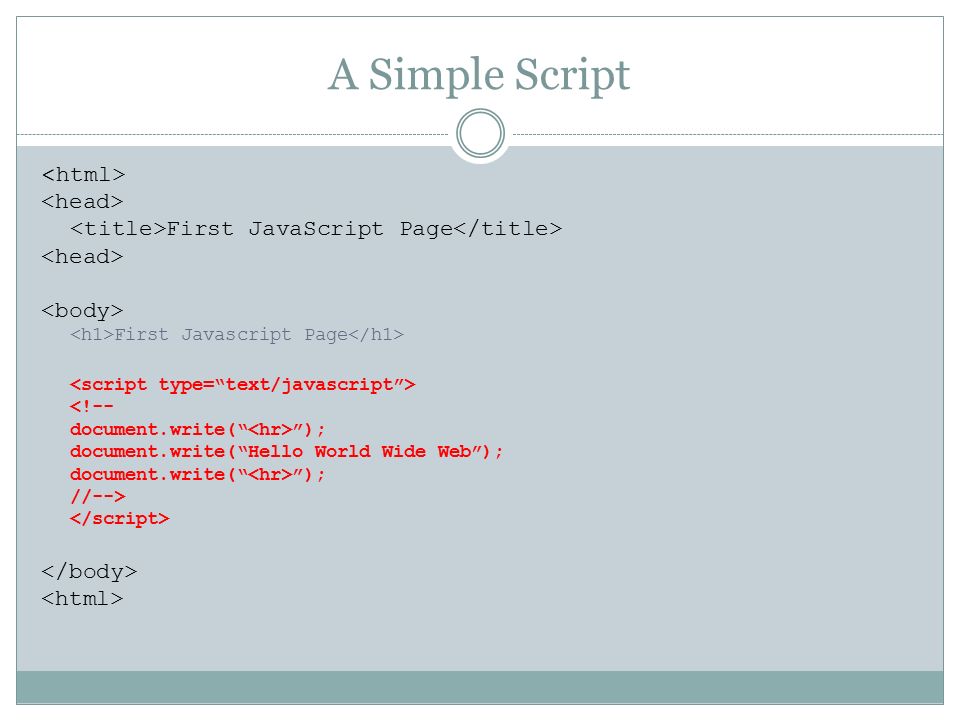

36 A Simple Script First JavaScript Page First Javascript Page <!-- document.write(“ ”); document.write(“Hello World Wide Web”); document.write(“ ”); //-->

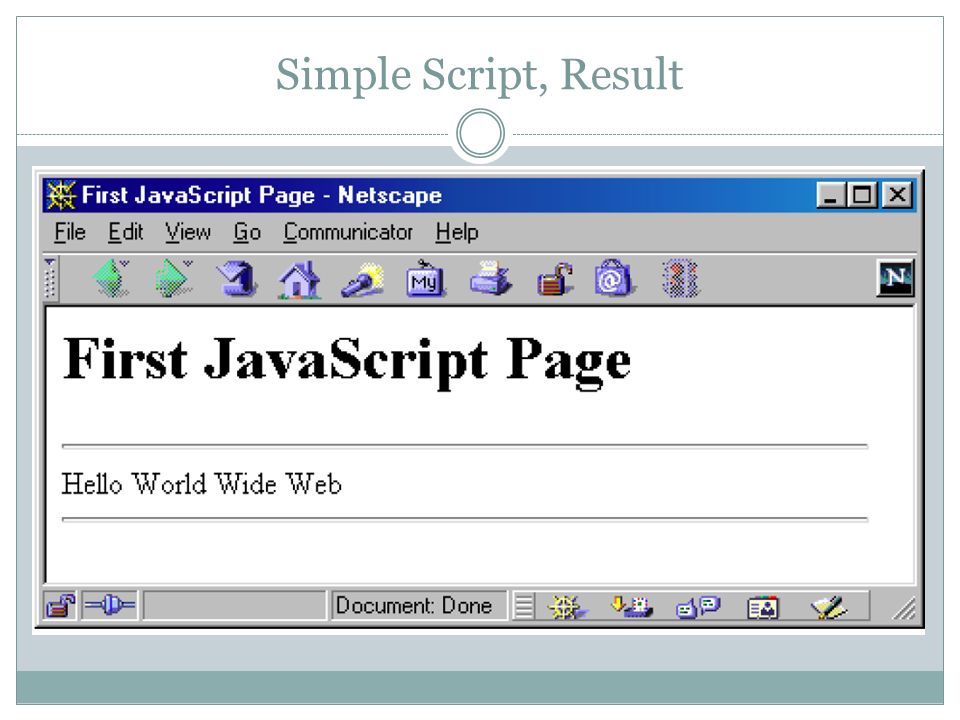

37 Simple Script, Result

38 Monitoring User Events Use various onXxx attributes related to HTML tags  onClick  onLoad  onMouseOver  onFocus  …

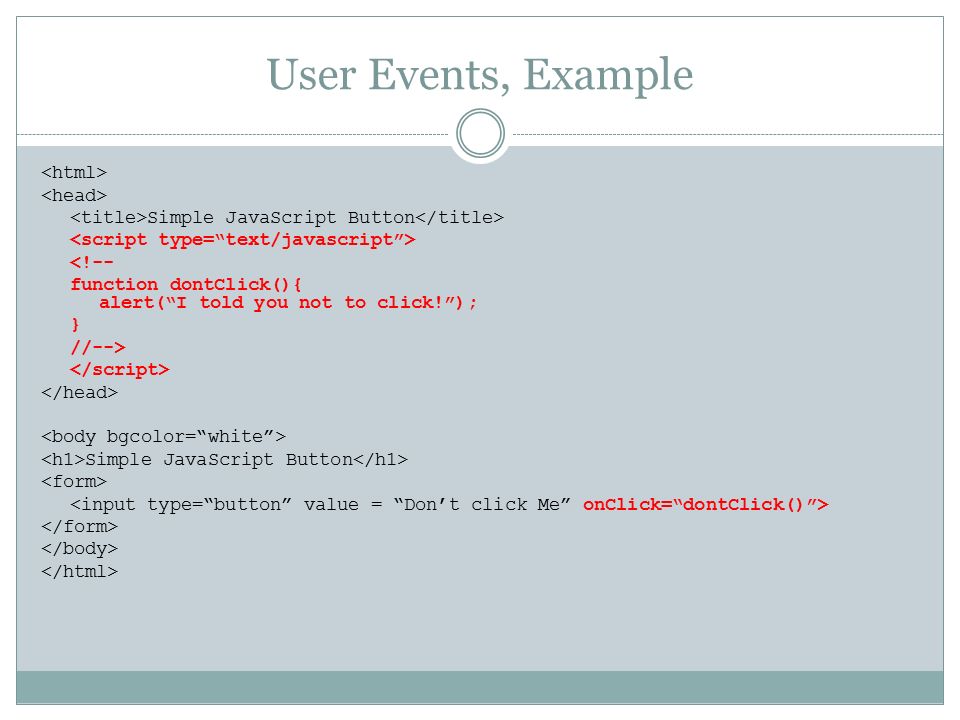

39 User Events, Example Simple JavaScript Button <!-- function dontClick(){ alert(“I told you not to click!”); } //--> Simple JavaScript Button

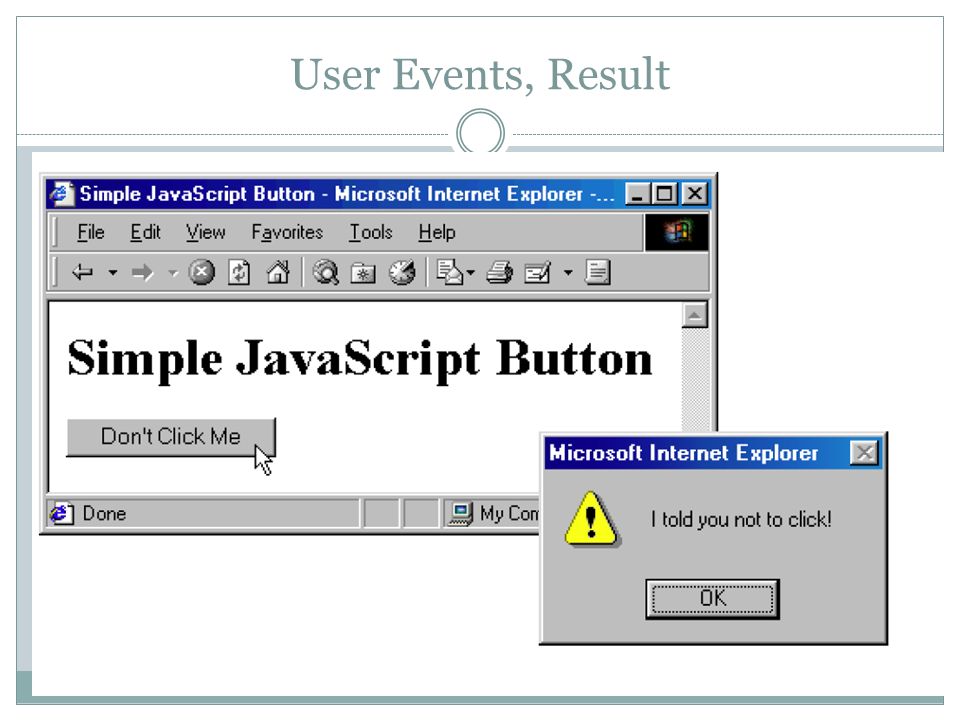

40 User Events, Result

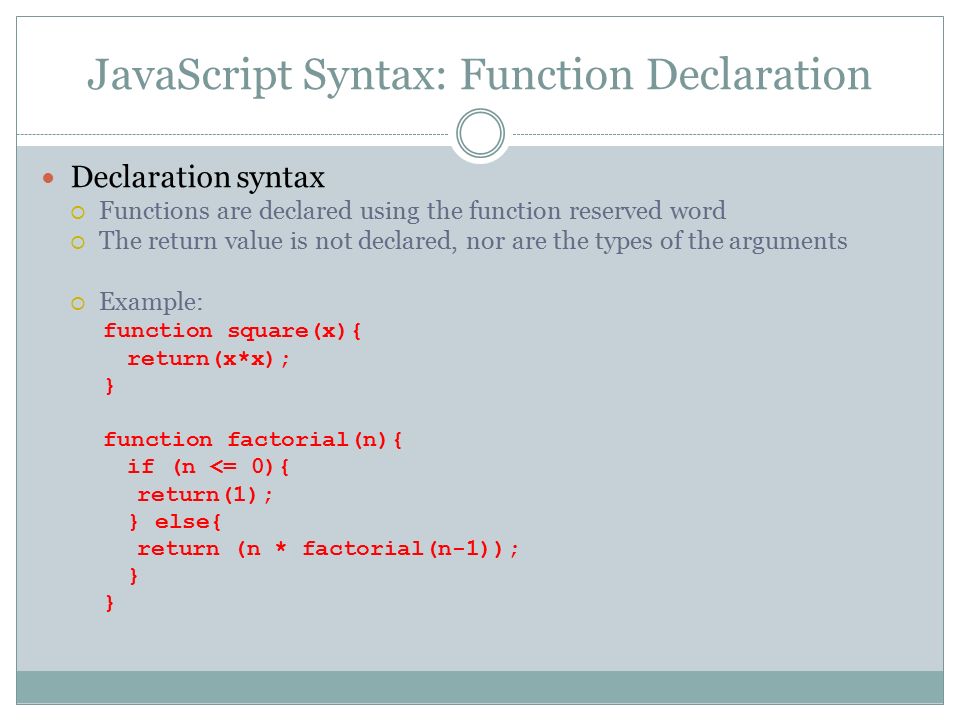

41 JavaScript Syntax: Function Declaration Declaration syntax  Functions are declared using the function reserved word  The return value is not declared, nor are the types of the arguments  Example: function square(x){ return(x*x); } function factorial(n){ if (n <= 0){ return(1); } else{ return (n * factorial(n-1)); }

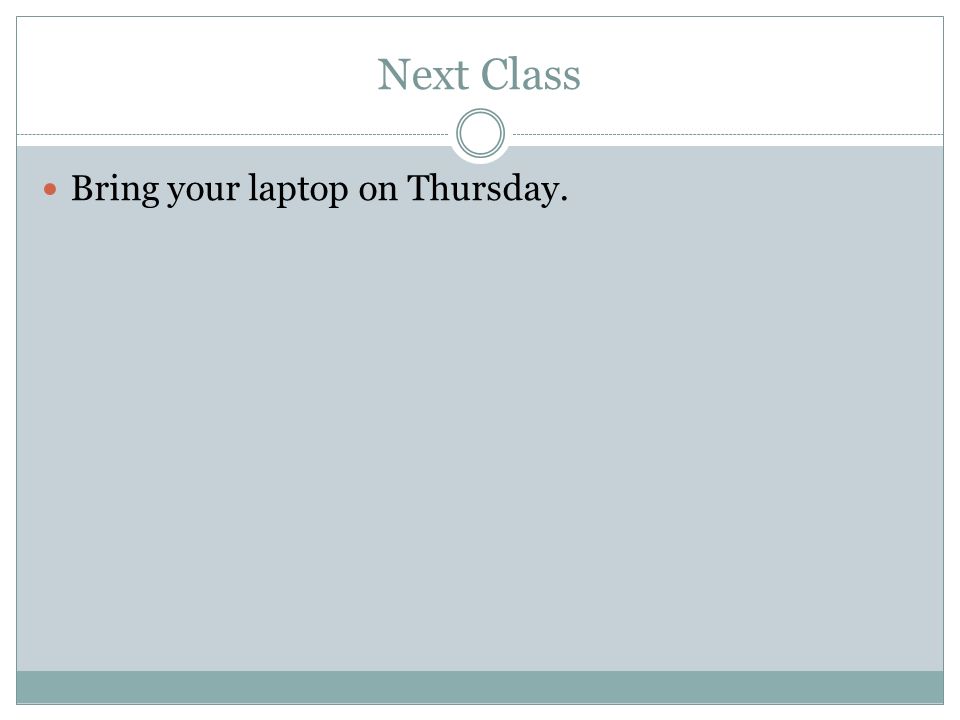

42 Next Class Bring your laptop on Thursday.
