1 Sep 6, NVO Summer School1 Using IRAF in the VO Mike Fitzpatrick, NOAO T HE US N ATIONAL V IRTUAL O BSERVATORY

2 Sep 6, NVO Summer School IRAF Integration: NVO Package Strategies : Build upon VOClient Support scripting and compiled task development Provide low-level toolbox utilities that enable higher-level script task development –Let the user decide how to build the application best suited to them Provide high-level demonstration science applications (scripts) –People learn from examples –Can easily modify to get slightly different behavior Simplify interfaces as much as possible –Dont require detailed knowledge of VO protocols to use the data

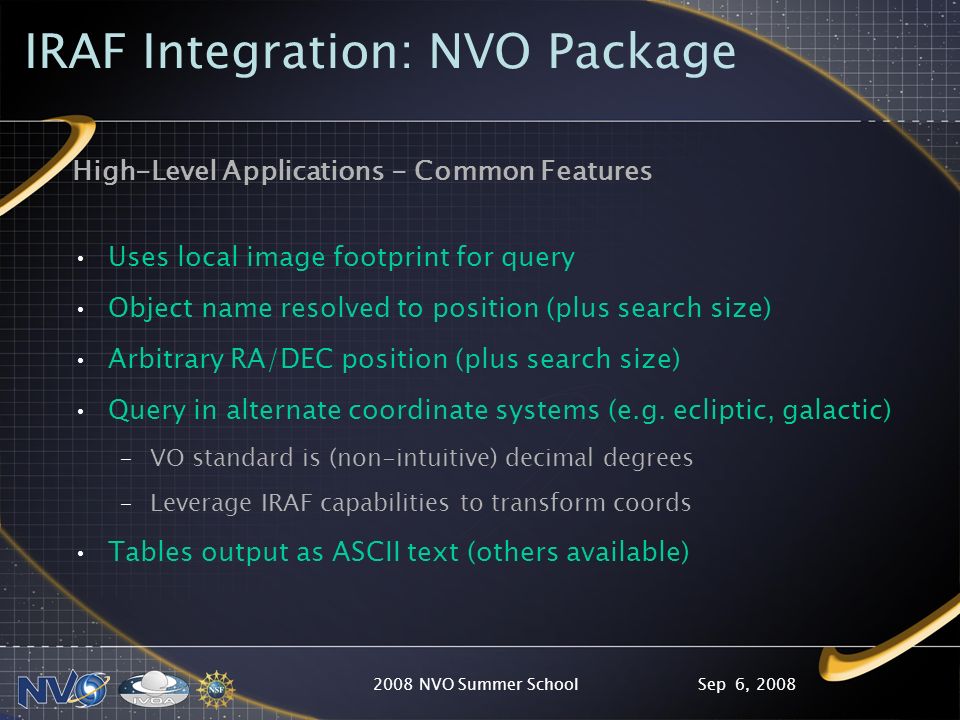

3 Sep 6, NVO Summer School IRAF Integration: NVO Package High-Level Applications - Common Features Uses local image footprint for query Object name resolved to position (plus search size) Arbitrary RA/DEC position (plus search size) Query in alternate coordinate systems (e.g. ecliptic, galactic) –VO standard is (non-intuitive) decimal degrees –Leverage IRAF capabilities to transform coords Tables output as ASCII text (others available)

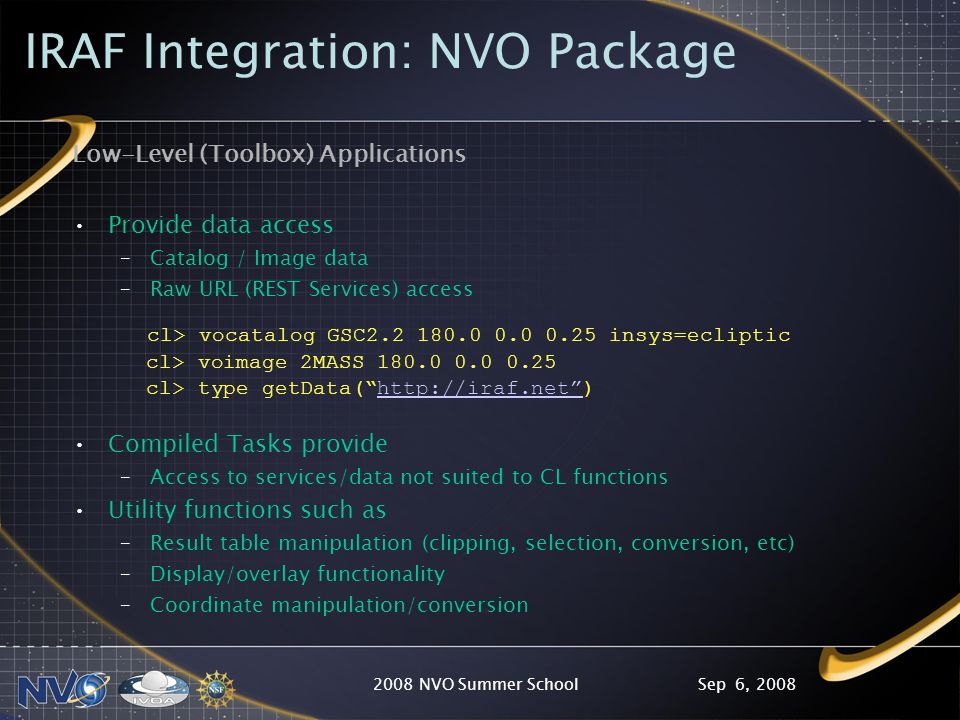

4 Sep 6, NVO Summer School IRAF Integration: NVO Package Low-Level (Toolbox) Applications Provide data access –Catalog / Image data –Raw URL (REST Services) access cl> vocatalog GSC insys=ecliptic cl> voimage 2MASS cl> type getData(http://iraf.net)http://iraf.net Compiled Tasks provide –Access to services/data not suited to CL functions Utility functions such as –Result table manipulation (clipping, selection, conversion, etc) –Display/overlay functionality –Coordinate manipulation/conversion

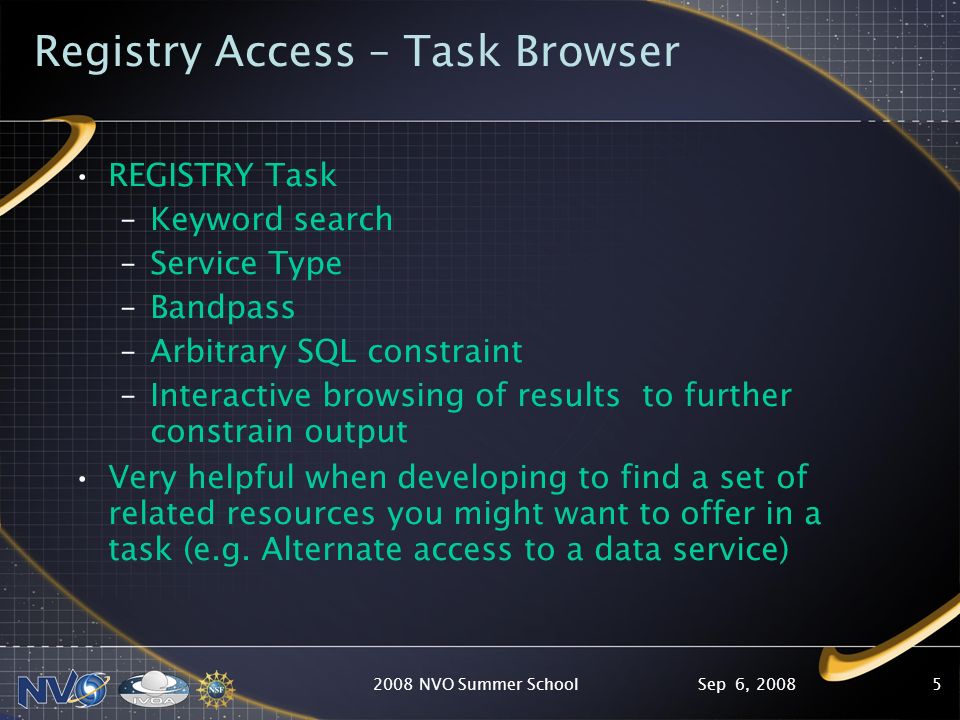

5 Sep 6, NVO Summer School5 Registry Access – Task Browser REGISTRY Task –Keyword search –Service Type –Bandpass –Arbitrary SQL constraint –Interactive browsing of results to further constrain output Very helpful when developing to find a set of related resources you might want to offer in a task (e.g. Alternate access to a data service)

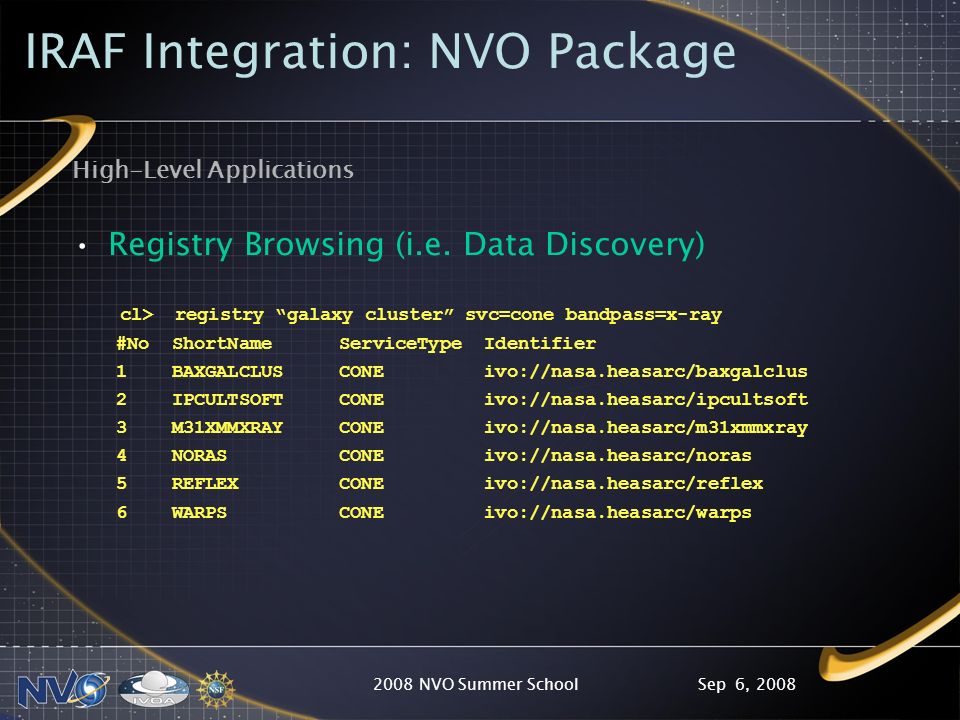

6 Sep 6, NVO Summer School IRAF Integration: NVO Package High-Level Applications Registry Browsing (i.e. Data Discovery) cl> registry galaxy cluster svc=cone bandpass=x-ray #No ShortName ServiceType Identifier 1 BAXGALCLUS CONE ivo://nasa.heasarc/baxgalclus 2 IPCULTSOFT CONE ivo://nasa.heasarc/ipcultsoft 3 M31XMMXRAY CONE ivo://nasa.heasarc/m31xmmxray 4 NORAS CONE ivo://nasa.heasarc/noras 5 REFLEX CONE ivo://nasa.heasarc/reflex 6 WARPS CONE ivo://nasa.heasarc/warps

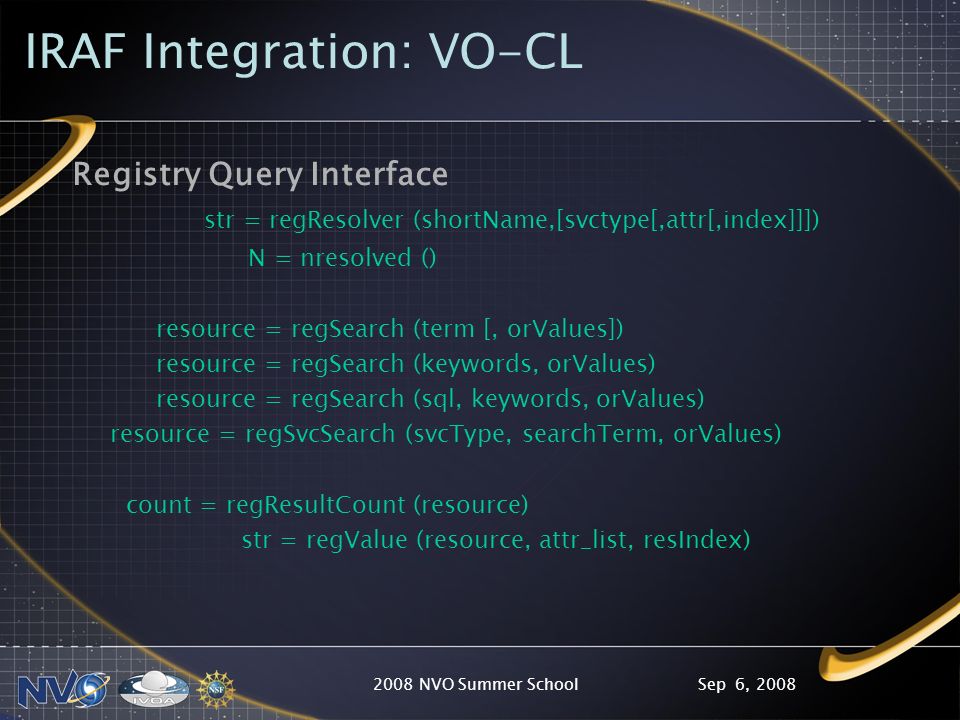

7 Sep 6, NVO Summer School IRAF Integration: VO-CL Registry Query Interface str = regResolver (shortName,[svctype[,attr[,index]]]) N = nresolved () resource = regSearch (term [, orValues]) resource = regSearch (keywords, orValues) resource = regSearch (sql, keywords, orValues) resource = regSvcSearch (svcType, searchTerm, orValues) count = regResultCount (resource) str = regValue (resource, attr_list, resIndex)

8 Sep 6, NVO Summer School IRAF Integration: VO-CL DAL Interface qres = dalConeSvc (url, ra, dec, sr) qres = dalSiapSvc (url, ra, dec, rsize[, dsize[, fmt]]) count = dalRecordCount (qres) stat = dalGetData (qres, recnum, fname) val = dalGet[Str|Int|Dbl] (qres, attrname, recnum) fname = getData (url, [fname])

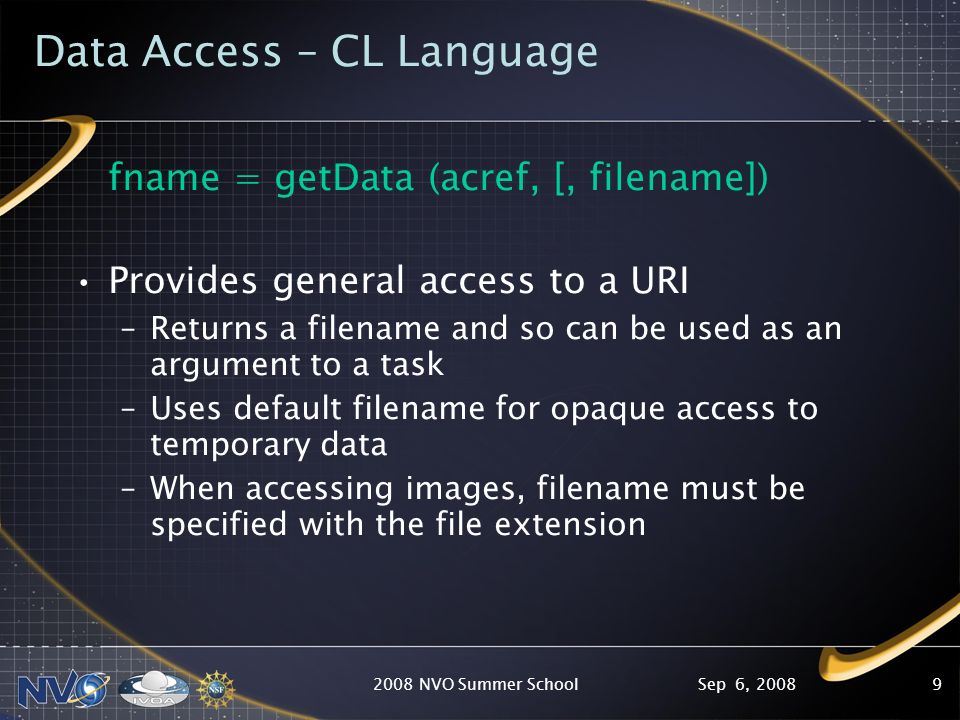

9 Sep 6, NVO Summer School9 Data Access – CL Language fname = getData (acref, [, filename]) Provides general access to a URI –Returns a filename and so can be used as an argument to a task –Uses default filename for opaque access to temporary data –When accessing images, filename must be specified with the file extension

10 Sep 6, NVO Summer School IRAF Integration: VO-CL Sample Script Task -- Messier Object Browser procedure messier () begin int qr, stat string svc svc = regResolver ("dss2","sia") # Find the DSS SIA service for (i=1; i < 111; i=i+1) { # Loop over Messier objs sesame ("M"//i, verb+) | scan (x,y) # Resolve name to coords qr = dalSiapSvc (svc, x, y, 0.25) # Query for data stat = dalGetData (qr, 0, "foo.fits") # Download 1st image display ("foo.fits[0]", 1) # Display it } end

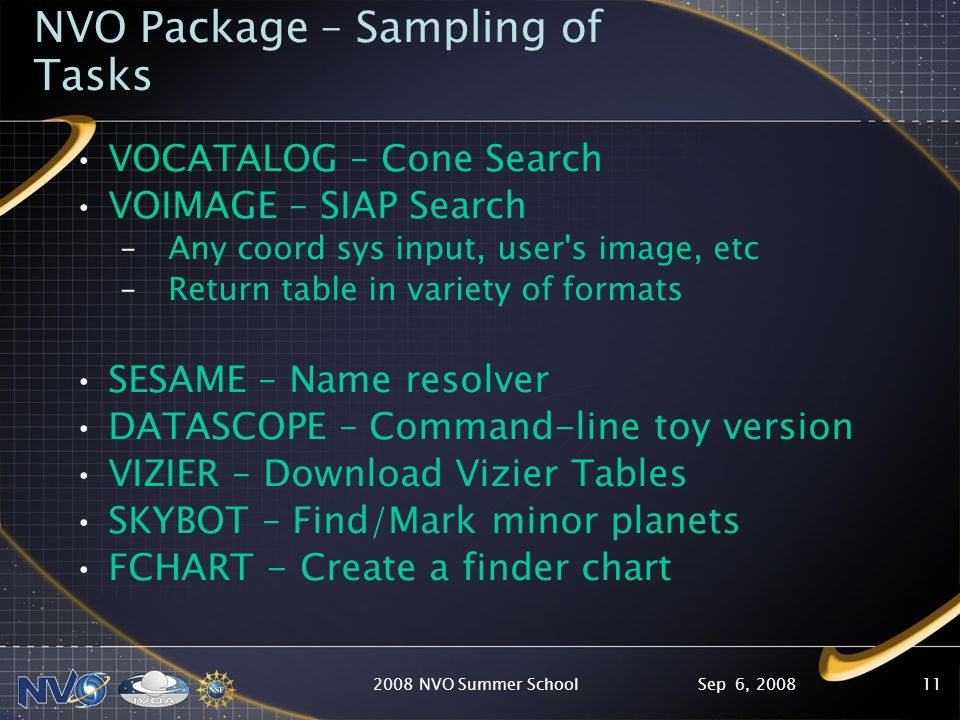

11 Sep 6, NVO Summer School11 NVO Package – Sampling of Tasks VOCATALOG – Cone Search VOIMAGE – SIAP Search –Any coord sys input, user's image, etc –Return table in variety of formats SESAME – Name resolver DATASCOPE – Command-line toy version VIZIER – Download Vizier Tables SKYBOT – Find/Mark minor planets FCHART - Create a finder chart

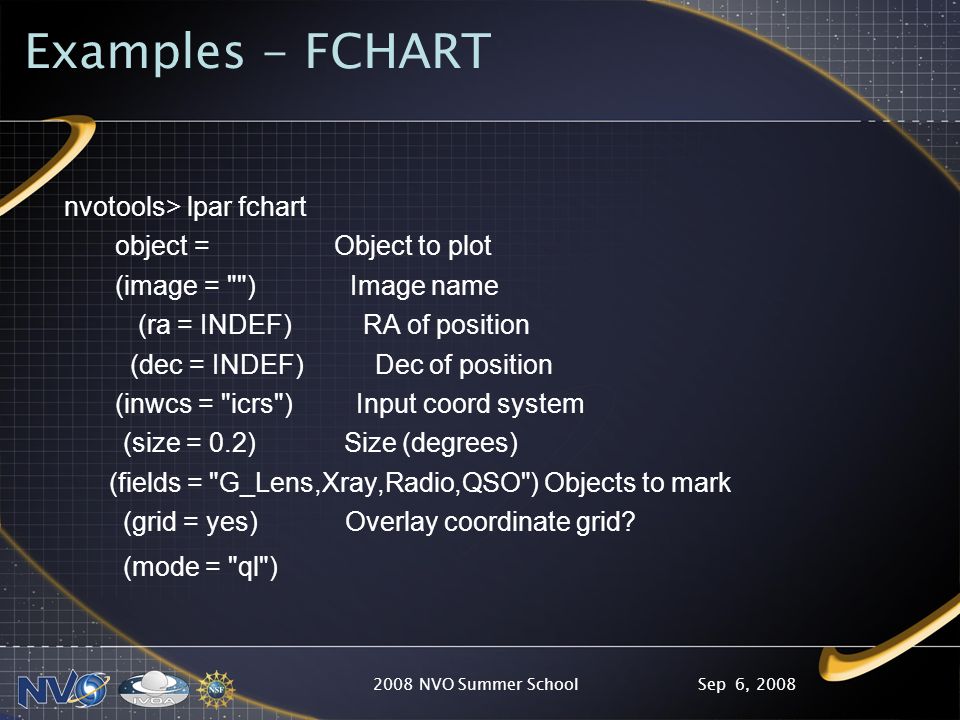

12 Sep 6, NVO Summer School Examples - FCHART nvotools> lpar fchart object = Object to plot (image = "") Image name (ra = INDEF) RA of position (dec = INDEF) Dec of position (inwcs = "icrs") Input coord system (size = 0.2) Size (degrees) (fields = "G_Lens,Xray,Radio,QSO") Objects to mark (grid = yes) Overlay coordinate grid? (mode = "ql")

13 Sep 6, NVO Summer School IRAF Integration: NVO Package SDSS Spectral Data Access

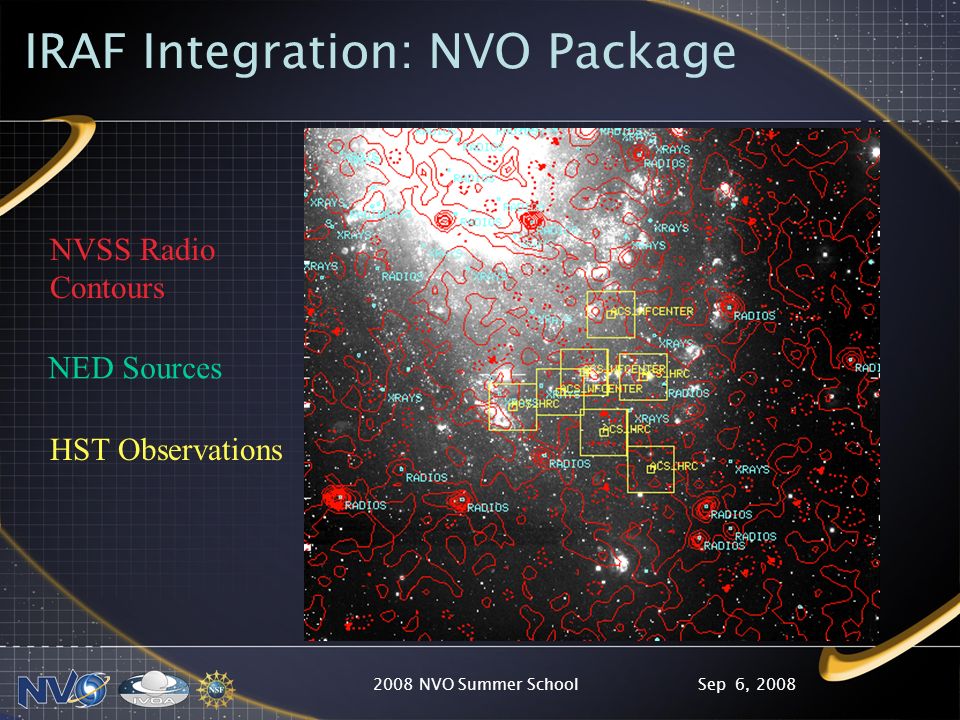

14 Sep 6, NVO Summer School IRAF Integration: NVO Package NVSS Radio Contours NED Sources HST Observations

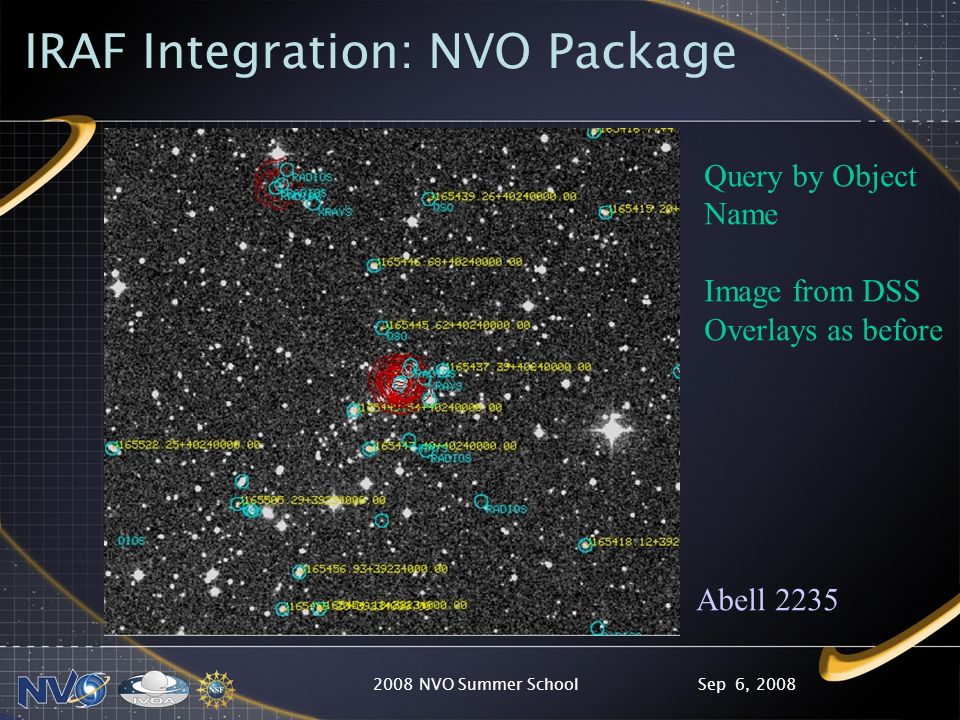

15 Sep 6, NVO Summer School IRAF Integration: NVO Package Query by Object Name Image from DSS Overlays as before Abell 2235

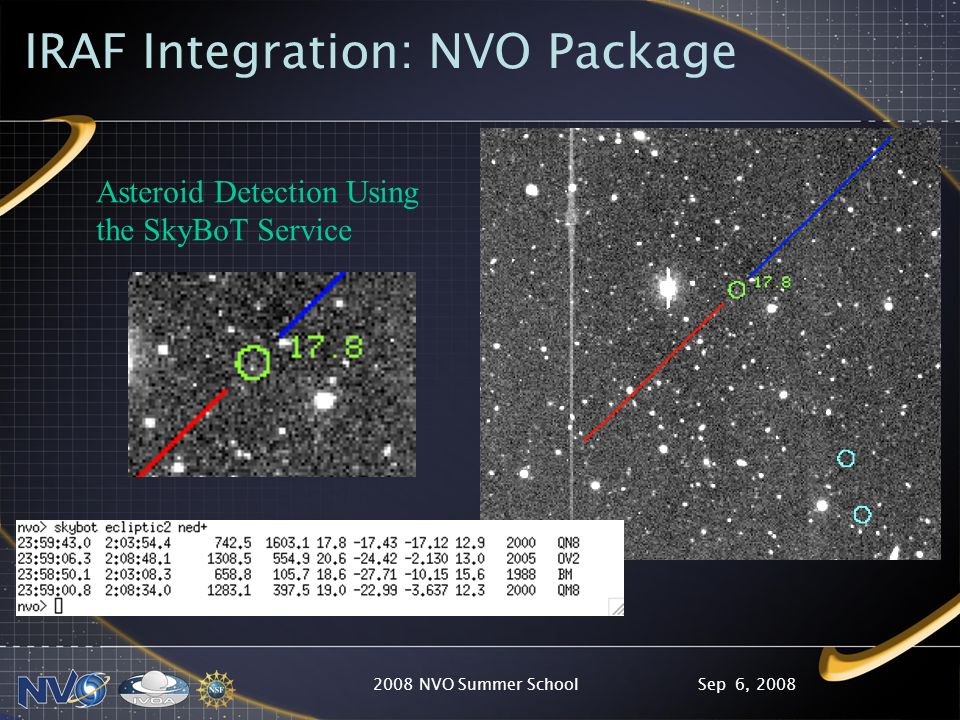

16 Sep 6, NVO Summer School IRAF Integration: NVO Package Asteroid Detection Using the SkyBoT Service

17 Sep 6, NVO Summer School
