1. Local Parametric Sensitivity Analysis AMATH 882 Lecture 4, Jan 17, 2013

2. Parametric Sensitivity Analysis Parametric sensitivity analysis investigates the relationship between the variables and parameters in a biochemical network. Variables 1. Concentrations 2. Pathway fluxes 3. Dynamic response 4. Growth rate 5..... Parameters 1. Enzyme activity levels 2. Kinetics constants 3. Decay rates 4. Boundary conditions 5.....

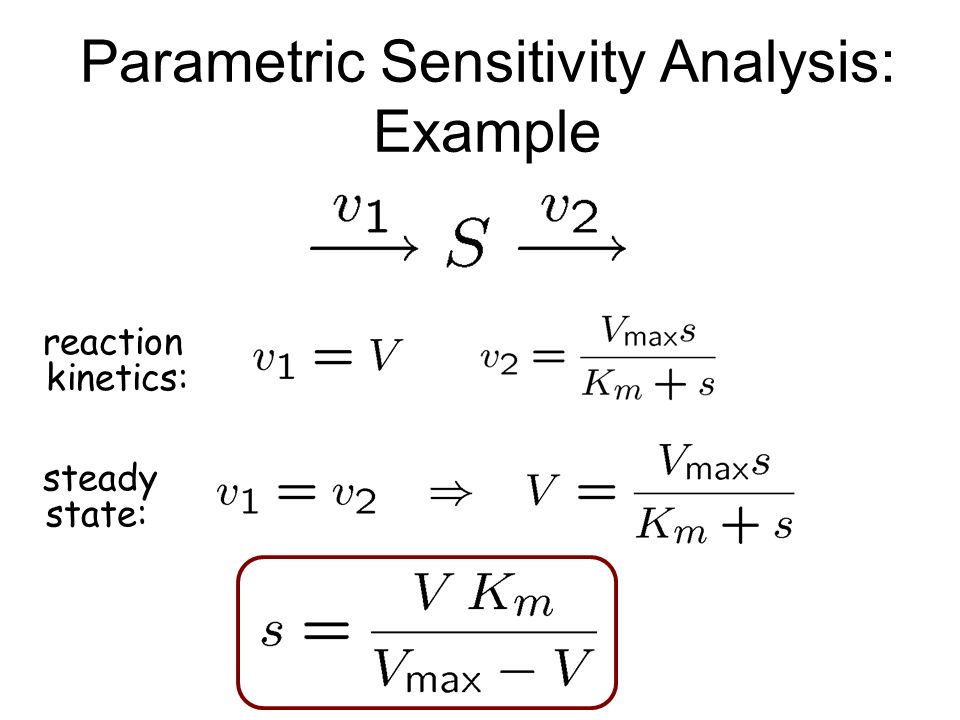

3. Parametric Sensitivity Analysis: Example reaction kinetics: steady state:

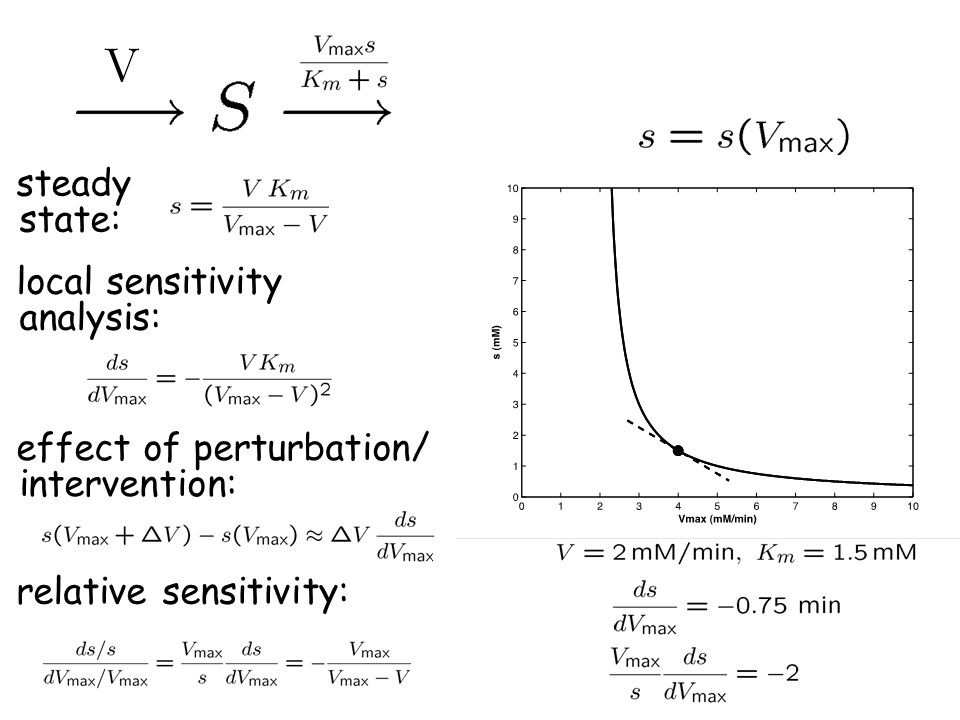

4. local sensitivity analysis: effect of perturbation/ intervention: relative sensitivity:

5. steady state: sensitivity analysis: vector notation implicit differentiation

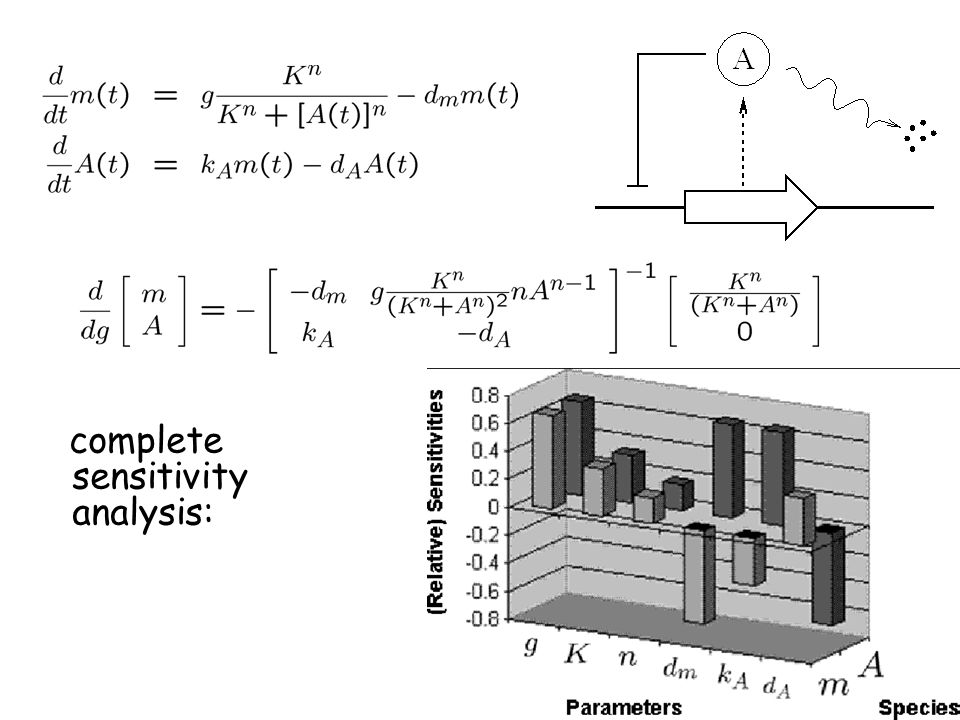

6. complete sensitivity analysis:

7. Sensitivity Analysis: General Computation model: steady state: differentiate: absolute sensitivity:

8. Application: unregulated chain

9. sensitivity of flux J to enzyme activities:

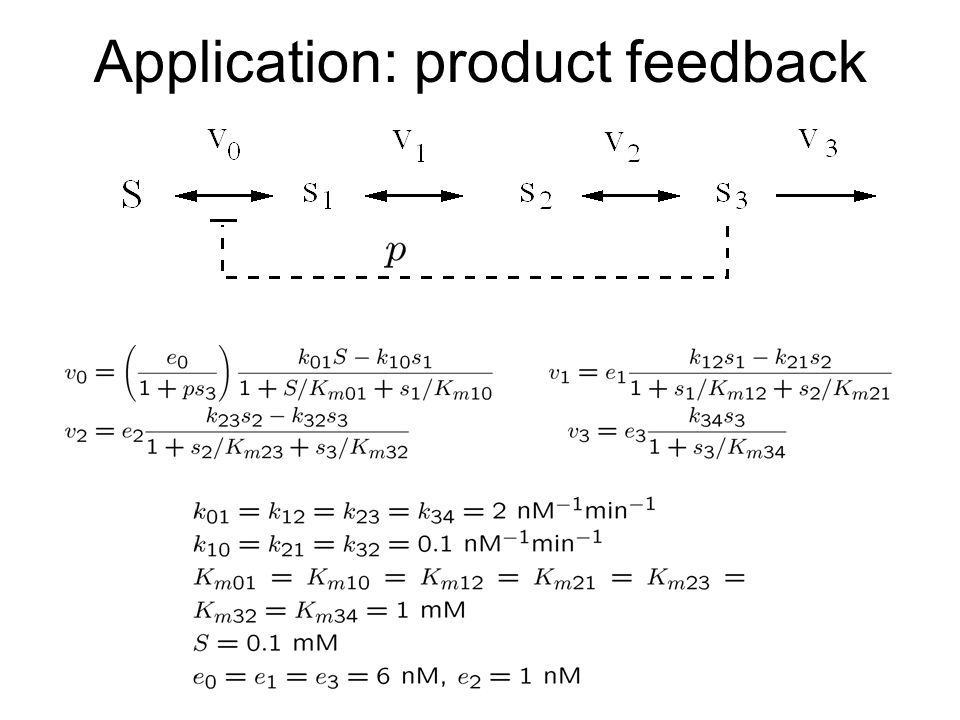

10. Application: product feedback

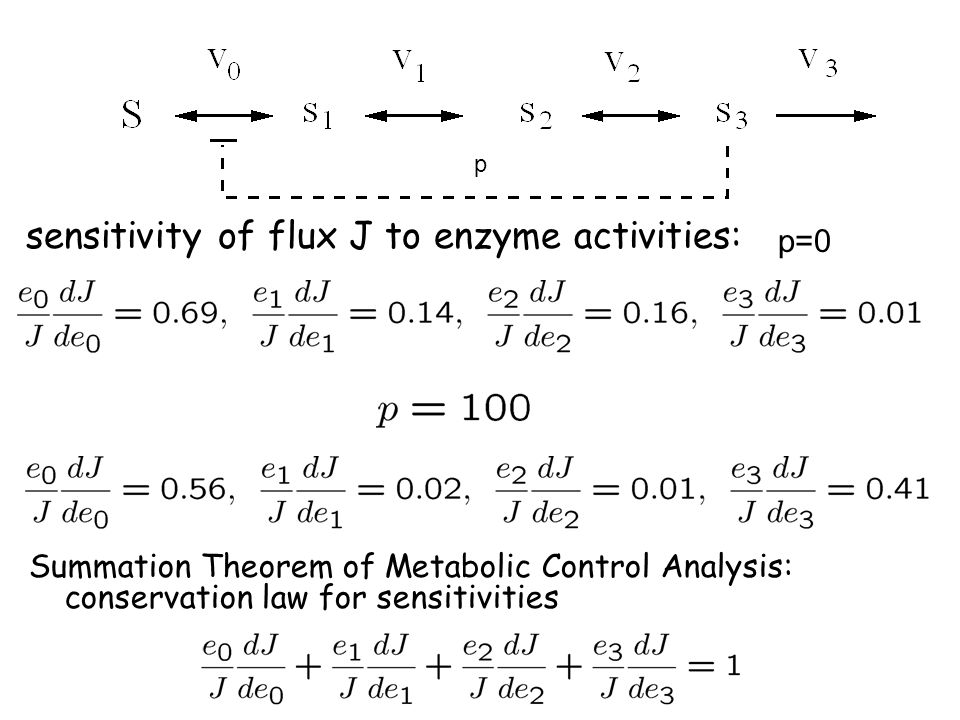

11. sensitivity of flux J to enzyme activities: Summation Theorem of Metabolic Control Analysis: conservation law for sensitivities p p=0

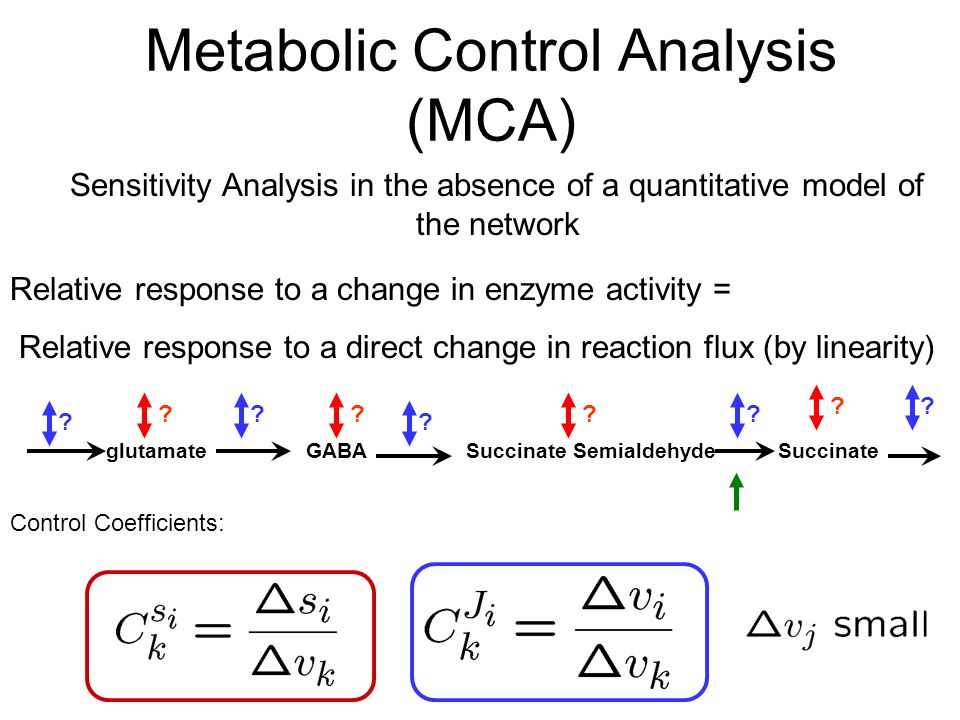

12. Metabolic Control Analysis (MCA) Sensitivity Analysis in the absence of a quantitative model of the network glutamateSuccinate Succinate SemialdehydeGABA Relative response to a change in enzyme activity = Relative response to a direct change in reaction flux (by linearity) ? Control Coefficients: ????????

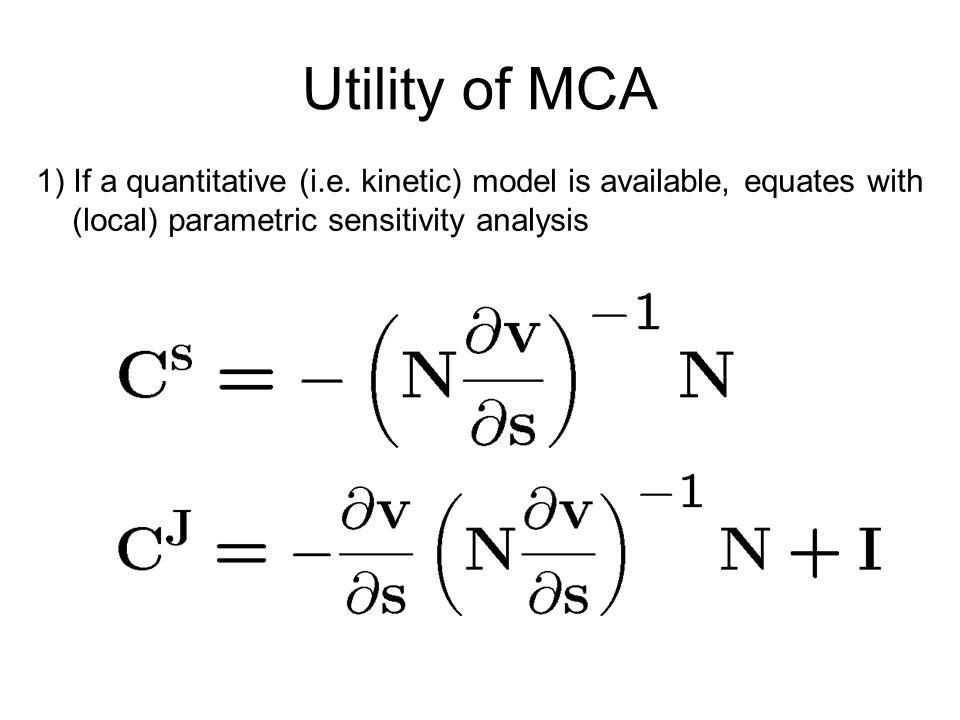

13. Utility of MCA 1) If a quantitative (i.e. kinetic) model is available, equates with (local) parametric sensitivity analysis

14. Utility of MCA 2) In absence of quantitation, allows qualitative analysis of sensitivities, e.g. comparing different topologies The Effect of Feedback Without feedback With feedback S 1 S 2 X 2 X 1 1 EEE 23 ?

15. Utility of MCA 3) Regardless of quantitation, allows characterization of constraints on sensitivities (sensitivity invariants) The Summation Theorem:  % Relative increase in flux J k glutamateSuccinate Succinate SemialdehydeGABA

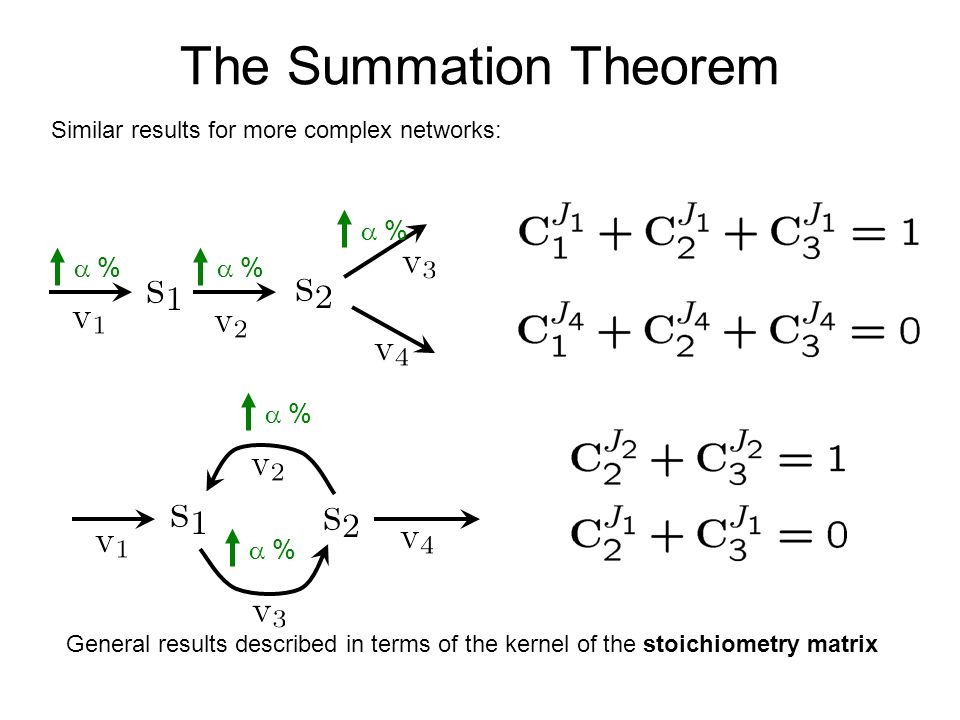

16. The Summation Theorem Similar results for more complex networks:  % General results described in terms of the kernel of the stoichiometry matrix  %

17. Time-Varying Sensitivities Sensitivities can be addressed over transient or oscillatory behaviour Computation:

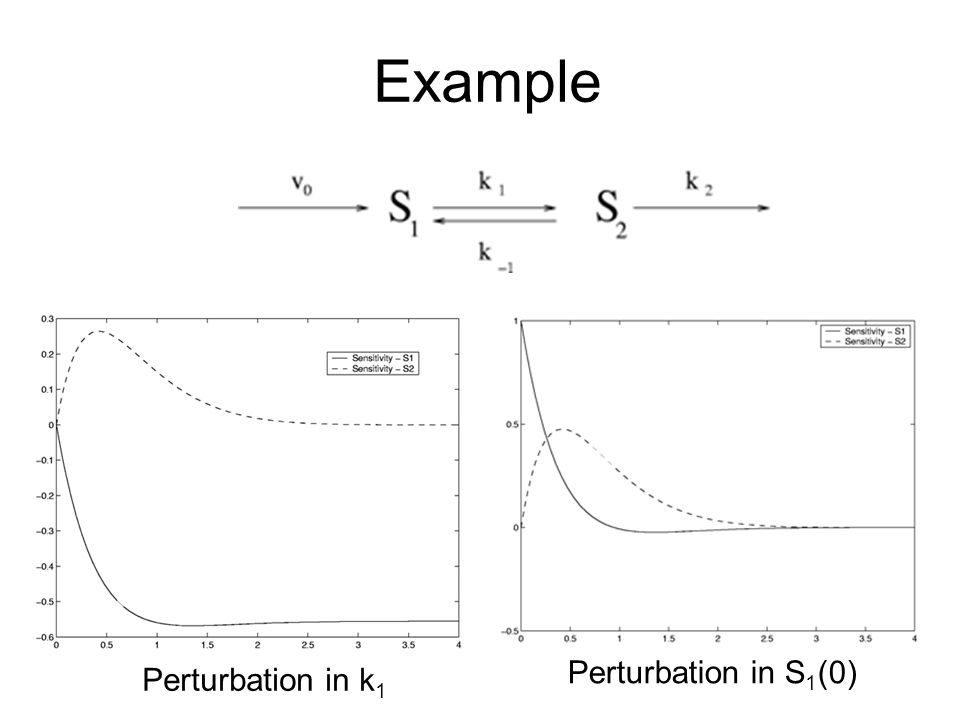

18. Example Perturbation in S 1 (0) Perturbation in k 1

19. Application to Phototransduction Pathway

20. Global Sensitivity Analysis Addresses system behaviour over a wide range of parameter values Primarily statistical tools: efficient sampling methods Provides a broader view of behaviour, but… Results often difficult to interpret

21. Applications of Sensitivity Analysis Trypanosome metabolism. Bakker et al., 1999,J. Biol. Chem Predicting the effect of interventions Drug development

22. Applications of Sensitivity Analysis Predicting the effect of interventions Drug development Medicine Tumour growth and thiamine, Comin-Anduix et al., 2001, Eur. J. Biochem.

23. Applications of Sensitivity Analysis Predicting the effect of interventions Drug development Medicine Metabolic engineering Diacetyl production in Lactococcus lactis, Hoefnagel et al. 2002, Microbiology

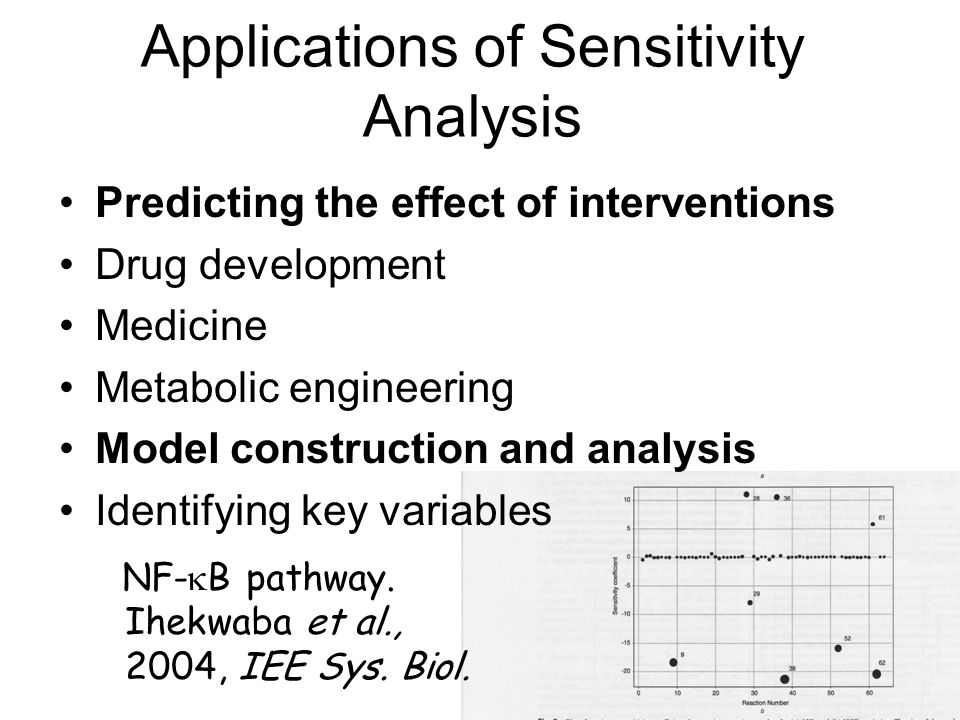

24. Applications of Sensitivity Analysis Predicting the effect of interventions Drug development Medicine Metabolic engineering Model construction and analysis Identifying key variables NF-  B pathway. Ihekwaba et al., 2004, IEE Sys. Biol.

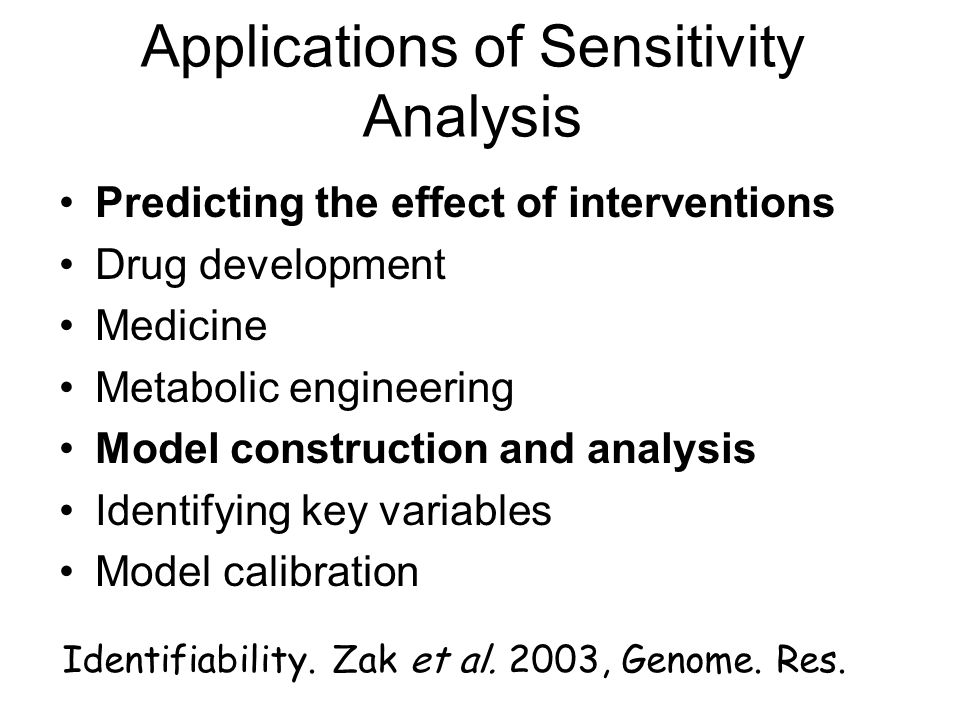

25. Applications of Sensitivity Analysis Predicting the effect of interventions Drug development Medicine Metabolic engineering Model construction and analysis Identifying key variables Model calibration Identifiability. Zak et al. 2003, Genome. Res.
