1. LMC Assembly Making Programming Friendlier

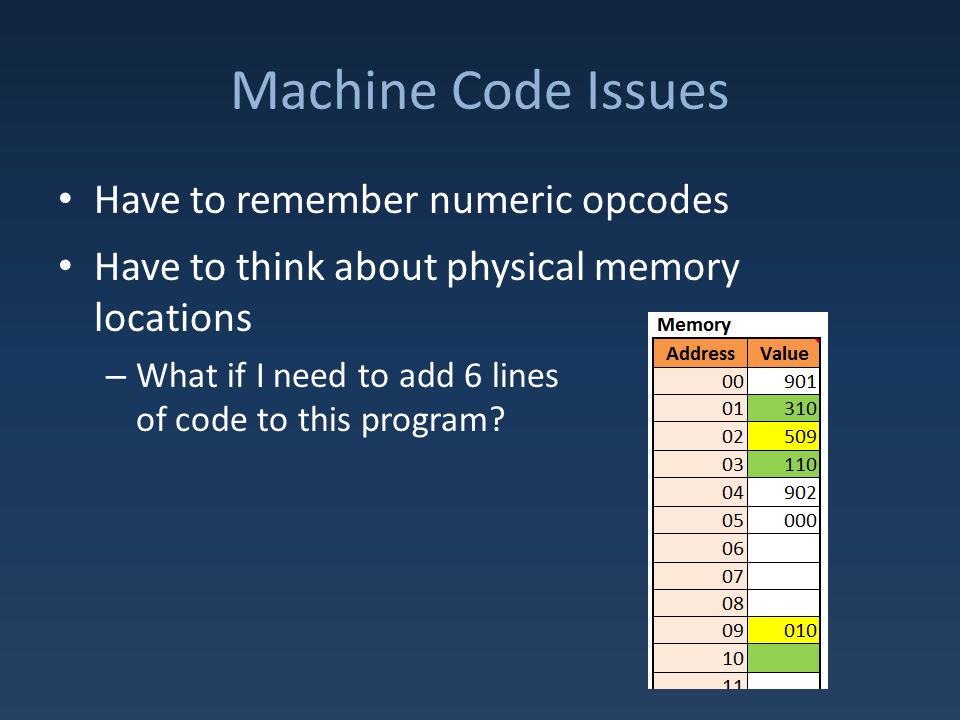

2. Machine Code Issues Have to remember numeric opcodes Have to think about physical memory locations – What if I need to add 6 lines of code to this program?

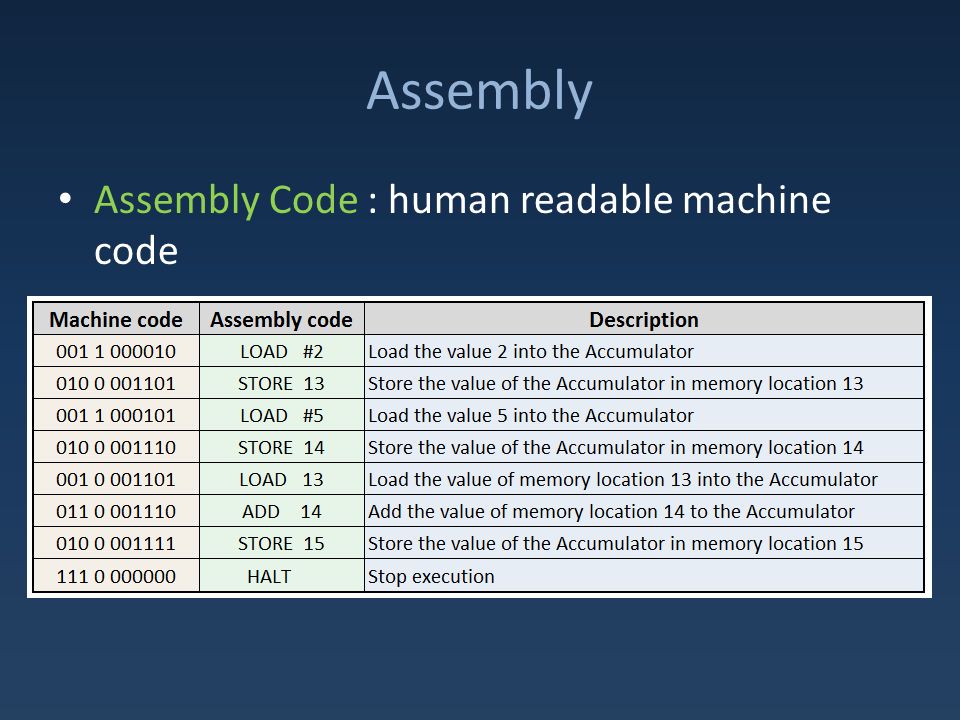

3. Assembly Assembly Code : human readable machine code

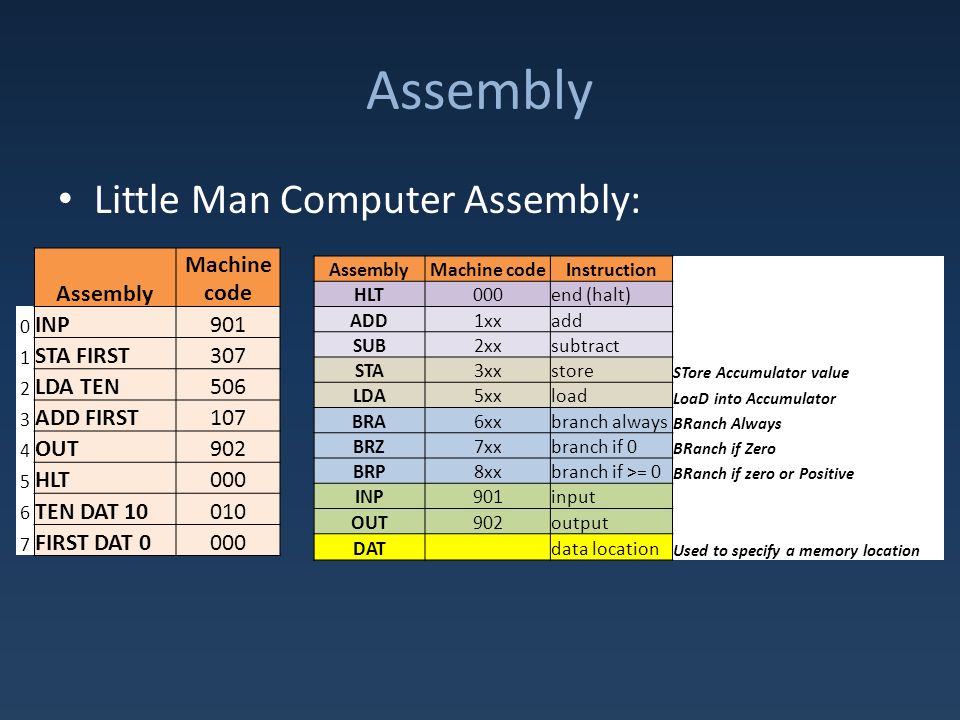

4. Assembly Little Man Computer Assembly: Assembly Machine code 0 INP901 1 STA FIRST307 2 LDA TEN506 3 ADD FIRST107 4 OUT902 5 HLT000 6 TEN DAT 10010 7 FIRST DAT 0000 AssemblyMachine codeInstruction HLT000end (halt) ADD1xxadd SUB2xxsubtract STA3xxstore STore Accumulator value LDA5xxload LoaD into Accumulator BRA6xxbranch always BRanch Always BRZ7xxbranch if 0 BRanch if Zero BRP8xxbranch if >= 0 BRanch if zero or Positive INP901input OUT902output DAT data location Used to specify a memory location

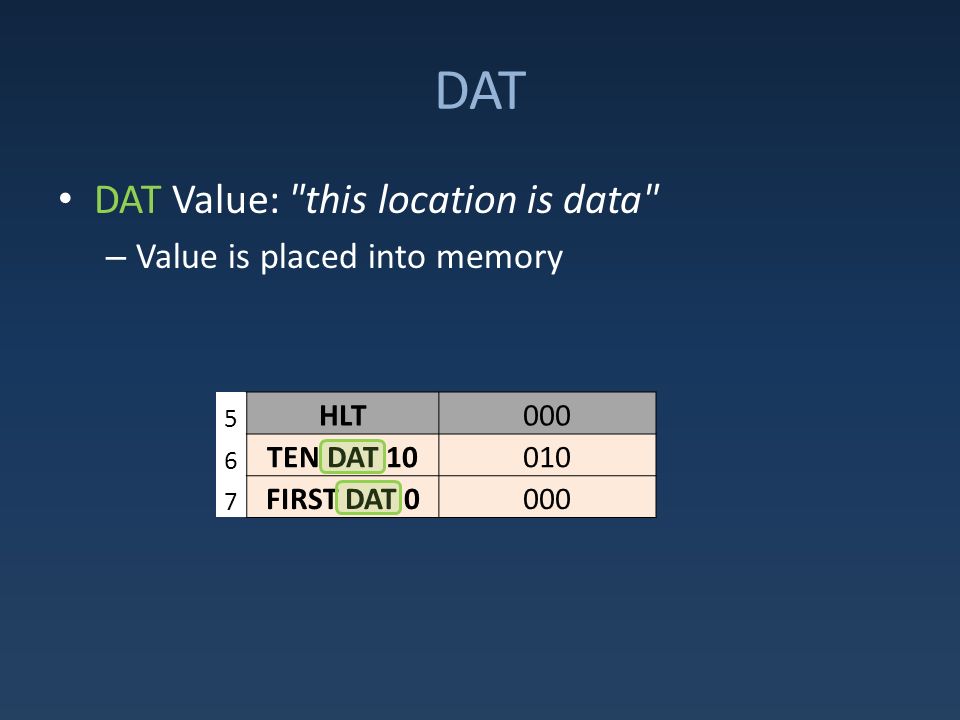

5. DAT DAT Value: "this location is data" – Value is placed into memory 5 HLT000 6 TEN DAT 10010 7 FIRST DAT 0000

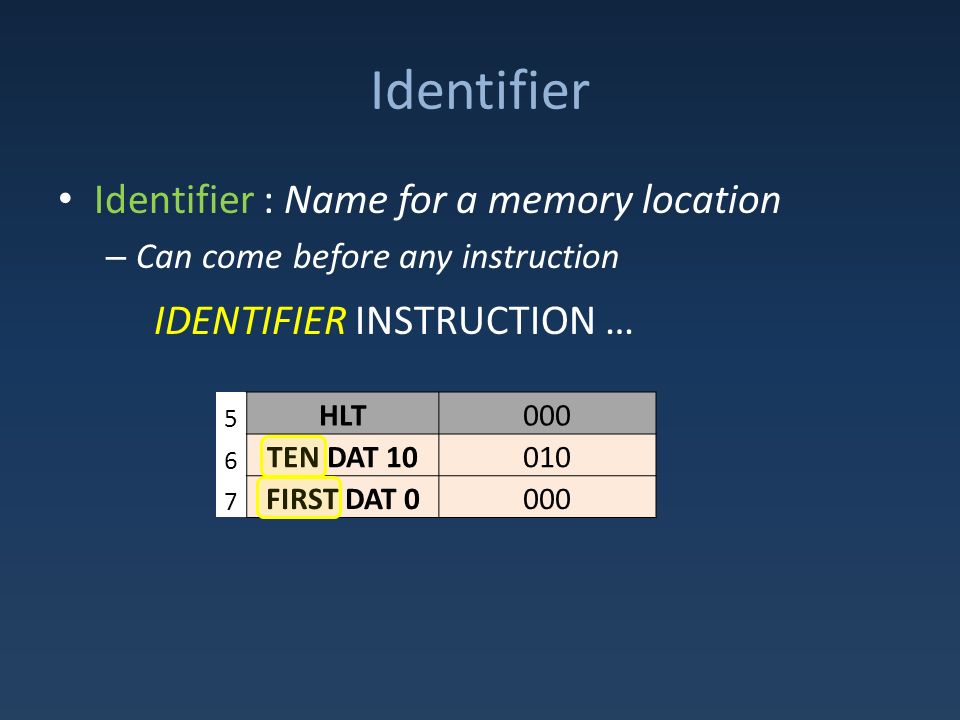

6. Identifier Identifier : Name for a memory location – Can come before any instruction IDENTIFIER INSTRUCTION … 5 HLT000 6 TEN DAT 10010 7 FIRST DAT 0000

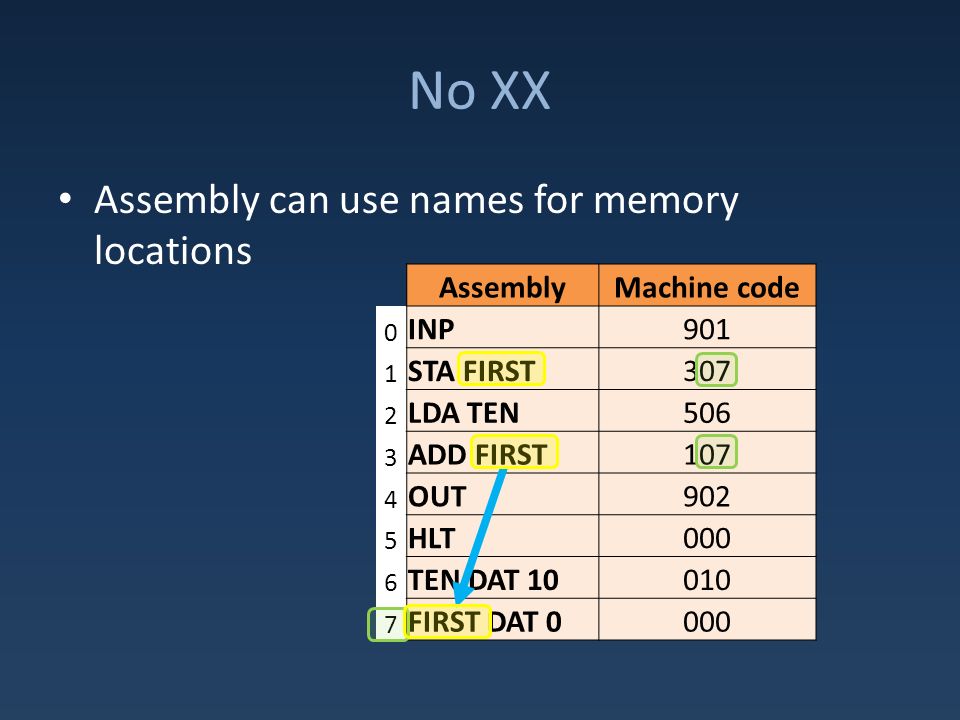

7. No XX Assembly can use names for memory locations AssemblyMachine code 0 INP901 1 STA FIRST307 2 LDA TEN506 3 ADD FIRST107 4 OUT902 5 HLT000 6 TEN DAT 10010 7 FIRST DAT 0000

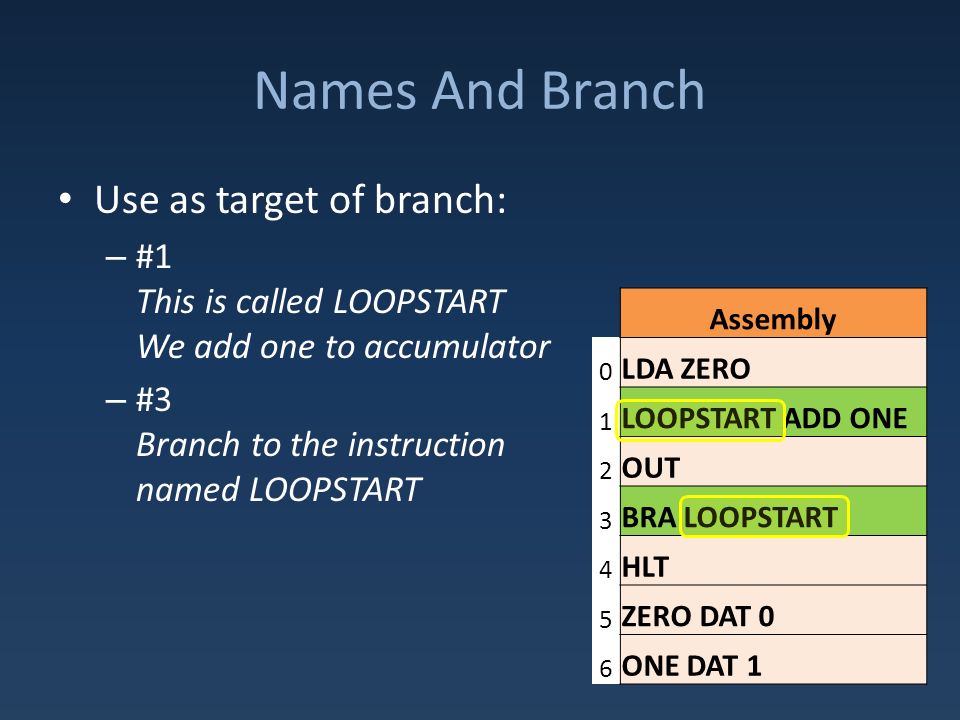

8. Names And Branch Use as target of branch: – #1 This is called LOOPSTART We add one to accumulator – #3 Branch to the instruction named LOOPSTART Assembly 0 LDA ZERO 1 LOOPSTART ADD ONE 2 OUT 3 BRA LOOPSTART 4 HLT 5 ZERO DAT 0 6 ONE DAT 1

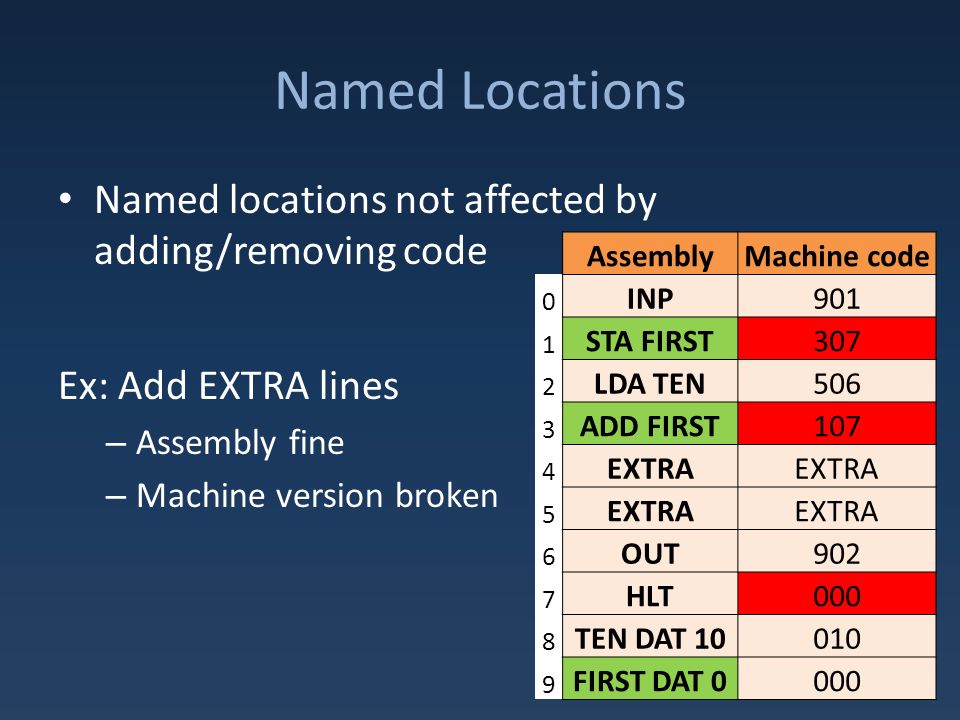

9. Named Locations Named locations not affected by adding/removing code Ex: Add EXTRA lines – Assembly fine – Machine version broken AssemblyMachine code 0 INP901 1 STA FIRST307 2 LDA TEN506 3 ADD FIRST107 4 EXTRA 5 6 OUT902 7 HLT000 8 TEN DAT 10010 9 FIRST DAT 0000

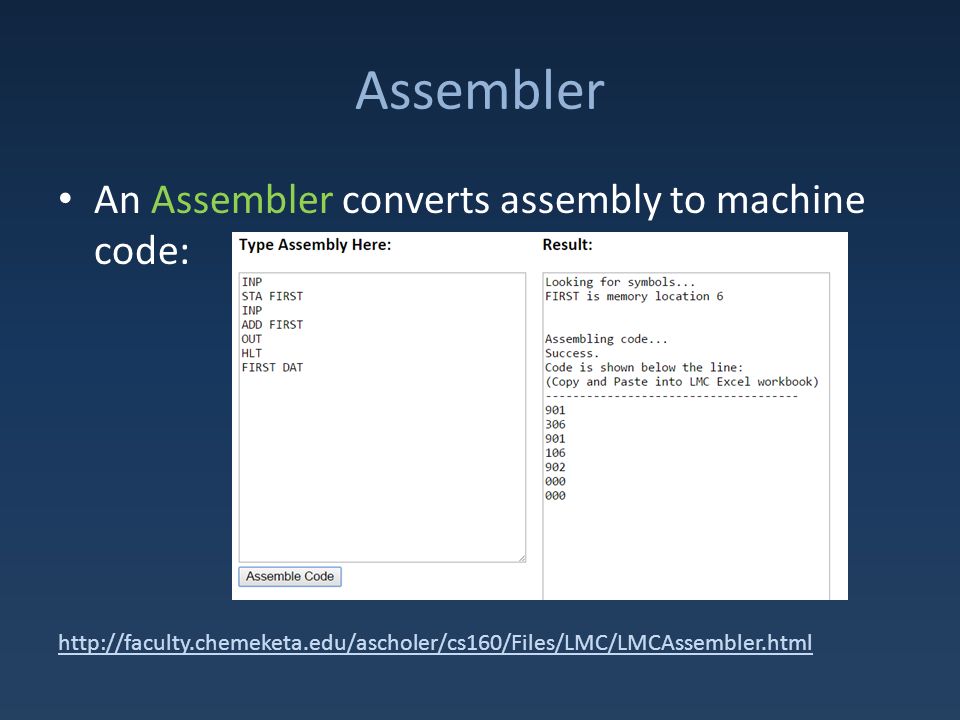

10. Assembler An Assembler converts assembly to machine code: http://faculty.chemeketa.edu/ascholer/cs160/Files/LMC/LMCAssembler.html
