Plate Tectonics Causes of Plate Tectonics Plate Boundaries.

Similar presentations

Presentation on theme: "Plate Tectonics Causes of Plate Tectonics Plate Boundaries."— Presentation transcript:

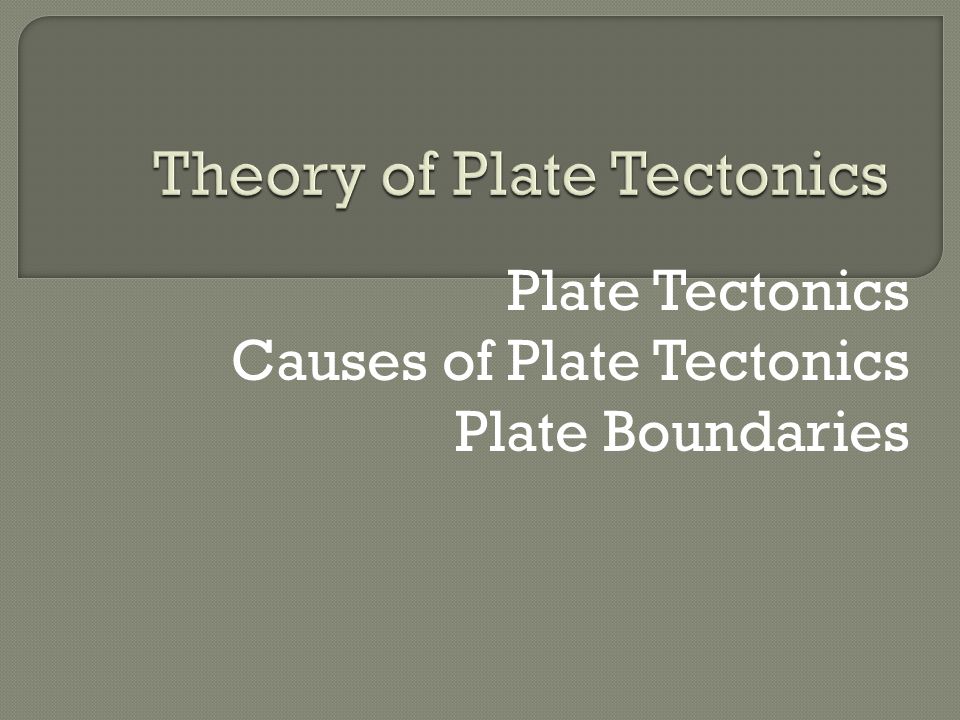

2 Plate Tectonics Causes of Plate Tectonics Plate Boundaries

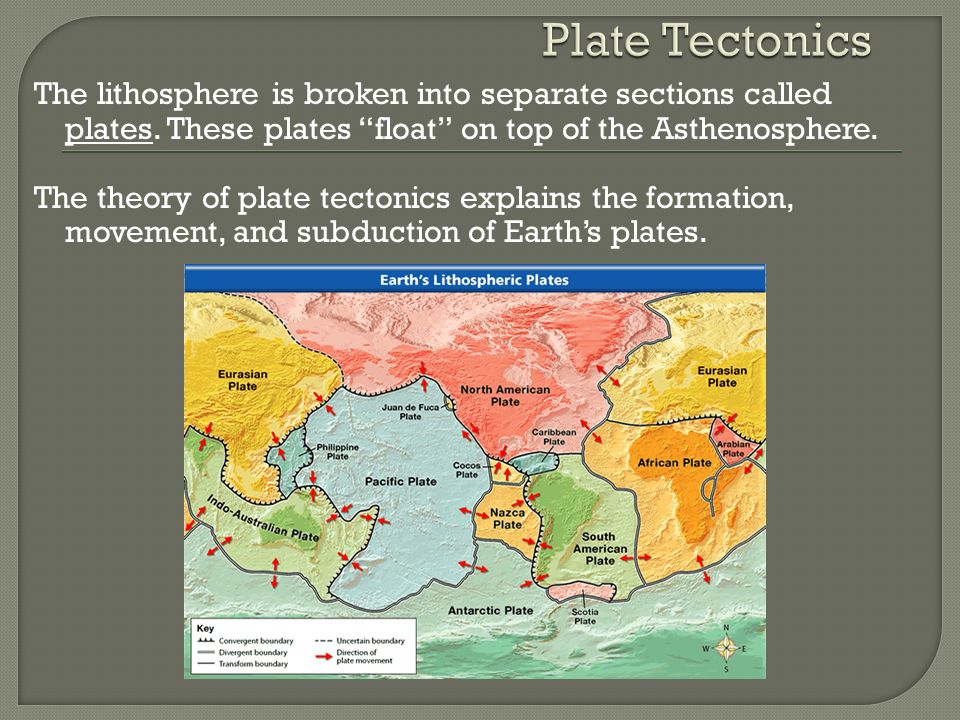

4 The lithosphere is broken into separate sections called plates. These plates “float” on top of the Asthenosphere. The theory of plate tectonics explains the formation, movement, and subduction of Earth’s plates.

5  The crust and part of the upper mantle = lithosphere 100 km thick Less dense than the material below it so it “floats”

6  The semi-molten layer below the lithosphere =Asthenosphere  The plates of the lithosphere float on the Asthenosphere

7  Ocean plates – lithospheric plates below the oceans  Continental plates – lithospheric plates below the continents

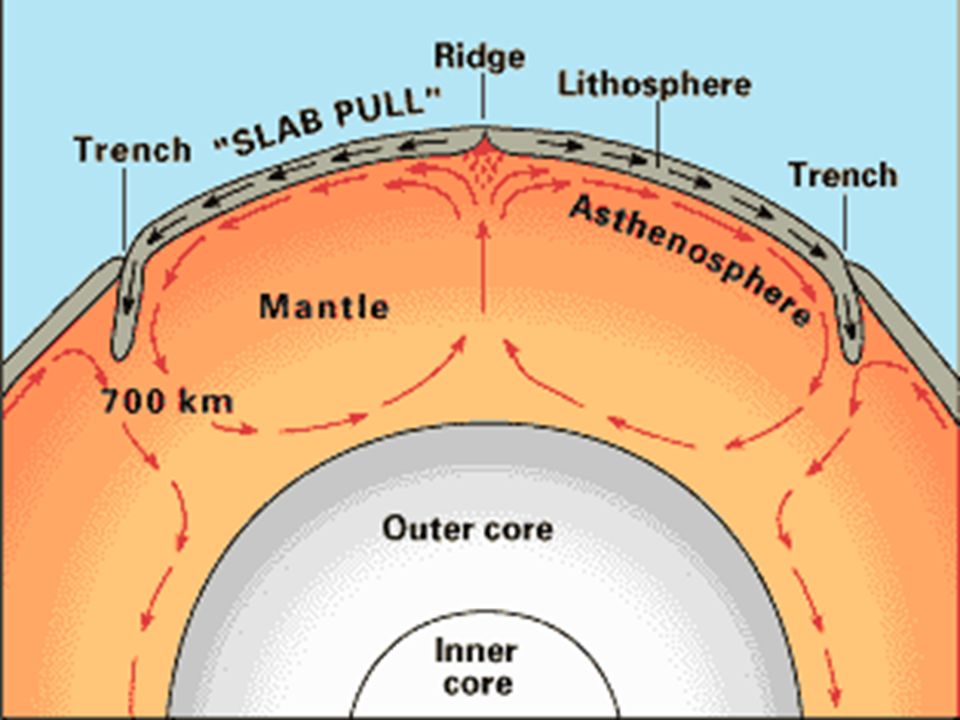

9  Hot magma in the Earth moves toward the surface, cools, then sinks again. This creates convection currents beneath the plates that cause the plates to move.

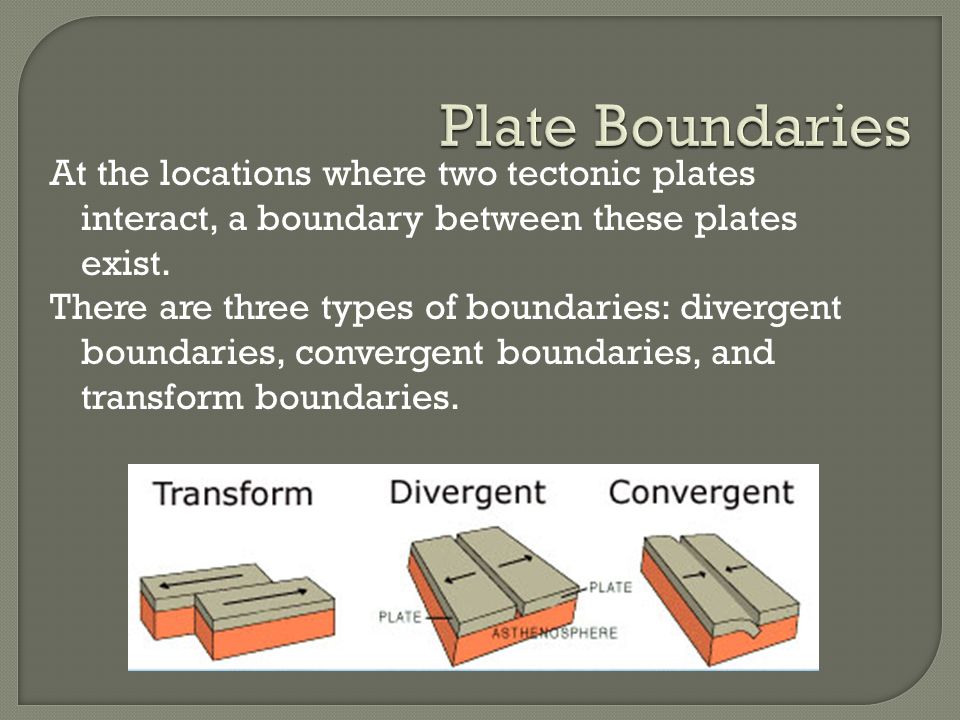

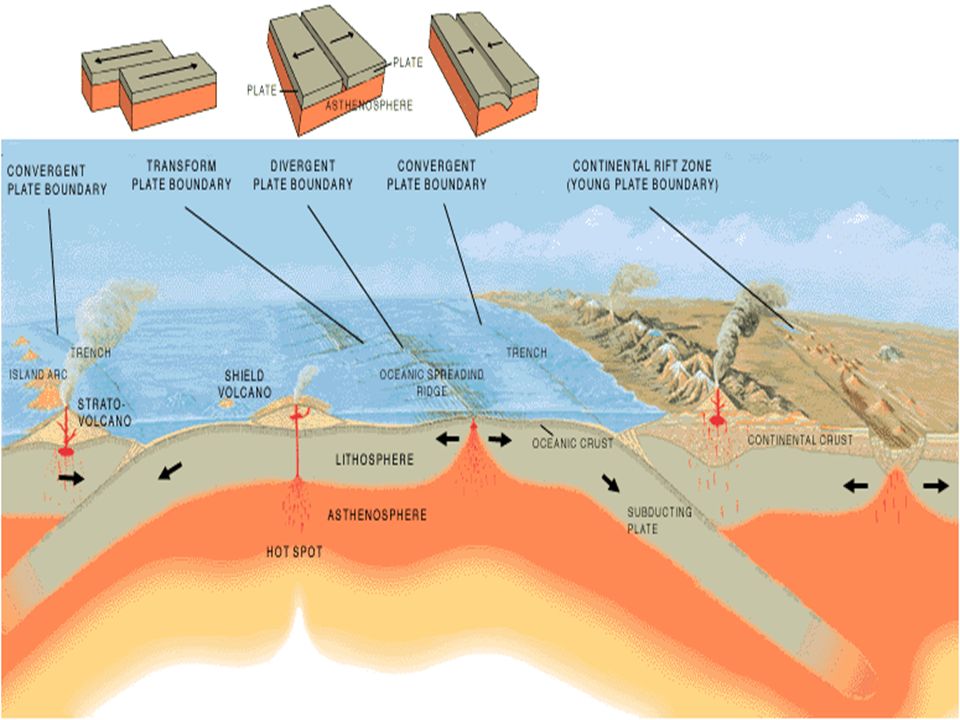

12 At the locations where two tectonic plates interact, a boundary between these plates exist. There are three types of boundaries: divergent boundaries, convergent boundaries, and transform boundaries.



15  Boundary between two plates that are moving apart or rifting    RIFTING causes SEAFLOOR SPREADING

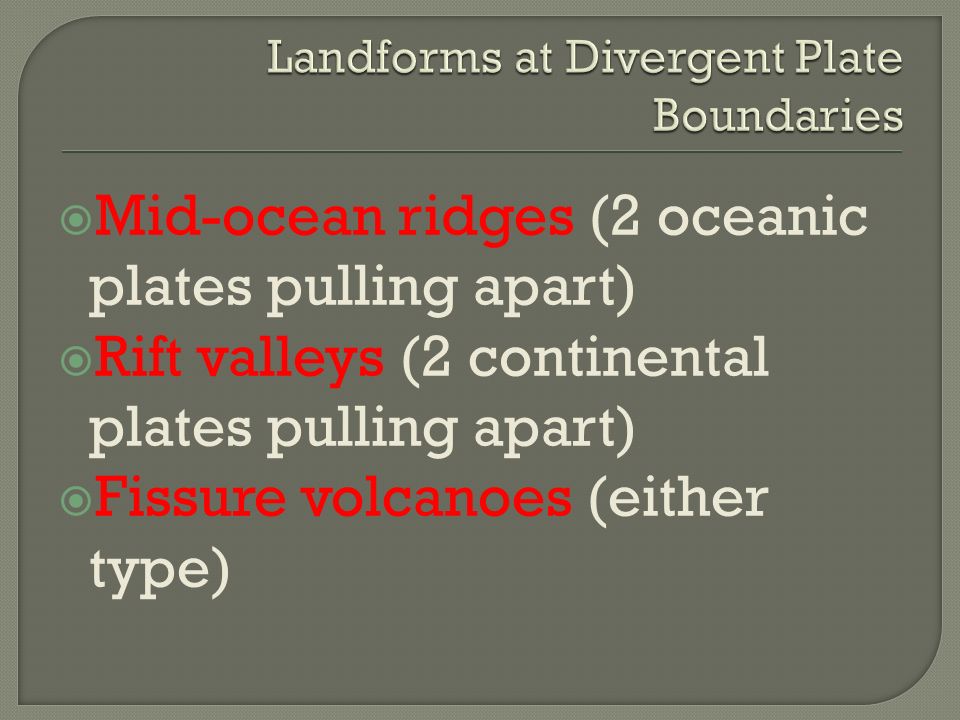

16  Mid-ocean ridges (2 oceanic plates pulling apart)  Rift valleys (2 continental plates pulling apart)  Fissure volcanoes (either type)

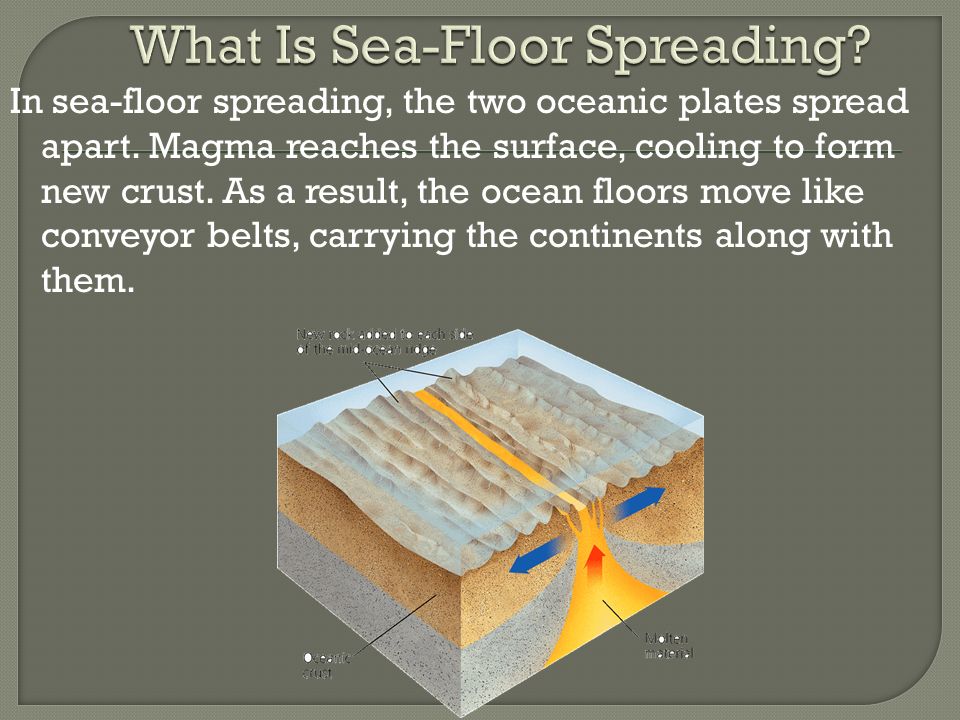

17 In sea-floor spreading, the two oceanic plates spread apart. Magma reaches the surface, cooling to form new crust. As a result, the ocean floors move like conveyor belts, carrying the continents along with them.

18 Evidence includes: eruptions of molten material, magnetic stripes in the rock of the ocean floor, and the ages of the rocks themselves (youngest closest to the mid-ocean ridge).




22  Boundaries between two plates that are colliding    There are 3 types…

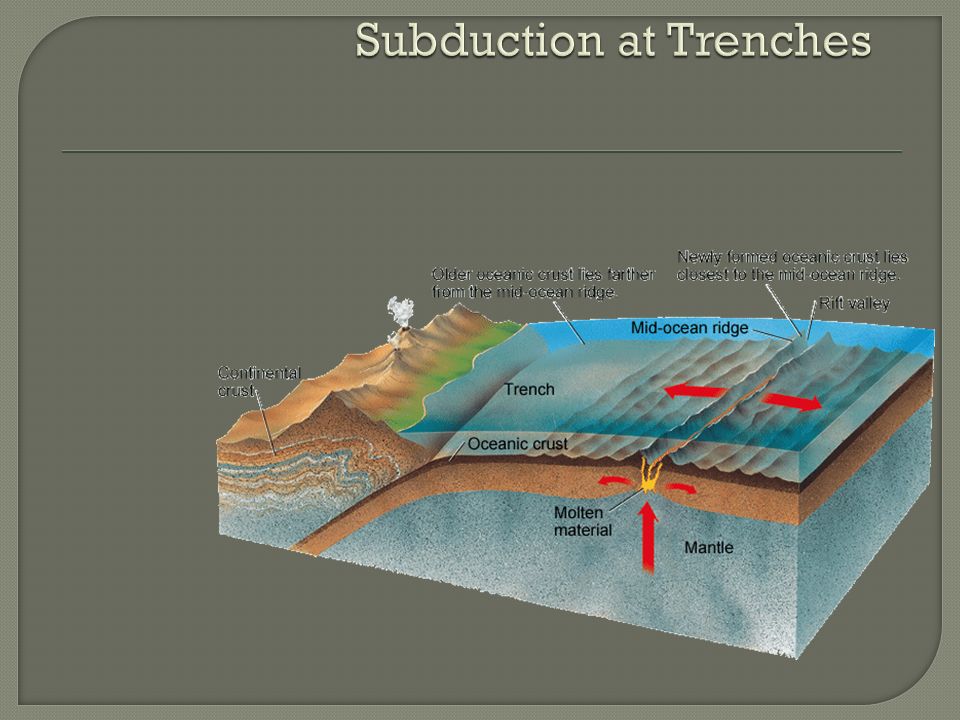

23  Ocean –Continental Convergent  More dense oceanic plate colliding with a less dense continental plate  Subduction Zone: where the more dense plate (oceanic) slides under the less dense plate (continental)

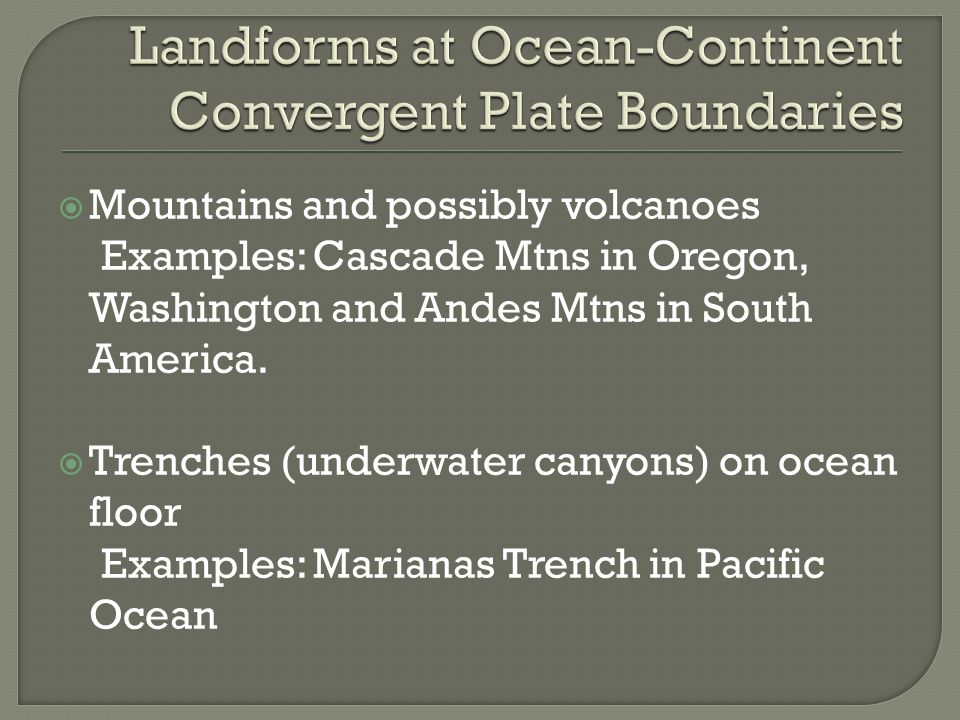

24  Mountains and possibly volcanoes Examples: Cascade Mtns in Oregon, Washington and Andes Mtns in South America.  Trenches (underwater canyons) on ocean floor Examples: Marianas Trench in Pacific Ocean

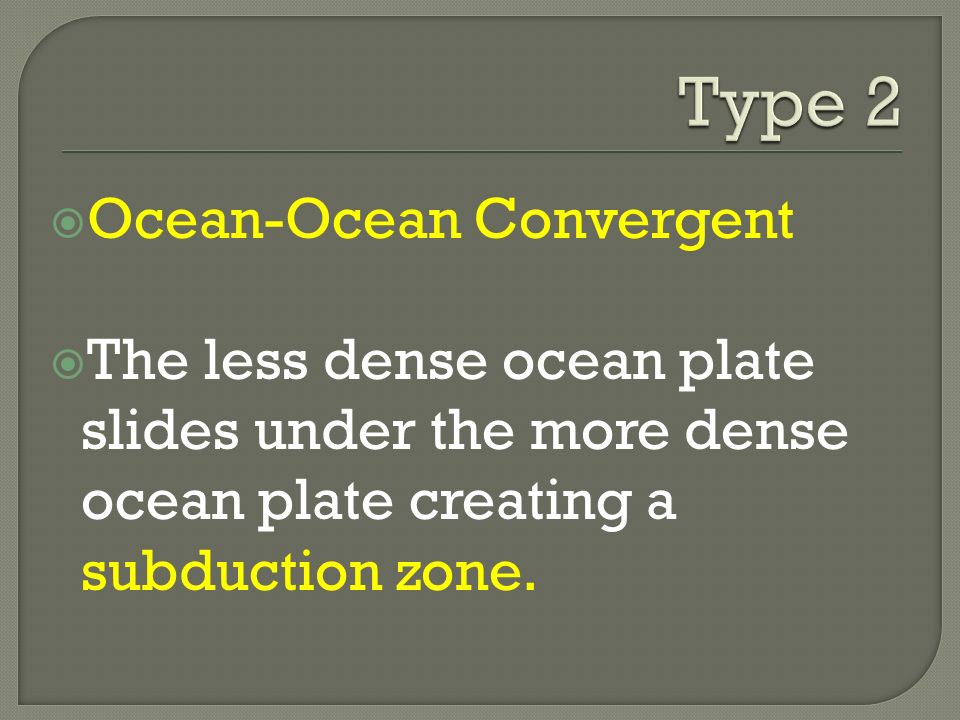

27  Ocean-Ocean Convergent  The less dense ocean plate slides under the more dense ocean plate creating a subduction zone.

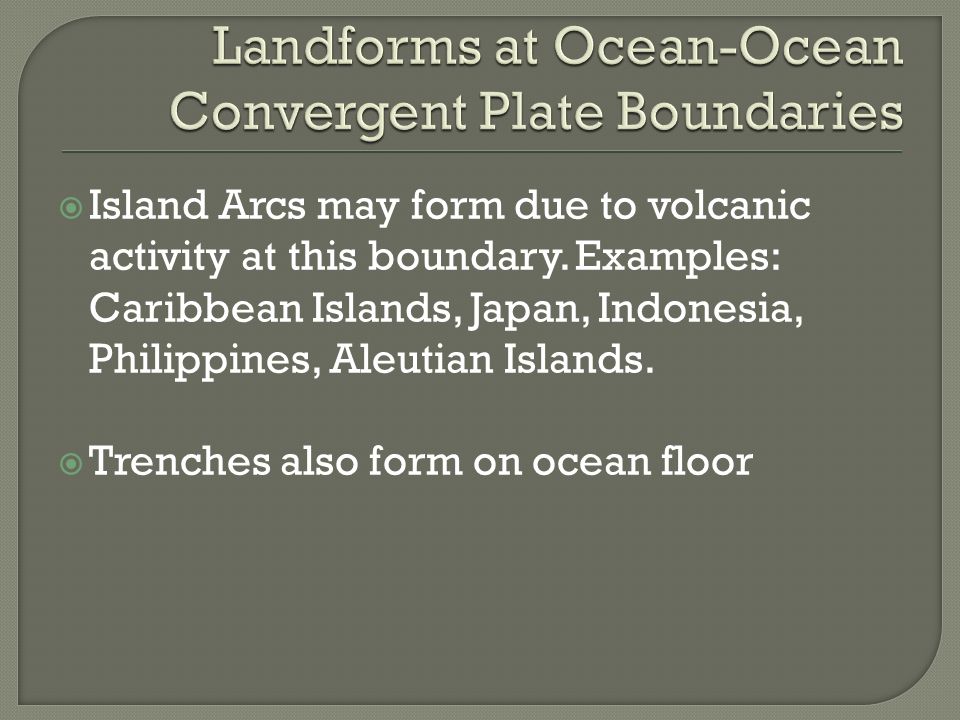

28  Island Arcs may form due to volcanic activity at this boundary. Examples: Caribbean Islands, Japan, Indonesia, Philippines, Aleutian Islands.  Trenches also form on ocean floor

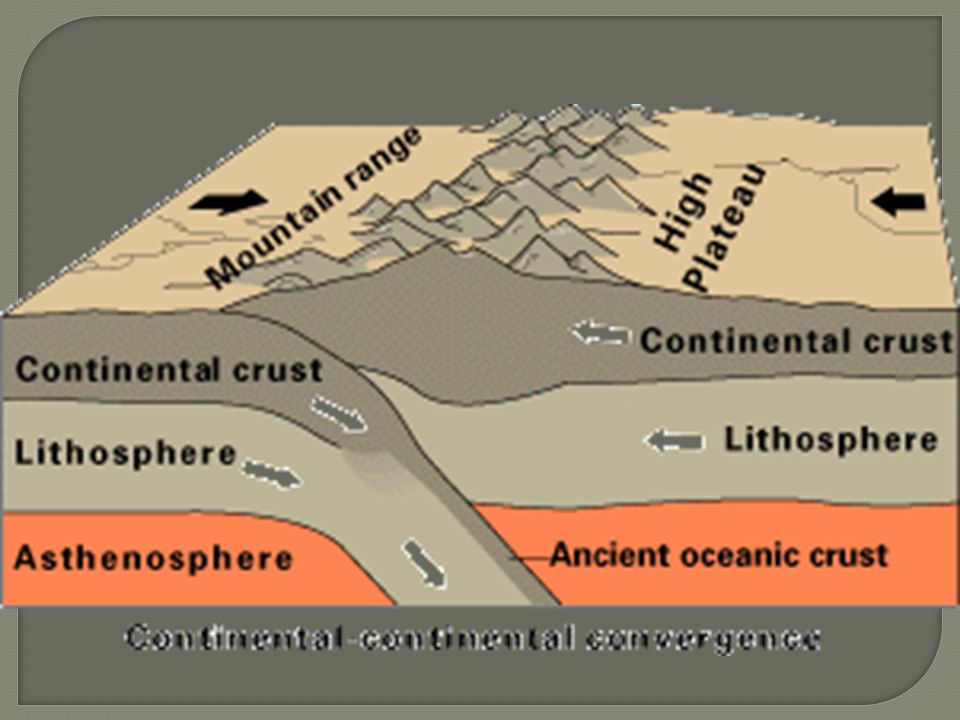

30  Continent-Continent Convergent  Continental plate colliding with another continental plate.  Plates have similar density so both plates thrust (push) up.

31  Fault Block and Folded Mountain Ranges are formed.  Examples: Himalayan Mtns, Appalachian Mtns.

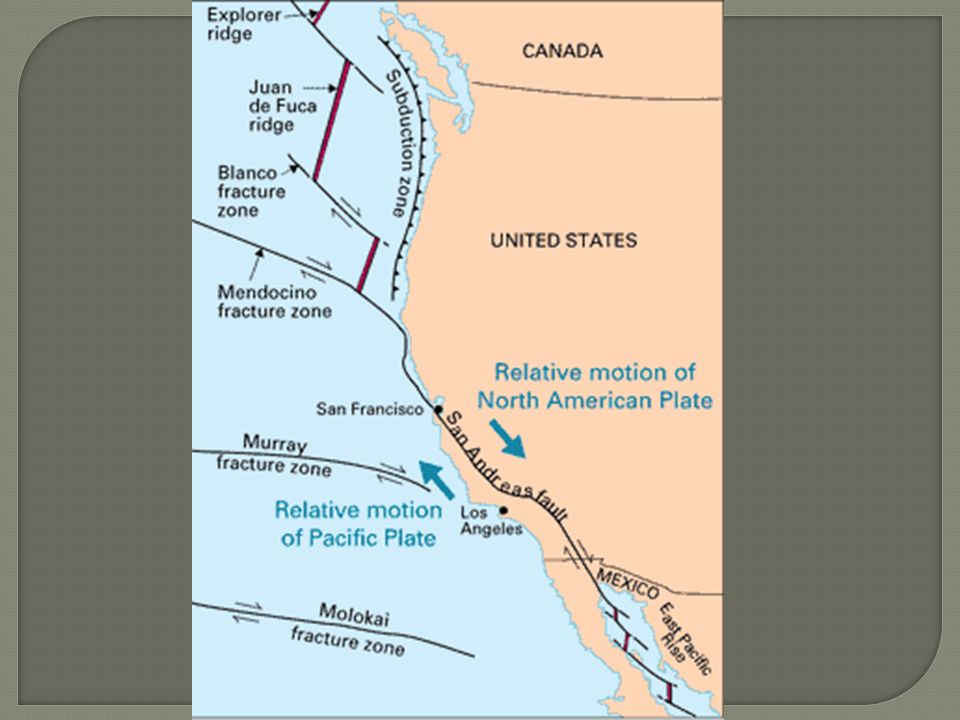

33  Boundary between two plates that are sliding past each other  EARTHQUAKES occur along these type of boundaries  Examples: San Andreas Fault in California
