1. Team 6: Faisal Moiz Raymond Nnodim Michael Woodruff Instructor: Dr. Bun Yue Mentor: Craig Russell – Tietronix Software 1 Capstone – Spring 2012 Android Smart Card ID Checker

2. Presentation Overview Background Requirements Design Demo Results

3. Presentation Overview Background Requirements Design Demo Results

4. PIV Cards Background Requirements Design Demo Results HSPD-12 (Aug. 2004) – Presidential Directive to create a government- wide standard ID FIPS 201 (Feb. 2005) – NIST standard to fufill HSPD-12 – Defines PIV card http://openidtrustbearer.files.wordpress.com/2009/12/generic-piv.png

5. PIV Smart Card Microprocessor and Storage Contact or NFC Contactless NFC is – Standardized – ISO/IEC 14443 – High Frequency – 13.56 MHz – Short Range – 10cm or less http://www.idwholesaler.com/images/learning-center/combi-card.gif Background Requirements Design Demo Results

6. Presentation Overview Background Requirements Design Demo Results

7. Purpose of Project Johnson Space Center (JSC) personnel are all assigned PIV cards The PIV cards are visually inspected by security at entrances Using portable PIV scanners would help to increase security Background Requirements Design Demo Results

8. Why Use Android? Purpose-built scanners – Expensive – Too big or small screen Android – Many new models support NFC – Inexpensive – Lightweight with big screen – Lots of features http://ww1.prweb.com/prfiles/2010/09 /06/4467994/gI_0_0_DSC00111.jpg $4,700 http://www.kestronics.com/cat alog/images/IT-800.jpg $1,431 $200 - $450 MaxID IDL500 CASIO IT-800 Samsung Galaxy Nexus Background Requirements Design Demo Results http://1.androidauthority.com/wp-content/uploads/2012/01/Samsung- Galaxy-Nexus-vs-droid-razr-maxx-600x378.jpg

9. Requirements Use Android smart phone to read NFC cards Use ID number read to query remote database and display digital replica of ID card Display additional personnel details Display warnings such as revoked or expired cards Log time and location of scans Log and photograph Guests Should work offline Background Requirements Design Demo Results

10. Presentation Overview Background Requirements Design Demo Results

11. Architecture Local Database Remote Database Web Server Background Requirements Design Demo Results

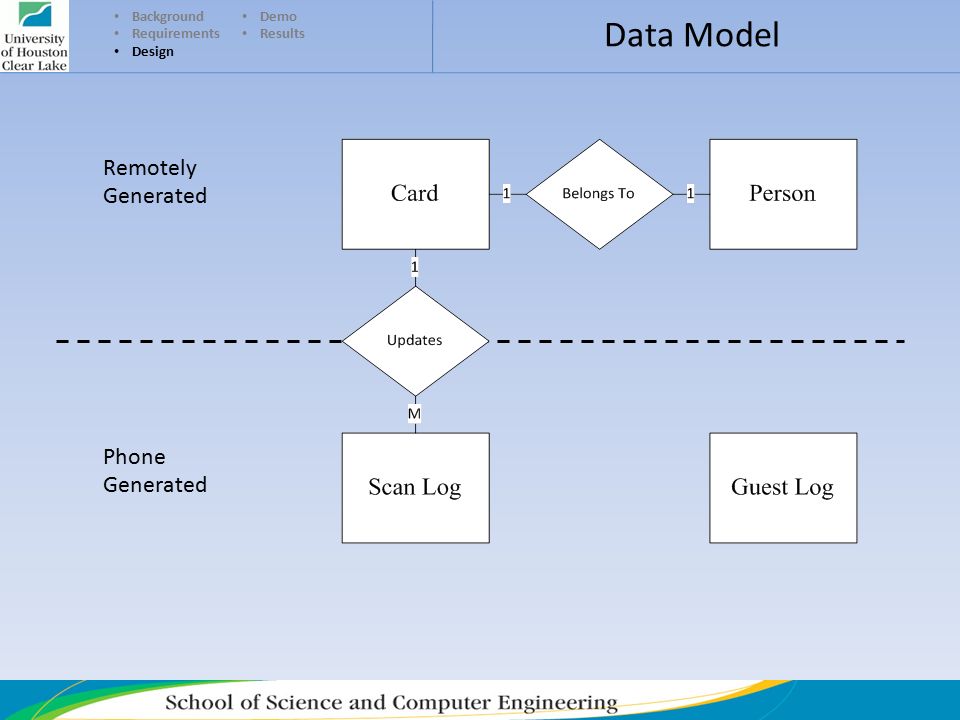

12. Remotely Generated Phone Generated Background Requirements Design Demo Results Data Model

13. Pull Personnel Records Remote Database Local Database Request records Send records Save records to local database Web Server Background Requirements Design Demo Results Query Remote Database

14. Scan Card Local Database Save Scan/Guest Logs Remote Database Request records Send records Web Server Background Requirements Design Demo Results Query Remote Database

15. Retrieve Personnel Data Locally Local Database Use Local Database Web Server Background Requirements Design Demo Results

16. Push Logs Local database Push Scan/Guest Logs Logs Received Confirmation Delete Logs from Local Database Retrieve Logs to send from local database Remote Database Web Server Background Requirements Design Demo Results Store Logs In Remote Database

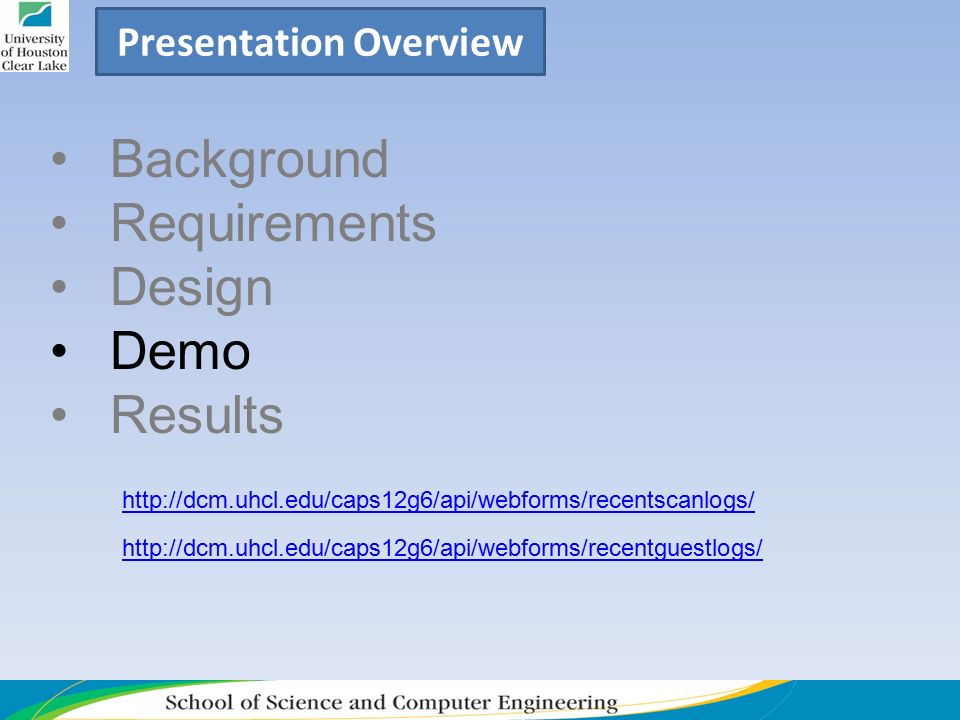

17. Presentation Overview Background Requirements Design Demo Results http://dcm.uhcl.edu/caps12g6/api/webforms/recentscanlogs/ http://dcm.uhcl.edu/caps12g6/api/webforms/recentguestlogs/

18. Presentation Overview Background Requirements Design Demo Results

19. Challenges Getting Equipment – Hard to find suitable cards – No local sellers Writing to PIV cards – Complicated specification and limited software Integrating Client and Server – Network communications – Translating data too and from XML Working with Different Android Phones Using Different Vendors’ Cards Background Requirements Design Demo Results

20. Future Work Security Enhancement – Use encrypted portion of card – Require authentication for app – Use secure connection – Encrypt local data Performance Enhancement – Custom made server application – Compress XML or use binary data format Background Requirements Design Demo Results

21. Conclusion Android is a good platform for reading PIV cards – The phones are cheap and fast – Android has a native API for NFC – However, there are difficulties running the app on different hardware/Android version Reading cards can be difficult – The NFC reader on the phone can sometimes be underpowered – Some models of card read better than others There would be extra steps for security personnel, but enhanced security Background Requirements Design Demo Results
