Pound Load Balancer Naranchuluun. D
2
What Pound is a reverse-proxy: it passes requests from client browsers to one or more back-end servers. a load balancer: it will distribute the requests from the client browsers among several back-end servers, while keeping session information. an SSL wrapper: Pound will decrypt HTTPS requests from client browsers and pass them as plain HTTP to the back-end servers. an HTTP/HTTPS sanitizer: Pound will verify requests for correctness and accept only well-formed ones. a fail over-server: should a back-end server fail, Pound will take note of the fact and stop passing requests to it until it recovers. a request redirector: requests may be distributed among servers according to the requested URL.
3
What Pound is Not Pound is not a Web server: by itself, Pound serves no content - it contacts the back-end server(s) for that purpose. Pound is not a Web accelerator: no caching is done - every request is passed "as is" to a back- end server.
4
Status Pound was successfully used in production with a variety of Web servers, including Apache, IIS, Zope, WebLogic, Jakarta/Tomcat, iPlanet, etc. In general Pound passes requests and responses back and forth unchanged, so we have no reason to think that any web server would be incompatible.
5
Client browsers that were tested IE 5.0/5.5 (Windows) HTTP/HTTPS Netscape 4.7 (Windows/Linux) HTTP/HTTPS Mozilla (Windows/Linux) HTTP/HTTPS Konqueror (Linux) HTTP/HTTPS Galleon (Linux) HTTP/HTTPS Opera (Linux/Windows) HTTP/HTTPS Lynx (Linux) HTTP
6
Installation Probably the easiest way to install Pound is to use a pre-compiled package if you can find one. While Apsis offers no such packages, they are available for quite a few systems (SuSE Linux, Debian and derivatives such as Ubuntu, as well as some private packages: RPMs for RedHat are available at http://www.invoca.ch/pub/packages/pound/ A nice FreeBSD live-CD distribution is available at http://www.targeted.org/files/fbsd71_pound244.iso.gz, including a Pound binary. Packages for CRUX Linux are available from http://ports.sterneck.asia/shin/#pound. Example on Ubuntu Server Edition : apt-get install pound
7
Configration
8
Http ListenHTTP Address 0.0.0.0 # all interfaces Port 80 HeadRemove "X-Forwarded-For" Service BackEnd Address 10.0.0.1 Port 80 Priority 1 End BackEnd Address 10.0.0.2 Port 80 Priority 1 End
9
Https ListenHTTPS Address 0.0.0.0 # all interfaces Port 443 AddHeader "X-Forwarded-Proto: https“ HeadRemove "X-Forwarded-Proto" HeadRemove "X-Forwarded-For" Cert "/path/to/certificate.pem Service BackEnd Address 10.0.0.1 Port 80 Priority 1 End BackEnd Address 10.0.0.2 Port 80 Priority 1 End
10
More Information http://www.apsis.ch/pound http://syslog.tv/2011/09/29/load-balancing- httphttps-with-pound-on-debian-6ubuntu/http://syslog.tv/2011/09/29/load-balancing- httphttps-with-pound-on-debian-6ubuntu/ http://blog.secaserver.com/2011/11/install- pound-web-load-balancer/http://blog.secaserver.com/2011/11/install- pound-web-load-balancer/
11

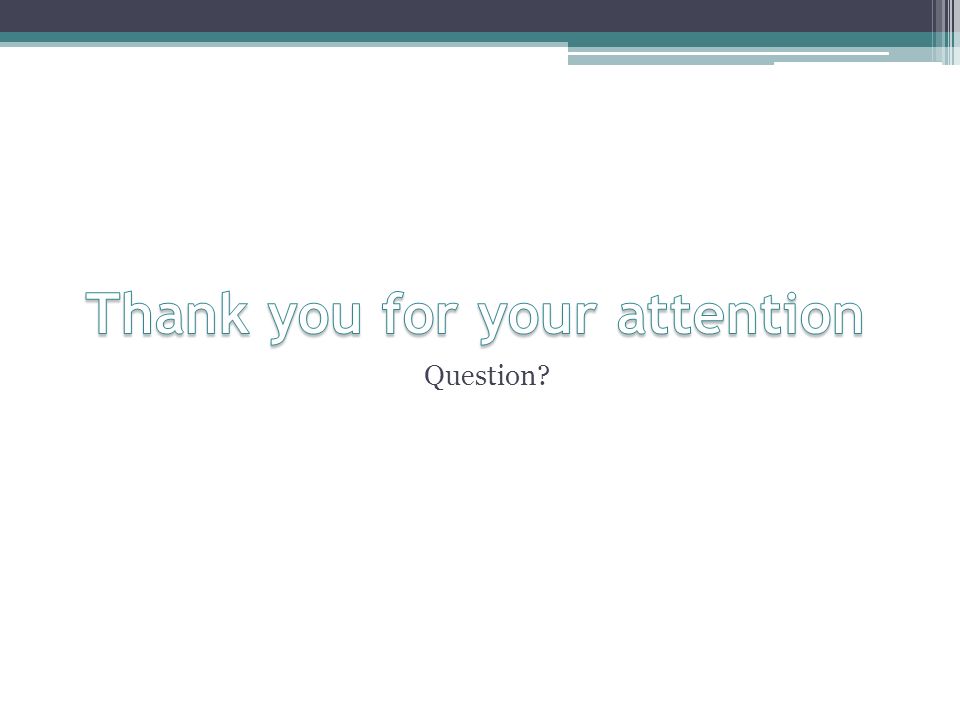

Question?
