1. Team Welcome to Woop Woop Project WiFi Clock

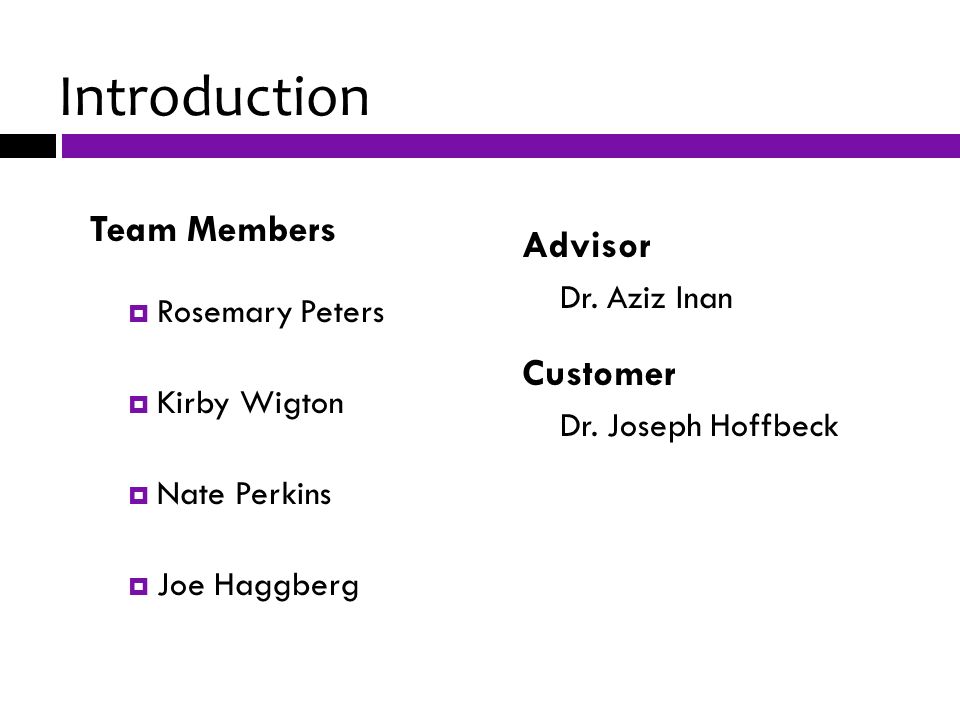

2. Introduction Team Members  Rosemary Peters  Kirby Wigton  Nate Perkins  Joe Haggberg Advisor Dr. Aziz Inan Customer Dr. Joseph Hoffbeck

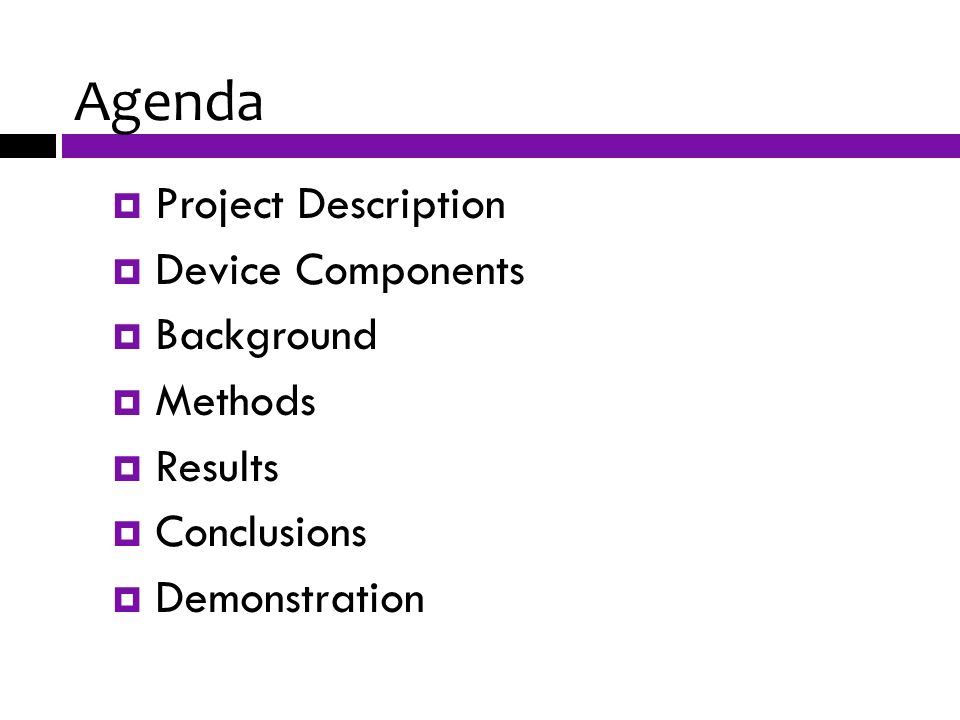

3. Agenda  Project Description  Device Components  Background  Methods  Results  Conclusions  Demonstration

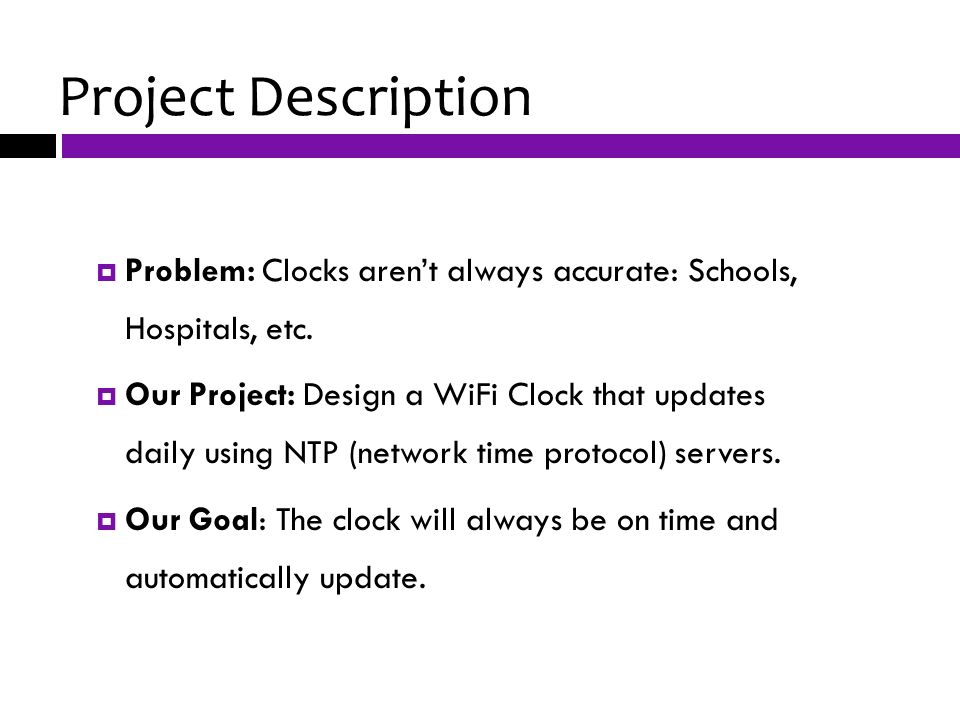

4. Project Description  Problem: Clocks aren’t always accurate: Schools, Hospitals, etc.  Our Project: Design a WiFi Clock that updates daily using NTP (network time protocol) servers.  Our Goal: The clock will always be on time and automatically update.

5. Device Components  PIC 32 Microcontroller  I/O (input/output) Expansion Board  LCD Display  Wireless Module WiFi Module LCD Display PIC 32 Expansion Board

6. Background  Project Proposal A WiFi module obtains a time stamp from an NTP server and passes it along to an LCD using a microcontroller. Display the time and update it using the oscillator of the microcontroller every minute.  Functional Specs Hardware – Digital LCD 12hr, Battery Power Supply. Software – MPLAB, C coding, internet protocol.

7. Methods  Wire our hardware.  Use C coding and MPLAB to have the LCD print a simple display.  Enable the Wireless module to connect to UP wireless.  Retrieve the time.  Display the time.

8. Results  Hardware is configured properly.  Microcontroller can communicate with the LCD and the wireless module.  Using MPLAB we can code the LCD to display desired characters.

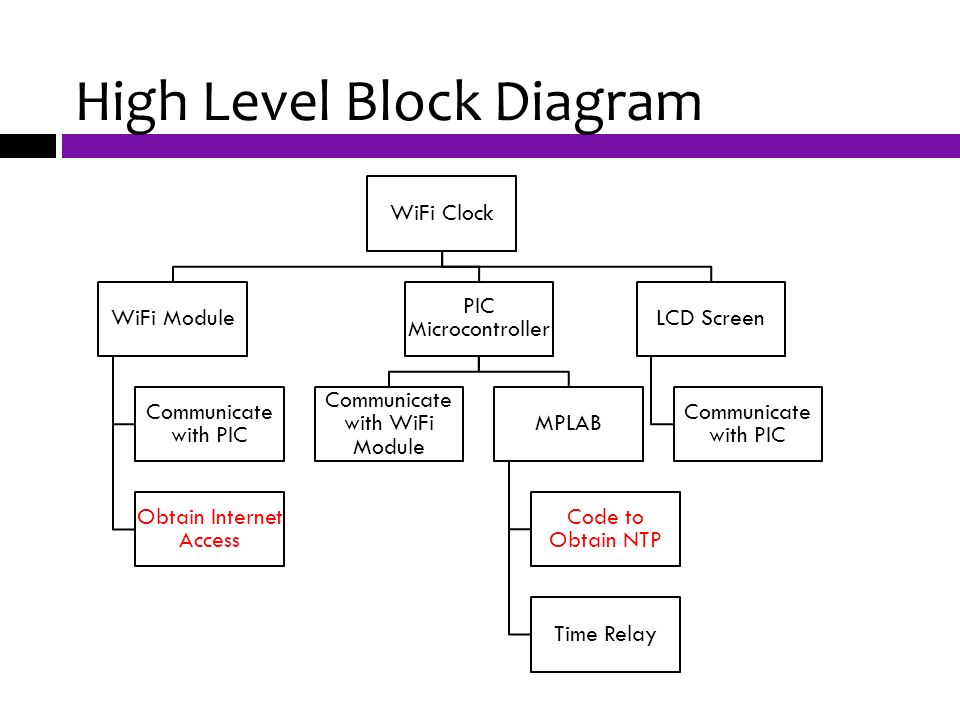

9. High Level Block Diagram WiFi Clock WiFi Module Communicate with PIC Obtain Internet Access PIC Microcontroller Communicate with WiFi Module MPLAB Code to Obtain NTP Time Relay LCD Screen Communicate with PIC

10. Project Evolution

11. Conclusions  Did not get the WiFi module working.  Nearly 400 total hours logged.  Learned new skills we previously had minimal to no experience in. Had more software components than we anticipated.  Obtained new knowledge of C coding and internet protocol applications.  Acquired real-world experience (i.e. using data sheets, communicating to different departments within a company, making components from different suppliers operate together).

12. Video Demonstration

13. Questions? Thank You! Special Thanks  Dr. Crenshaw  Dr. Ward  Craig Henry  UP Information Services
