SUN Application Doc.: IEEE P802.15-09-0026-00-004g Slide 1 19 January 2009 Application Characteristics Summary Smart Utility Networks (SUN)

Similar presentations


Presentation on theme: "SUN Application Doc.: IEEE P802.15-09-0026-00-004g Slide 1 19 January 2009 Application Characteristics Summary Smart Utility Networks (SUN)"— Presentation transcript:

1 SUN Application Doc.: IEEE P g Slide 1 19 January 2009 Application Characteristics Summary Smart Utility Networks (SUN)

2 SUN Application Doc.: IEEE P g 19 January 2009 Slide 2 Utility Environment In a nutshell: Change Significant transformations: –Environmental, political pressures EISA 2007 Energy Independence Security Act (US) NIST report to Congress 2008 –Changing models of supply and consumptions –Significant investments being made Similar requirements world-wide –Geographically distributed meter-to-meter communication Complex and Changing landscape –Change is accelerating Diverse needs and environments Economic constraints complicated and changing Perfect opportunity for wireless technologies

3 SUN Application Doc.: IEEE P g 19 January 2009 Slide 3 Typical Utility Needs Support from multiple vendors –Cost, availability, risk, long term viability Incrementally deploy and integrate with existing infrastructure Ease of deployment –Diverse environments and geographies. –Consistent deployment practices –Need to deploy the same solution in different regions. Extreme range of node density from sparse to dense –Both link range and network footprint need to be adaptable –Presence of other wireless systems (lots of them) –Automatically adapt to the dynamic environments Network deployment needs to be flexible to meet a lot of different network topologies, network range, environments, etc. Ubiquity and Reliability –99% isnt good enough –100% of every utilitys customers and 100% of the utility infrastructure Requirements Evolving

4 SUN Application Doc.: IEEE P g 19 January 2009 Slide 4 Applications Mix Source: wng0 Many utility applications for SUN None are sufficient to pay the entire costs of SUN ALL therefore must be supported

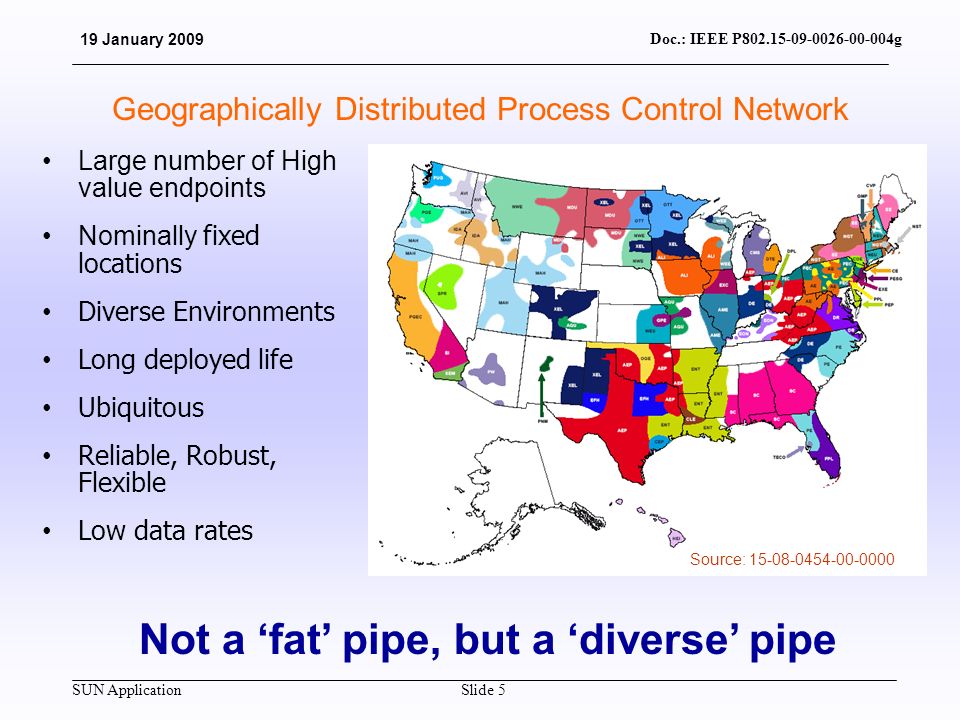

5 SUN Application Doc.: IEEE P g 19 January 2009 Slide 5 Geographically Distributed Process Control Network Large number of High value endpoints Nominally fixed locations Diverse Environments Long deployed life Ubiquitous Reliable, Robust, Flexible Low data rates Not a fat pipe, but a diverse pipe Source:

6 SUN Application Doc.: IEEE P g 19 January 2009 Slide 6 Key Application Properties Typical data volume (10 x 4kB per day) Latency tolerant (for many applications) –Deterministic –Some real-time response constraints (seconds) Ubiquity –Every customer connected –Multiple per customer premise, multiple in-home connections Cost constrained –Acquisition –Ease of Deployment –Consistency across regions –Long term Cost of operation Scalable –Tens of millions of devices per utility –Tens of billions nation/world wide System longevity –Measured in decades - multiple decades Standards needed right now! –Solutions deployed and expanding

7 SUN Application Doc.: IEEE P g 19 January 2009 Slide 7 TG4g Context Fits between WAN and HAN (LAN) Enables expansion of HAN market

8 SUN Application Doc.: IEEE P g 19 January 2009 Slide 8 TG4g Context

9 SUN Application Doc.: IEEE P g 19 January 2009 Slide 9 W-SUN Definition A W-SUN is –A scalable network –Constructed of simple, low cost, modest devices Key objectives –Extreme scalability (to tens of millions of nodes) –High availability (uptime) –Highly reliable data delivery (error detection) –Ease of commissioning (highly autonomous)

10 SUN Application Doc.: IEEE P g 19 January 2009 Slide 10 Some References Document NumberSource wng0George Cosio, Philip Slack (Florida Power & Light) wng0George Flammer (Silver Spring Networks) wng0Rolfe/Flammer (Blind Creek/Silver Spring Networks) Chris Knudsen (Pacific Gas & Electric) Tommy Childress, (Cellnet+Hunt) Chris Knudsen (Pacific Gas & Electric) Gerald J. FitzPatrick (NIST) George Flammer (Silver Spring Networks) nan George Flammer (Silver Spring Networks) nan James. Pace (Silver Spring Networks)
