1 doc.: IEEE /180r2 Submission Mar04 Reed Fisher OkiSlide 1 Project: IEEE Working Group for Wireless Personal Area Networks (WPANs) Submission Title: [mmW Study Group Motion] Date Submitted: [19Mar04] Source:[Reed Fisher]Company [Oki Electric Industry Co., Ltd.] Address [2514 E. Maddox Rd., Buford, GA USA.] Voice:[ ] Re: [-03/317, etc.] Abstract:[mmW Study Group Motion.] Purpose:[The purpose of this submission is to request the WG to consider forming a new Study Group to study the issues related with the generation of a Millimeter-Wave Based High Data Rate Alternative Physical Layer for Standard and provide the WG the results of the study and possibly a new PAR. A motion is also proffered for your consideration.] Notice:This document has been prepared to assist the IEEE It is offered as a basis for discussion and is not binding on the contributing individual(s) or organization(s). The material in this document is subject to change in form and content after further study. The contributor(s) reserve(s) the right to add, amend or withdraw material contained herein. Release:The contributor acknowledges and accepts that this contribution becomes the property of IEEE and may be made publicly available by

2 doc.: IEEE /180r2 Submission Mar04 Reed Fisher OkiSlide 2 A Proposed Millimeter-Wave-Based Alternative PHY for IEEE Reed Fisher Chair of millimeter-wave Interest Group Oki Electric Industry Co.,Ltd

3 doc.: IEEE /180r2 Submission Mar04 Reed Fisher OkiSlide 3 mmW WPAN Characteristics 60GHz Unlicensed band FCC Part High rate data > 1Gbps Multimedia capability

4 doc.: IEEE /180r2 Submission Mar04 Reed Fisher OkiSlide 4 Basic Oki/CRL system based on a requirements Oki/CRL WPAN information distribution system APT1APT2APT3 MT MT(out of service) MT Contents Server IP network Spot-type ad hoc Information Distribution system MT Ref:IEEE /119r4 APT = Access Point Terminal MT = Mobile Terminal

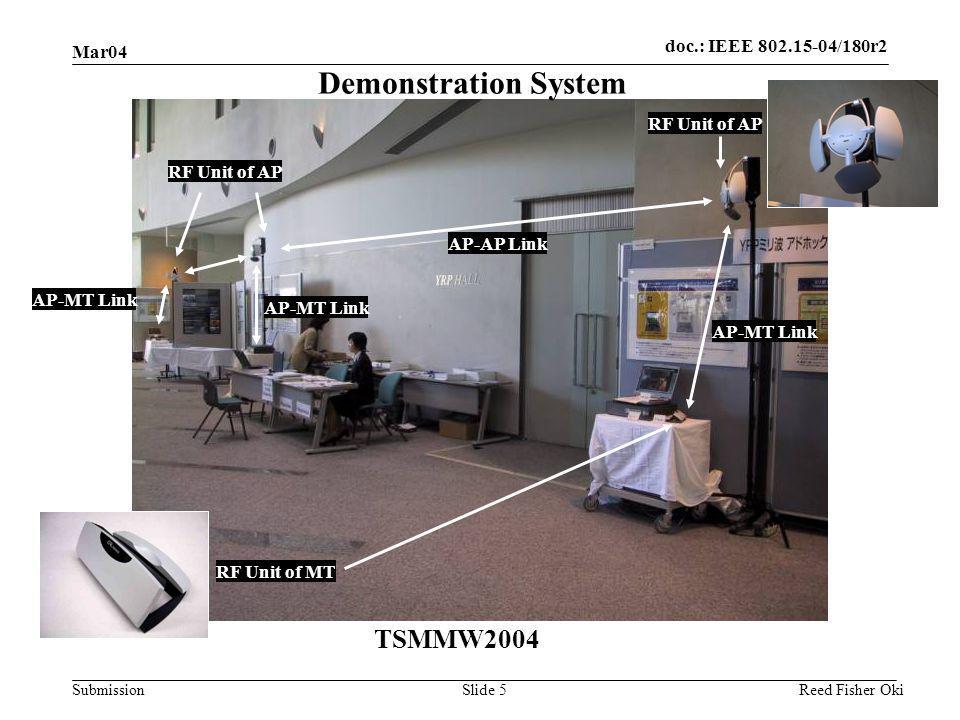

5 doc.: IEEE /180r2 Submission Mar04 Reed Fisher OkiSlide 5 Demonstration System RF Unit of MT RF Unit of AP AP-AP Link AP-MT Link RF Unit of AP AP-MT Link TSMMW2004

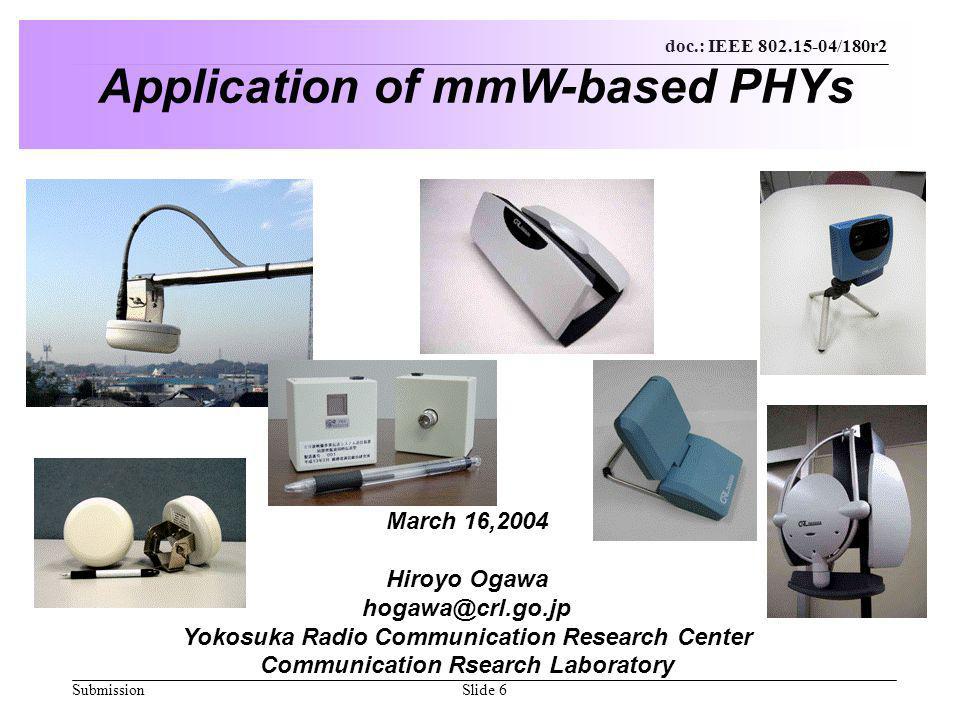

6 doc.: IEEE /180r2 Submission Slide 6 Application of mmW-based PHYs March 16,2004 Hiroyo Ogawa Yokosuka Radio Communication Research Center Communication Rsearch Laboratory

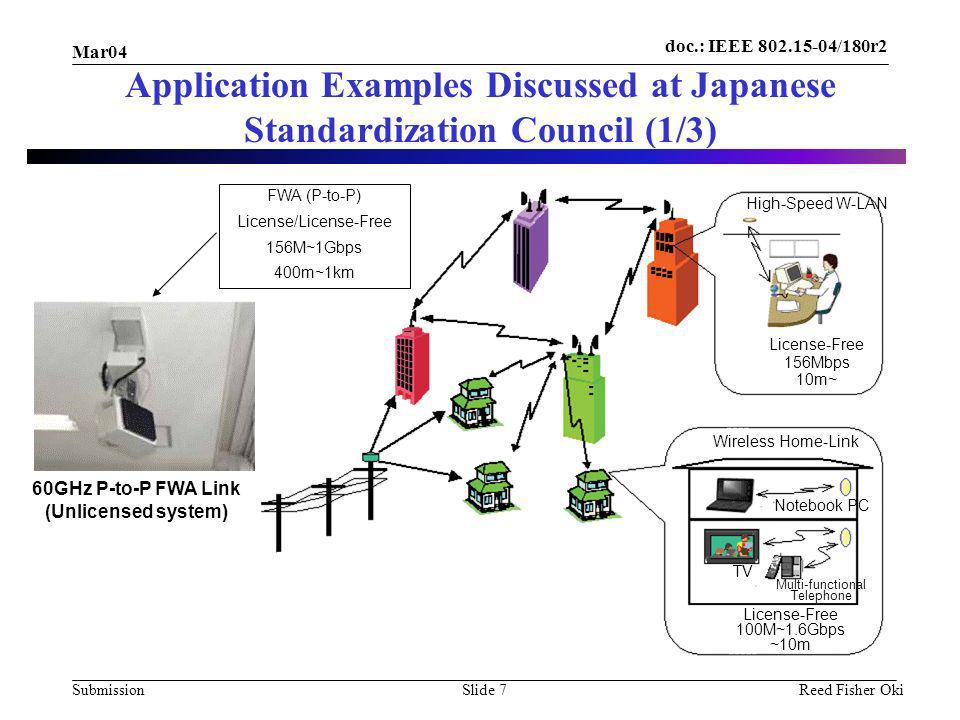

7 doc.: IEEE /180r2 Submission Mar04 Reed Fisher OkiSlide 7 Application Examples Discussed at Japanese Standardization Council (1/3) FWA (P-to-P) License/License-Free 156M~1Gbps 400m~1km High-Speed W-LAN License-Free 156Mbps 10m~ Wireless Home-Link Notebook PC TV Multi-functional Telephone License-Free 100M~1.6Gbps ~10m 60GHz P-to-P FWA Link (Unlicensed system)

8 doc.: IEEE /180r2 Submission Mar04 Reed Fisher OkiSlide 8 Application Examples Discussed at Japanese Standardization Council (2/3) Receiver Transmitter Small HDTV Camera Broadcasting Transmission System ~1.5Gbps To Outside Broadcast Van

9 doc.: IEEE /180r2 Submission Mar04 Reed Fisher OkiSlide 9 Application Examples Discussed at Japanese Standardization Council (3/3) Inter-Vehicle Communication System Transmitter & Receiver Transmitter & Receiver

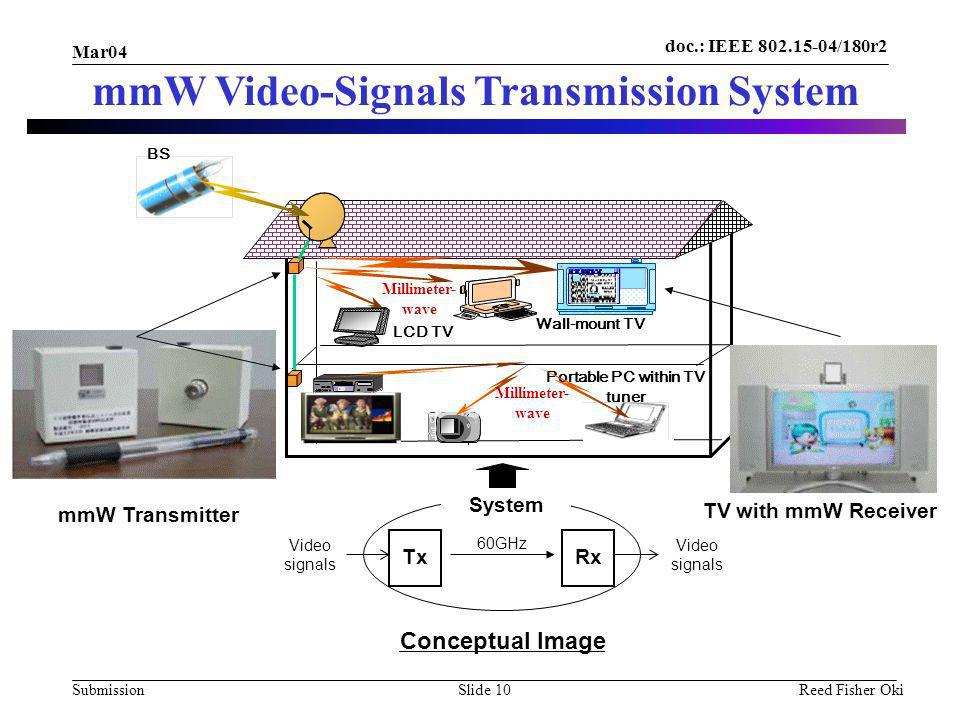

10 doc.: IEEE /180r2 Submission Mar04 Reed Fisher OkiSlide 10 mmW Video-Signals Transmission System mmW Transmitter TV with mmW Receiver

11 doc.: IEEE /180r2 Submission Mar04 Reed Fisher OkiSlide 11 IEEE Working Group for Wireless Personal Area Networks (WPANs) Request to form a new Study Group to Develop a Millimeter-Wave- Based, Very High Data Rate Alt PHY for

12 doc.: IEEE /180r2 Submission Mar04 Reed Fisher OkiSlide 12 mmW IG Overview IEEE has formed a Millimeter-Wave Interest Group to explore the use of the 60 GHz band for wireless personal area networks (WPANs). This new band, as defined in FCC 47 CFR , provides 5 GHz of bandwidth and avoids interference with nearly all electronic devices. The high attenuation of these wavelengths by walls and floors allows more WPANs to occupy the same building. The IEEE Millimeter-Wave Interest Group (mmWIG) was formed in July 2003 as an effort to assess the level of interest in the development of a millimeter-wave-based alternative physical layer (PHY) for the IEEE high-rate WPAN Standard IEEE

13 doc.: IEEE /180r2 Submission Mar04 Reed Fisher OkiSlide 13 mmW IG Meeting Summary Formation : July,2003, San Francisco 1 st meeting : September,2003, Singapore 2 nd meeting : November, 2003, Albuquerque 3 rd meeting : January, 2004,Vancouver 4 th meeting : March, 2004, Orlando

14 doc.: IEEE /180r2 Submission Mar04 Reed Fisher OkiSlide 14 Proposed Study Group Officers Chair: Reed Fisher Vice Chair: Hiroyo Ogawa Secretaries: Tadahiko Maeda and Yuichi Shiraki Technical Editor: TBD

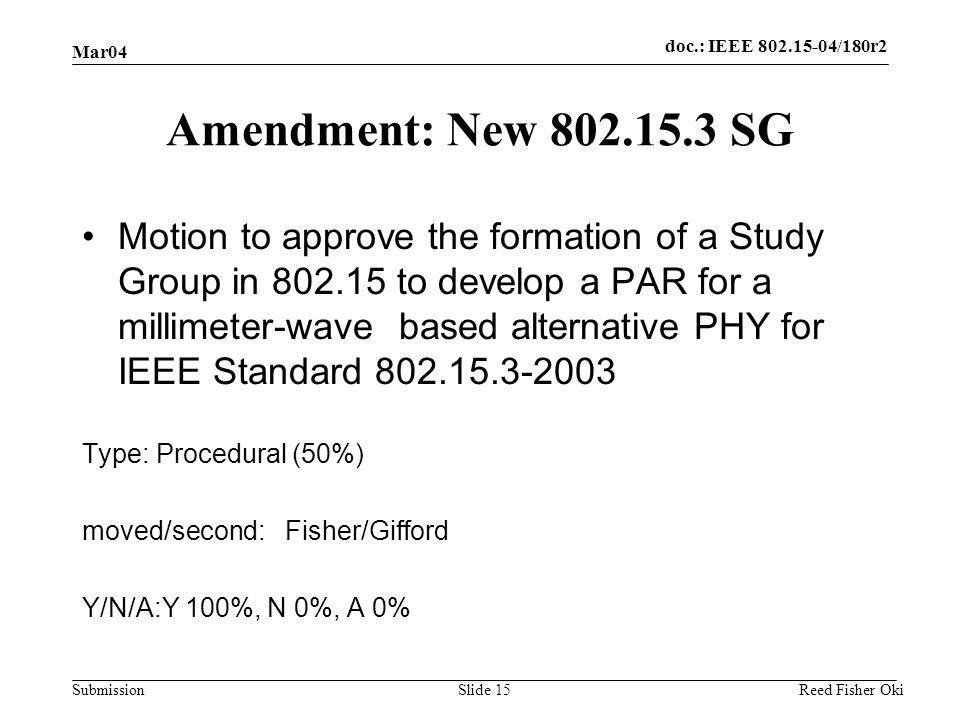

15 doc.: IEEE /180r2 Submission Mar04 Reed Fisher OkiSlide 15 Amendment: New SG Motion to approve the formation of a Study Group in to develop a PAR for a millimeter-wave based alternative PHY for IEEE Standard Type: Procedural (50%) moved/second: Fisher/Gifford Y/N/A:Y 100%, N 0%, A 0%
