Doc.: IEEE 802.22-08/0209r4 Submission Oct. 2008 Sangbum Kim, Samsung Electronics Slide 1 Managing SCW Regular Pattern IEEE P802.22 Wireless RANs Date:

Similar presentations


Presentation on theme: "Doc.: IEEE 802.22-08/0209r4 Submission Oct. 2008 Sangbum Kim, Samsung Electronics Slide 1 Managing SCW Regular Pattern IEEE P802.22 Wireless RANs Date:"— Presentation transcript:

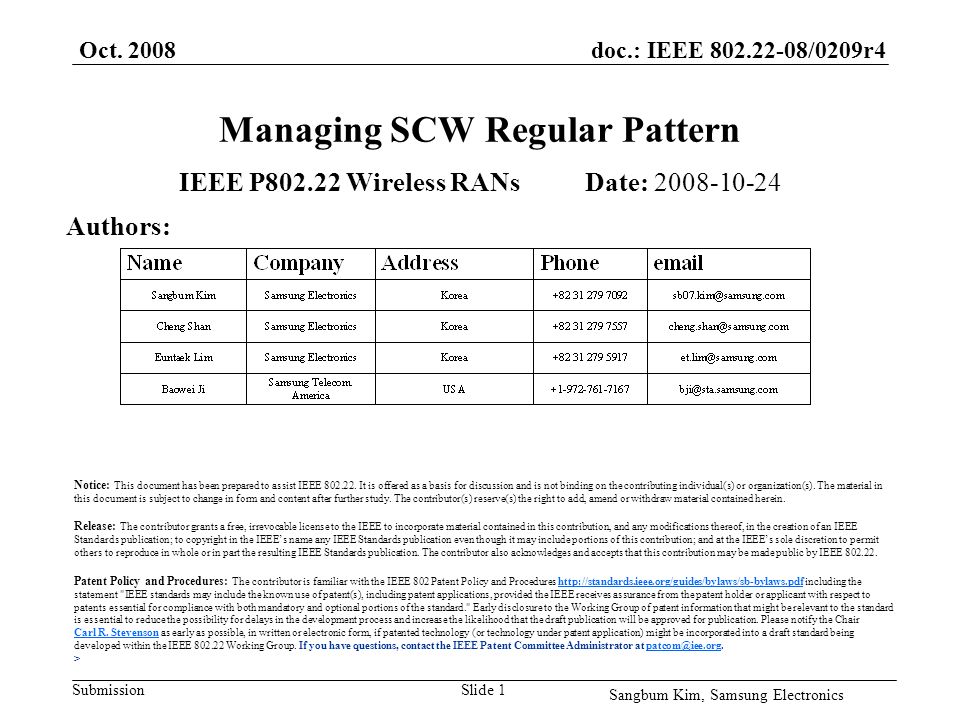

1 doc.: IEEE /0209r4 Submission Oct Sangbum Kim, Samsung Electronics Slide 1 Managing SCW Regular Pattern IEEE P Wireless RANs Date: Authors: Notice: This document has been prepared to assist IEEE It is offered as a basis for discussion and is not binding on the contributing individual(s) or organization(s). The material in this document is subject to change in form and content after further study. The contributor(s) reserve(s) the right to add, amend or withdraw material contained herein. Release: The contributor grants a free, irrevocable license to the IEEE to incorporate material contained in this contribution, and any modifications thereof, in the creation of an IEEE Standards publication; to copyright in the IEEEs name any IEEE Standards publication even though it may include portions of this contribution; and at the IEEEs sole discretion to permit others to reproduce in whole or in part the resulting IEEE Standards publication. The contributor also acknowledges and accepts that this contribution may be made public by IEEE Patent Policy and Procedures: The contributor is familiar with the IEEE 802 Patent Policy and Procedures including the statement "IEEE standards may include the known use of patent(s), including patent applications, provided the IEEE receives assurance from the patent holder or applicant with respect to patents essential for compliance with both mandatory and optional portions of the standard." Early disclosure to the Working Group of patent information that might be relevant to the standard is essential to reduce the possibility for delays in the development process and increase the likelihood that the draft publication will be approved for publication. Please notify the Chairhttp://standards.ieee.org/guides/bylaws/sb-bylaws.pdf Carl R. StevensonCarl R. Stevenson as early as possible, in written or electronic form, if patented technology (or technology under patent application) might be incorporated into a draft standard being developed within the IEEE Working Group. If you have questions, contact the IEEE Patent Committee Administrator at >

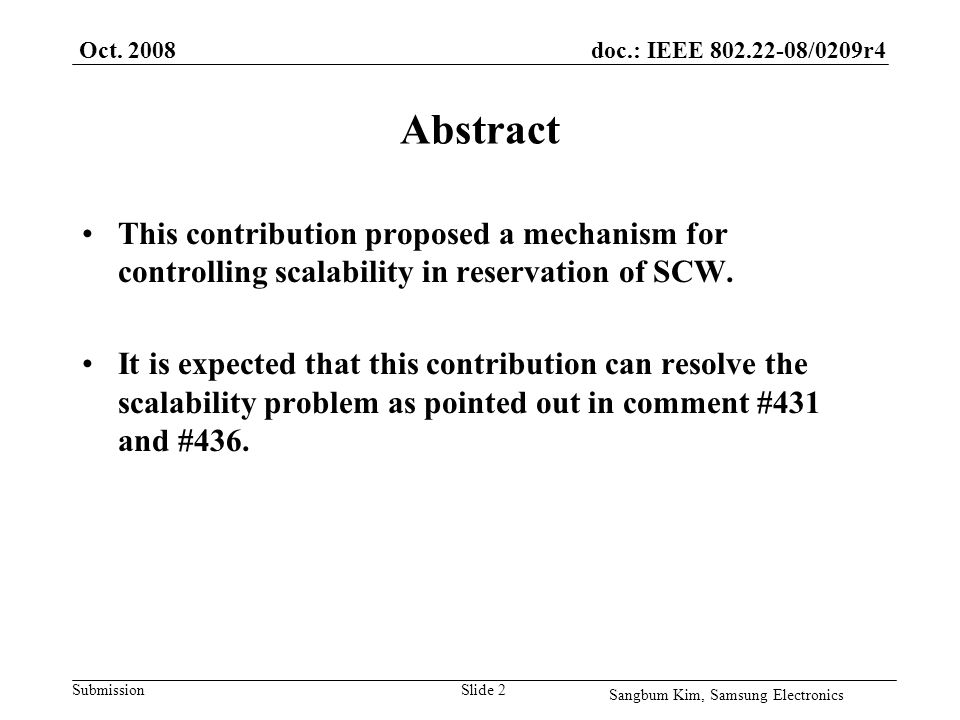

2 doc.: IEEE /0209r4 Submission Abstract This contribution proposed a mechanism for controlling scalability in reservation of SCW. It is expected that this contribution can resolve the scalability problem as pointed out in comment #431 and #436. Oct Sangbum Kim, Samsung Electronics Slide 2

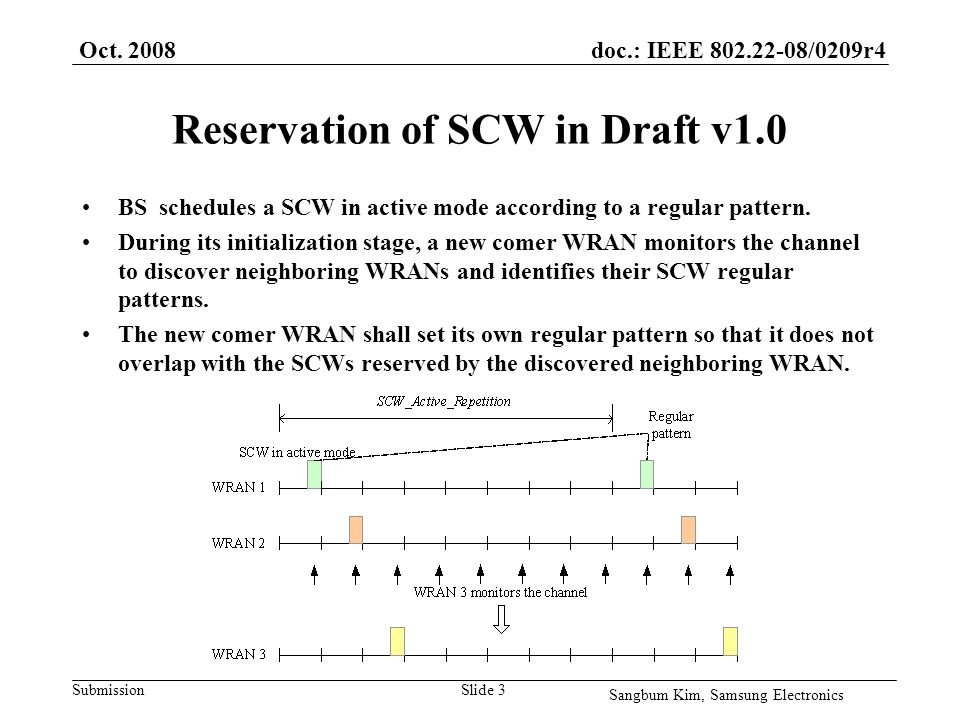

3 doc.: IEEE /0209r4 Submission Reservation of SCW in Draft v1.0 BS schedules a SCW in active mode according to a regular pattern. During its initialization stage, a new comer WRAN monitors the channel to discover neighboring WRANs and identifies their SCW regular patterns. The new comer WRAN shall set its own regular pattern so that it does not overlap with the SCWs reserved by the discovered neighboring WRAN. Oct Sangbum Kim, Samsung Electronics Slide 3

4 doc.: IEEE /0209r4 Submission Problem on SCW Regular Pattern If there is no vacant SCW slot for new comer, how can the new comer BS transmit its CBP packet? –In order to resolve this problem, the value of SCW_Active_Repetition should be set not to be fixed and adaptively be changed according to the number of co-channel WRAN cell. –From this reason, a mechanism to control the reservation period is needed in IEEE Oct Sangbum Kim, Samsung Electronics Slide 4

5 doc.: IEEE /0209r4 Submission Distributed Management for Reservation of SCW (1/2) If all SCW slots are occupied, new comer BS secures its SCW regular pattern by contending a neighboring cell. –If new comer loses, it retries to contend in another SCW slot. –Otherwise, the target cell shall increase the period of its pattern as double and then share SCW slots with new comer. –New comer should try to contend a cell with the small period of SCW_Active_Repetition for fairness of latency performance. Oct Sangbum Kim, Samsung Electronics Slide 5

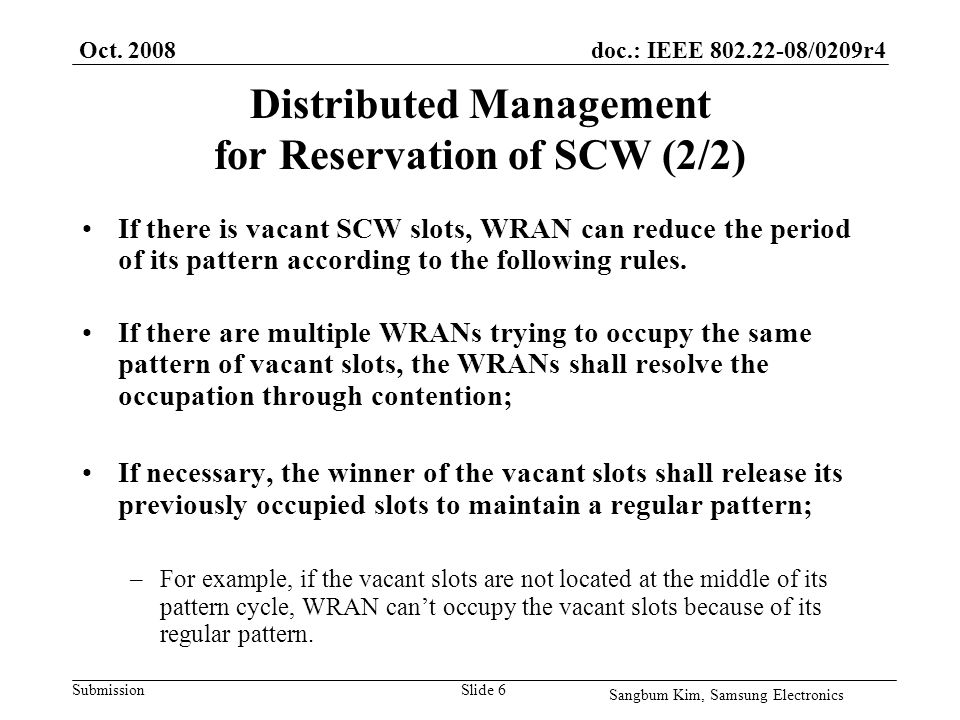

6 doc.: IEEE /0209r4 Submission Distributed Management for Reservation of SCW (2/2) If there is vacant SCW slots, WRAN can reduce the period of its pattern according to the following rules. If there are multiple WRANs trying to occupy the same pattern of vacant slots, the WRANs shall resolve the occupation through contention; If necessary, the winner of the vacant slots shall release its previously occupied slots to maintain a regular pattern; –For example, if the vacant slots are not located at the middle of its pattern cycle, WRAN cant occupy the vacant slots because of its regular pattern. Oct Sangbum Kim, Samsung Electronics Slide 6

7 doc.: IEEE /0209r4 Submission Exemplary Process – There is no vacant slots Oct Sangbum Kim, Samsung Electronics Slide 7

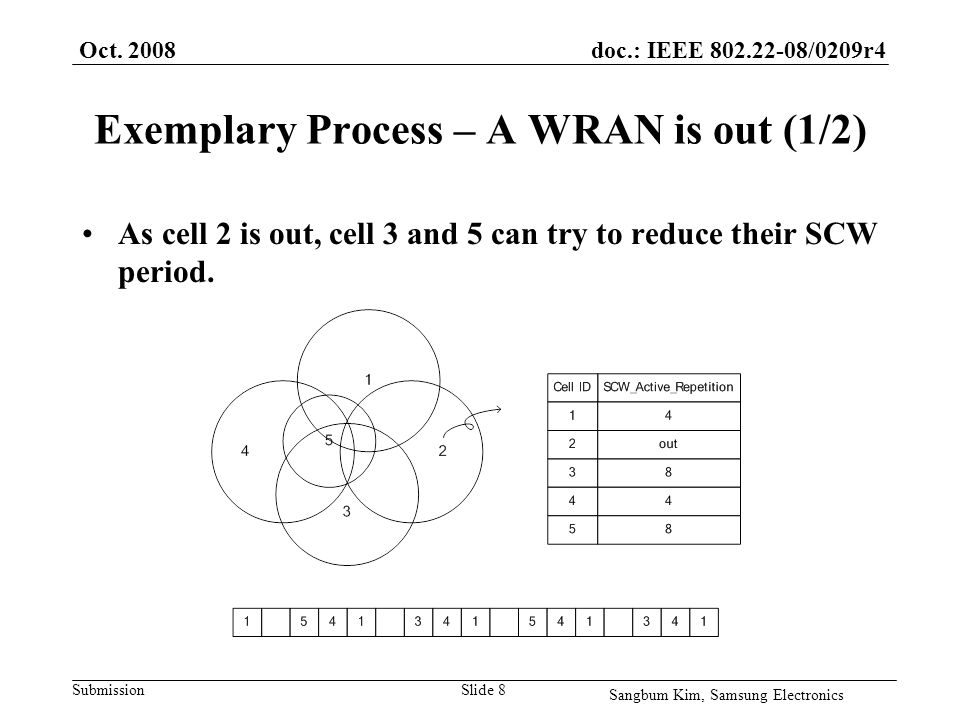

8 doc.: IEEE /0209r4 Submission Exemplary Process – A WRAN is out (1/2) As cell 2 is out, cell 3 and 5 can try to reduce their SCW period. Oct Sangbum Kim, Samsung Electronics Slide 8

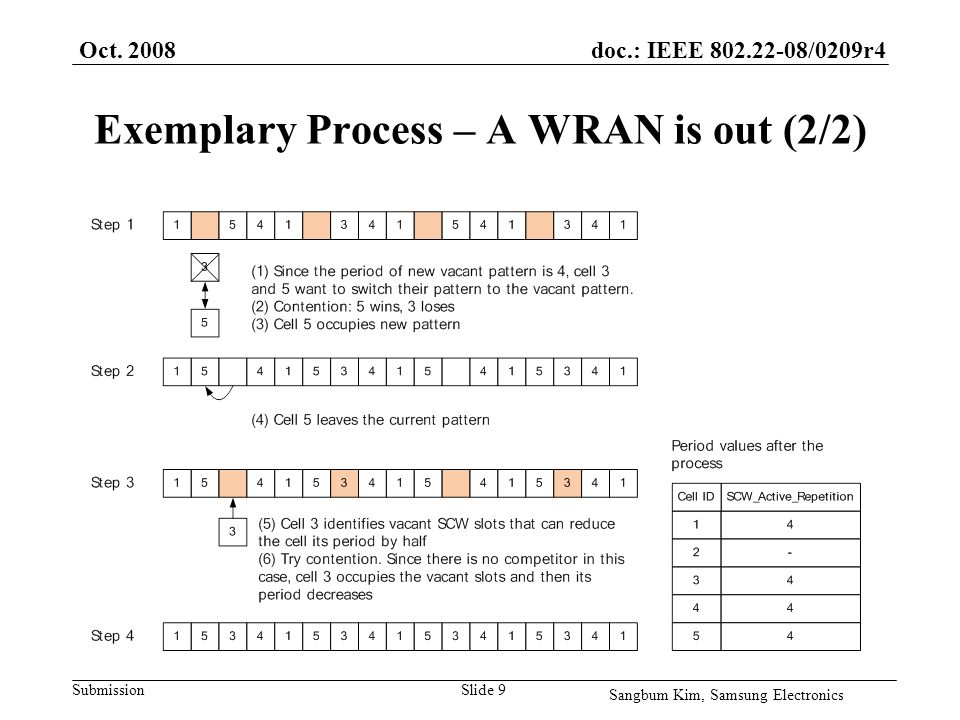

9 doc.: IEEE /0209r4 Submission Exemplary Process – A WRAN is out (2/2) Oct Sangbum Kim, Samsung Electronics Slide 9

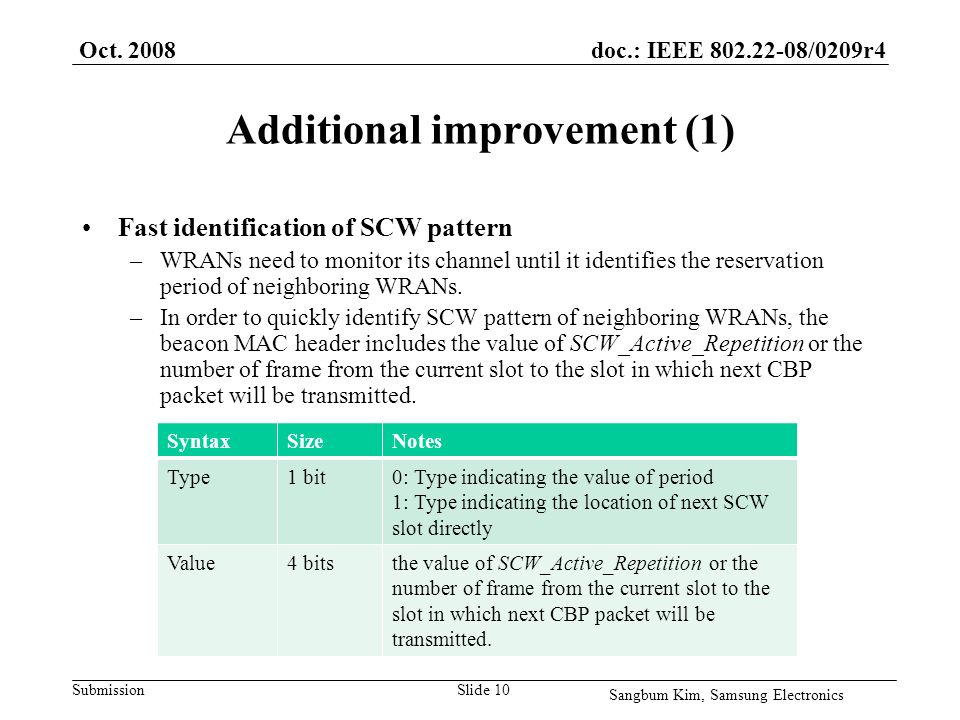

10 doc.: IEEE /0209r4 Submission Additional improvement (1) Fast identification of SCW pattern –WRANs need to monitor its channel until it identifies the reservation period of neighboring WRANs. –In order to quickly identify SCW pattern of neighboring WRANs, the beacon MAC header includes the value of SCW_Active_Repetition or the number of frame from the current slot to the slot in which next CBP packet will be transmitted. Oct Sangbum Kim, Samsung Electronics Slide 10 SyntaxSizeNotes Type1 bit0: Type indicating the value of period 1: Type indicating the location of next SCW slot directly Value4 bitsthe value of SCW_Active_Repetition or the number of frame from the current slot to the slot in which next CBP packet will be transmitted.

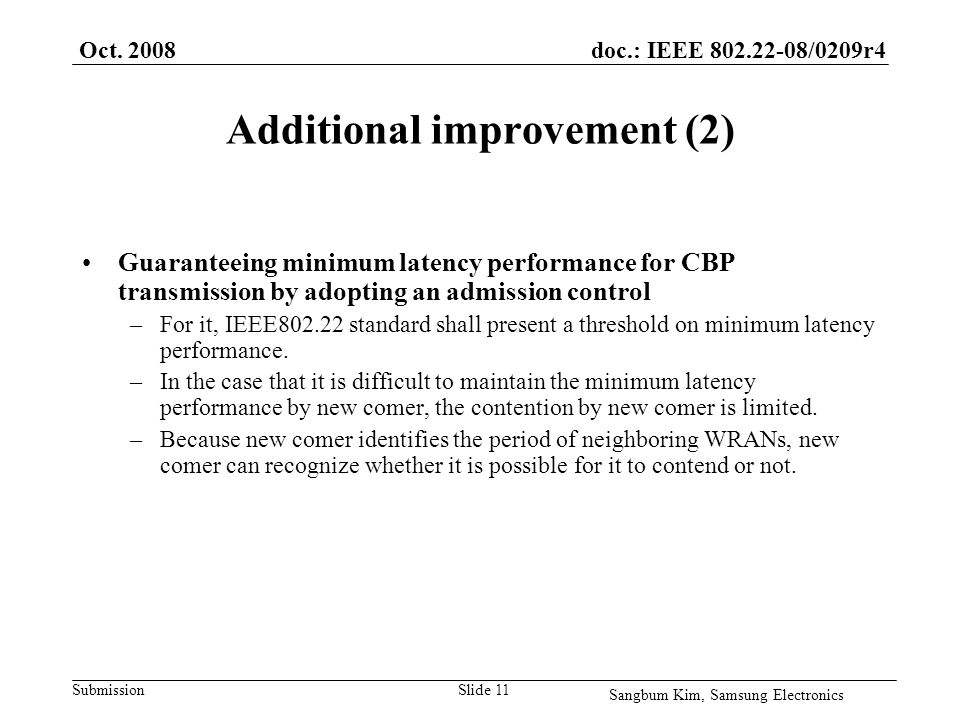

11 doc.: IEEE /0209r4 Submission Additional improvement (2) Guaranteeing minimum latency performance for CBP transmission by adopting an admission control –For it, IEEE standard shall present a threshold on minimum latency performance. –In the case that it is difficult to maintain the minimum latency performance by new comer, the contention by new comer is limited. –Because new comer identifies the period of neighboring WRANs, new comer can recognize whether it is possible for it to contend or not. Oct Sangbum Kim, Samsung Electronics Slide 11

12 doc.: IEEE /0209r4 Submission Suggested text changes for SCW regular pattern in CBP Packet Generation The reservation of SCWs facilitates the contention-free CBP transmissions among the neighboring WRAN cells sharing the channel, and it can be achieved by scheduling the regular SCW pattern such that it does not overlap with the SCW pattern of other neighboring WRANs. The procedure for that is as follows: During the initialization stage, the WRAN monitors the channel to discover neighboring WRANs and identifies their SCW regular patterns. For instance, the regular SCW pattern can be identified by receiving a sequence of CBP packets from a neighboring WRAN. If a WRAN indentifies another WRANs regular SCW pattern, it shall regard these SCWs as reserved and shall set its own regular pattern so that it does not overlap with the SCWs reserved by the neighboring WRAN. Once the WRAN starts its own regular SCW pattern, it shall maintain this pattern for a number of super- frames specified by the SCWActive_Reservation_Period parameter. Insert the following texts between line 36 and line 37 If necessary, a BS reserves its SCW regular pattern by contending on an active SCW slot occupied by a existing neighboring cell. If the BS lose the contention, it retries to contend on another active SCW slot. If the existing neighboring cell detects contention from other WRAN cells in a given SCW slot, it shall double the SCW_Active_Repetition value by giving up the contended slot in its reserved pattern. WRAN can set up or change its current SCW pattern by occupying available vacant slots. If there are multiple WRANs trying to occupy the same pattern of vacant slots, the WRANs shall resolve the occupation through contention; if necessary, the winner of the vacant slots shall release its previously occupied slots to maintain a regular pattern; Oct Sangbum Kim, Samsung Electronics Slide 12

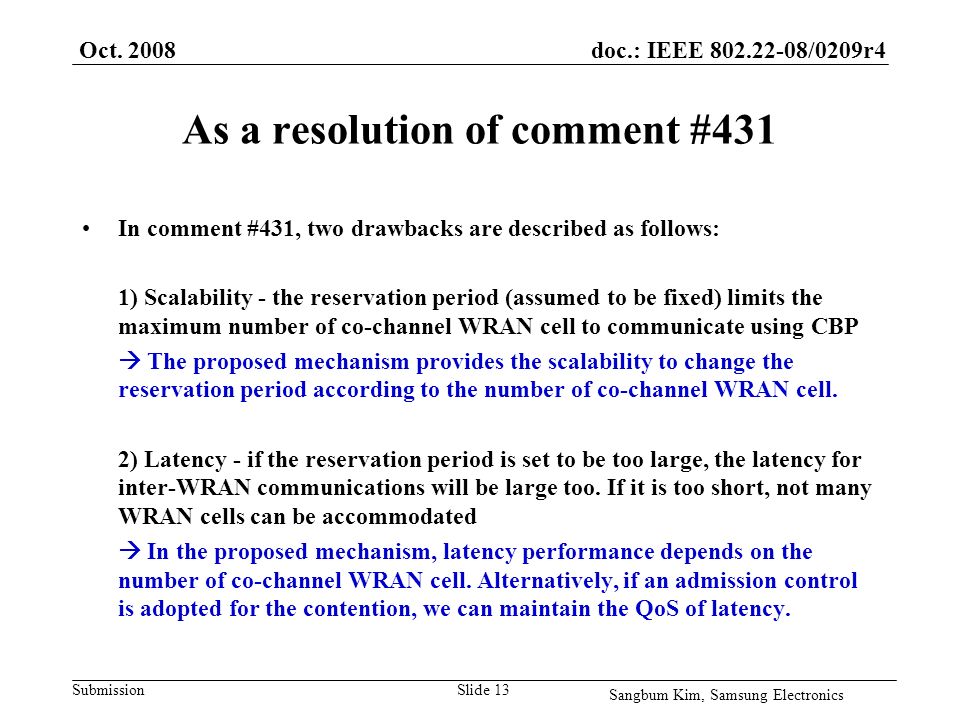

13 doc.: IEEE /0209r4 Submission As a resolution of comment #431 In comment #431, two drawbacks are described as follows: 1) Scalability - the reservation period (assumed to be fixed) limits the maximum number of co-channel WRAN cell to communicate using CBP The proposed mechanism provides the scalability to change the reservation period according to the number of co-channel WRAN cell. 2) Latency - if the reservation period is set to be too large, the latency for inter-WRAN communications will be large too. If it is too short, not many WRAN cells can be accommodated In the proposed mechanism, latency performance depends on the number of co-channel WRAN cell. Alternatively, if an admission control is adopted for the contention, we can maintain the QoS of latency. Oct Sangbum Kim, Samsung Electronics Slide 13

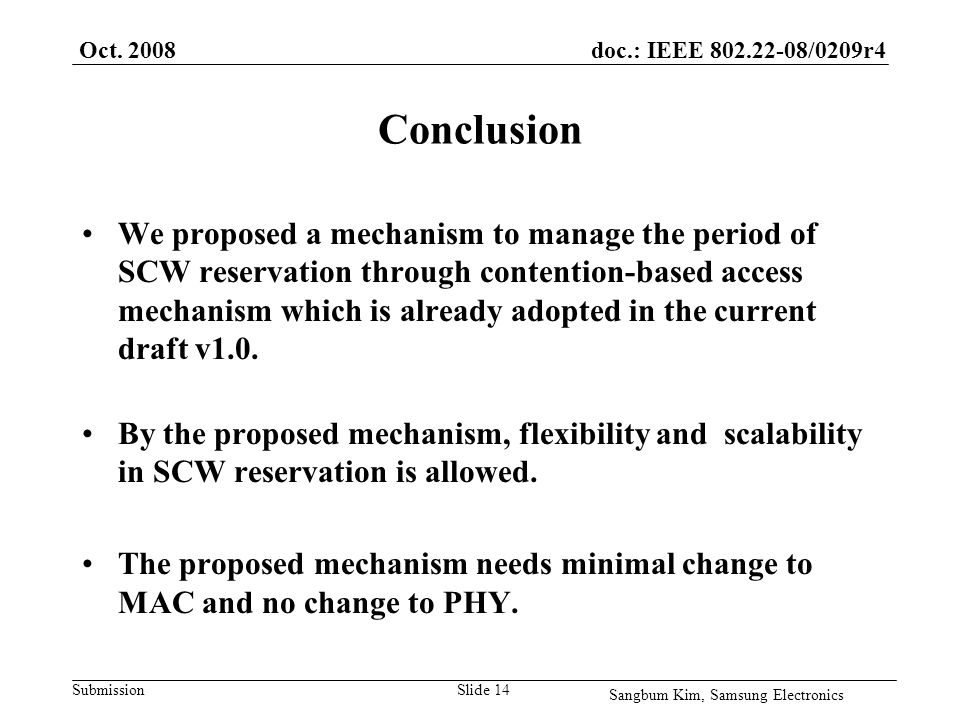

14 doc.: IEEE /0209r4 Submission Conclusion We proposed a mechanism to manage the period of SCW reservation through contention-based access mechanism which is already adopted in the current draft v1.0. By the proposed mechanism, flexibility and scalability in SCW reservation is allowed. The proposed mechanism needs minimal change to MAC and no change to PHY. Oct Sangbum Kim, Samsung Electronics Slide 14

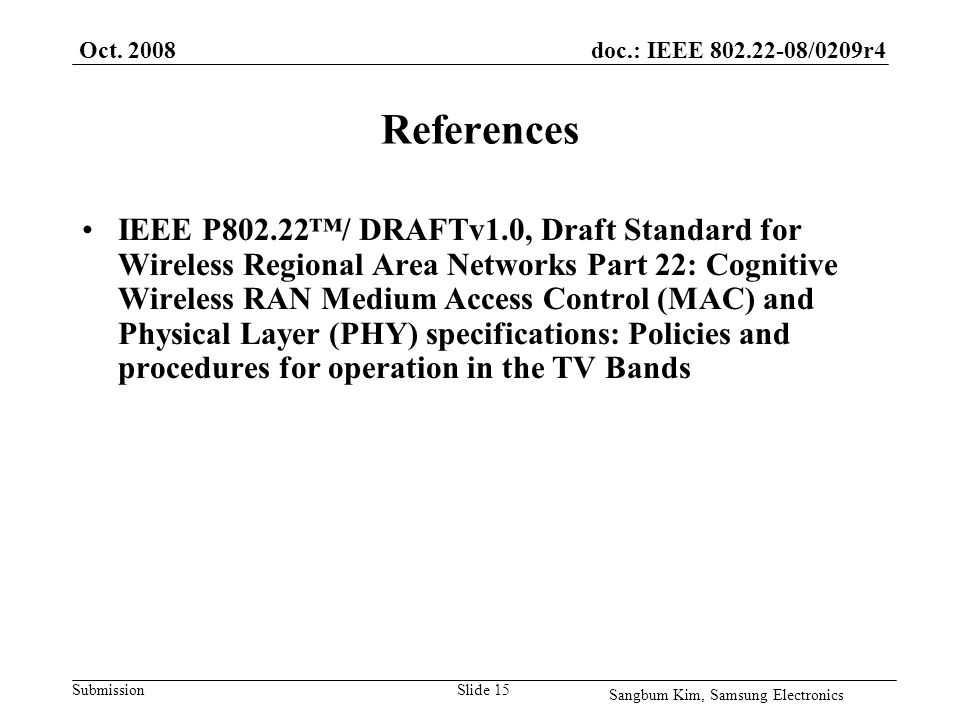

15 doc.: IEEE /0209r4 SubmissionSlide 15 References IEEE P802.22/ DRAFTv1.0, Draft Standard for Wireless Regional Area Networks Part 22: Cognitive Wireless RAN Medium Access Control (MAC) and Physical Layer (PHY) specifications: Policies and procedures for operation in the TV Bands Sangbum Kim, Samsung Electronics Oct. 2008
