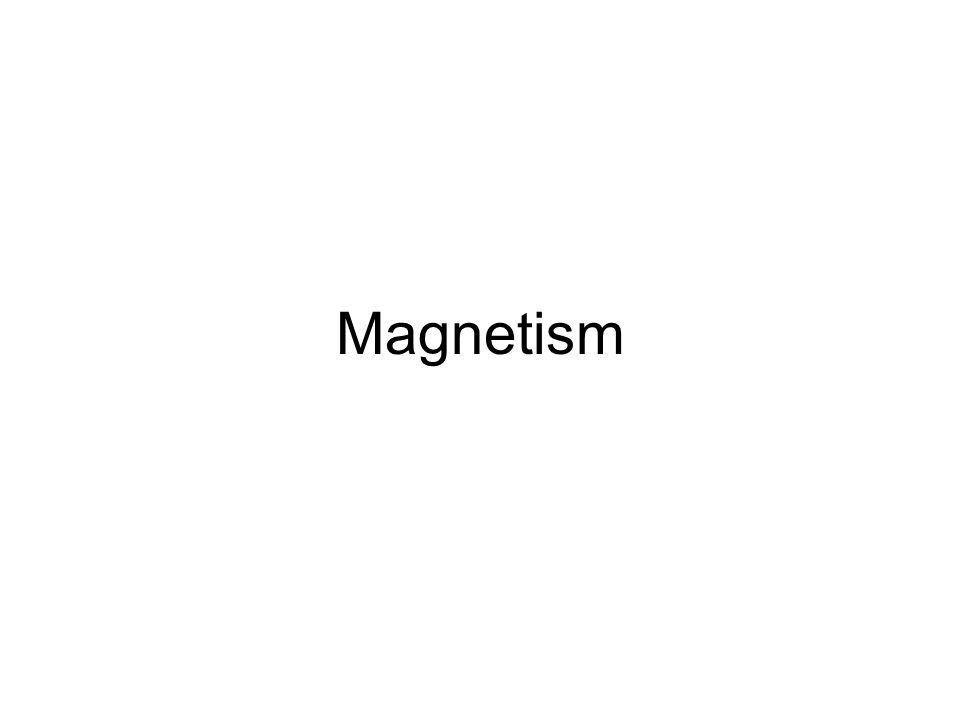

1. Magnetism

2. Magnets and Magnetic Fields Naturally occurring Attract or repel each other Attract certain metals (iron, cobalt, nickel) Point in a given direction relative to the Earth when allowed to hang freely North and South poles- there are NO monopole magnets! Opposite poles attract

3. Just as an electric charge is surrounded by an electric field, a moving electric charge is also surrounded by a MAGNETIC FIELD. Similar to how a planet orbits the sun and rotates on its own axis, an electron orbits the nucleus and spins on its own axis. The MAGNETIC FIELD is due to both the orbital motion as the electron orbits the nucleus and the spin of each electron around its own axis

4. For elements like iron, cobalt, and nickel, all the electrons in those atoms spin in the same direction, instead of opposite directions, which would cancel the effect. Therefore, these atoms are naturally “magnetic”. If the magnetic fields of large clusters of those atoms, called “domains” are aligned, the whole material is magnetized. Not every piece of iron is a magnet. Only those pieces whose domains are all aligned!

5. Magnetic fields are created by Magnetic materials ( those spinning electrons!) But ALSO by Current-carrying wires (a lot of moving charges!) A magnetic field is represented by magnetic field lines- OUT of the north pole- INTO the south pole N S

7. The Earth behaves like a giant bar magnet. This is due to the movement of Earth’s molten interior (lots of moving charges). The magnetic poles do NOT line up with the geographic poles. Under the North geographic pole lies a South magnetic pole! The direction of Earth’s magnetic field is not rigidly fixed and moves around from year to year. The poles have completely reversed numerous times (about every 100,000 years) according to geological evidence.

9. Magnets and Current-Carrying Wire A wire with current running through it produces a magnetic field. Electromagnets (or solenoids) are magnetic only when current flows.

10. A MOTOR is a machine that converts electricity into mechanical motion. Most motors use electromagnets to produce rotation. A motor has a rotor spinning with coils of current carrying wires passing magnets. Michael Faraday is credited with building the first electric motor

11. A generator does the reverse of a motor: it converts mechanical motion into electricity! Examples: a wind or water turbine, steam engine Who is credited with making the first generator? Yes, Michael Faraday!

13. Magnetic Forces

14. * Current-carrying wires act like magnets. * Magnets exert forces on other magnets. Therefore… * Magnets exert forces on current-carrying wires. F = iL x B Where B is the magnetic field, measured in Tesla, T i is the current, measured in amps L is the length of the wire, measured in meters. The current, I, and the magnetic field, B, must be perpendicular to each other. The Force on a Current-Carrying Wire in a Magnetic Field

15. SpeakerSpeaker and Magnets 1. There is a magnet in the back of most speakers. 2. The wires going into the back of a speaker carry current from the amplifier. 3. The coil of wire experiences a magnetic force which pushes it back a forth against the paper cone. 4. The cone vibrates producing sound.

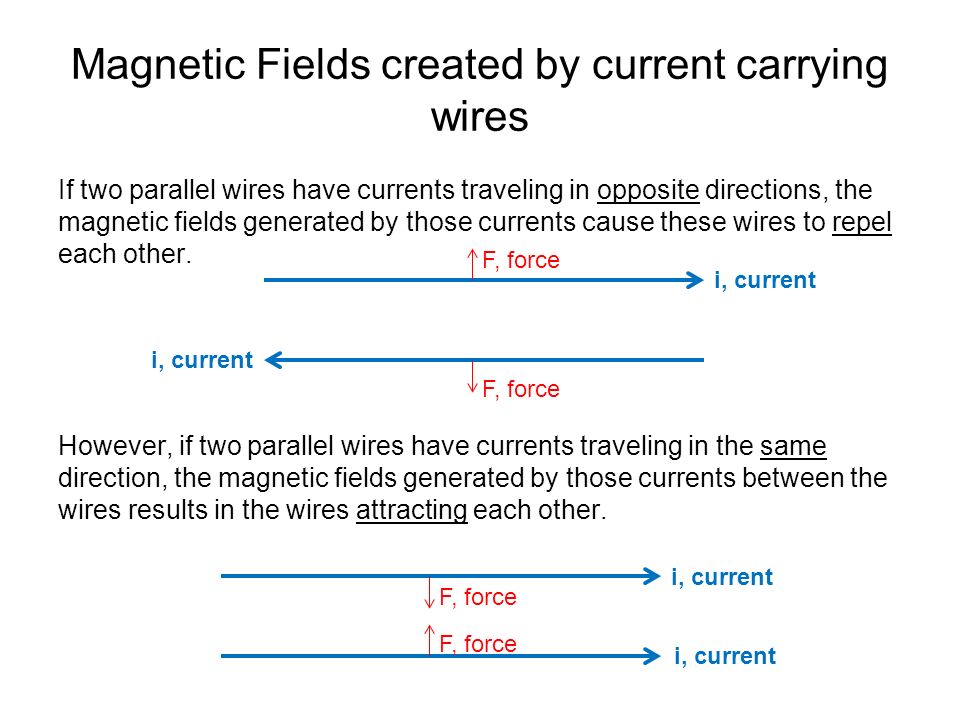

16. Magnetic Fields created by current carrying wires If two parallel wires have currents traveling in opposite directions, the magnetic fields generated by those currents cause these wires to repel each other. However, if two parallel wires have currents traveling in the same direction, the magnetic fields generated by those currents between the wires results in the wires attracting each other. i, current F, force i, current F, force

18. The “Flip-Side” Currents in wires produce magnetic fields. AND Changing magnetic fields produce currents in wires….

19. Michael Faraday Michael Faraday studied both electricity and its relationship to magnetism. We remember the “Faraday cage” that protects its contents from static charges. The unit for capacitance is the Farad. He also made the first electric motor and generator and transformer! Faraday’s Law states that a changing magnetic field will “induce” a current in a wire.

20. The metal detector One application of Faraday’s law is the security metal detector at the airport. As a person passes through the detector, which is a large electromagnet, any metal on their person will change the magnetic field in the detector, inducing a current that signals the presence of metal!

21. Another application of Faraday’s Law: The Electric Guitar The “pickup” in an electric guitar contains a coil of wire wrapped around a magnet. The vibration of the guitar string causes the magnet to vibrate. The changing magnetic field induces a current in the coil of wire. The current is sent to the amplifier to produce the sound.

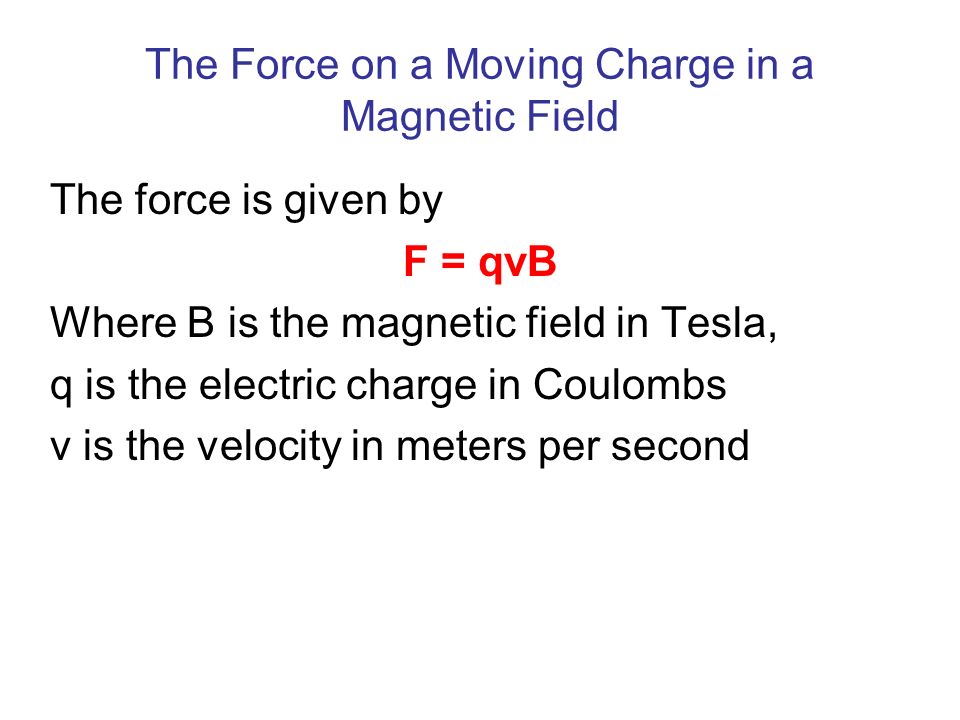

23. The Force on a Moving Charge in a Magnetic Field Just as current-carrying wires (lots of moving charges) experience a force in a magnetic field, a single electrical charge also experiences a force if it is moving in a magnetic field. e-e- Magnetic force

24. The Force on a Moving Charge in a Magnetic Field The force is given by F = qvB Where B is the magnetic field in Tesla, q is the electric charge in Coulombs v is the velocity in meters per second

25. CRT’s and Magnets (TV and computer monitors- NOT flat screen) 1. Electrons are produced at the cathode. 2. They move through an electromagnet. 3. The electromagnet pushes them in different direction. 4. The hit the phosphorescent screen, making it glow.

26. James Clerk Maxwell Maxwell showed that electricity and magnetism were all part of the same phenomenon- the electromagnetic force! He wrote 4 very famous equations showing that relationship and describing electromagnetic waves

27. Particle Accelerators This magnetic force is used to accelerate particles in laboratories like CERN, in Switzerland, to study fundamental particles and their interactions in its Large Hadron Collider.

29. There are storms on the surface of the sun that are known as solar flares or sun spots. These storms send massive amounts of cosmic radiation out toward space.

30. Earth’s Magnetic Field The Magnetosphere acts like a shield around the Earth to protect us from cosmic radiation http://player.discoveryeducation.com/index.cfm?g uidAssetId=F27D04F3-021B-461E-8633- 6C539412324C&blnFromSearch=1&product code=US

31. When the cosmic radiation is particularly intense, some of the rays penetrate the Earth’s Magnetosphere.

32. This radiation gets trapped in Earth’s magnetic field lines and can cause disruption of signal from satellites and can even cause the destruction of sensitive equipment inside satellites.

33. But… it also can cause the atmospheric molecules near the field lines to glow. This causes the auroras: Aurora Borealis, the Northern lights Aurora Australis, the Southern lights.
