1 Josh Riggs riggsj@calhounisd.org Utilizing Open Source Network Monitoring

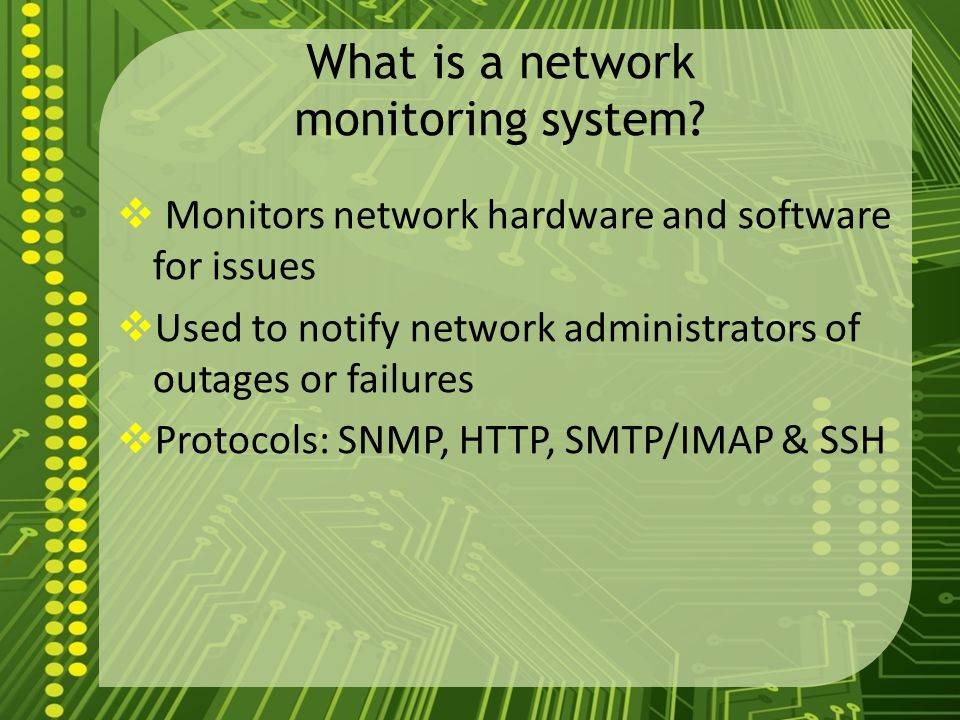

2 What is a network monitoring system?  Monitors network hardware and software for issues  Used to notify network administrators of outages or failures  Protocols: SNMP, HTTP, SMTP/IMAP & SSH

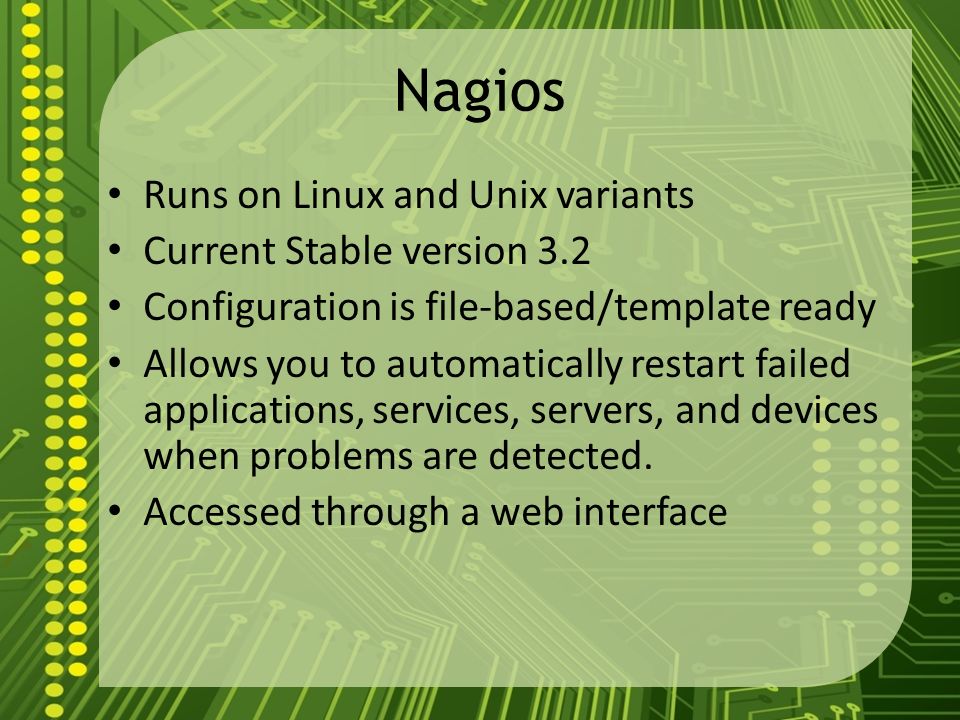

3 Nagios Runs on Linux and Unix variants Current Stable version 3.2 Configuration is file-based/template ready Allows you to automatically restart failed applications, services, servers, and devices when problems are detected. Accessed through a web interface

4 Advantages of Nagios Open Source (Free) Plug-in system for writing a custom ‘check’ in any language you prefer Can tell the difference between a and a down/unreachable host Automatic log file rotation, performance data processing, and a web interface! Community and professional support Customizable

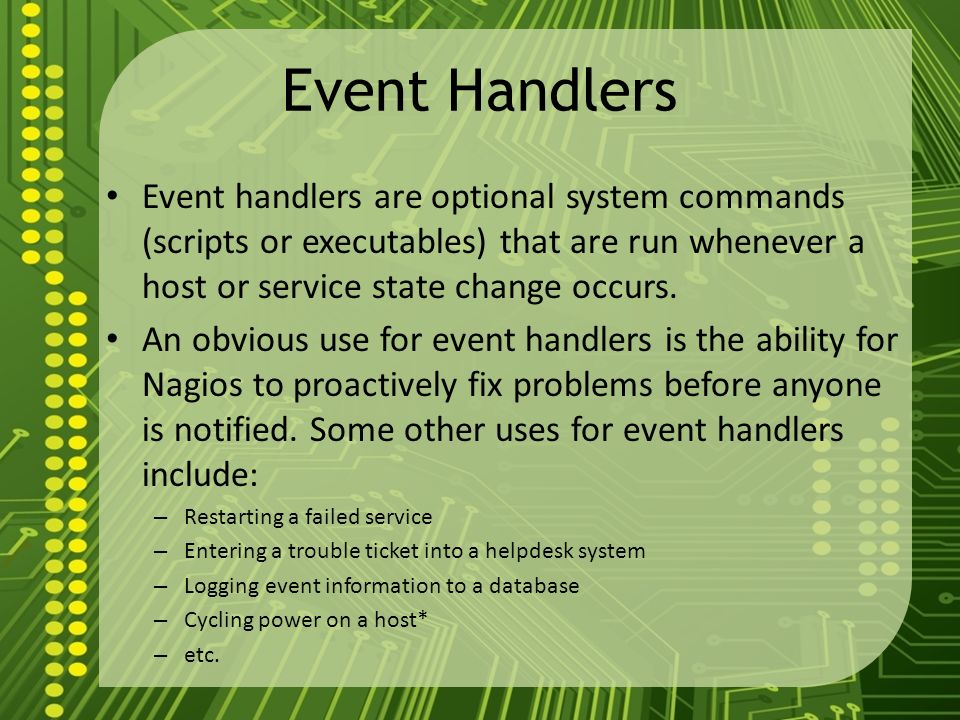

5 Event Handlers Event handlers are optional system commands (scripts or executables) that are run whenever a host or service state change occurs. An obvious use for event handlers is the ability for Nagios to proactively fix problems before anyone is notified. Some other uses for event handlers include: – Restarting a failed service – Entering a trouble ticket into a helpdesk system – Logging event information to a database – Cycling power on a host* – etc.

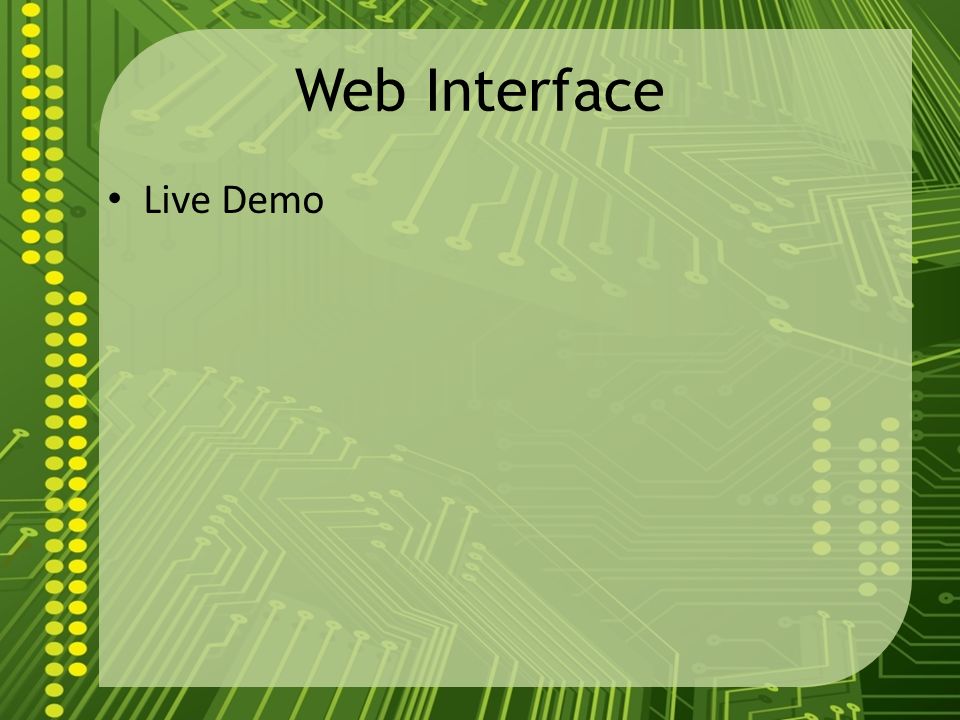

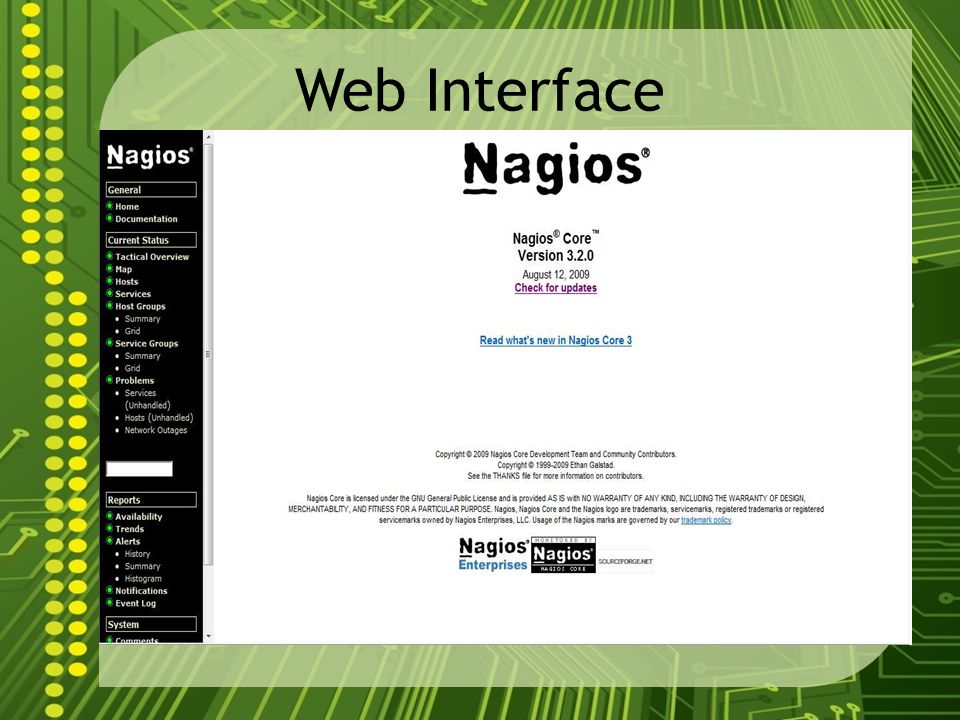

6 Web Interface

7 Live Demo

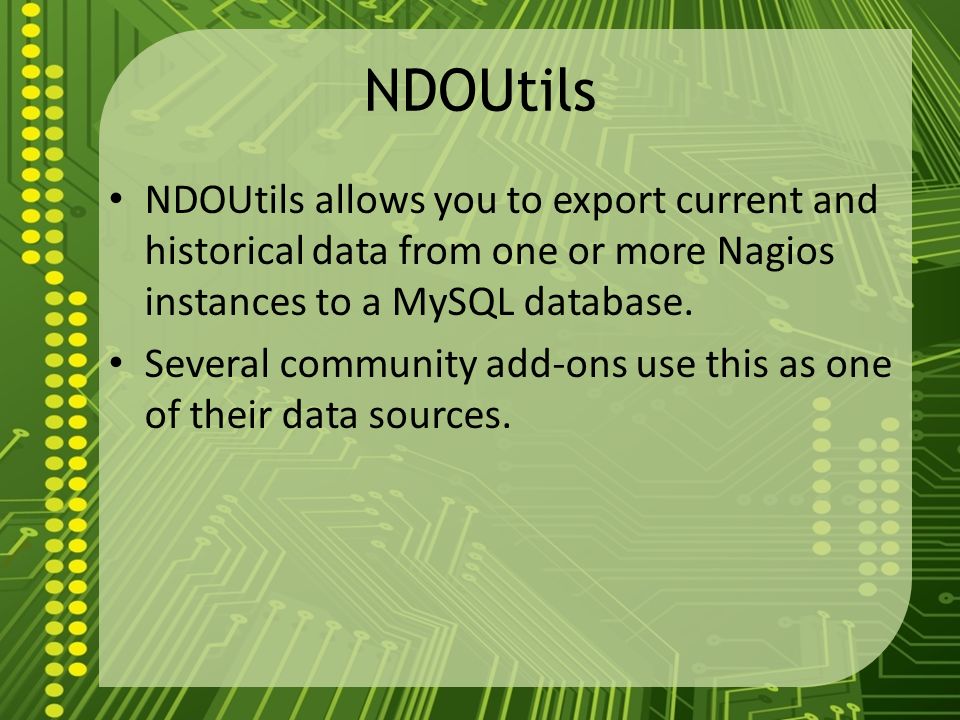

8 NDOUtils NDOUtils allows you to export current and historical data from one or more Nagios instances to a MySQL database. Several community add-ons use this as one of their data sources.

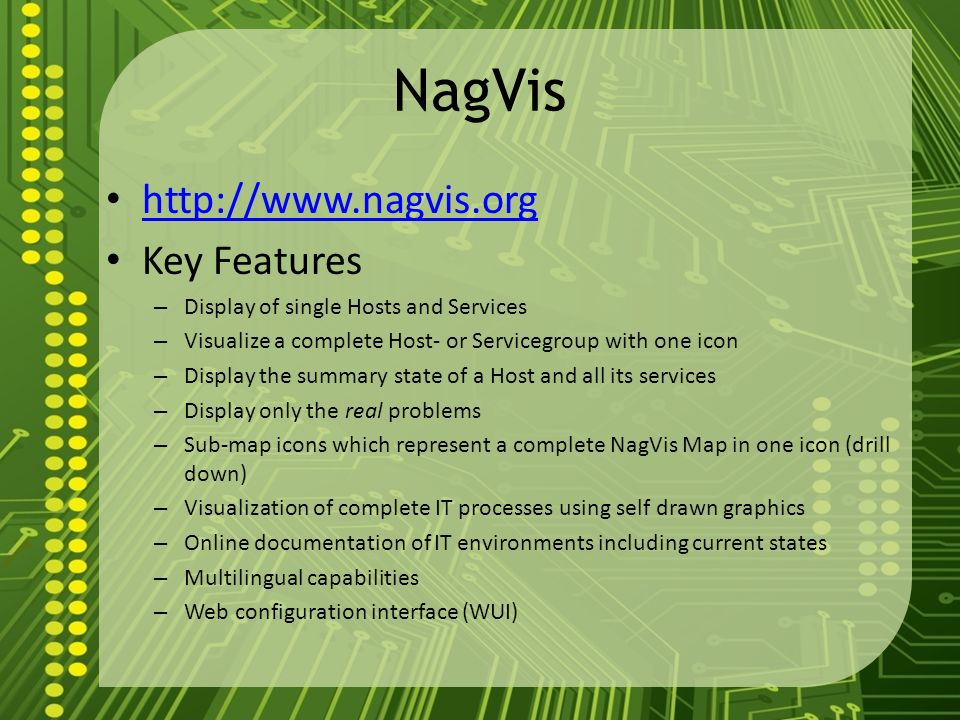

9 NagVis http://www.nagvis.org Key Features – Display of single Hosts and Services – Visualize a complete Host- or Servicegroup with one icon – Display the summary state of a Host and all its services – Display only the real problems – Sub-map icons which represent a complete NagVis Map in one icon (drill down) – Visualization of complete IT processes using self drawn graphics – Online documentation of IT environments including current states – Multilingual capabilities – Web configuration interface (WUI)

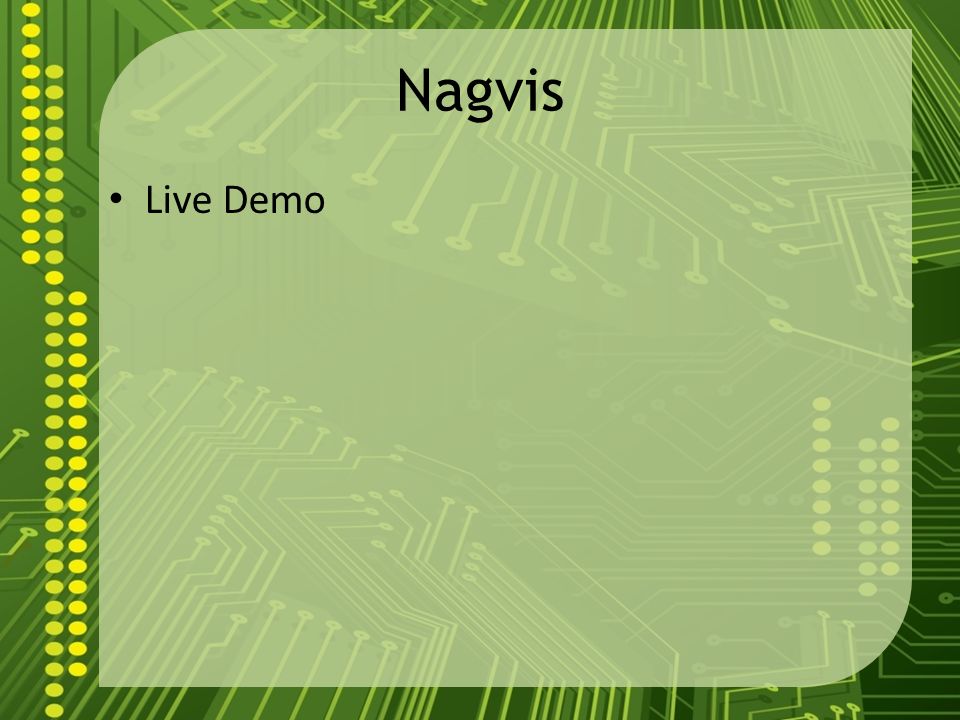

10 Nagvis Live Demo

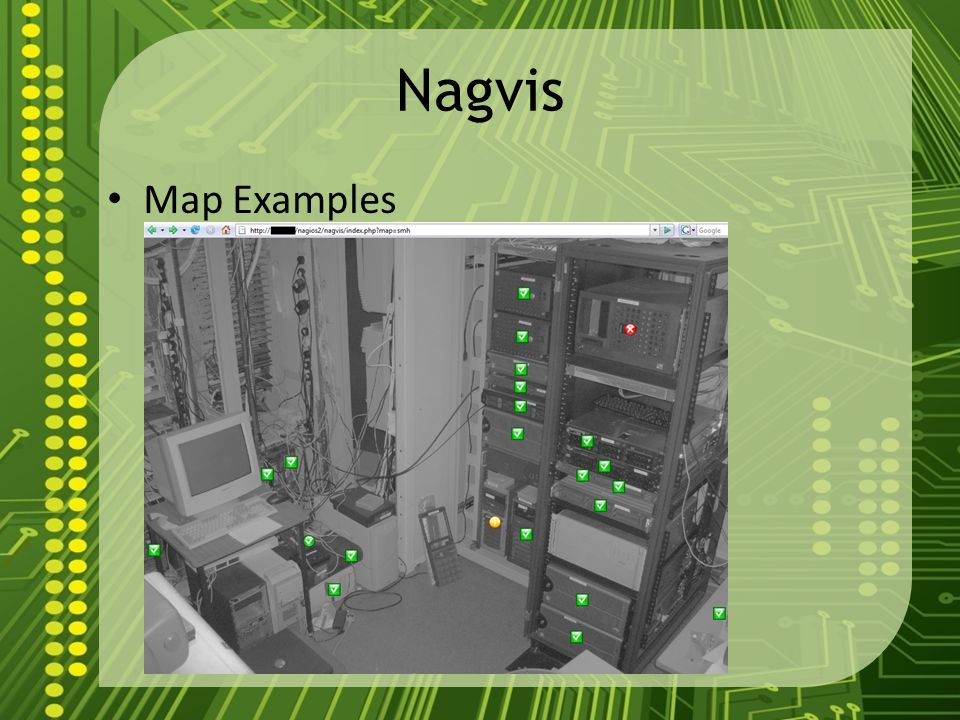

11 Nagvis Map Examples

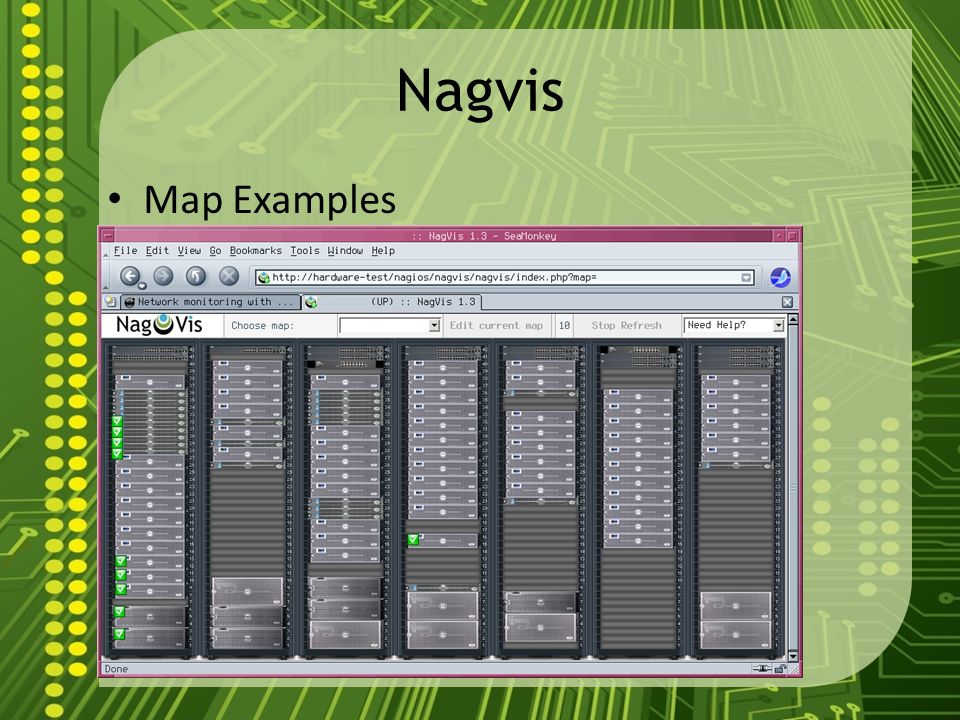

12 Nagvis Map Examples

13 Nagvis Map Examples

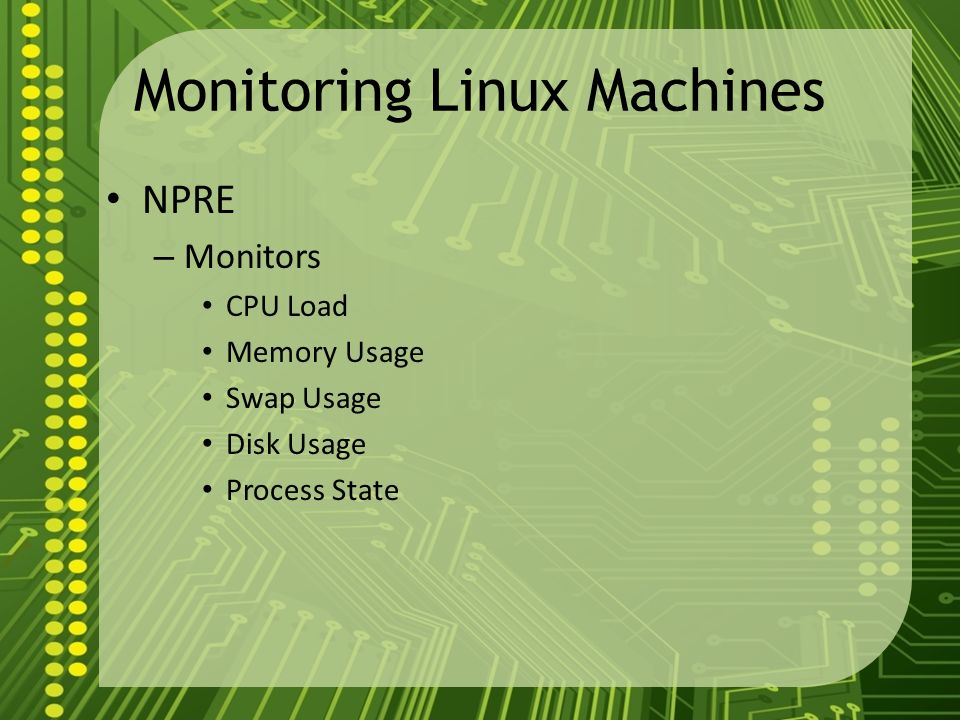

14 Monitoring Linux Machines NPRE – Monitors CPU Load Memory Usage Swap Usage Disk Usage Process State

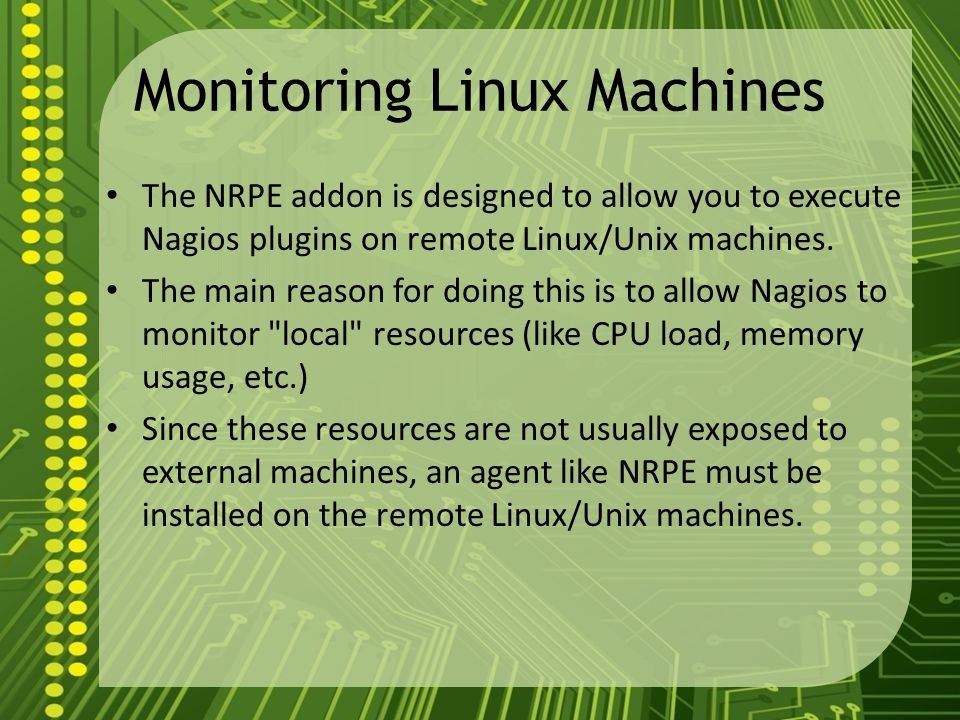

15 Monitoring Linux Machines The NRPE addon is designed to allow you to execute Nagios plugins on remote Linux/Unix machines. The main reason for doing this is to allow Nagios to monitor "local" resources (like CPU load, memory usage, etc.) Since these resources are not usually exposed to external machines, an agent like NRPE must be installed on the remote Linux/Unix machines.

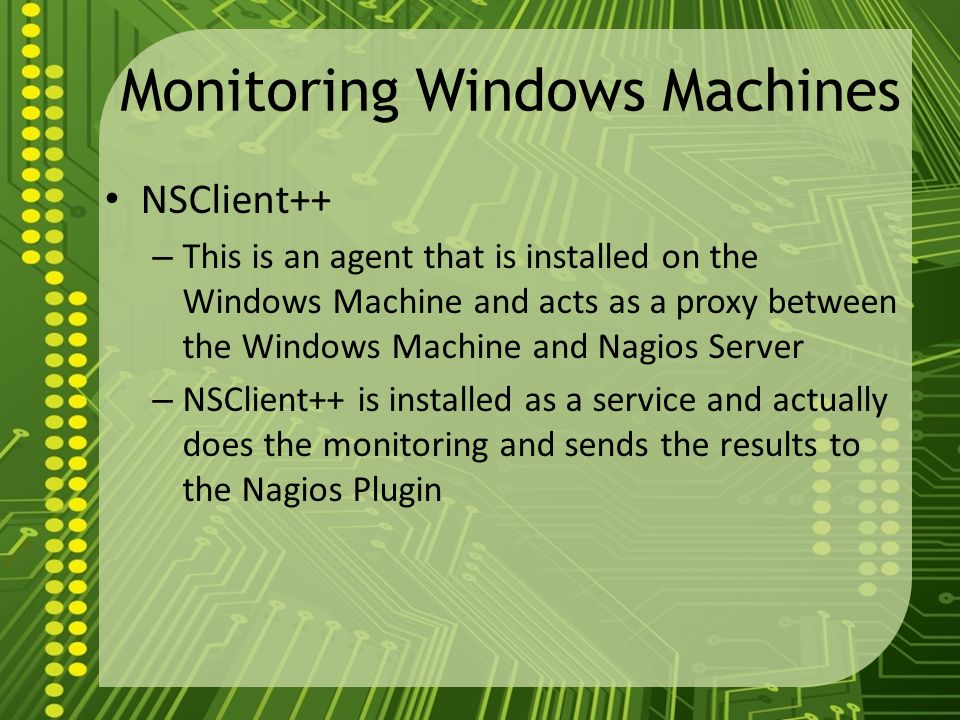

16 Monitoring Windows Machines NSClient++ – This is an agent that is installed on the Windows Machine and acts as a proxy between the Windows Machine and Nagios Server – NSClient++ is installed as a service and actually does the monitoring and sends the results to the Nagios Plugin

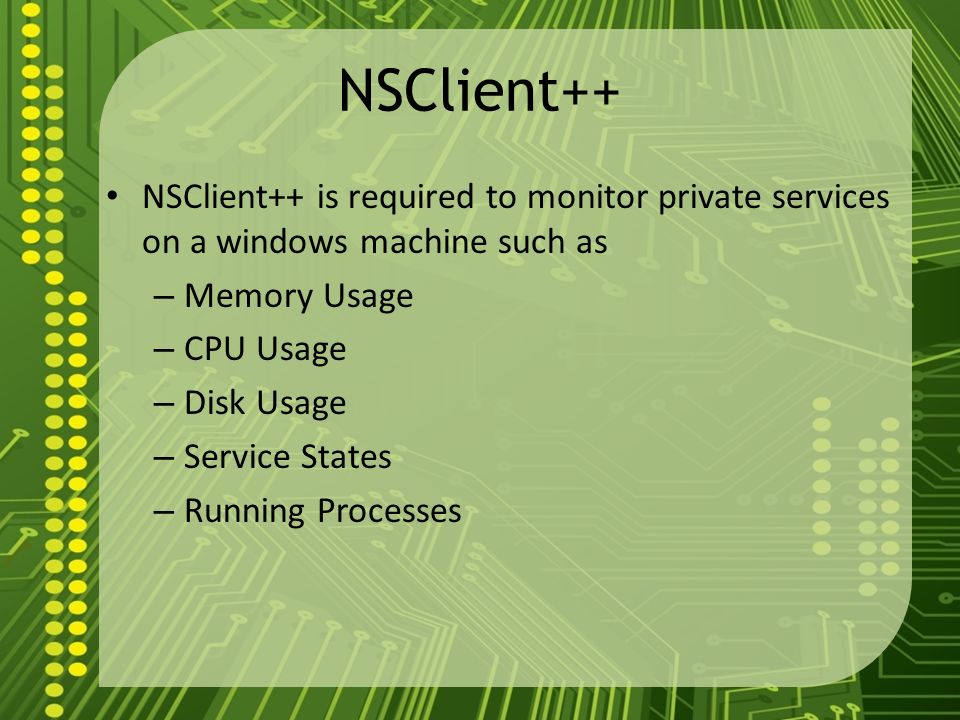

17 NSClient++ NSClient++ is required to monitor private services on a windows machine such as – Memory Usage – CPU Usage – Disk Usage – Service States – Running Processes

18 Monitoring Common Network Services Public services running on Windows Machines such as HTTP, POP3, FTP are monitored directly from the Nagios server with different plugins

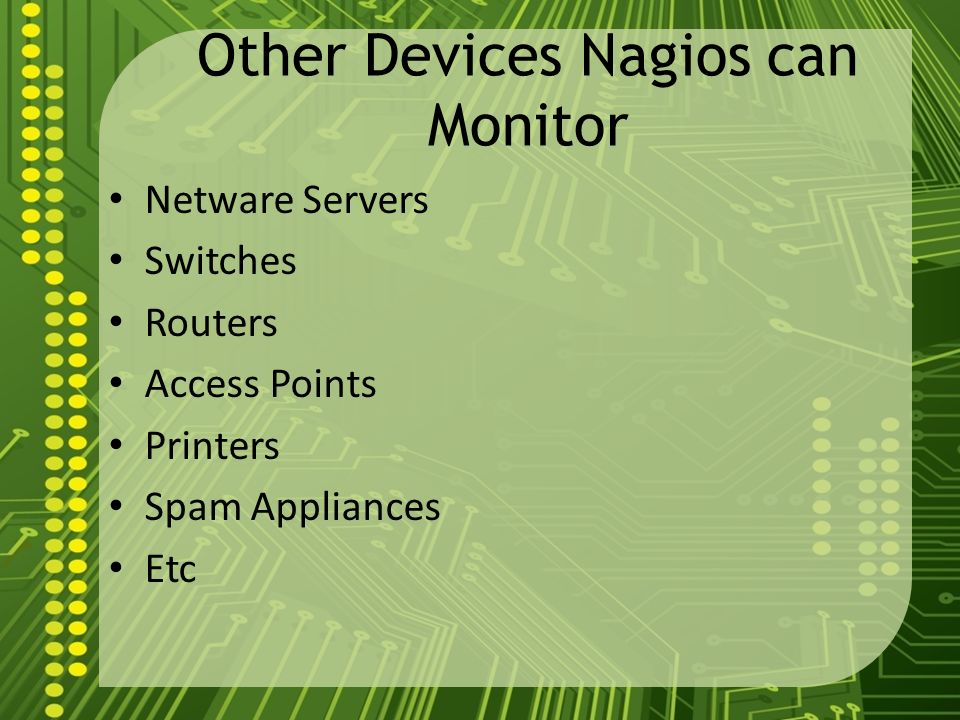

19 Other Devices Nagios can Monitor Netware Servers Switches Routers Access Points Printers Spam Appliances Etc

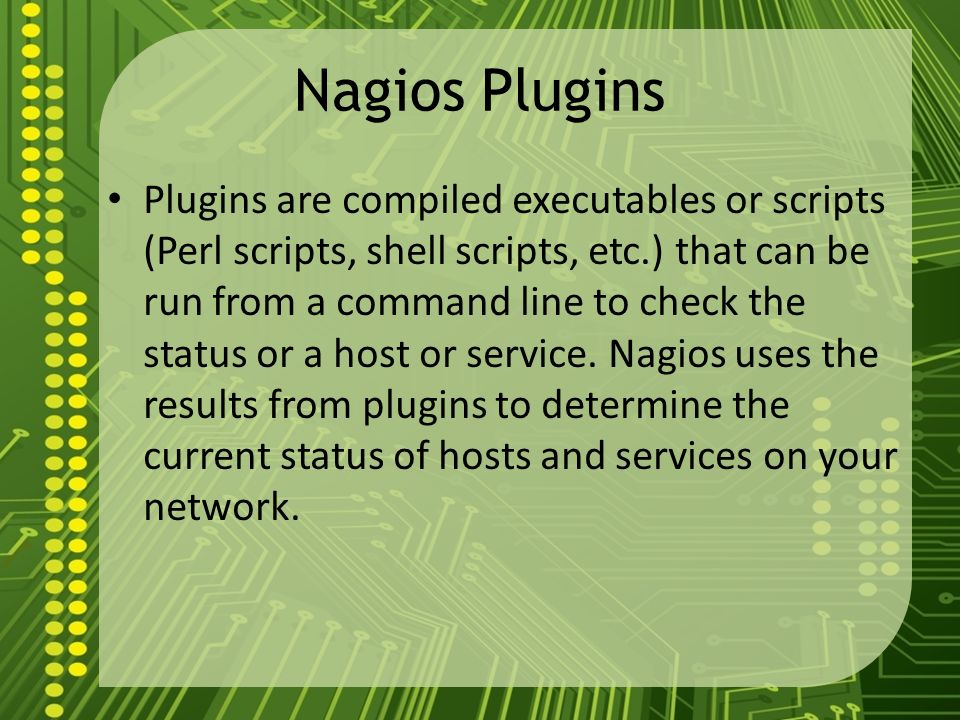

20 Nagios Plugins Plugins are compiled executables or scripts (Perl scripts, shell scripts, etc.) that can be run from a command line to check the status or a host or service. Nagios uses the results from plugins to determine the current status of hosts and services on your network.

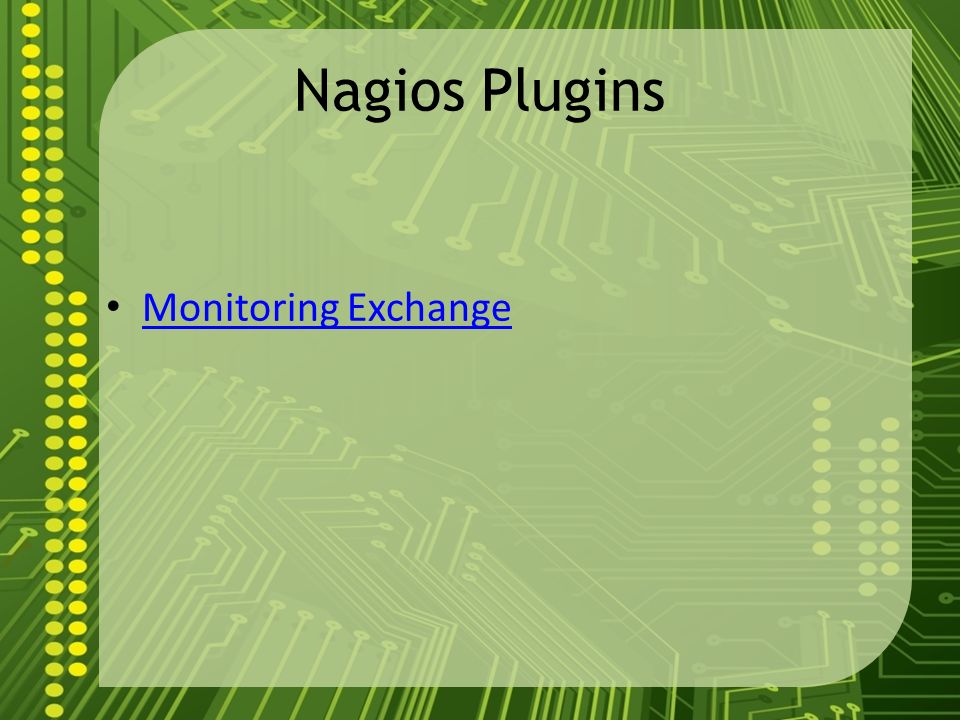

21 Nagios Plugins Monitoring Exchange

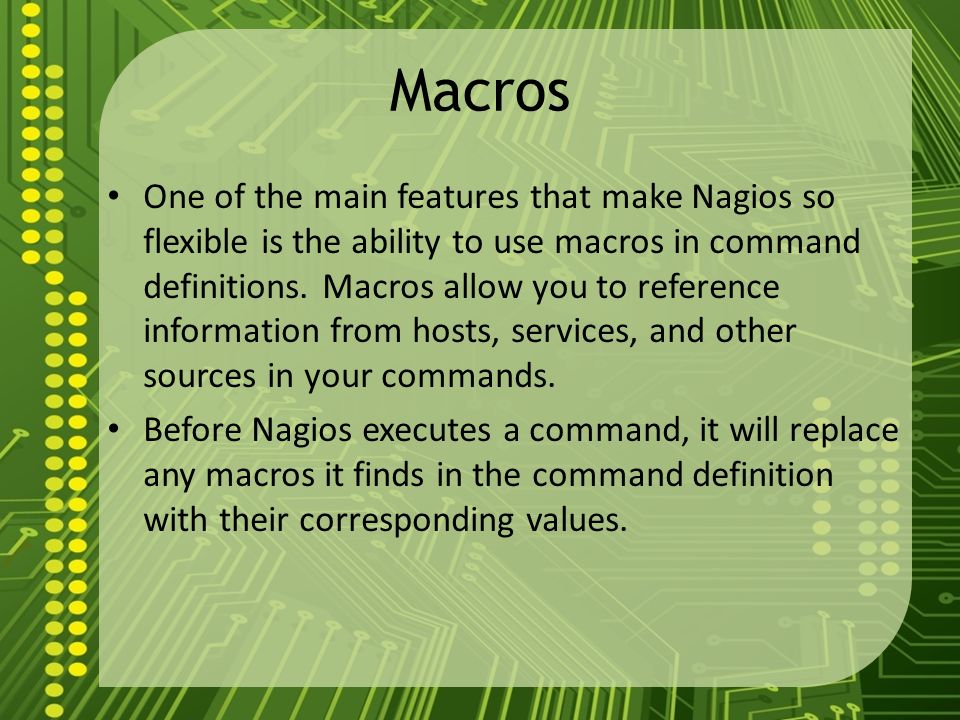

22 Macros One of the main features that make Nagios so flexible is the ability to use macros in command definitions. Macros allow you to reference information from hosts, services, and other sources in your commands. Before Nagios executes a command, it will replace any macros it finds in the command definition with their corresponding values.

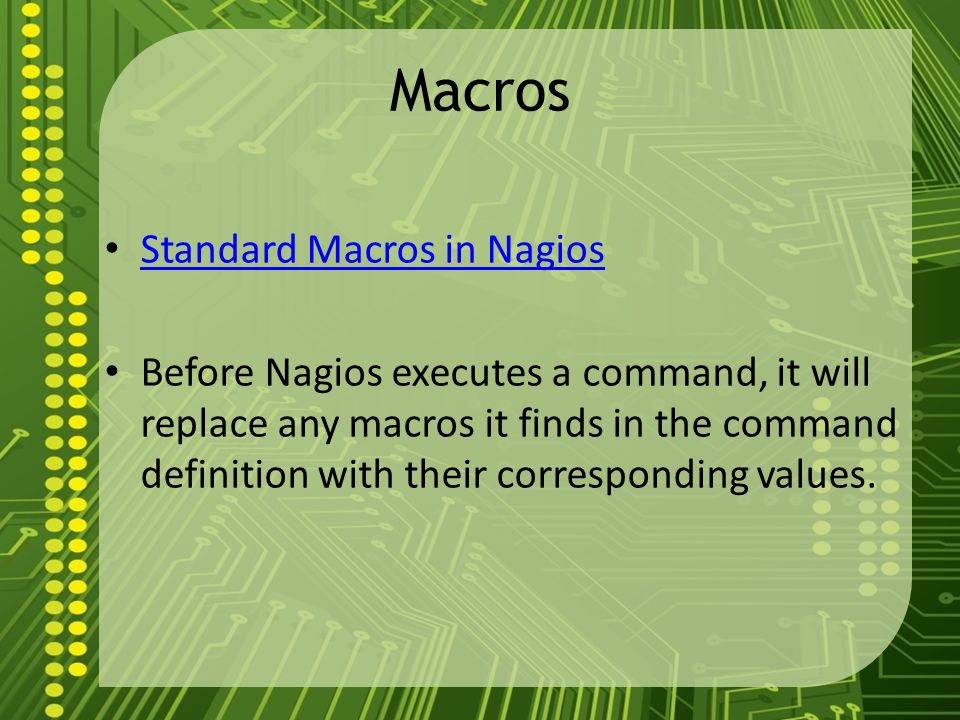

23 Macros Standard Macros in Nagios Before Nagios executes a command, it will replace any macros it finds in the command definition with their corresponding values.

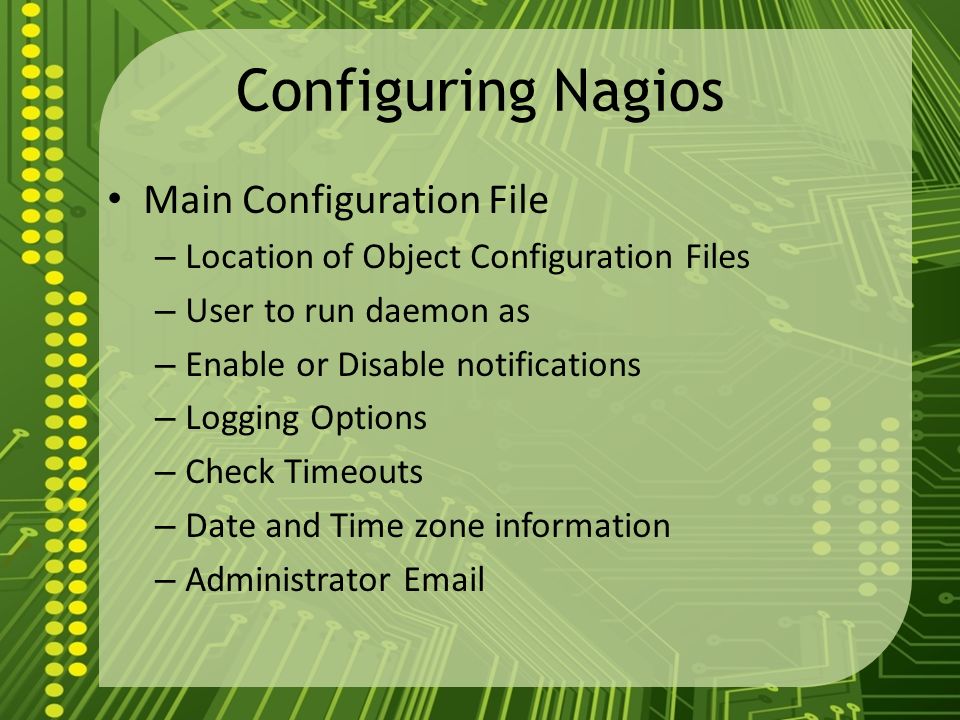

24 Configuring Nagios Main Configuration File – Location of Object Configuration Files – User to run daemon as – Enable or Disable notifications – Logging Options – Check Timeouts – Date and Time zone information – Administrator Email

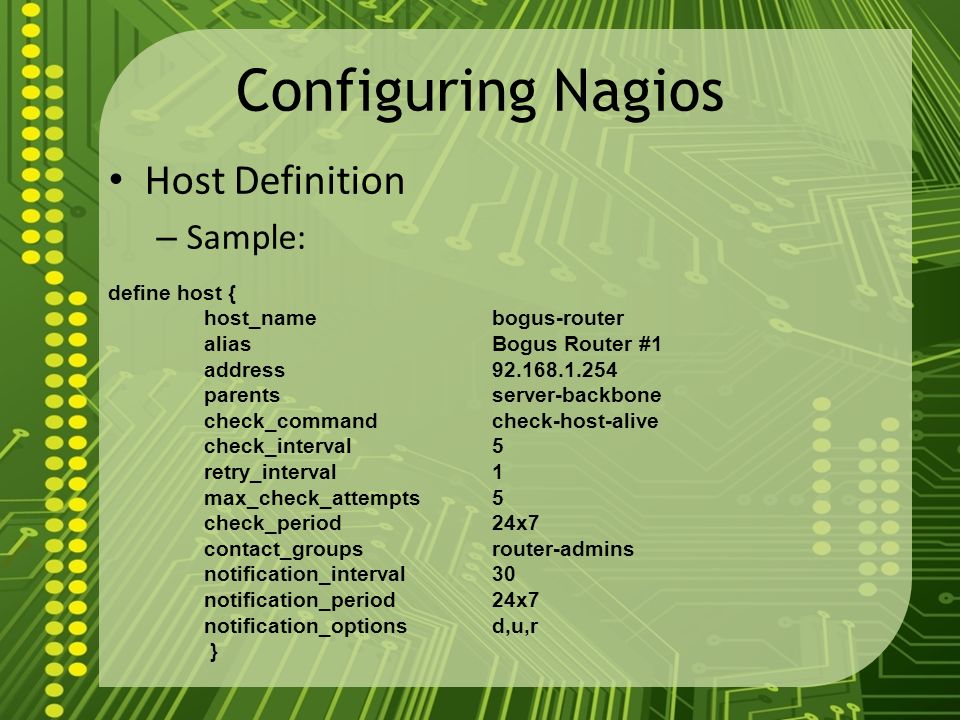

25 Configuring Nagios Host Definition – Sample: define host { host_namebogus-router aliasBogus Router #1 address 92.168.1.254 parentsserver-backbone check_command check-host-alive check_interval5 retry_interval 1 max_check_attempts 5 check_period 24x7 contact_groups router-admins notification_interval 30 notification_period 24x7 notification_options d,u,r }

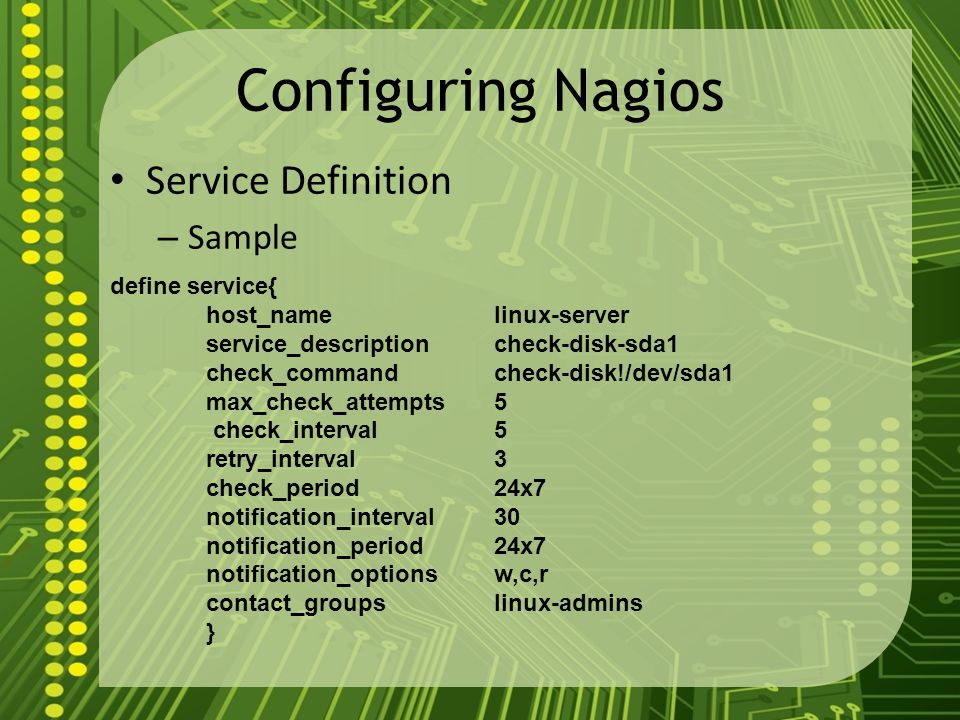

26 Configuring Nagios Service Definition – Sample define service{ host_name linux-server service_description check-disk-sda1 check_command check-disk!/dev/sda1 max_check_attempts 5 check_interval 5 retry_interval 3 check_period 24x7 notification_interval 30 notification_period 24x7 notification_options w,c,r contact_groups linux-admins }

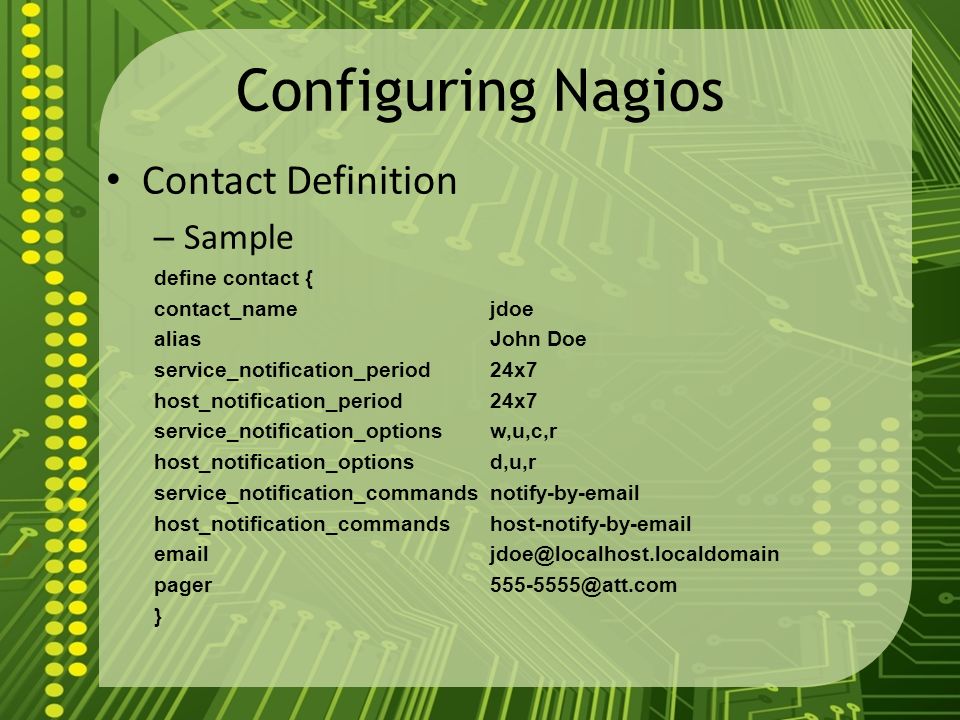

27 Configuring Nagios Contact Definition – Sample define contact { contact_name jdoe alias John Doe service_notification_period 24x7 host_notification_period 24x7 service_notification_options w,u,c,r host_notification_options d,u,r service_notification_commands notify-by-email host_notification_commands host-notify-by-email email jdoe@localhost.localdomain pager 555-5555@att.com }

28 Configuring Nagios Time Periods Definition – Sample define timeperiod { timeperiod_nameworkhours aliasNormal Work Hours Monday07:00 – 18:00 Tuesday07:00 – 18:00 Wednesday07:00 – 18:00 Thursday07:00 – 18:00 Friday07:00 – 18:00 }

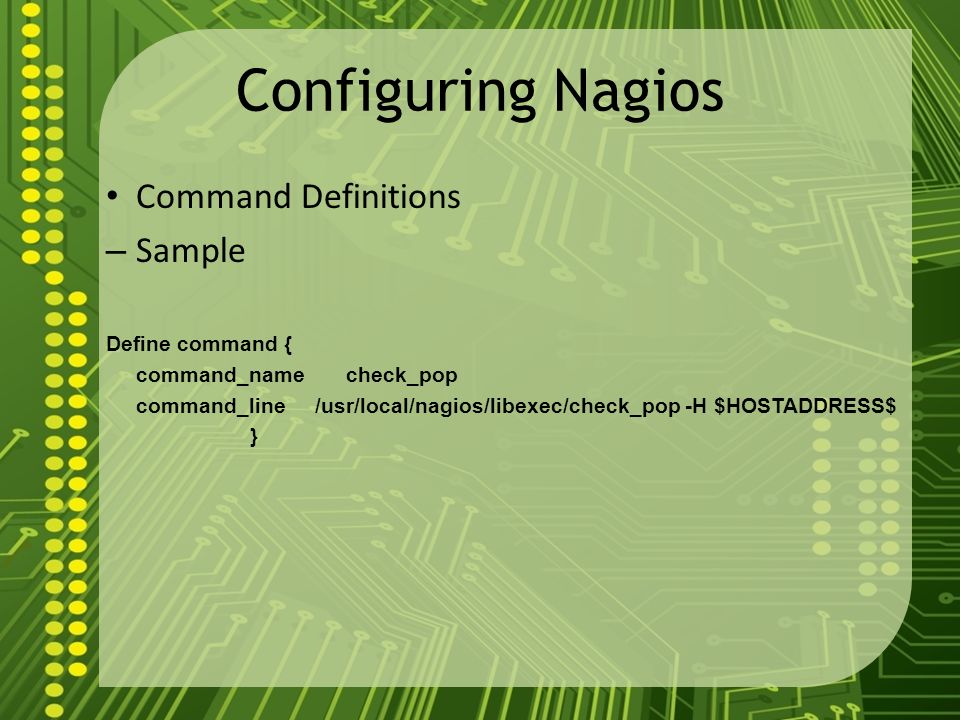

29 Configuring Nagios Command Definitions – Sample Define command { command_namecheck_pop command_line /usr/local/nagios/libexec/check_pop -H $HOSTADDRESS$ }

30 Nagios Questions ?
