**Part III: Polyhedra b: Unfolding**

Joseph O’Rourke Smith College

2
**Outline: Edge-Unfolding Polyhedra**

History (Dürer) ; Open Problem; Applications Evidence For Evidence Against

3
**Unfolding Polyhedra Cut along the surface of a polyhedron**

Unfold into a simple planar polygon without overlap

4
**Edge Unfoldings Two types of unfoldings:**

Edge unfoldings: Cut only along edges General unfoldings: Cut through faces too

5
Commercial Software Lundström Design,

6
Albrecht Dürer, 1425

7
Melancholia I

8
Albrecht Dürer, 1425 Snub Cube

9
**Open: Edge-Unfolding Convex Polyhedra**

Does every convex polyhedron have an edge-unfolding to a simple, nonoverlapping polygon? [Shephard, 1975]

10
Open Problem Can every simple polygon be folded (via perimeter self-gluing) to a simple, closed polyhedron? How about via perimeter-halving?

11
Example

12
**Symposium on Computational Geometry Cover Image**

13
**Cut Edges form Spanning Tree**

Lemma: The cut edges of an edge unfolding of a convex polyhedron to a simple polygon form a spanning tree of the 1-skeleton of the polyhedron. spanning: to flatten every vertex forest: cycle would isolate a surface piece tree: connected by boundary of polygon

14

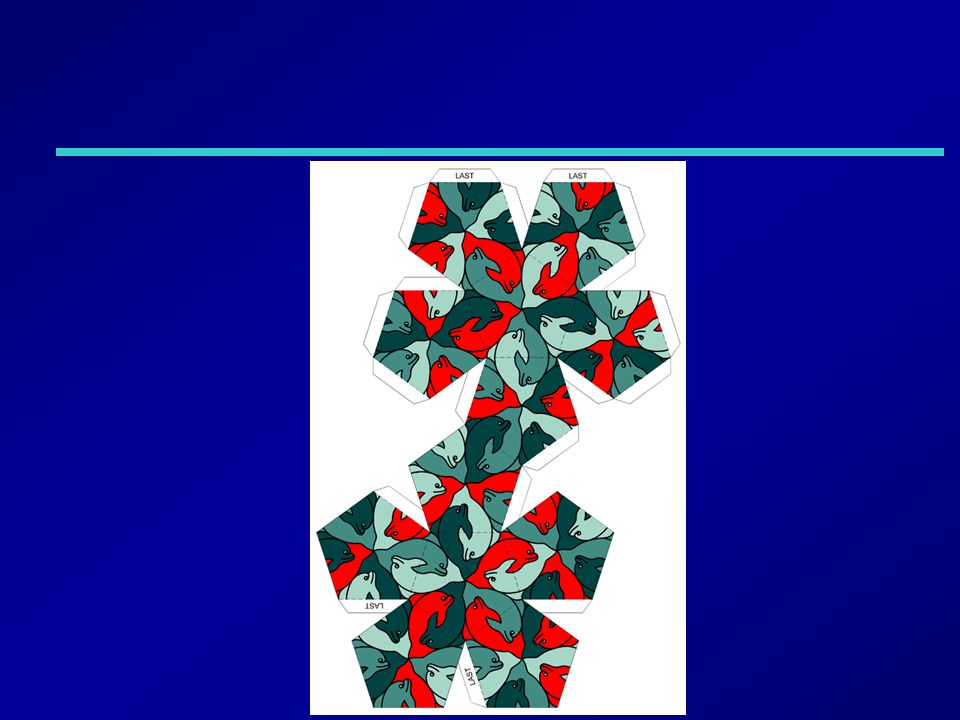

**Unfolding the Platonic Solids**

Some nets:

16
**Unfolding the Archimedean Solids**

17
Archimedian Solids

18
**Nets for Archimedian Solids**

19
**Unfolding the Globe: Fuller’s map http://www. grunch**

20
**Successful Software Nishizeki Hypergami Javaview Unfold ...**

21
**Prismoids Convex top A and bottom B, equiangular.**

Edges parallel; lateral faces quadrilaterals.

22
**Overlapping Unfolding**

23
Volcano Unfolding

24
Unfolding “Domes”

25
**Cube with one corner truncated**

26
“Sliver” Tetrahedron

27
**Percent Random Unfoldings that Overlap**

[O’Rourke, Schevon 1987]

28
**Sclickenrieder1: steepest-edge-unfold**

“Nets of Polyhedra” TU Berlin, 1997

29
**Sclickenrieder2: flat-spanning-tree-unfold**

30
**Sclickenrieder3: rightmost-ascending-edge-unfold**

31
**Sclickenrieder4: normal-order-unfold**

32
**Open: Edge-Unfolding Convex Polyhedra (revisited)**

Does every convex polyhedron have an edge-unfolding to a net (a simple, nonoverlapping polygon)?

33
Open: Fewest Nets For a convex polyhedron of n vertices and F faces, what is the fewest number of nets (simple, nonoverlapping polygons) into which it may be cut along edges? ≤ F ≤ (2/3)F [for large F] ≤ (1/2)F [for large F] ≤ F < ½?; o(F)?
