1

2 1 2th International Workshop on Open Access 2004 Kista, Sweden, 11 th May – 12nd May 2004 Powerline Network: Can Provide a Break through for Accessibility of Information and Communications Technologies (ICT) in African Countries A Presentation by Mr. Justinian Anatory Faculty of Electrical and Computer Systems Engineering University of Dar es Salaam, Tanzania Website: 11 th -12 th May 2004

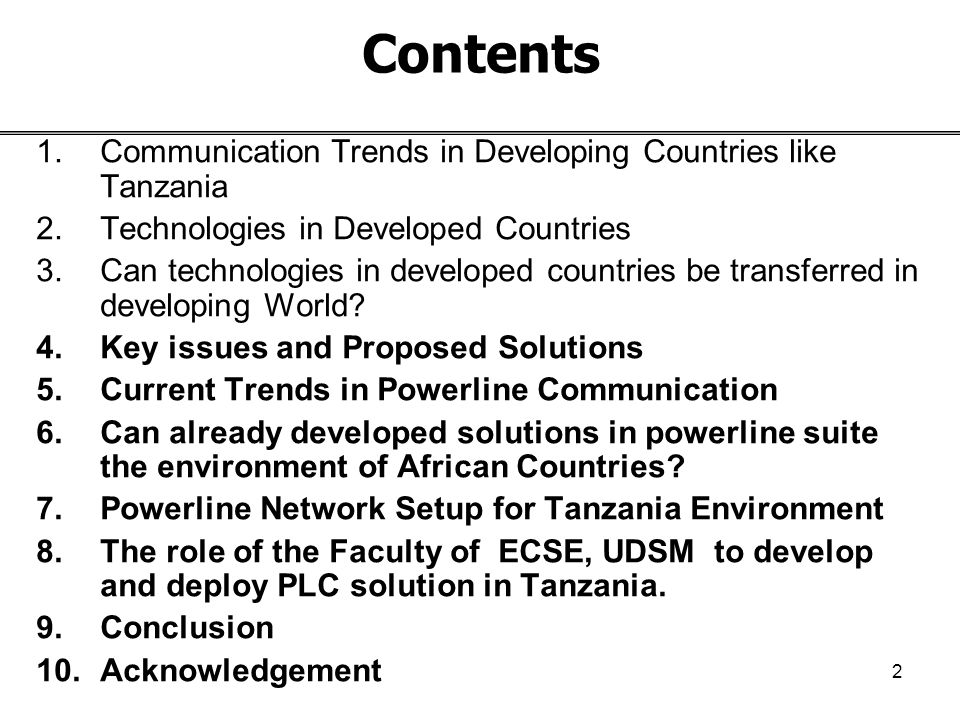

3 2 Contents 1.Communication Trends in Developing Countries like Tanzania 2.Technologies in Developed Countries 3.Can technologies in developed countries be transferred in developing World? 4.Key issues and Proposed Solutions 5.Current Trends in Powerline Communication 6.Can already developed solutions in powerline suite the environment of African Countries? 7.Powerline Network Setup for Tanzania Environment 8.The role of the Faculty of ECSE, UDSM to develop and deploy PLC solution in Tanzania. 9.Conclusion 10.Acknowledgement

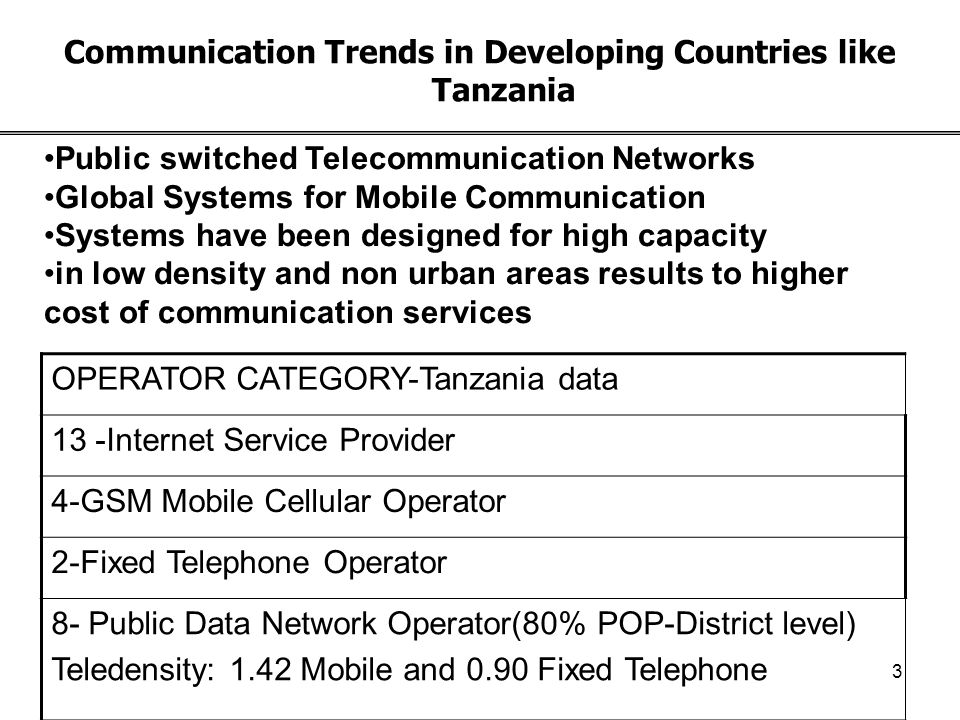

4 3 Communication Trends in Developing Countries like Tanzania Public switched Telecommunication Networks Global Systems for Mobile Communication Systems have been designed for high capacity in low density and non urban areas results to higher cost of communication services OPERATOR CATEGORY-Tanzania data 13 -Internet Service Provider 4-GSM Mobile Cellular Operator 2-Fixed Telephone Operator 8- Public Data Network Operator(80% POP-District level) Teledensity: 1.42 Mobile and 0.90 Fixed Telephone

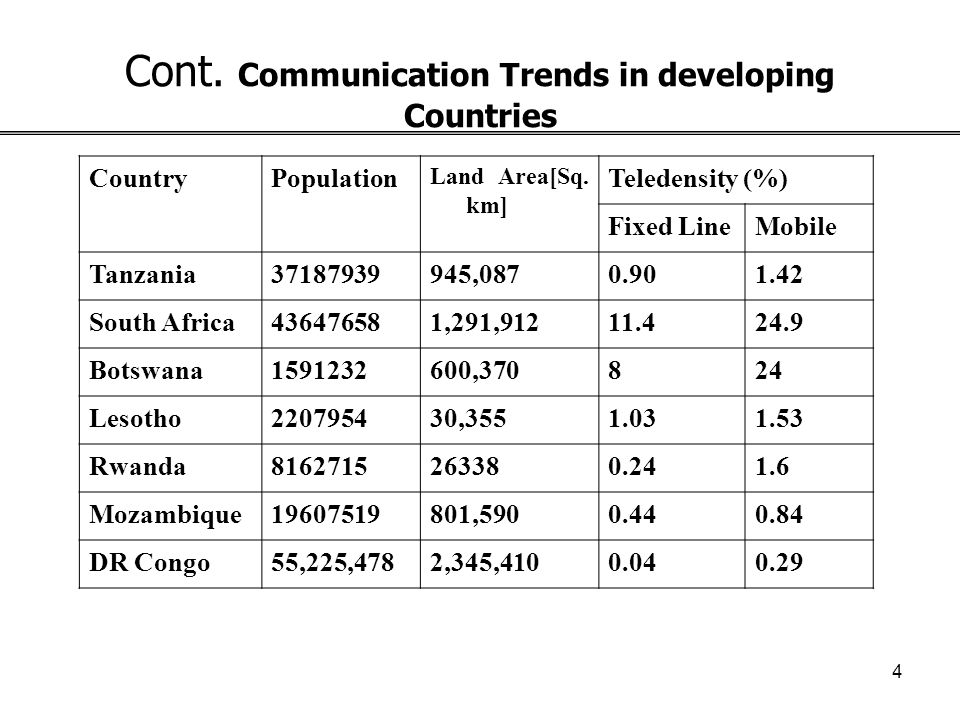

5 4 Cont. Communication Trends in developing Countries CountryPopulation Land Area[Sq. km] Teledensity (%) Fixed LineMobile Tanzania , South Africa ,291, Botswana , Lesotho , Rwanda Mozambique , DR Congo55,225,4782,345,

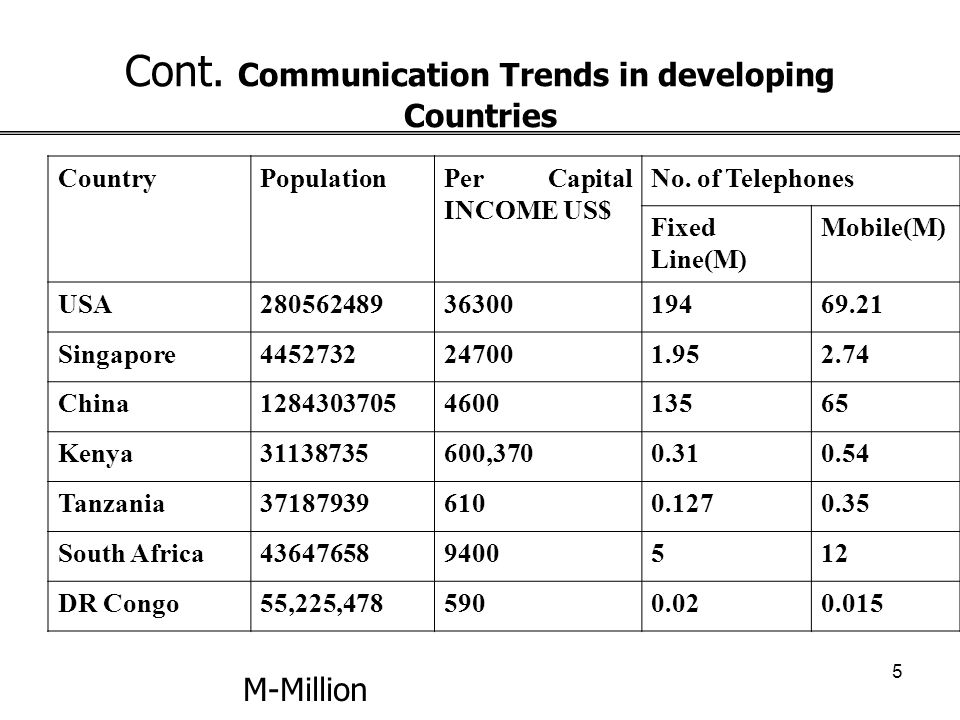

6 5 Cont. Communication Trends in developing Countries CountryPopulationPer Capital INCOME US$ No. of Telephones Fixed Line(M) Mobile(M) USA Singapore China Kenya , Tanzania South Africa DR Congo55,225, M-Million

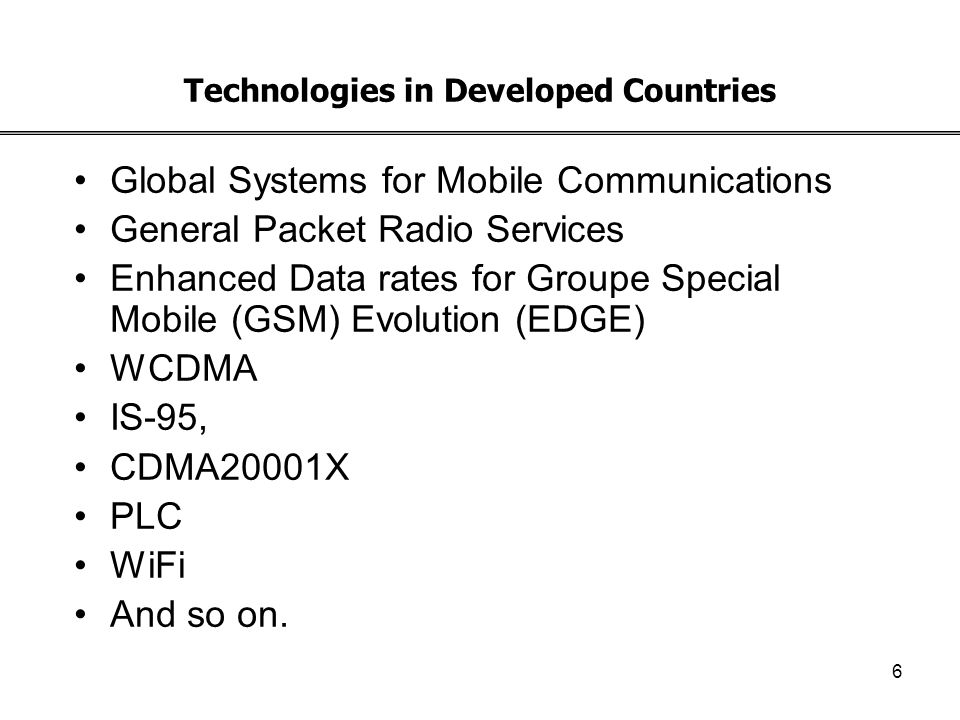

7 6 Technologies in Developed Countries Global Systems for Mobile Communications General Packet Radio Services Enhanced Data rates for Groupe Special Mobile (GSM) Evolution (EDGE) WCDMA IS-95, CDMA20001X PLC WiFi And so on.

8 7 Can technologies in developed countries be transferred to developing World? Most are saying No Some are saying may be why? Investments done in GSM in some of the countries Initial investment of technologies like 3G technologies Regulation Issues

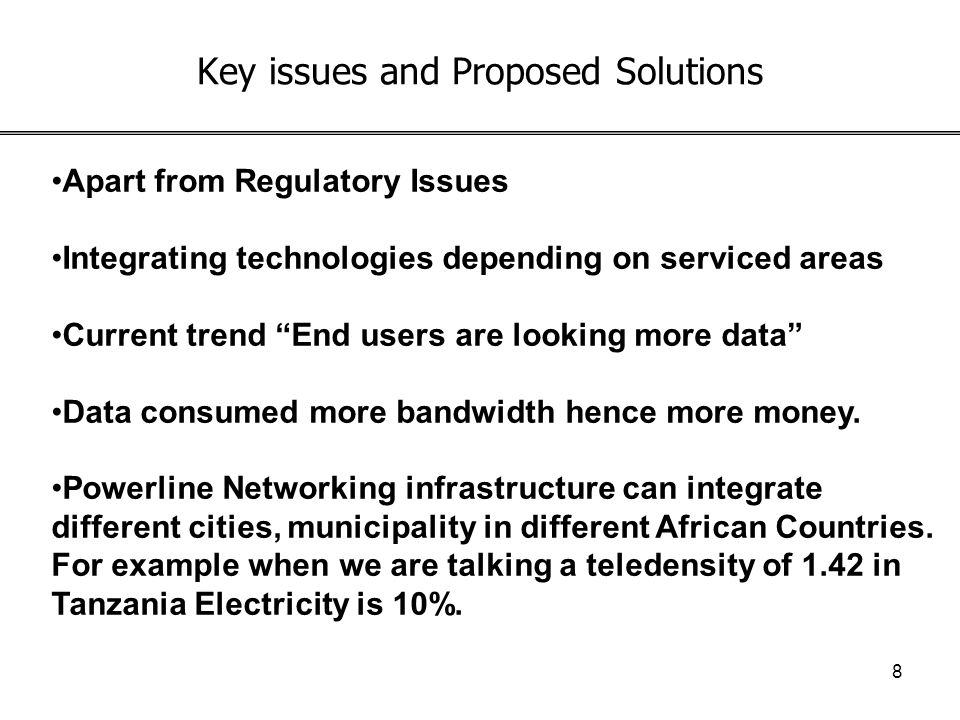

9 8 Key issues and Proposed Solutions Apart from Regulatory Issues Integrating technologies depending on serviced areas Current trend End users are looking more data Data consumed more bandwidth hence more money. Powerline Networking infrastructure can integrate different cities, municipality in different African Countries. For example when we are talking a teledensity of 1.42 in Tanzania Electricity is 10%.

10 9 Current Trends in Powerline Communication Open PLC European Research Alliance (OPERA) Project target (200Mbps in the second phase): Strategic objective of OPERA project is to offer low cost broadband access services to all European citizens using PLC. First phase ( ). Standard and compatibility. PLC Commercial Deployment of Iberdrola: PLC600 offers up to 600kbps upstream and up to 600kbps downstream with tariff competing with ADSL tariff for the 256/128kbps services. PLC Commercial Deployment of ENDESA (20Mbps VoPLC) have covered 20,000 homes in Spain, Internet Access over 2Mbps. PLC cost competitive with ADSL. PLC technology of DS2. 1 st generation 45Mbps, now DSS900X is a 200Mbps Digital Modem ICs. High Speed Powerline Communication Network by Korea Electrotechnology Research Institute (KERI) is (2Mbps-45Mbps)

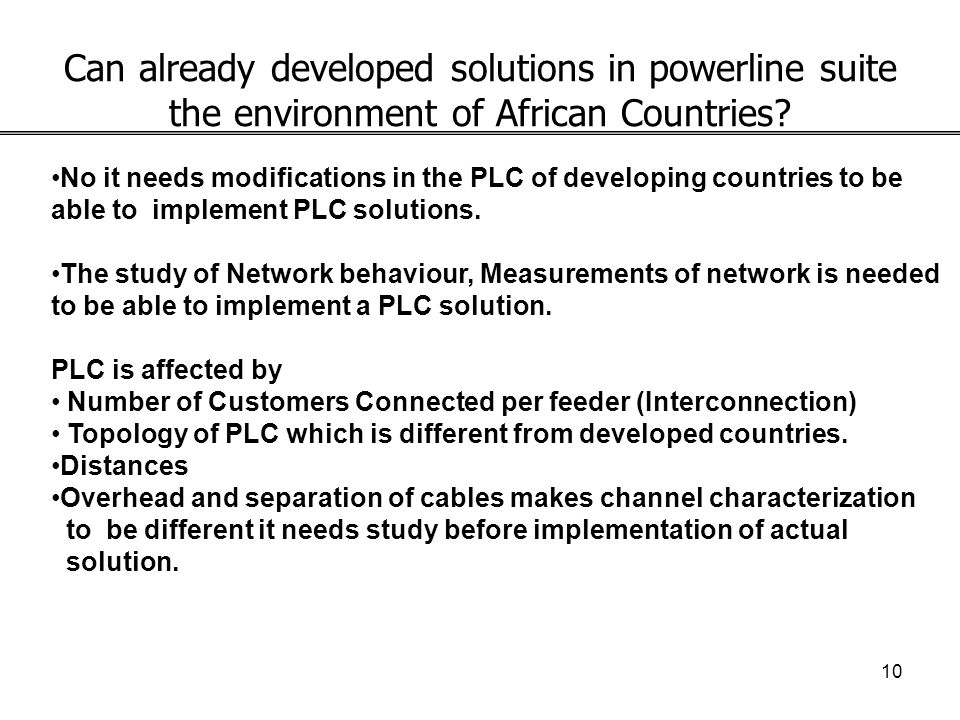

11 10 Can already developed solutions in powerline suite the environment of African Countries? No it needs modifications in the PLC of developing countries to be able to implement PLC solutions. The study of Network behaviour, Measurements of network is needed to be able to implement a PLC solution. PLC is affected by Number of Customers Connected per feeder (Interconnection) Topology of PLC which is different from developed countries. Distances Overhead and separation of cables makes channel characterization to be different it needs study before implementation of actual solution.

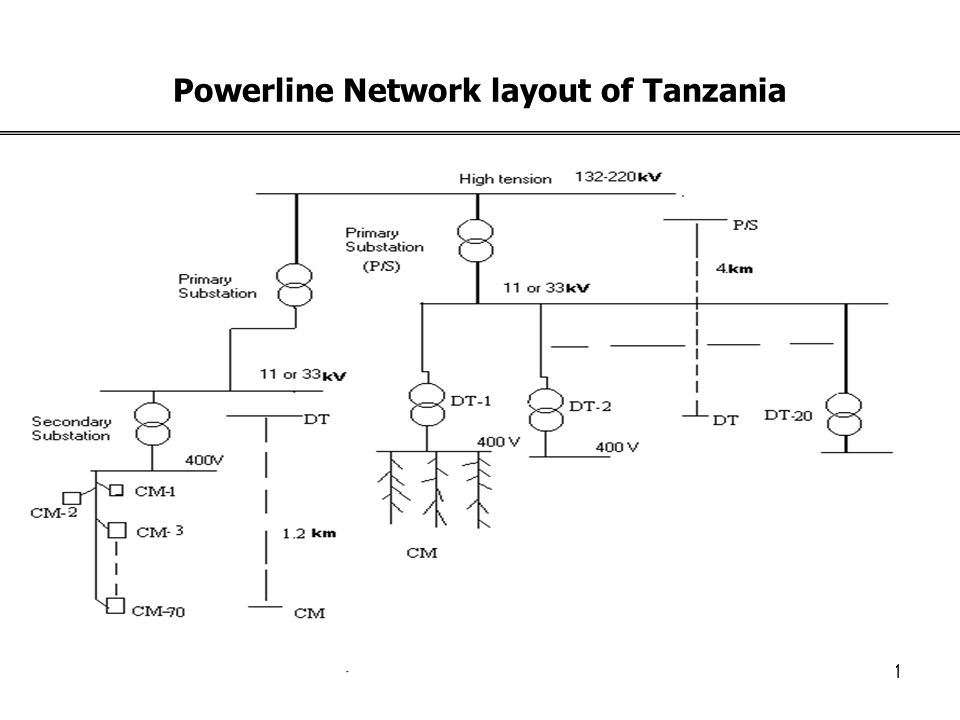

12 11 Powerline Network layout of Tanzania

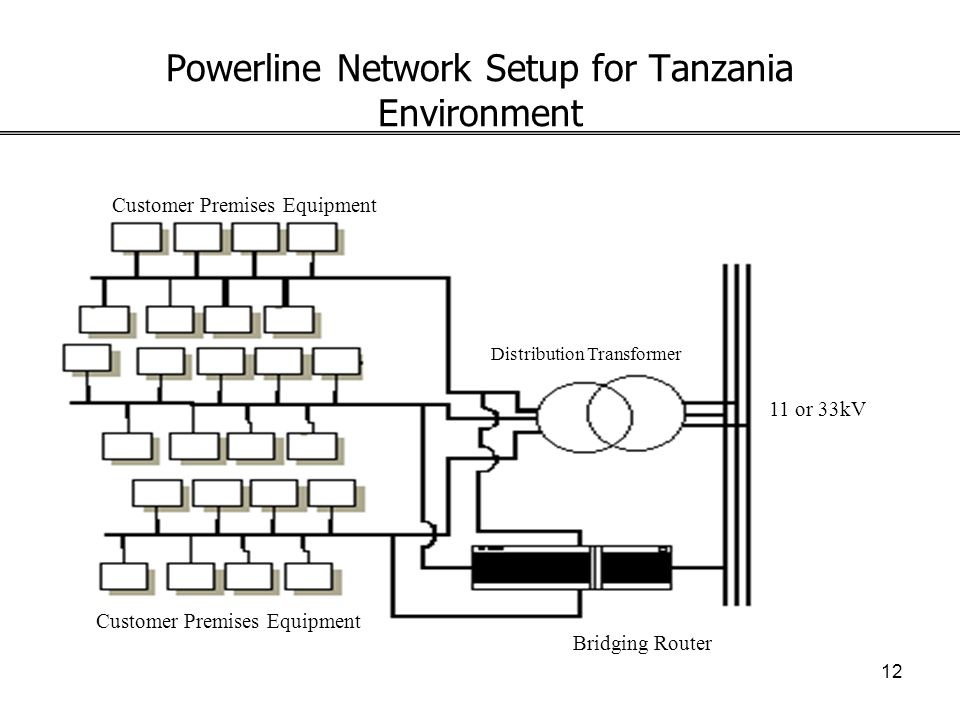

13 12 Powerline Network Setup for Tanzania Environment Customer Premises Equipment Bridging Router Distribution Transformer 11 or 33kV

14 13 Cont. Powerline Network Setup for Tanzania Environment Key: N1,N2, N3: Subnets R1, R2, R3: Bridging Routers SR: Service Router

15 14 Cont. Powerline Network Setup for Tanzania Environment

16 15 Cont. The role of the Faculty of ECSE, UDSM to develop and deploy PLC solution in Tanzania. Our Aim is to have a Pilot project of Powerline Communication in Tanzania with the AIM of ICT Accessibility for all with Electricity. We have identified the areas whereby most of Cities like Mwanza and Municipality such as Iringa, Mbeya and Others where PLC solution can be Implemented PLC can be deployed and Many users be Connected to world Internet and making calls We have Communicated with Industries such as Korea Electrotechnology Research Institute (KERI) to see the possibility of Taking our results and develop PLC for Tanzania. We are looking other Companies and donors to extend the PLC project and make the Powerline communication real in Tanzania.

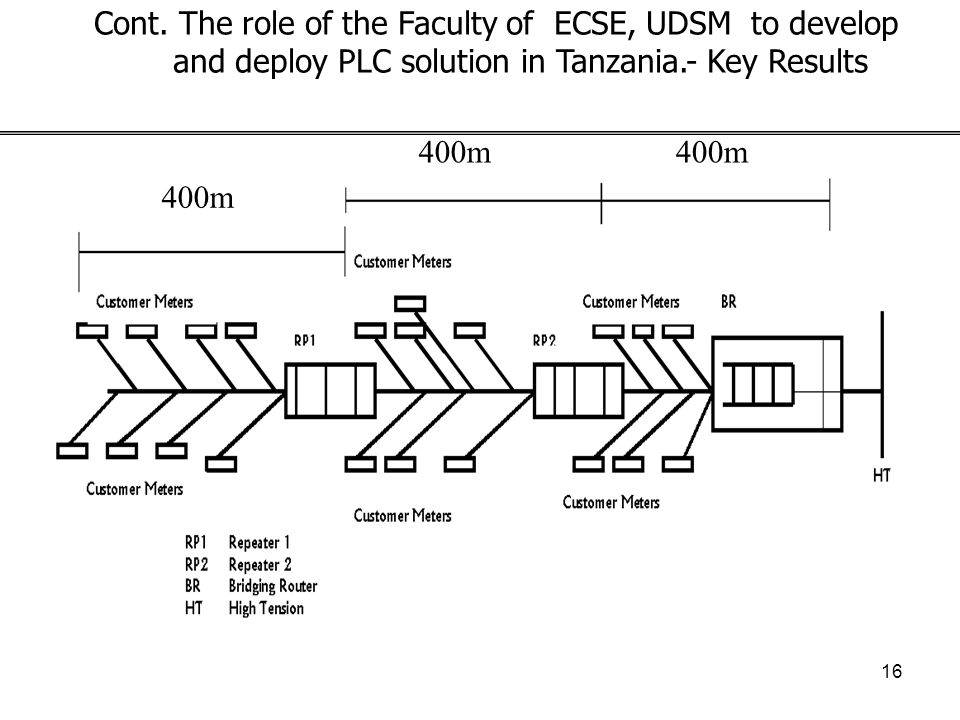

17 16 400m Cont. The role of the Faculty of ECSE, UDSM to develop and deploy PLC solution in Tanzania.- Key Results

18 17 Bridging Routers to Primary Router

19 18 Cont- The role of the Faculty of ECSE, UDSM to develop and deploy PLC solution in Tanzania.- Problems facing us Measurements Equipments for PLC Funds for field work Financial for implementation of a pilot project.

20 19 Conclusion PLC Network can enhance the break through the digital divide and accessibility of ICT in African countries. The Project is ICT Accessibility for all with Electricity in Tanzania.

21 20 %Powerline data Communication has the potential to empower many people because data is Information and information is power% %END%
