A Proposal of Capacity and Performance Assured Storage in The PRAGMA Grid Testbed Yusuke Tanimura 1) Hidetaka Koie 1,2) Tomohiro Kudoh 1) Isao Kojima 1) and Yoshio Tanaka 1) 1) National Institute of AIST, Japan 2) SURIGIKEN Co., Ltd.

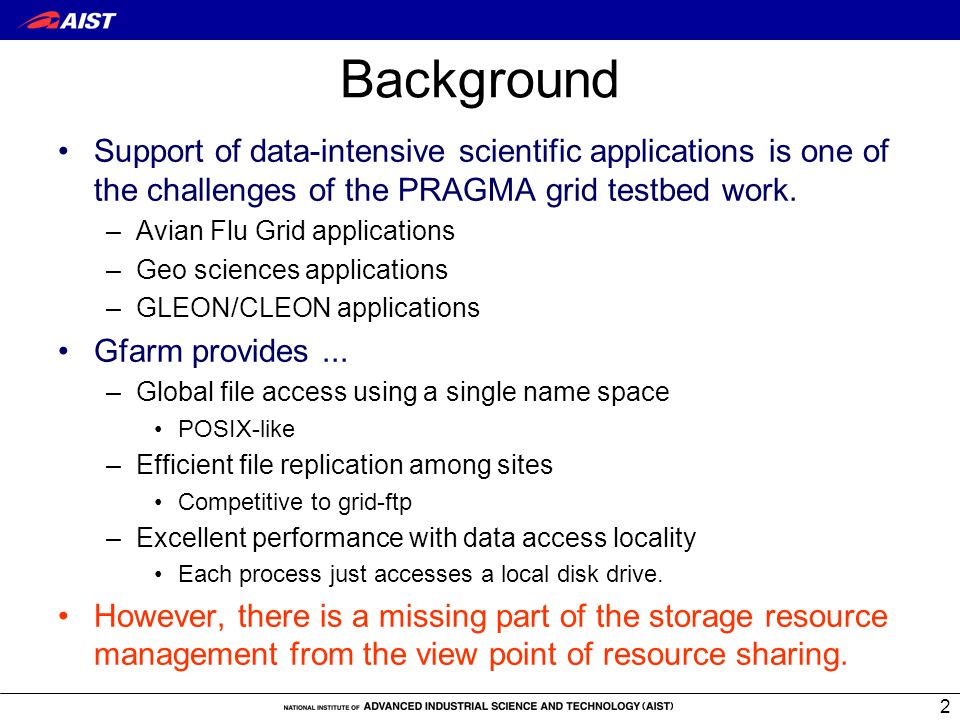

2 Background Support of data-intensive scientific applications is one of the challenges of the PRAGMA grid testbed work. –Avian Flu Grid applications –Geo sciences applications –GLEON/CLEON applications Gfarm provides... –Global file access using a single name space POSIX-like –Efficient file replication among sites Competitive to grid-ftp –Excellent performance with data access locality Each process just accesses a local disk drive. However, there is a missing part of the storage resource management from the view point of resource sharing.

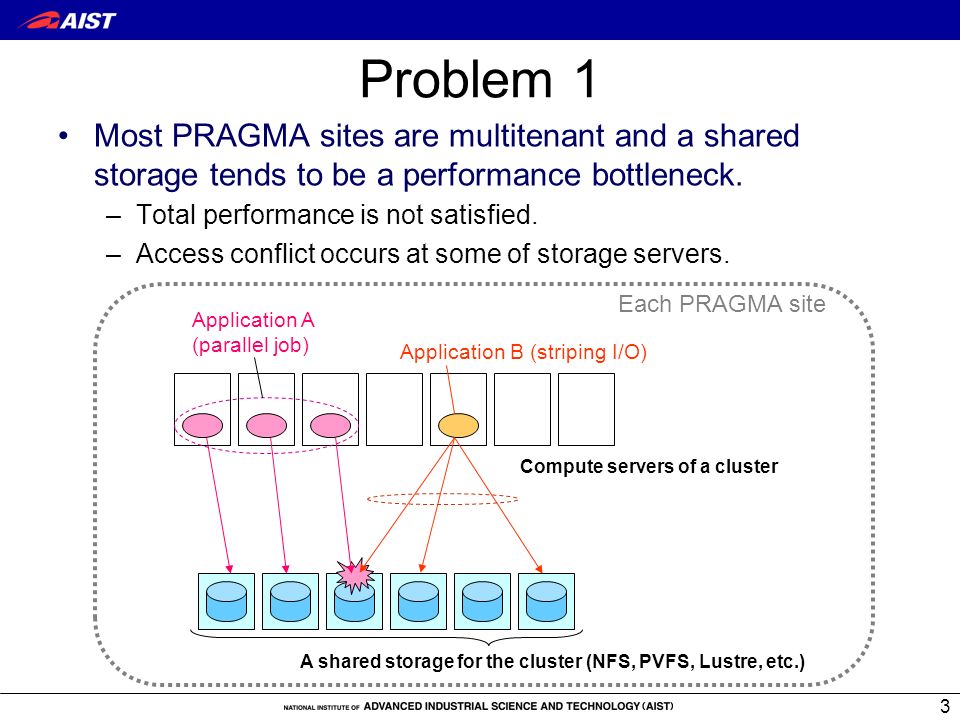

3 Problem 1 Most PRAGMA sites are multitenant and a shared storage tends to be a performance bottleneck. –Total performance is not satisfied. –Access conflict occurs at some of storage servers. Application A (parallel job) Compute servers of a cluster A shared storage for the cluster (NFS, PVFS, Lustre, etc.) Application B (striping I/O) Each PRAGMA site
4 Problem 2 Using a remote storage over the Internet is required in some use cases but... –The remote storage is not fast enough, the performance is unpredictable, or the disk space is not enough. –On the other hand, high-bandwidth or bandwidth-guaranteed dynamic network (Ex. lambda paths) is available. x x x x x Lambda path network Site C x Storage x x Client Performance? Disk space? Site B Site A

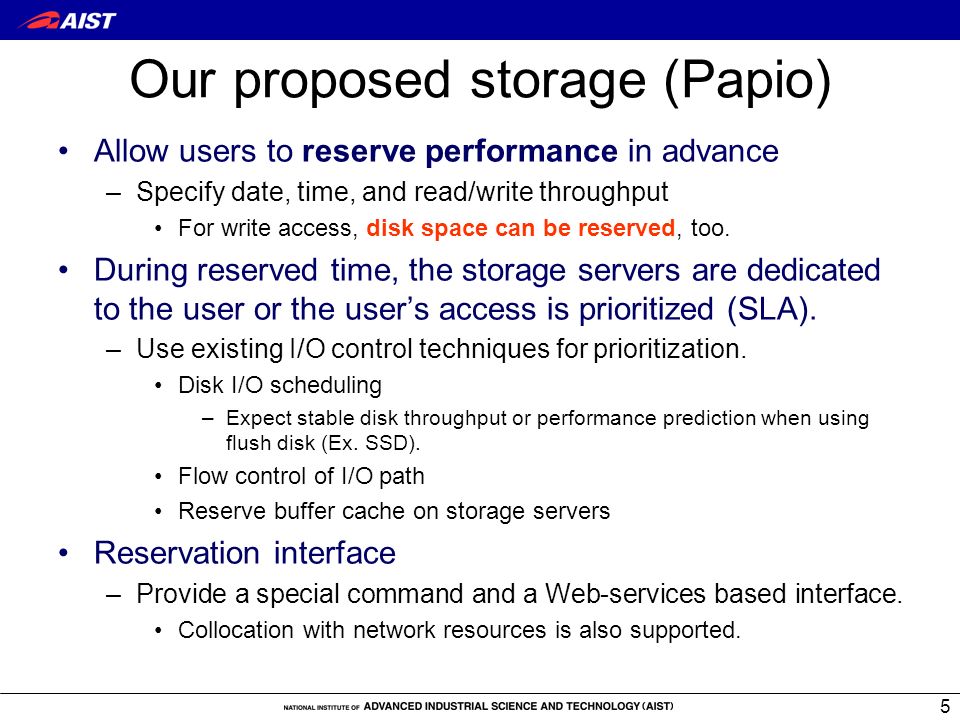

5 Our proposed storage (Papio) Allow users to reserve performance in advance –Specify date, time, and read/write throughput For write access, disk space can be reserved, too. During reserved time, the storage servers are dedicated to the user or the users access is prioritized (SLA). –Use existing I/O control techniques for prioritization. Disk I/O scheduling –Expect stable disk throughput or performance prediction when using flush disk (Ex. SSD). Flow control of I/O path Reserve buffer cache on storage servers Reservation interface –Provide a special command and a Web-services based interface. Collocation with network resources is also supported.

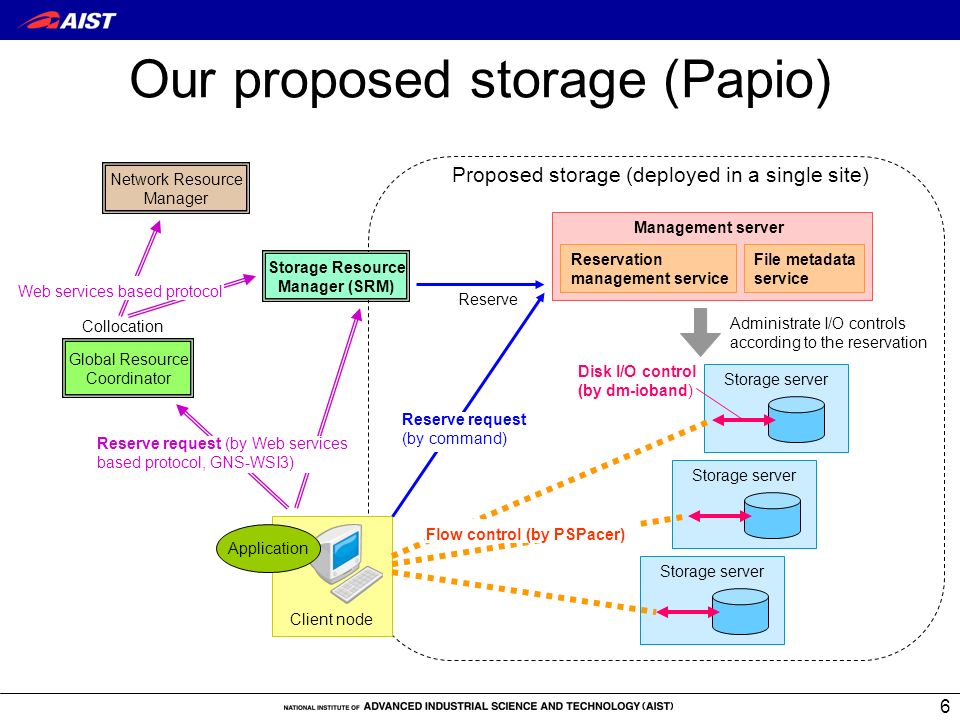

6 Our proposed storage (Papio) File metadata service Reservation management service Storage server Reserve request (by command) Client node Management server Global Resource Coordinator Network Resource Manager Storage Resource Manager (SRM) Collocation Web services based protocol Storage server Flow control (by PSPacer) Disk I/O control (by dm-ioband) Administrate I/O controls according to the reservation Reserve Reserve request (by Web services based protocol, GNS-WSI3) Proposed storage (deployed in a single site) Application

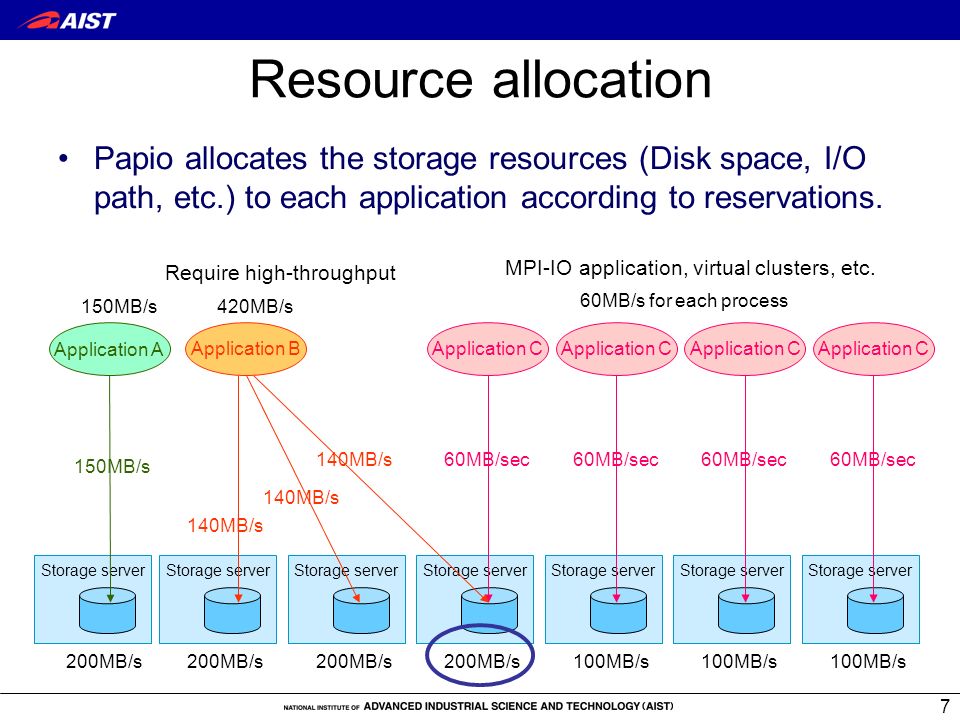

7 Resource allocation Papio allocates the storage resources (Disk space, I/O path, etc.) to each application according to reservations. Storage server 200MB/s 100MB/s Application A 150MB/s Application C 60MB/sec 60MB/s for each process MPI-IO application, virtual clusters, etc. Application B 420MB/s 140MB/s Require high-throughput

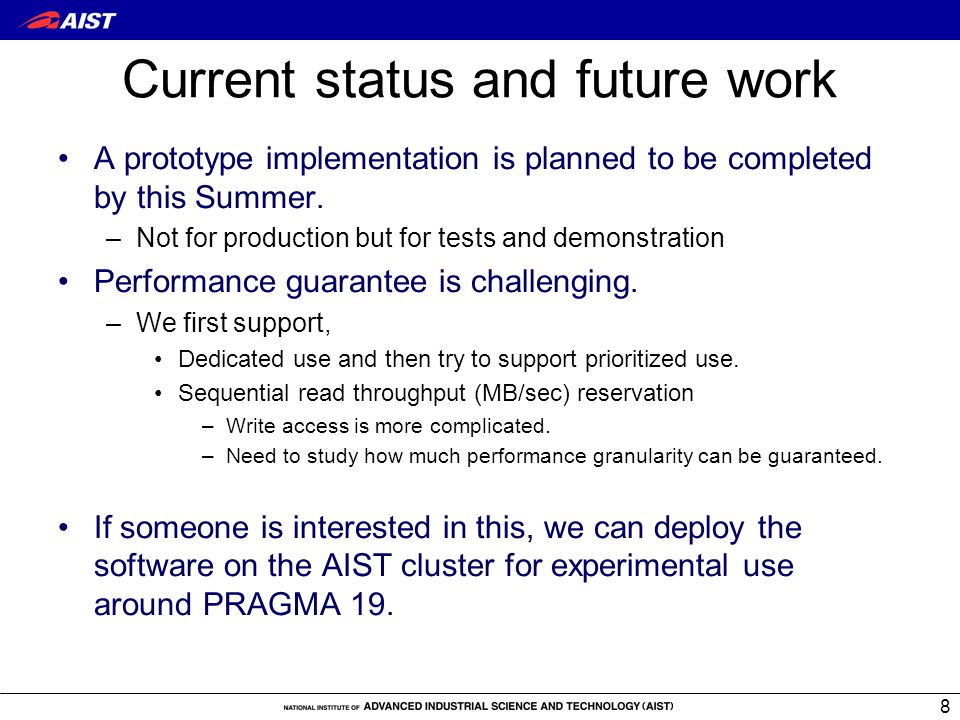

8 Current status and future work A prototype implementation is planned to be completed by this Summer. –Not for production but for tests and demonstration Performance guarantee is challenging. –We first support, Dedicated use and then try to support prioritized use. Sequential read throughput (MB/sec) reservation –Write access is more complicated. –Need to study how much performance granularity can be guaranteed. If someone is interested in this, we can deploy the software on the AIST cluster for experimental use around PRAGMA 19.
9 Acknowledgement A part of this research is supported by the Special Coordination Funds for Promoting Science and Technology of Ministry of Education, Culture, Sports, Science and Technology (MEXT) in Japan.
