1. Chapter 1: IntroductionDhamdhere: Operating Systems— A Concept-Based Approach, 2 ed Slide No: 1 Copyright © 2008 Introduction Chapter 1

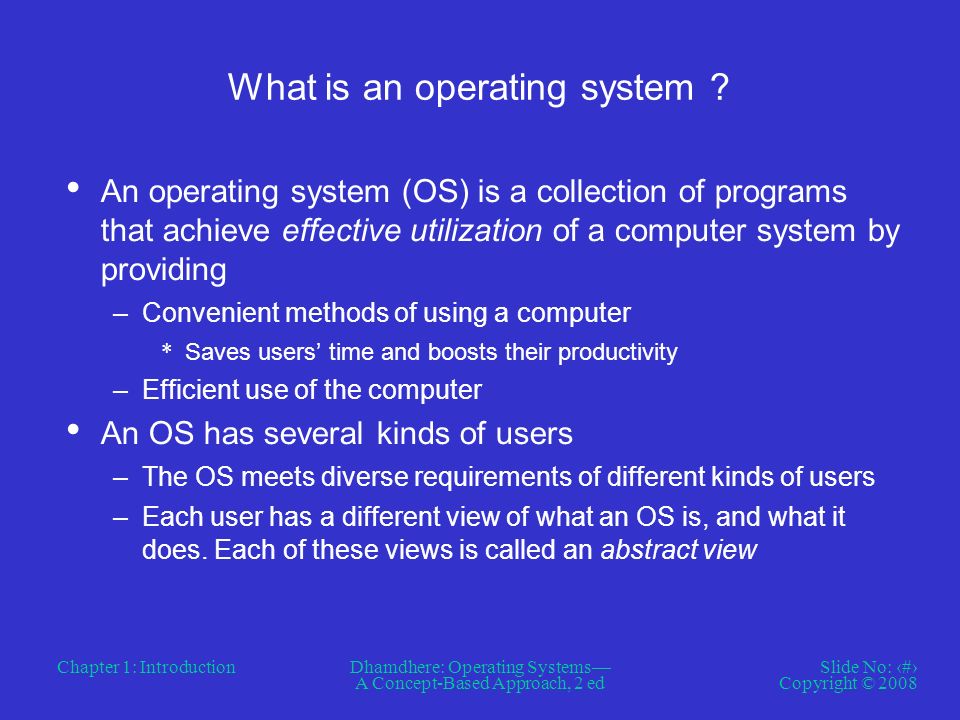

2. Chapter 1: IntroductionDhamdhere: Operating Systems— A Concept-Based Approach, 2 ed Slide No: 2 Copyright © 2008 What is an operating system ? An operating system (OS) is a collection of programs that achieve effective utilization of a computer system by providing –Convenient methods of using a computer * Saves users’ time and boosts their productivity –Efficient use of the computer An OS has several kinds of users –The OS meets diverse requirements of different kinds of users –Each user has a different view of what an OS is, and what it does. Each of these views is called an abstract view

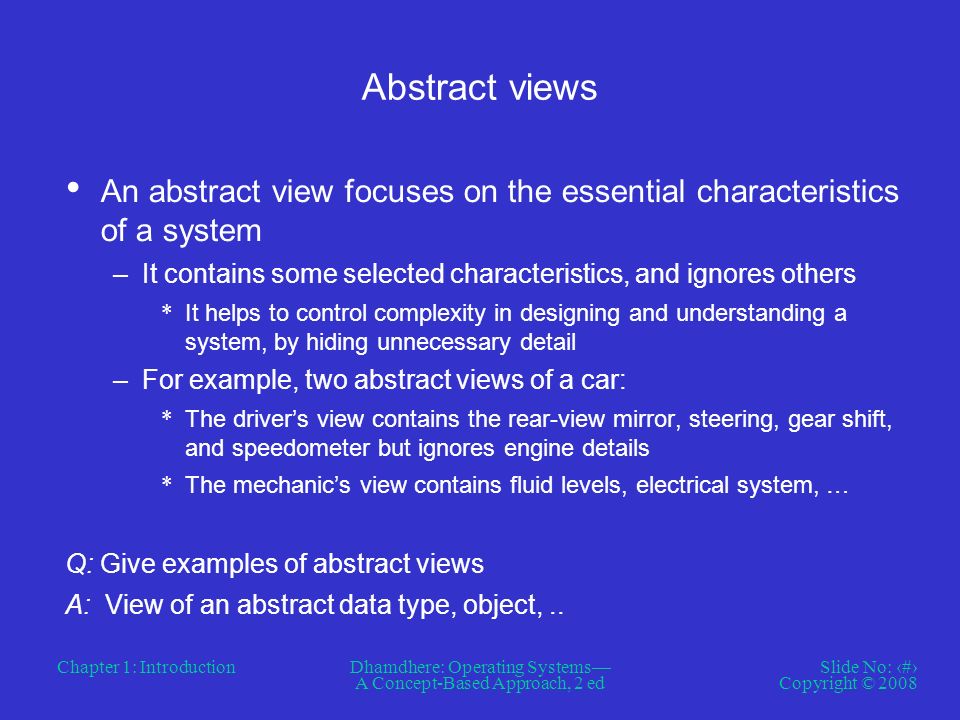

3. Chapter 1: IntroductionDhamdhere: Operating Systems— A Concept-Based Approach, 2 ed Slide No: 3 Copyright © 2008 Abstract views An abstract view focuses on the essential characteristics of a system –It contains some selected characteristics, and ignores others * It helps to control complexity in designing and understanding a system, by hiding unnecessary detail –For example, two abstract views of a car: * The driver’s view contains the rear-view mirror, steering, gear shift, and speedometer but ignores engine details * The mechanic’s view contains fluid levels, electrical system, … Q: Give examples of abstract views A: View of an abstract data type, object,..

4. Chapter 1: IntroductionDhamdhere: Operating Systems— A Concept-Based Approach, 2 ed Slide No: 4 Copyright © 2008 Abstract views Abstract views are used in –Software requirements specification * Specify what functions a system should perform  The abstract view of a specific function helps in understanding the system data and fundamental operations on them –Software design and implementation * ‘Hiding’ the details of functions and subsystems while designing or implementing other functions and subsystems helps to control complexity

5. Chapter 1: IntroductionDhamdhere: Operating Systems— A Concept-Based Approach, 2 ed Slide No: 5 Copyright © 2008 A designer’s abstract view of an OS User interface: Accepts commands from users: GUI, command line interface Non-kernel programs: Implement user commands Kernel: Core of the OS ─controls the computer, provides functions & services

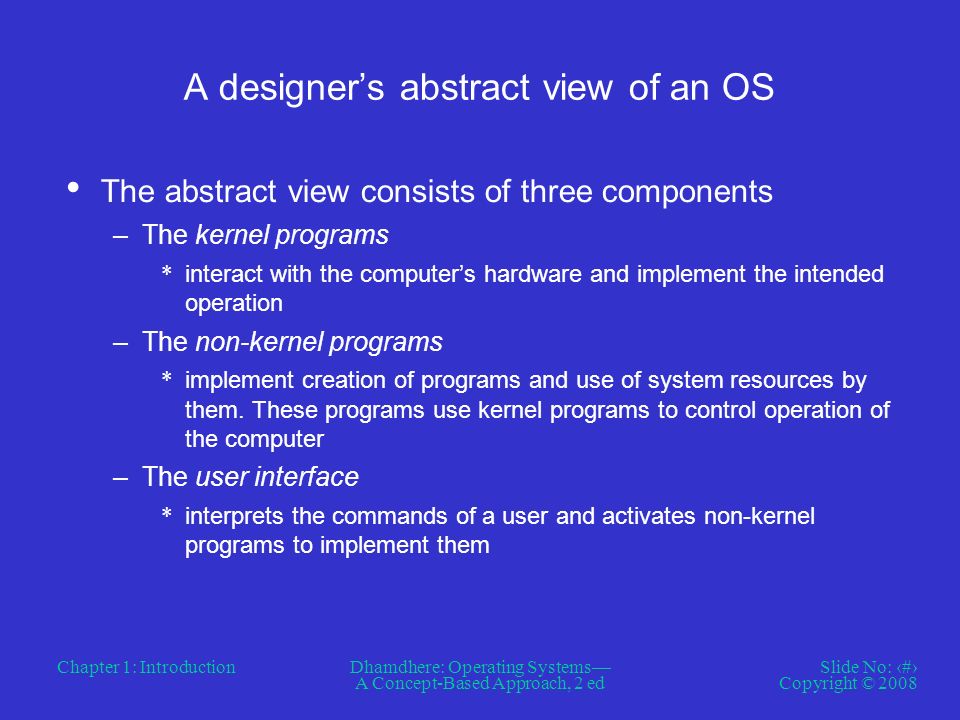

6. Chapter 1: IntroductionDhamdhere: Operating Systems— A Concept-Based Approach, 2 ed Slide No: 6 Copyright © 2008 A designer’s abstract view of an OS The abstract view consists of three components –The kernel programs * interact with the computer’s hardware and implement the intended operation –The non-kernel programs * implement creation of programs and use of system resources by them. These programs use kernel programs to control operation of the computer –The user interface * interprets the commands of a user and activates non-kernel programs to implement them

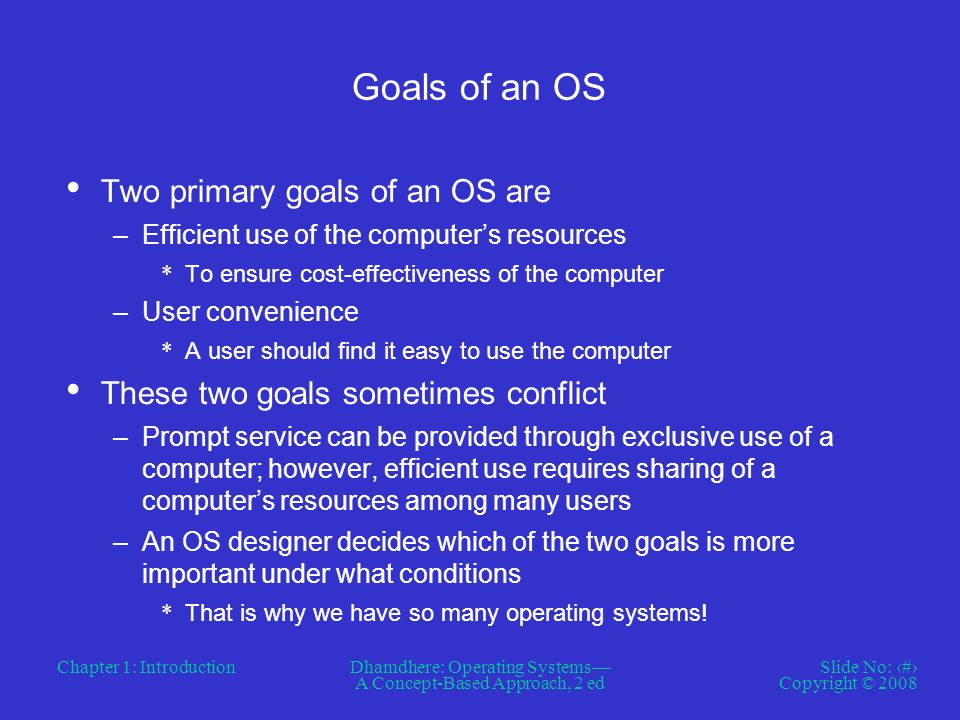

7. Chapter 1: IntroductionDhamdhere: Operating Systems— A Concept-Based Approach, 2 ed Slide No: 7 Copyright © 2008 Goals of an OS Two primary goals of an OS are –Efficient use of the computer’s resources * To ensure cost-effectiveness of the computer –User convenience * A user should find it easy to use the computer These two goals sometimes conflict –Prompt service can be provided through exclusive use of a computer; however, efficient use requires sharing of a computer’s resources among many users –An OS designer decides which of the two goals is more important under what conditions * That is why we have so many operating systems!

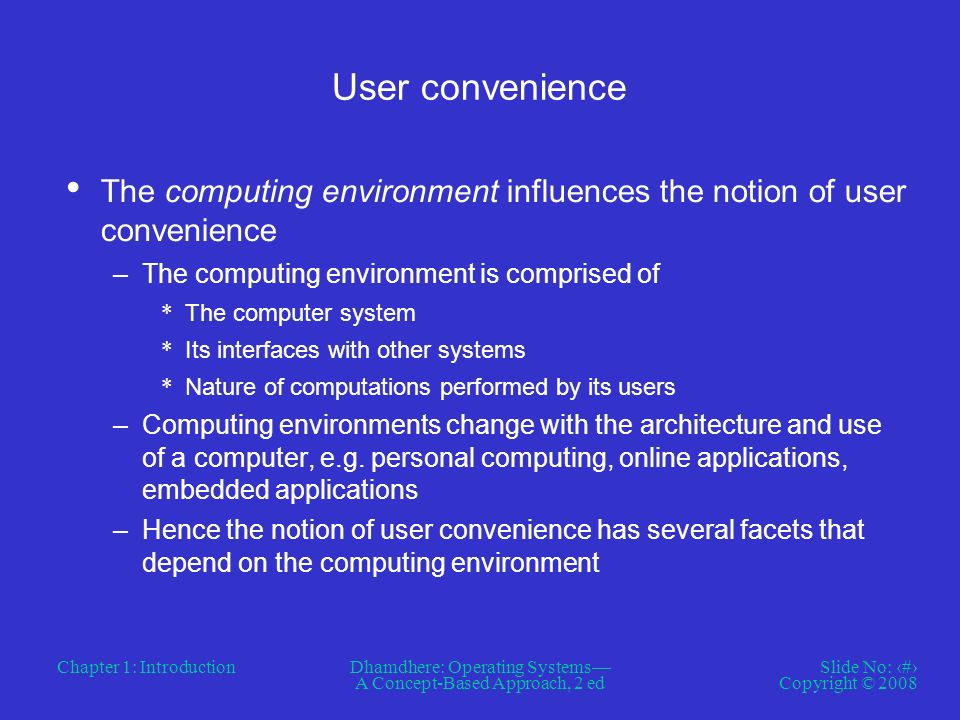

8. Chapter 1: IntroductionDhamdhere: Operating Systems— A Concept-Based Approach, 2 ed Slide No: 8 Copyright © 2008 User convenience The computing environment influences the notion of user convenience –The computing environment is comprised of * The computer system * Its interfaces with other systems * Nature of computations performed by its users –Computing environments change with the architecture and use of a computer, e.g. personal computing, online applications, embedded applications –Hence the notion of user convenience has several facets that depend on the computing environment

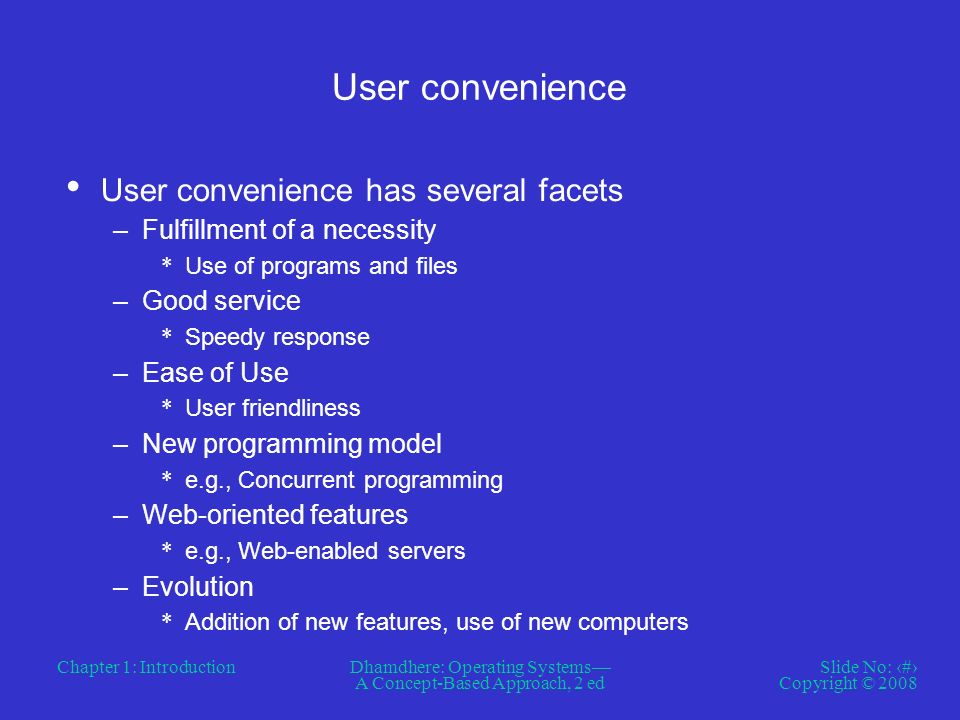

9. Chapter 1: IntroductionDhamdhere: Operating Systems— A Concept-Based Approach, 2 ed Slide No: 9 Copyright © 2008 User convenience User convenience has several facets –Fulfillment of a necessity * Use of programs and files –Good service * Speedy response –Ease of Use * User friendliness –New programming model * e.g., Concurrent programming –Web-oriented features * e.g., Web-enabled servers –Evolution * Addition of new features, use of new computers

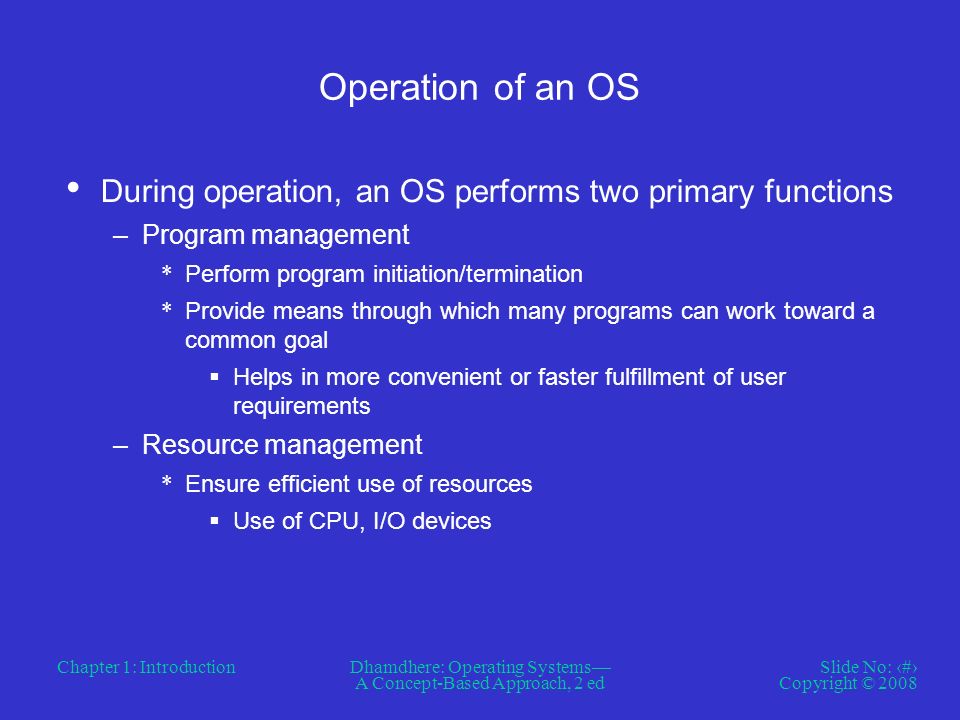

10. Chapter 1: IntroductionDhamdhere: Operating Systems— A Concept-Based Approach, 2 ed Slide No: 10 Copyright © 2008 Operation of an OS During operation, an OS performs two primary functions –Program management * Perform program initiation/termination * Provide means through which many programs can work toward a common goal  Helps in more convenient or faster fulfillment of user requirements –Resource management * Ensure efficient use of resources  Use of CPU, I/O devices

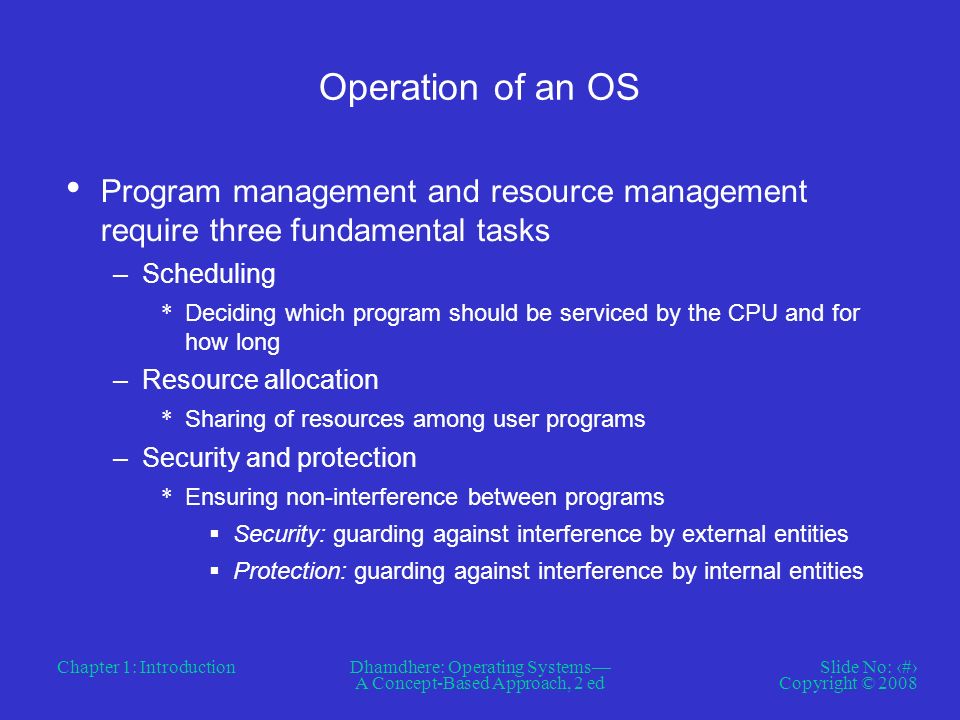

11. Chapter 1: IntroductionDhamdhere: Operating Systems— A Concept-Based Approach, 2 ed Slide No: 11 Copyright © 2008 Operation of an OS Program management and resource management require three fundamental tasks –Scheduling * Deciding which program should be serviced by the CPU and for how long –Resource allocation * Sharing of resources among user programs –Security and protection * Ensuring non-interference between programs  Security: guarding against interference by external entities  Protection: guarding against interference by internal entities

12. Chapter 1: IntroductionDhamdhere: Operating Systems— A Concept-Based Approach, 2 ed Slide No: 12 Copyright © 2008 Operation of an OS To facilitate scheduling, resource management, and security and protection –OS maintains various kinds of information to facilitate operation * Names of registered users * identity of a user who is executing a specific program * status of a program * status of a resource * which users can access a resource –OS performs several tasks repeatedly to implement scheduling, resource management, and security and protection

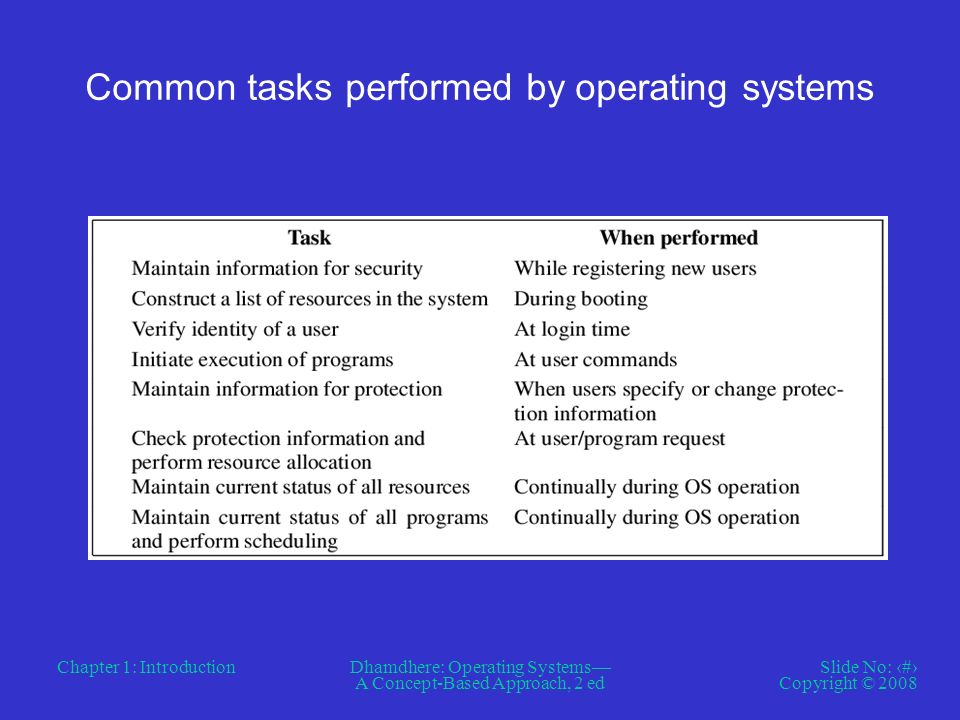

13. Chapter 1: IntroductionDhamdhere: Operating Systems— A Concept-Based Approach, 2 ed Slide No: 13 Copyright © 2008 Common tasks performed by operating systems

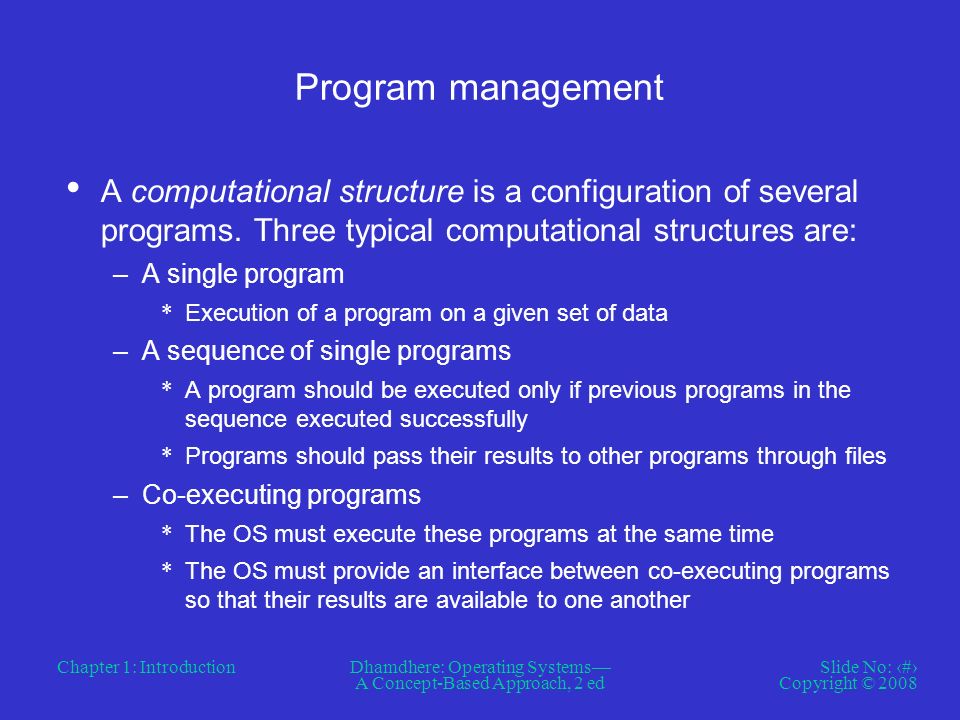

14. Chapter 1: IntroductionDhamdhere: Operating Systems— A Concept-Based Approach, 2 ed Slide No: 14 Copyright © 2008 Program management A computational structure is a configuration of several programs. Three typical computational structures are: –A single program * Execution of a program on a given set of data –A sequence of single programs * A program should be executed only if previous programs in the sequence executed successfully * Programs should pass their results to other programs through files –Co-executing programs * The OS must execute these programs at the same time * The OS must provide an interface between co-executing programs so that their results are available to one another

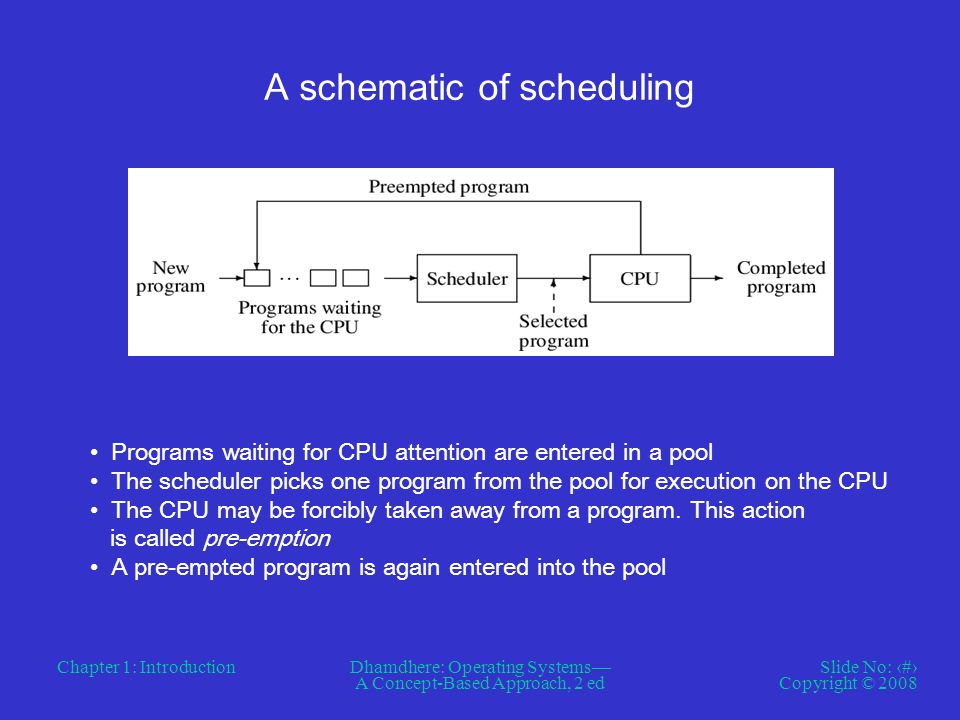

15. Chapter 1: IntroductionDhamdhere: Operating Systems— A Concept-Based Approach, 2 ed Slide No: 15 Copyright © 2008 A schematic of scheduling Programs waiting for CPU attention are entered in a pool The scheduler picks one program from the pool for execution on the CPU The CPU may be forcibly taken away from a program. This action is called pre-emption A pre-empted program is again entered into the pool

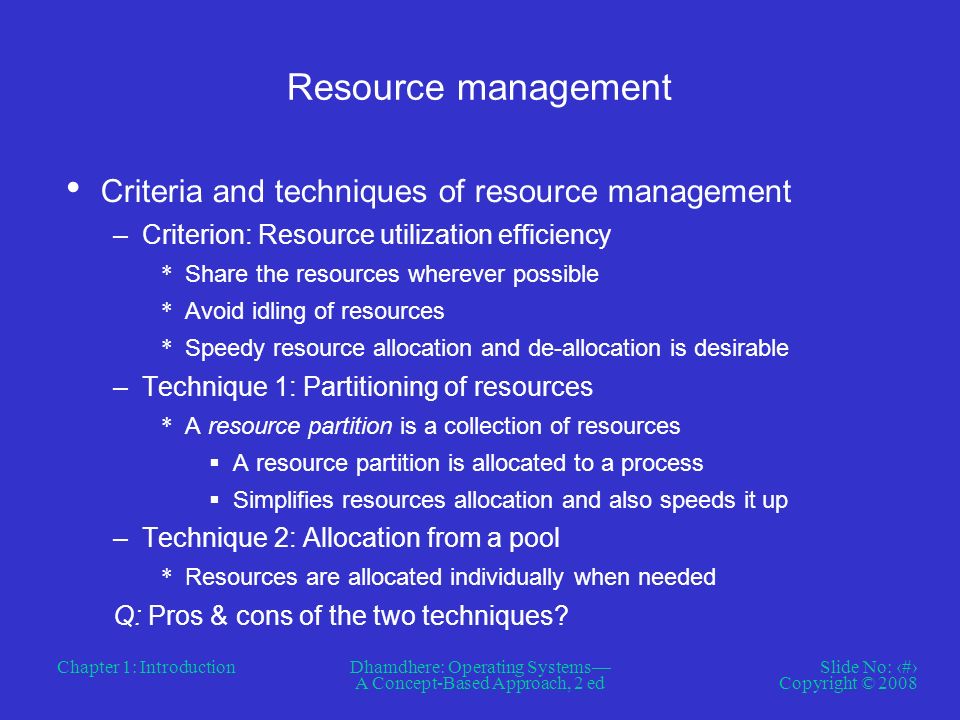

16. Chapter 1: IntroductionDhamdhere: Operating Systems— A Concept-Based Approach, 2 ed Slide No: 16 Copyright © 2008 Resource management Criteria and techniques of resource management –Criterion: Resource utilization efficiency * Share the resources wherever possible * Avoid idling of resources * Speedy resource allocation and de-allocation is desirable –Technique 1: Partitioning of resources * A resource partition is a collection of resources  A resource partition is allocated to a process  Simplifies resources allocation and also speeds it up –Technique 2: Allocation from a pool * Resources are allocated individually when needed Q: Pros & cons of the two techniques?

17. Chapter 1: IntroductionDhamdhere: Operating Systems— A Concept-Based Approach, 2 ed Slide No: 17 Copyright © 2008 Virtual resources A virtual resource is an illusion presented to a program –A virtual resource is an abstraction; its implementation is hidden from a program –Use of virtual resources simplifies resource allocation * Virtual resources may be created if several programs need a resource. It permits more programs to execute at the same time –A virtual I/O device is a virtual resource * The OS implements a virtual device as follows:  When a program performs an operation on a virtual device, the operation may be actually performed on some real resource * Example: virtual printer  When a program ‘prints’ on a virtual printer, the data is actually stored in memory; printing takes place sometime later

18. Chapter 1: IntroductionDhamdhere: Operating Systems— A Concept-Based Approach, 2 ed Slide No: 18 Copyright © 2008 Security and Protection An OS must ensure non-interference with users’ programs and data –Aspects of non-interference * Resources must not be used by un-authorized persons * There should be no interference with use of resources by authorized persons and their programs –Terminology * An intruder is a person or program that causes interference * Security measures avoid interference by non-users and their programs * Protection measures avoid interference by users and their programs

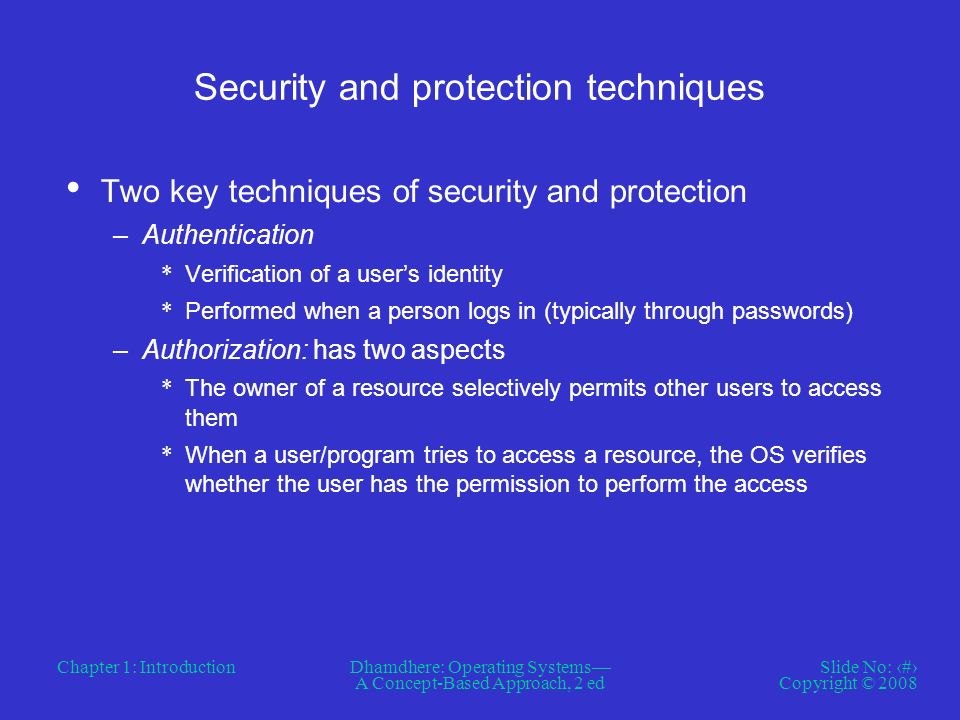

19. Chapter 1: IntroductionDhamdhere: Operating Systems— A Concept-Based Approach, 2 ed Slide No: 19 Copyright © 2008 Security and protection techniques Two key techniques of security and protection –Authentication * Verification of a user’s identity * Performed when a person logs in (typically through passwords) –Authorization: has two aspects * The owner of a resource selectively permits other users to access them * When a user/program tries to access a resource, the OS verifies whether the user has the permission to perform the access

20. Chapter 1: IntroductionDhamdhere: Operating Systems— A Concept-Based Approach, 2 ed Slide No: 20 Copyright © 2008 Overview of security and protection threats Authentication checks whether a person is a registered user Threats posed by non-users are security threats Threats posed by a user are protection threats

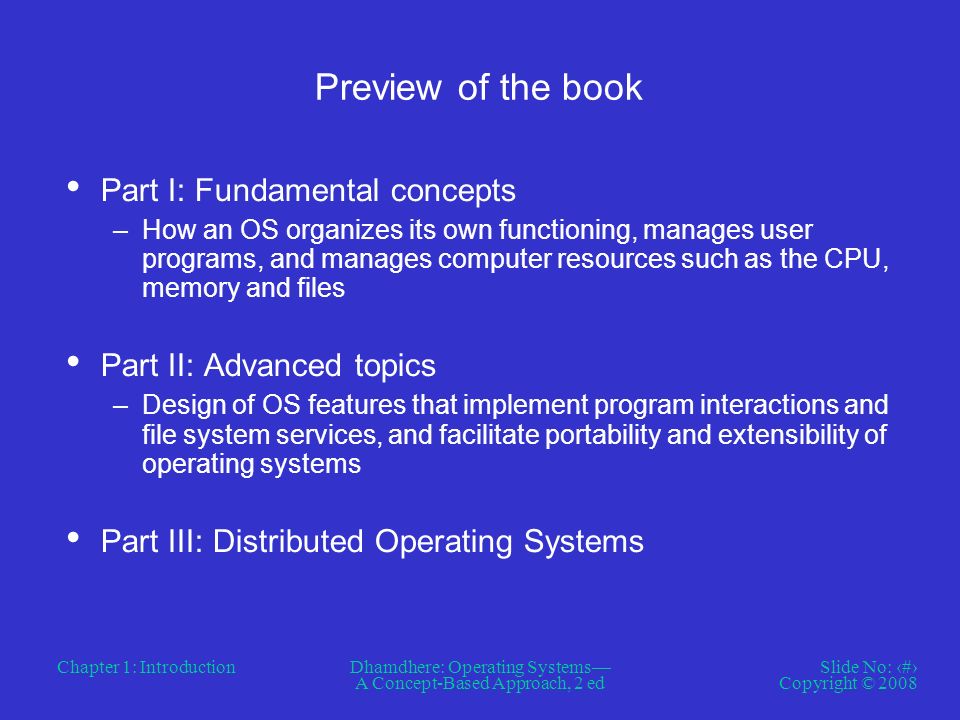

21. Chapter 1: IntroductionDhamdhere: Operating Systems— A Concept-Based Approach, 2 ed Slide No: 21 Copyright © 2008 Preview of the book Part I: Fundamental concepts –How an OS organizes its own functioning, manages user programs, and manages computer resources such as the CPU, memory and files Part II: Advanced topics –Design of OS features that implement program interactions and file system services, and facilitate portability and extensibility of operating systems Part III: Distributed Operating Systems

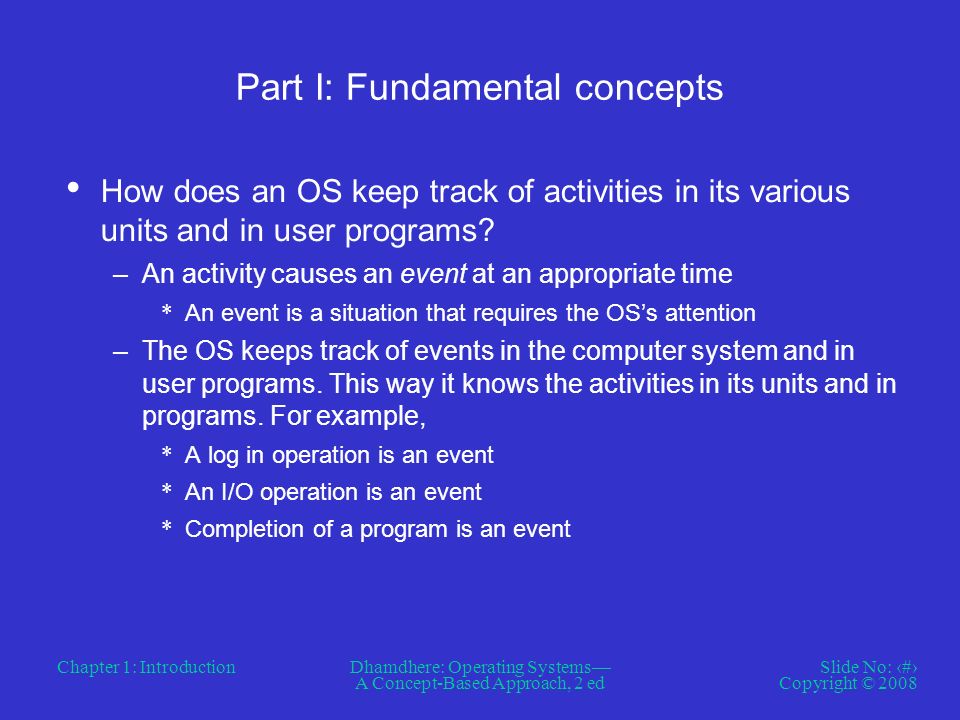

22. Chapter 1: IntroductionDhamdhere: Operating Systems— A Concept-Based Approach, 2 ed Slide No: 22 Copyright © 2008 Part I: Fundamental concepts How does an OS keep track of activities in its various units and in user programs? –An activity causes an event at an appropriate time * An event is a situation that requires the OS’s attention –The OS keeps track of events in the computer system and in user programs. This way it knows the activities in its units and in programs. For example, * A log in operation is an event * An I/O operation is an event * Completion of a program is an event

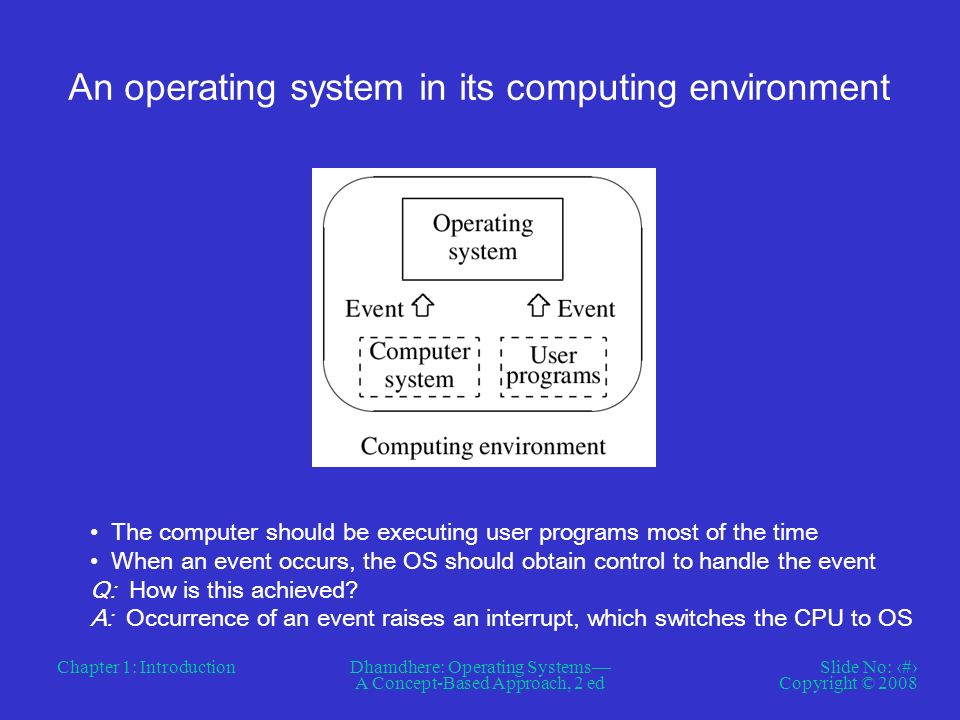

23. Chapter 1: IntroductionDhamdhere: Operating Systems— A Concept-Based Approach, 2 ed Slide No: 23 Copyright © 2008 An operating system in its computing environment The computer should be executing user programs most of the time When an event occurs, the OS should obtain control to handle the event Q: How is this achieved? A: Occurrence of an event raises an interrupt, which switches the CPU to OS

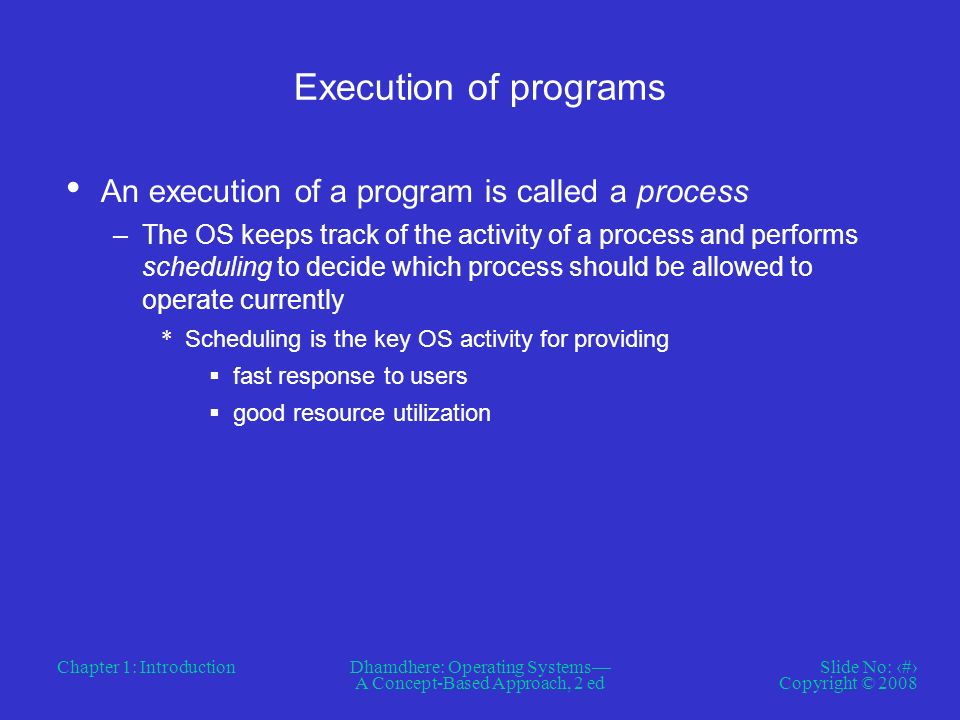

24. Chapter 1: IntroductionDhamdhere: Operating Systems— A Concept-Based Approach, 2 ed Slide No: 24 Copyright © 2008 Execution of programs An execution of a program is called a process –The OS keeps track of the activity of a process and performs scheduling to decide which process should be allowed to operate currently * Scheduling is the key OS activity for providing  fast response to users  good resource utilization

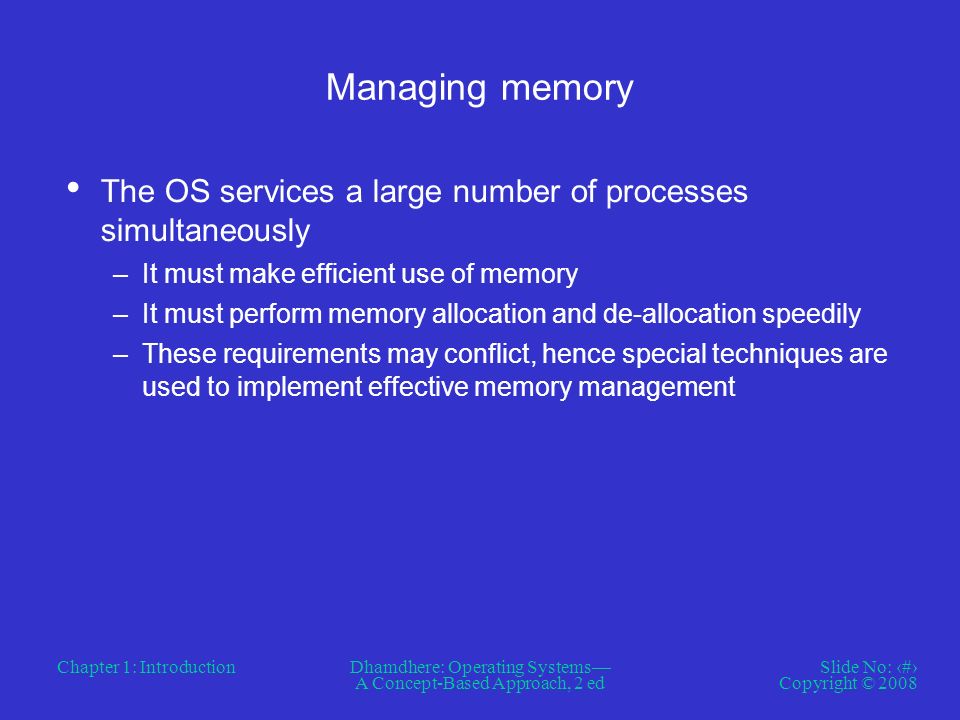

25. Chapter 1: IntroductionDhamdhere: Operating Systems— A Concept-Based Approach, 2 ed Slide No: 25 Copyright © 2008 Managing memory The OS services a large number of processes simultaneously –It must make efficient use of memory –It must perform memory allocation and de-allocation speedily –These requirements may conflict, hence special techniques are used to implement effective memory management

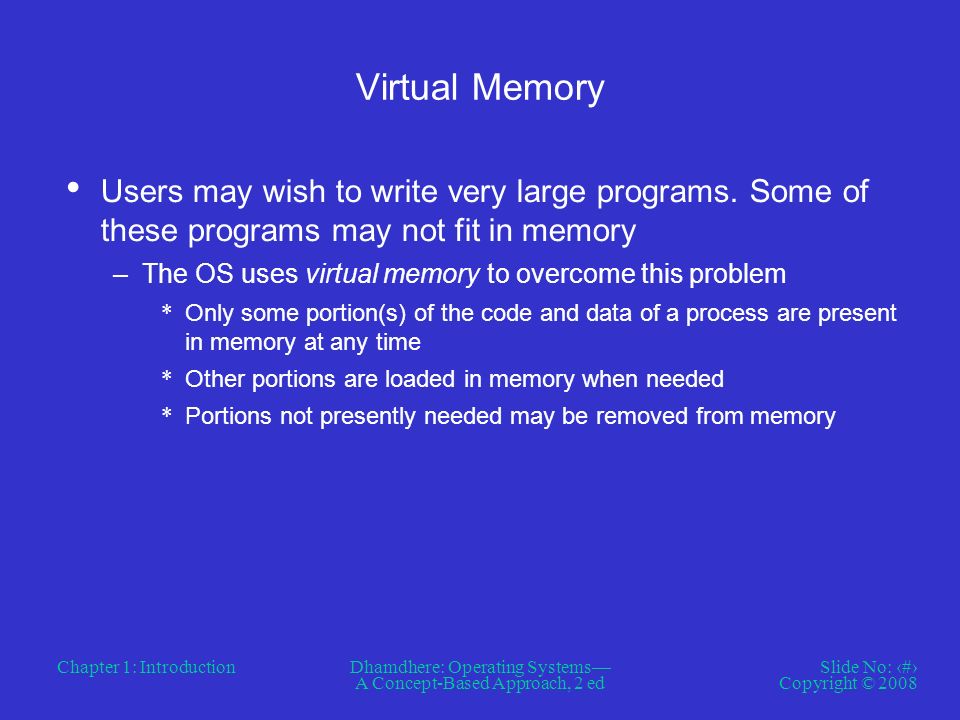

26. Chapter 1: IntroductionDhamdhere: Operating Systems— A Concept-Based Approach, 2 ed Slide No: 26 Copyright © 2008 Virtual Memory Users may wish to write very large programs. Some of these programs may not fit in memory –The OS uses virtual memory to overcome this problem * Only some portion(s) of the code and data of a process are present in memory at any time * Other portions are loaded in memory when needed * Portions not presently needed may be removed from memory

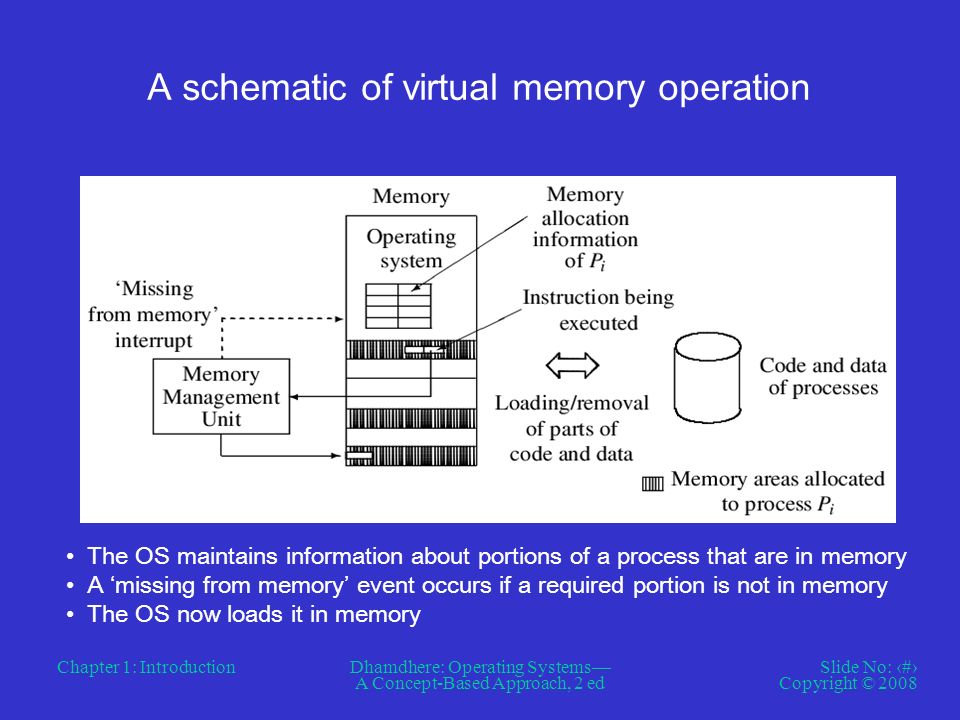

27. Chapter 1: IntroductionDhamdhere: Operating Systems— A Concept-Based Approach, 2 ed Slide No: 27 Copyright © 2008 A schematic of virtual memory operation The OS maintains information about portions of a process that are in memory A ‘missing from memory’ event occurs if a required portion is not in memory The OS now loads it in memory

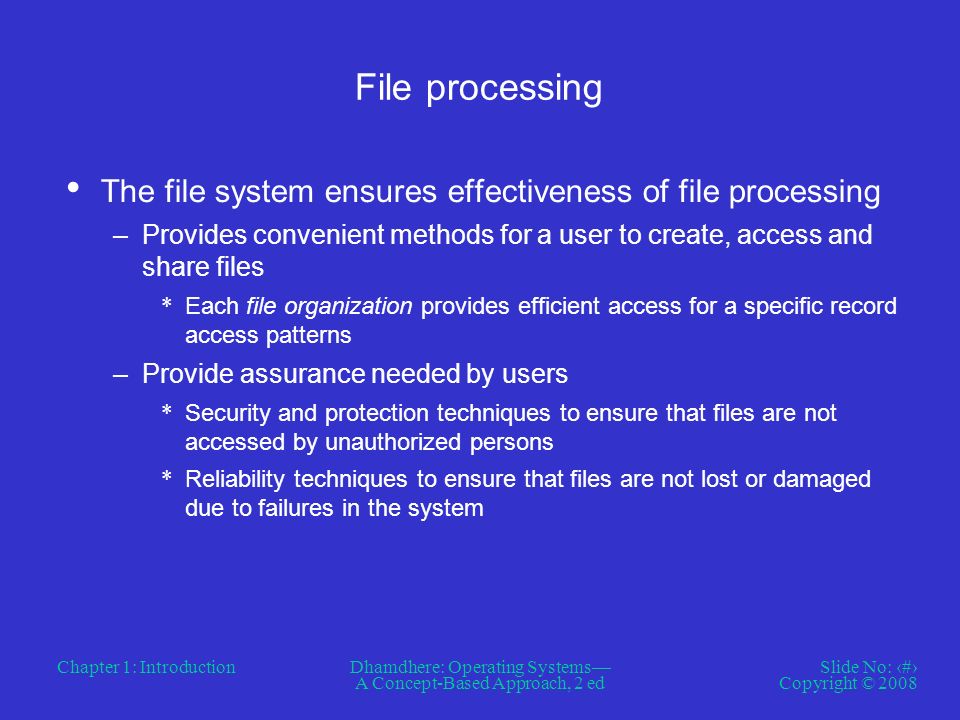

28. Chapter 1: IntroductionDhamdhere: Operating Systems— A Concept-Based Approach, 2 ed Slide No: 28 Copyright © 2008 File processing The file system ensures effectiveness of file processing –Provides convenient methods for a user to create, access and share files * Each file organization provides efficient access for a specific record access patterns –Provide assurance needed by users * Security and protection techniques to ensure that files are not accessed by unauthorized persons * Reliability techniques to ensure that files are not lost or damaged due to failures in the system

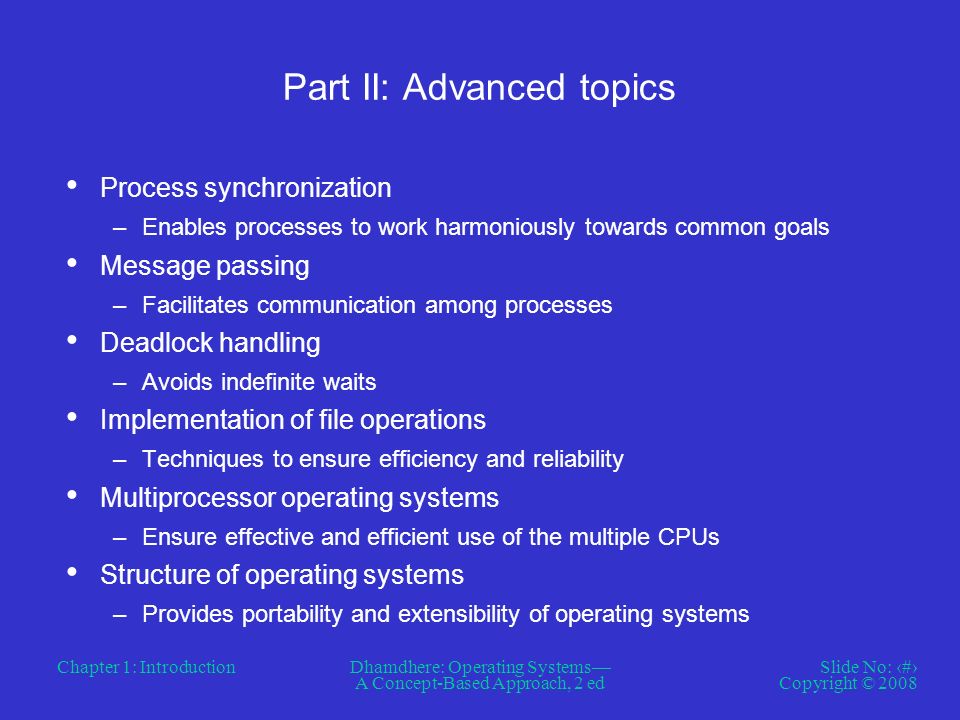

29. Chapter 1: IntroductionDhamdhere: Operating Systems— A Concept-Based Approach, 2 ed Slide No: 29 Copyright © 2008 Part II: Advanced topics Process synchronization –Enables processes to work harmoniously towards common goals Message passing –Facilitates communication among processes Deadlock handling –Avoids indefinite waits Implementation of file operations –Techniques to ensure efficiency and reliability Multiprocessor operating systems –Ensure effective and efficient use of the multiple CPUs Structure of operating systems –Provides portability and extensibility of operating systems

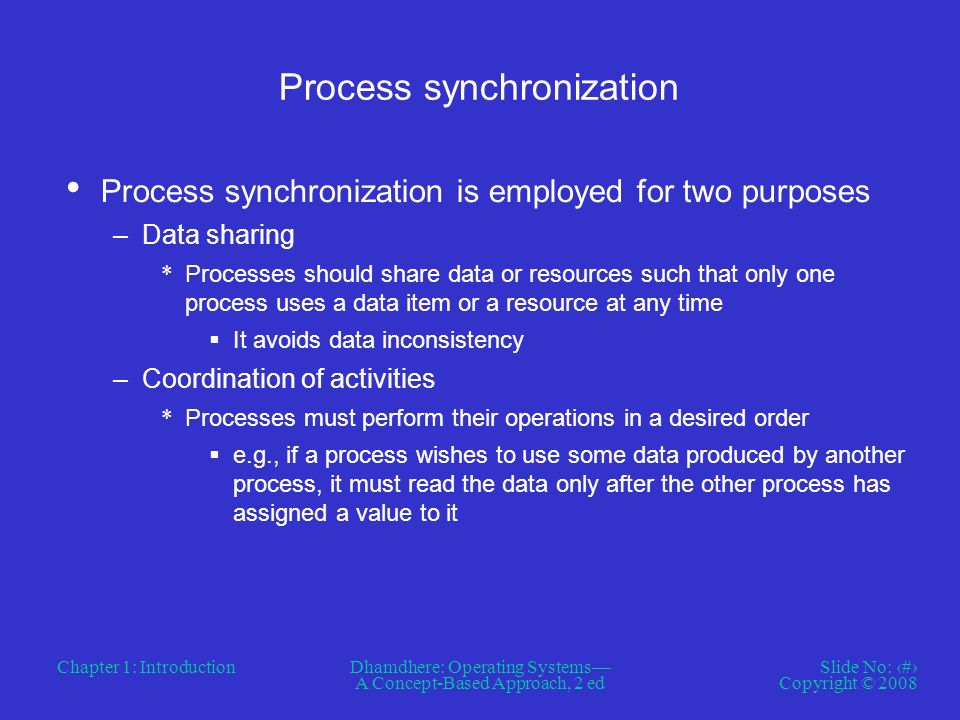

30. Chapter 1: IntroductionDhamdhere: Operating Systems— A Concept-Based Approach, 2 ed Slide No: 30 Copyright © 2008 Process synchronization Process synchronization is employed for two purposes –Data sharing * Processes should share data or resources such that only one process uses a data item or a resource at any time  It avoids data inconsistency –Coordination of activities * Processes must perform their operations in a desired order  e.g., if a process wishes to use some data produced by another process, it must read the data only after the other process has assigned a value to it

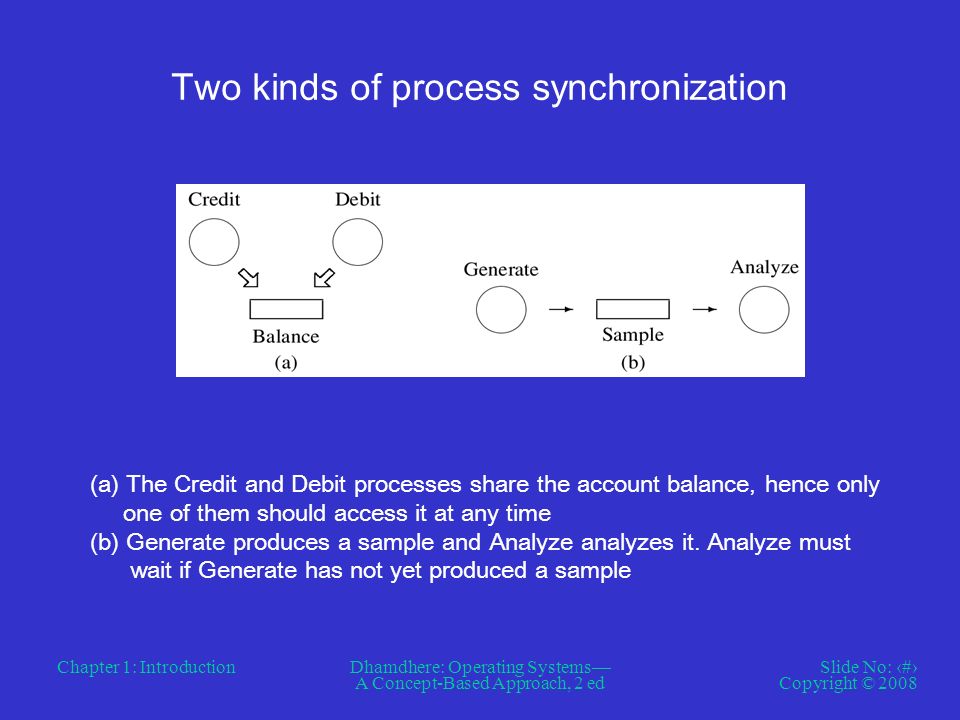

31. Chapter 1: IntroductionDhamdhere: Operating Systems— A Concept-Based Approach, 2 ed Slide No: 31 Copyright © 2008 Two kinds of process synchronization (a) The Credit and Debit processes share the account balance, hence only one of them should access it at any time (b) Generate produces a sample and Analyze analyzes it. Analyze must wait if Generate has not yet produced a sample

32. Chapter 1: IntroductionDhamdhere: Operating Systems— A Concept-Based Approach, 2 ed Slide No: 32 Copyright © 2008 Deadlocks Some resources cannot be shared across processes; they must be used by only one process at a time –If a resource is in use by a process, another process wishing to use the resource must wait for the process to release it * Indefinite waits would arise if processes wait for each other  This situation is called a deadlock  It degrades response time and efficiency of use

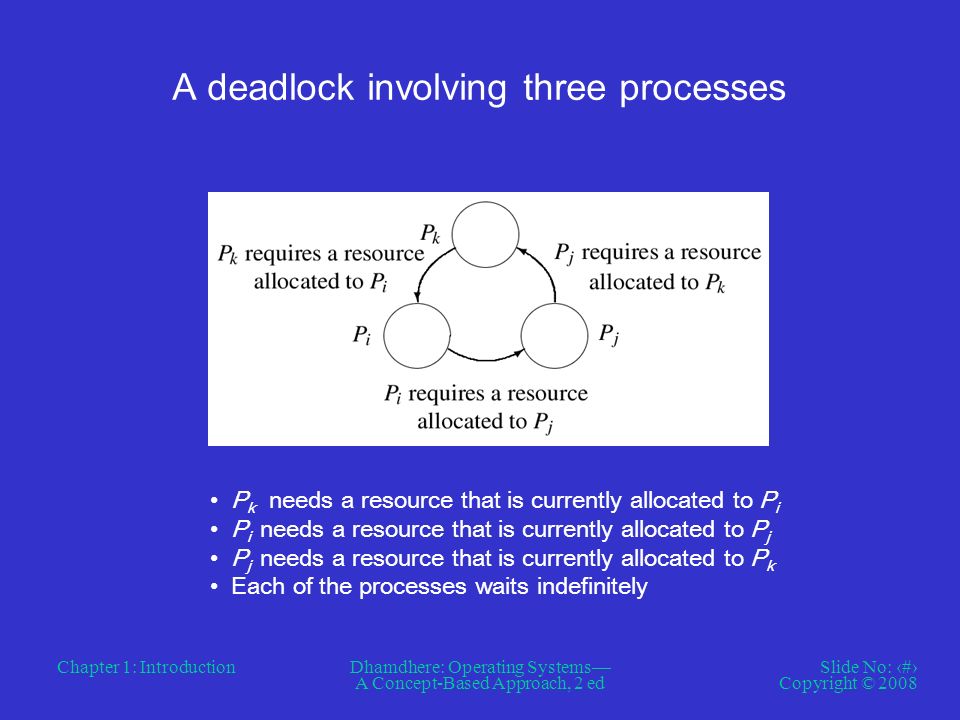

33. Chapter 1: IntroductionDhamdhere: Operating Systems— A Concept-Based Approach, 2 ed Slide No: 33 Copyright © 2008 A deadlock involving three processes P k needs a resource that is currently allocated to P i P i needs a resource that is currently allocated to P j P j needs a resource that is currently allocated to P k Each of the processes waits indefinitely

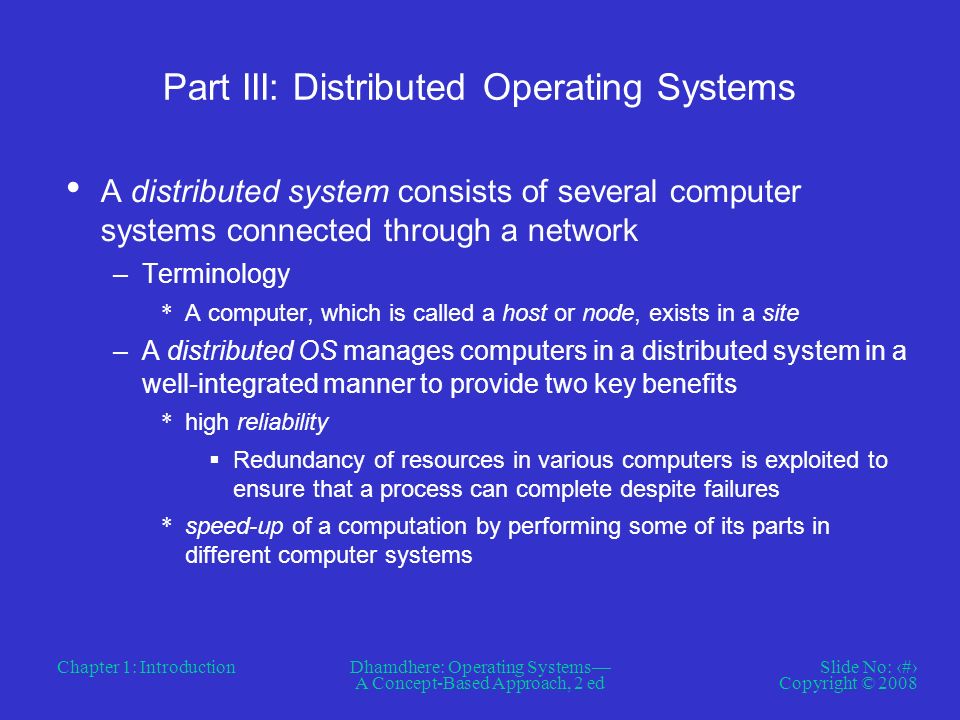

34. Chapter 1: IntroductionDhamdhere: Operating Systems— A Concept-Based Approach, 2 ed Slide No: 34 Copyright © 2008 Part III: Distributed Operating Systems A distributed system consists of several computer systems connected through a network –Terminology * A computer, which is called a host or node, exists in a site –A distributed OS manages computers in a distributed system in a well-integrated manner to provide two key benefits * high reliability  Redundancy of resources in various computers is exploited to ensure that a process can complete despite failures * speed-up of a computation by performing some of its parts in different computer systems

35. Chapter 1: IntroductionDhamdhere: Operating Systems— A Concept-Based Approach, 2 ed Slide No: 35 Copyright © 2008 Issues in Distributed OS Individual computers in a distributed system have their own clocks and memories –Clocks in different computers are not synchronized, hence they may show different times –It is difficult to obtain a consistent view of data and activities * E.g., balances in two accounts, recorded while transferring funds between them, may not be mutually consistent (see next slide) A distributed OS has to use special techniques to ensure consistency and reliability –Important during normal operation and recovery from a failure

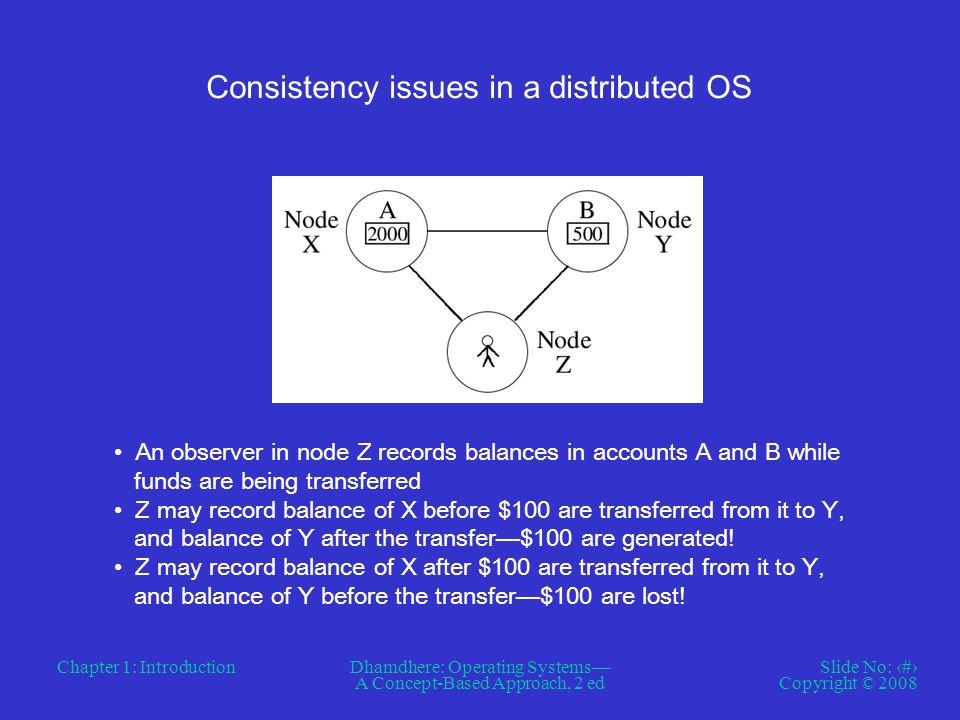

36. Chapter 1: IntroductionDhamdhere: Operating Systems— A Concept-Based Approach, 2 ed Slide No: 36 Copyright © 2008 Consistency issues in a distributed OS An observer in node Z records balances in accounts A and B while funds are being transferred Z may record balance of X before $100 are transferred from it to Y, and balance of Y after the transfer—$100 are generated! Z may record balance of X after $100 are transferred from it to Y, and balance of Y before the transfer—$100 are lost!

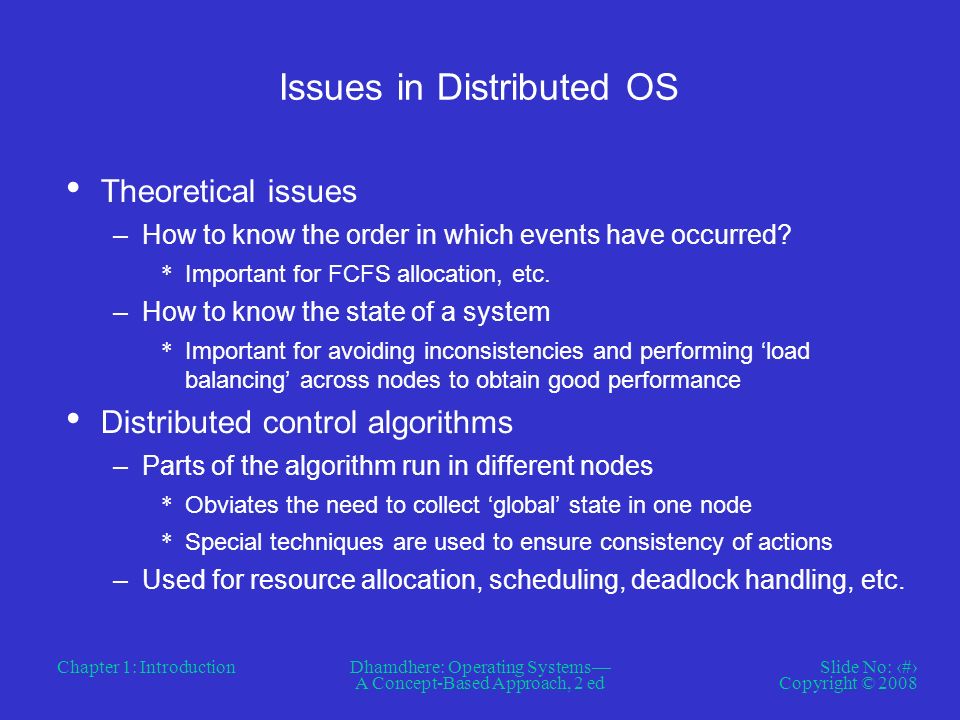

37. Chapter 1: IntroductionDhamdhere: Operating Systems— A Concept-Based Approach, 2 ed Slide No: 37 Copyright © 2008 Issues in Distributed OS Theoretical issues –How to know the order in which events have occurred? * Important for FCFS allocation, etc. –How to know the state of a system * Important for avoiding inconsistencies and performing ‘load balancing’ across nodes to obtain good performance Distributed control algorithms –Parts of the algorithm run in different nodes * Obviates the need to collect ‘global’ state in one node * Special techniques are used to ensure consistency of actions –Used for resource allocation, scheduling, deadlock handling, etc.

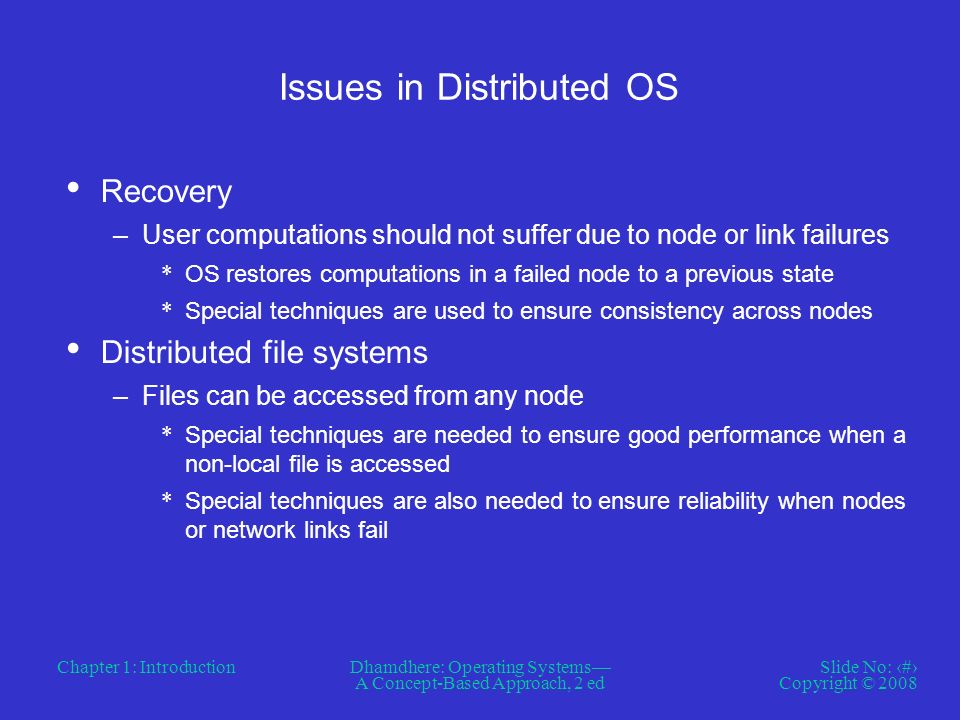

38. Chapter 1: IntroductionDhamdhere: Operating Systems— A Concept-Based Approach, 2 ed Slide No: 38 Copyright © 2008 Issues in Distributed OS Recovery –User computations should not suffer due to node or link failures * OS restores computations in a failed node to a previous state * Special techniques are used to ensure consistency across nodes Distributed file systems –Files can be accessed from any node * Special techniques are needed to ensure good performance when a non-local file is accessed * Special techniques are also needed to ensure reliability when nodes or network links fail

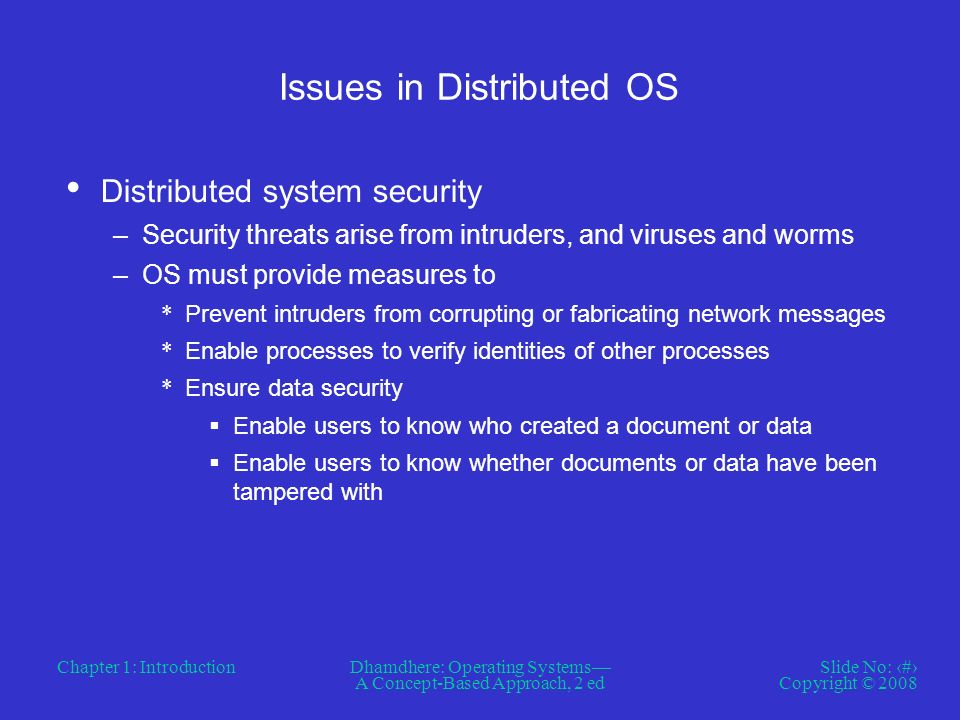

39. Chapter 1: IntroductionDhamdhere: Operating Systems— A Concept-Based Approach, 2 ed Slide No: 39 Copyright © 2008 Issues in Distributed OS Distributed system security –Security threats arise from intruders, and viruses and worms –OS must provide measures to * Prevent intruders from corrupting or fabricating network messages * Enable processes to verify identities of other processes * Ensure data security  Enable users to know who created a document or data  Enable users to know whether documents or data have been tampered with
