1 ITRS 2008 Update – April, Konigswinter, Germany 1 International Technology Roadmap for Semiconductors 2008 ITRS Update ORTC [ Konigswinter Germany ITRS ITWG Plenary] A.Allan, Rev 2, [notes on IRC/CTSG More Moore, More than Moore, Beyond CMOS 04/04/08]

2 ITRS 2008 Update – April, Konigswinter, Germany 2 Preliminary Comments..the future aint what it used to be.. – Yogi Berra..the more things change, the more they remain the same.. – Jean-Baptiste Alphonse Karr..for everything there is a time.. – Solomon..I want what I want when I want it.. – the Customer..the customer is king.. – the Seller

3 ITRS 2008 Update – April, Konigswinter, Germany Update Definition of the Half Pitch [No single-product node designation; DRAM half-pitch still litho driver; however, other product technology trends may be drivers on individual TWG tables] Poly Pitch Typical flash Un-contacted Poly FLASH Poly Silicon ½ Pitch = Flash Poly Pitch/ Lines Metal Pitch Typical DRAM/MPU/ASIC Metal Bit Line DRAM ½ Pitch = DRAM Metal Pitch/2 MPU/ASIC M1 ½ Pitch = MPU/ASIC M1 Pitch/2 Source: 2005 ITRS - Exec. Summary Fig Unchanged

4 ITRS 2008 Update – April, Konigswinter, Germany 4 Production Ramp-up Model and Technology Cycle Timing Volume (Parts/Month) 1K 10K 100K Months M 10M 100M Alpha Tool DevelopmentProduction Beta Tool Production Tool First Conf. Papers First Two Companies Reaching Production Volume (Wafers/Month) K 20K 200K Source: 2005 ITRS - Exec. Summary Fig 3 Fig Unchanged

5 ITRS 2008 Update – April, Konigswinter, Germany 5 Agenda Pre-Summary MPU Gate Length Technology Trends Update Summary Backup –Frequency –Bohr URL –SICAS

6 ITRS 2008 Update – April, Konigswinter, Germany 6 ORTC Pre-Summary – 2008 Update Flash Model un-contacted poly half-pitch trend –Unchanged 2-year cycle* through 2008/45nm, then 3-year cycle* (2014/22.5; 2020/11.25); ; –Unchanged: Cell Design Factor; Array Efficiency; Bits/Chip –PIDS Flash Survey Team to report status of survey data update and proposals in April meetings. Inui-san report: –No Change to number; Floating Gate to Charge from 2010 to 2011; 3D structure from 2013 to 2018 –NAND 2 MLC to 4MLC 2010; possible 3 bits/cell – need inputs from additional companies –Recommend Litho Overlay 33%; LWR 12% of CD (Half-Pitch based) [no change to Litho drivers] DRAM Model stagger-contacted M1 half-pitch updated to the MPU 2.5-year cycle* through 2010/45nm, then –Unchanged 3-year cycle* beginning 2010/45nm (2016/22.5; 2022/11.25); –Unchanged: Cell Design Factor; Array Efficiency; Bits/Chip DRAM function size, function density, and chip size models have been updated to latest Product 2.5-year cycle scaling rate; –Only years affected in 2008 Table Update. –Unchanged MPU Model M1 stagger-contact half-pitch unchanged from 2007 –2.5-year cycle* through 2010/45nm, then 3-year cycle* (2016/22.5; 2022/11.25). MPU/ASIC Printed Gate Length Updated –Unchanged 3-year cycle through 2018, –then 3.8-year cycle* MPU/ASIC High-Performance Physical Gate Length –3.8-year cycle* beginning –Declining printed/etch ratio – need FEP and Litho TWGs to agree on new annual ratios –Slower unchanged On-Chip Frequency trend (8% trend) was set by Design TWG in 2007 ITRS ORTC) - need updated transistor and design model alignment by PIDS, FEP, and Design. –New drivers will be Ion/W, CV/I – possibly add to ORTC – need PIDS and FEP 2008 Update and provide ORTC line items. * ITRS Cycle definition = time to.5x linear scaling every two cycle periods]

7 ITRS 2008 Update – April, Konigswinter, Germany 7 ORTC Pre-Summary – 2008 Update (cont.) MPU/ASIC Low Operating Power Printed Gate Length –Two-year delay 2007 from High Performance; one-year delay ; and no delay MPU/ASIC Low Standby Power Physical Gate Length [add to ORTC 1a,b] –No Change 2007, 2008; two-year delay from High Performance; one-year delay in 2012; and no delay Also, one decimal place rounding was added to all ORTC 1a,b from New 2008 Moores Law and More Working Groups and Definitions Work : –More Moore (Moores Law; typically digital computing) Functional and Performance scaling is enabled by both Geometrical and also Equivalent scaling technologies; Design Equivalent Scaling to be added in 2008 –More than Moore Functional diversification text will be impacted (typically non-digital sensing, interacting) system board-level migration/miniaturization is enabled by system-in-package and system-on-chip –Beyond CMOS definition and timing range will be added, focused on the Logic Switch transition at Ultimately Scaled CMOS The average of the industry product Moores Law (2x functions/chip per 2 years) rate forecast to continue throughout the latest ITRS timeframe Total MOS Capacity (SICAS) growing at ~16% CAGR (SICAS); new <80nm data split out; and 300mm Capacity Demand has ramped to 33% of Total MOS Industry Technology Capacity Demand (SICAS) – [3Q,4Q07 published status] continues on a on 2-year cycle* rate at the leading edge.

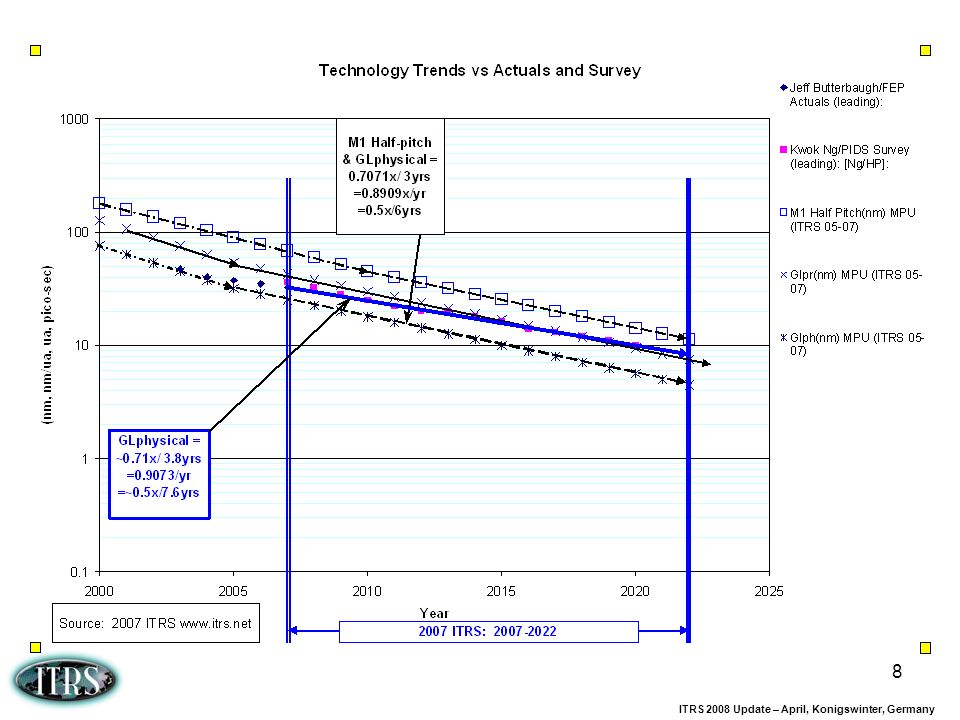

8 ITRS 2008 Update – April, Konigswinter, Germany 8

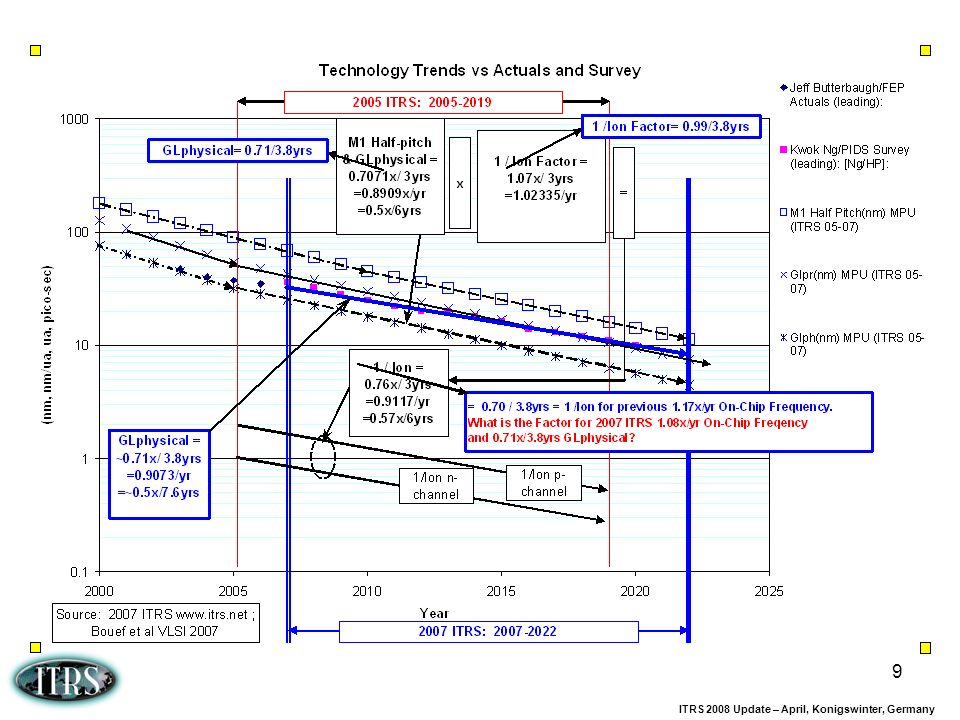

9 9

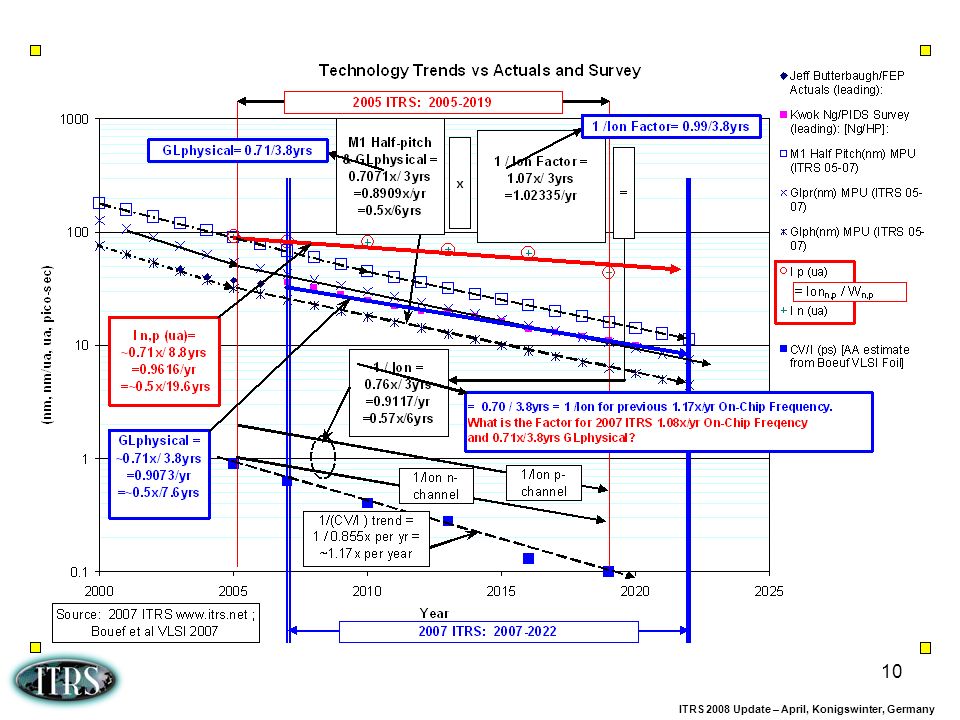

10 10

11 ITRS 2008 Update – April, Konigswinter, Germany 11 ORTC Summary – 2008 Update Flash Model un-contacted poly half-pitch trend –Unchanged 2-year cycle* through 2008/45nm, then 3-year cycle* (2014/22.5; 2020/11.25); ; –Unchanged: Cell Design Factor; Array Efficiency; Bits/Chip –PIDS Flash Survey Team to report status of survey data update and proposals in April meetings. Inui-san report: –No Change to number; Floating Gate to Charge from 2010 to 2011; 3D structure from 2013 to 2018 –NAND 2 MLC to 4MLC 2010; possible 3 bits/cell – need inputs from additional companies –Recommend Litho Overlay 33%; LWR 12% of CD (Half-Pitch based) [no change to Litho drivers] DRAM Model stagger-contacted M1 half-pitch updated to the MPU 2.5-year cycle* through 2010/45nm, then –Unchanged 3-year cycle* beginning 2010/45nm (2016/22.5; 2022/11.25); –Unchanged: Cell Design Factor; Array Efficiency; Bits/Chip DRAM function size, function density, and chip size models have been updated to latest Product 2.5-year cycle scaling rate; –Only years affected in 2008 Table Update. –Unchanged MPU Model M1 stagger-contact half-pitch unchanged from 2007 –2.5-year cycle* through 2010/45nm, then 3-year cycle* (2016/22.5; 2022/11.25). MPU/ASIC Printed Gate Length Updated –Unchanged 3-year cycle through 2018, –then 3.8-year cycle* MPU/ASIC High-Performance Physical Gate Length –3.8-year cycle* beginning –Declining printed/etch ratio – need FEP and Litho TWGs to agree on new annual ratios –Slower unchanged On-Chip Frequency trend (8% trend) was set by Design TWG in 2007 ITRS ORTC) - need updated transistor and design model alignment by PIDS, FEP, and Design. –New drivers will be Ion/W, CV/I – possibly add to ORTC – need PIDS and FEP 2008 Update and provide ORTC line items. * ITRS Cycle definition = time to.5x linear scaling every two cycle periods]

12 ITRS 2008 Update – April, Konigswinter, Germany 12 ORTC Summary – 2008 Update (cont.) MPU/ASIC Low Operating Power Printed Gate Length –Two-year delay 2007 from High Performance; one-year delay ; and no delay MPU/ASIC Low Standby Power Physical Gate Length [add to ORTC 1a,b] –No Change 2007, 2008; two-year delay from High Performance; one-year delay in 2012; and no delay Also, one decimal place rounding was added to all ORTC 1a,b from New 2008 Moores Law and More Working Groups and Definitions Work : –More Moore (Moores Law; typically digital computing) Functional and Performance scaling is enabled by both Geometrical and also Equivalent scaling technologies; Design Equivalent Scaling to be added in 2008 –More than Moore Functional diversification text will be impacted (typically non-digital sensing, interacting) system board-level migration/miniaturization is enabled by system-in-package and system-on-chip –Beyond CMOS definition and timing range will be added, focused on the Logic Switch transition at Ultimately Scaled CMOS The average of the industry product Moores Law (2x functions/chip per 2 years) rate forecast to continue throughout the latest ITRS timeframe Total MOS Capacity (SICAS) growing at ~16% CAGR (SICAS); new <80nm data split out; and 300mm Capacity Demand has ramped to 33% of Total MOS Industry Technology Capacity Demand (SICAS) – [3Q,4Q07 published status] continues on a on 2-year cycle* rate at the leading edge.

13 ITRS 2008 Update – April, Konigswinter, Germany 13 ORTC Pre-Summary – 2008 Update (cont.) More than Moore [discussion leader – Mart Graef also see Backup for additional MtM presentation information] –Objective: Define and quantify value-adding parameters for functional diversification Identify/elaborate Technical Parameters Added Value to the target application Usual ITRS goals: Grand Challenges, Potential Solutions, narrowing over time Pitfall(Design TWG comment): line item doesnt fit May need to tweak to fit the MtM taxonomy Key parameters for MtM examples in marketplace –Involve IRC/ITWGs A&P, Design, RF/AMS, Test, Interconnect, but open to other TWGs Key Categories to address: Sensors, Actuators (MEMS, Optical) –Key Issue differentiating MtM: Integration –Next Meeting will be called by Mart Graef TWGs notify Mart of their participant at the April ITRS meeting More than Moore Study Group 4/3/08

14 ITRS 2008 Update – April, Konigswinter, Germany 14 Design TWG Proposed More Moore and MtM Text, 3 apr 2008 Plenary v2a [discussion leader – Andrew Kahng] 1 = More Moore –1a = geometric scaling –1b = equivalent scaling –1c = Design equivalent scaling –NEED: quantifiable, specific Design Technologies that deal with More Moore –Design equivalent scaling occurs in conjunction with Equivalent Scaling and continued Geometric Scaling, and refers to design technologies that enable high performance, low power, high reliability, low cost, and high design productivity. –Examples (not exhaustive) are: Design for variability; low power design (sleep modes, hibernation, clock gating, multi-VDD,...); and homogeneous and heterogeneous multicore SOC architectures. –Request: Please remove b) Multi-core MPU architecture from 2 (MTM Functional Diversification) 2 = More than Moore –NEED: Design technologies to enable functional diversification –Design technologies enable new functionality that takes advantage of More than Moore technologies. –Examples (not exhaustive) are: Heterogeneous system partitioning and simulation; software; analog and mixed signal design technologies for sensors and actuators; and new methods and tools for co-design and co-simulation of SIP, MEMS, and biotechnology. More than Moore Study Group 4/3/08 ORTC Pre-Summary – 2008 Update (cont.)

15 ITRS 2008 Update – April, Konigswinter, Germany 15 ORTC Summary – 2008 Update MPU/ASIC High-Performance Physical Gate Length [discussion leader – A.Allan] –3.8-year cycle* beginning –Declining printed/etch ratio – need FEP and Litho TWGs to agree on new annual ratios –Slower unchanged On-Chip Frequency trend (8% trend) was set by Design TWG in 2007 ITRS ORTC) - need updated transistor and design model alignment by PIDS, FEP, and Design. –New drivers will be Ion/W, CV/I – possibly add to ORTC – need PIDS and FEP 2008 Update and provide ORTC line items. –Thomas Scotnicki review of Paper and VLSI presentation (see Scotnicki files) Discrepancy between measured vs ITRS model Andrew Kahng review – what interconnect capacitance assumed (~zero in ring oscillators) Proposal for 3 changes to –17% not needed, 8% is enough (due to increased 1 core to 2 core architecture performance) –Variability not taken into account (no manufacturing flexibility) PIDS recommendation »MASTAR Random Generator –Variability vs Device Structure –Not a model problem/limitation – need decision »Not supporting 1/Ion; Want CV/I –Paolo Gargini Review of Equivalent Scaling Knobs for Performance/Power tradeoffs Smaller changes on 5 knobs (including Strain, Hik/MetGate, etc) vs historical 2 knobs (Oxide Thickness, Gate Length) More complex modeling options using Mobility, Dielectric Constant, Voltage indicators –equivalent channel length possible approach Andrew Kahng – please advise how to share the investment in manufacturing solutions (knobs)? Beyond CMOS [discussion leader – Jim Hutchby] new switch (asterick information processing including interconnect and memory); Logic switch -> SIA/NRI invent the new switch Graphics need a new color ERD/ERM (Jim Hutchby, Mike Garner); PIDS (Kwok Ng, Thomas Skotnicki); Design (Andrew Kahng; Juan- Antonio Carballo) More Moore Study Group 4/3/08 Beyond CMOS Study Group 4/3/08

16 ITRS 2008 Update – April, Konigswinter, Germany 16 Backup - On-chip Frequency Update - Bohr Tutorial URL - More than Moore Study Group Kickoff presentation - SICAS 3Q/4Q07 Update

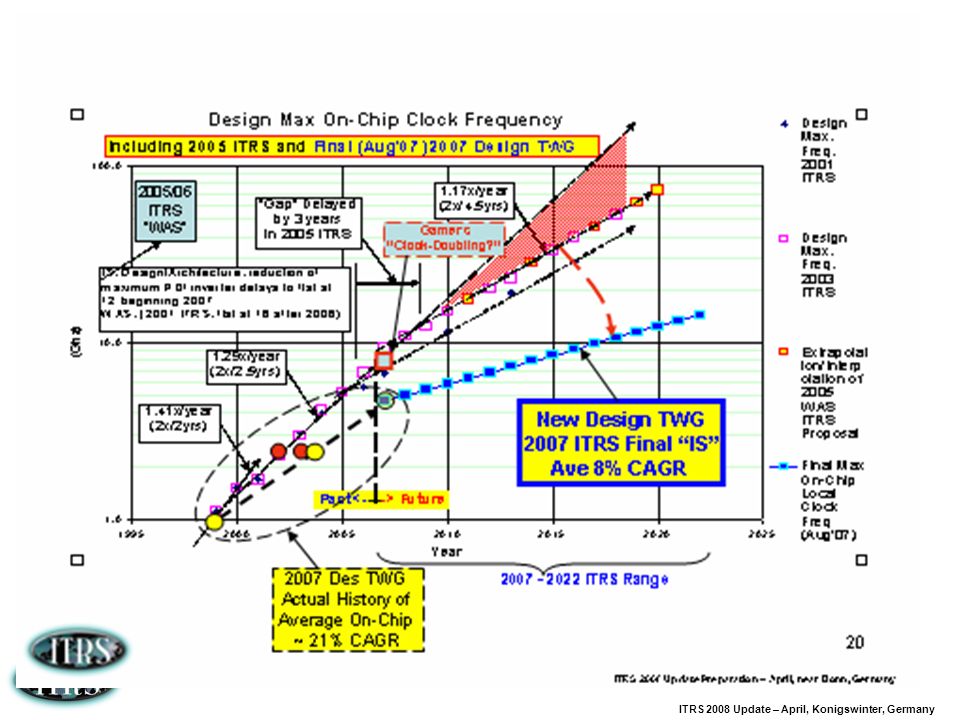

17 ITRS 2008 Update – April, Konigswinter, Germany 17

18 ITRS 2008 Update – April, Konigswinter, Germany 18 Mark Bohr "Silicon Technology Tutorial" : ….Etc.

19 ITRS 2008 Update – April, Konigswinter, Germany 19 More than Moore ITRS Spring Meeting 2008 Königswinter, Germany, Rev 1 [Mart Graef] MtM Study Group 4/3/08

20 ITRS 2008 Update – April, Konigswinter, Germany 20 Source: 2005 ITRS Document online at: Scaling (More Moore) Functional Diversification (More than Moore) Continuing SoC and SIP: Higher Value Systems MtM Study Group 4/3/08

21 ITRS 2008 Update – April, Konigswinter, Germany ITRS Moores Law and More Definition Graphic Proposal Computing & Data Storage Heterogeneous Integration System on Chip (SOC) and System In Package (SIP) Sense, interact, Empower Baseline CMOS Memory RF HV Power Passives Sensors, Actuators Bio-chips, Fluidics More Moore More than Moore Source: ITRS, European Nanoelectronics Initiative Advisory Council (ENIAC) MtM Study Group 4/3/08

22 ITRS 2008 Update – April, Konigswinter, Germany 22 More Moore: Scaling Continued shrinking of physical feature sizes of the digital functionalities (logic and memory storage) in order to improve density (cost per function reduction) and performance (speed, power). More than Moore: Functional Diversification I ncorporation into devices of functionalities that do not necessarily scale according to "Moore's Law, but provide additional value in different ways. The "More-than-Moore" approach allows for the non-digital functionalities to migrate from the system board-level into the package (SiP) or onto the chip (SoC). The Challenge: Integration of MM with MtM Creation of intelligent compact systems. More Moore and More than Moore MtM Study Group 4/3/08

23 ITRS 2008 Update – April, Konigswinter, Germany 23 Following Moores Law is one approach: Monolithic CMOS logic System-on-Chip Power Sensor Actuator Storage Processor Radio Advantage: -Smallest footprint Disadvantage: -Limited functionality More Moore MtM Study Group 4/3/08

24 ITRS 2008 Update – April, Konigswinter, Germany 24 Adding More-than-Moore is another: System-on-Chip and System-in-Package Power Sensor Actuator Storage Processor Radio Advantage: -Full functionality Disadvantage: -Complex supply chain More than Moore More Moore MtM Study Group 4/3/08

25 ITRS 2008 Update – April, Konigswinter, Germany 25 Proposal for MtM Study Group Objective: Define and quantify value-adding parameters for functional diversification –Identify/elaborate Technical Parameters –Added Value to the target application –Usual ITRS goals: Grand Challenges, Potential Solutions, narrowing over time –Pitfall(Design): line item doesnt fit May need to tweak to fit the MtM taxonomy –Key parameters for MtM examples in marketplace Involve IRC/ITWGs –A&P, Design, RF/AMS, Test, Interconnect, but open to other TWGs –Key Categories to address: Sensors, Actuators (MEMS, Optical) Key Issue differentiating MtM: Integration Next Meeting will be called by Mart Graef –TWGs notify Mart of their participant at the April ITRS meeting MtM Study Group 4/3/08

26 ITRS 2008 Update – April, Konigswinter, Germany 26 Design TWG Proposed MTM Text, 3 apr 2008 Plenary v2a 1 = More Moore –1a = geometric scaling –1b = equivalent scaling –1c = Design equivalent scaling –NEED: quantifiable, specific Design Technologies that deal with More Moore –Design equivalent scaling occurs in conjunction with Equivalent Scaling and continued Geometric Scaling, and refers to design technologies that enable high performance, low power, high reliability, low cost, and high design productivity. –Examples (not exhaustive) are: Design for variability; low power design (sleep modes, hibernation, clock gating, multi-VDD,...); and homogeneous and heterogeneous multicore SOC architectures. –Request: Please remove b) Multi-core MPU architecture from 2 (MTM Functional Diversification) 2 = More than Moore –NEED: Design technologies to enable functional diversification –Design technologies enable new functionality that takes advantage of More than Moore technologies. –Examples (not exhaustive) are: Heterogeneous system partitioning and simulation; software; analog and mixed signal design technologies for sensors and actuators; and new methods and tools for co-design and co- simulation of SIP, MEMS, and biotechnology. More Moore Study Group 4/3/08

27 ITRS 2008 Update – April, Konigswinter, Germany 27 SICAS Update (www.sia-online.org )www.sia-online.org

28 ITRS 2008 Update – April, Konigswinter, Germany 28 SICAS Update (www.sia-online.org )www.sia-online.org
