1. Information Security Rabie A. Ramadan GUC, Cairo Rabie.ramadan@guc.edu.eg Room C7 -310 Lecture 2

2. DAD Triad Complement of CIA Triad Disclosure Alteration, and Denial 2

3. DAD Triad Disclosure Unauthorized individuals gain access to confidential information Alteration Data is modified through some unauthorized mechanism Denial Authorized users cannot gain access to a system for legitimate purposes DAD activities may be malicious or accidental

4. Network Security Security considerations include: Physical security Operating System security Windows, Linux, UNIX Communication security Encryption Firewalls Intrusion detection systems

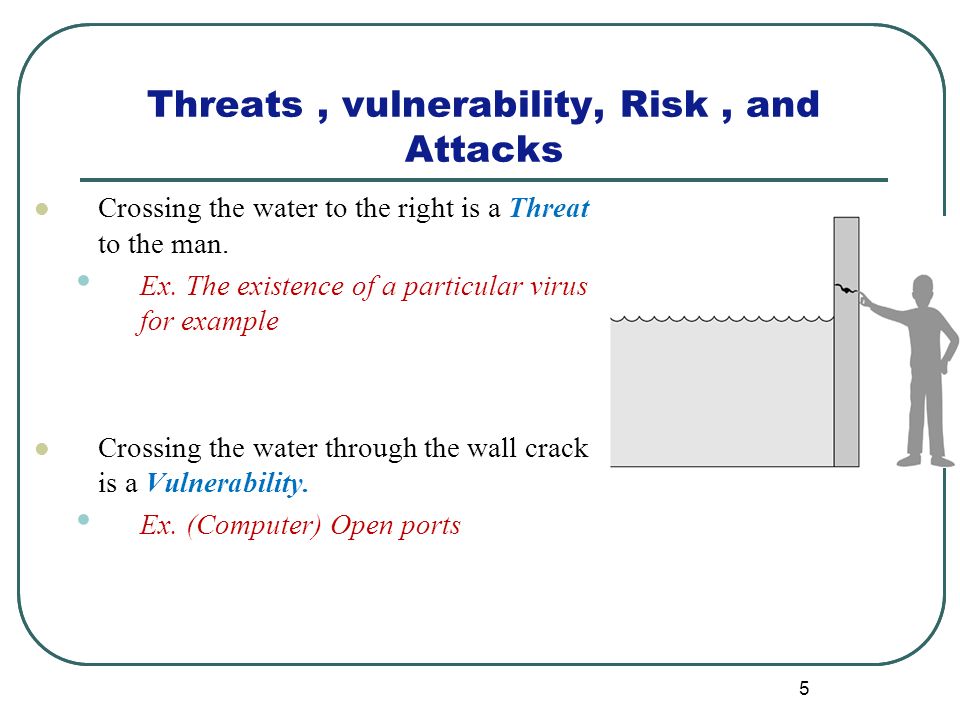

5. Threats, vulnerability, Risk, and Attacks 5 Crossing the water to the right is a Threat to the man. Ex. The existence of a particular virus for example Crossing the water through the wall crack is a Vulnerability. Ex. (Computer) Open ports

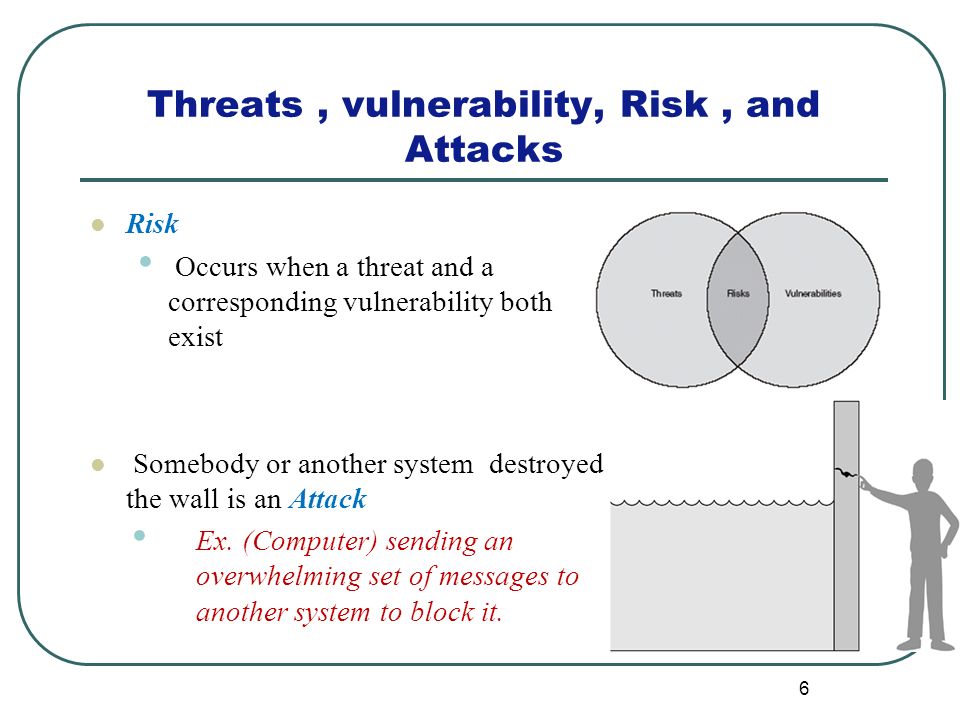

6. Threats, vulnerability, Risk, and Attacks Risk Occurs when a threat and a corresponding vulnerability both exist Somebody or another system destroyed the wall is an Attack Ex. (Computer) sending an overwhelming set of messages to another system to block it. 6

7. Threats, vulnerability, Risk, and Attacks Threats 7

8. Threats to Security Hacker Anyone who attempts to penetrate the security of an information system, regardless of intent Early definition included anyone very proficient in computer use Malicious insider Someone from within the organization that attempts to go beyond the rights and permissions that they legitimately hold Security professionals and system administrators are particularly dangerous

9. Threats to Security Malicious code object Virus, a program that attaches itself to a program or file so it can spread from one computer to another, leaving infections as it travels. Worm, a program that takes advantage of file or information transport features on your system, which allows it to travel unaided. The biggest danger with a worm is its capability to replicate itself on your system. e.g. sending itself to all of the e-mail list in your computer. Trojan horse, a program that at first glance will appear to be useful software but will actually do damage once installed or run on your computer. It usually appears that is coming from a trusted source A computer program that carries out malicious actions when run on a system

10. Threat + Vulnerability = Risk Risk analysis, assessment, and managing are required 10

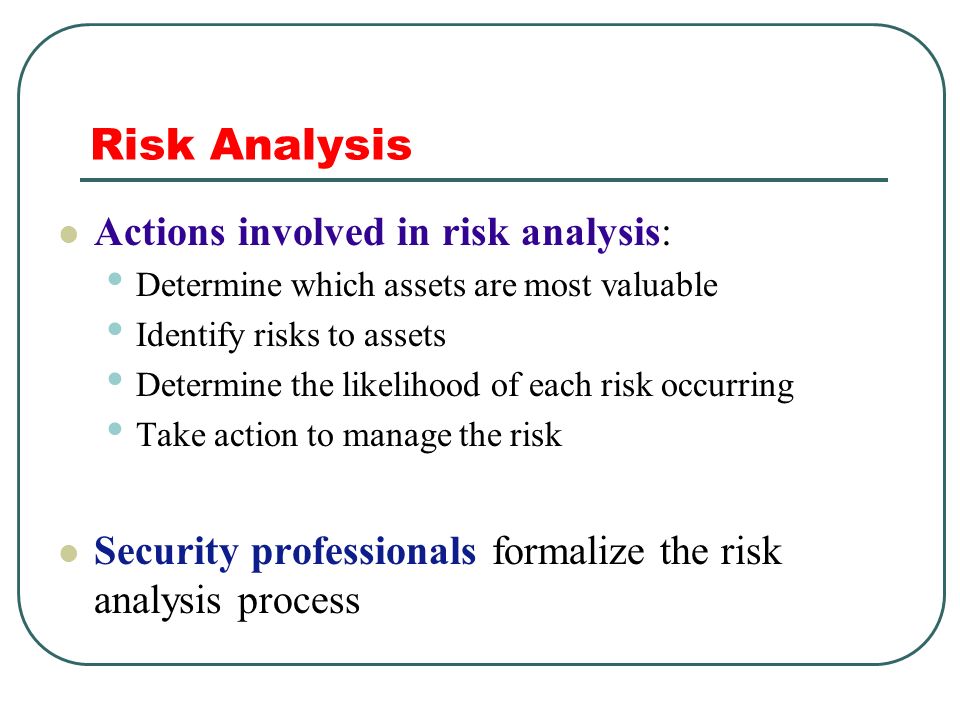

11. Risk Analysis Actions involved in risk analysis: Determine which assets are most valuable Identify risks to assets Determine the likelihood of each risk occurring Take action to manage the risk Security professionals formalize the risk analysis process

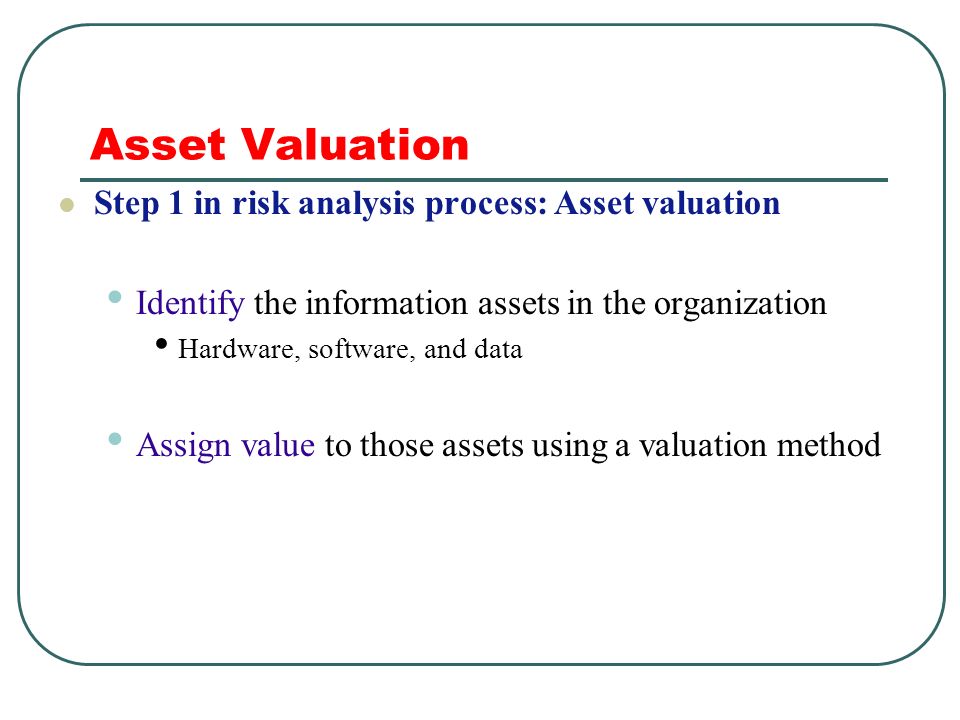

12. Asset Valuation Step 1 in risk analysis process: Asset valuation Identify the information assets in the organization Hardware, software, and data Assign value to those assets using a valuation method

13. Asset Valuation Common Valuation Methods Replacement cost valuation Replacement cost (also called current cost accounting or CCA) values assets based on what it would cost to replace them if they were acquired today. For example, if Utility Company were placing this same plant today, the materials would cost $530,000 and the installation would cost $56,000. The replacement cost value is $586,000.

14. Asset Valuation Original cost valuation Original cost (also called historic cost accounting or HCA) values assets based on what the company actually spent for the assets when they were acquired. Example: In 1990, Utility Company spent $500,000 to purchase the materials for its fixed lines and $50,000 to install them. The original cost value of these assets is $550,000 before depreciation. 14

15. Asset Valuation Depreciated valuation Uses the original cost less an allowance for value deterioration (original value – how much drop in its price since purchased) Qualitative valuation Assigns priorities to assets without using dollar values 15

16. Risk Assessment Step 2 in risk analysis process: Risk assessment Risk assessment techniques: Qualitative Quantitative

17. Risk Assessment Qualitative Risk Assessment: Focuses on analyzing intangible properties of an asset rather than financial value Prioritizes risks to aid in the assignment of security resources Relatively easy to conduct

18. Risk Assessment Quantitative Risk Assessment Assigns dollar values to each risk based on measures such as: asset value (AV), exposure factor (EF), expected portion (%) that can be destroyed by a given risk annualized rate of occurrence(ARO), number of times you expect the risk to occur single loss expectancy (SLE), amount of damage each time the risk occur (AV* EF) annualized loss expectancy (ALE) amount of damage each year from a given risk (ARO * SLE) Uses potential loss amount to decide if it is worth implementing a security measure

19. Managing Risks Risk Avoidance Used when a risk overwhelms the benefits gained from having a particular mechanism available Avoid any possibility of risk by disabling the mechanism that is vulnerable Disabling e-mail is an example of risk avoidance Risk Mitigation Used when a threat poses a great risk to a system Takes preventative measures to reduce the risk A firewall is an example of risk mitigation

20. Managing Risk Risk Acceptance Do nothing to prevent or avoid the risk Useful when risk or potential damage is small Risk Transference Ensure that someone else is liable if damage occurs Buy insurance for example Combinations of the above techniques are often used

21. Security Tradeoffs Security can be seen as a tradeoff between risks and benefits Cost of implementing the security mechanism and the amount of damage it may prevent Tradeoff considerations: user convenience business goals expenses

22. Threats, vulnerability, Risk, and Attacks Attacks 22

23. Attacks 23 Passive Attacks Attempts to learn or make use of information from the system but does not affect system resources. Eavesdropping or monitoring of transmissions Active Attacks Attempts to alter system resources or affect their operation.

24. Passive Attacks 24 Release of message contents / snooping

25. Passive Attacks (Cont.) 25 Traffic Analysis/ spoofing Passive Attacks are hard to be detected

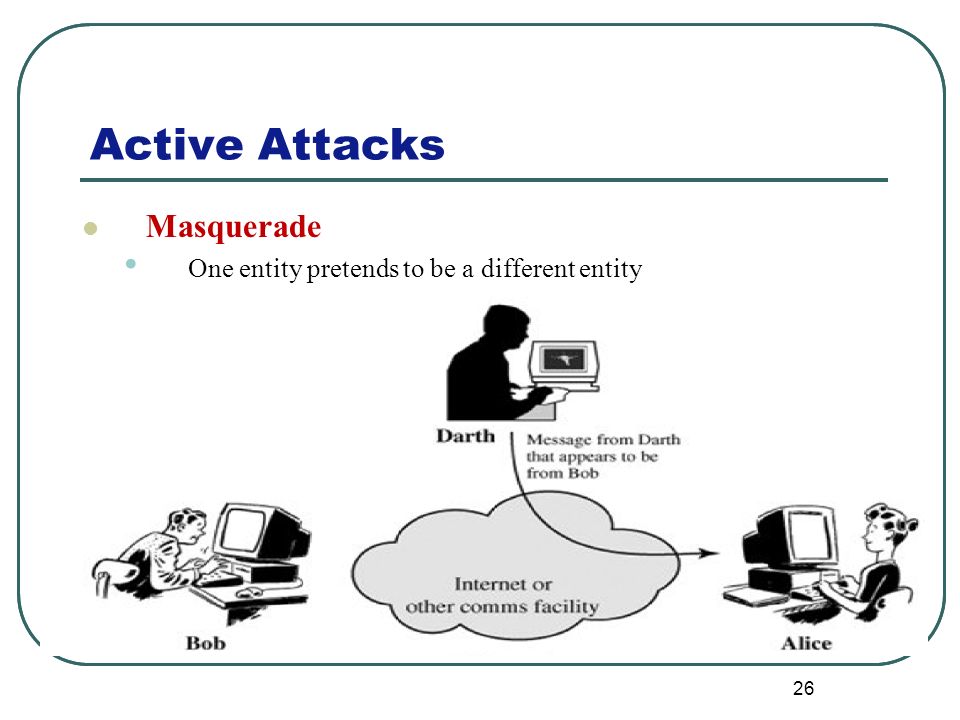

26. Active Attacks 26 Masquerade One entity pretends to be a different entity

27. Active Attacks (Cont.) 27 Replay Attack Passive capture of a data unit and its subsequent retransmission to produce an unauthorized effect.

28. Active Attacks (Cont.) 28 Modification Attack Some portion of a legitimate message is altered, or that messages are reordered, to produce an unauthorized effect

29. Active Attacks (Cont.) 29 Denial of Service Prevents or inhibits the normal use or management of communications facilities
