1
WORK

2
**THE USE OF FORCE TO MOVE AN OBJECT SOME DISTANCE**

DEFINITION OF WORK THE USE OF FORCE TO MOVE AN OBJECT SOME DISTANCE

3
WORK IS DONE ONLY WHEN: THERE HAS BEEN MOVEMENT OVER SOME DISTANCE AND THE DISTANCE THE OBJECT MOVED WAS IN THE SAME DIRECTION AS THE FORCE APPLIED.

4
**FORCE (N) X DISTANCE (m)**

FORMULA FOR WORK WORK = FORCE (N) X DISTANCE (m)

5
UNITS FOR WORK NEWTON-METER = JOULE A FORCE OF 1 NEWTON EXERTED ON AN OBJECT THAT MOVES 1 METER DOES 1 NEWTON-METER OR (1 JOULE) OF WORK.

6
**SAMPLE WORK PROBLEM W= F X D W = 900 N X 100 m**

A MOUNTAIN CLIMBER EXERTS A FORCE OF 900-N TO SCALE A 100-m CLIFF. HOW MUCH WORK IS DONE BY THE MOUNTAIN CLIMBER? W= F X D W = 900 N X 100 m 90,000 n-m OR JOULES OF WORK

7
**W = F x D FORCE (20N) X DISTANCE (30m)**

WORK PROBLEMS JANICE PULLS A WAGON FOR 30 METERS. IF SHE USES A FORCE OF 20N TO PULL, HOW MUCH WORK DOES SHE DO? W = F x D FORCE (20N) X DISTANCE (30m) 20N X 30m = 600J

8
**HOW MUCH WORK IS DONE IN LIFTING A 12N HAMMER FROM THE FLOOR TO A HEIGHT OF 2m?**

W = 12N X 2m = 24J of work is done

9
ENERGY

10
**THE ABILITY TO DO WORK OR CAUSE A CHANGE**

ENERGY THE ABILITY TO DO WORK OR CAUSE A CHANGE

11
ENERGY & WORK IF WORK IS THE USE OF FORCE TO MOVE AN OBJECT SOME DISTANCE, THEN WORK IS ALSO THE TRANSFER OF ENERGY

12
**IF AN OBJECT DOES WORK, IT USES ENERGY.**

SO… BECAUSE WORK & ENERGY ARE DIRECTLY RELATED, BOTH ARE MEASURED IN JOULES

13
KINETIC ENERGY POTENTIAL ENERGY THE ENERGY OF MOTION STORED ENERGY

14
**GRAVITATIONAL POTENTIAL ENERGY**

POTENTIAL ENERGY THAT’S DEPENDENT ON HEIGHT

15
**GRAVITATIONAL POTENTIAL ENERGY (G. P. E**

GRAVITATIONAL POTENTIAL ENERGY (G.P.E.) = m•g•h MASS X ACCELERATION DUE TO GRAVITY (9.8m/s2) X HEIGHT ABOVE THE GROUND

16
**G.P.E. CALCULATION G.P.E. = m•g•h 5kg X 9.8m/s2 X 1.5m**

A BOX WITH A MASS OF 5kg IS SITTING ON A CABINET THAT IS 1.5m high. What is the G.P.E.? G.P.E. = m•g•h 5kg X 9.8m/s2 X 1.5m 73.5N·m or 73.5J

17
**ELASTIC POTENTIAL ENERGY**

THE ENERGY ASSOCIATED WITH OBJECTS THAT CAN BE STRETCHED OR COMPRESSED

18
POTENTIAL ENERGY

19
KINETIC ENERGY = MASS X VELOCITY2 2 OR… ½ MV2

20
**IF YOU INCREASE MASS OR VELOCITY, YOU INCREASE KINETIC ENERGY**

21
**KINETIC ENERGY PROBLEM**

A 50kg ROCK IS TRAVELING 5 METERS PER SECOND. WHAT IS THE KINETIC ENERGY OF THE OBJECT? K.E. = ½ MV2 ½ X 50kg X (5m/s)2 = 25kg X 25m2/s2 = 625J

22
MECHANICAL ENERGY THE ENERGY POSESSED BY AN OBJECT DUE TO ITS MOTION OR POSITION OR… AN OBJECT’S COMBINED POTENTIAL AND KINETIC ENERGY

23
**MECHANICAL ENERGY THE ENERGY ASSOCIATED WITH MOTION**

SUM OF KINETIC AND POTENTIAL ENERGY EXAMPLES: WATER, WIND, MOVING VEHICLE, WALKING, HITTING A BALL, SOUND, BLOOD FLOW.

24
**MECHANICAL ENERGY = POTENTIAL ENERGY + KINETIC ENERGY**

OR… ME = PE + KE

25
**THE LAW OF CONSERVATION OF ENERGY**

ENERGY CAN BE NEITHER CREATED NOR DESTROYED, IT CAN ONLY BE CHANGED FROM ONE FORM TO ANOTHER

26
**MANY TIMES A SERIES OF ENERGY CONVERSIONS TAKE PLACE IN DOING A SPECIFIC JOB.**

TURN TO PAGE 127 AND DESCRIBE THE ENERGY CONVERSIONS TAKING PLACE IN THE PICTURE

27
**CHANGES IN THE FORMS OF ENERGY**

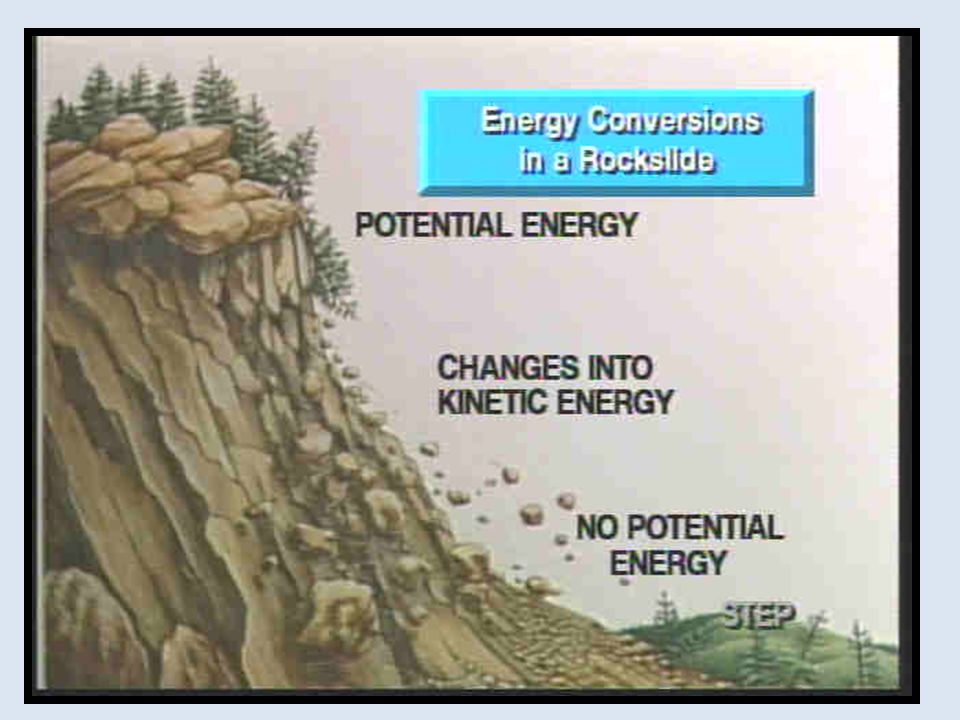

ENERGY CONVERSION CHANGES IN THE FORMS OF ENERGY ONE OF THE MOST COMMON IS CHANGING FROM: KINETIC TO POTENTIAL OR POTENTIAL TO KINETIC

30
**Potential Energy and Conservation of Energy **

31
Kinetic vs. Potential Image source:

32
**ALL FORMS OF ENERGY CAN BE CONVERTED TO OTHER FORMS:**

OTHER CONVERSIONS ALL FORMS OF ENERGY CAN BE CONVERTED TO OTHER FORMS: EXAMPLES:

33
LOSING ENERGY IN MOST ENERGY TRANSFORMATIONS, SOME OF THE ENERGY IS TRANSFORMED INTO HEAT DUE TO FRICTION (INCLUDING AIR RESISTANCE)

34
**G.P.E. = MGH ENERGY THE ENERGY OF MOTION**

STORED ENERGY: THE ENERGY OF SHAPE OR POSITION THE ENERGY OF MOTION IF YOU INCREASE MASS OR VELOCITY, YOU INCREASE KINETIC ENERGY ELASTIC = ENERGY ASSOCIATED W/OBJECTS THAT CAN BE STRETCHED OR COMPRESSED GRAVITATIONAL = ENERGY THAT’S DEPENDENT ON HEIGHT ENERGY KINETIC = ROCK ROLLING DOWN A HILL POTENTIAL = ROCK SITTING ON TOP OF THE HILL K.E. = ½ MV2 G.P.E. = MGH

35
OTHER FORMS OF ENERGY THERMAL CHEMICAL NUCLEAR ELECTROMAGNETIC

36
THERMAL ENERGY THE ENERGY AN OBJECT HAS DUE TO THE MOTION OF ITS MOLECULES THE FASTER ATOMS MOVE THE MORE THERMAL ENERGY THE OBJECT HAS OFTEN RESULTS FROM FRICTION EXAMPLES: ANY CHANGE IN TEMPERATURE OR PHASE OF MATTER (I.E. WATER BOILING)

37
CHEMICAL ENERGY THE ENERGY STORED IN CHEMICAL BONDS THAT HOLD CHEMICAL COMPOUNDS TOGETHER USUALLY, WHEN BONDS ARE BROKEN, THEN ENERGY IS RELEASED OR ABSORBED EXAMPLES: BURNING FUEL (COAL OR WOOD), FOOD, FIREWORKS.

38
**NUCLEAR ENERGY POTENTIAL ENERGY STORED IN THE NUCLEUS OF AN ATOM.**

HEAT & LIGHT ENERGY ARE RELEASED WHEN NUCLEI FUSE (FUSION) OR WHEN THE NUCLEUS OF AN ATOM SPLITS (FISSION). EX: SUN (FUSION), NUCLEAR POWER (FISSION)

39
**ELECTROMAGNETIC ENERGY**

THE ENERGY ASSOCIATED WITH ELECTRICAL AND MAGNETIC INTERACTIONS ELECTRICAL ENERGY: POWER LINES w/ELECTRICTY, HOME WIRING. RADIANT ENERGY: ENERGY CARRIED BY LIGHT, INFRARED WAVES, X-RAYS.

40
**MORE ENERGY CONVERSIONS**

IT IS POSSIBLE TO TRANSFER, OR CONVERT ONE FORM OF ENERGY TO OTHER FORMS: EXAMPLES: RUBBING HANDS TOGETHER

41
POWER

42
**THE RATE AT WHICH YOU DO WORK**

DEFINITION OF POWER THE RATE AT WHICH YOU DO WORK

43
**FORCE X DISTANCE TIMEXX**

FORMULA FOR POWER WORK TIME FORCE X DISTANCE TIMEXX

44
**WATT 1 WATT IS EQUAL TO 1 JOULE PER SECOND**

SI UNIT OF POWER WATT 1 WATT IS EQUAL TO 1 JOULE PER SECOND 1 w = 1 J/s

45
SAMPLE POWER PROBLEMS A SMALL MOTOR DOES 4000 J OF WORK IN 20 SECONDS. WHAT’S THE POWER OF THE MOTOR IN WATTS? P = W/t or F•d/t 4000J / 20s = 200w OF POWER

46
POWER PROBLEMS AN ELECTRICAL CHARGER USES 144J IN 30S TO CHARGE A MOBILE PHONE. HOW MUCH POWER DID THE CHARGER USE? P = W/t 144J / 30s 4.8 w OF POWER

47
**AN AIRPORT CONVEYOR BELT DOES 1200J OF WORK TO MOVE A SUITCASE IN 20S**

AN AIRPORT CONVEYOR BELT DOES 1200J OF WORK TO MOVE A SUITCASE IN 20S. WHAT’S THE POWER OF THE CONVEYOR BELT? P = W / t 1200J / 20s 60 w OF POWER

48
**P = FORCE X DISTANCE / TIME**

A MACHINE MOVES AN OBJECT WITH A FORCE OF 50N A DISTANCE OF 28 M IN 70 S. HOW MUCH POWER DID IT TAKE? P = FORCE X DISTANCE / TIME 50N X 28m = 1400N-m / 70s = 20w OF POWER USED

49
**CALCULATING POWER FROM ENERGY**

YOU CAN MEASURE ENERGY USED BY DIVIDING THE ENERGY BY TIME POWER = ENERGY TIME

50
SAMPLE POWER PROBLEMS A LIGHT BULB USED 600 J OF ENERGY IN 6 SECONDS, WHAT IS THE POWER OF THE LIGHT BULB? P = E/t 600J / 6s = 100 J/s OR WATTS OF POWER

51
**INCREASING SPEED REQUIRES MORE ENERGY**

HOW ENERGY RELATES TO: SPEED INCREASING SPEED REQUIRES MORE ENERGY

52
**AN OBJECT THAT HAS MOMENTUM HAS KINETIC ENERGY**

HOW ENERGY RELATES TO: MOMENTUM AN OBJECT THAT HAS MOMENTUM HAS KINETIC ENERGY

53
**FORCE HOW ENERGY RELATES TO:**

A FORCE IS REQUIRED TO CHANGE THE MOTION OF AN OBJECT. THIS IS WORK, & IF IT’S DOING WORK IT CHANGES THE ENERGY OF THE OBJECT

54
**POWER HOW ENERGY RELATES TO:**

SINCE POWER IS THE RATE AT WHICH WORK IS DONE, IT MUST ALSO BE THE RATE AT WHICH ENERGY IS CONSUMED BECAUSE IT TAKES ENERGY TO DO WORK.

55
**WORK HOW ENERGY RELATES TO:**

WORK DONE ON A MACHINE MEANS THAT ENERGY GOES INTO THE MACHINE. BECAUSE ENERGY IS CONSERVED, WORK IS CONSERVED. FRICTION ENERGY IS NOT LOST BUT CONVERTED TO HEAT ENERGY.
