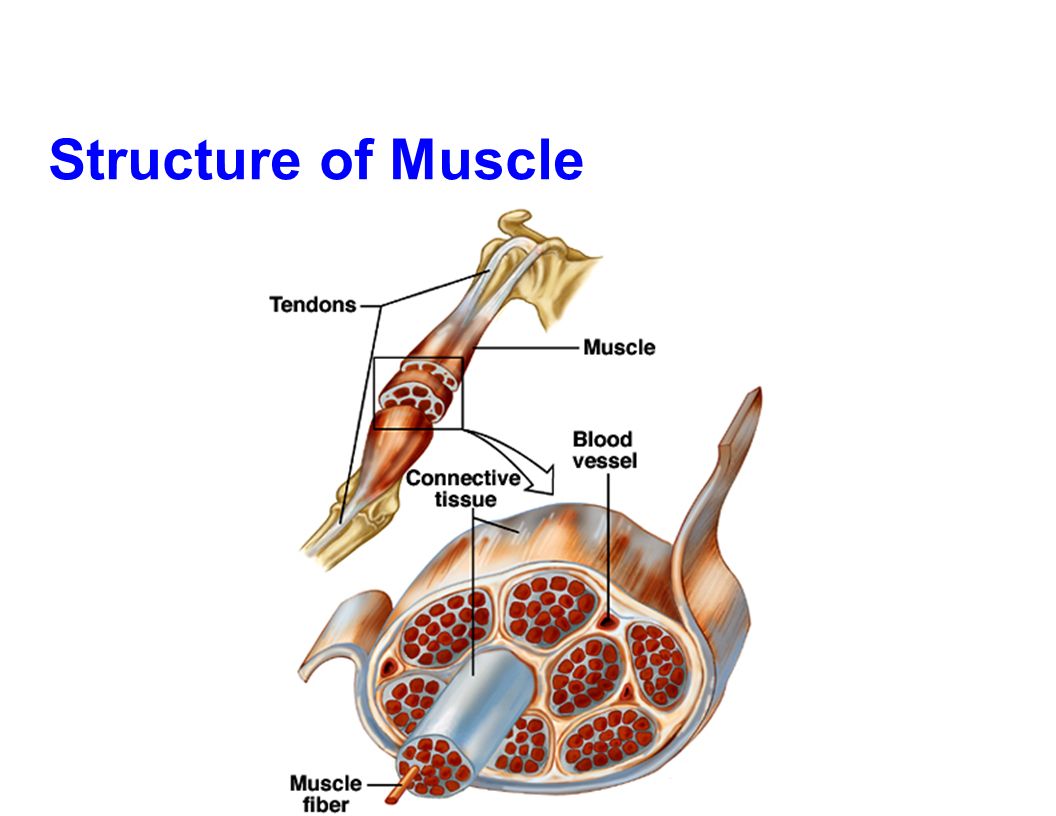

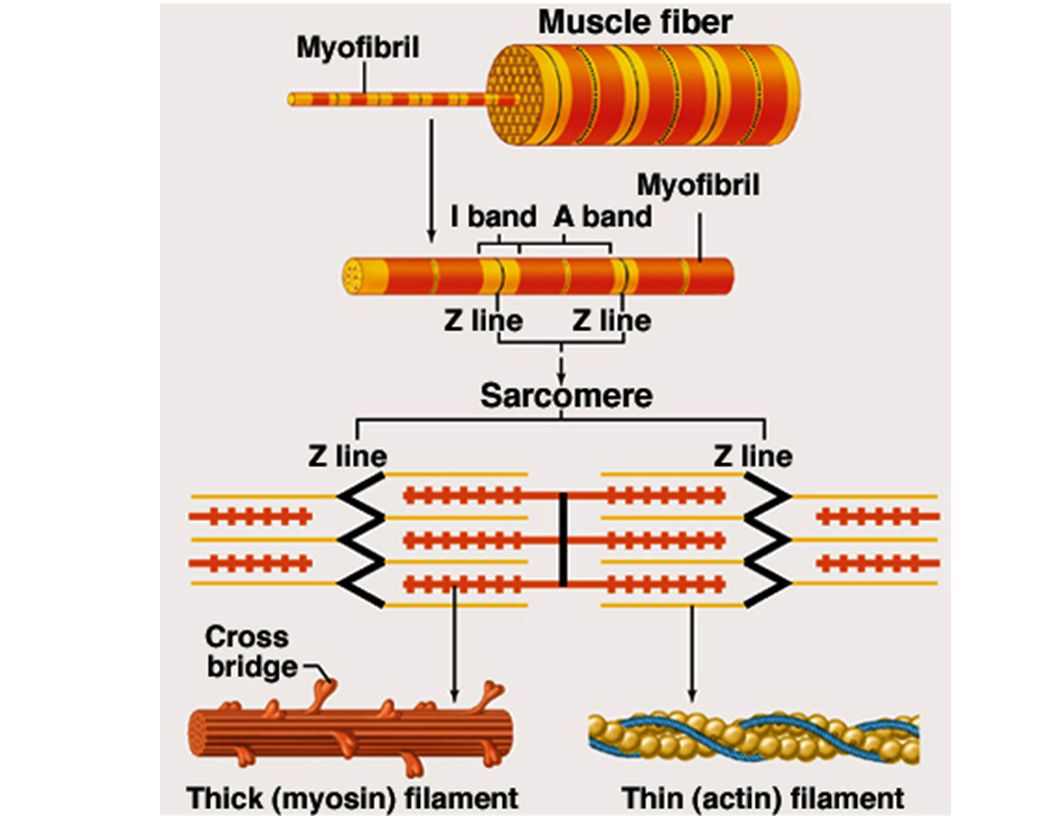

1 Structure of Muscle

2

3

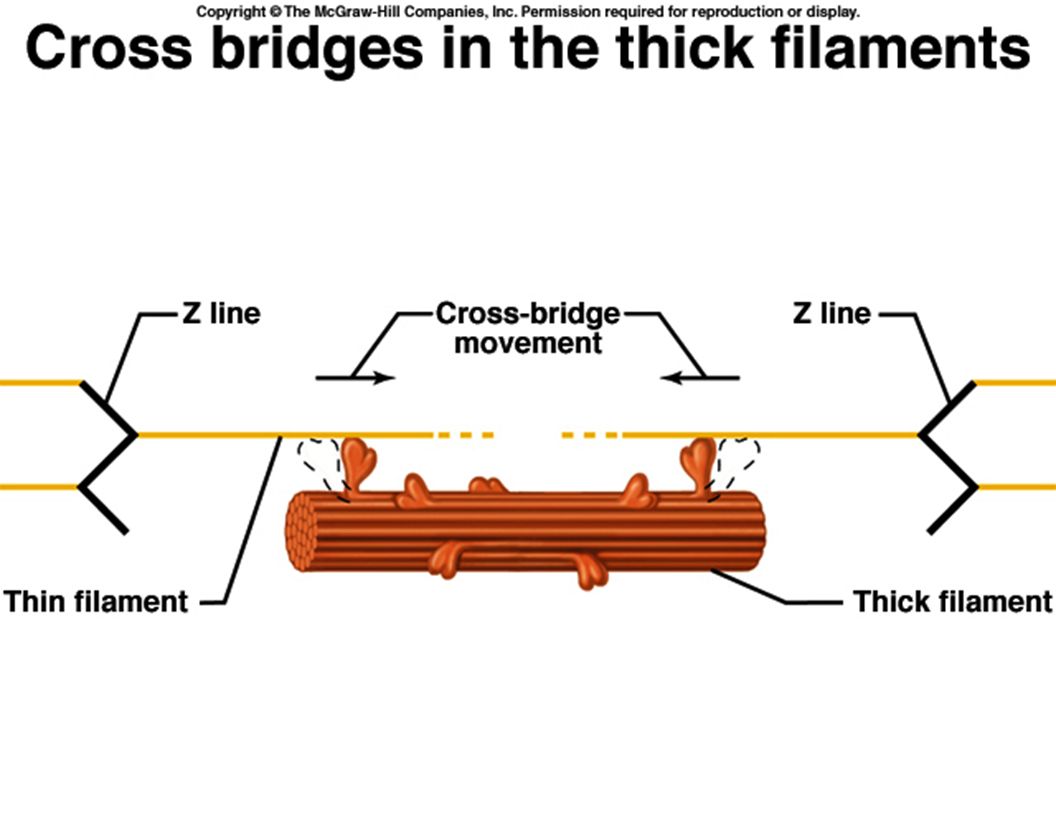

4 Sliding Filament Hypothesis n During Contraction n Proteins DO NOT actually shorten n Rather they slide past one another n Support n Changes in Sarcomere Bands n Actual measurement of proteins n Length-Tension Characteristics

5 Sliding Filament Hypothesis n During Contraction n Proteins DO NOT actually shorten n Rather they slide past one another n Support n Changes in Sarcomere Bands n Actual measurement of proteins n Length-Tension Characteristics

6 Length - Tension Characteristics n Stretch Muscle to Various Lengths n Measure Active Tension Sarcomere Length Tension

7

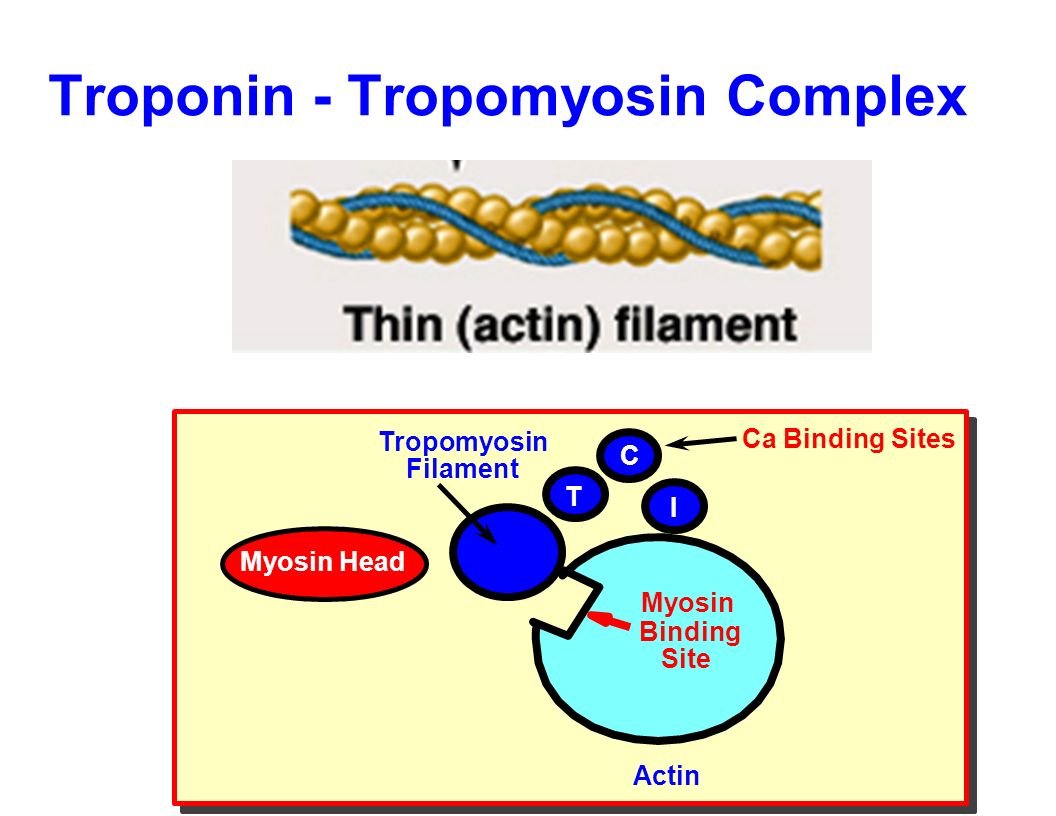

8 Troponin - Tropomyosin Complex Myosin Head Myosin Binding Site Actin Tropomyosin Filament T C I Ca Binding Sites

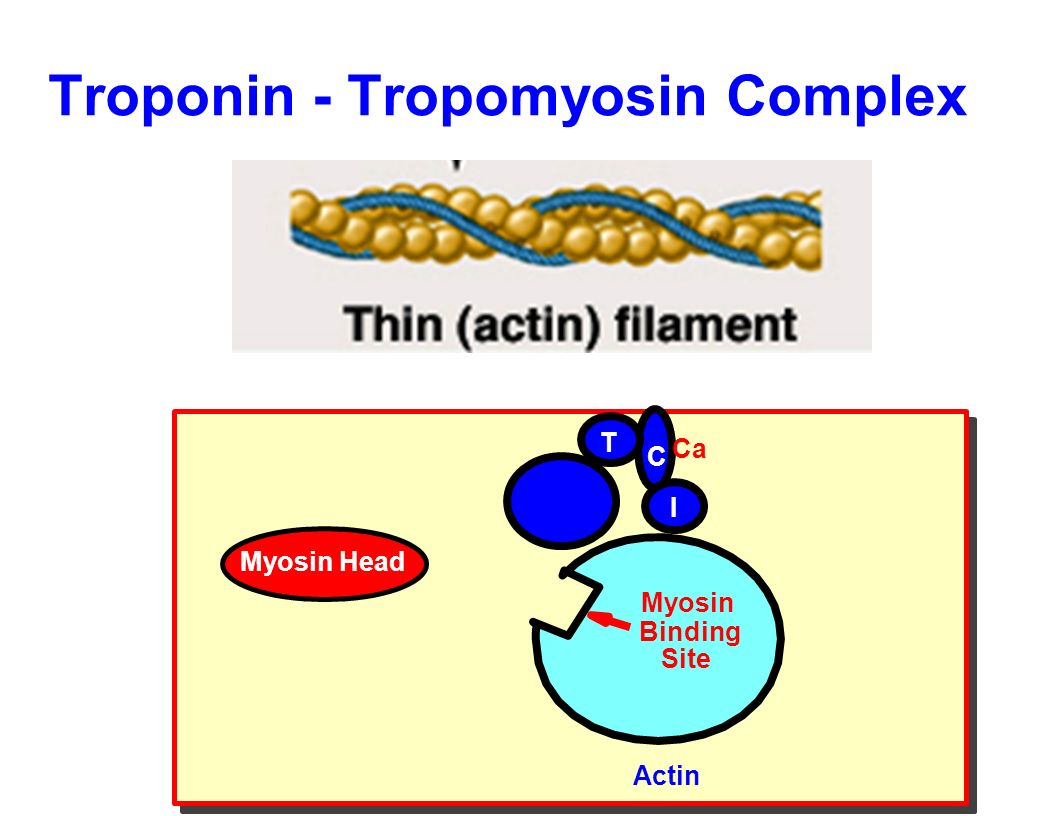

9 Troponin - Tropomyosin Complex Myosin Head Myosin Binding Site Actin T C I Ca

10 Troponin - Tropomyosin Complex Myosin Head Myosin Binding Site Actin T C I Ca

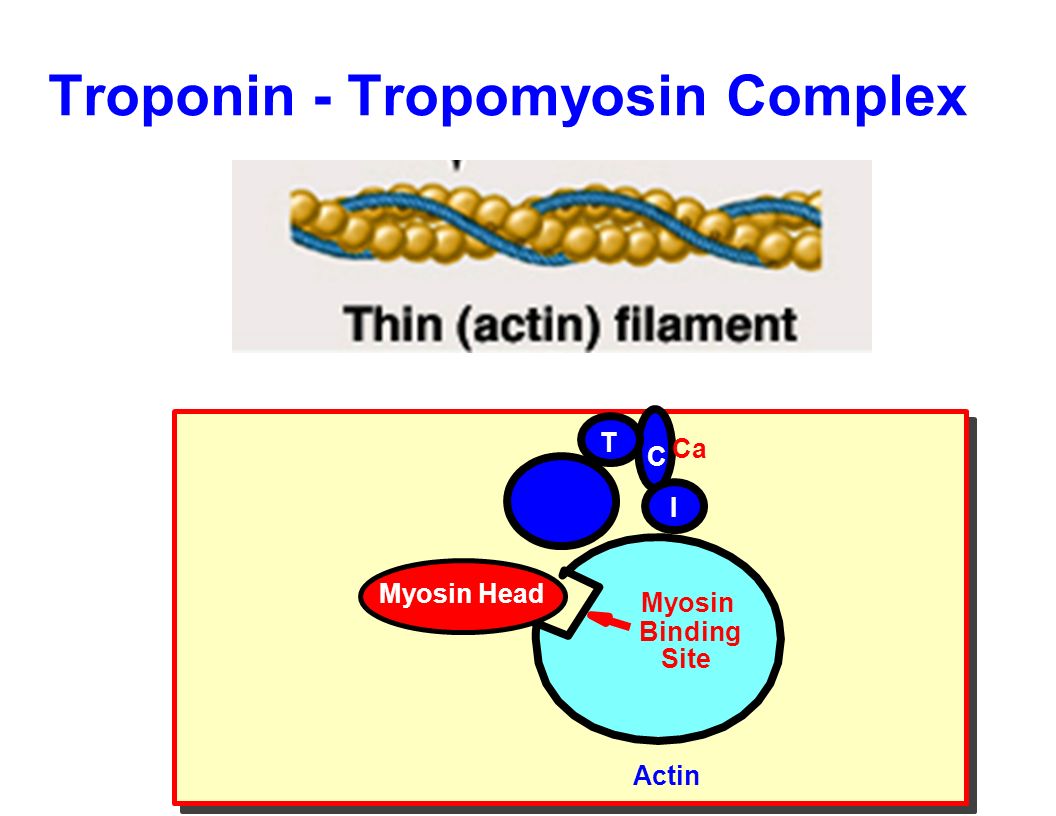

11 Troponin - Tropomyosin Complex Myosin Head Myosin Binding Site Actin T C I Ca

12

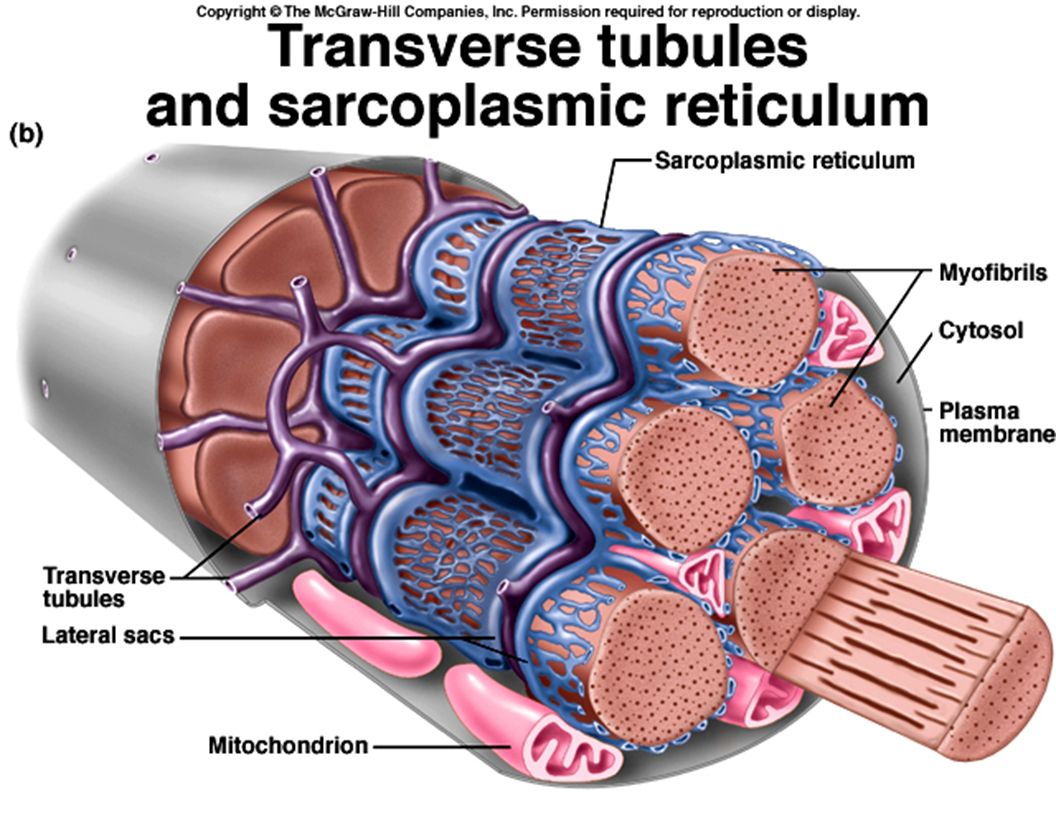

13

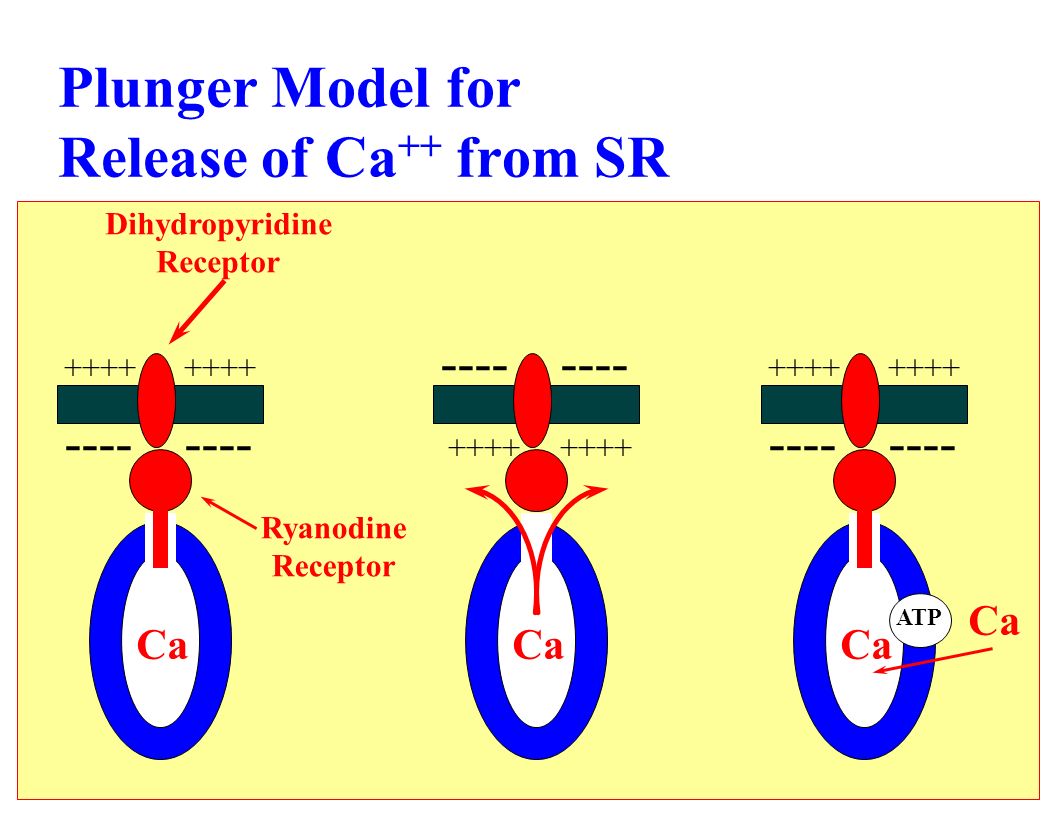

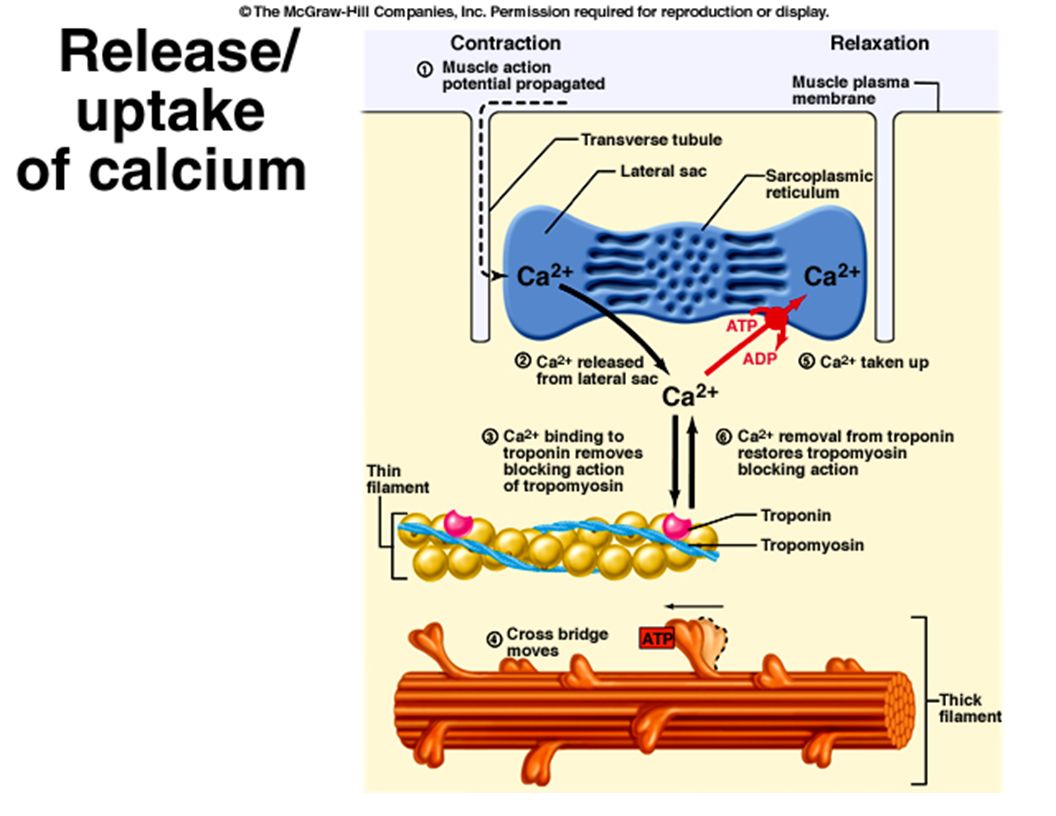

14 Plunger Model for Release of Ca ++ from SR Ca Ca Ca ATP Ca Dihydropyridine Receptor Ryanodine Receptor

15 Summary of Excitation-Contraction Coupling Ca

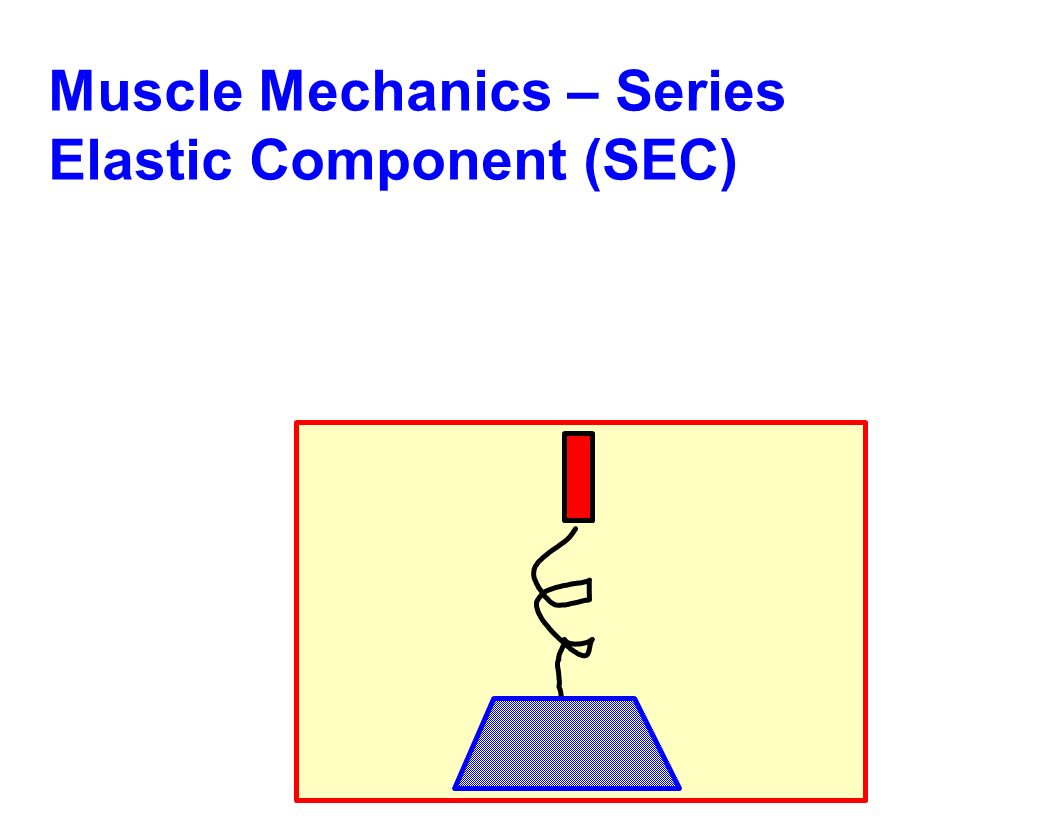

16 Muscle Mechanics – Series Elastic Component (SEC)

17

18

19

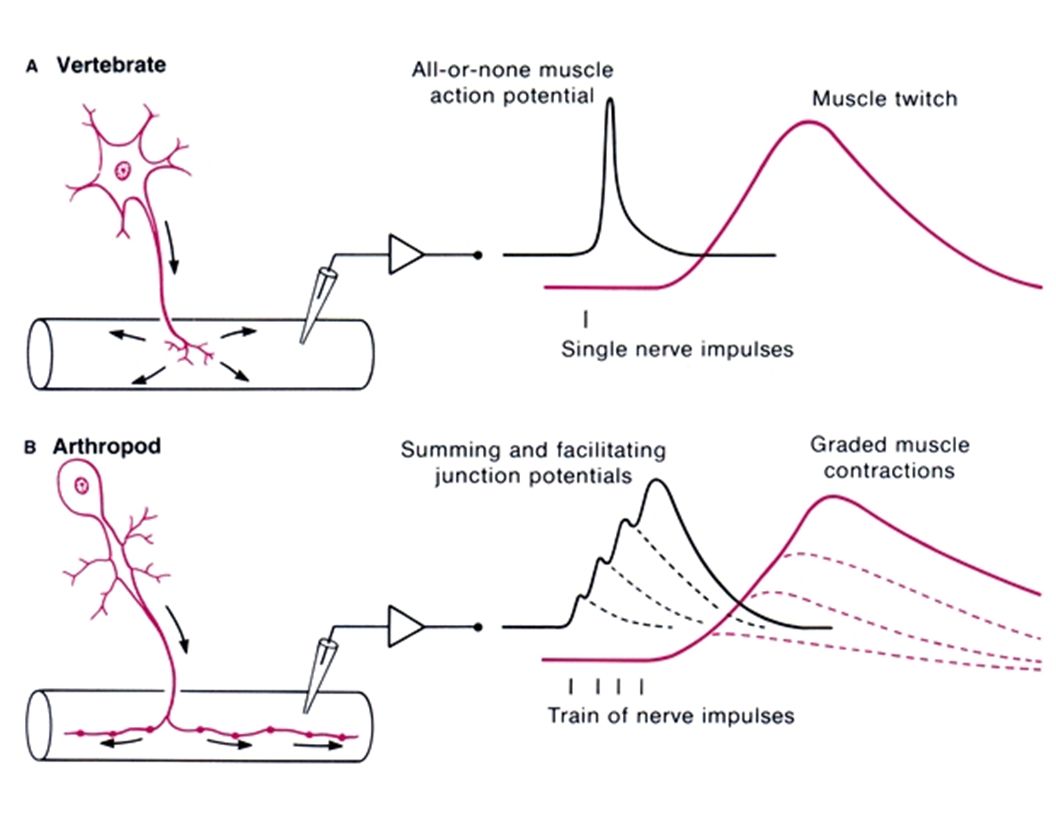

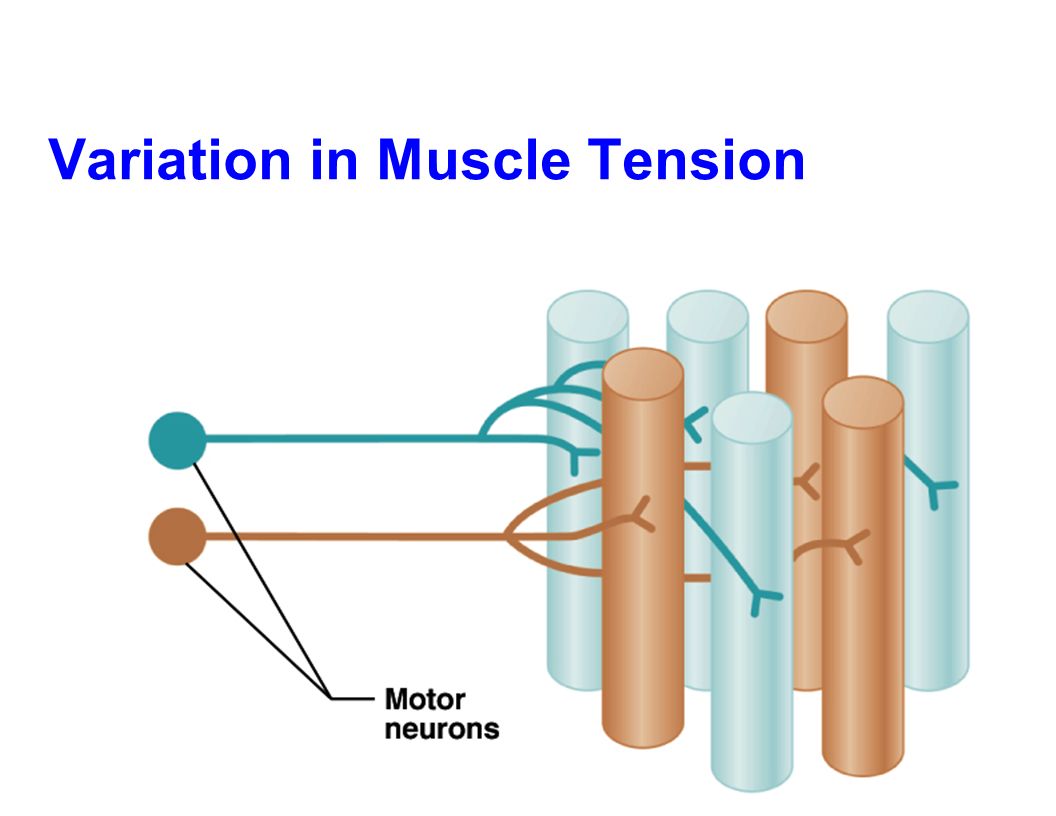

20 Variation in Muscle Tension

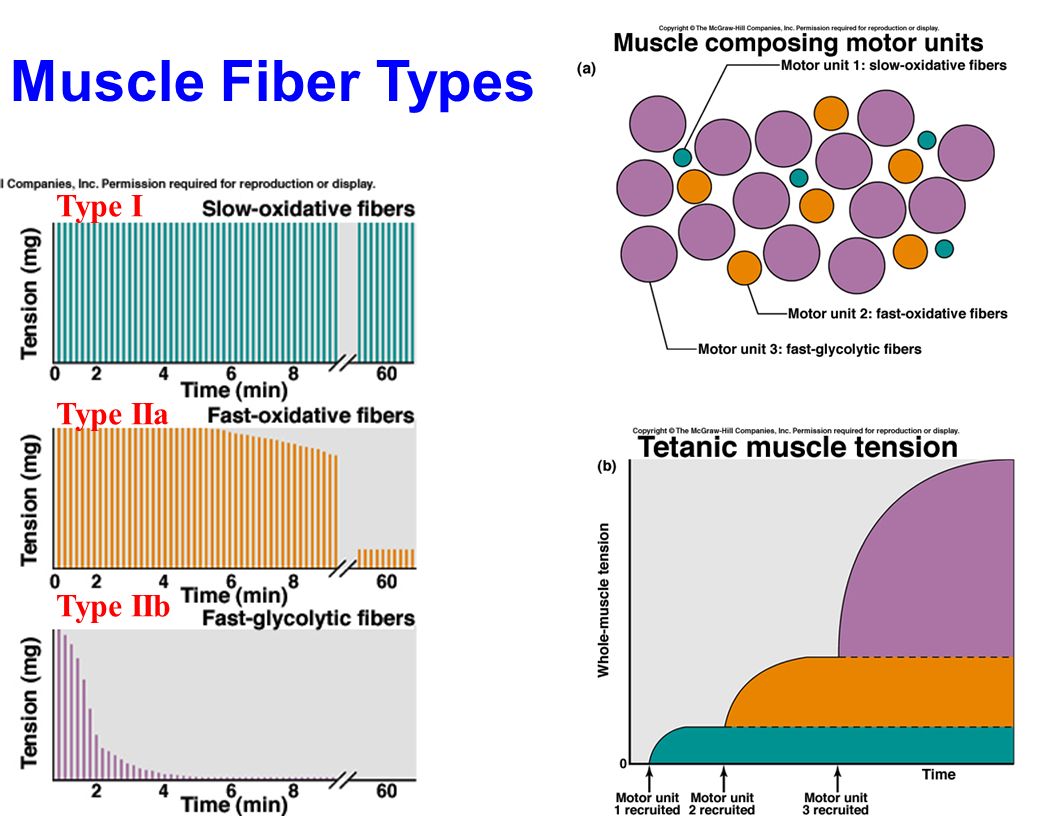

21 Muscle Fiber Types Type I Type IIa Type IIb

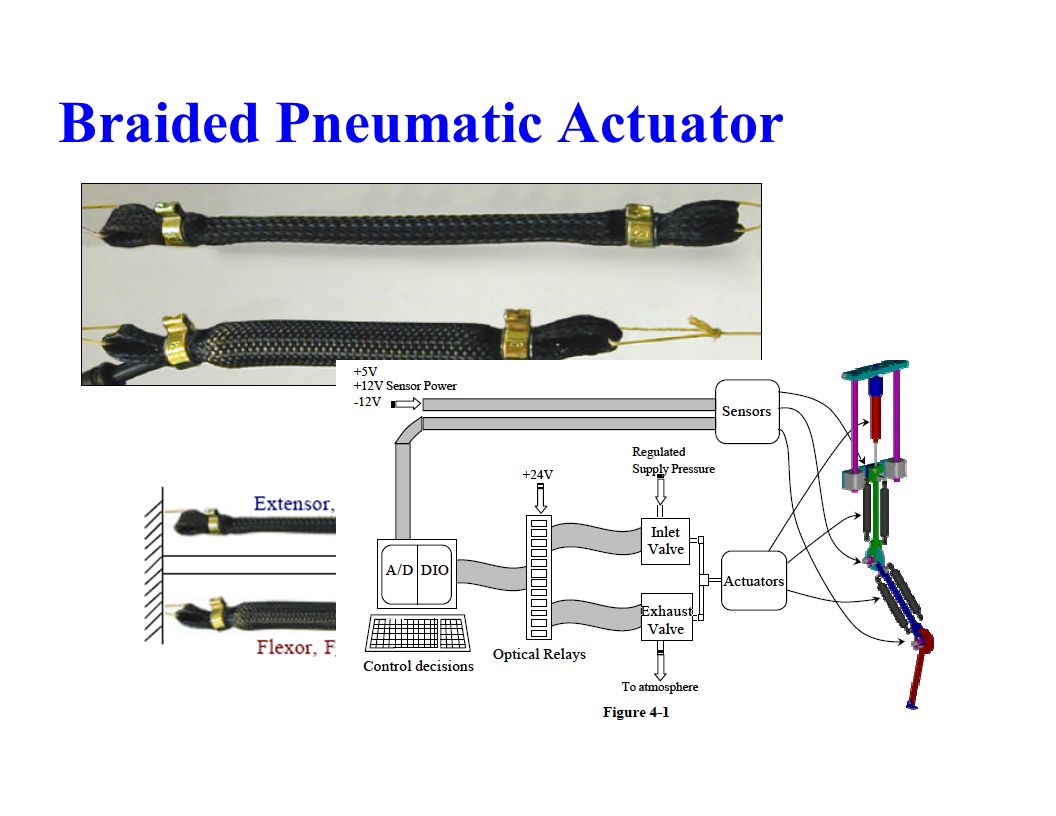

22 Braided Pneumatic Actuator

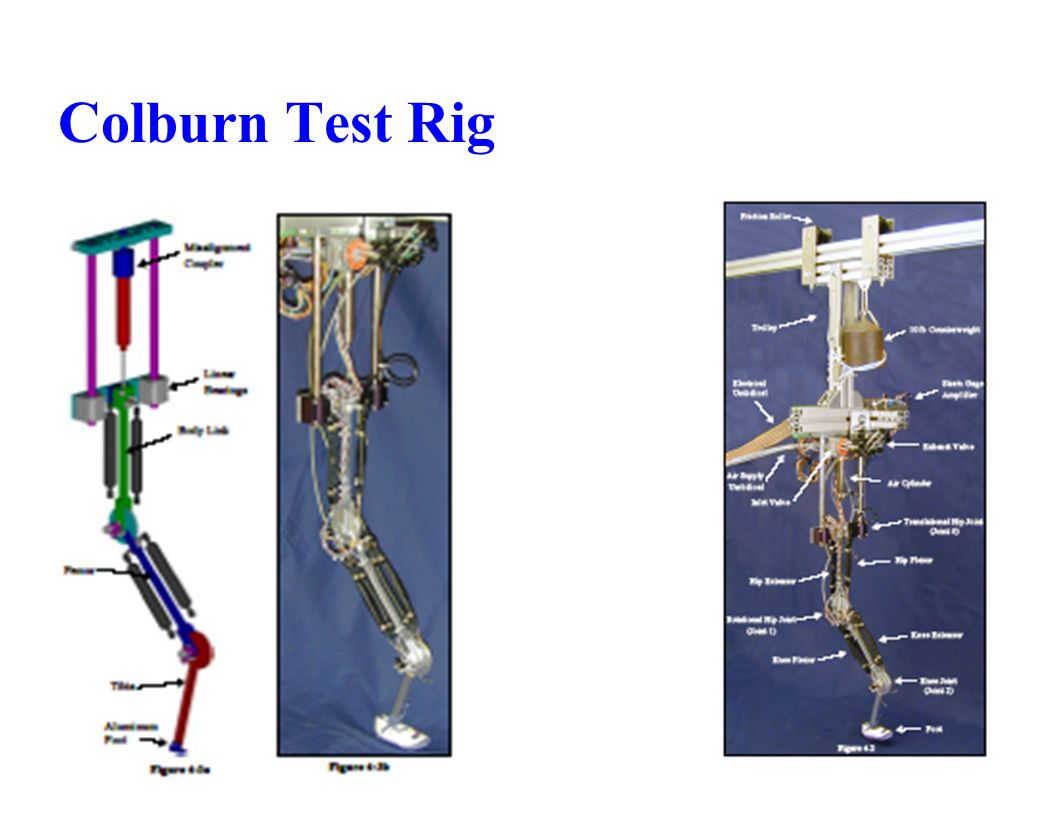

23 Colburn Test Rig

24 Length – Tension Characteristics

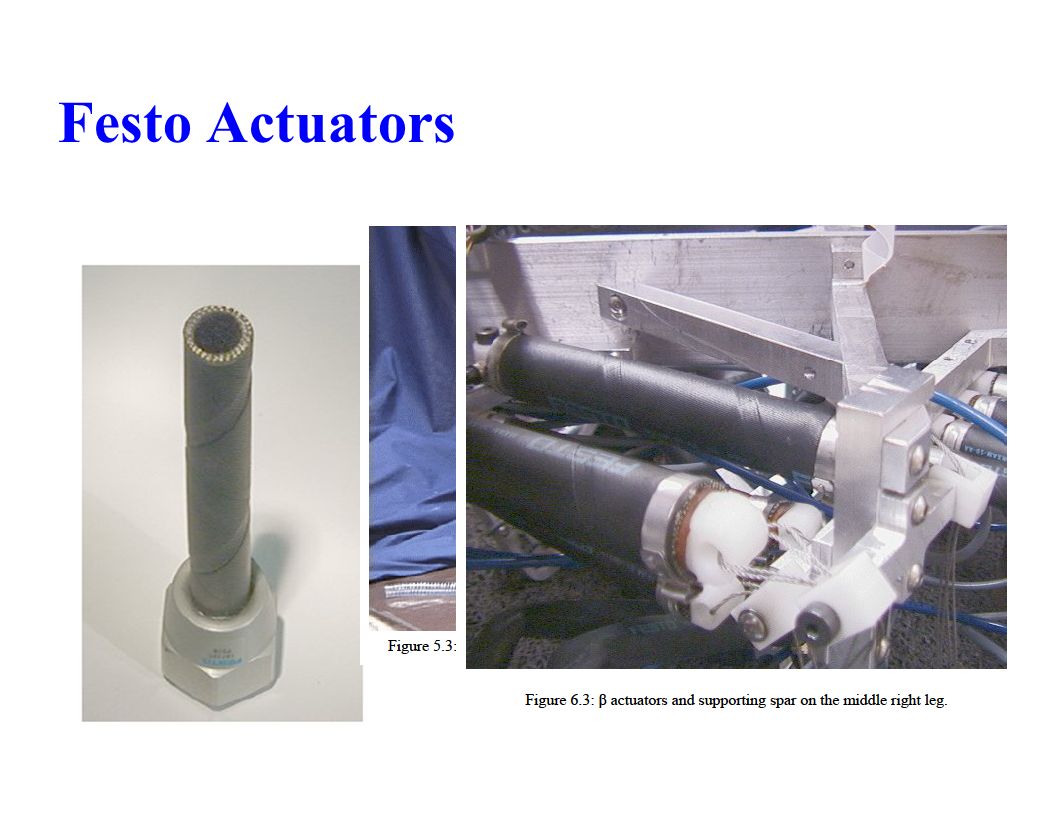

25 Festo Actuators

26 Air Insect - Kirchner

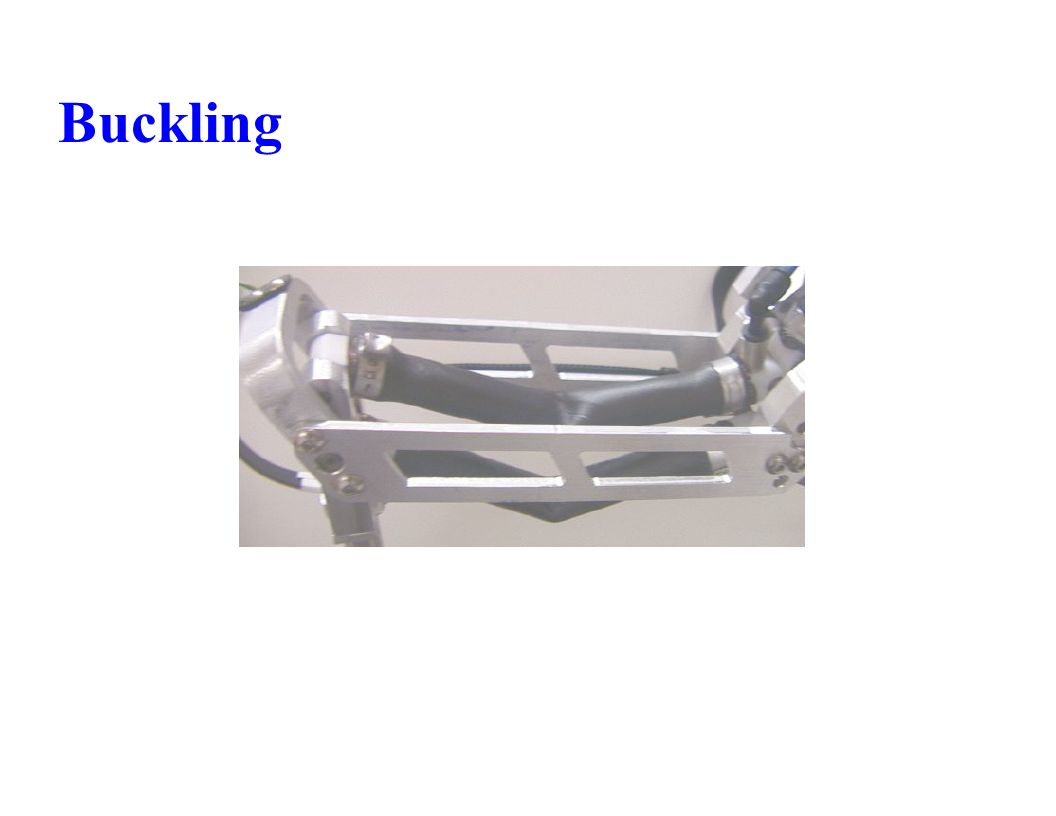

27 Buckling

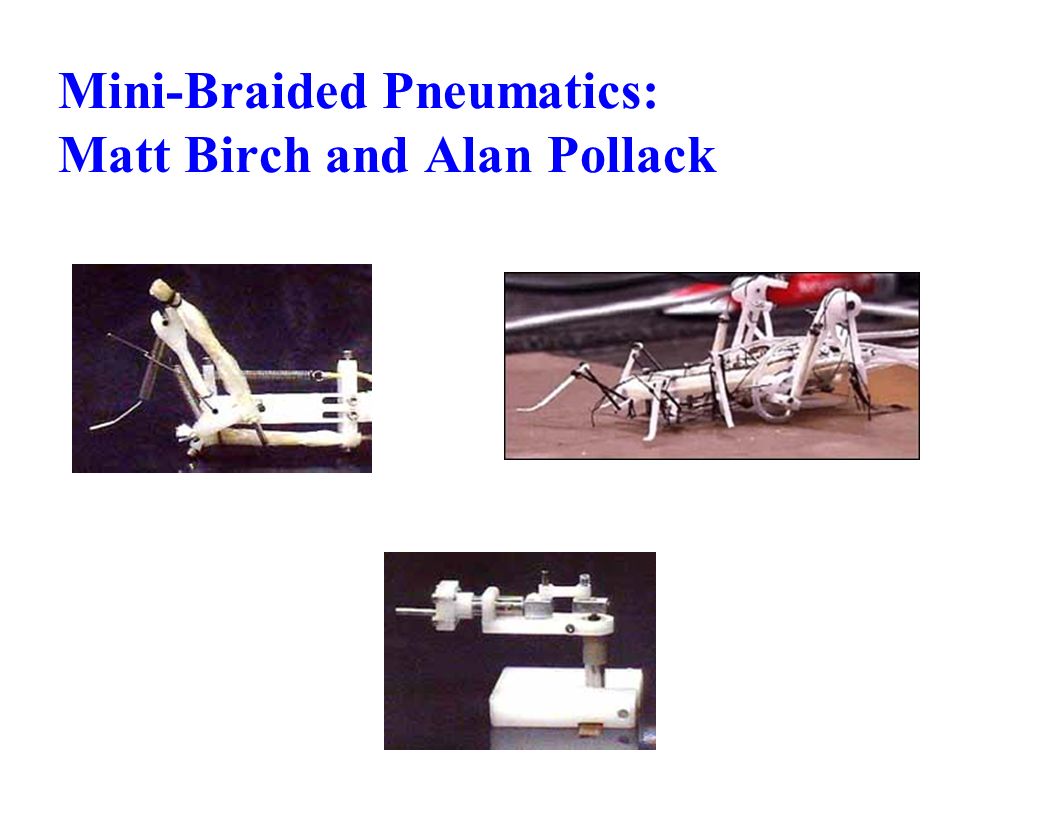

28 Mini-Braided Pneumatics: Matt Birch and Alan Pollack

29 Electroactive Polymer – SRI et al
