1. Office of Science U.S. Department of Energy Troubleshooting Data Movement Dan Gunter LBNL

2. Office of Science U.S. Department of Energy Background Work is part of SciDAC CEDPS (Center for Enabling Distributed Petascale Science) Basic question: Why did my transfer (or remote operation) fail? We want to answer this question before the users even ask it!  Instrument: middleware, applications, etc.  Monitor: gather data (in response to problems)  Diagnose: failures and performance problems

3. Office of Science U.S. Department of Energy Topics Two broad categories of work:  Gathering and normalizing existing data to allow analysis across sites (e.g. in OSG)  Adding new data through instrumentation of standard Grid middleware (e.g. GridFTP)

4. Office of Science U.S. Department of Energy CEDPS Troubleshooting Architecture

5. Office of Science U.S. Department of Energy Syslog-ng Features:  Can filter logs based on level and content  Arbitrary number of sources and destinations  Provide remote logging  Can act as a proxy, tunnel thru firewalls  Execute programs  Send email, load database, etc.  Built-in Log rotation  Timezone support

6. Office of Science U.S. Department of Energy Log collection using syslog-ng

7. Office of Science U.S. Department of Energy Log Parser Normalizes unformatted logs to name=value pairs Plug-in architecture to make it easy to add additional log file formats  We will provide a set of example parsers But…  Parsers will be hard to write and maintain  If middleware and application developers follow the “logging best practices” document, the parser component will be not necessary

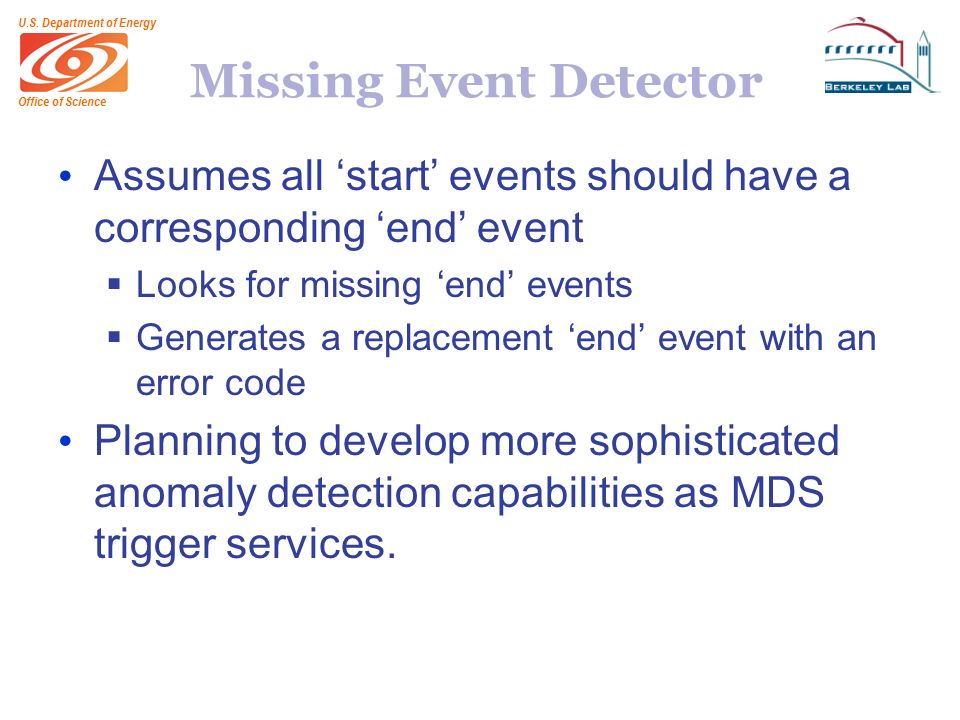

8. Office of Science U.S. Department of Energy Missing Event Detector Assumes all ‘start’ events should have a corresponding ‘end’ event  Looks for missing ‘end’ events  Generates a replacement ‘end’ event with an error code Planning to develop more sophisticated anomaly detection capabilities as MDS trigger services.

9. Office of Science U.S. Department of Energy Log Filter Some sites may not want to forward potentially sensitive information to the VO archive  E.g.: usernames, user DN’s, IP addresses Syslog-ng can filter entire events  But would prefer to just filter out the sensitive fields Log filter will be able to remove or anonymize specific fields in the event

10. Office of Science U.S. Department of Energy Database Loader This component loads normalized logs into an SQL database Ability to specify mapping of fields to database columns

11. Office of Science U.S. Department of Energy Sample Site Deployment

12. Office of Science U.S. Department of Energy Sample Grid Deployment

13. Office of Science U.S. Department of Energy Current Status

14. Office of Science U.S. Department of Energy Logging “Best Practices” Recommendations Practices  Each logged event must contain a unique event name and an ISO-format timestamp (e.g. 2007-06- 12T07:23:22.887332Z )  All system operations that might fail or experience performance variations should be wrapped with start and end events.  All logs from a given execution thread should be tagged with a globally unique ID (or GUID), such as a Universal Unique Identifiers (UUIDs) Log format  Logs should be lines of ASCII name=value pairs  Example: ts=2006-12-08T18:48:27.598448Z event=org.globus.gridFTP.transfer.start guid=ID file=filename src.host=H1 src.port=P1 dst.host=H2 dst.port=P2

15. Office of Science U.S. Department of Energy Event Names Use a '.' as a separator and go from general to specific  Same as Java class names First part of name should be used as a unique namespace (e.g.: org.globus) Use start/end suffixes whenever possible  Helps immensely with troubleshooting Examples  org.globus.gridFTP.start  org.globus.gridFTP.authn.start  org.globus.gridFTP.authn.end  org.globus.gridFTP.transfer.start  org.globus.gridFTP.transfer.end  org.globus.gridFTP.end org.globus.MDS.response.start org.globus.MDS.query.start org.globus.MDS.query.end org.globus.MDS.write.net.start org.globus.MDS.write.net.end org.globus.MDS.response.end

16. Office of Science U.S. Department of Energy Reporting Errors Errors should be reported as part of the ‘end’ event if possible  Use ‘status=N’ (>= 0 success)  Not attempting to define other status codes  too hard to get agreement on these Example:  ts=2006-12-08T18:39:23.114369Z event=org.globus.authz.gridmap.end status=-1 DN= ” /O=CEDS/CN=Some User ” msg= ” Cannot open gridmap file /etc/grid-security/grid- mapfile for reading ” guid=F7D64975-069A-4152- A21F-57109AA46DFA level=ERROR

17. Office of Science U.S. Department of Energy Error Reporting cont. Depending on how program is structured, it may be hard to propagate the error message to the ‘end’ event Use ‘error’ event name suffix in this situation Examples:  event=org.globus.gridFTP.write.error path=“/home/grid” msg=“write error, disk full”  event=myprogram.input.error msg=“invalid input”

18. Office of Science U.S. Department of Energy Globally Unique IDs Use the ‘guid’ reserved name to allow correlation of a set of events together event=org.globus.gridFTP.authn.start guid= BFDD3DA5-7891-4885-A3AF-1C5E3B8EF9BB event=org.globus.gridFTP.authn.end guid= BFDD3DA5-7891-4885-A3AF-1C5E3B8EF9BB event=org.globus.gridFTP.transfer.start guid= BFDD3DA5-7891-4885-A3AF-1C5E3B8EF9BB event=org.globus.gridFTP.transfer.end guid= BFDD3DA5-7891-4885-A3AF-1C5E3B8EF9BB UUID easy to generate  uuidgen, uuidlib  MD5 hash in hexadecimal But free-form ‘id’ also allowed (e.g. process ID)

19. Office of Science U.S. Department of Energy Example: GridFTP ts=2006-12-08T18:39:23.114369Z event=org.globus.gridFTP.start prog=GridFTP-4.0.3 localhost=myhost remoteHost=somehost.gov:56010 serverMode=inetd id=56010 ts=2006-12-08T18:39:23.114567Z event=org.globus.gridFTP.authn.start DN=“/DC=org/DC=doegrids/OU=People/CN=Somebody” id=56010 ts=2006-12-08T18:39:25.514369Z event=org.globus.gridFTP.authn.end DN=“/DC=org/DC=doegrids/OU=People/CN=Somebody” msg=“123456 successfully authorized” localUser=uscmspool381 id=56010 status=0 ts=2006-12-08T18:39:25.864369Z event=org.globus.gridFTP.transfer.start file=/tmp/myfile tcpBufferSize=128KB dataBlockSize=262144 numStreams=1 numStripes=1 destHost=129.79.4.64 id=56010 ts=2006-12-08T18:45:02.214369Z event=org.globus.gridFTP.transfer.end file=/tmp/myfile bytesTransferred=678433 id=56010 status=0 ts=2006-12-08T18:45:02.214386Z event=org.globus.gridFTP.end id=56010 status=226

20. Office of Science U.S. Department of Energy Logging API We are not requiring any special library to generate log messages We assume that programmers use one of the standard logging APIs (syslog, Java log4j, python logger, etc.)  Could also use ‘printf’, custom logging API, etc.  Syslog-ng can be used to forward any newline-delimited ASCII log file

21. Office of Science U.S. Department of Energy Status Working with GT4 developers to add this to  GRAM4, GridFTP, MDS4, Java Core, C Core, Delegation Service Working with OSG on deployment of syslog-ng to gather up logs

22. Office of Science U.S. Department of Energy Log Summarizer

23. Office of Science U.S. Department of Energy Issue Would like to have detailed I/O logging for performance analysis But detailed logs can be far too large and intrusive  For example, a trace of the I/O operations performed by a single GridFTP server capable of saturating a 10 Gigabit network will generate  O(20,000) log events / second  over 70 million per hour Need:  ongoing report of I/O characteristics  negligible perturbation ( < 1% ) and storage

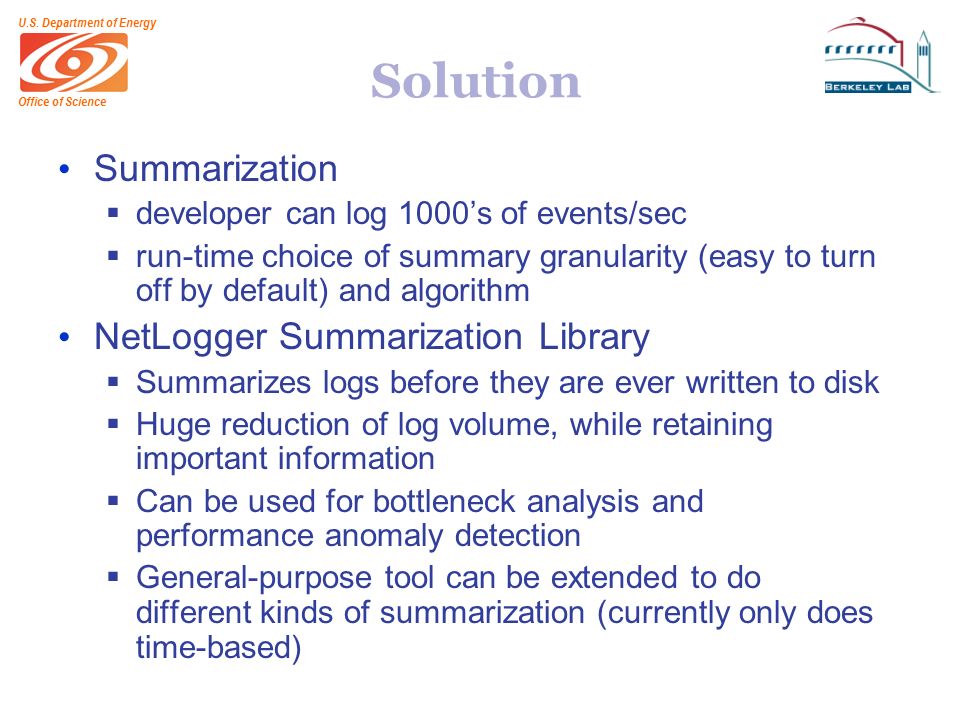

24. Office of Science U.S. Department of Energy Solution Summarization  developer can log 1000’s of events/sec  run-time choice of summary granularity (easy to turn off by default) and algorithm NetLogger Summarization Library  Summarizes logs before they are ever written to disk  Huge reduction of log volume, while retaining important information  Can be used for bottleneck analysis and performance anomaly detection  General-purpose tool can be extended to do different kinds of summarization (currently only does time-based)

25. Office of Science U.S. Department of Energy How summarization works Code for (i=0; i < N; i++) { nl_write(log, “loop.start”, “id=i”, 0); double v = do_work(); nl_write(log, “loop.end”, “id=i val=d”, 0, v); } Configuration (XML version) event " 1 val loop.summ id loop.start loop.end Log calls 1 sec 2 sec 0 sec summary events with average time, average value per time, etc. start/end of each loop Output

26. Office of Science U.S. Department of Energy Programmatic configuration New NetLogger calls (slightly simplified):  Add Events to Summarizer: add_eventpair( “my.event”, my.event.start / my.event.end “nbytes”, value field, e.g. nbytes=131024 “guid”) identifier field  Set summary interval: set_interval(10) 10 second summary interval  Get summary statistics: I = get_stats(“my.event”)

27. Office of Science U.S. Department of Energy Sample GridFTP Deployment with Summarizer

28. Office of Science U.S. Department of Energy Anomaly Detection Summarized events can be used for simple anomaly detection  Summarize disk and network throughput every 10 seconds  Generate an alarm if disk or network drops below threshold X for duration Y

29. Office of Science U.S. Department of Energy Bottleneck Analysis Can configure summarizer to just output a single summary at the end Need to collect summary information at both client and server sides Because the start/end events measure both...  time inside instrumented function (end i - start i )  time between successive calls (start i+1 - end i )..there is potential for determining which functions are busy and which are mostly waiting  admittedly, this is somewhat complicated by OS buffering

30. Office of Science U.S. Department of Energy Summary Two broad categories of work:  Gathering and normalizing existing data to allow analysis across sites (e.g. in OSG)  syslog-ng, log parser, db loader  missing event detector  anomaly detection  Adding new data through instrumentation of standard Grid middleware  best practices logging recommendations  summarizer

31. Office of Science U.S. Department of Energy More Information CEDPS TS home page:  http://www.cedps.net/wiki/index.php/Troubleshooting http://www.cedps.net/wiki/index.php/Troubleshooting Best-practices sub-page:  http://www.cedps.net/wiki/index.php/LoggingBestPractice CEDPS TS team  Brian Tierney, LBNL (Area lead)  Jen Schopf, ANL  Stu Martin, ANL  Laura Perlman, ISI

32. Office of Science U.S. Department of Energy Extra Slides

33. Office of Science U.S. Department of Energy NL summarizer performance FullSummarized Disk202,000 events/sec 588,000 events/sec /dev/null331,000 events/sec 588,000 events/sec Log dest NL mode

34. Office of Science U.S. Department of Energy NL summarizer overhead I/O, compute overlap
