Presentation on theme: "Biology II Development. ? ? Muscle Nerve Blood Intestinal EGG."— Presentation transcript:

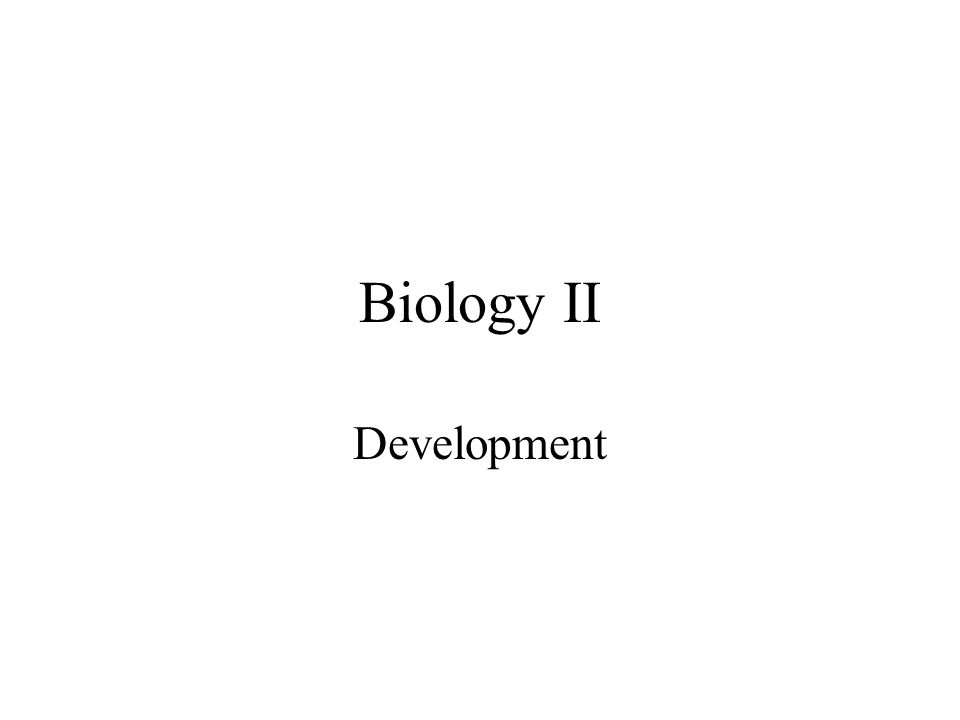

1 Biology II Development

2 ? ?

3 Muscle Nerve Blood Intestinal EGG

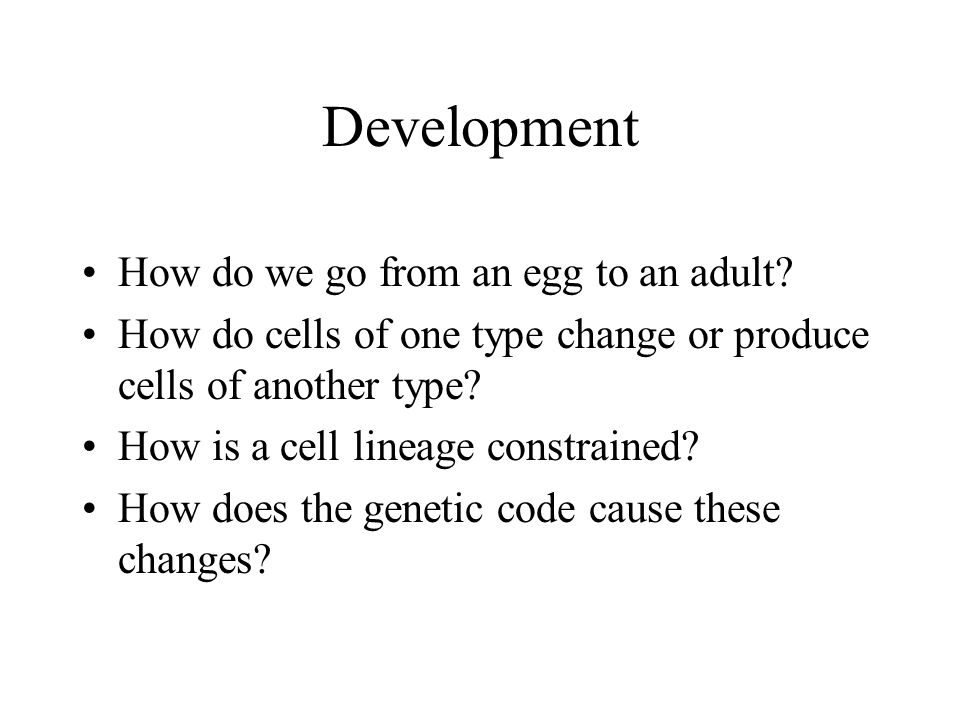

4 Development How do we go from an egg to an adult? How do cells of one type change or produce cells of another type? How is a cell lineage constrained? How does the genetic code cause these changes?

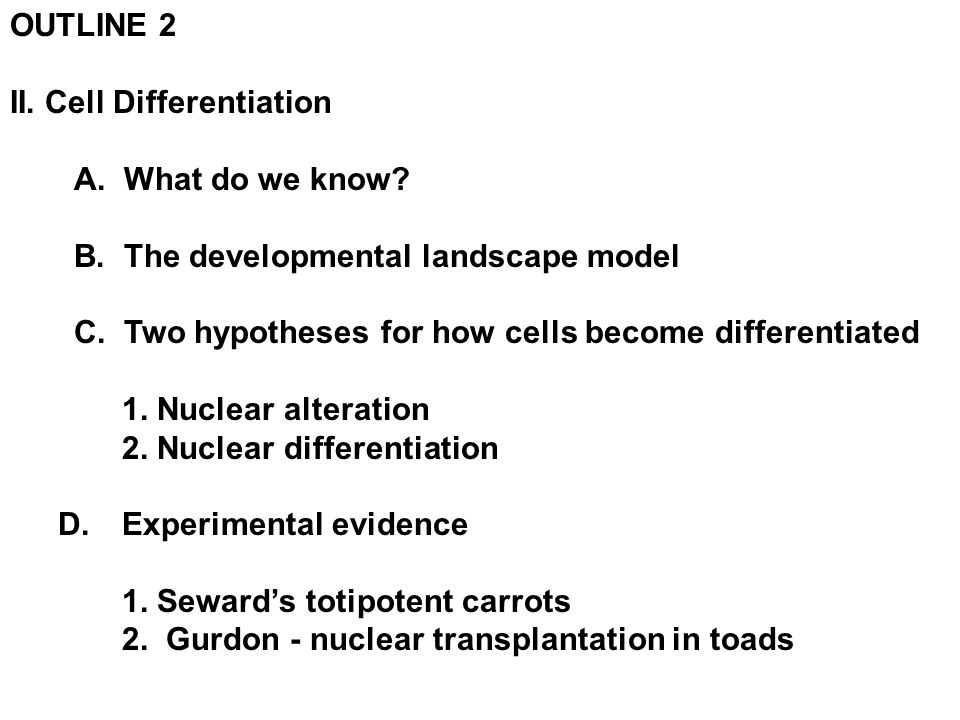

5 OUTLINE 2 II. Cell Differentiation A. What do we know? B. The developmental landscape model C. Two hypotheses for how cells become differentiated 1. Nuclear alteration 2. Nuclear differentiation D.Experimental evidence 1. Seward’s totipotent carrots 2. Gurdon - nuclear transplantation in toads

6 Waddington’s Developmental Landscape brainskinmusclelung Undifferentiated cell Differentiated cells

7 Nuclear Alteration (progressive loss) Nuclear Differentiation (differential expression) Which One?

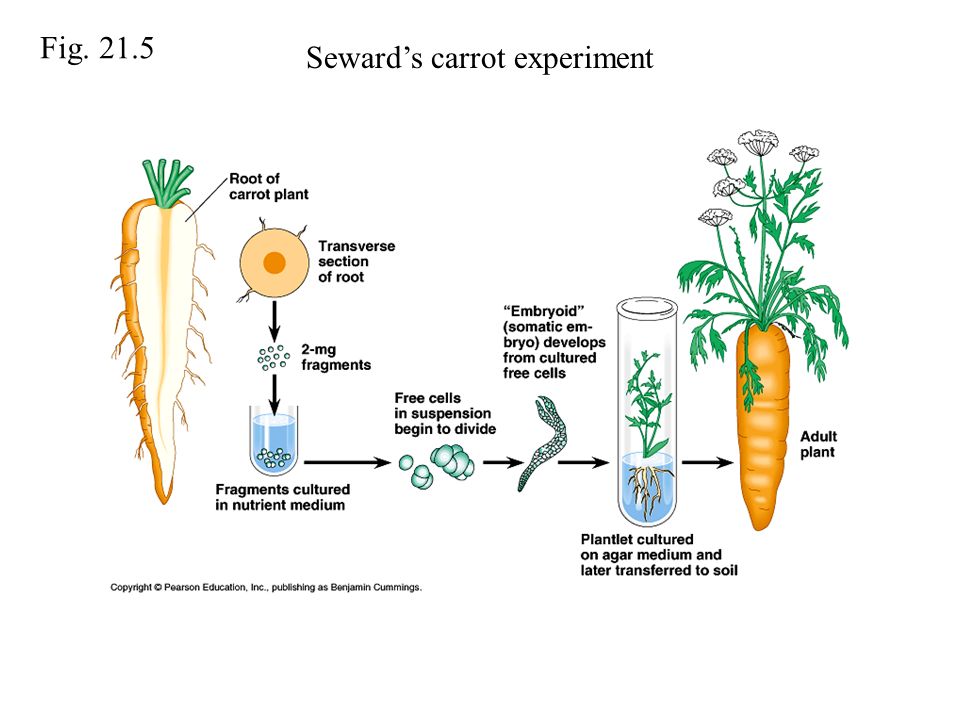

8 Fig. 21.5 Seward’s carrot experiment

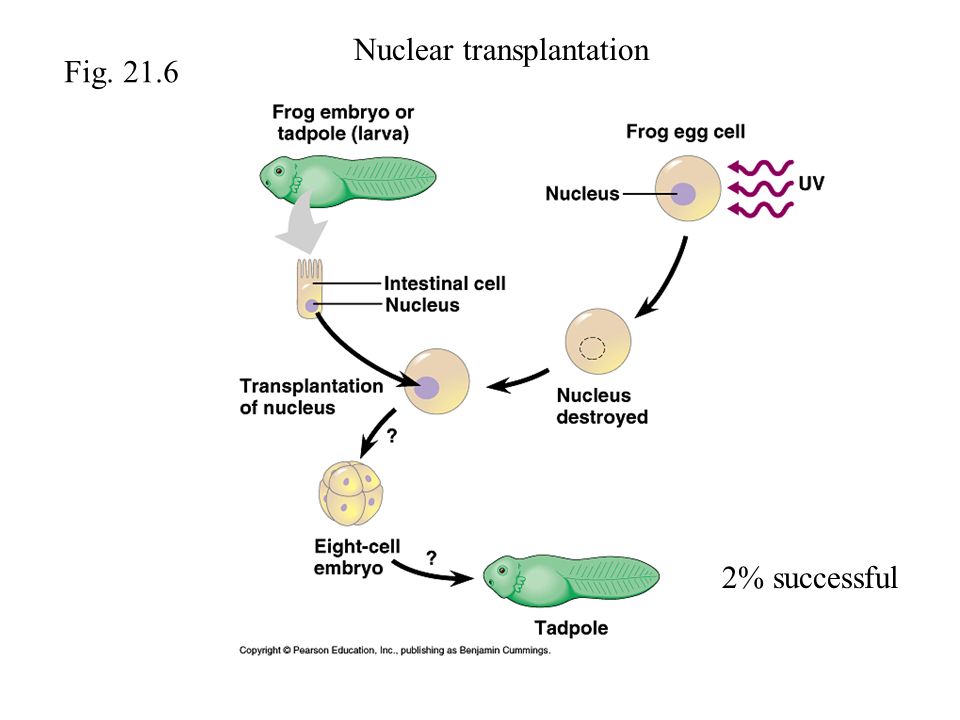

10 Fig. 21.6 Nuclear transplantation 2% successful

11 Fig. 21.6 Nuclear transplantation Serial transfers of nucleus 17% successful

12 Fig. 21.8 Dolly and “mom” Stem cell research Noah - an endangered guar Issues related to totipotency

13 “Scientists Bypass Need for Embryo to Get Stem Cells Two teams of scientists reported yesterday that they had turned human skin cells into what appear to be embryonic stem cells without having to make or destroy an embryo — a feat that could quell the ethical debate troubling the field. All they had to do, the scientists said, was add four genes.”stem cells New York Times: November 21, 2007 Place DNA modified by addition of four genes into skin cells – appear to act as stem cells. But added genes are cancer genes

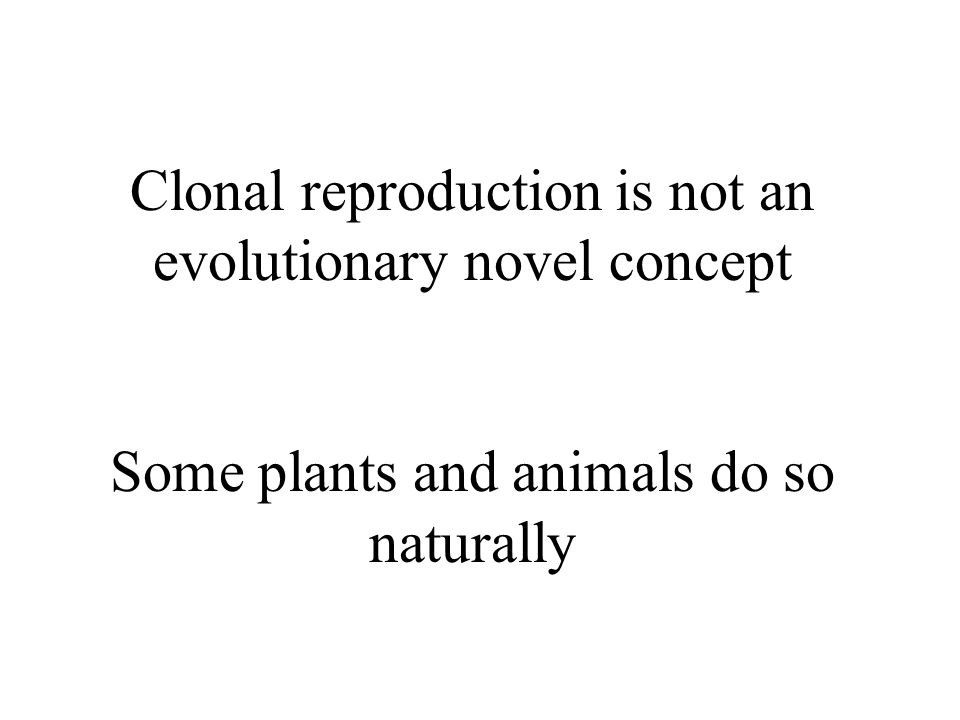

14 Clonal reproduction is not an evolutionary novel concept Some plants and animals do so naturally

15 Clonal reproduction in plants

16 Chordata Cnidaria Echinodermata …and animals

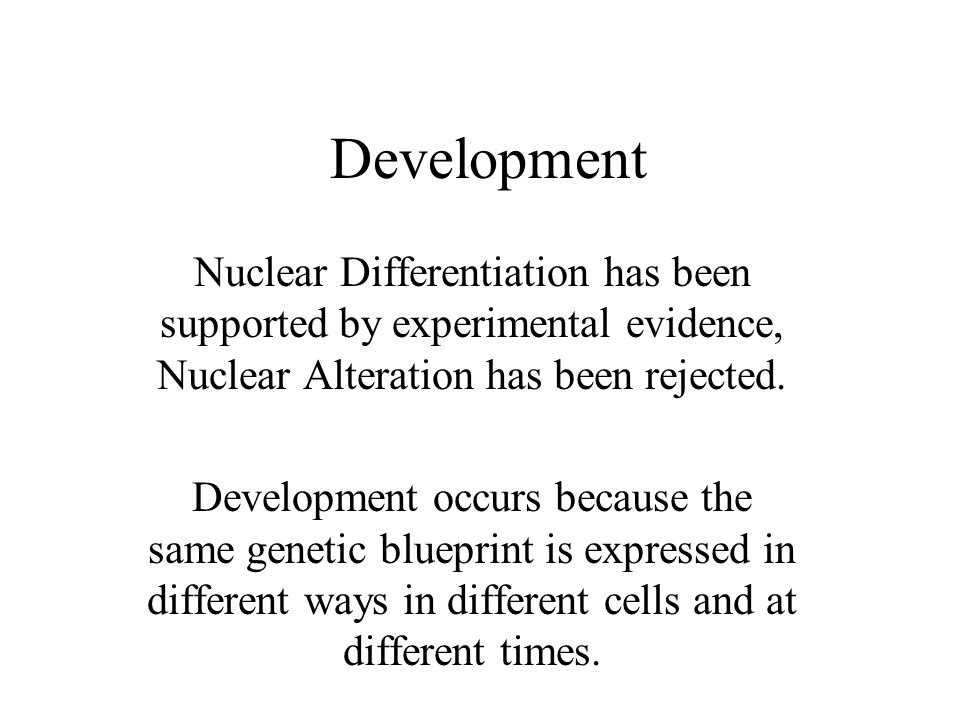

17 Development Nuclear Differentiation has been supported by experimental evidence, Nuclear Alteration has been rejected. Development occurs because the same genetic blueprint is expressed in different ways in different cells and at different times.

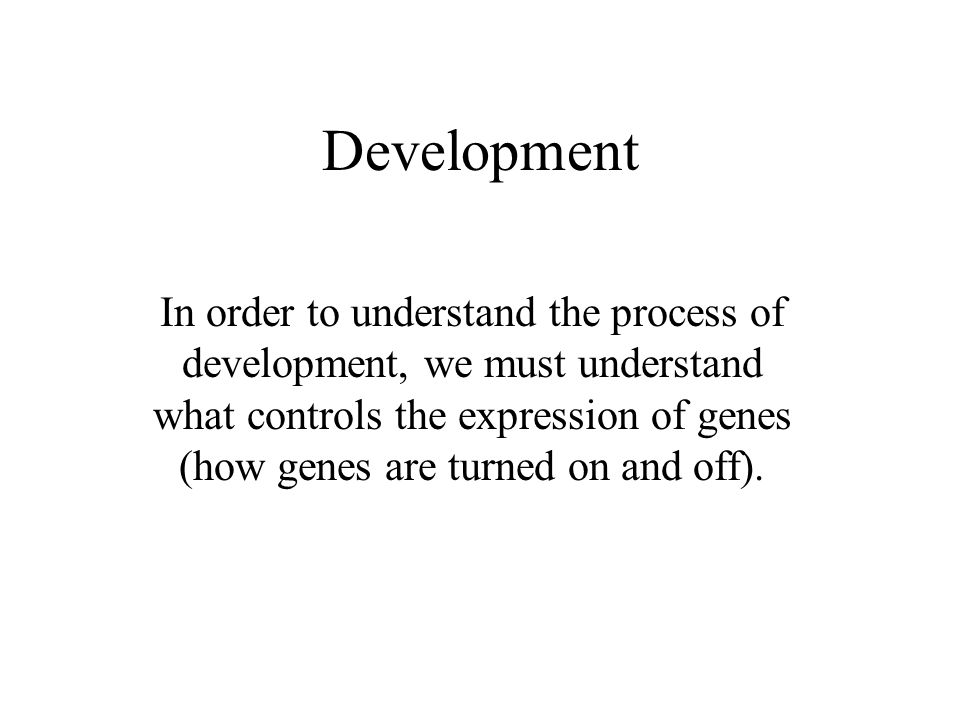

18 Development In order to understand the process of development, we must understand what controls the expression of genes (how genes are turned on and off).

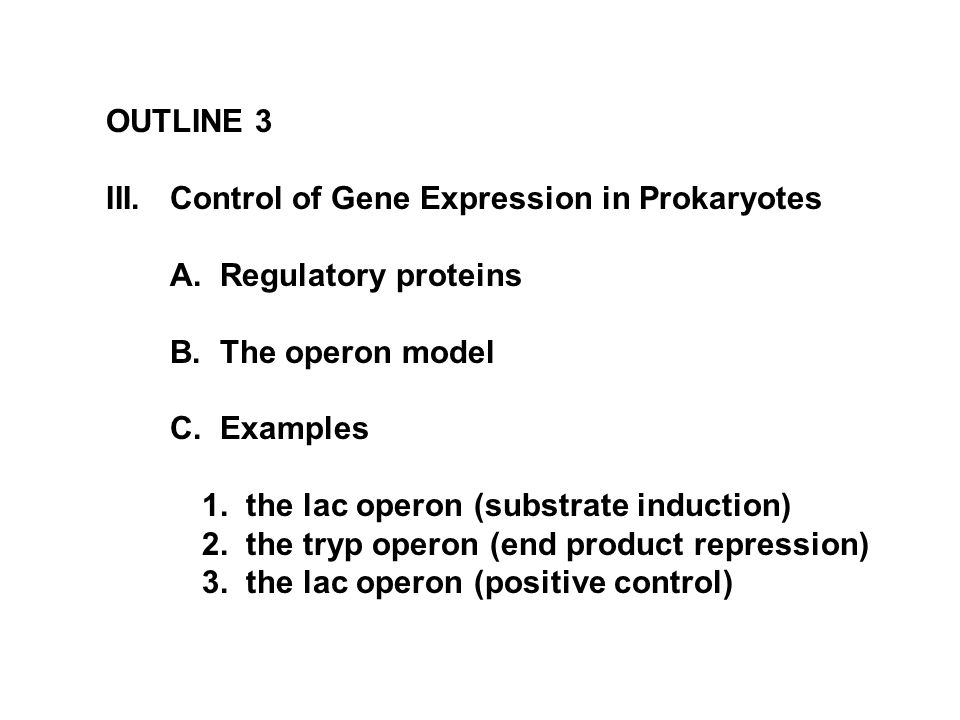

19 OUTLINE 3 III.Control of Gene Expression in Prokaryotes A. Regulatory proteins B. The operon model C. Examples 1. the lac operon (substrate induction) 2. the tryp operon (end product repression) 3. the lac operon (positive control)
