1 How can a plastic ruler be given an electric charge? answer By rubbing it. This causes charges to build up on the ruler. This causes charges to build up on the ruler.
Electrons – tiny negative particles in an atom answer 2 Name a particle responsible for charge?
What happens to an atom when it becomes negatively charged? It gains electrons answer 3

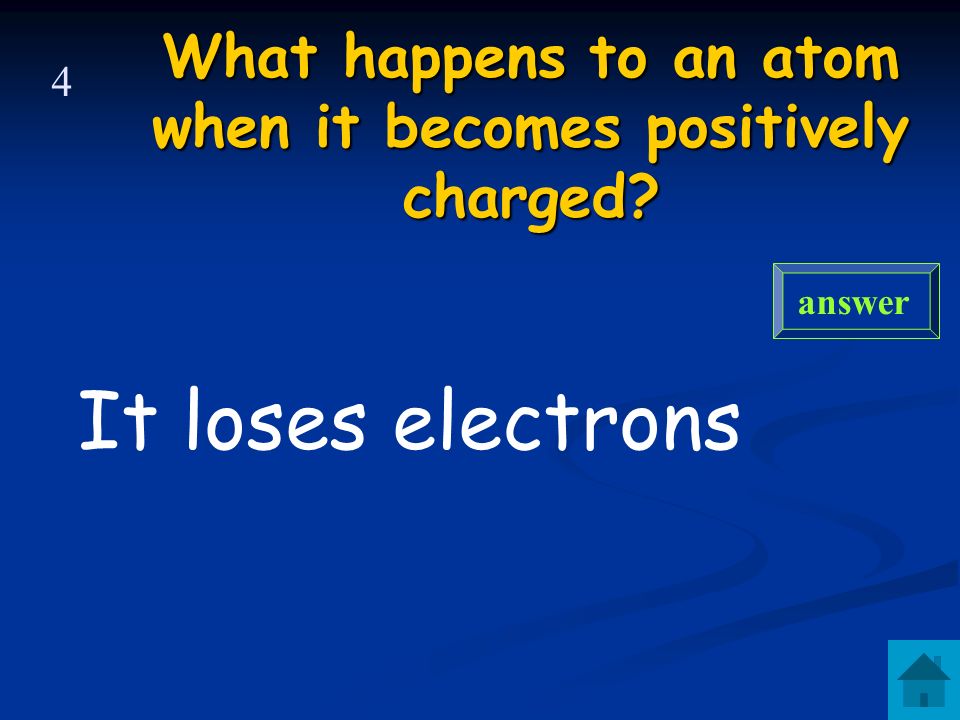

What happens to an atom when it becomes positively charged? It loses electrons answer 4

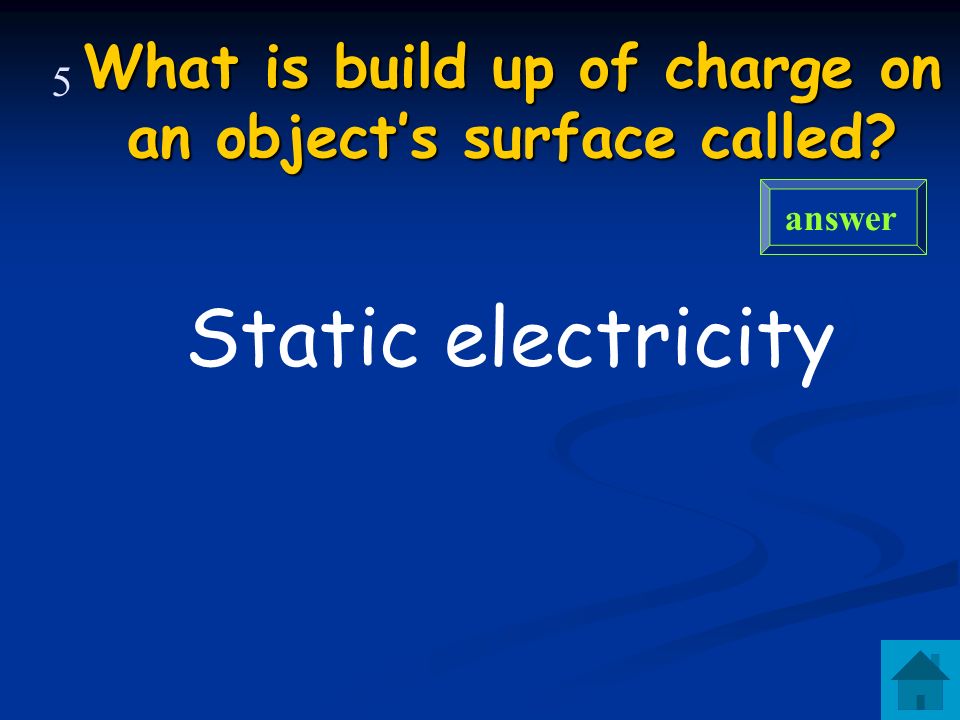

What is build up of charge on an object’s surface called? Static electricity answer 5
What is moving charge called? current answer 6
Why are component symbols used in circuit diagrams? Easier to draw and understand answer 7
Name the parts of the atom answer 8 Electron Nucleus (protons and neutrons)
Particle NameChargeLocation Proton Electron Neutron Complete the table? Positive Nucleus Negative Outside nucleus Neutral Nucleus answer 9
Electrical SymbolName of electrical component 10 answer Cell Battery Ammeter Variable resistor Bulb Lead Voltmeter Switch

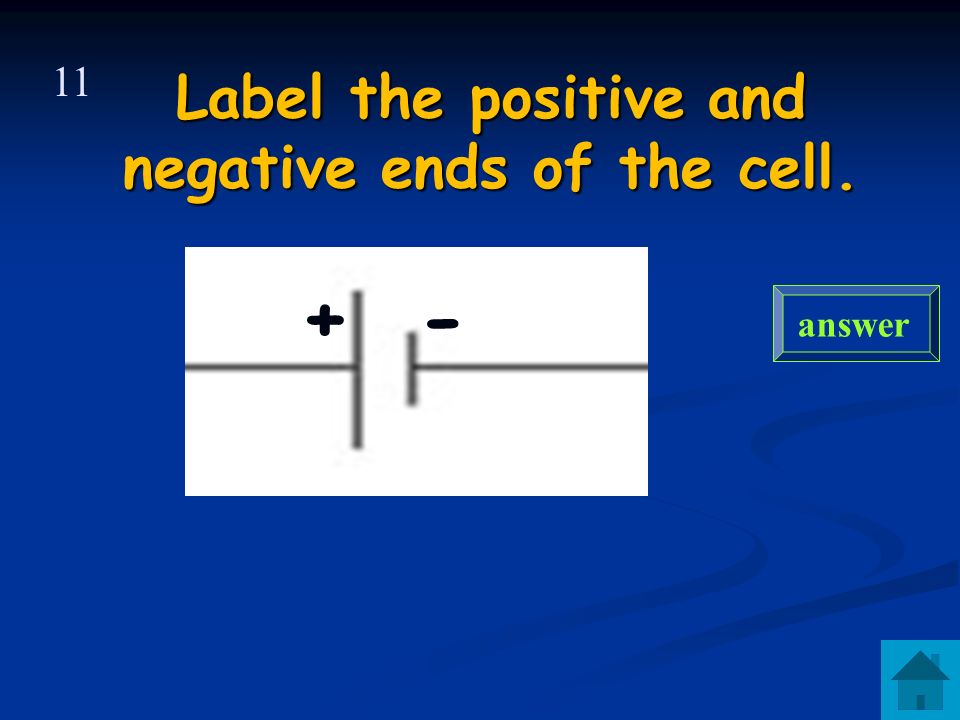

Label the positive and negative ends of the cell. + - answer 11

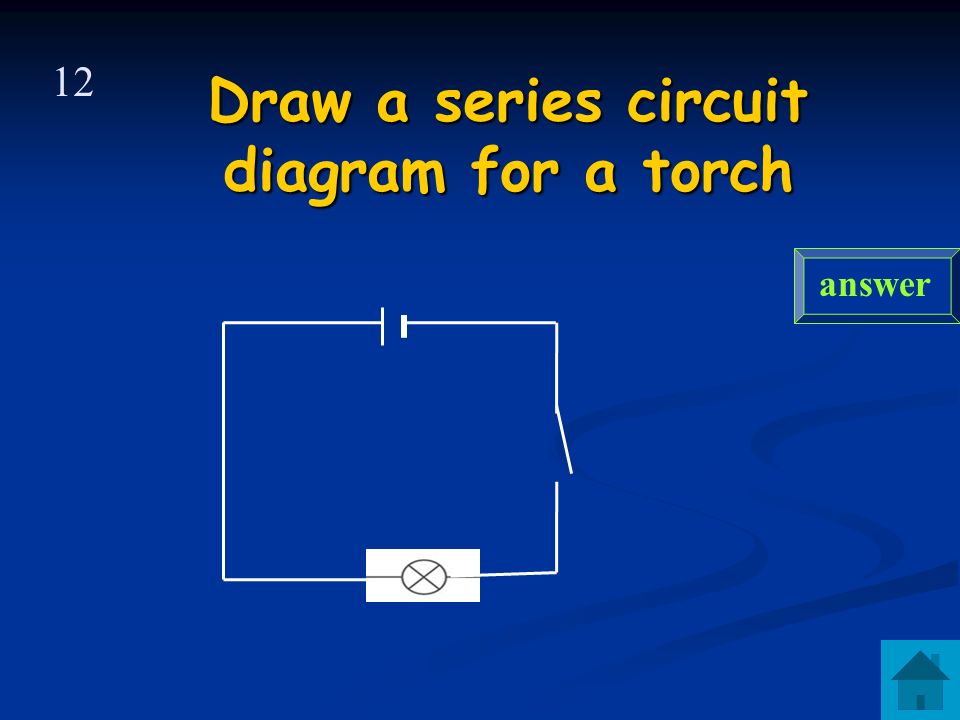

Draw a series circuit diagram for a torch answer 12

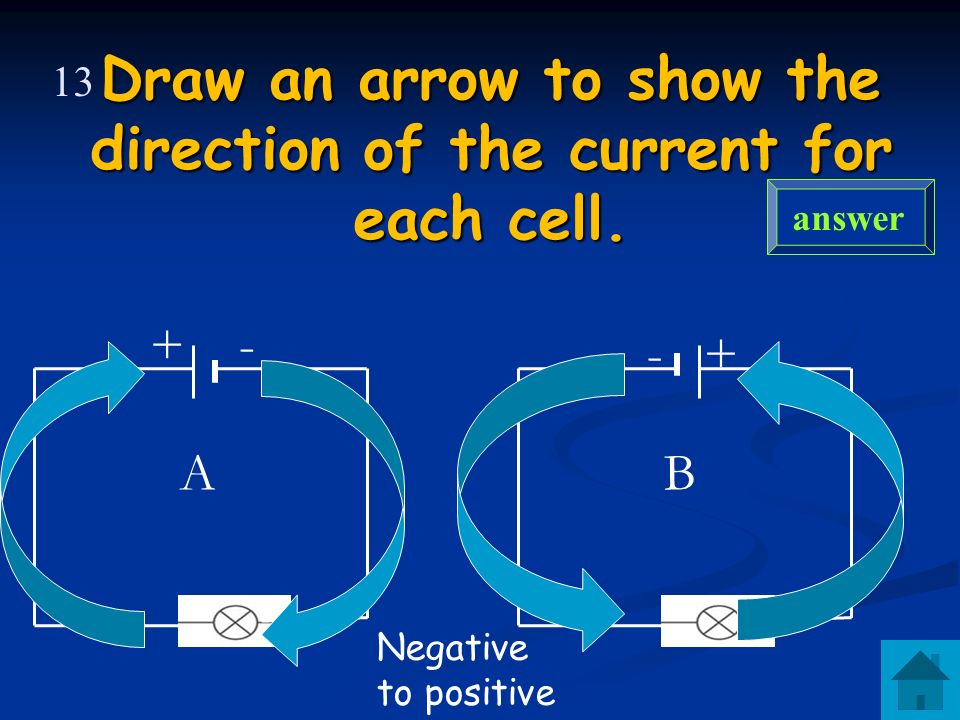

Draw an arrow to show the direction of the current for each cell. answer 13 AB + - - + Negative to positive
answer 14 Match the answer to the circuit. Bright Off Dim Very Bright Bright Very Bright (two cells) Dull (two bulbs) Off (cells wrong way round)

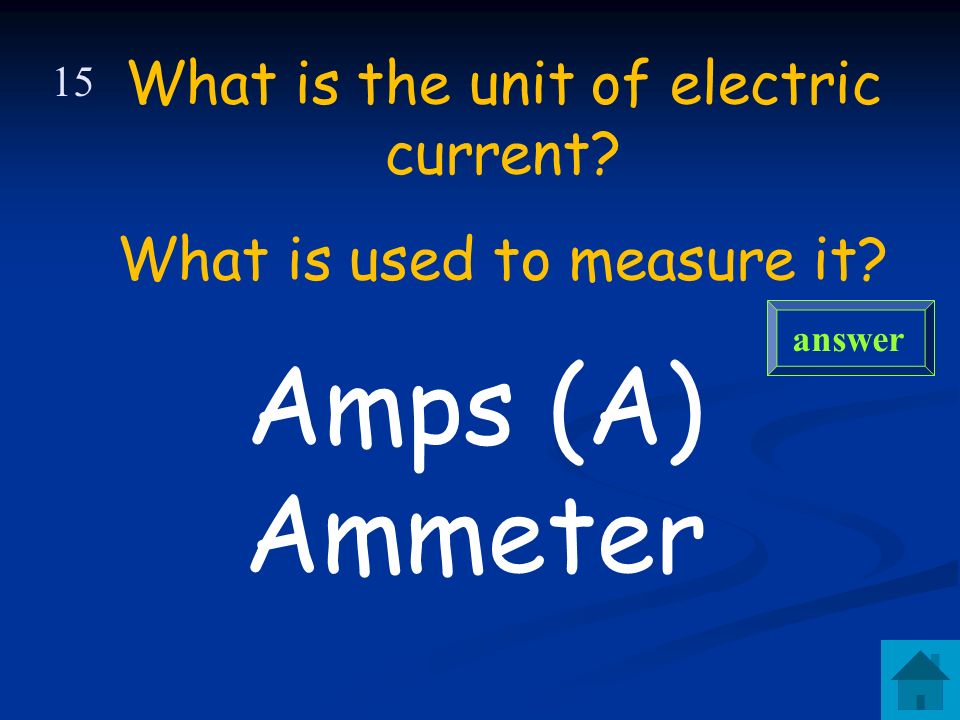

Amps (A) Ammeter answer 15 What is the unit of electric current? What is used to measure it?
What happens to a wire when a large current flows though it? It heats up due to resistance answer 16

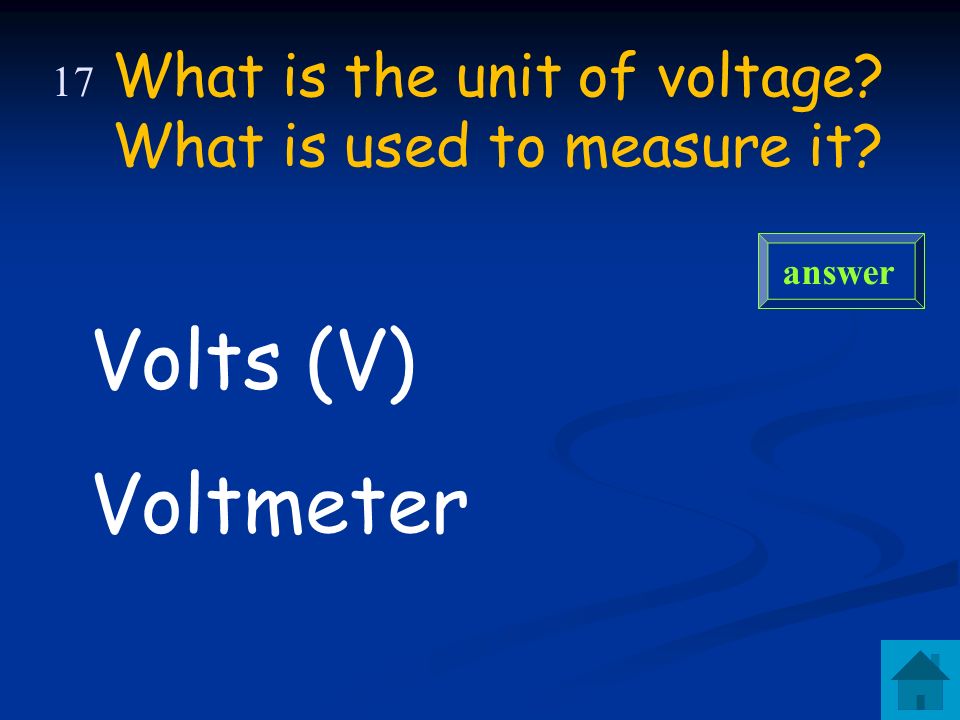

Volts (V) Voltmeter answer 17 What is the unit of voltage? What is used to measure it?
Name an appliance that uses resistance to produce heat. Oven, kettle, straighteners etc... answer 18
Name an appliance that uses variable resistance. Dimmer switch on a light Volume control answer 19
Name the safety device inside a plug. How does it work? Fuse It melts when too large a current flows answer 20
Label the plug answer 21 Earth Neutral Live fuse cable Cable grip
What is VOLTAGE? The energy supplied by the cell to the charges in the circuit answer 22

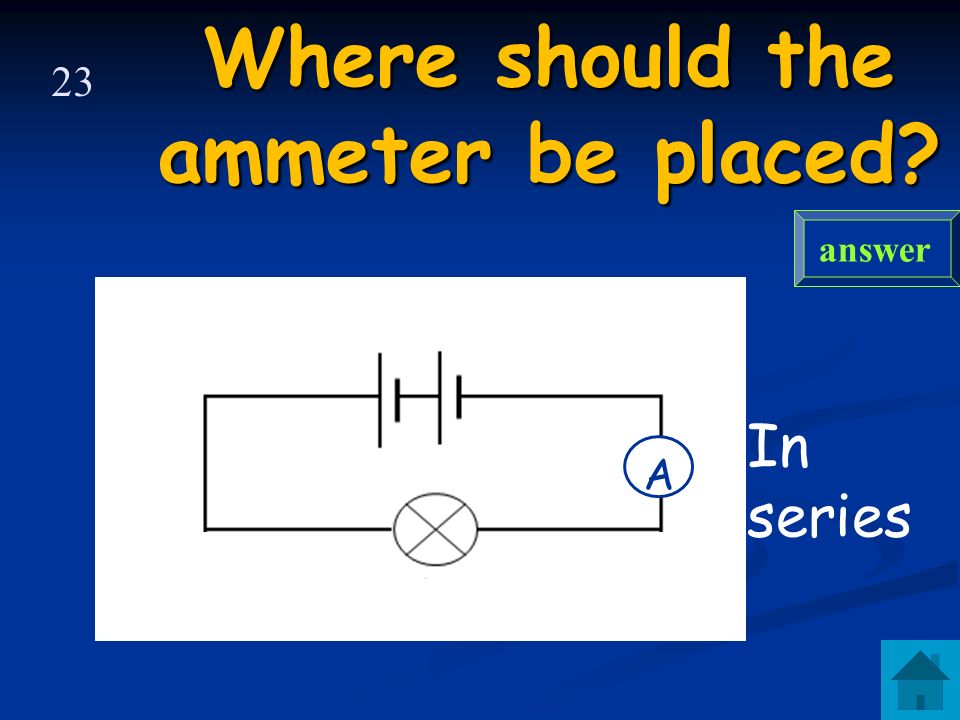

Where should the ammeter be placed? answer 23 A In series
Where should the voltmeter be placed? answer 24 V Across the component
What is the voltage across the bulbs? answer 25 Series Circuit Voltage of cell = Voltage of all components added together
What is the voltage across the bulbs? answer 26 Parallel Circuit Voltage of cell = Voltage of each component V V 3V V

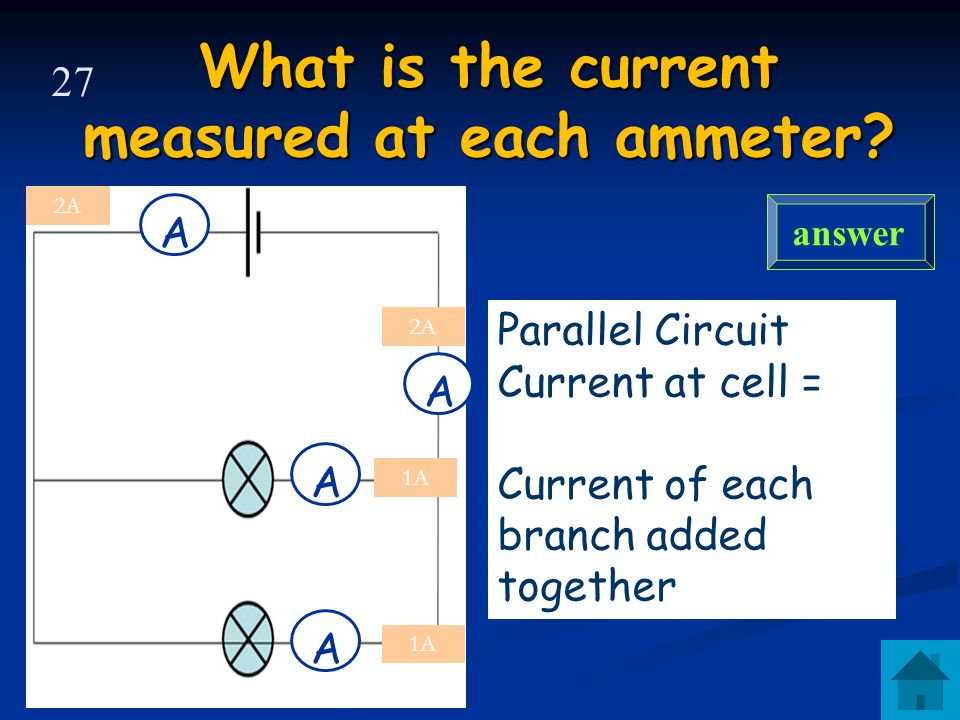

What is the current measured at each ammeter? 27 Parallel Circuit Current at cell = Current of each branch added together 2A 1A A A A A answer

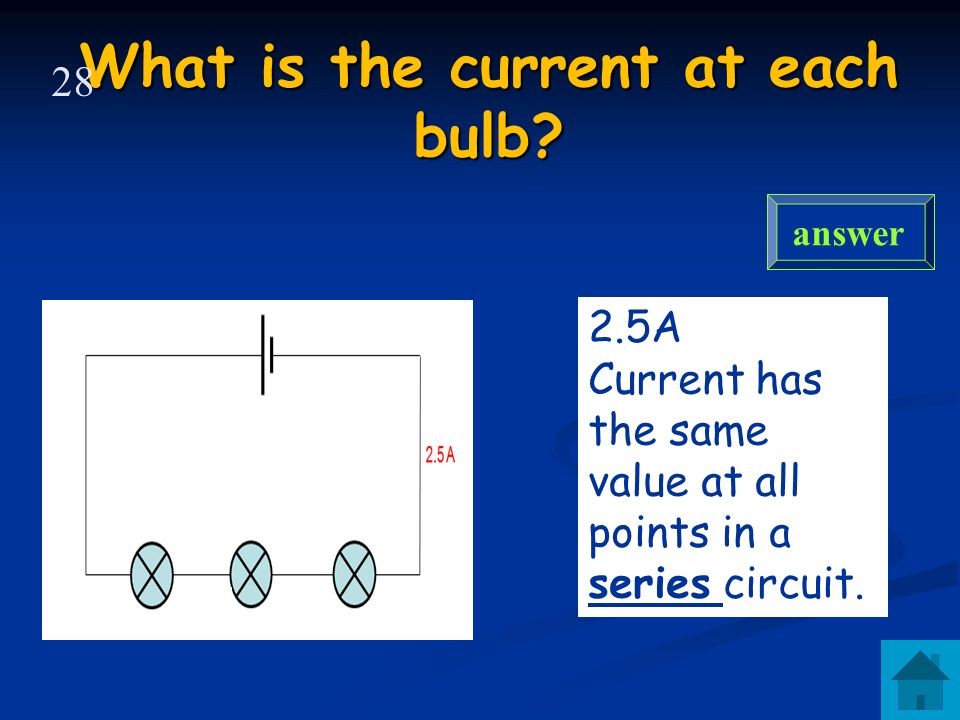

What is the current at each bulb? answer 28 2.5A Current has the same value at all points in a series circuit.
