1. An Analysis of IMAP Security CMPE 209 Presented By Divya Panchal Bepsy Paul Menachery

2. Agenda What is IMAP State Flow Diagram Advantages of IMAP over POP3 Analysis of IMAP Security Future of IMAP Security Conclusion

3. What is IMAP IMAP – Internet Message Access Protocol It is the most popular Internet Standard Protocol to retrieve email The other protocol is POP3 It will allow a client to access and manipulate electronic mail messages on server IMAP4version1 assumes a reliable data stream such as that provided by TCP When TCP is used IMAP4version 1 will listen on port 143

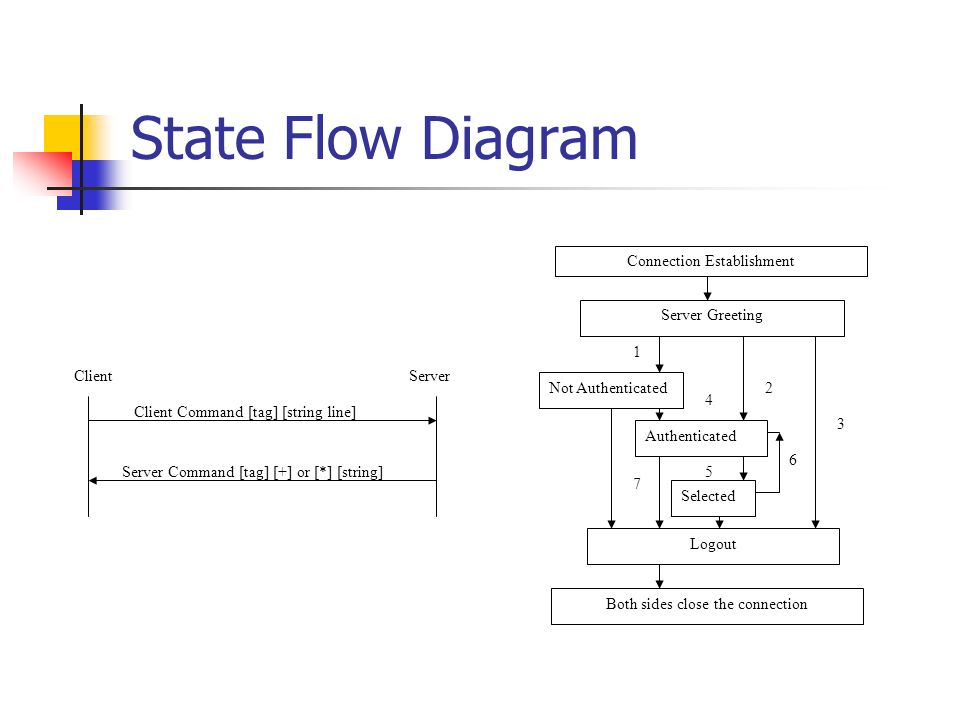

4. State Flow Diagram Not Authenticated Logout Both sides close the connection 1 2 3 4 5 6 7 Connection Establishment Server Greeting Selected Authenticated Client Client Command [tag] [string line] Server Command [tag] [+] or [*] [string] Server

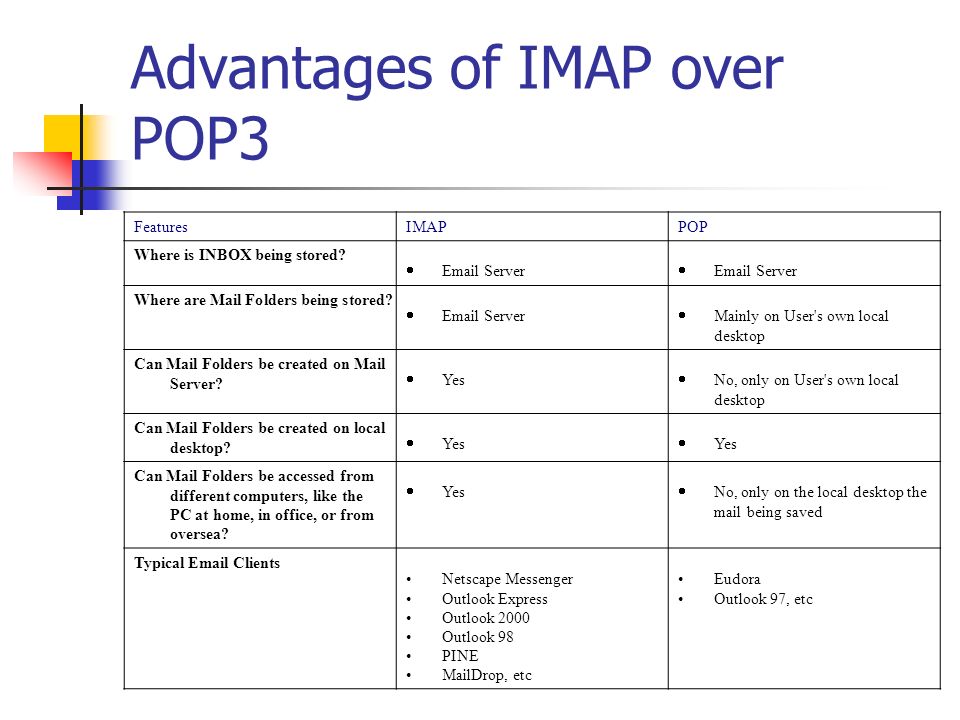

5. Advantages of IMAP over POP3 FeaturesIMAPPOP Where is INBOX being stored?  Email Server Where are Mail Folders being stored?  Email Server  Mainly on User's own local desktop Can Mail Folders be created on Mail Server?  Yes  No, only on User's own local desktop Can Mail Folders be created on local desktop?  Yes Can Mail Folders be accessed from different computers, like the PC at home, in office, or from oversea?  Yes  No, only on the local desktop the mail being saved Typical Email Clients Netscape Messenger Outlook Express Outlook 2000 Outlook 98 PINE MailDrop, etc Eudora Outlook 97, etc

6. Analysis of IMAP Security The basic IMAP sends username and pass word in clear To secure IMAP, the use of Kerberos was recommended as part of SASL proposal Another method is to use SSH for securing the IMAP messages. A perfect solution is to use SSL or SSL wrapper to encrypt both login information and data in the messages.

7. Analysis of IMAP Security (contd.) The restriction of LOGIN command usage Recommended use of STARTTLS Must used cipher suite - TLS_RSA_WITH_RC4_128_MD5 [TLS] Recommended cipher suite - TLS_DHE_DSS_WITH_3DES_EDE_CBC_ SHA [TLS]

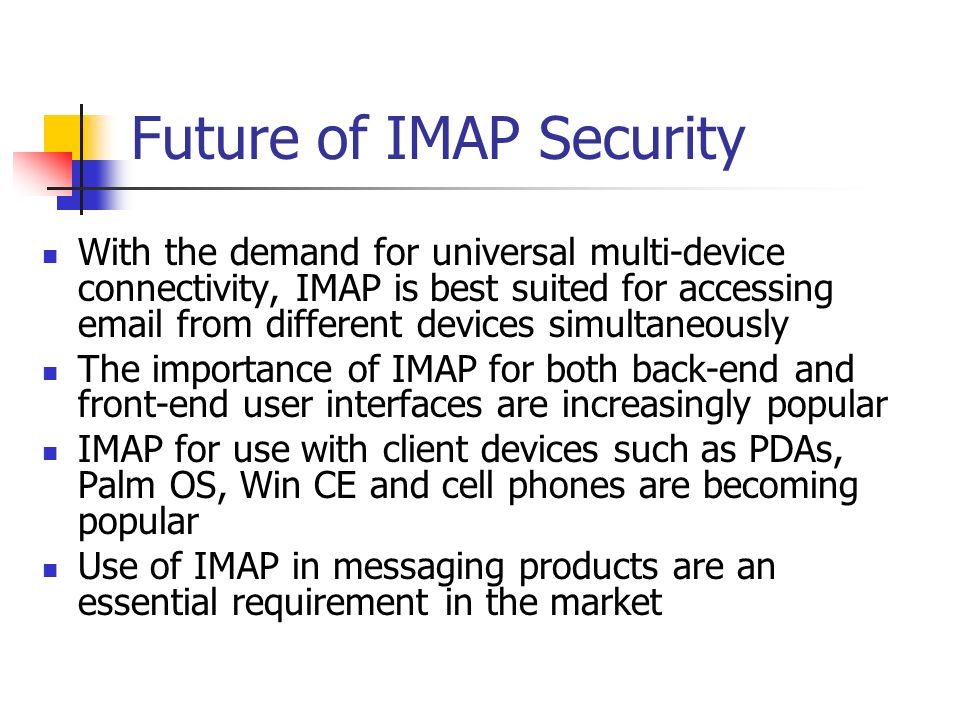

8. Future of IMAP Security With the demand for universal multi-device connectivity, IMAP is best suited for accessing email from different devices simultaneously The importance of IMAP for both back-end and front-end user interfaces are increasingly popular IMAP for use with client devices such as PDAs, Palm OS, Win CE and cell phones are becoming popular Use of IMAP in messaging products are an essential requirement in the market

9. Conclusion IMAP when used by itself is not secure IMAP used with secure mechanisms such as SSH, SSL or Kerberos is secure With the demand for universal multi- device connectivity, the future of IMAP is very promising

10. Refrences http://tools.ietf.org/html/rfc3501 http://en.wikipedia.org/wiki/Internet_Message_Acces s_Protocol http://en.wikipedia.org/wiki/Internet_Message_Acces s_Protocol http://www.ust.hk/itsc/email/tips/imap-or-pop.html http://www.coruscant.demon.co.uk/mike/imap/securi ty.html http://www.coruscant.demon.co.uk/mike/imap/securi ty.html http://security.fi.infn.it/tools/stunnel/index-en.html Managing IMAP, 1st Editionby Dianna Mullet; Kevin MulletDianna MulletKevin Mullet

11. Q &A
